E-Link proudly introduces the LNK-AIMC10GMP90, a compact Mini Industrial AI Smart Managed 10G PoE++ Fiber Media Converter designed for demanding industrial networking environments. Featuring a built-in voltage boost circuit optimized for solar-powered applications, the new device delivers stable high-speed connectivity while simplifying installation, monitoring, and maintenance.

Unlike conventional media converters, the LNK-AIMC10GMP90 combines the flexibility ofmanagednetworking with the simplicity of unmanaged deployment, giving engineers powerful diagnostic capabilities without requiring additional testing equipment.

Key Highlights:

1. AI Smart Management with Multi-Platform Access:

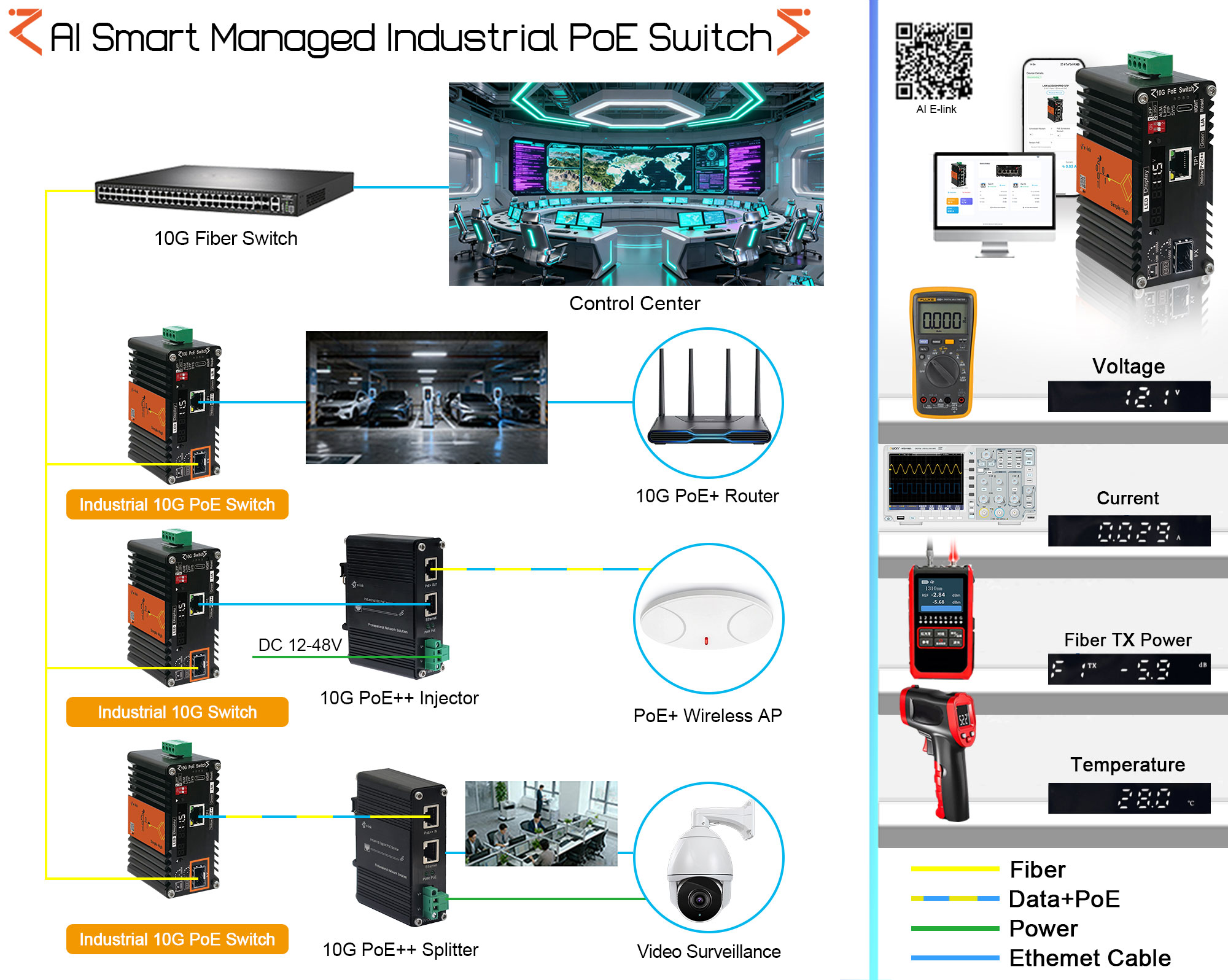

Powered by E-Link's self-developed intelligent management system, the LNK-AIMC10GMP90 supports Android App,PC Web UI, and a built-inLED display, allowing engineers to monitor and manage devices without additional testing tools.

2. Real-Time Diagnostics at a Glance:

One-click LED monitoring provides instant access to critical operating data, including voltage, current, internal temperature, Ethernet and fiber link speeds, PoE status, and comprehensive SFP DDM information such as TX/RX optical power.

3. 10G Industrial Connectivity with Advanced Protection:

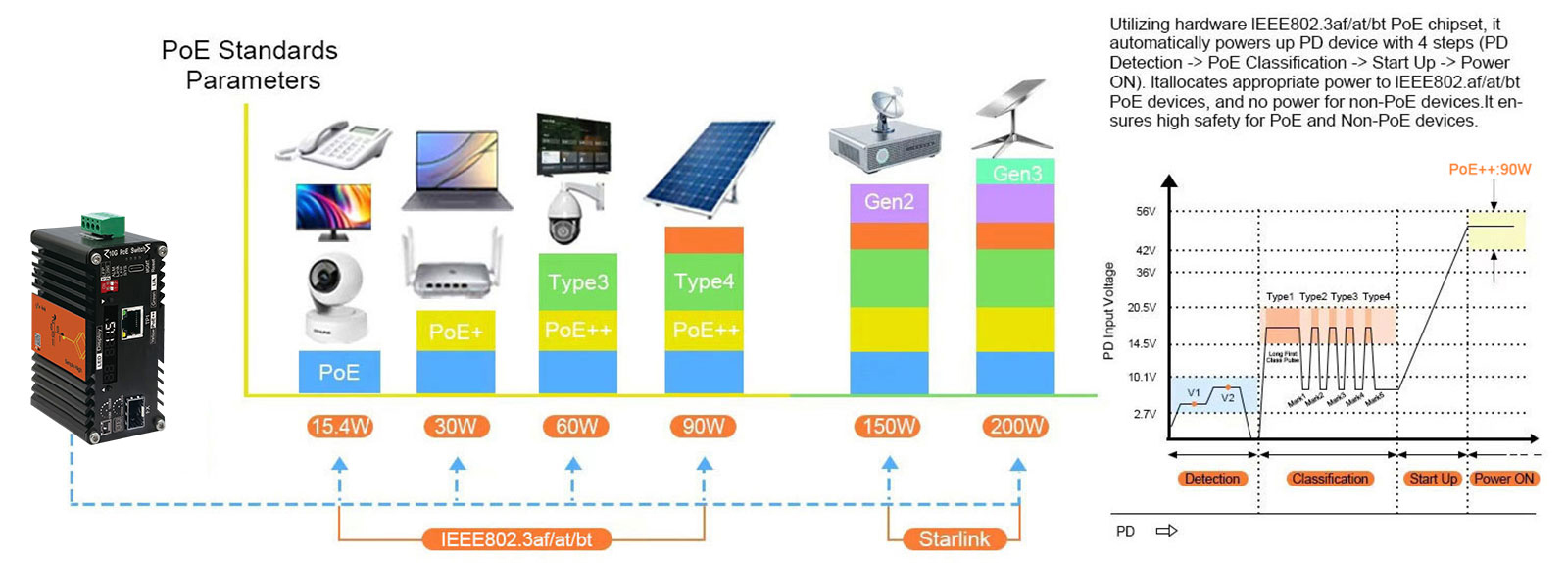

The converter features1× 10G PoE++ RJ45 portand1× 10G SFP+ fiber uplink, supportsIEEE 802.3af/at/bt,Link Fault Pass-Through (LFP),6KV surge protection, and optional compatibility withStarlink Gen 2 and Gen 3deployments.

4. Built for Harsh Industrial Environments

AnIP40 aluminum housing,-40°C to +75°Coperating temperature, and dual redundant power inputs ensure reliable 24/7 operation in demanding industrial applications.

Note: Power supply is sold separately. Recommended option: 120W /48V 2.5A open‑wire terminal power adapter. Cat5e or higher‑grade Ethernet cable required. Max cable reach:100m for Gigabit speed; up to 250m for 10Mbps links.
