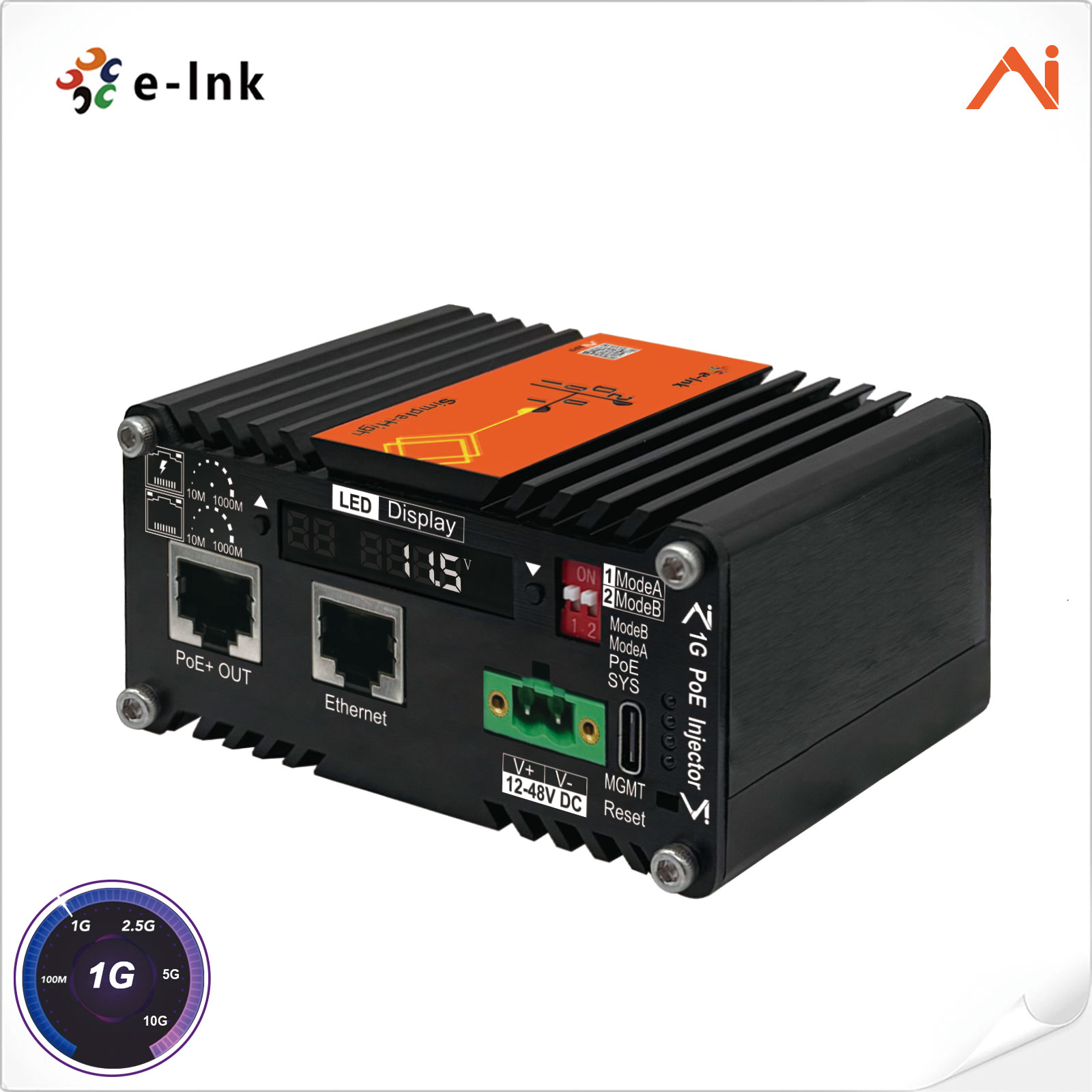

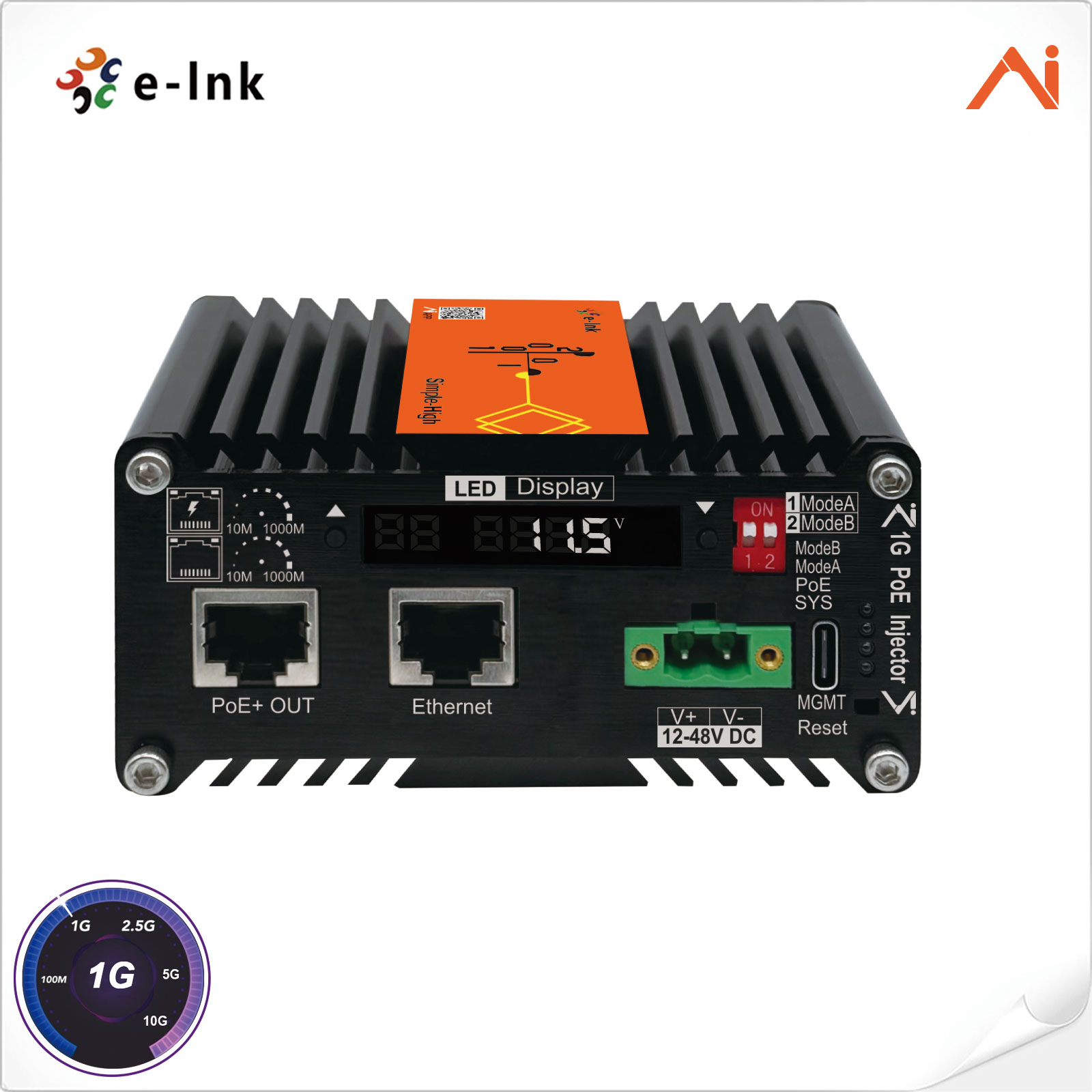

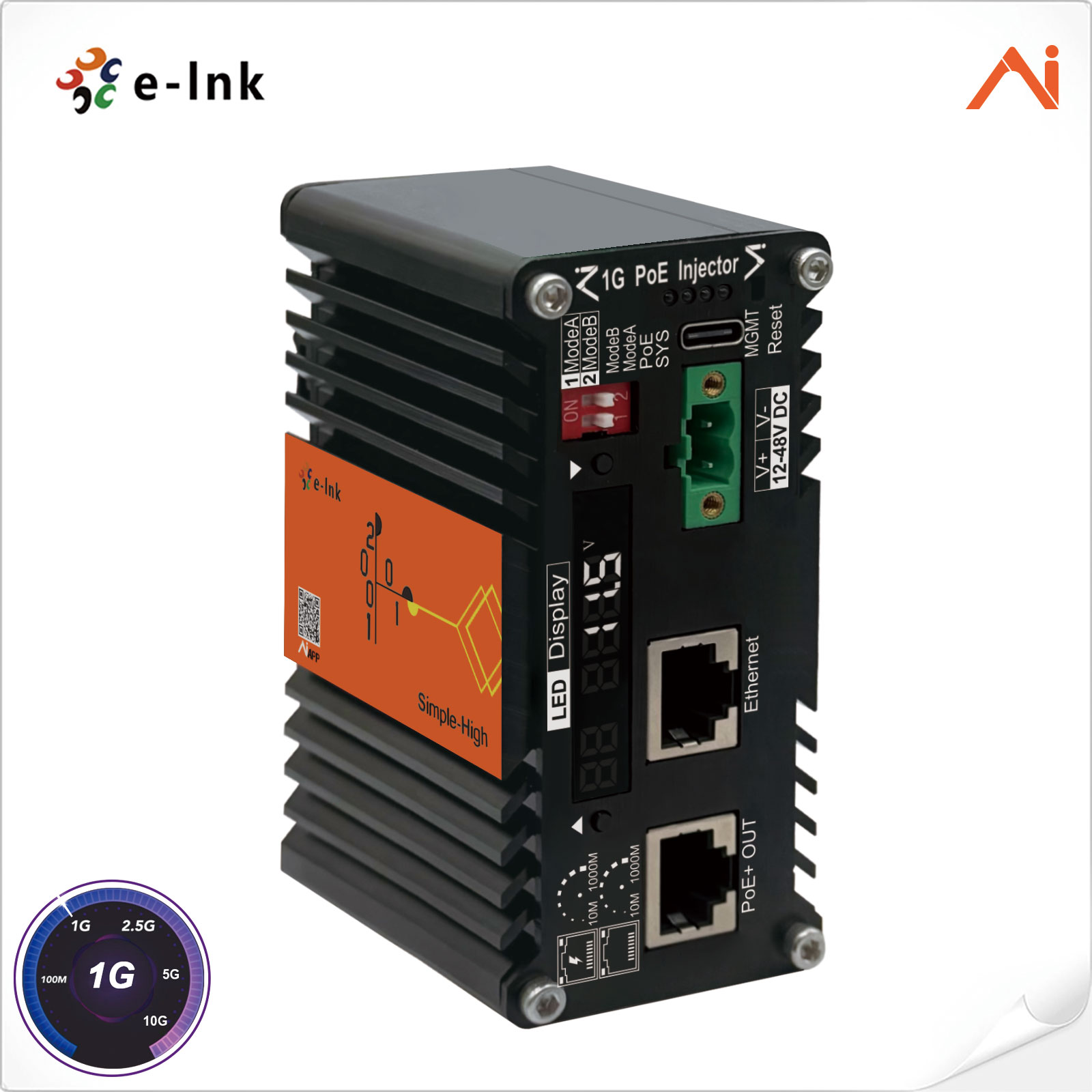

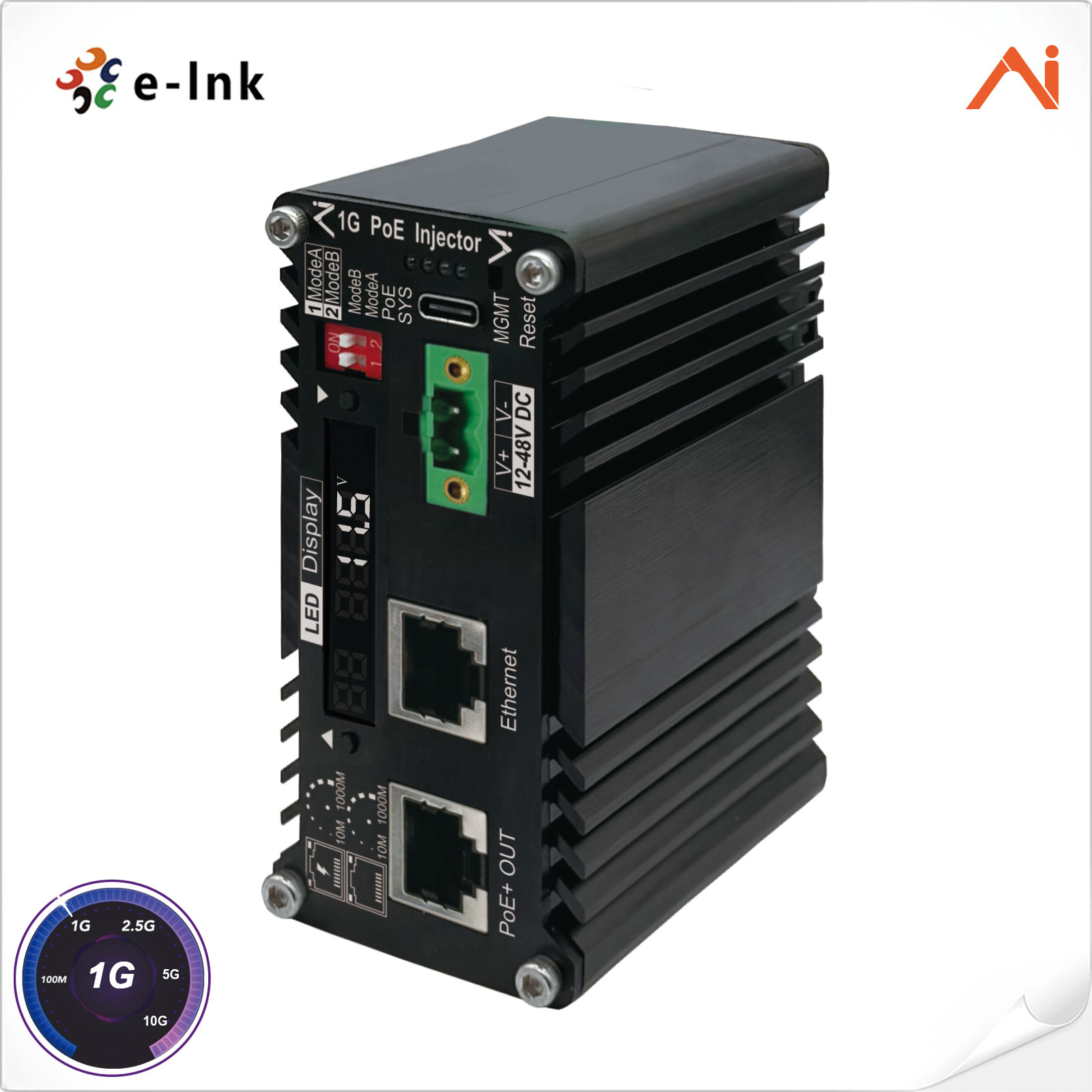

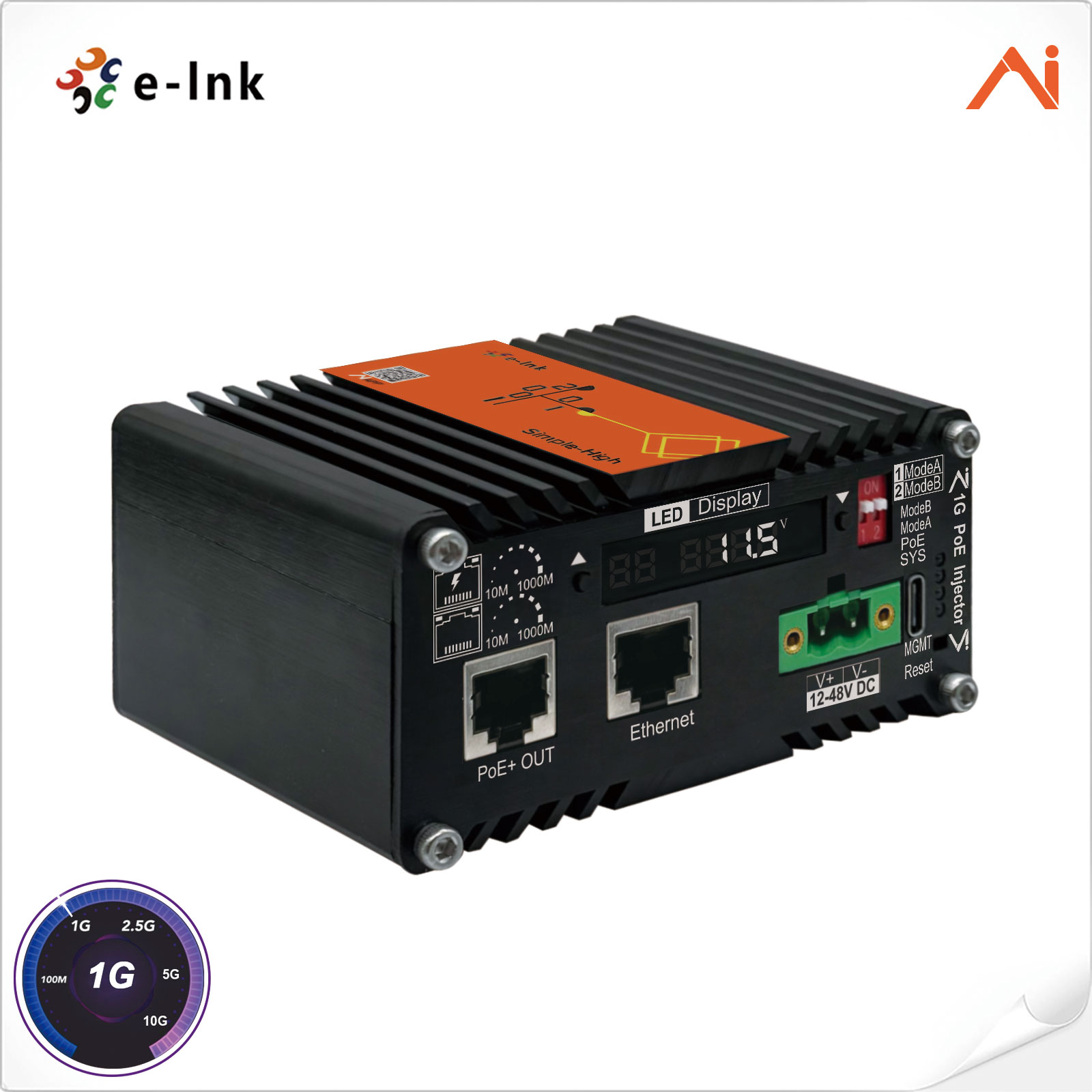

Industrial AI Smart Managed PoE+Injectorwith Voltage Booster

Access Mode

10/100/1000BASE-T RJ45to 10/100/1000BASE-T RJ45 PSE IEEE802.3af/at

Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

Switching Capacity

10Gbps/non-blocking

PC (Support MacOS, Windows)

MacOS Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Windows Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Mobile App(Support Android,Not Support iOS)

Mobile Phone APP(Android)

Support all Android Mobile Phone and Android Tablet

Mobile iPhone APP(iOS)

Not Support iPhone or iPad

AI Smart Managed Functions

Service Board Status

Temperature

Voltage

Current

System Status LED

Mode B

Mode A

PSE

SYS

RJ45 Port Status

PSEStatus

PSE Active Pairs

PSE Supply Voltage

PSE Power Consumption

Pair A/B- Switch

Pair A/B-State

Pair A/B- Class

DIP Switch

DIP1

Mode A

DIP2

Mode B

Restart PoE

Support

Scheduled Reset

Support

Port PoE Scheduled Restart

Support

Interface port

Ethernet Port

1-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

1-port 10/100/1000BASE-TRJ45Support IEEE802.3af/at

Cable: Cat 5e or above;

Distance: ≤100 metersat1000M data rate, ≤250 metersat10M data rate

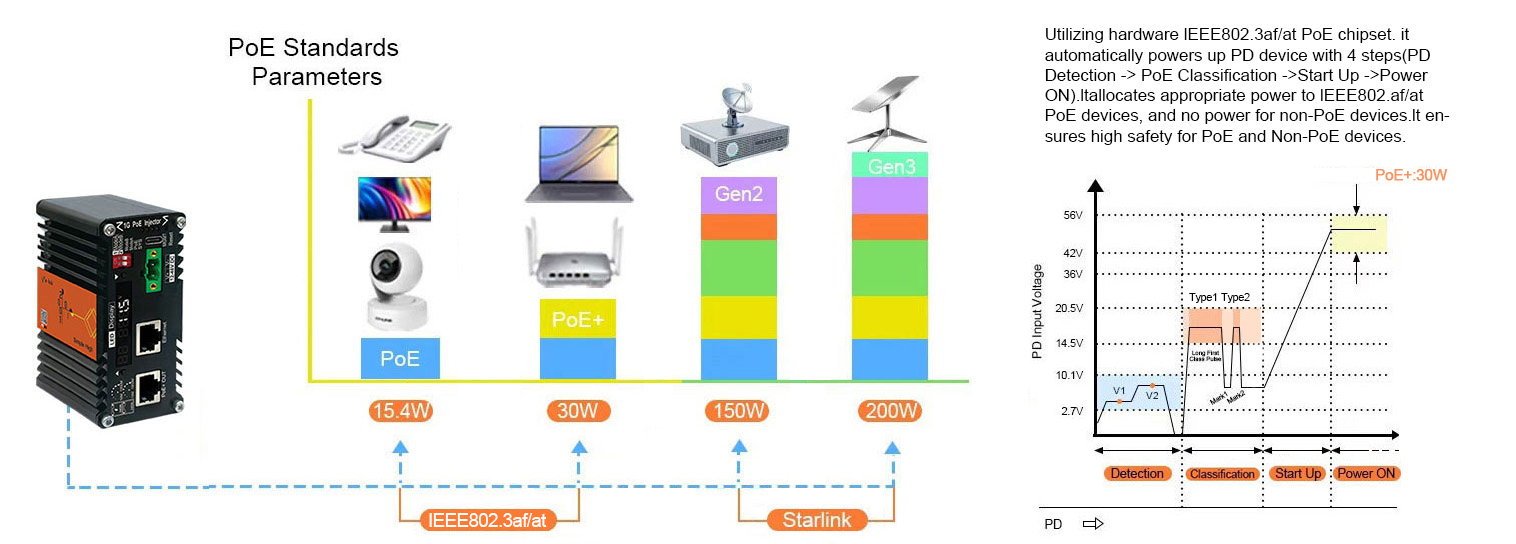

PoE (Power over Ethernet)

Standard

IEEE 802.3af/at PoE+ PSE (af:15.4W,at:30W)

PoE Power Output

30Watts max.

Power Pin Assignment

End-span + Mid-span:1/2(+), 3/6(-);4/5(+),7/8(-)

PoE Budget

Up to30-watt PoE budget (9-54VDC)

PoE Power Supply Type

802.3af/at, End-span + Mid-span(If need passive PoE please contact customer service)

PoE Mode

Compatible withMode A and Mode B(Mode A and Mode B switchable via

Management interface)

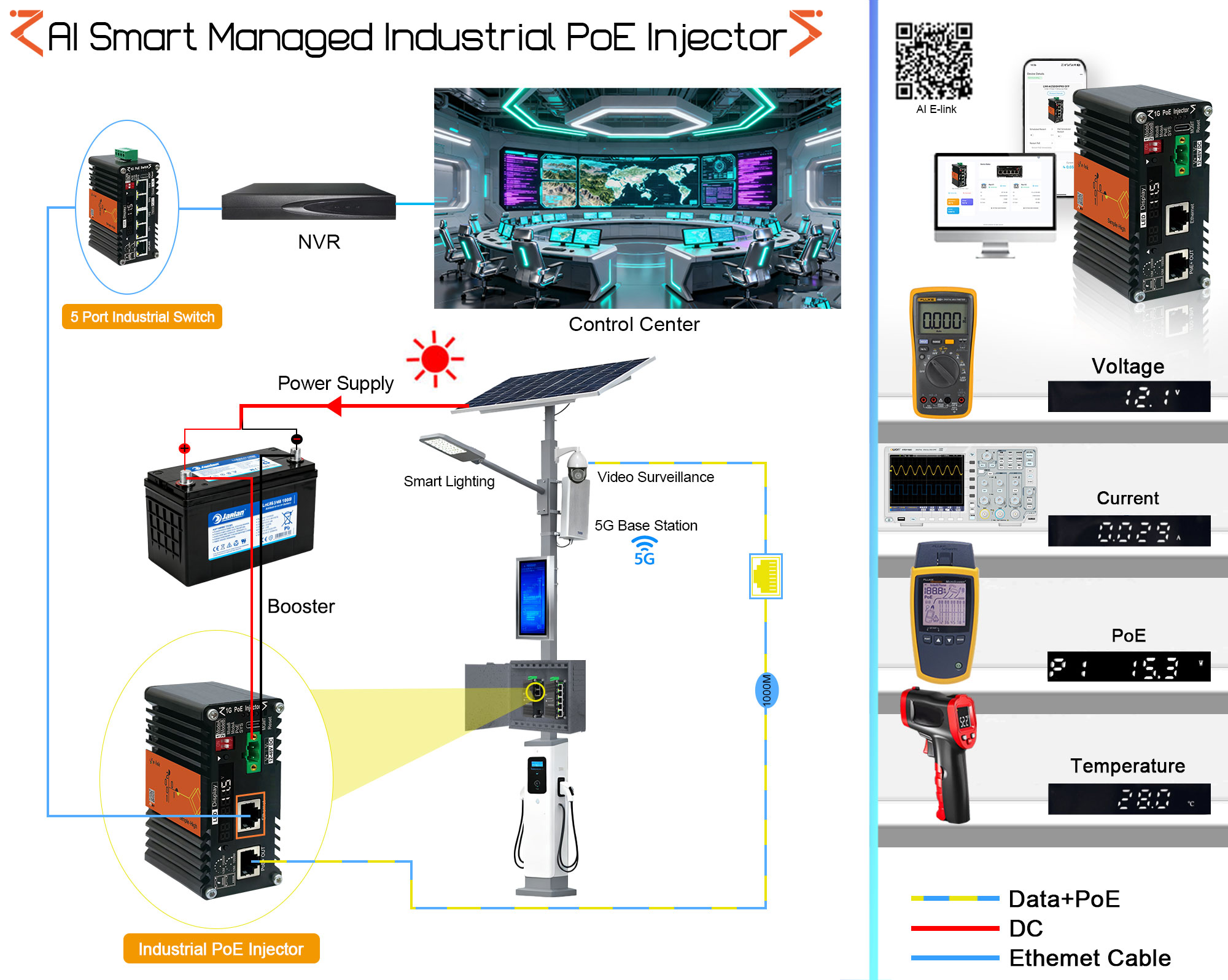

Voltage Booster

DC 9-12V Input

PoE 48VOutput,       max30W

DC 19-24V Input

PoE 48VOutput,       max30W

DC 24-36V Input

PoE 48VOutput,       max30W

DC 48-54V Input

PoE 48VOutput,       max30W

Electrical and Mechanical

Input Power

9~54V DC,2-pin terminal block

Power Consumption

5W Max. (When PoE not used)

Dimensions (W x D x H)

98 x 67x 46 mm

Weight

300g

Casing

Aluminum Case

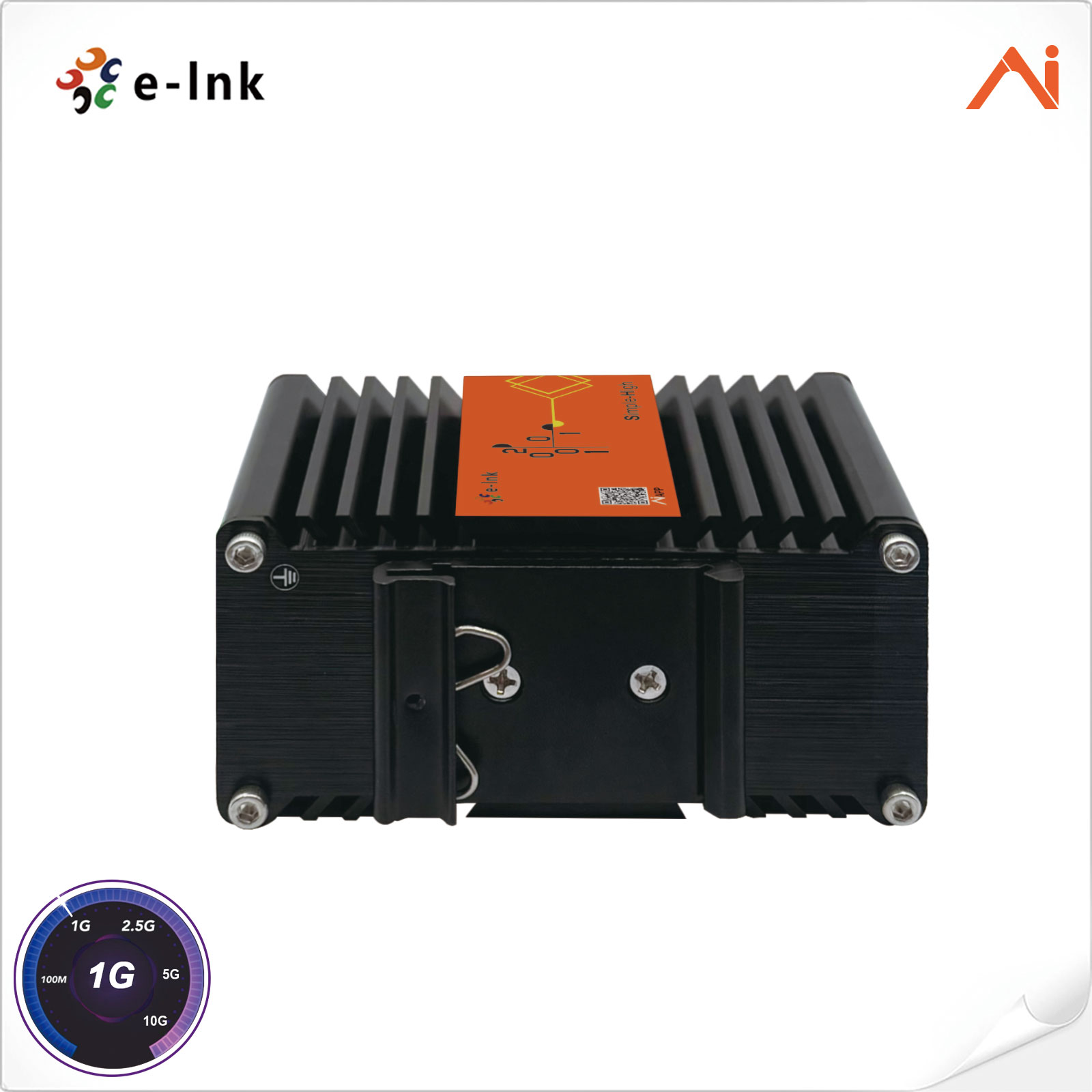

Mounting Options

DIN-Rail

LED Indicators

Mode B

Green Solid On:Mode B on

Mode A

Green Solid On:ModeA on

PoE

Yellow LED Solid On:Connected PD

Yellow LED Off: Not connected PD

SYS

Green LED Blinking: Operating normally

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
