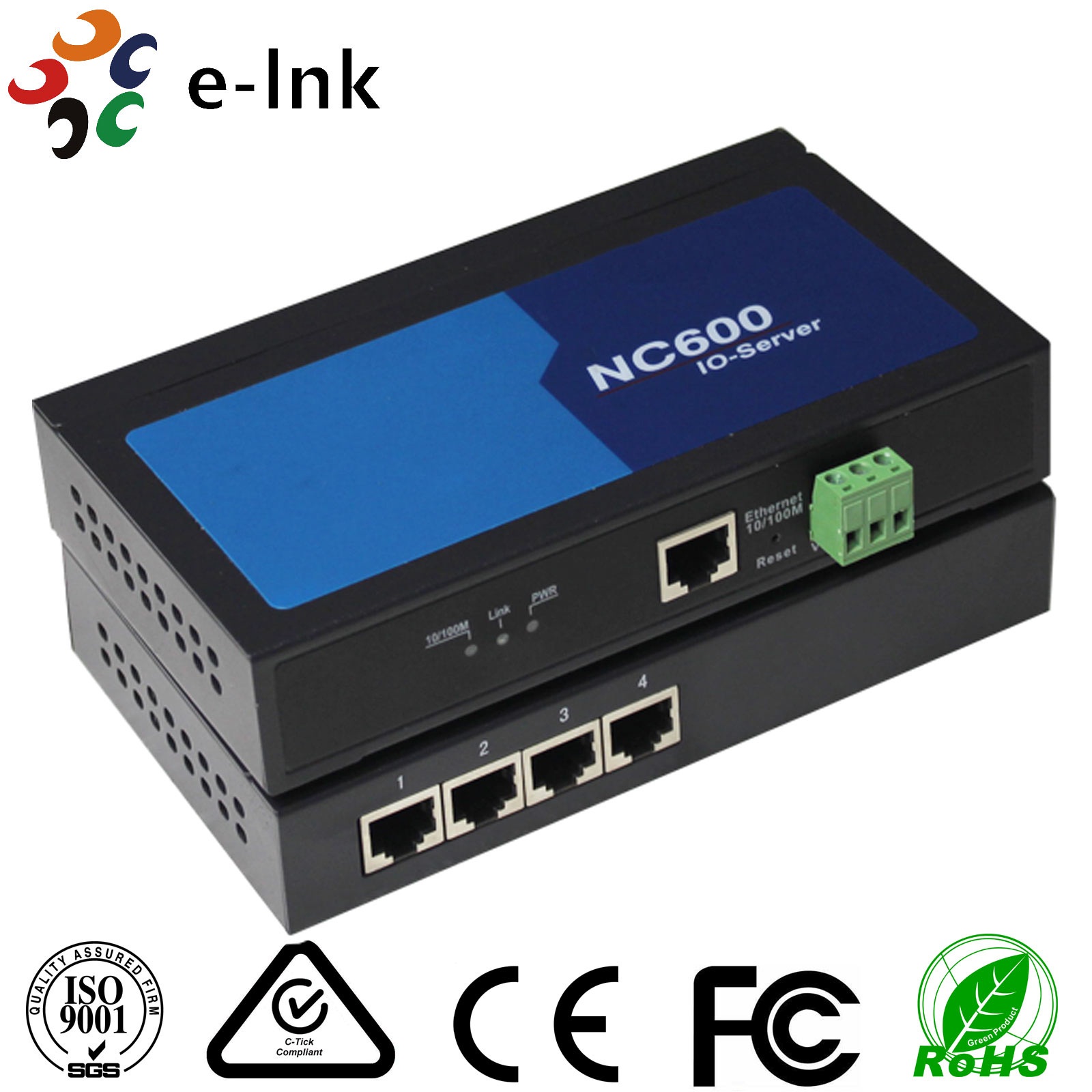

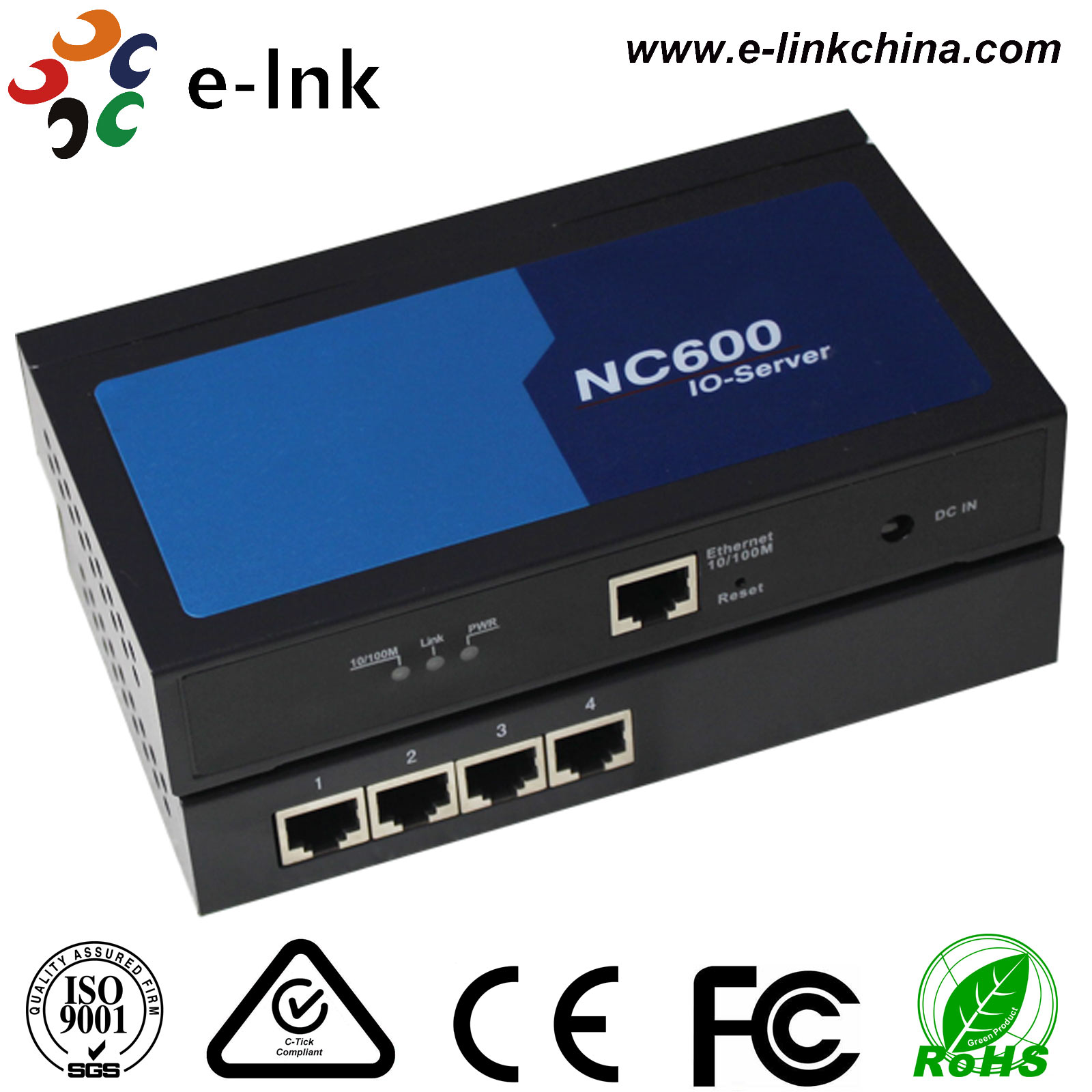

4-Port RS232/RS422/RS485 Serial Device Server
Model:LNK-NC604 Series
► Following TCP/IP standard
► 10/100M auto-sensing Ethernet
► 4 serial ports supporting RS-232/422/485
Overview
The LNK-NC604 is a serial port devices connected to the ability of one serial ports connected to the server, for the RS232/422/485 serial port types with 10/100M Ethernet, can centralized manage the dispersed serial devices, the host through the network and make them are simple, convenient. Support HTTP, TCP, UDP, ARP, ICMP, DNS and DHCP protocol, supports Windows Native COM and network interruption automatically restore and connect. In addition, powerful management configuration tool based on Windows platform and the WEB management interface, step by step to guide users to supervise and control the equipment configuration, all the equipment can be achieved through the network or serial port, supported the gateway, routing the communication, easy to set up the IP address, Server and Client mode, packet size etc. Through a simple setting can be achieved a serial port devices connected to the Internet immediately.Features
► Following TCP/IP standard.
► 10/100M auto-sensing Ethernet
► 4 serial ports supporting RS-232/422/485
► Built-in 15 kV ESD surge protection for all serial signals
► Supporting modes: TCP realport/UDP realport/ Multi screens TTY/PPP dialout/PPP daemon/Line printer daemon/MCP/ Simple UDP/Group realport
► Configure via Telnet/Web
► Wide DC Input Range (DC5/12/24/48V)option
► Dimension(mm): 160(L) x 89(W) x 29(H)Technical Indexes
|
Items |
Description |
|
CPU |
32bit,100 MHZ |
|
Memory |
8M |
|
Ethernet interface |
Number of Ports:1 Speed:10/100 Mbps, auto MDI/MDIX Connector:8-pin RJ45 Magnetic Isolation Protection: 2.4 kV built-in Default IP address:192.168.0.233 |
|
Serial interface |
Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF Baudrate: 300bps to 460.8 kbps |
|
Serial Line Protection |
5 kV ESD protection for all signals Terminator for RS-485: 120 Ω |
|
Software |
Network Protocols: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP |
|
Configuration Options: Web Console, Telnet Console, Windows Utility |
|
|
Operating Mode: TCP realport, UDP realport, Multi screens TTY,PPP dialout,PPP daemon/Line printer daemon/MCP/ Simple UDP/Group real port |
|
|
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Real TTY Drivers: Linux 2.4.x, 2.6.x |
|
|
Storage Temperature/Humidity |
-10℃ - 80℃/ 5% -90% RH(no condensation) |
|
Physical Characteristics |
Housing: Meta |
|
|
Dimensions: Without mounting kit: 160 x 89 x 29 mm With mounting kit: 160 x 89 x 29 mm |
|
|
Operating Temperature: Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature: -40 to 75°C (-40 to 167°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
|
Power |
Input Voltage: 5 / 12 /24/48VDC, Default:DC5V/2A |
|
Warranty |
5 years |
- Download FileName：E-link LNK-NC604B Series 4Ch RS-232 422 485 to Ethernet Server Datasheet V1.0.pdf Size： 405KB
Ordering Information
|
Model |
Description |
|
LNK-NC604B |
4xRS232/422/485,1x10/100M Ethernet port 4-port RS232/422/485 Device Server,15 KV ESD protection RS232/422/485 is terminal interface |
|
Notes |
DC 5V/12V/24V/48V Power supply, you can choose 30cm RJ45 to DB9,You can choose RS232/422/485 is RJ45 or Terminal Interface |
