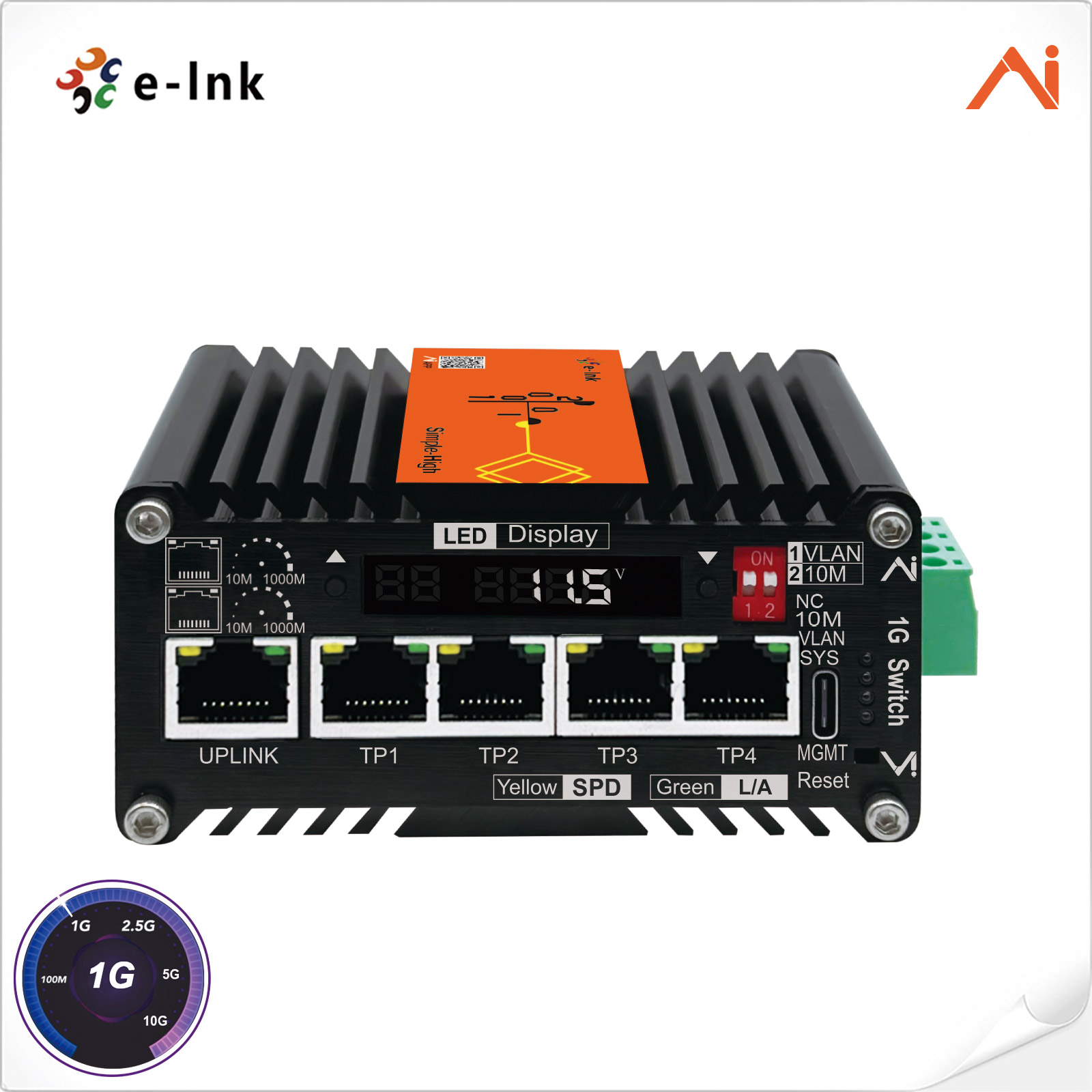

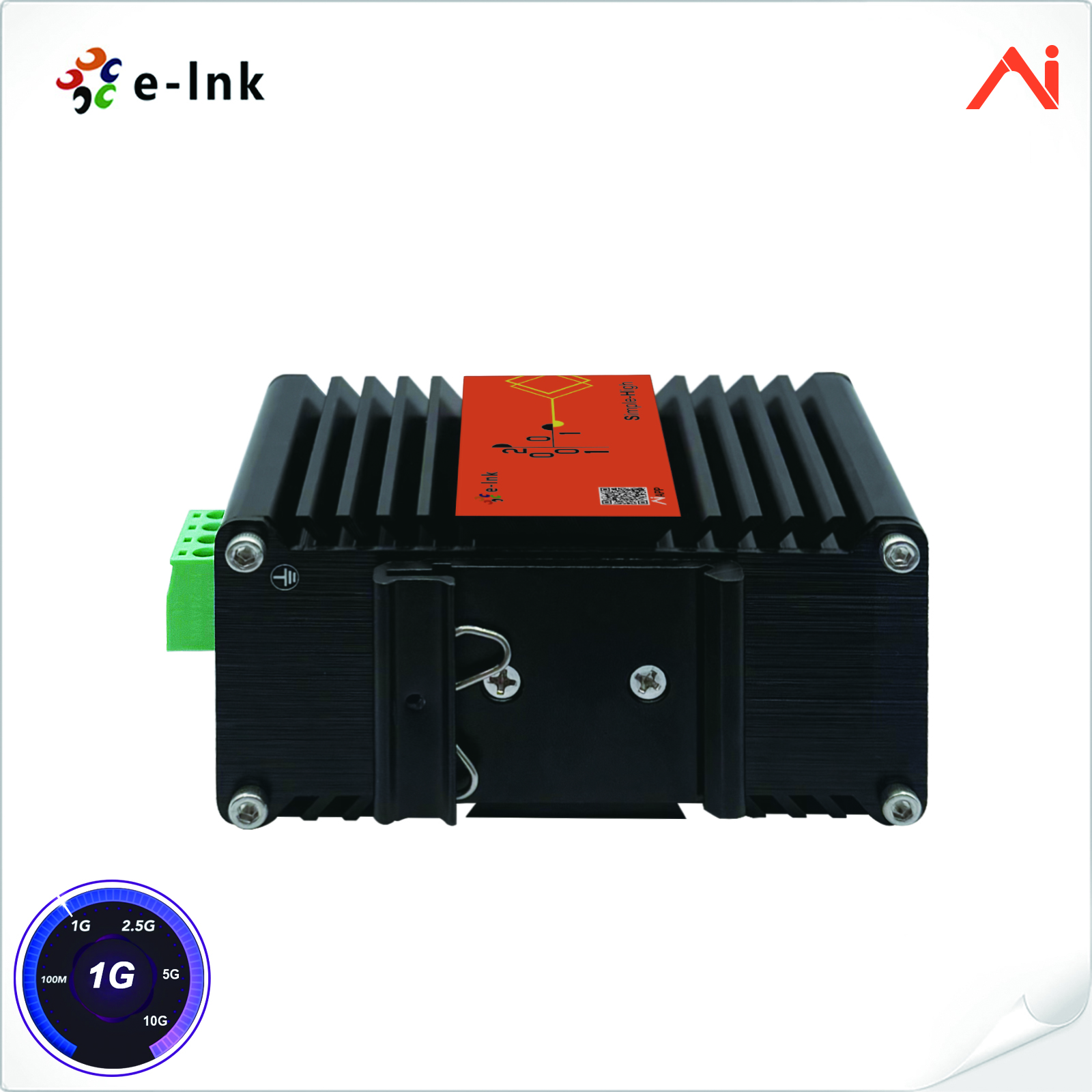

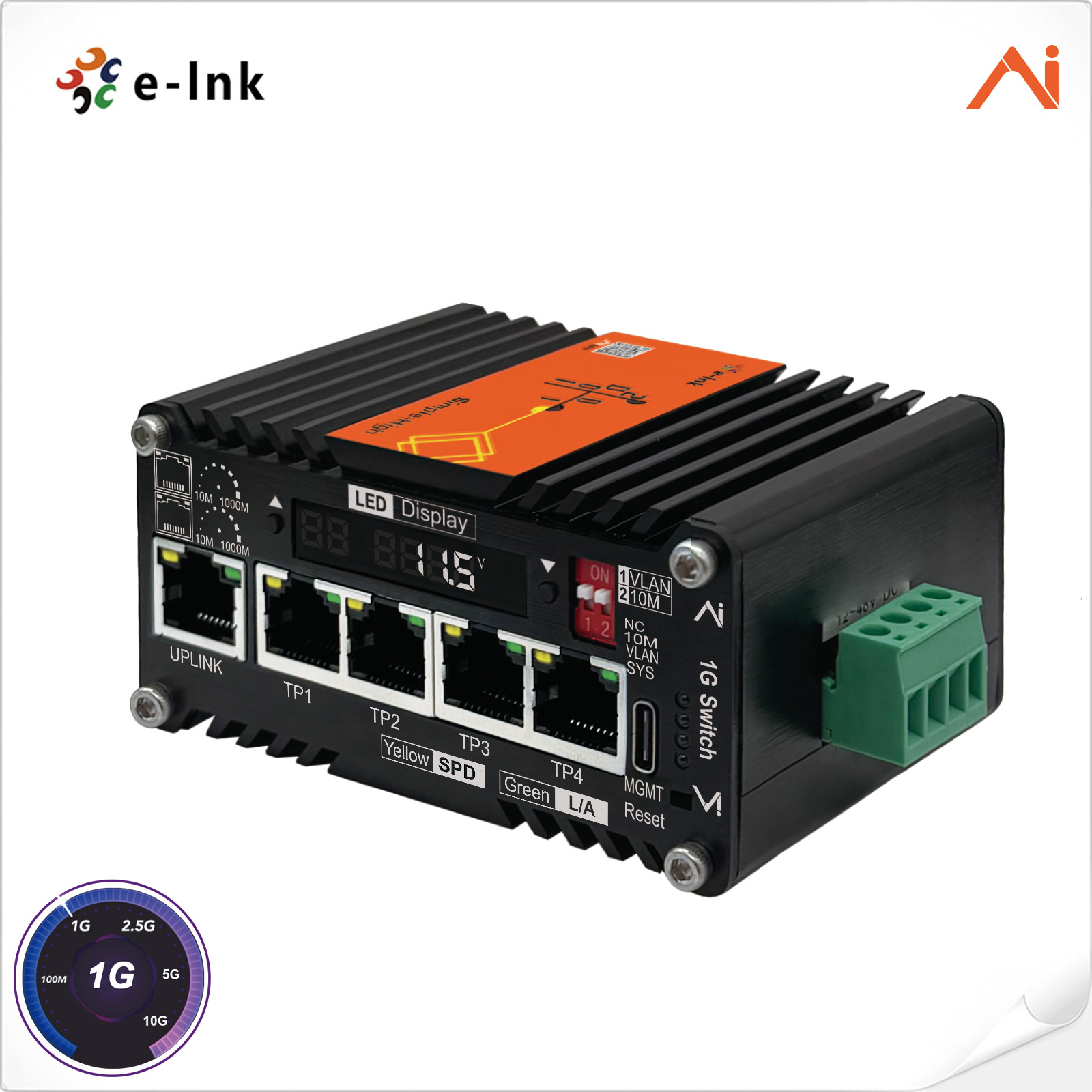

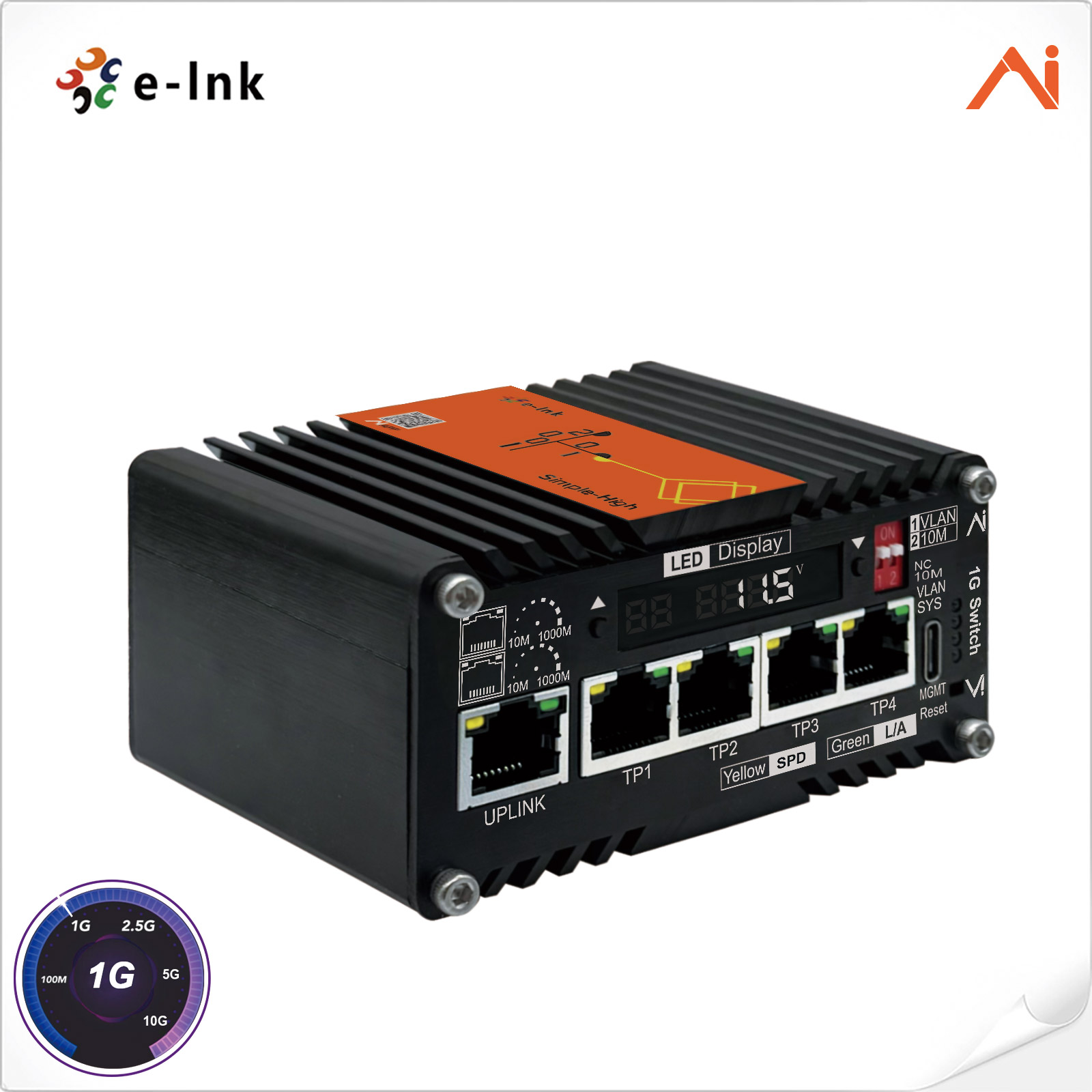

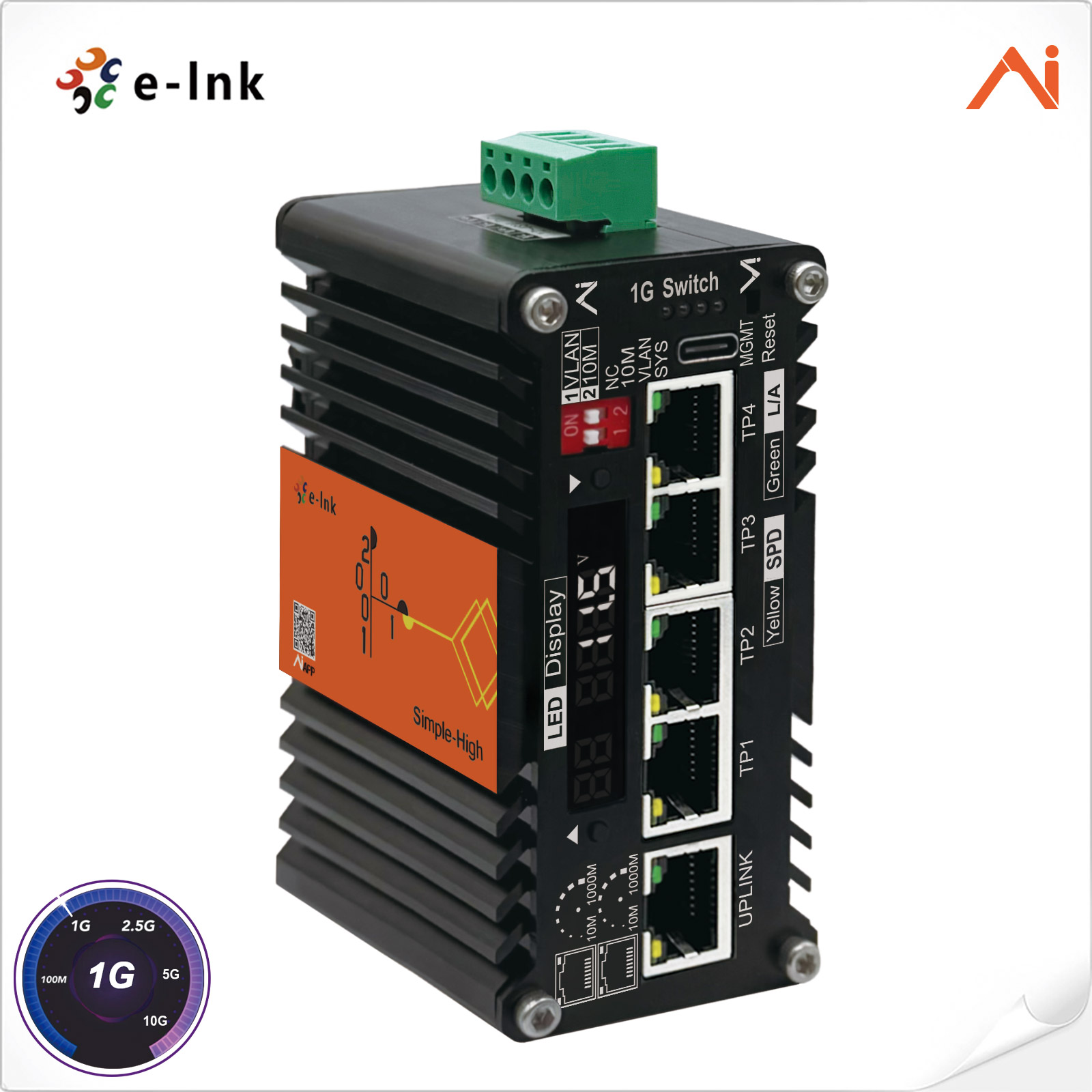

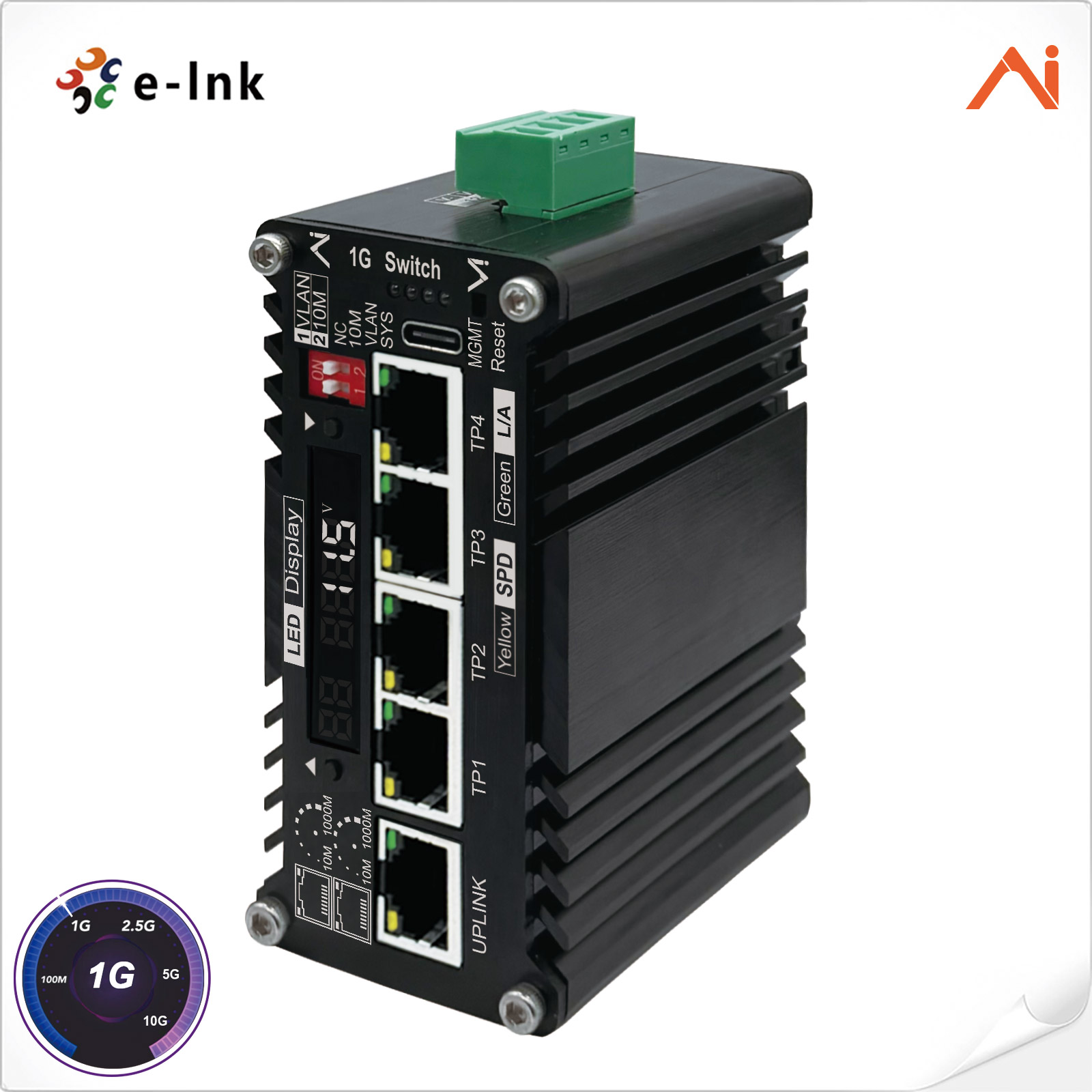

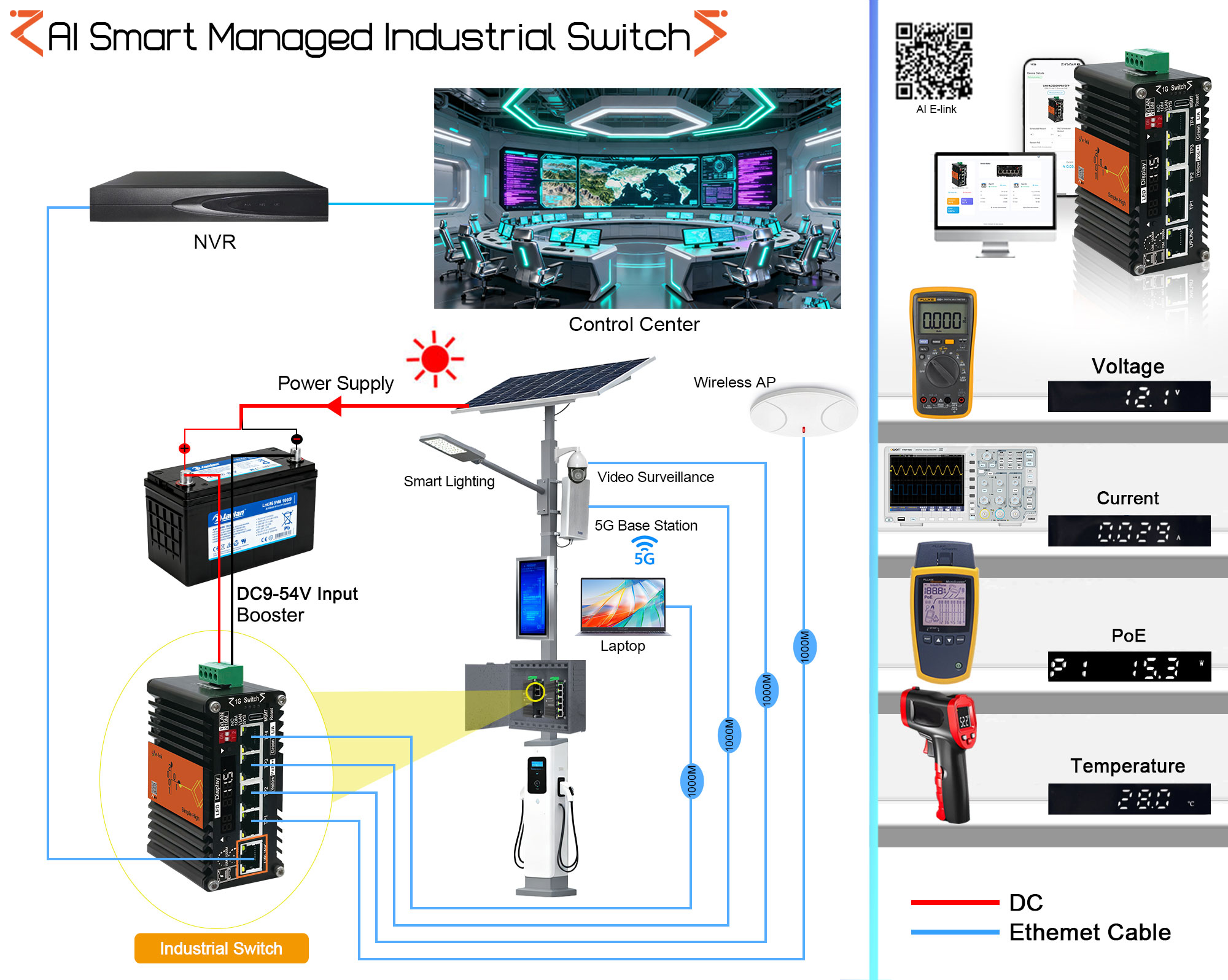

Industrial AI Smart ManagedEthernetSwitch

Access Mode

4-Port 10/100/1000BASE-T RJ45to1-Port 10/100/1000Base-T Uplink

Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

Switching Capacity

20Gbps/non-blocking

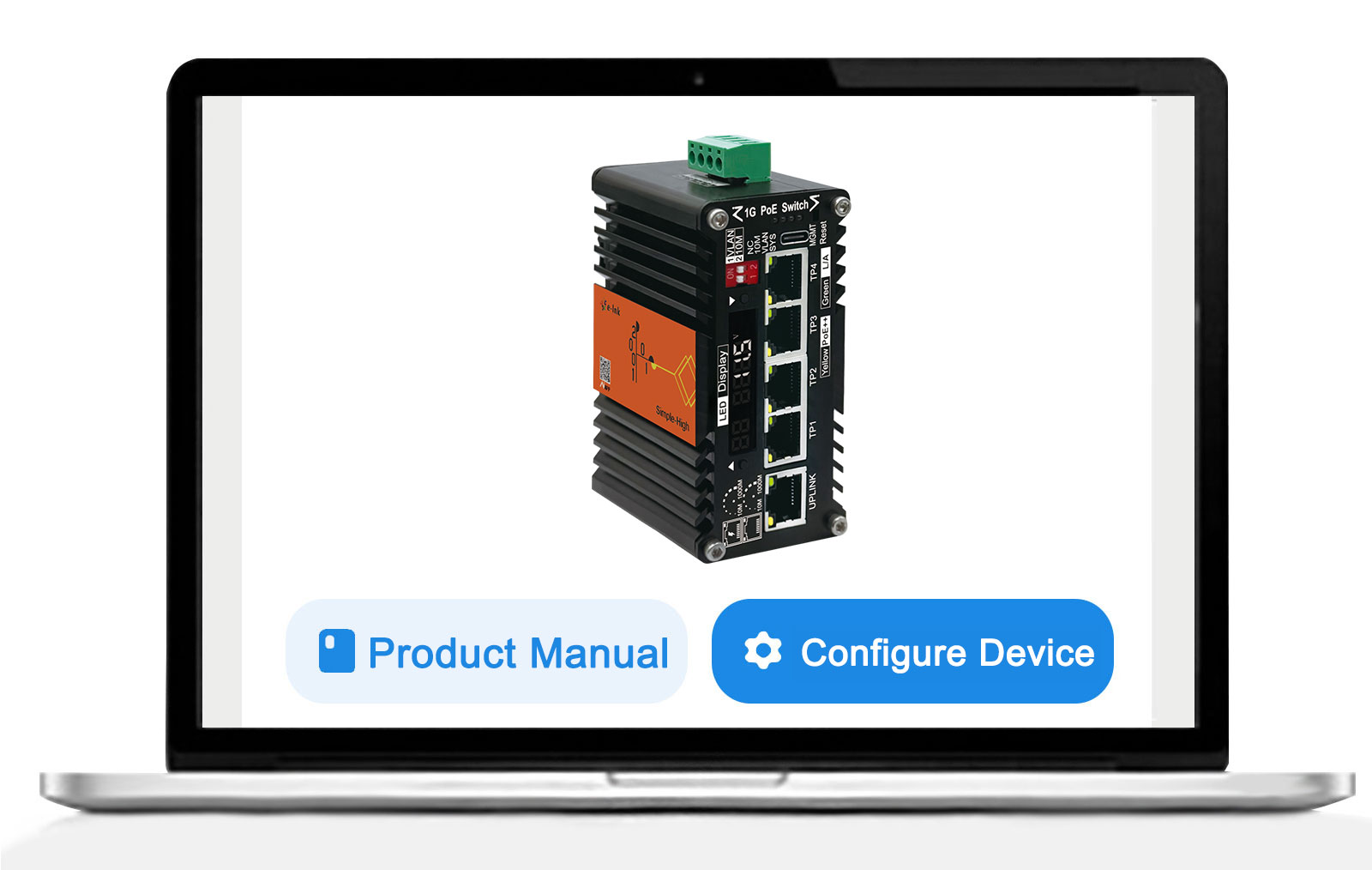

PC (Support MacOS, Windows)

MacOS Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Windows Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Mobile App(Support Android,Not Support iOS)

Mobile Phone APP(Android)

Support all Android Mobile Phone and Android Tablet

Mobile iPhone APP(iOS)

Not Support iPhone or iPad

AI Smart Managed Functions

Service Board Status

Temperature

Voltage

Current

System Status LED

System

Power

VLAN

10M

RJ45 Port Status

Link Status

Current Rate

DIP Switch

DIP1

VLAN

DIP2

10M

Scheduled Reset

Support

Interface port

Ethernet Port

5-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation,auto MDI/MDI-X

1-4 port 10/100/1000BASE-T

1- port 10/100/1000BASE-T Uplink

Cable: Cat 5e or above;

Distance: ≤100 metersat1000M data rate,≤250 metersat10M data rate

Electrical and Mechanical

Input Power

9~54V DC, 4-pin terminal block

Power Consumption

5W Max

Dimensions (W x D x H)

98 x 67x 46 mm

Weight

320g

Casing

Aluminum Case

Mounting Options

DIN-Rail

LED Indicators

SYS

Green LED Blinking: Operating normally

VLAN

Green Solid On: VLAN On

Green LED Off: Off

10M

Green LED Solid On: Ethernet port link rate is 10M

Green LED Off: Ethernet port link rate is 10M/100M/1000M

NC

NC

Uplink

Green LED Solid On:Ethernet port link

Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M

Green LED Off: Ethernet port no link

TP1-4L/A

Green LED Solid On:Ethernet port link

Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M

Green LED Off: Ethernet port no link

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
