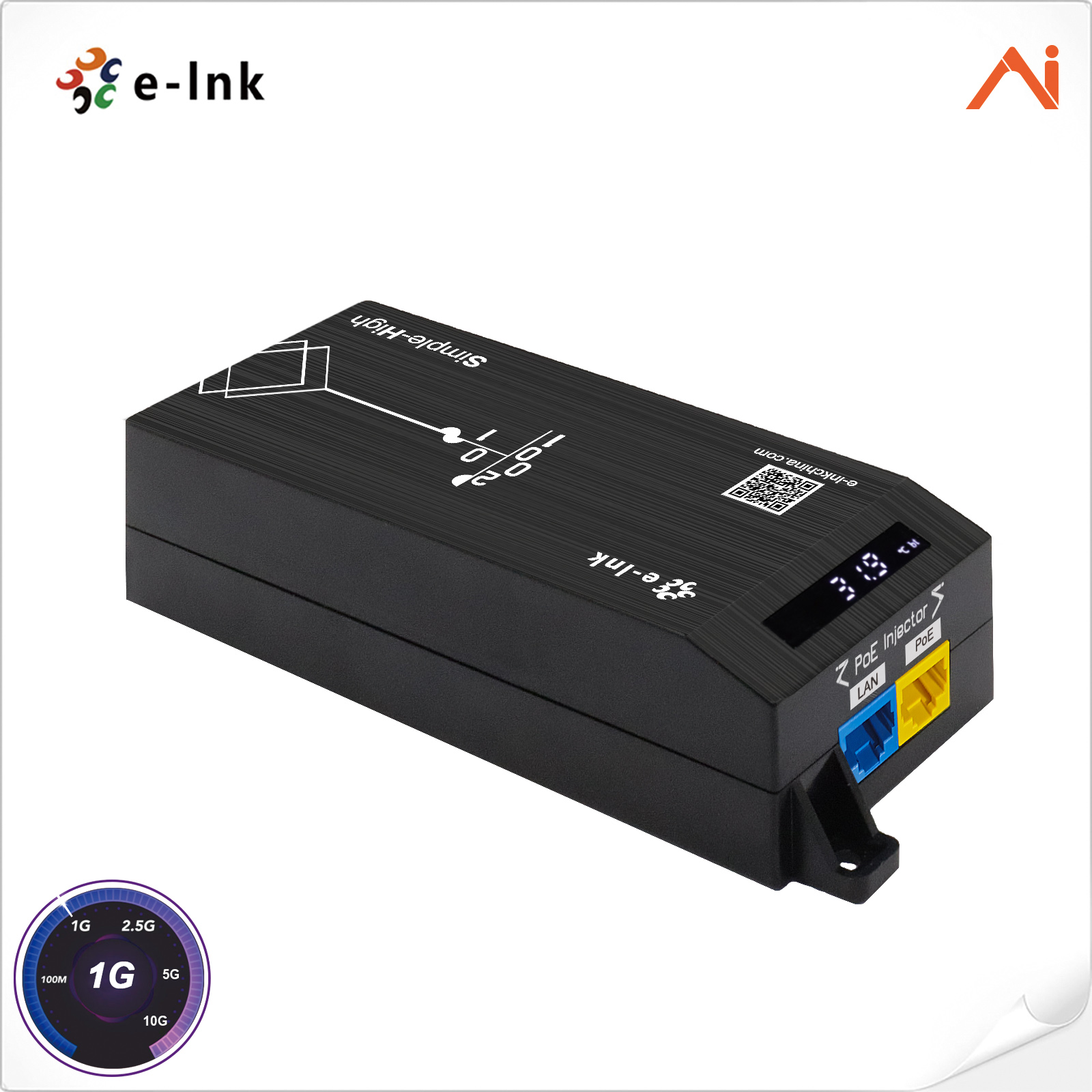

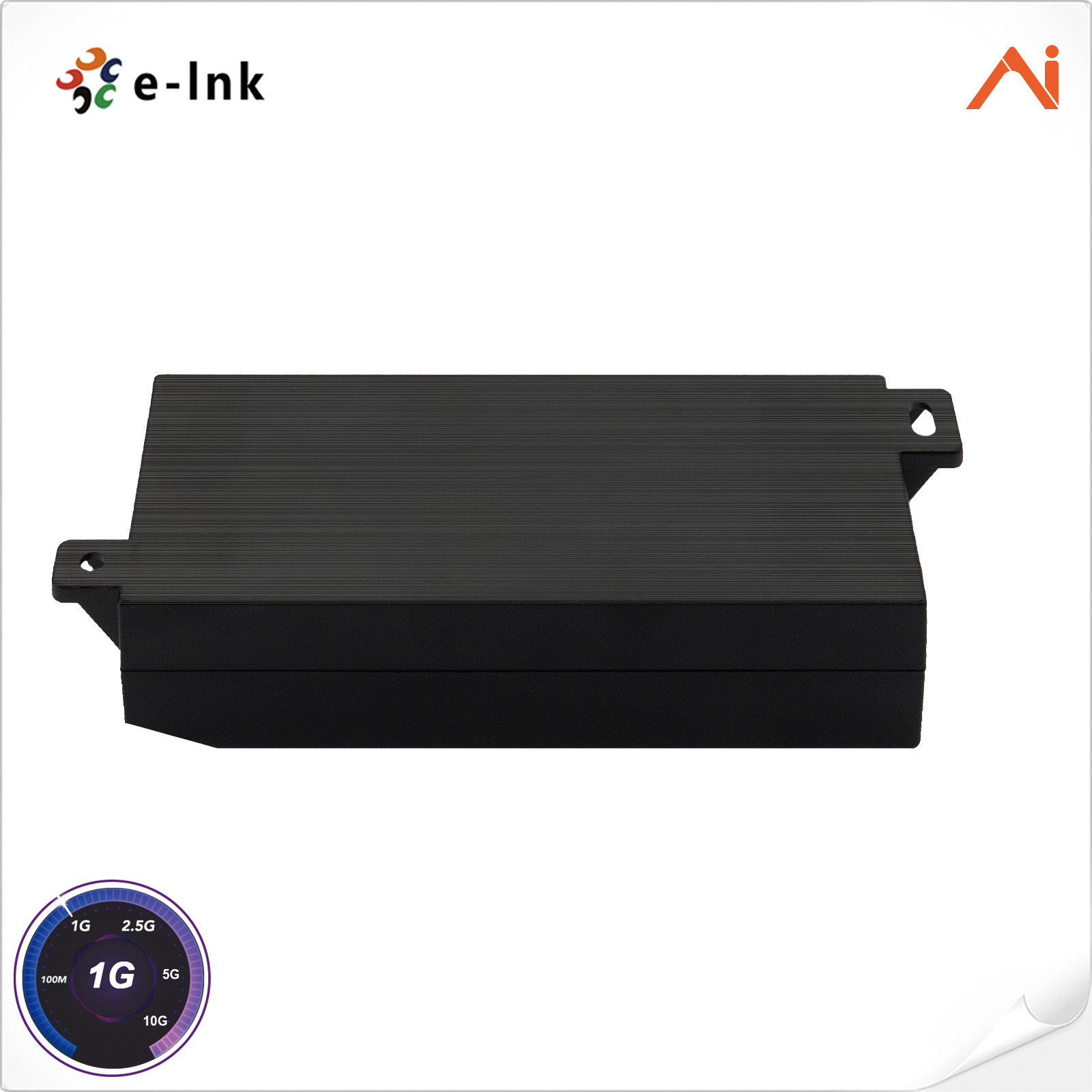

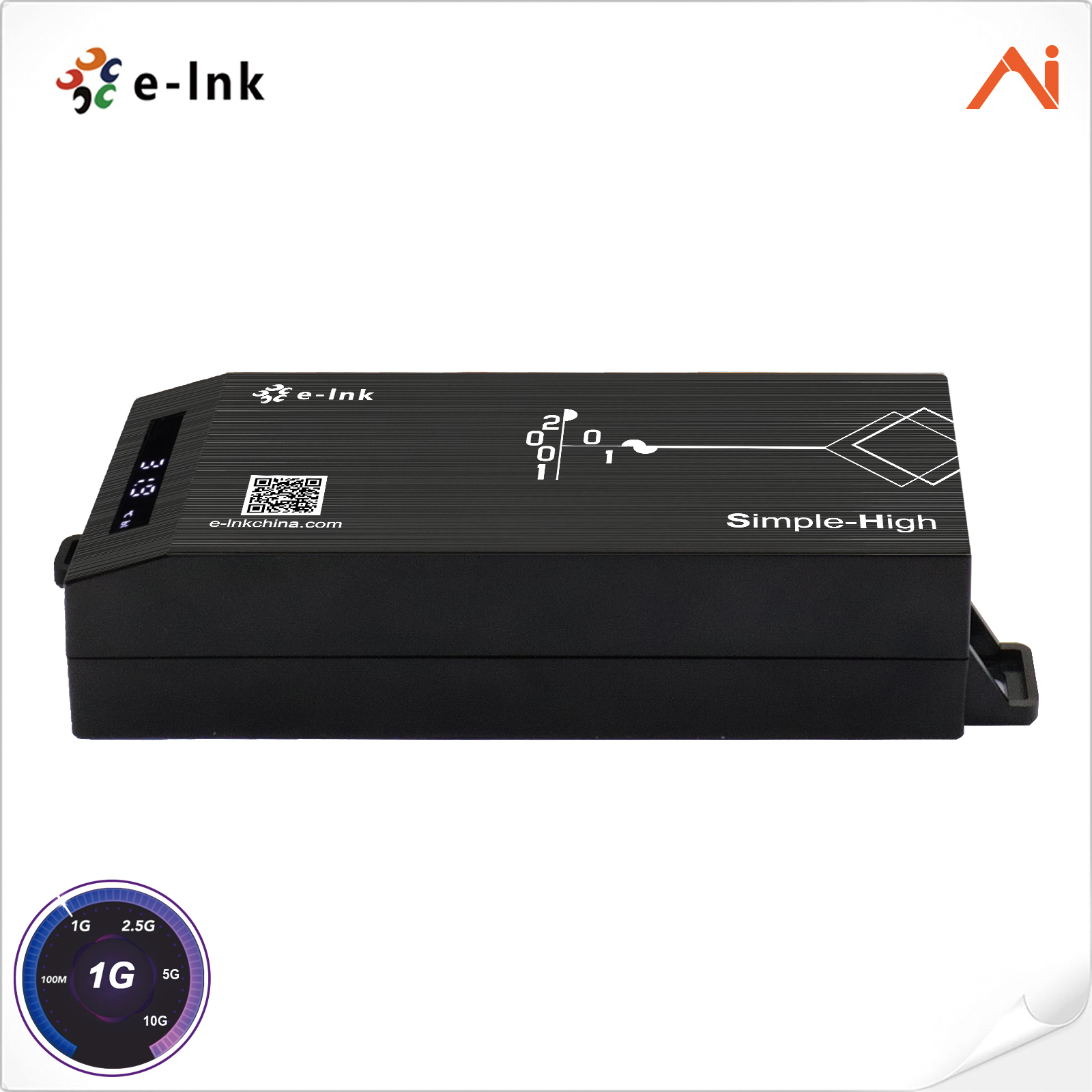

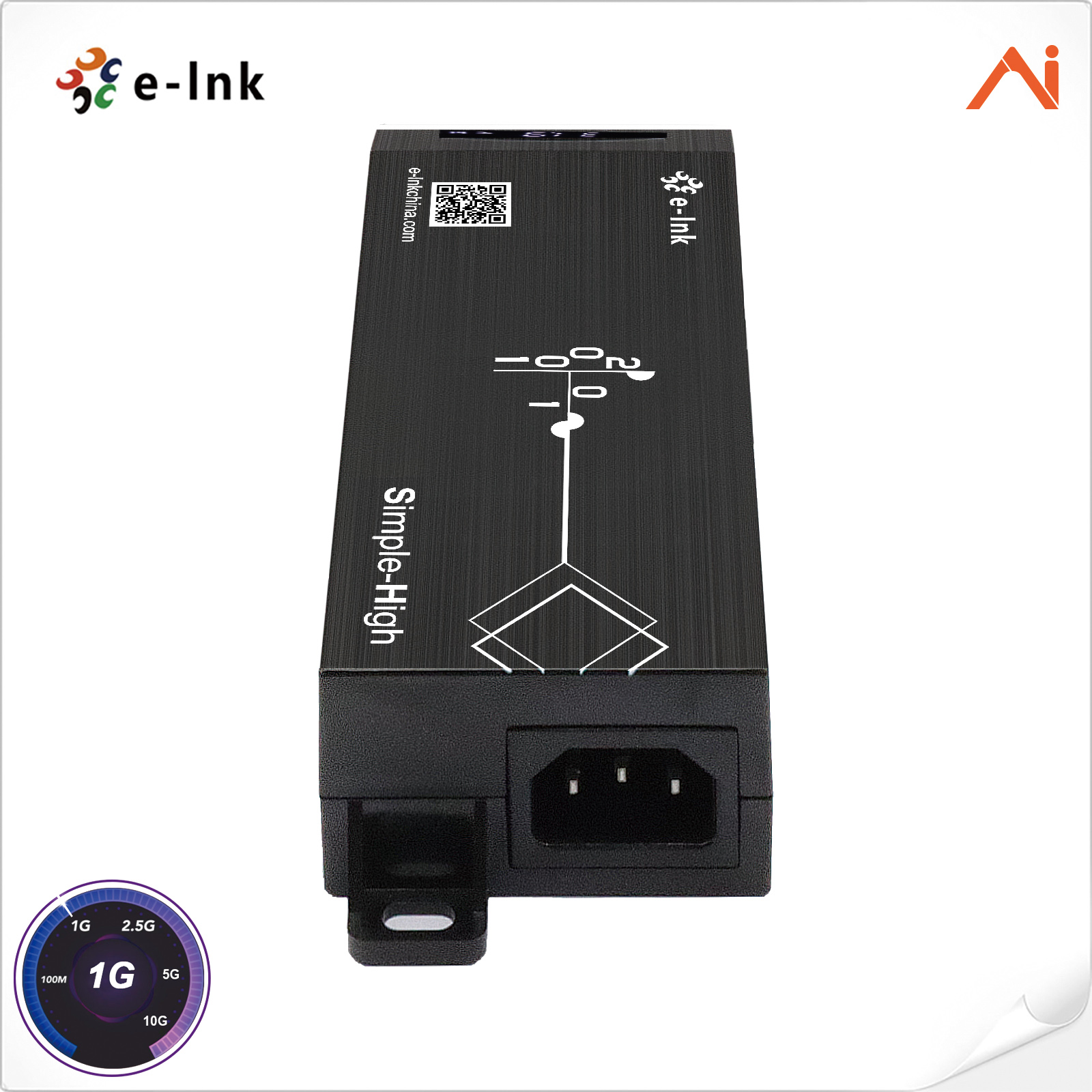

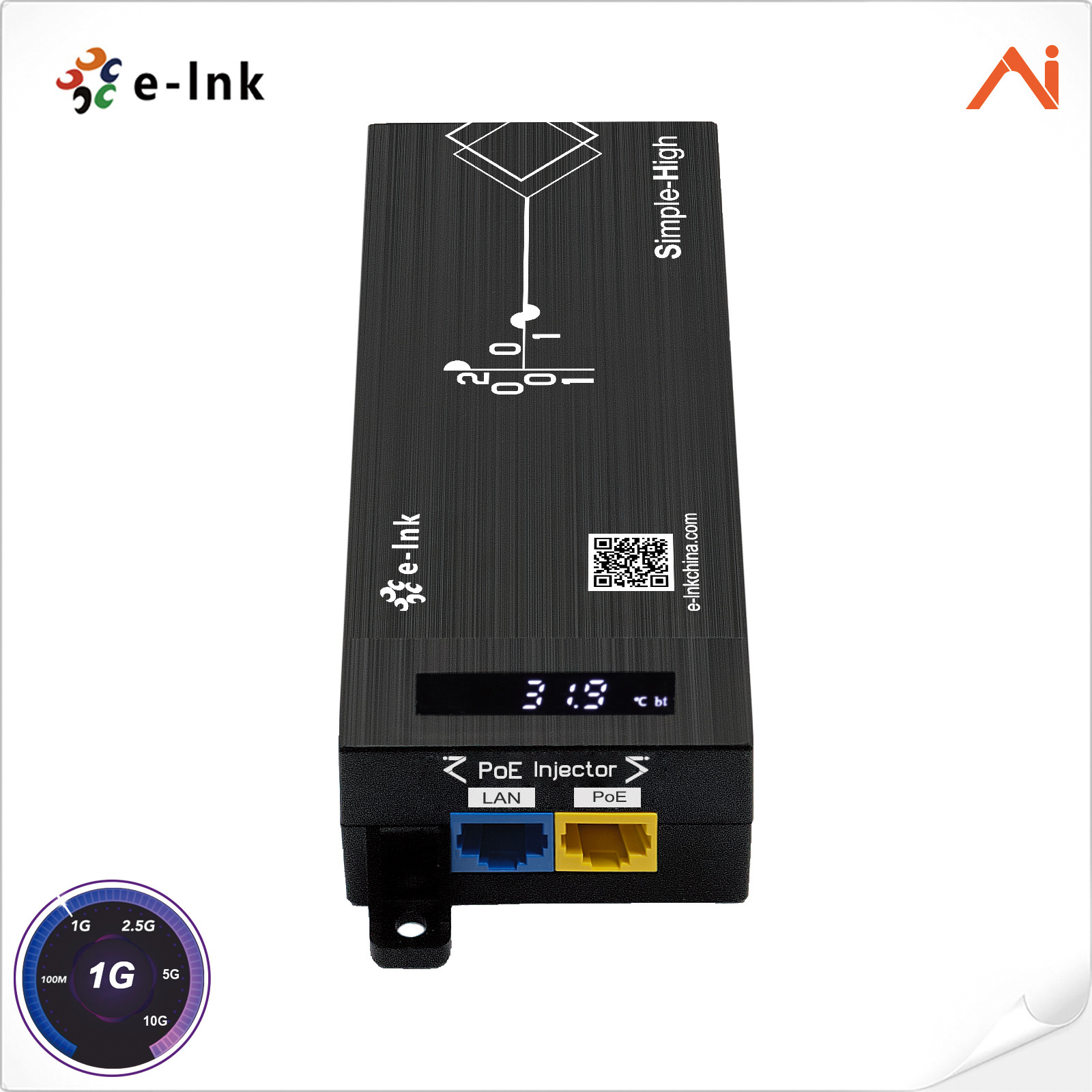

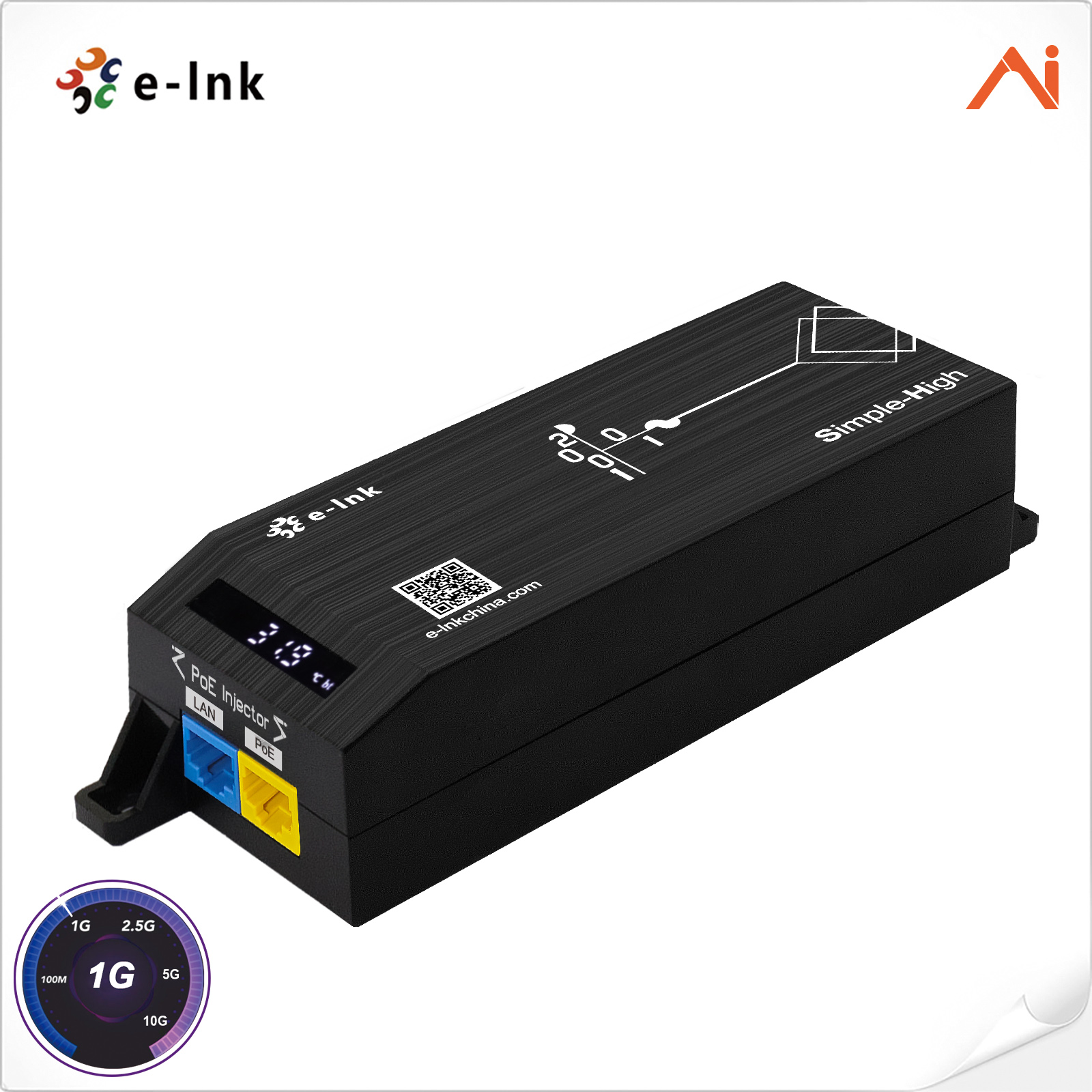

AI Smart 60W PoE++ Injector with LED Screen Display
Model:LNK-AIPSE301M60
► E-link Brand New Visual Intelligent PoE Injector
► LED screen with auto-scrolling real-time data dashboard: PoE voltage, PoE power, IEEE 802.3af/at, Mode A & Mode B classification, internal temperature, and more
► Wide AC input range: 85-265 V AC, 50-60 Hz
► Compliant with IEEE 802.3af/at/bt, total PoE++ PSE power budget up to60W
► Supports 10/100/1000Base-T
The LNK-AIPSE301M60 series is a compact PoE injector independently developed by E-link. This gigabit high-power PoE injector enables connection between non-PoE LAN switches and IEEE 802.3 af/at/btPoE++ end devices such as IP cameras and wireless access points, with transmission distances up to 100 meters.

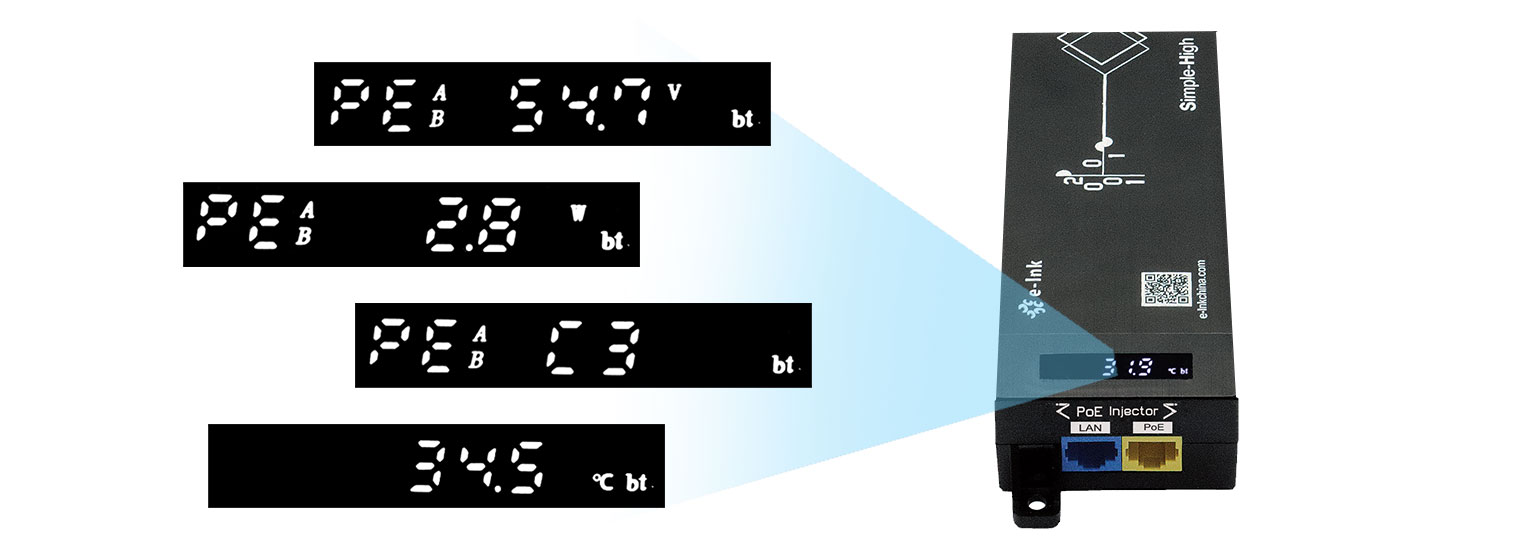

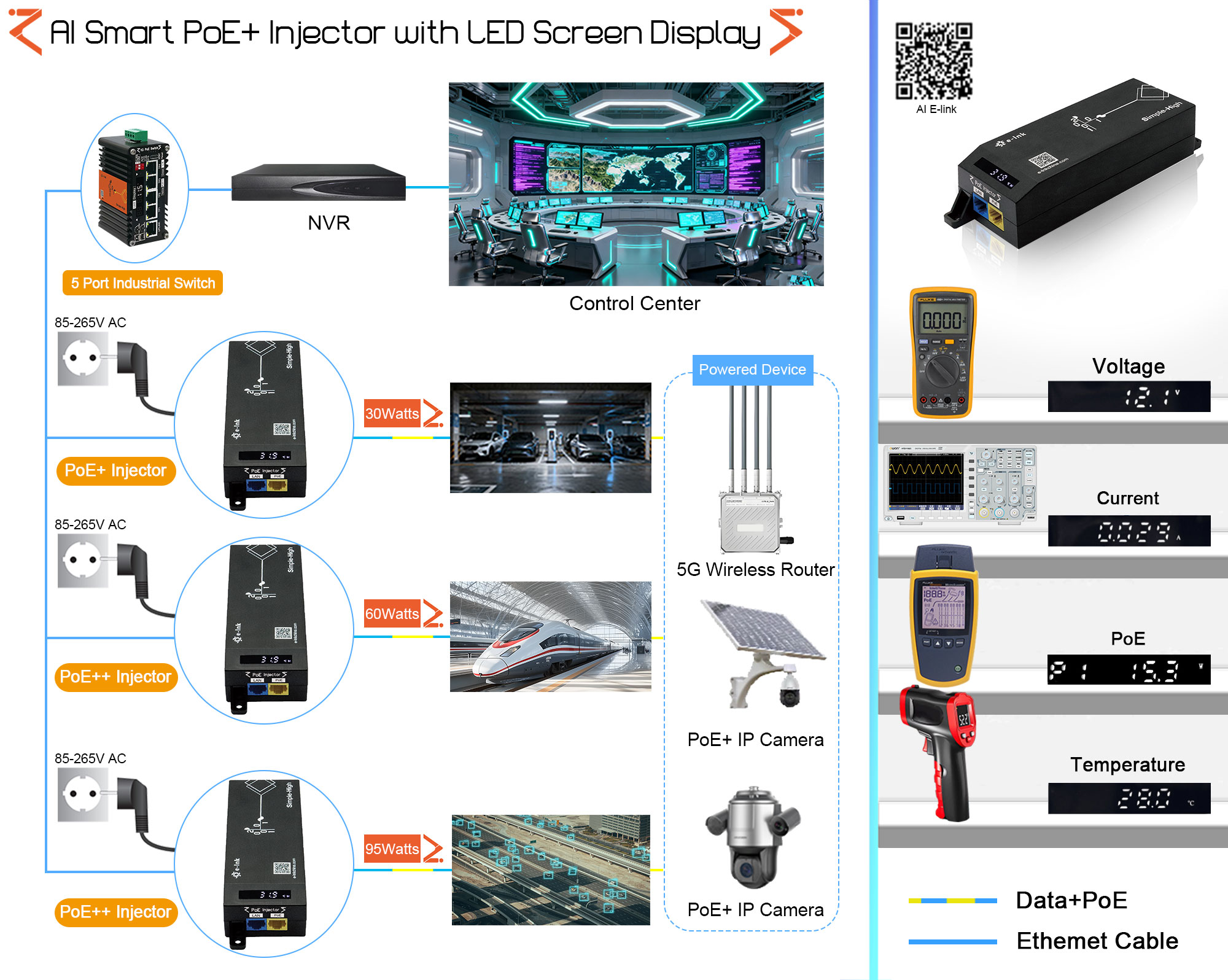

Featuring an auto-scrolling LED display, this PoE injector allows engineers to read real-time device status without additional test tools. Monitored parameters include PoE voltage, PoE power, IEEE 802.3 class, Mode A & Mode B classification, and internal temperature.

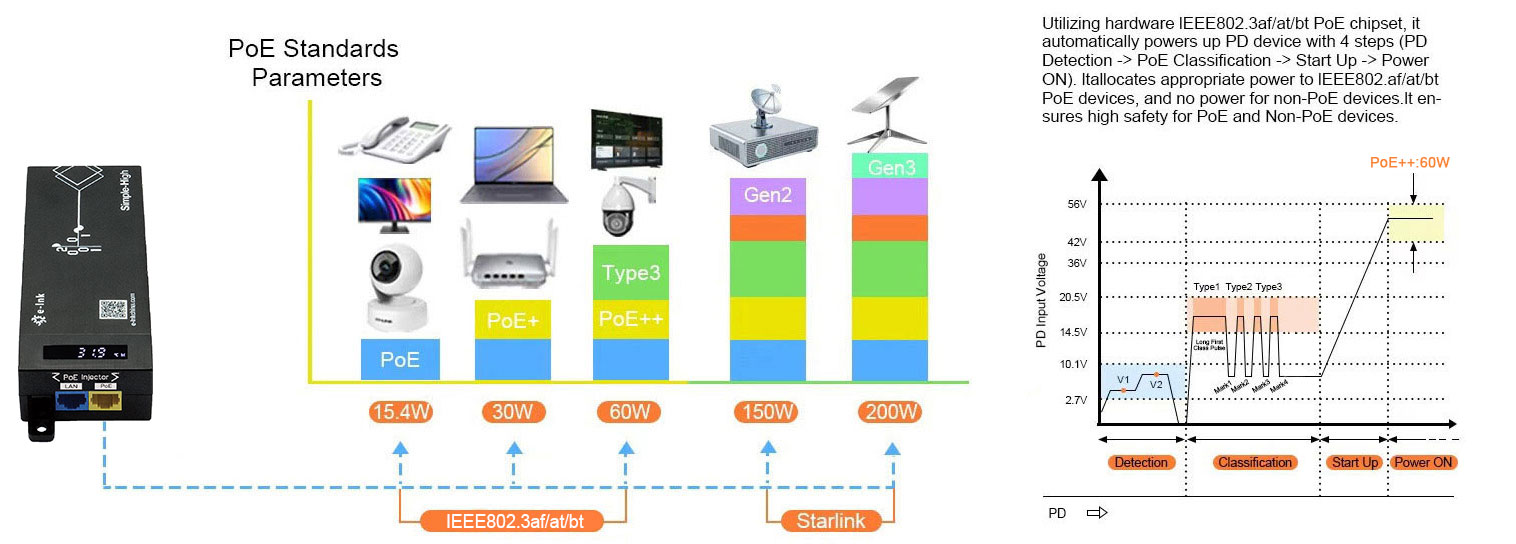

It supports quick and easy cabling for PoE network deployment. Backward-compatible with IEEE 802.3 af/at/btstandards, this PoE injector delivers both data and power over a single Ethernet cable up to 100 m. It removes deployment constraints for IP security cameras and wireless APs caused by power-socket locations and separate AC cabling requirements. Fewer cables are needed, and power outlets on walls, ceilings or hard-to-reach locations are no longer mandatory. This significantly cuts installation time, while supporting packet forwarding over backup pairs.
Application Scenarios:
► PTZ speed dome cameras
► AIO (All-in-One) touch PCs
► Remote digital signage displays
► Other network devices requiring higher power input
► E-link Brand New Visual Intelligent PoE Injector
► LED screen with auto-scrolling real-time data dashboard: PoE voltage, PoE power, IEEE 802.3af/at, Mode A & Mode B classification, internal temperature, and more
► Wide AC input range: 85-265 V AC, 50-60 Hz
► Compliant with IEEE 802.3af/at/bt, total PoE++ PSE power budget up to60W
► Supports 10/100/1000Base-T
► Low no-load power consumption: < 0.5 W
► Compliant with Limited Power Source (LPS) requirements
► Over-voltage, over-load, over-temperature and short-circuit protection
► 1 kV lightning surge protection on all ports
► Wide operating temperature: -10 °C ~ +60 °C (-14 °F ~ 136 °F)
|
Access Mode |
10/100/1000BASE-T RJ45 to 10/100/1000BASE-T RJ45 PSE IEEE802.3af/at/bt |
|
Ethernet |
|
|
Standards: |
Standards Compliance IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type |
Store-and-Forward |
|
Forward Filter Rate |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
AI Smart LED screen display Functions |
|
|
PSE Supply Voltage |
|
|
PoE Class |
|
|
PSE Power Consumption |
|
|
Temperature |
|
|
Interface port |
|
|
Ethernet Port |
1-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X |
|
1-port 10/100/1000BASE-T RJ45 Support IEEE802.3af/at/bt |
|
|
Cable: Cat 5e or above; Distance: ≤100 meters at 1000M data rate, ≤250 meters at 10M data rate |
|
|
PoE (Power over Ethernet) |
|
|
Standard |
IEEE802.3af/at/bt PoE++ PSE (af:15.4W,at:30W,bt:60W) |
|
PoE Power Output |
60 Watts max. |
|
Power Pin Assignment |
End-span + Mid-span:1/2(+), 3/6(-); 4/5(+), 7/8(-) |
|
PoE Budget |
Up to 60-watt |
|
PoE Power Supply Type |
802.3af/at/bt, End-span + Mid-span (If need passive PoE please contact customer service) |
|
PoE Mode |
Compatible with Mode A and Mode B |
|
Electrical and Mechanical |
|
|
Input Power |
85 to 265V AC,50 to 60Hz |
|
Power Consumption |
0.5W Max. |
|
Dimensions (W x D x H) |
146x60x37mm |
|
Weight |
400g |
|
Casing |
ABS+PC |
|
Mounting Options |
Wall Mount |
|
Environmental |
|
|
Operating Temperature |
-10°C to60°C (-14°F to 136°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection |
|
|
RJ45: 1KV Power: 500W ESD: 4KV/8KV |
|
- Download FileName：E-link LNK-AIPSE301M60 IEEE802.3bt PoE++ 60W AI Smart PoE++ Ethernet Injector V1.2.pdf Size： 1.07MB
|
Model |
Description |
|
LNK-AIPSE301M60 |
AI LED screen display 1-Port 10/100/1000BASE-T RJ45 to 1-Port 10/100/1000BASE-T IEEE802.3bt 60W PoE++ Injector, 85 to 265V AC power input |
