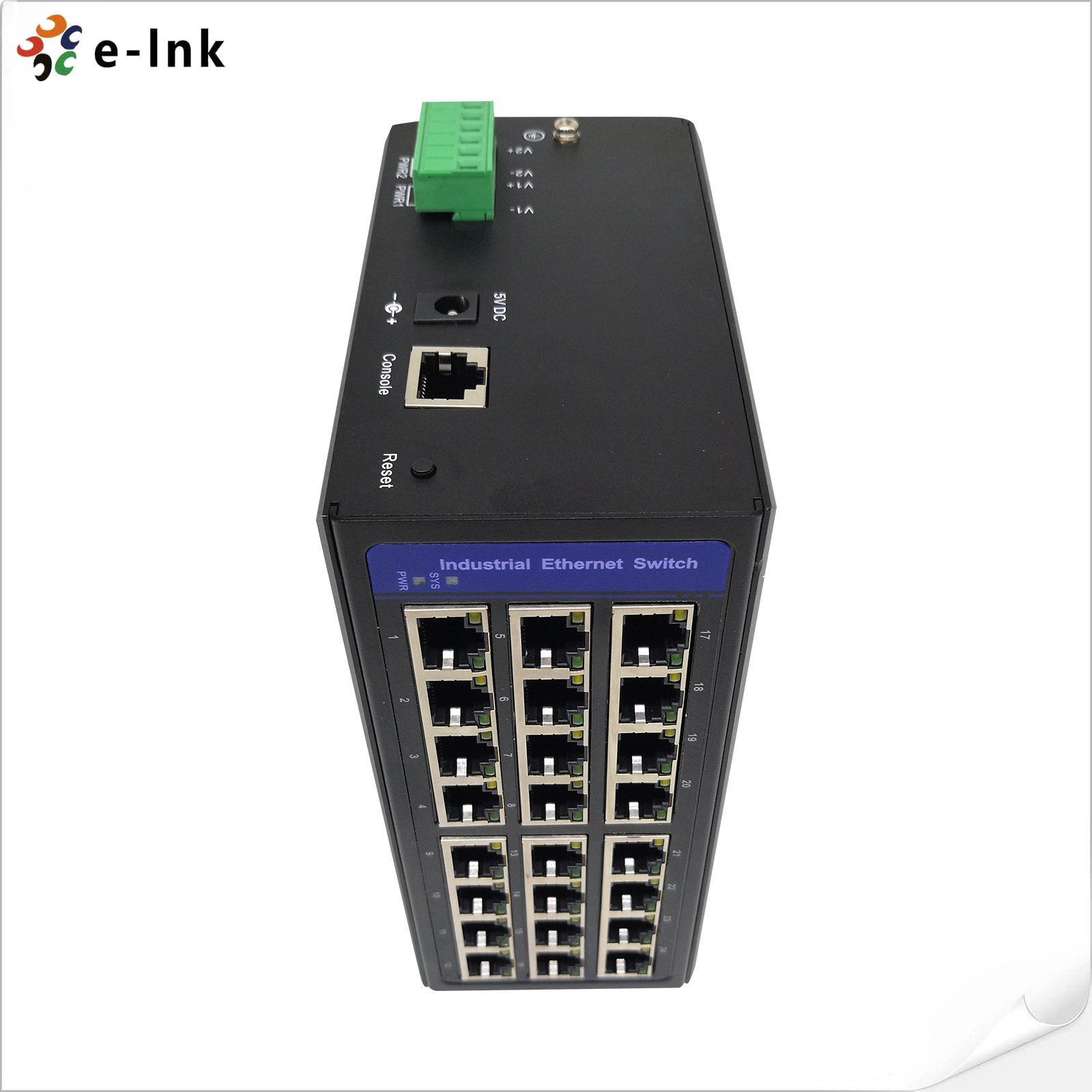

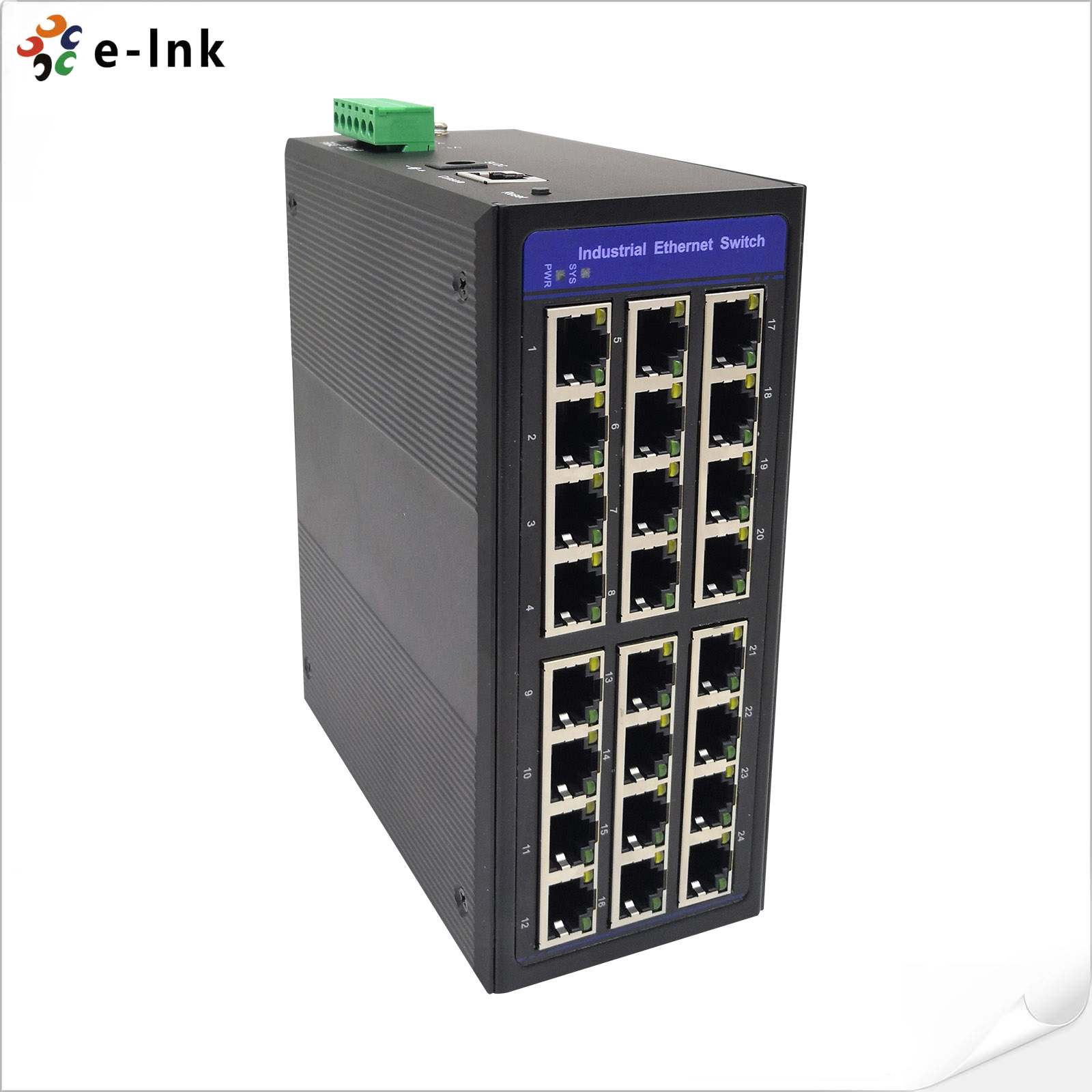

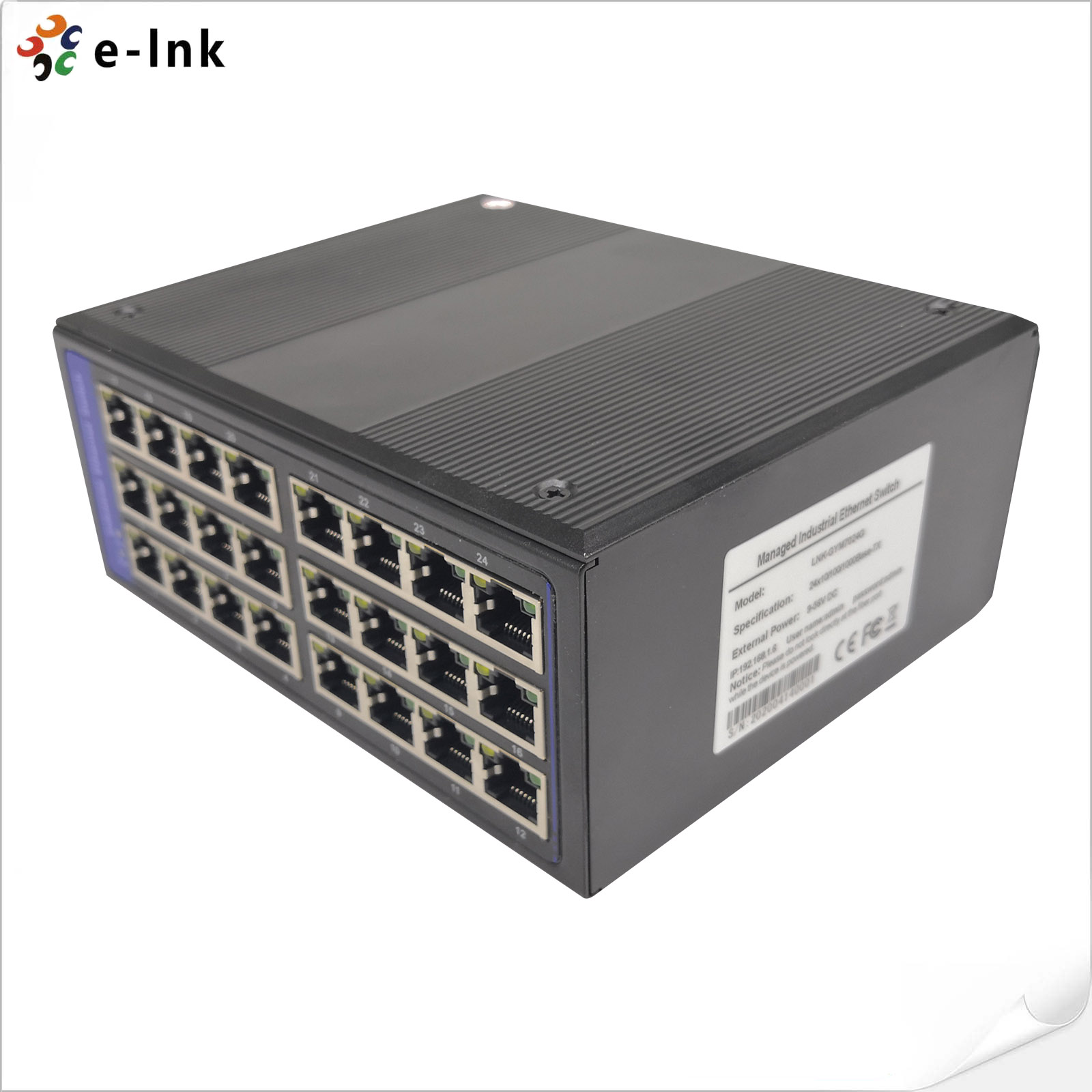

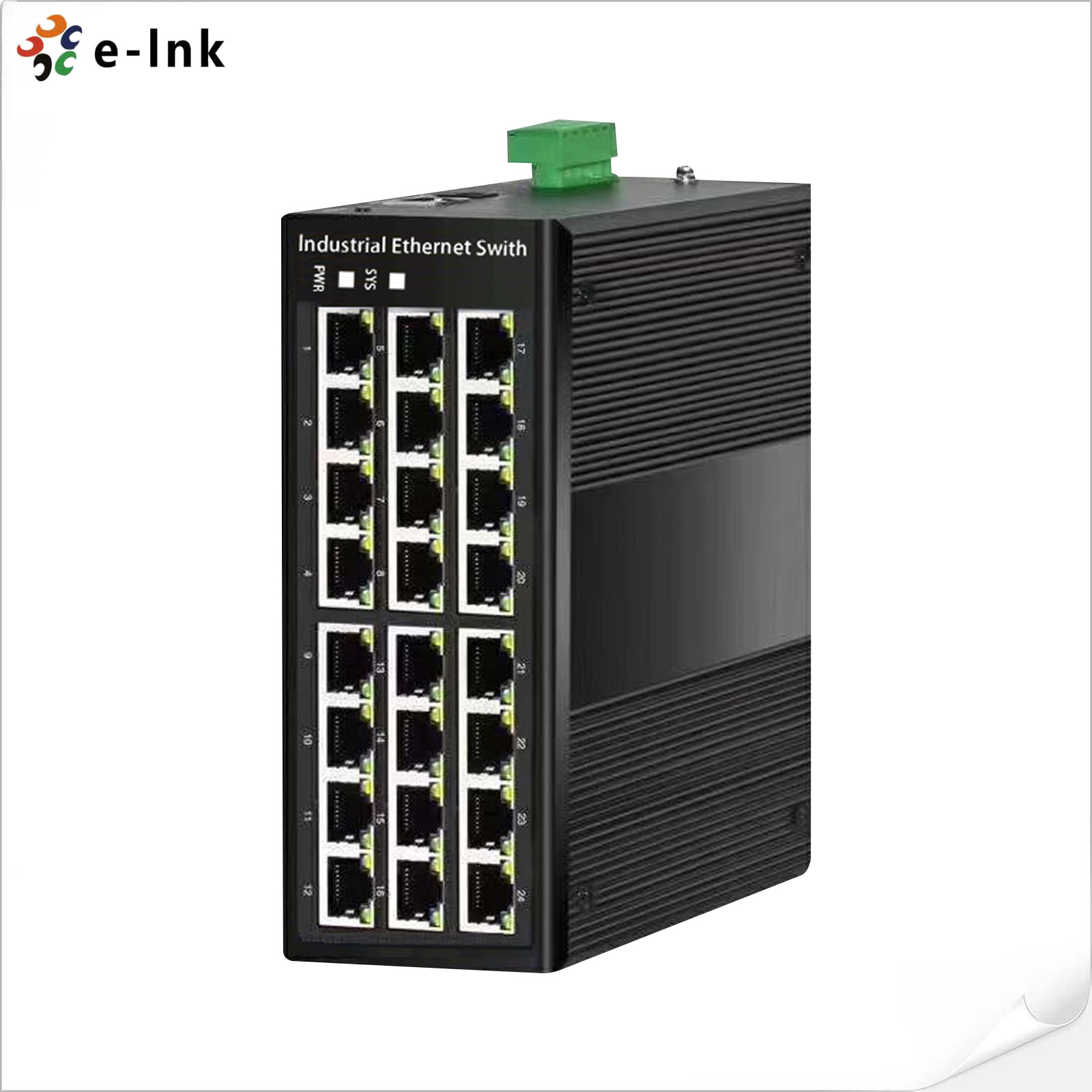

Managed Industrial 16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T Ethernet Switch

Model:LNK-GYM0816GP Series

►    16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T

►    Support Auto-MDIX, and full/half duplex self-negotiation mode

►    Support 10K bytes giant frame, compatible with various extension protocol

►    8K MAC address table

►    Support IEEE802.3az energy efficient Ethernet technology

►    Support IPv6 Protocol

►    Electric 8KV surge protection

Overview

LNK-GYM0816GP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 16-Port 10/100/1000Base-T 802.3at PoE and 8-port 10/100/1000T that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

With dual power input design, LNK-GYM0816GP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Features


►    16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T

►    Support Auto-MDIX, and full/half duplex self-negotiation mode

►    Support 10K bytes giant frame, compatible with various extension protocol

►    8K MAC address table

►    Support IEEE802.3az energy efficient Ethernet technology

►    Support IPv6 Protocol

►    Electric 8KV surge protection

►    Status indicator, working state at a glance

►    Power input polarity protection design, no worry about wrong operation

►    Metal case, no fan design

►    Installation method: DIN Rail /Wall mounting

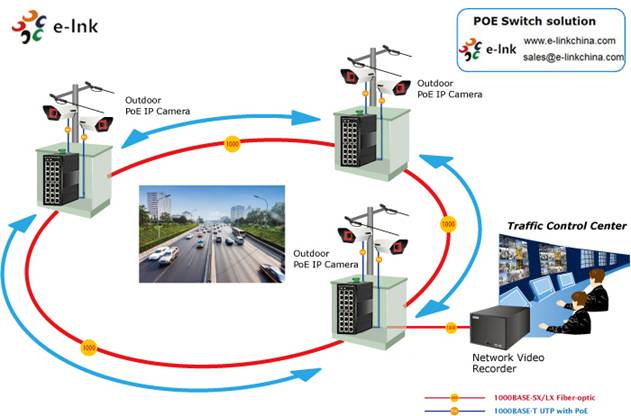

Application

Technical Indexes

Physical Port

RJ45 port and speed

16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T

Parameters

Ethernet standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x flow control and back pressure

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3ad port trunk with LACP

IEEE 802.3ah Configuring Ethernet OAM

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1x Port Authentication Network Control

IEEE 802.1Q VLAN tagging

IEEE 1588

Packet buffer

4Mbits

Maximum packet length

Up to 10K Bytes

MAC address table

8K

Transmission mode

Store and Forward (full/half duplex mode)

Exchange property

Delay time: < 7ps
Backplane bandwidth: 48Gbps
Packet forwarding rate: 28.51Mpps

PoE

PoE Standard

16 x IEEE 802.3af /IEEE 802.3at PoE

Power budget

Max. PoE output power budget 30W

LED Indicator

Power

Connect-always

RJ45

Link/Act: connect-always;

Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle

Power Information

Power access mode

Phoenix terminal, DC seat

Redundant power input

DC 48-57V

Overload protection

Yes

Power reverse

Support

Power consumption

Full-load<15W (Not use PoE)

Physical Property

Protection grade

IP40 aluminum case

Cooling mode

Natural cooling, no fan design

Dimensions

160mm x 130mm x 70mm (L x W x H)

Installation mode

DIN Rail/Wall-mountable

Weight

1000g

Working Environment

Operating Temperature

-40℃~80℃

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40℃~85℃

Warranty

MTBF

500,000 hours

Defects Liability Period

5 year warranty, lifetime technical support

Certification Standard

EMI

FCC Part15 Subpart B Class A,

EN 55022 Class A

EMS

EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5(Surge),

EN61000-4-6(CS),

EN61000-4-8, EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1

Software

Software Features

Redundant network: STP, EAPS/ERPS

Multicast: IGMP Snooping V1/V2/V3, GMRP

VLAN: IEEE 802.1Q 4K VLAN, QINQ

Link Aggregation: manual / static / LACP

QOS: COS, DSCP, 8 queues, WRR/SP/WFQ scheduling, QOS Policy

Management Function: CLI/WEB/SNMP, and Primestone NIS management system

Diagnostic Maintenance: Port mirroring, Syslog, Ping

Alarm management: 1 way relay alarm output, RMON, SNMP Trap

Security DHCP Snooping, Option 82, 802.1X, User hierarchical management, ACL,DDOS, port based MAC filtering / binding

Data control: Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control. Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression.

  • Download FileName:E-link LNK-GYM0816GP Industrial Managed 16PoE + 8GE Switch Datasheet V2.0.pdf Size: 820KB

Ordering Information

Model

Description

LNK-GYM0816GP

Managed Industrial 16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T Ethernet Switch

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
