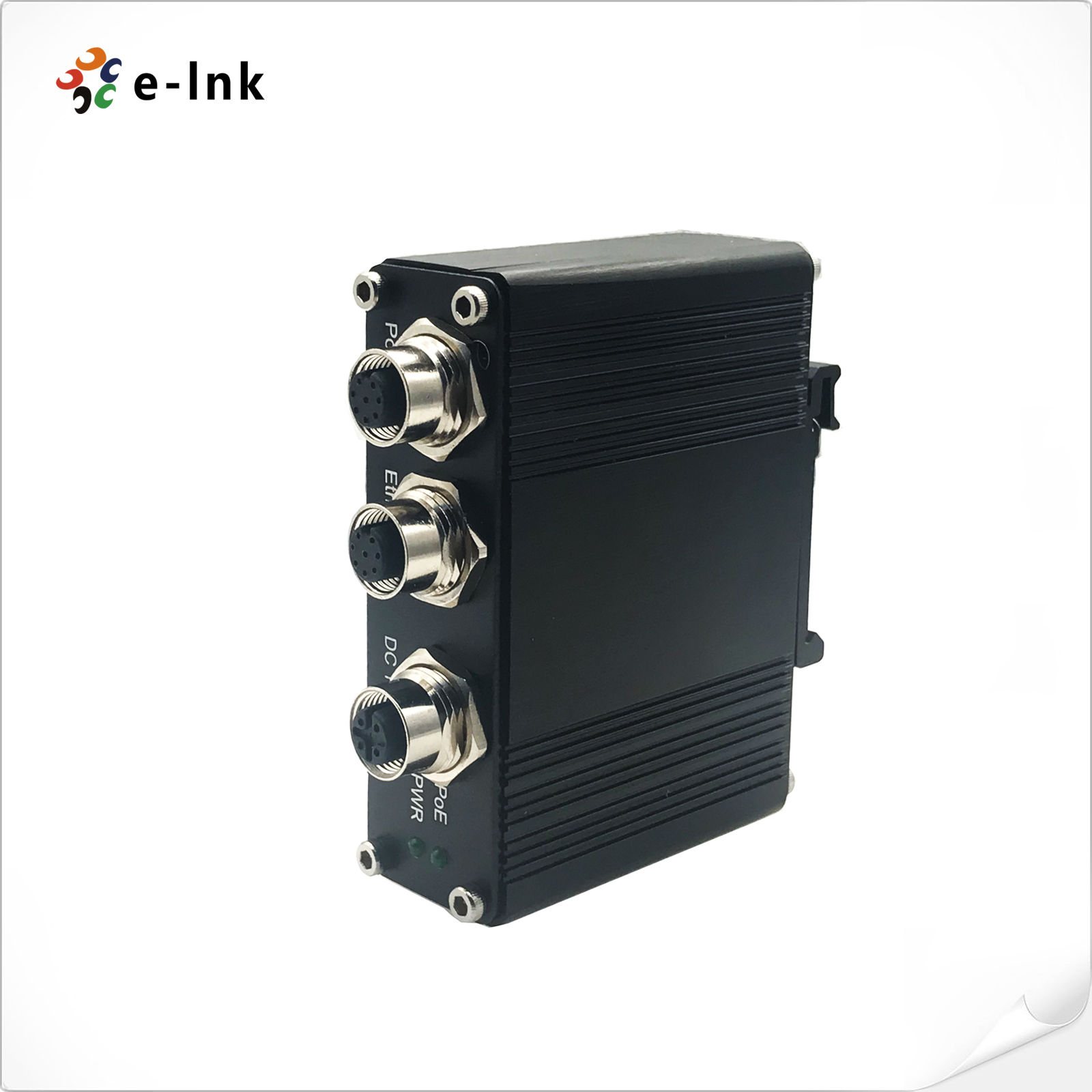

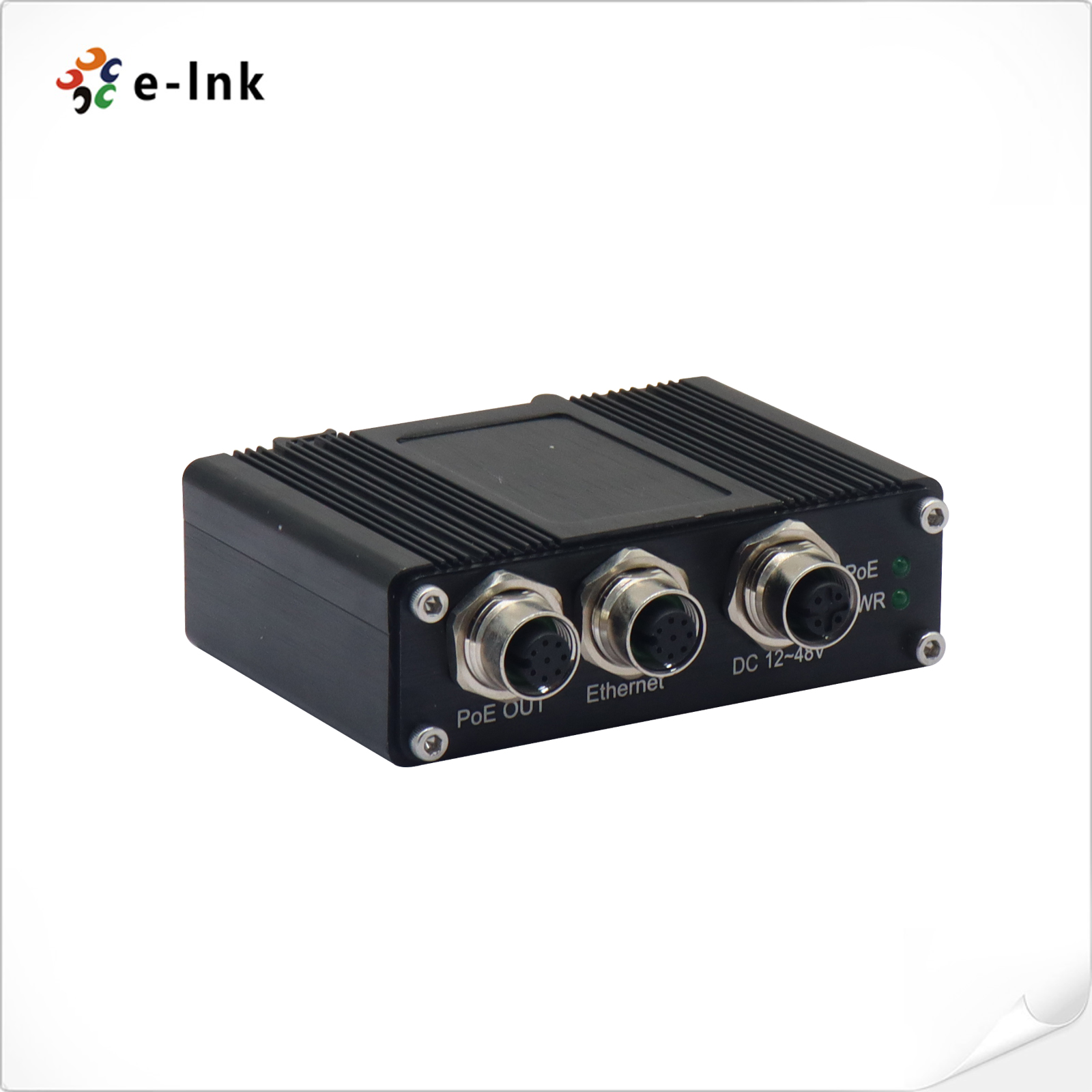

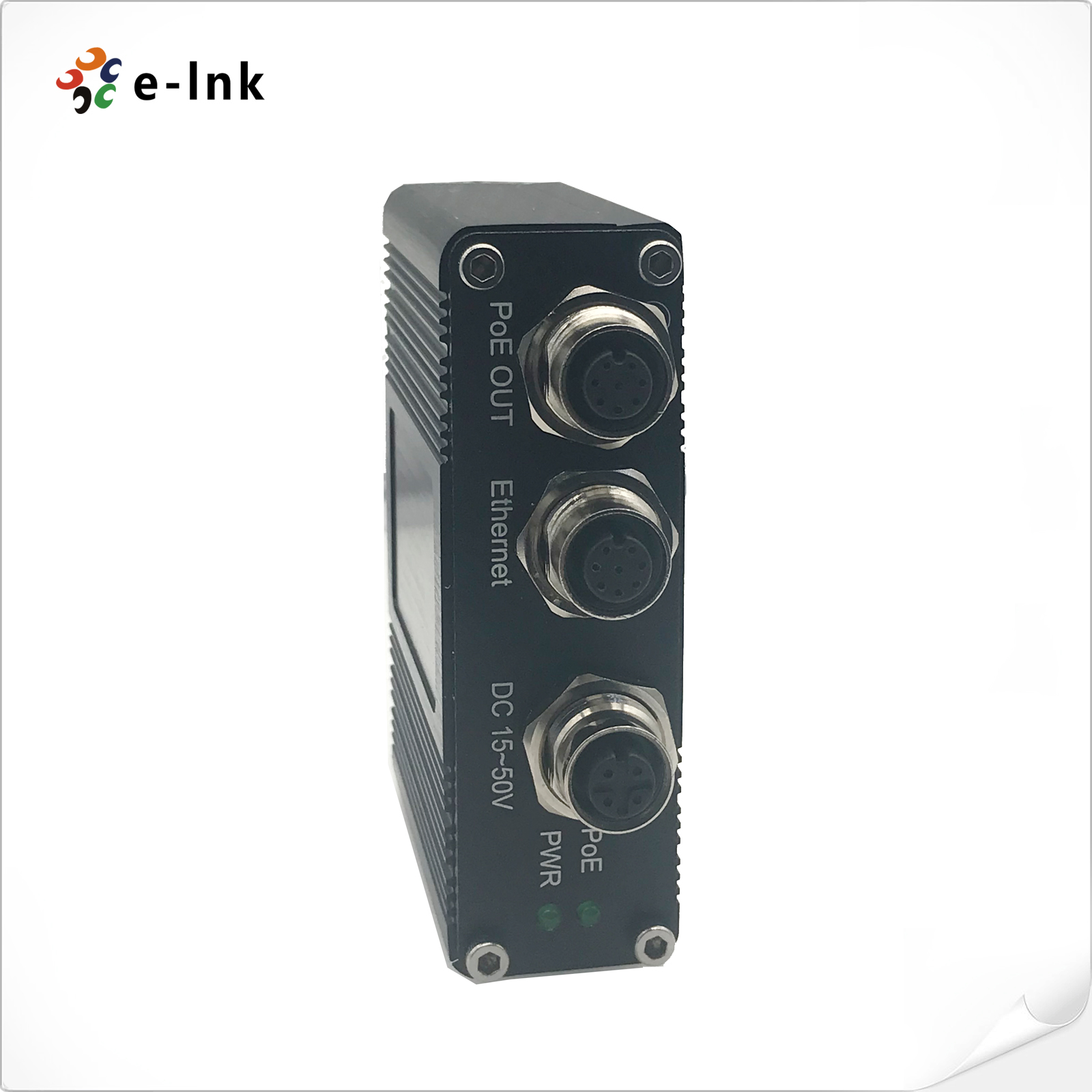

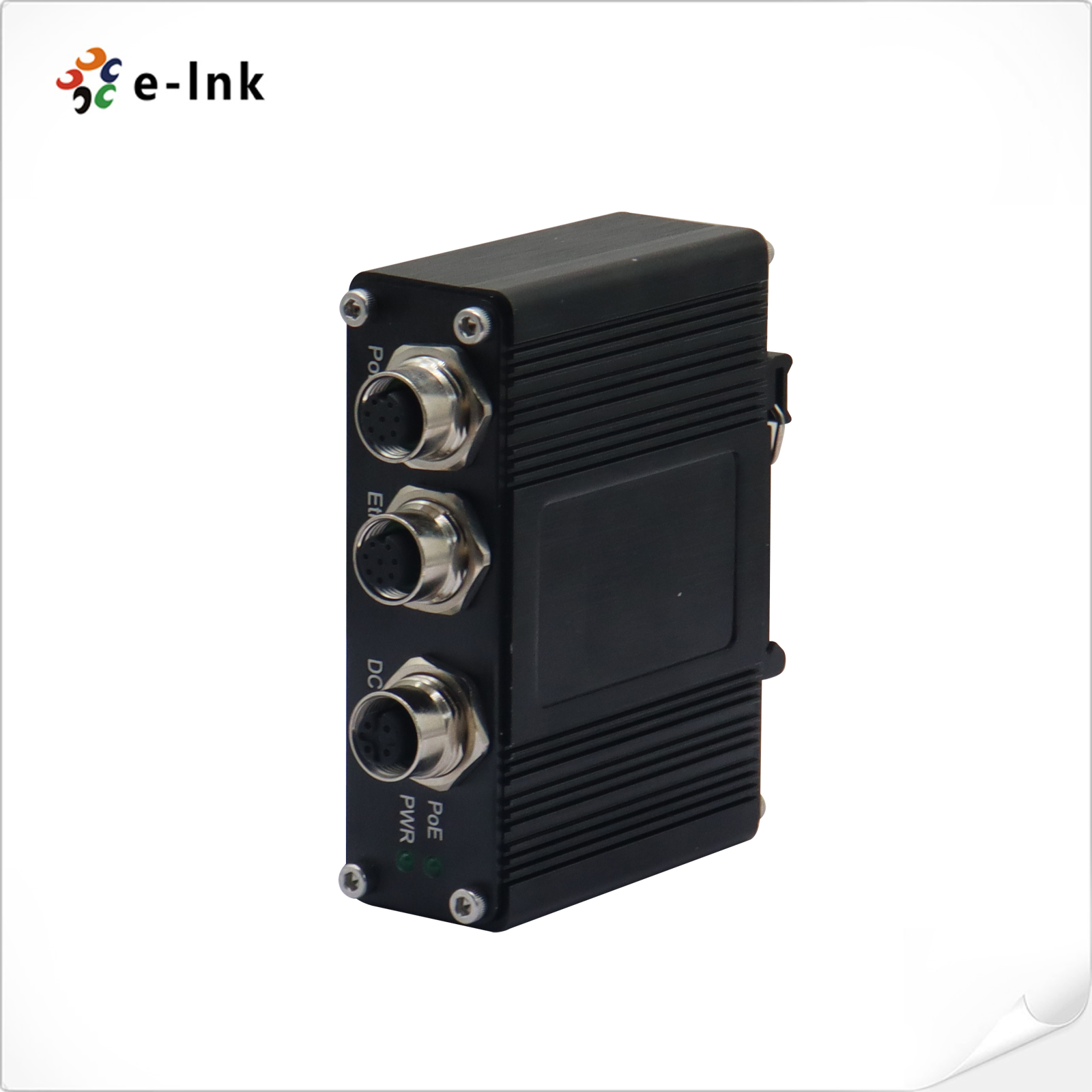

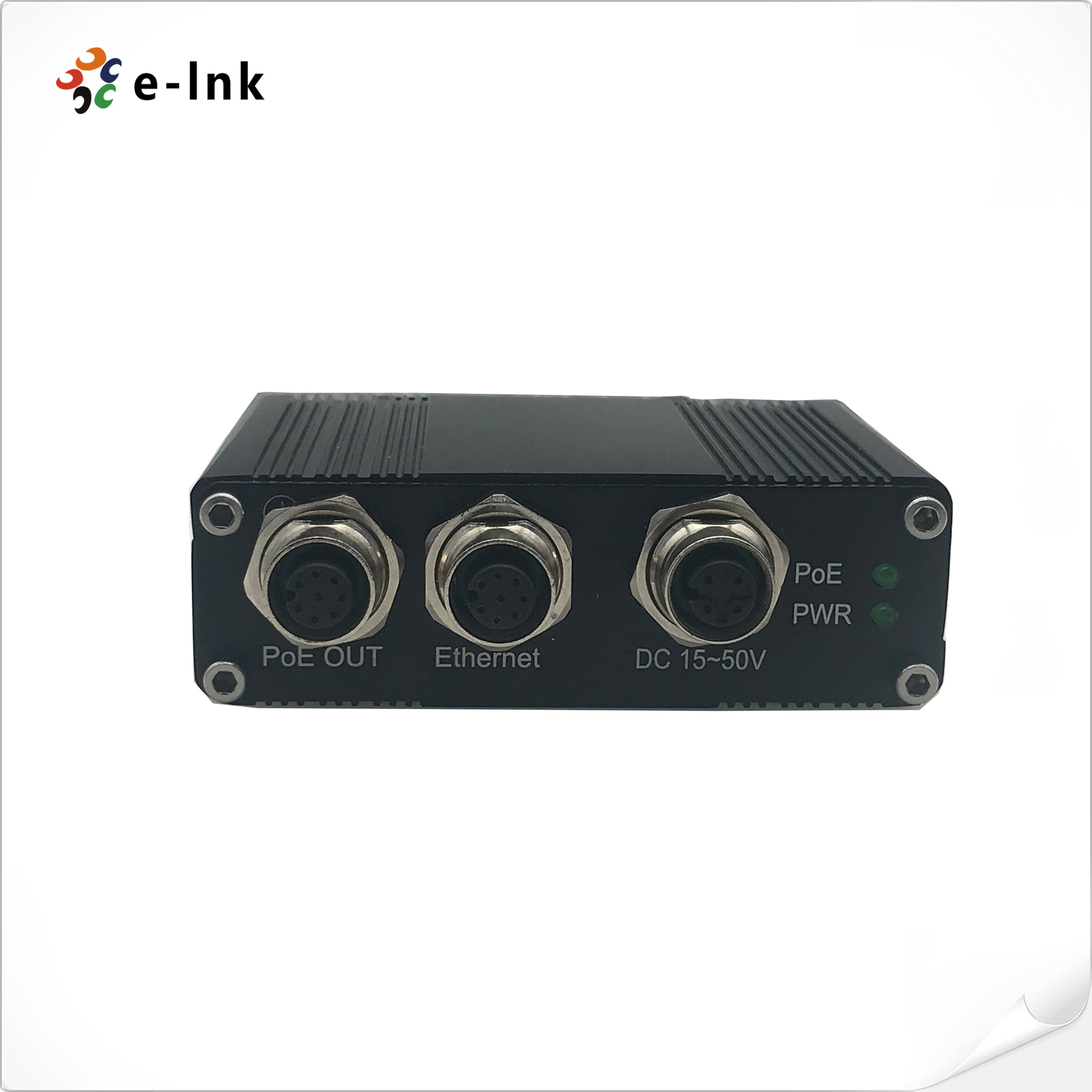

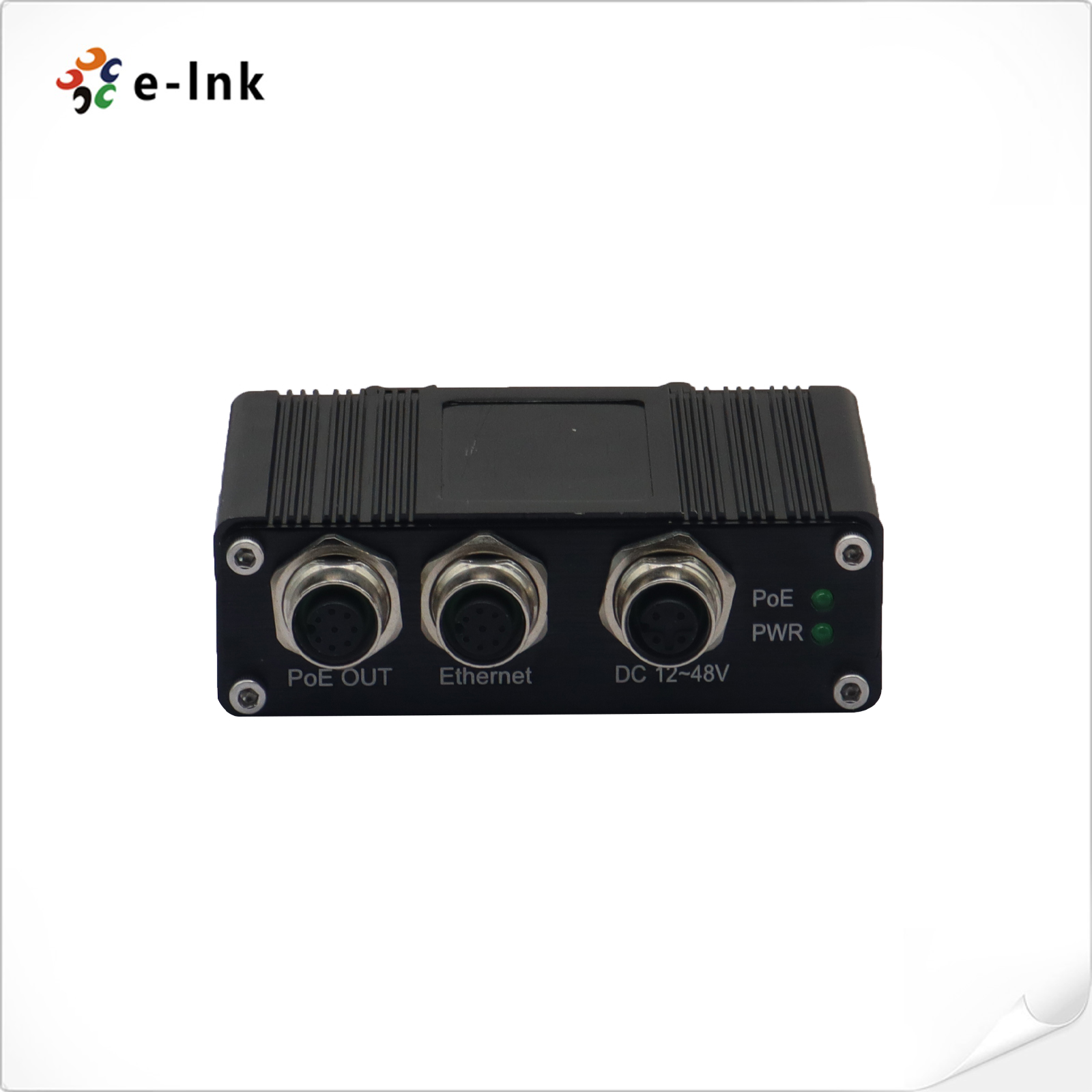

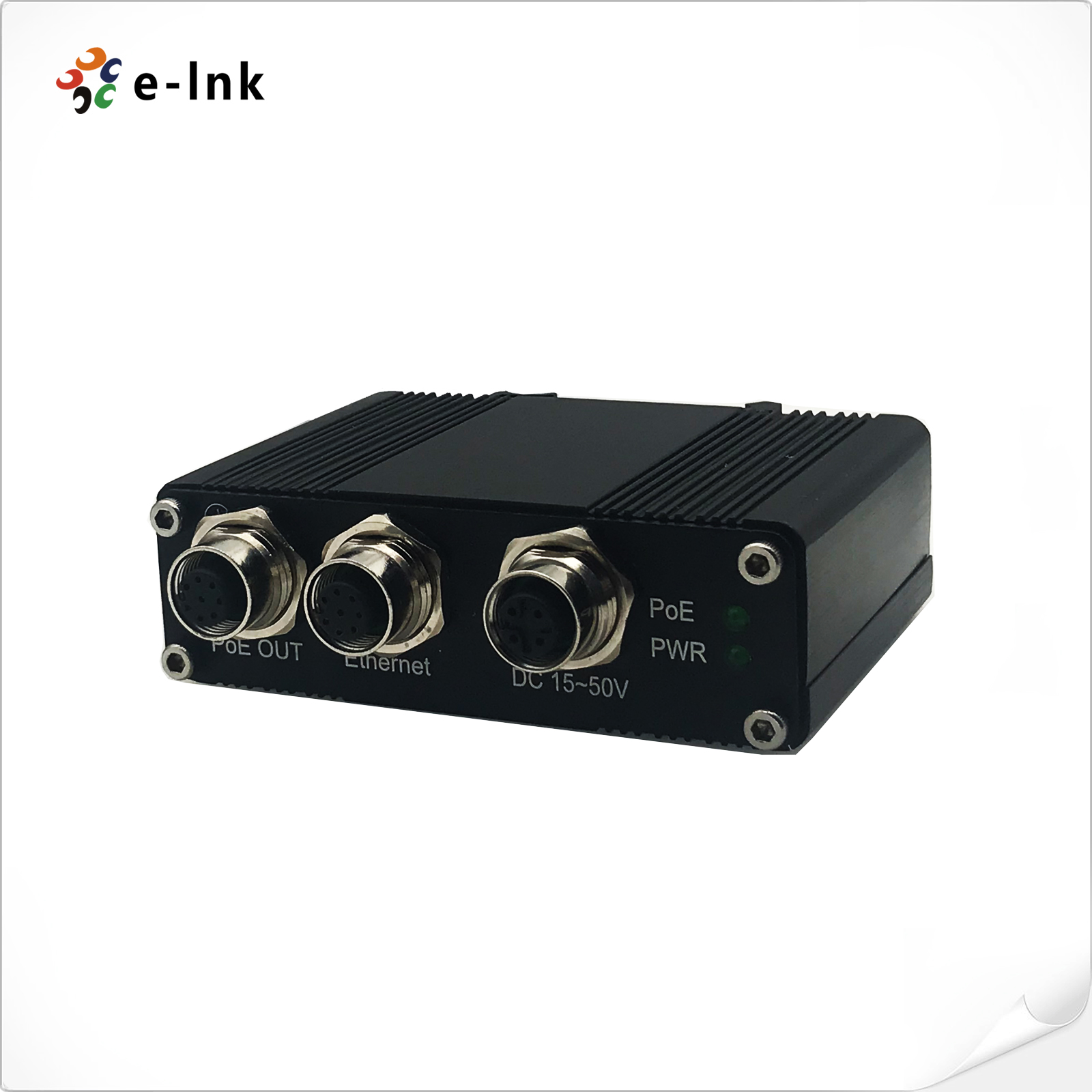

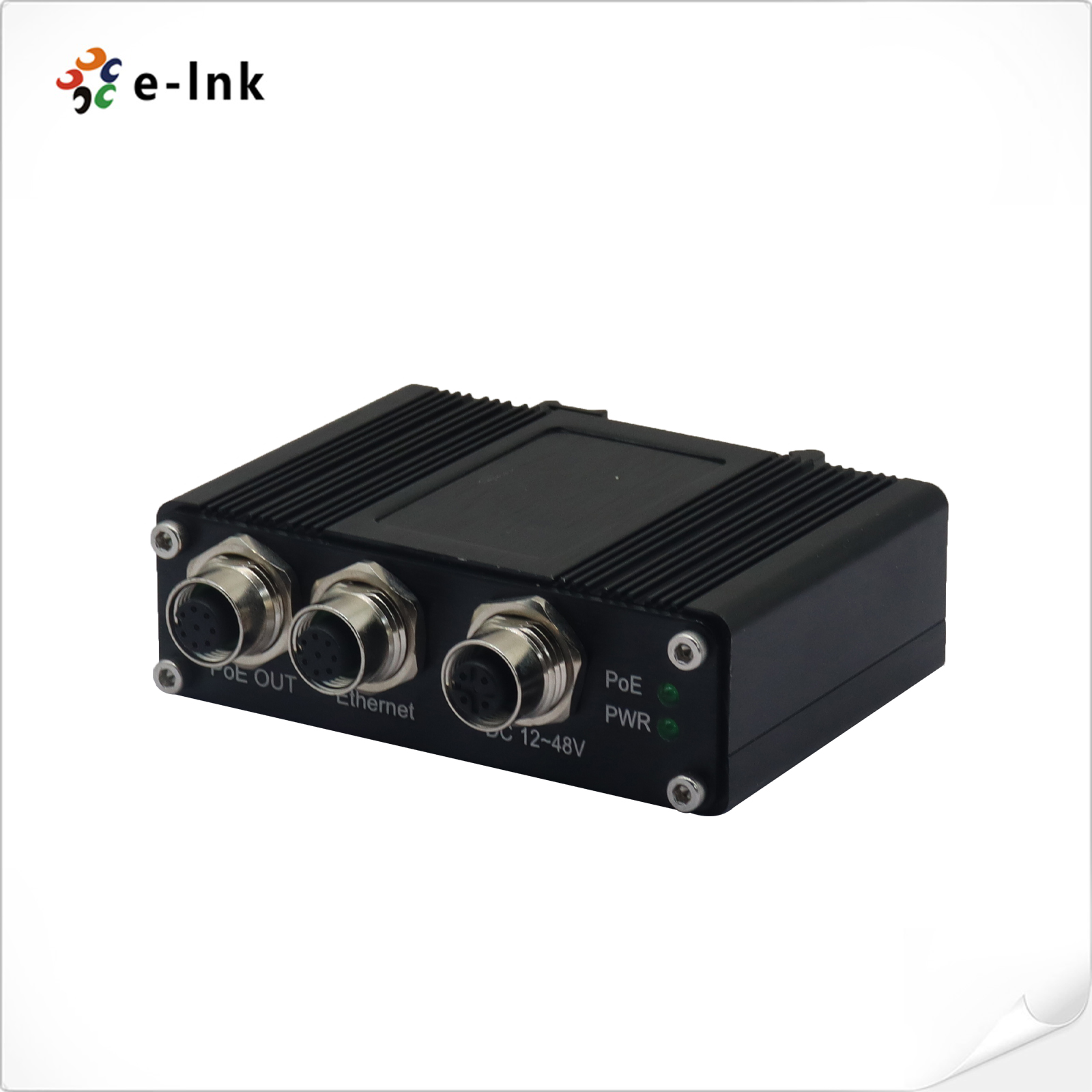

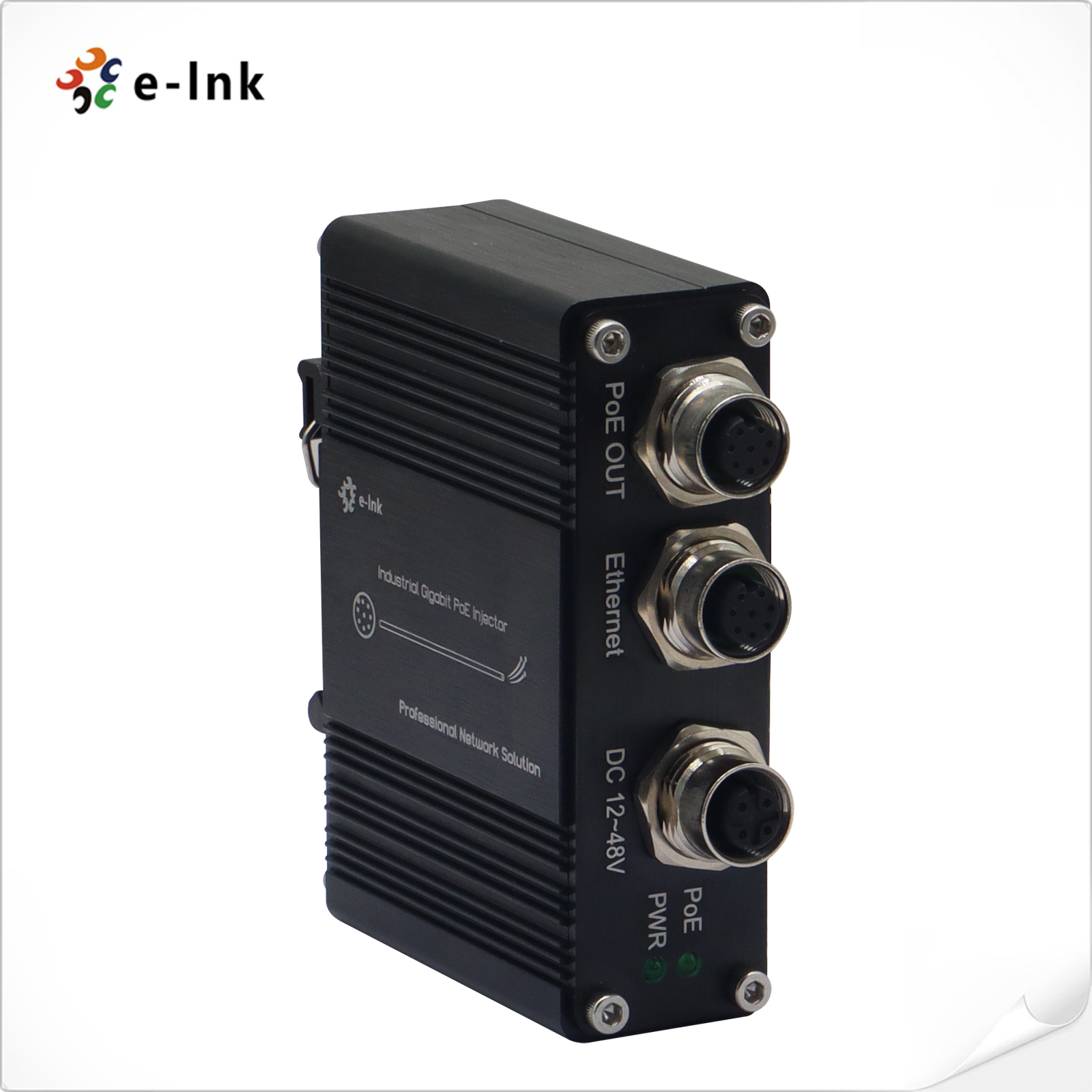

EN50155 Industrial 1-port 1.25G 2.5G 5G 10G PoE Injector with M12 Connector IEEE802.3at/bt
Model:LNK-INJ-M12 Series
► 12~48V DC Power Input
► Fully compliant with IEEE802.3af/at/bt
► Support 1.25G/2.5G/5G/10G for power and data output
► Support DIN-Rail & Wall-mount installation
Overview
E-link EN50155 compliant PoE Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The PoE Injector is an advanced IEEE802.3at/bt compliant device with Intelligent Detection that provides 1-port 1.25G/2.5G/5G/10G PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage to non-PoE compliant devices which may be connected to the Ethernet cable.
LNK-INJ-M12 series provides an integrated power solution with a wide range voltage of 12~48V DC for high availability applications.
Feature
► 12~48V DC Power Input
► Fully compliant with IEEE802.3af/at/bt
► Support 1.25G/2.5G/5G/10G for power and data output
► Support DIN-Rail & Wall-mount installation
► Use M12 connectors to ensure tight and robust connections
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Application
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
IEEE802.3bt Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,0000pps (10Gbps) |
|
Cabling: |
10/100/1000/2.5G/5G/10G Base-T |
|
Connector: |
2x M12 connector (default 8-pin female M12 A-coding, X-coding optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC |
|
Power Port |
4-pin female M12 A-Coding |
|
Power Consumption: |
30W/95W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
Port: |
M12 connector (default 8-pin female M12 A-coding, X-coding optional) |
|
Max. Power per Port: |
30W/90W Max |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A, EN50155 |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
- Download FileName：E-link LNK-INJ301-30-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 2.09MB
- Download FileName：E-link LNK-INJ301-90-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 1.9MB
- Download FileName：E-link LNK-INJ401-30-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 1.9MB
- Download FileName：E-link LNK-INJ401-90-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 2.07MB
- Download FileName：E-link LNK-INJ501-30-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 1.9MB
- Download FileName：E-link LNK-INJ501-90-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 1.9MB
- Download FileName：E-link LNK-INJ601-30-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 1.9MB
- Download FileName：E-link LNK-INJ601-90-M12 Industrial PoE Injector Datasheet V1.0.pdf Size： 1.9MB
Order Information
| Item | Description |
| Industrial 30W M12 PoE Injector | |
| LNK-INJ301-30-M12 |
EN50155 Industrial 1-port 10/100/1000M 30W PoE Injector, 12~48V DC Power Input, standalone, Support DIN-Rail mounting and Wall mounting
installation, not including power supply adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
| LNK-INJ401-30-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G 30W PoE Injector, 12~48V DC Power Input, standalone, Support DIN-Rail mounting and Wall mounting
installation, not including power supply adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
| LNK-INJ501-30-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G 30W PoE Injector, 12~48V DC Power Input, standalone, Support
DIN-Rail mounting and Wall mounting installation, not including power supply
adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
| LNK-INJ601-30-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G 30W PoE Injector, 12~48V DC Power Input, standalone, Support
DIN-Rail mounting and Wall mounting installation, not including power supply
adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
| Industrial 90W M12 PoE Injector | |
| LNK-INJ301-90-M12 |
EN50155 Industrial 1-port 10/100/1000M 90W PoE Injector, 12~48V DC Power Input, standalone, Support DIN-Rail mounting and Wall mounting
installation, not including power supply adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
| LNK-INJ401-90-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G 90W PoE Injector, 12~48V DC Power Input, standalone, Support
DIN-Rail mounting and Wall mounting installation, not including power supply
adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
| LNK-INJ501-90-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G 90W PoE Injector, 12~48V DC Power Input, standalone, Support
DIN-Rail mounting and Wall mounting installation, not including power supply
adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
| LNK-INJ601-90-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G 90W PoE Injector, 12~48V DC Power Input, standalone, Support
DIN-Rail mounting and Wall mounting installation, not including power supply
adapter (M12 connector A-Coding or X-Coding optional, default A-Coding) |
