► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Supports DIN-Rail and Wall-mount installation

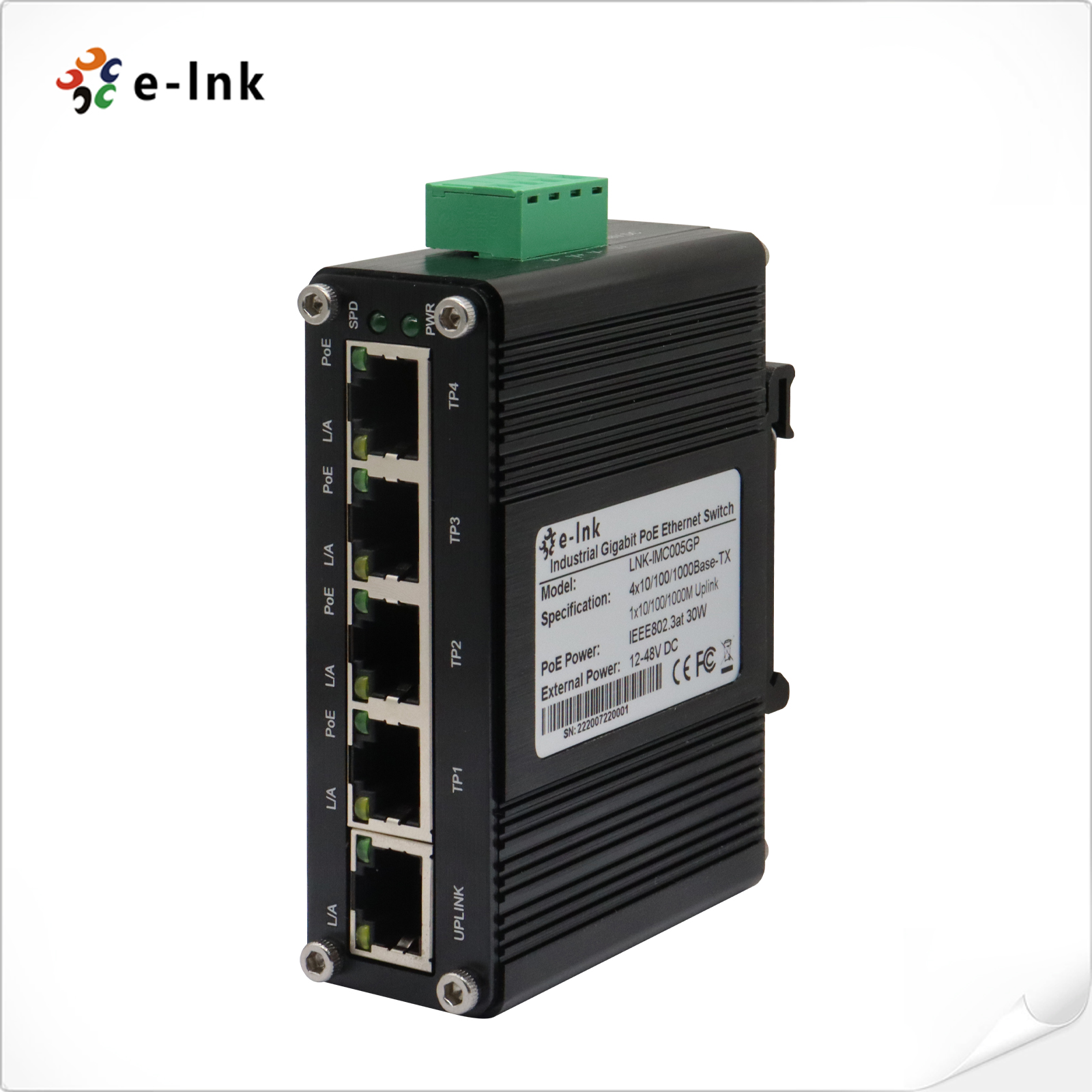

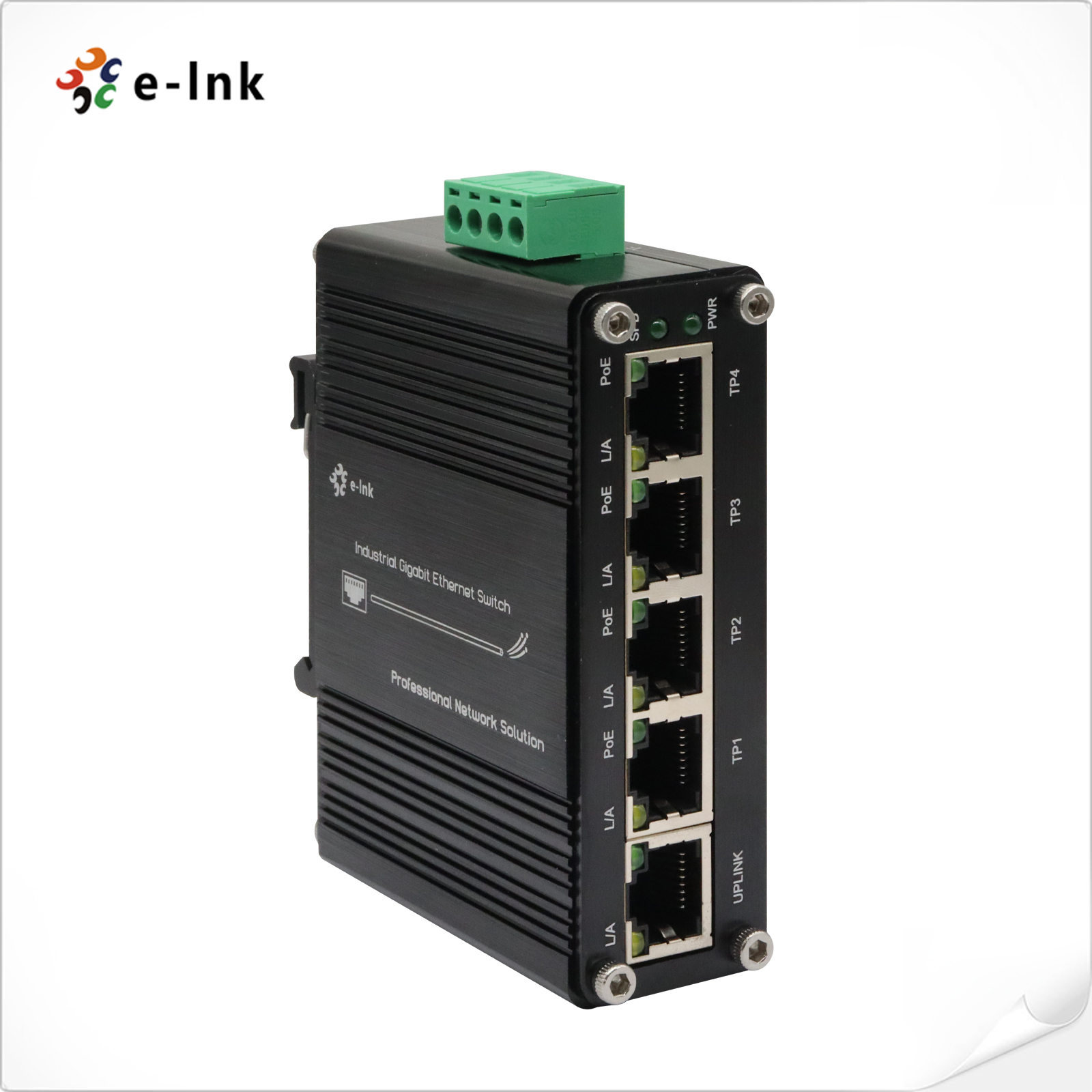

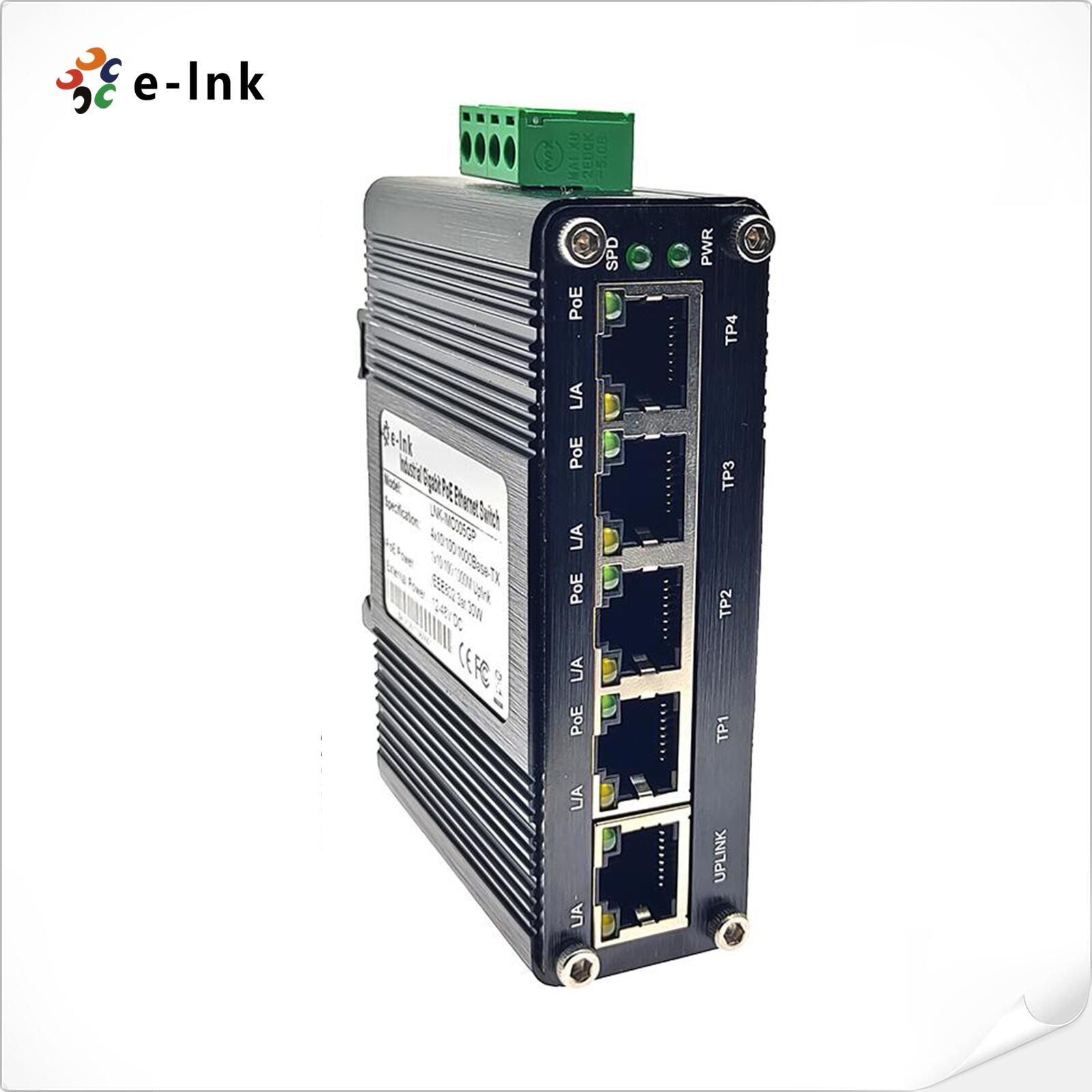

Overview
LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

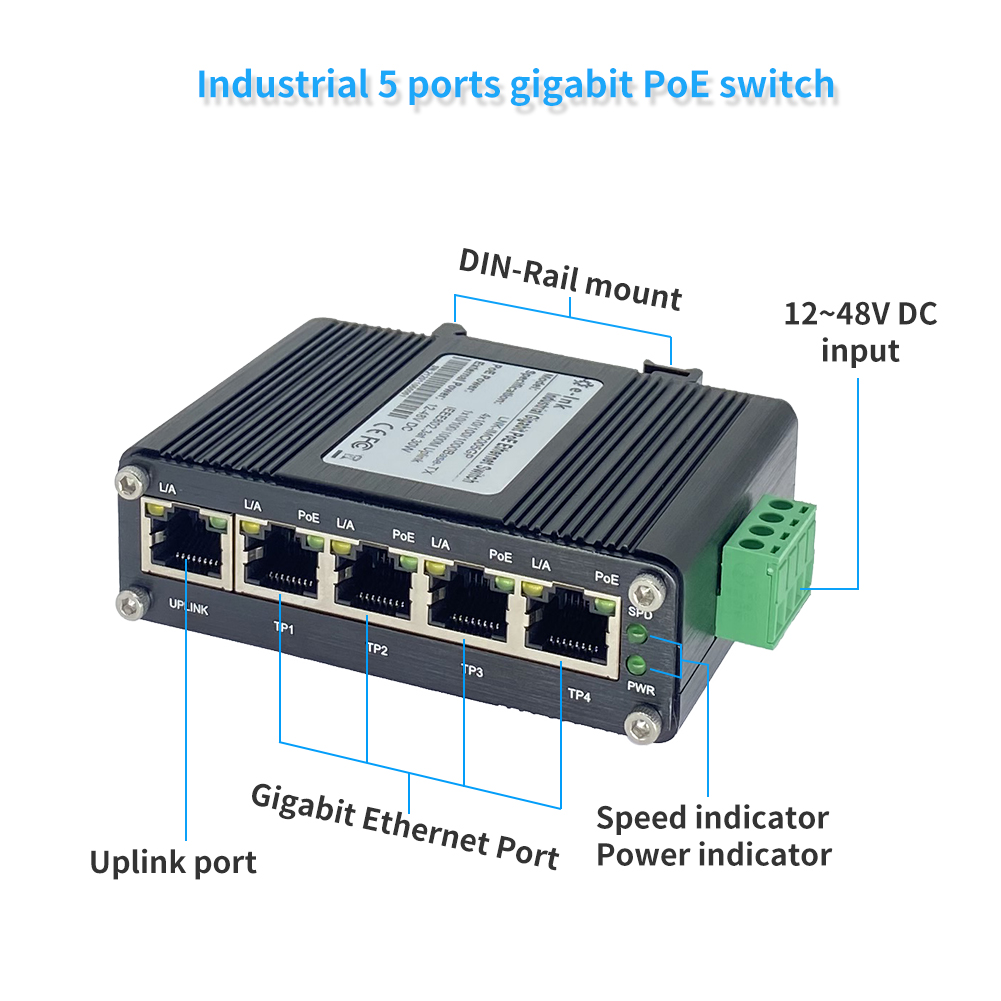

Features
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Supports DIN-Rail and Wall-mount installation
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature

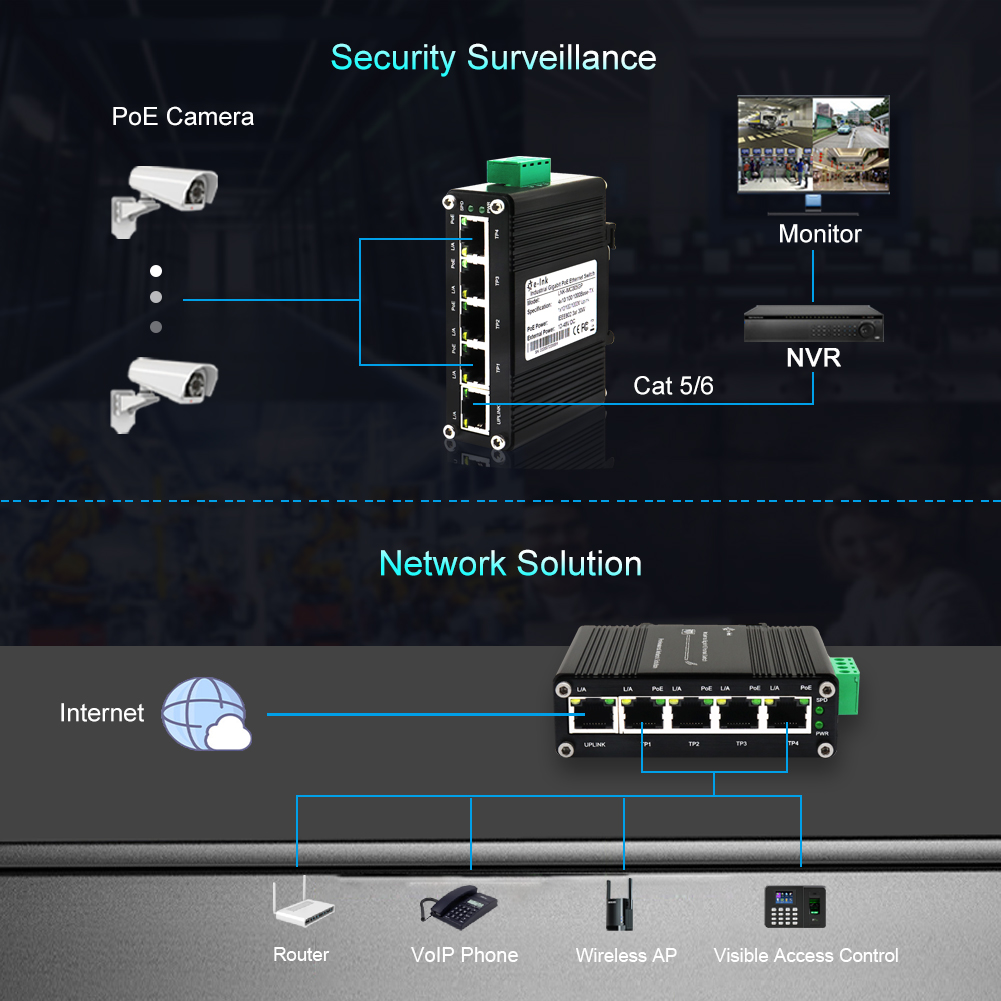

Application
Technical Indexes
Standards: |
IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet |
|
IEEE 802.3ab Gigabit Ethernet |
|
IEEE 802.3x Full-Duplex Flow Control |
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
IEEE 802.3af Power over Ethernet Plus |
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
1,488,000pps (1000Mbps) |
|
Packet Buffer: |
1Mbits |
Packet Length: |
10Kbytes |
MAC Address Table: |
8K |
Switch Fabric: |
10Gbps/non-blocking |
Exchange Property |
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps |
Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
PoE (Power over Ethernet) |
|
Standard: |
IEEE802.3af/at |
Port: |
RJ45 |
Power Pin Assignment |
4/5(+), 7/8(-) |
PoE Budget: |
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF |
> 200,000 hrs |
Electrical and Mechanical |
|
Input Power: |
12~48VDC(Terminal Block) |
Power Consumption: |
<125W (Non-PoE<6W) |
Power Input Overload: |
Automatic Resettable |
Reverse Polarity: |
Present |

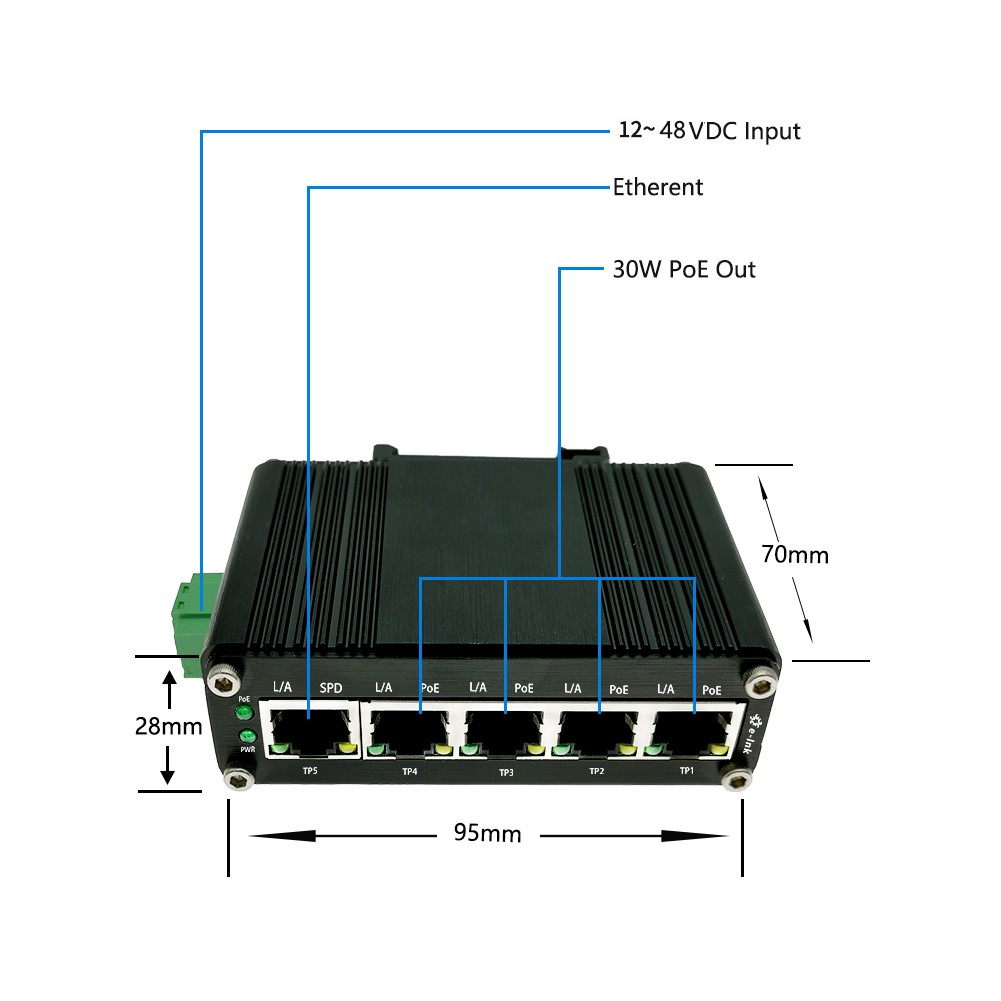

Dimensions (WxDxH): |
95 x 70x 29mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
LED Indicators: |
|
PWR |
Power |
L/A |
Link/Activity |
PoE |
Max 30W per port |
Regulatory Approvals |
|
ISO9001 |
|
EN55022:2010+AC: 2011, Class A |
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
EN 61000-3-3: 2013 |
|
EN55032:2017 |
|
IEC 61000-4-2: 2008 (ESD) |
|
IEC 61000-4-3: 2010 (RS) |
|
IEC 61000-4-4: 2012 (EFT) |
|
IEC 61000-4-5: 2014 (Surge) |
|
IEC 61000-4-6: 2013 (CS) |
|
IEC 61000-4-8: 2009 (PFMF) |
Order Information
Model |
Description |
LNK-IMC005GP |
Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► Power Supply is to be purchased separately |
