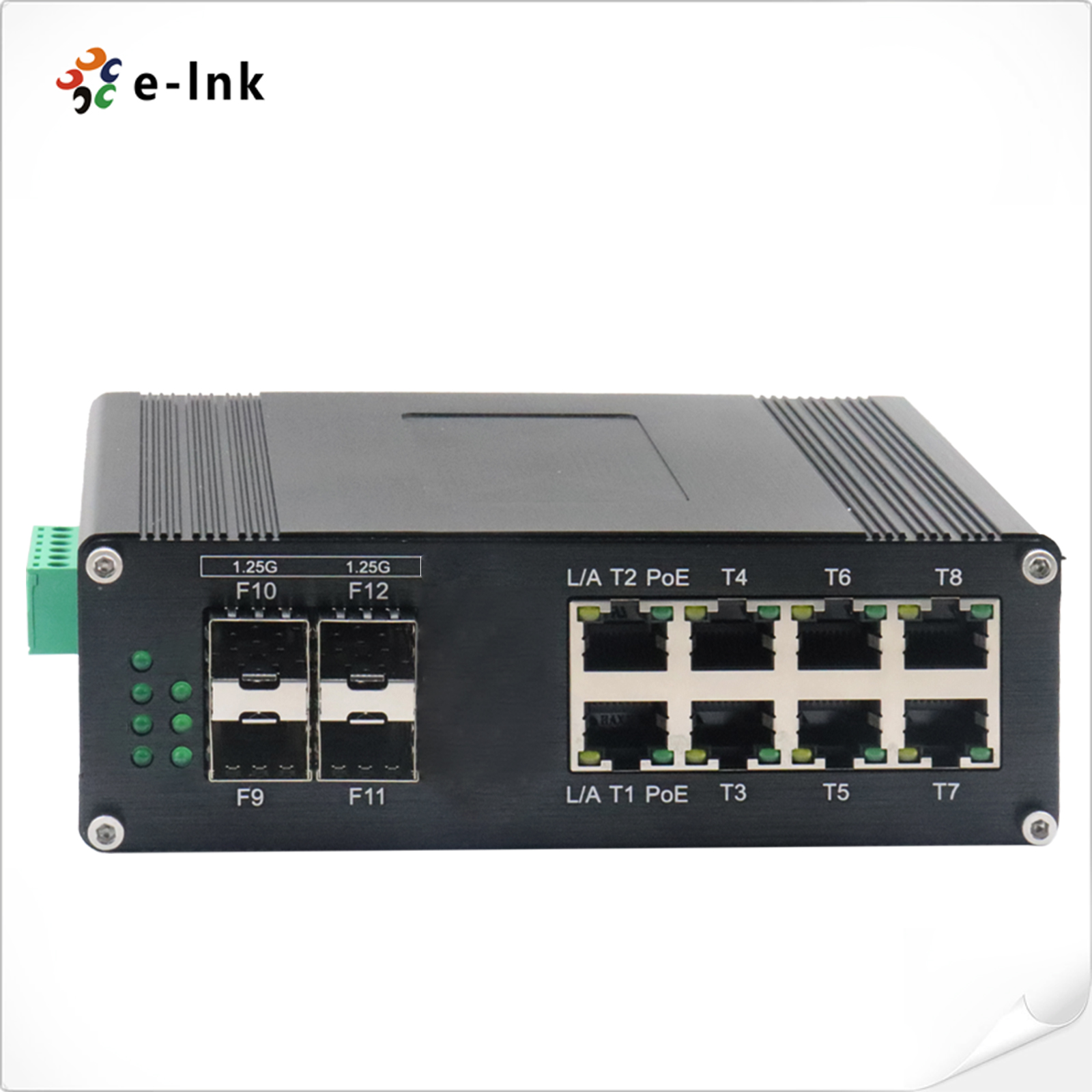

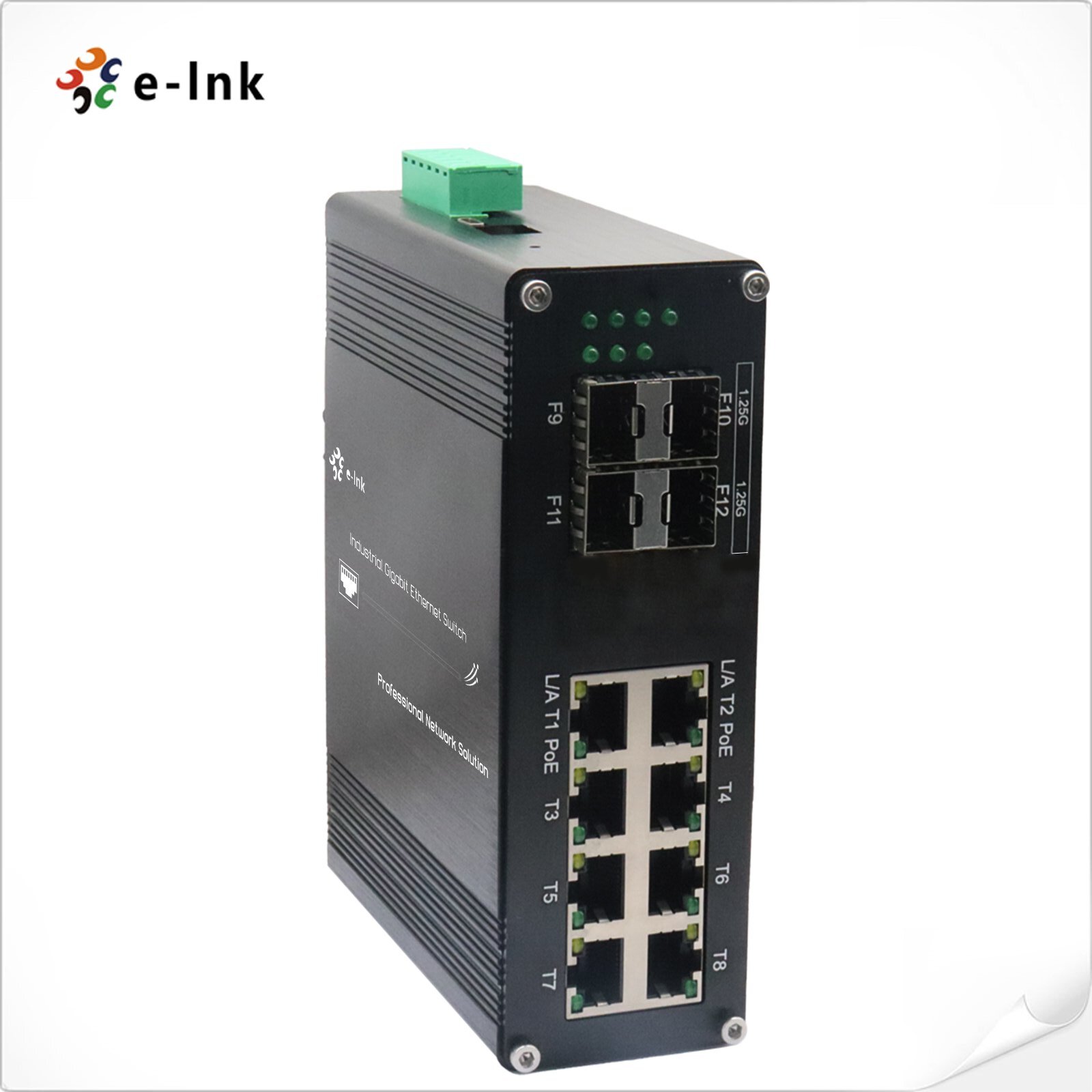

► Support 8x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support 8x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Standards: |
IEEE802.3 10BASE-T |
|||
IEEE802.3u 100BASE-TX |
||||
IEEE802.3ab 1000BASE-T |
||||
IEEE802.3z 1000BASE-X |
||||
IEEE802.3p QoS |
||||
IEEE802.1d Spanning Tree |
||||
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|||
148,800pps (100Mbps) |
||||
1,488,000pps (1000Mbps) |
||||
Packet Buffer Memory: |
12M bits |
|||
Processing Type: |
Store-and-Forward |
|||
Backplane bandwidth |
110Gbps |
|||
Max Packet Length: |
9K Bytes Jumbo Frame |
|||
Address Table Size: |
8K MAC Addresses |
|||
Interface |
||||
Connector: |
8 x RJ45 |
|||
RS485: |
1 x RS485 (Optional) |
|||
Optical Port: |
4 x 1000Base-X SFP |
|||
USB-C: |
1 x USB-C (for Management) |
|||
RS485 Serial Interface (Optional) |
||||
Physical interface |
Industrial standard 3-pin screw terminal |
|||
Data type |
1Ch RS485 Bi-Direction |
|||
RS-485 signals |
Data +, Data-, GND |
|||
Serial port line distance (copper) |
1000 meters |
|||
Baud rate |
0 ~ 800kbps |
|||
PoE (Power over Ethernet) |
||||
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|||
IEEE 802.3af Power over Ethernet |
||||
Port: |
8 x RJ45 |
|||
Power Pin Assignment |
4/5(+), 7/8(-) |
|||
PoE Budget: |
Up to 240-watt PoE budget |
|||
Environmental |
||||
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
Relative Humidity: |
5% to 95% non-condensing |
|||
MTBF |
> 200,000 hrs |
|||
Electrical and Mechanical |
||||
Input Power: |
48~57VDC,Redundant Power (6-pin Terminal Block) |
|||
Power Consumption: |
8W Max. (PoE in Use<240W) |
|||
Protection: |
||||
Power Input Overload: |
Automatic Resettable |
|||
Reverse Polarity: |
Present |
|||

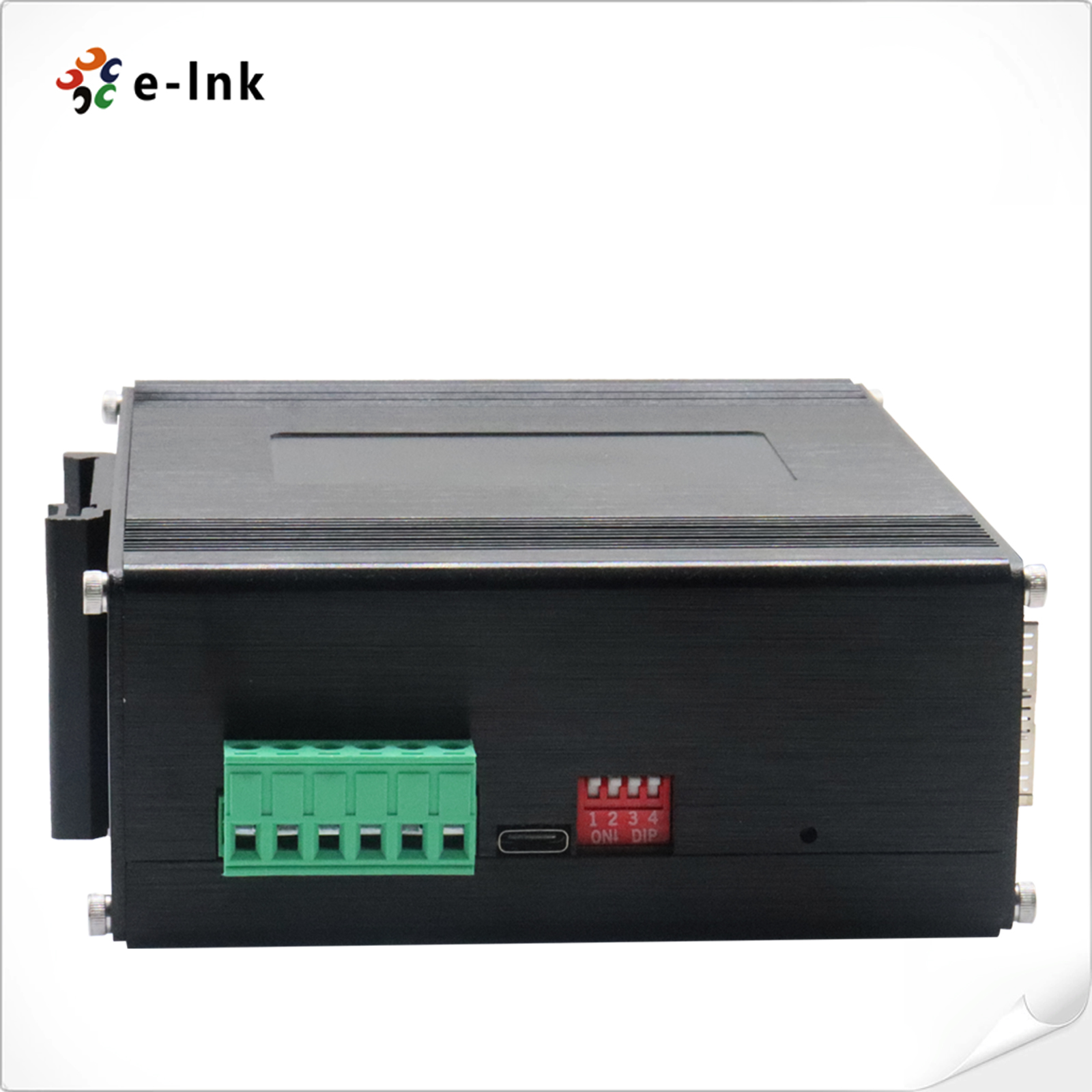

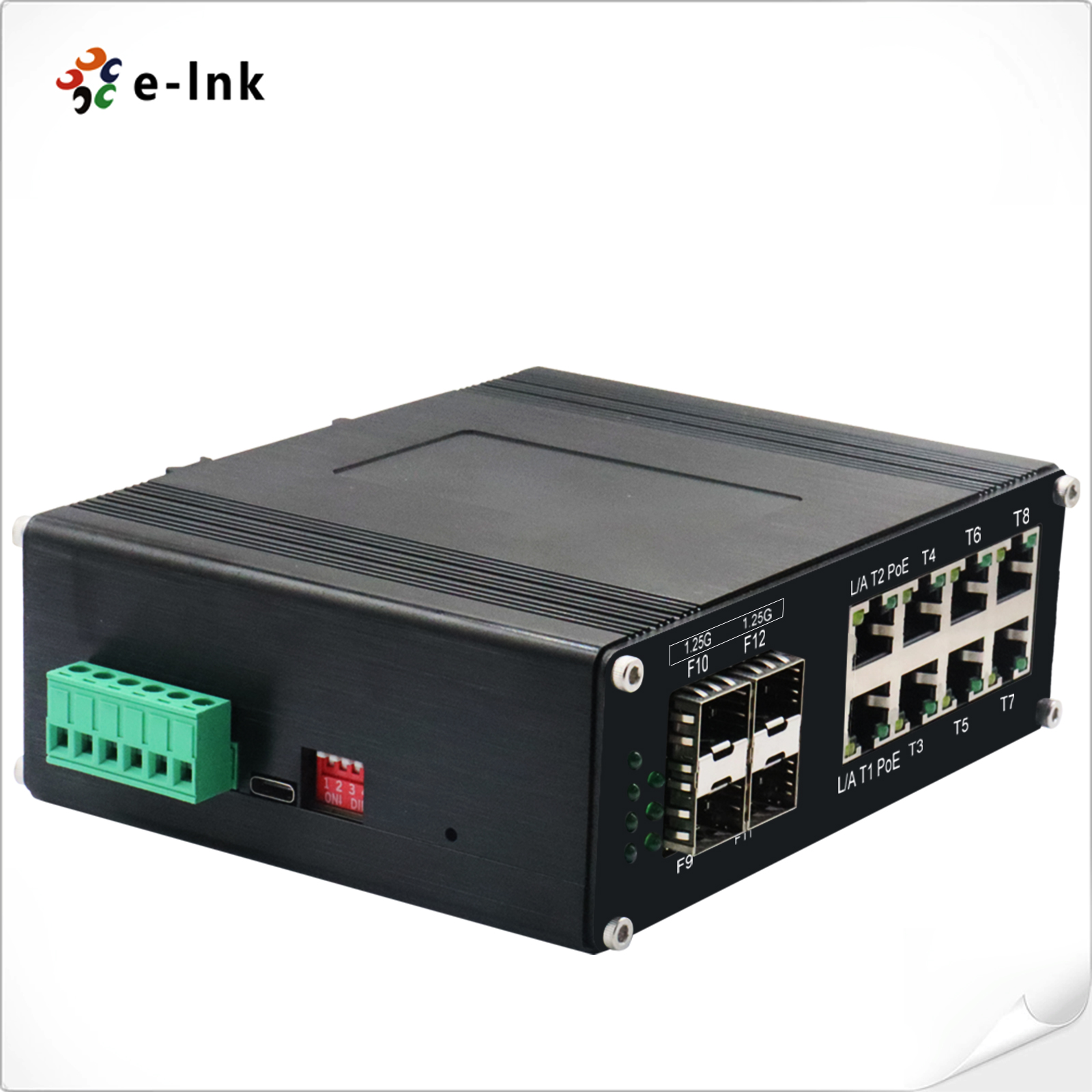

DIP Switch |
||||
4-digit DIP switch function |
DIP |
Function |
Settings |
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
SW 3 (to be upgraded) |
250m PoE Network |
ON - Enabled |
OFF - Disabled |
|
SW 4 (to be upgraded) |
PoE Reset |
ON - Enabled |
OFF - Disabled |
|
LED Indicators: |
||||
PWR |
Power Status |
|||
Ethernet (Per Port) |
Link/Activity |
|||
PoE |
PoE Status |
|||
Fiber: |
Gigabit SFP Port: F9~F12 |
|||
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|||
Weight: |
0.55Kg |
|||
Casing: |
Aluminum Case |
|||
Mounting Options: |
DIN-Rail mount |
|||
Software Features |
||||
Redundancy Protocols |
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation |
|||
Multicast Support |
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q |
|||
VLAN |
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN, |
|||
Time Management |
SNTP |
|||
QOS |
Flow-based redirection
Flow-based
rate limiting |
|||
ACL |
Port-based Issuing ACL
ACL
based on port and VLAN |
|||
PoE Management |
Total power limit of PoE power supply
PoE
output power allocation |
|||
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|||
Management Function |
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT |
|||
Alarm Management |
Support 1 way relay alarm output, RMON, TRAP |
|||
Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support
DHCP Snooping, Option 82, 802.1X security access, |
|||
Advance Layer 2+ Features |
IPv4/IPv6 Management Static Route |
|||
Regulatory Approvals |
||||
ISO9001, CE, RoHS, FCC |
||||
EN55022:2010+AC: 2011, Class A |
||||
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
EN 61000-3-3: 2013 |
||||
EN55024:2010 |
||||
IEC 61000-4-2: 2008 (ESD) |
||||
IEC 61000-4-3: 2010 (RS) |
||||
IEC 61000-4-4: 2012 (EFT) |
||||
IEC 61000-4-5: 2014 (Surge) |
||||
IEC 61000-4-6: 2013 (CS) |
||||
IEC 61000-4-8: 2009 (PFMF) |
Model |
Description |
ETH-IMC408MP |
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
► SFP module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed |
Power Options |
|
► Power Supply is to be purchased separately. |
