LNK-4KH-FL is a video extension device that can transmit high-definition audio and video signals over a single network cable (or fiber optic cable) at long distances, and can simultaneously transmit one high-definition signal in both directions.

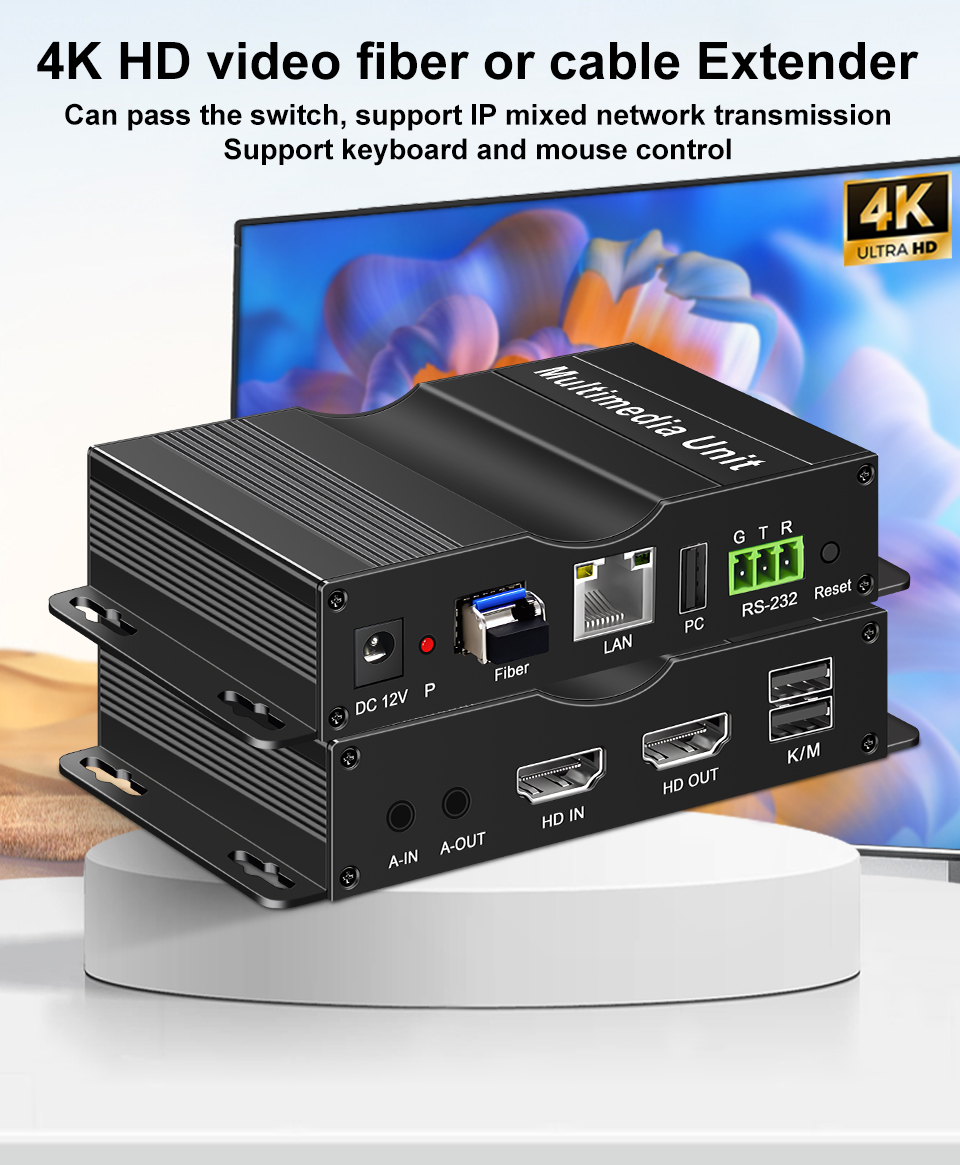

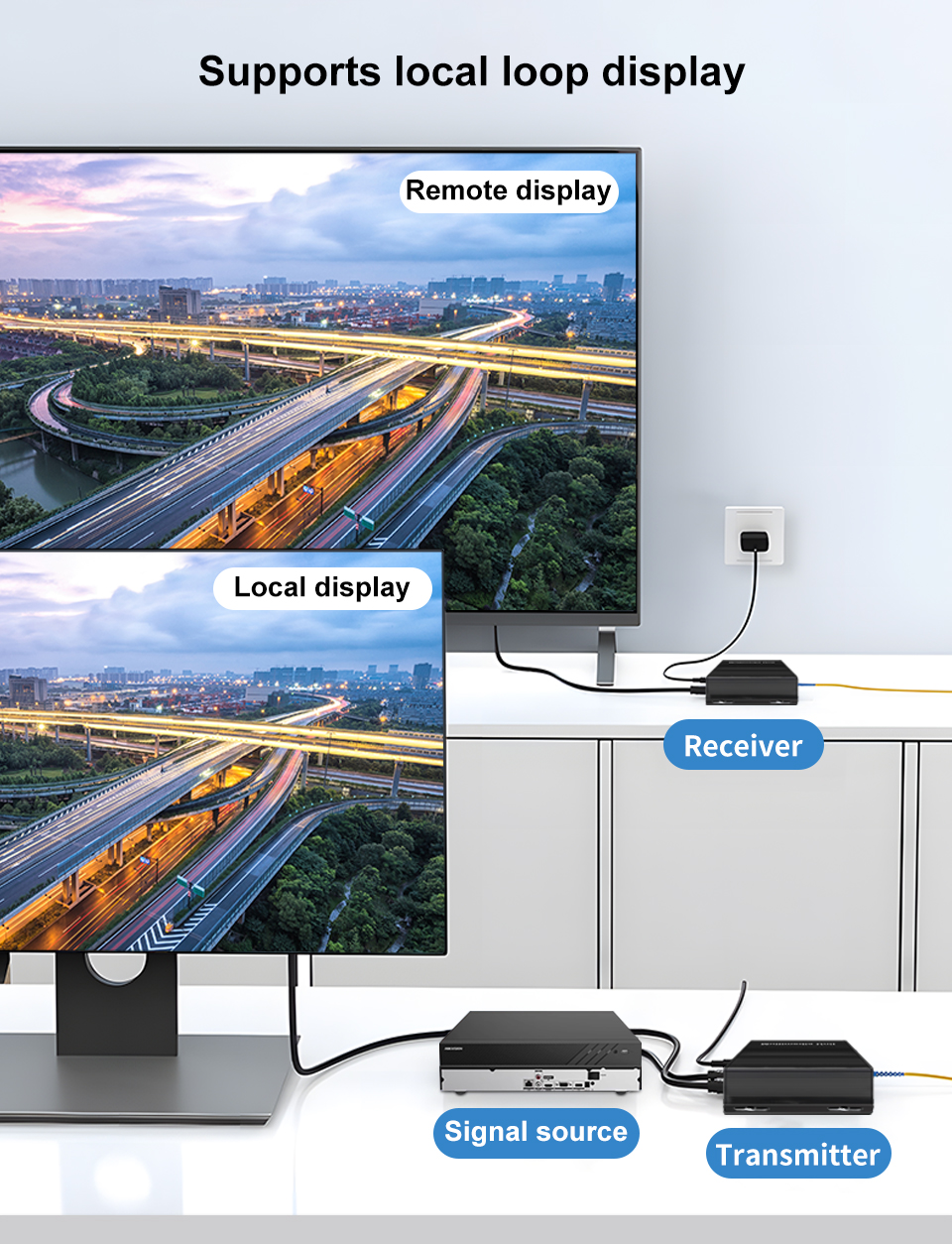

This product supports one local loop-out of the video signal, supports RS232 serial port, supports OSD function, supports independent audio input and output; it has the characteristics of long transmission distance, low usage cost, convenient installation, good compatibility, and is a stable and efficient transmission product. This product adopts a pure network system architecture and combines a modular design concept, not only has the advantage of stable and efficient hardware architecture, but also can support various interface and business module combinations, meeting different application scenarios, and the transmission distance between each node is not limited.

Designed for the application needs of intelligent, full-function control and command centers, it is suitable for energy and power, judicial and prison, smart cities, government services, water conservancy and hydrology, meteorology and seismology, enterprise management, metallurgy and steel, banking and finance, transportation, exhibition and display, production scheduling, broadcasting and television, education and scientific research and other fields. This product focuses on long-distance transmission control but is not limited to transmission control, and is a new solution for modern control centers.

Basic Parameters

►     Transmit HDMI video and audio signals over fiber for up to 20KM at long distances, or up to 250 meters over network cable;

►     Support high-definition video signals with a resolution of up to 4K at 3840*2160P@30Hz;

►     Adopt professional streaming formats to improve transmission efficiency and ensure smooth playback;

►     Comply with HDCP 1.3 standard - high-bandwidth digital content protection technology;

►     Compatible with HDMI 1.4 standard;

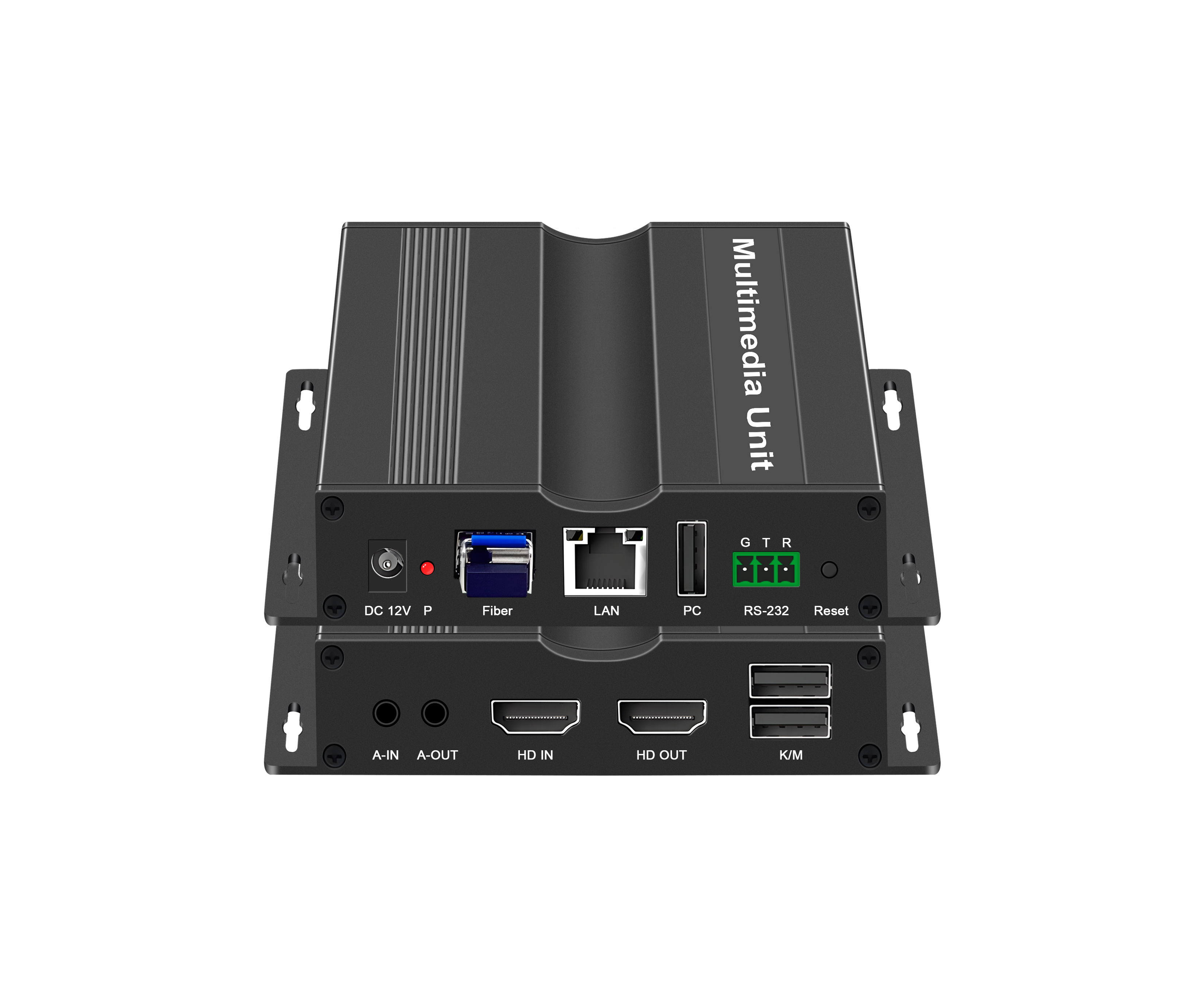

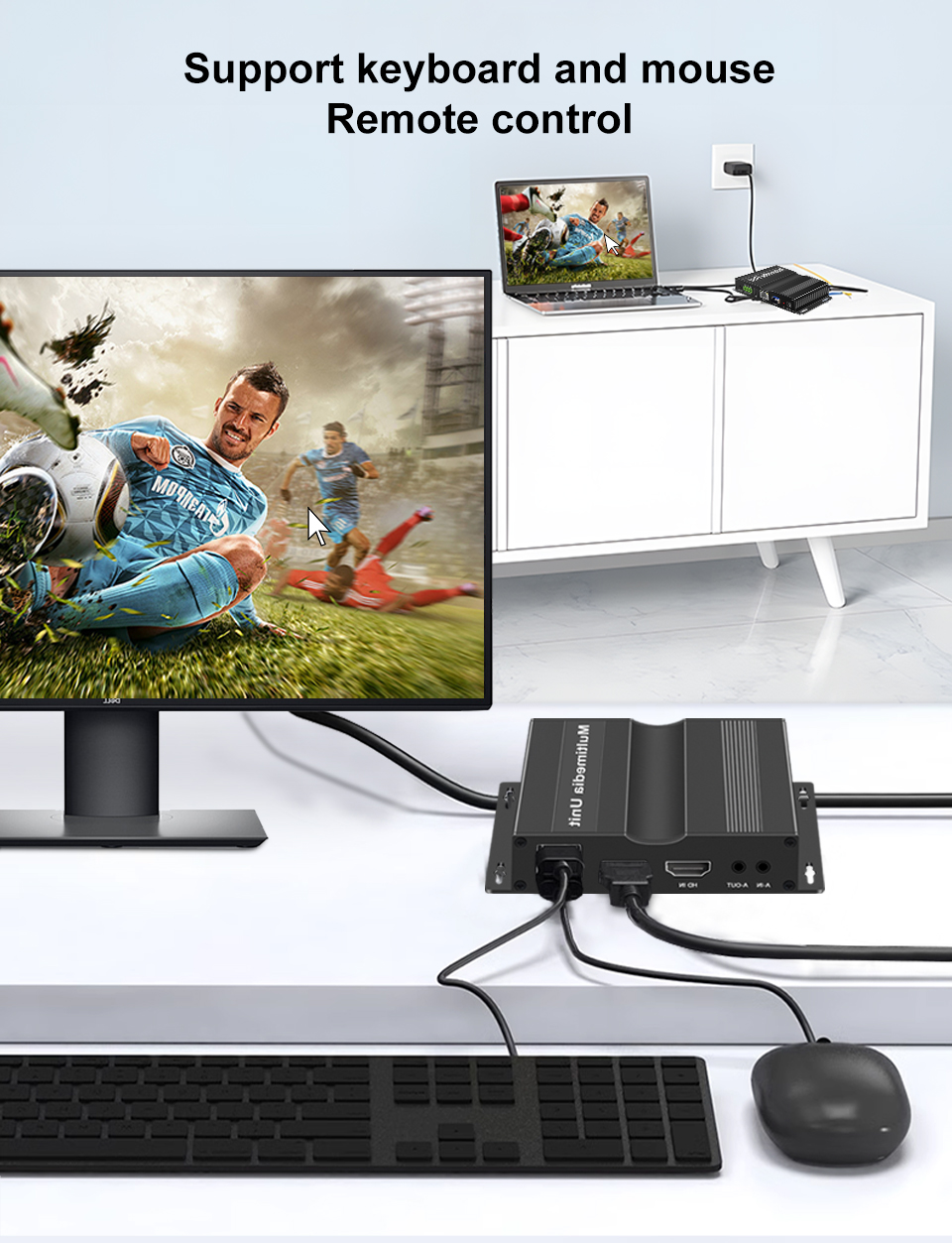

►     Support mouse and keyboard remote control;

►     Support UI interface and OSD functions;

►     Use a single high-end simple physical button to achieve switching and reset functions;

►     Support RS232 serial port control;

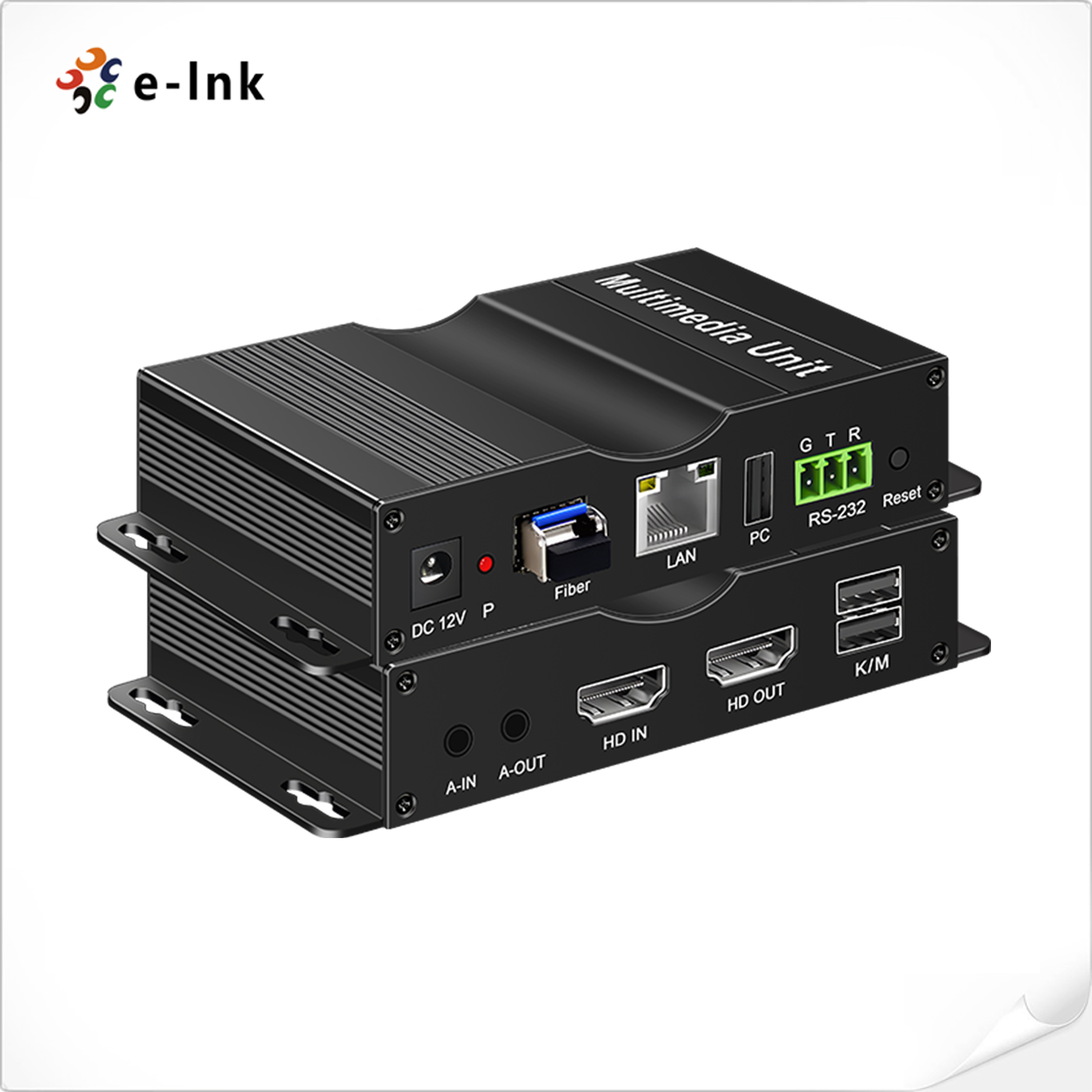

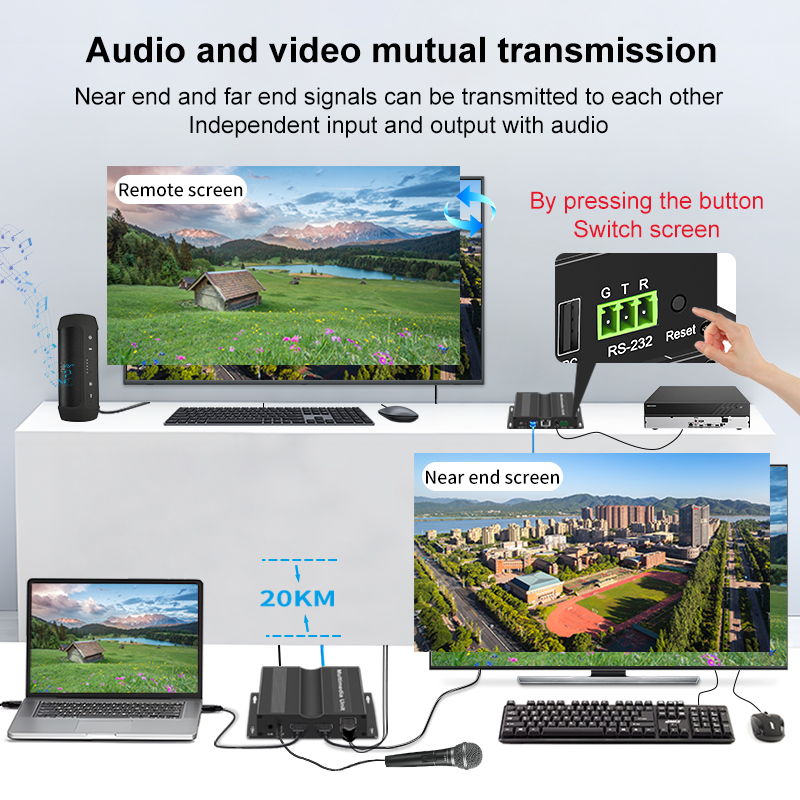

►     Support embedded independent audio two-way intercom;

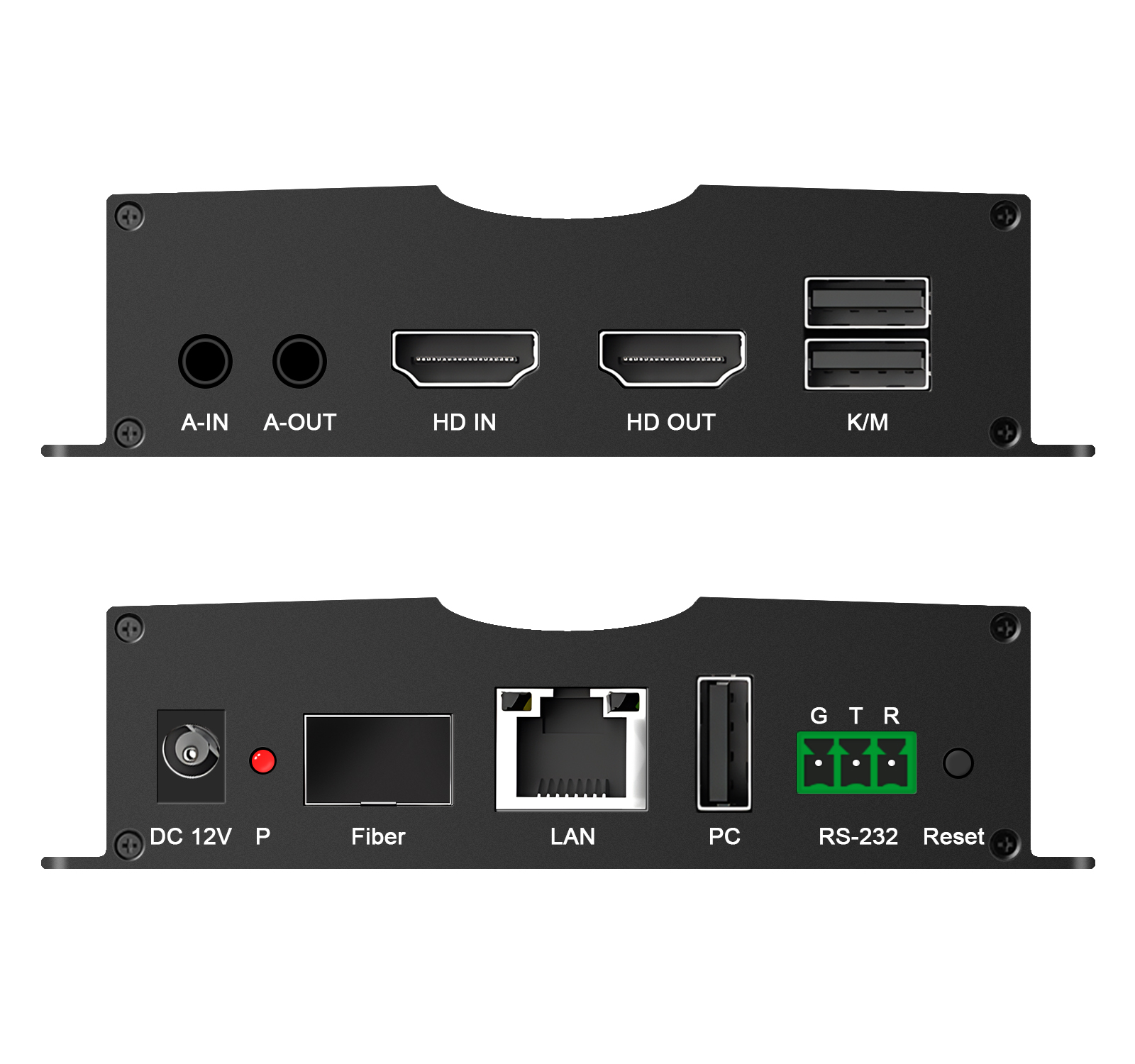

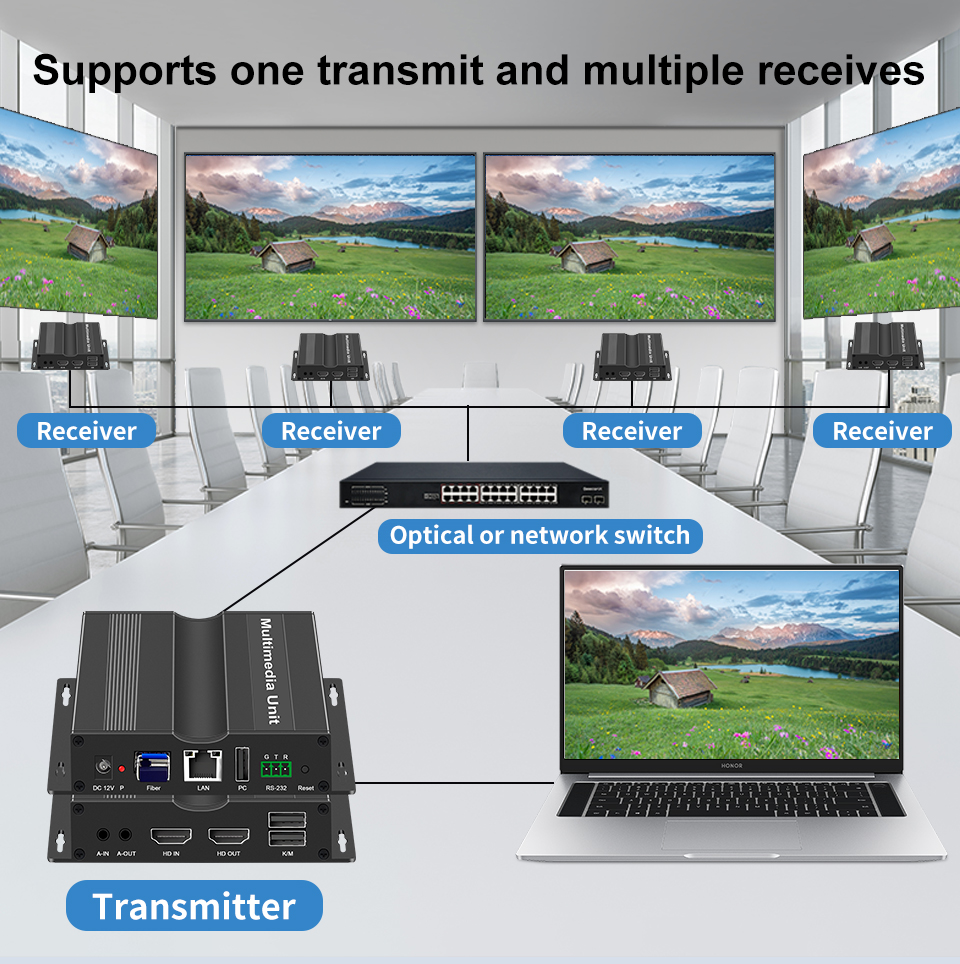

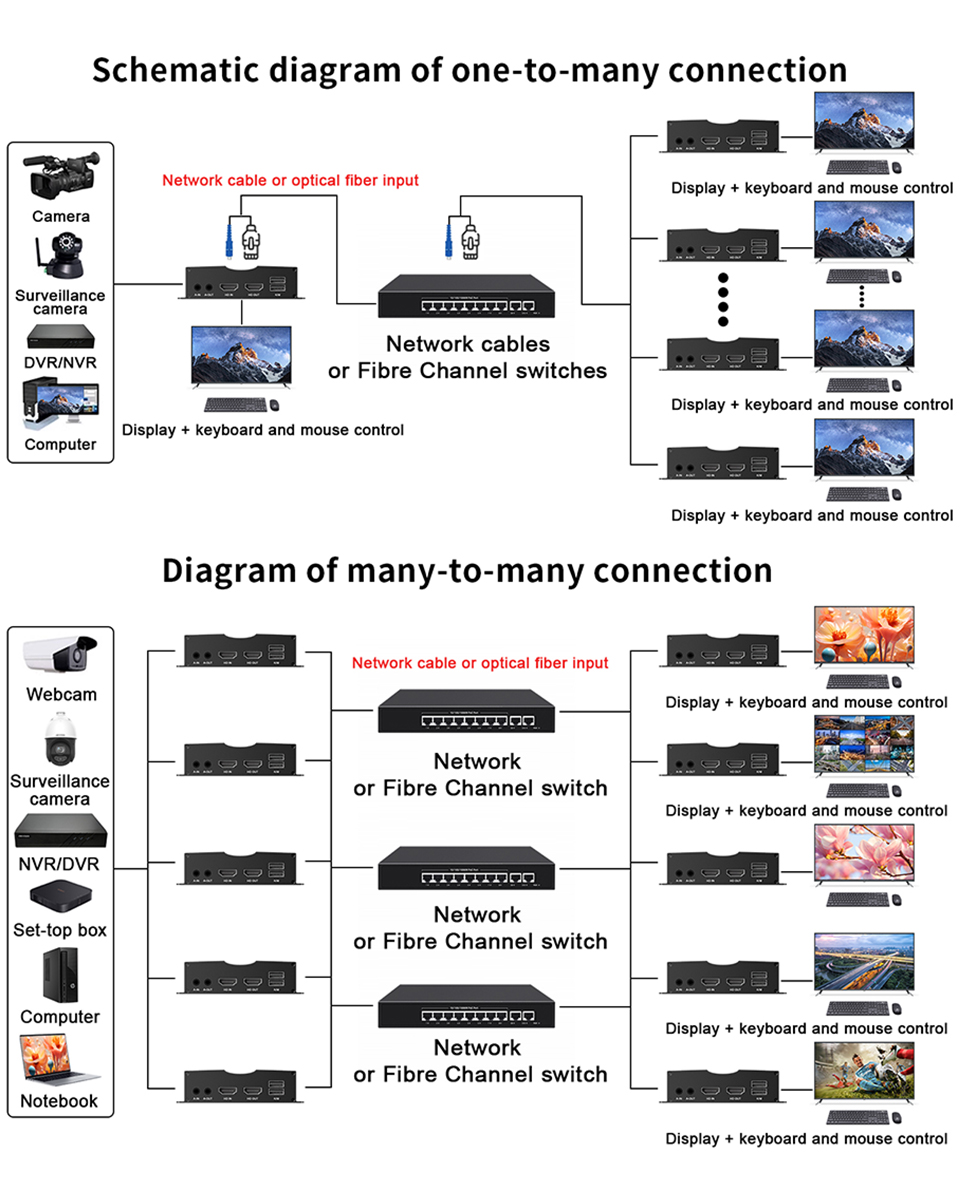

►     Support independent IP protocol for 1:1, 1:m, and m:m mixed network transmission over fiber or network;

►     Integrated automatic equalization system for smooth, clear, and stable images;

►     Integrated ESD electrostatic protection module to enhance device safety and reliability;

►     Simple and convenient installation, plug-and-play, no setup required;

Interoperability

►     The platform can seamlessly connect and interoperate with various front-end devices, without any restrictions on the network operators.

►     Through TCP/IP networks, the platform can collect audio, video, and sensor data from front-end devices without requiring fixed IP addresses, and display real-time control management through visualization.

Multiple signal outputs

►     The platform can simultaneously output to various display terminals (such as LCD panels, monitors, LED matrix screens, advertising screens, projectors, etc.)

l Audio processing

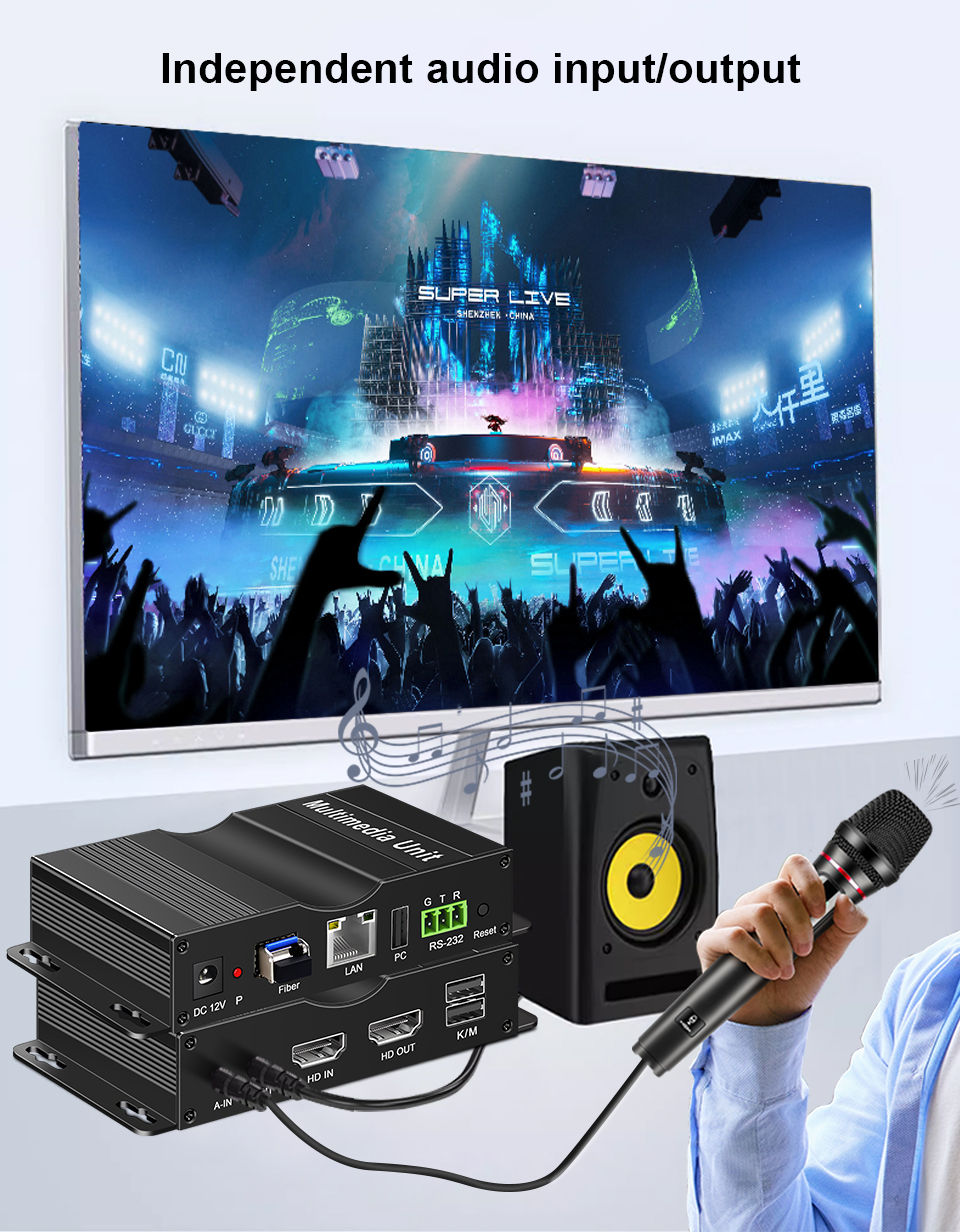

►     Support HDMI audio input and output and independent audio input and output.

l Signal switching

►     Integrated audio and video matrix function

►     Multiple signal sources can be merged into a grid and displayed in equal parts on a single window, or a single signal can be displayed full-screen.

Multi-system compatibility

►     To ensure system stability, the core of the system uses an embedded Linux solution.

High-definition access

►     Remote signals can be captured and displayed on the wall through the network, and the signal processing is free of ghosting, distortion, and lag. The lag cannot exceed 0.2 seconds.

►     Each large screen display wall should be able to share, select, and display any input signal.

Signal display

►    The output signal is processed in real-time at 4K@30Hz resolution, without any frame rate reduction internally, to ensure clear and smooth output images, high color fidelity, and compatibility with input and output customization, meeting the true point-to-point requirements.

Video	protocol	HDMI 1.4 ;HDCP 1.3
	pixel bandwidth	165MHz，Digital
	Interface bandwidth	Totally 6.75Gbps
	max resolution	3840*2160P@30Hz
	interface	HDMI-A
	impedance	100Ω
	max HDMI transmitting distance	Less than 5 meter
Network port	interface	RJ45
	max transmitting distance	Up to 250meter with Cat6 cable.
Optical port	interface	SC/LC standard optical fiber port.
	max transmitting distance	up to 20km
Other	power resource	DC 12V
	Power consumption	MAX:6W
	Temperature	-5℃~ +70℃
	Humidity	5% ~ 90%
	Size	12*13*3cm
	Weight	300g/pc, 1kg/pair
	Warranty	Free warranty for 1 year, Lifetime maintenance

• Download FileName：LNK-4KH-FL 4K HDMI Video Extender Datasheet V1.0.pdf Size： 1.88MB

Item	Description
LNK-4KH-FL	4K HDMI Video Extender via CAT6 Cable & Fiber Optic Cable, with KVM, Bidi Audio, RS232, support transmit 250 meter via Cat6 cable, 20km via single mode fiber optic cable.
