This HDMI 4x1 Quad Multi-viewer is a high performance with 4 HD screen segmentation and seamless switching output switch.

It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously.

The control methods of the device is flexible, it can be switched via button and IR control. It’s a very practical and stable device and easy to install, can be used in the major projects, meeting halls and other places.

►  Support 4 HDMI input, 1 HDMI output

►  Support 4 channels HDMI signal screen segmentation

►  Support 4 channels HDMI signal seamless switching

►  Support highest resolution up to 1080P/60Hz

►  Support IR control

►  Compatible HDMI1.3a, HDCP1.2, input compatible DVI1.0 version

►  Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on

►  Support audio output format: PCM2

►  Support standard AWG26 cable, input up to 15 meters, output up to 15 meters

►  DC12V/2A power adapter

►  Net weight: 310g

►  Dimension (L x W x H): 170*90*22mm

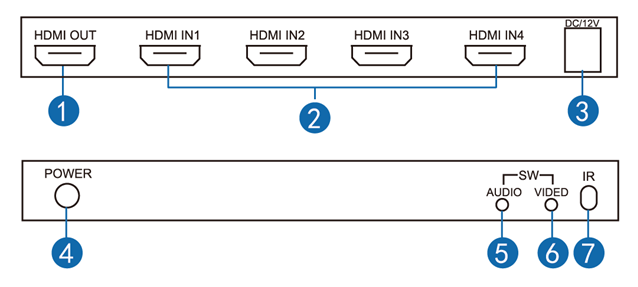

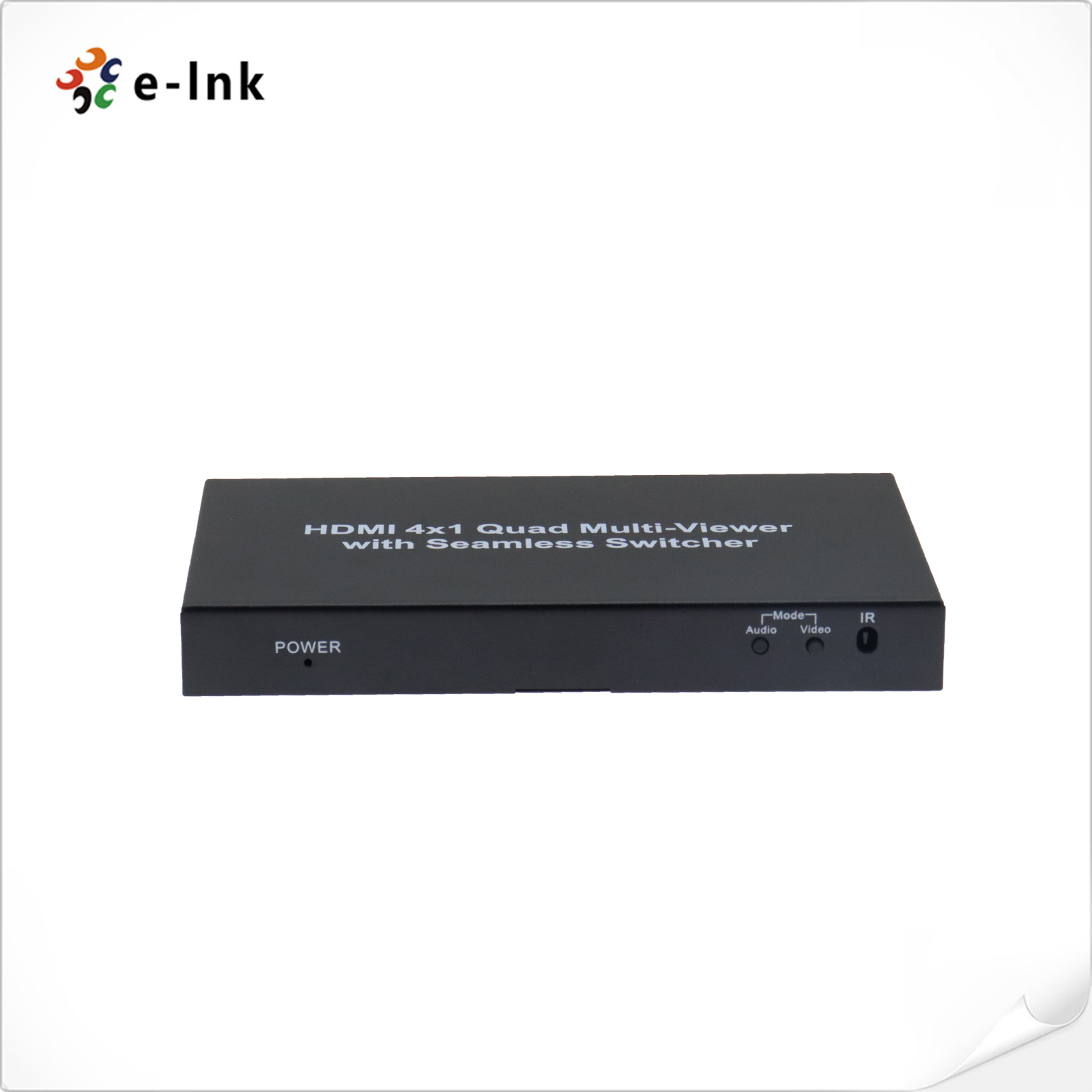

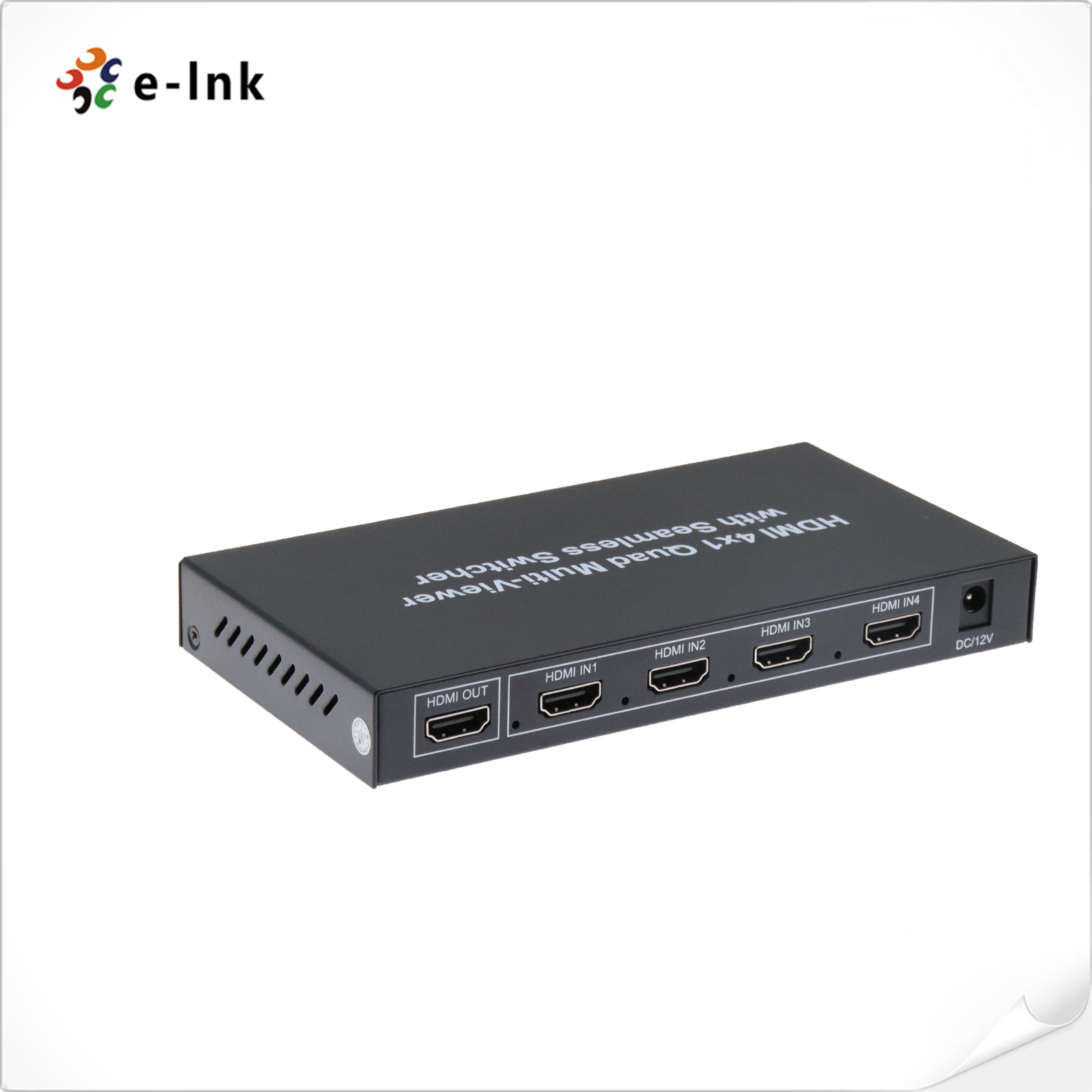

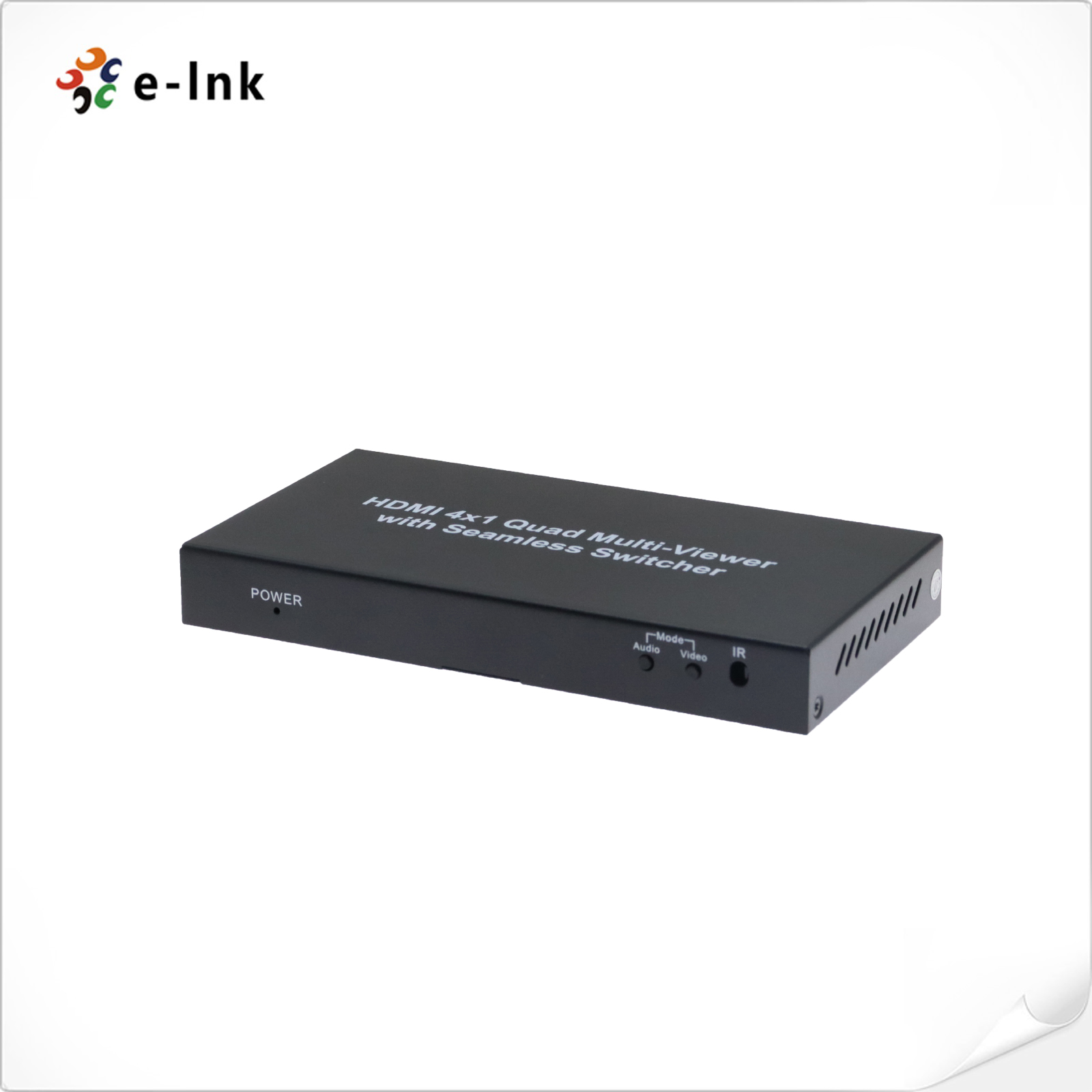

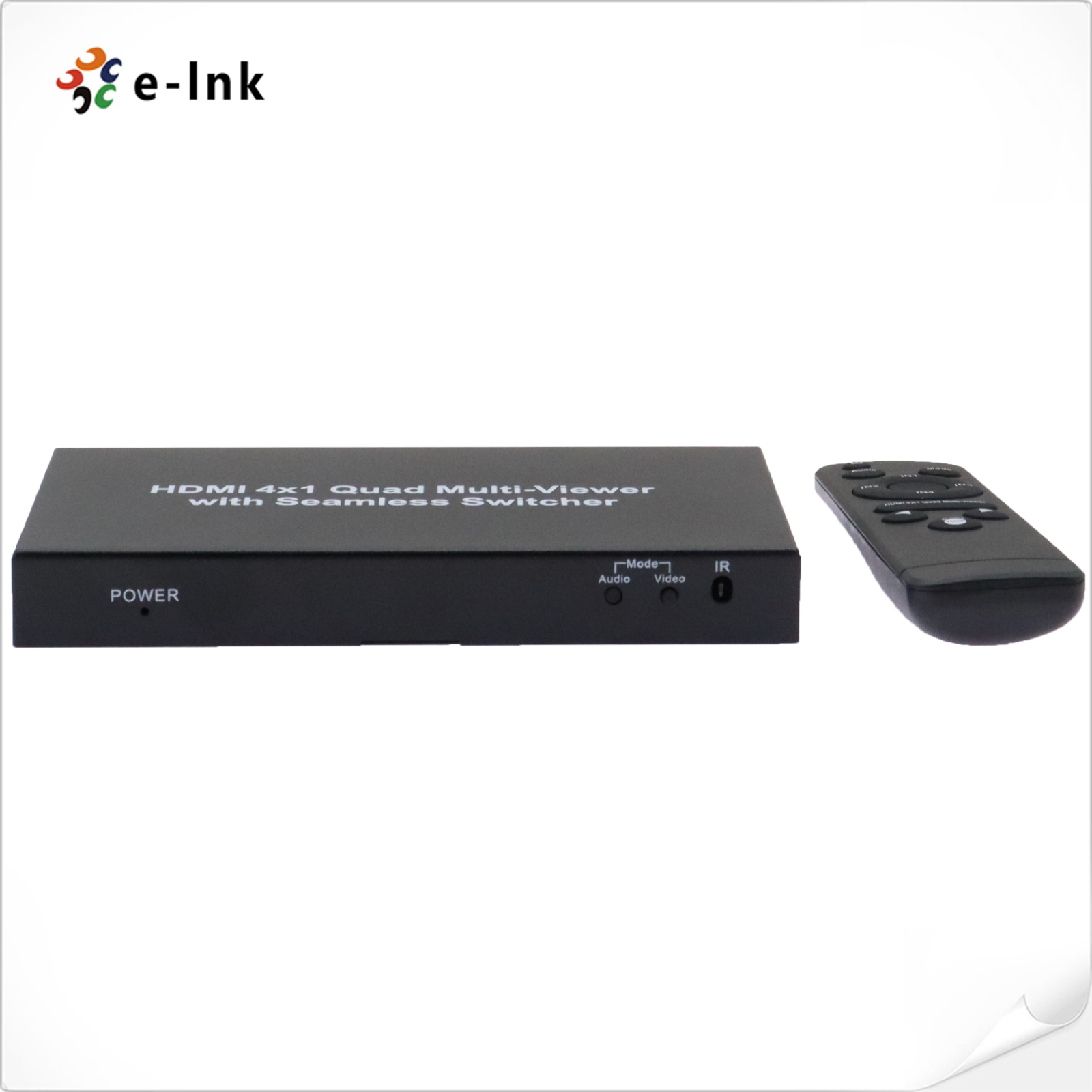

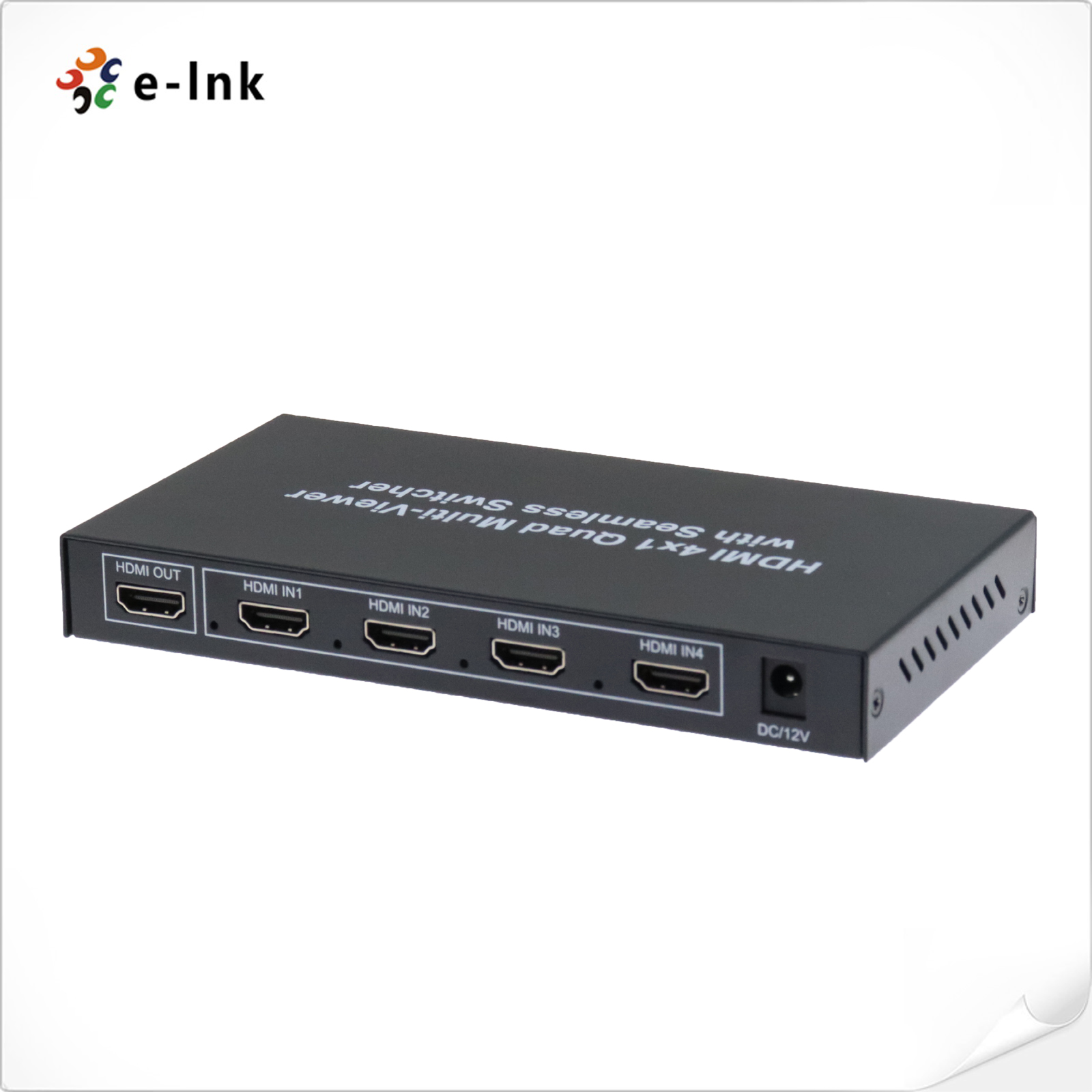

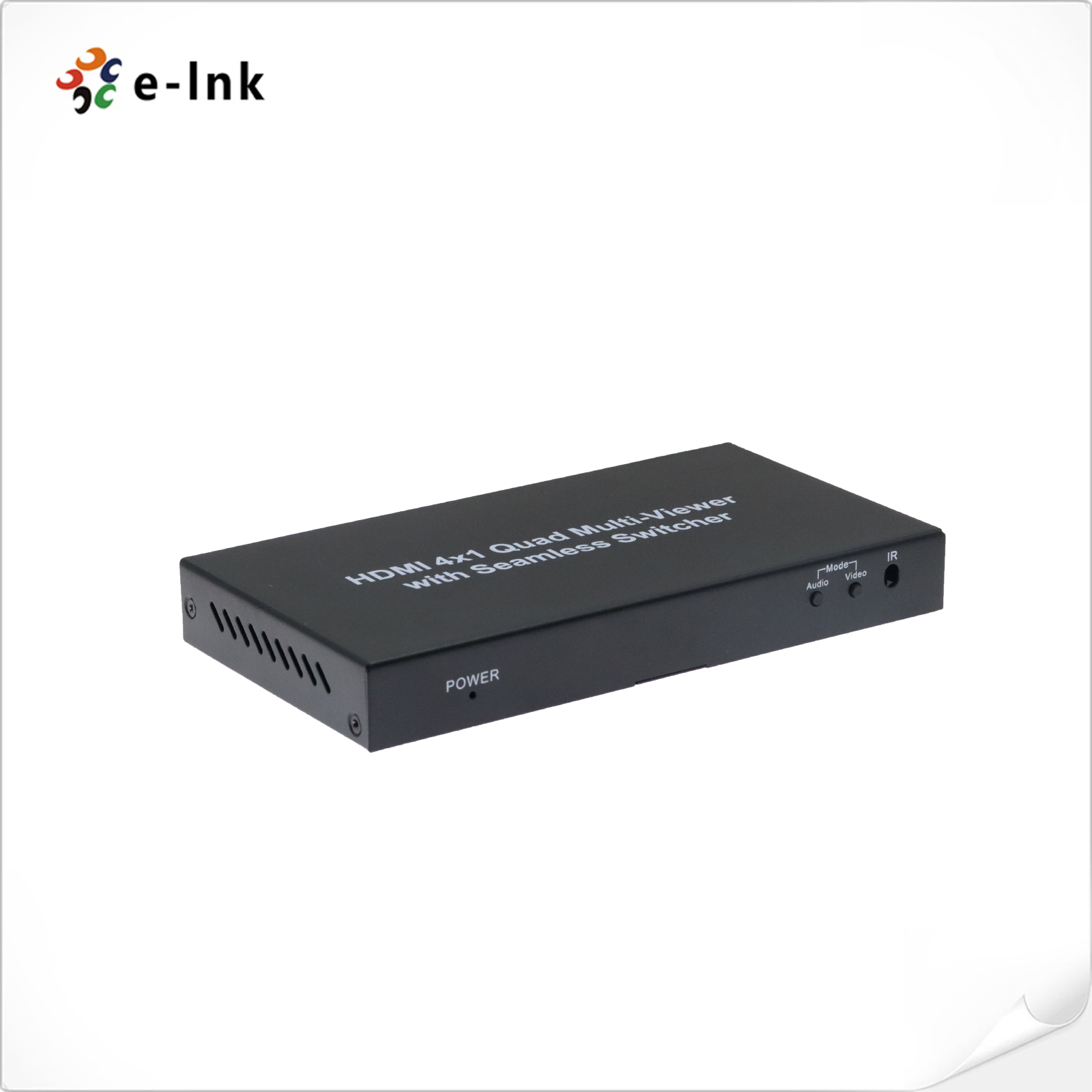

Interface

1：  HDMI OUT ---HDMI output

2：  HDMI IN1-4 ---HDMI input 1 to input 4

3：  DC/12V ---DC12V power input

4：  POWER---Power indicator

5：  AUDIO---Audio mode switching

6：  VIDEO---Video mode switching

7：  IR---IR receive

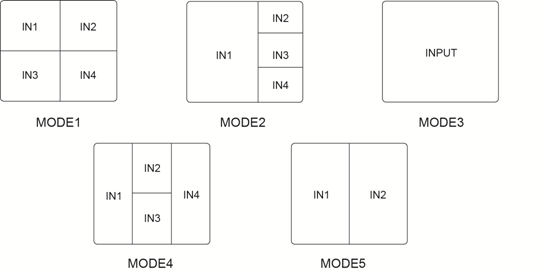

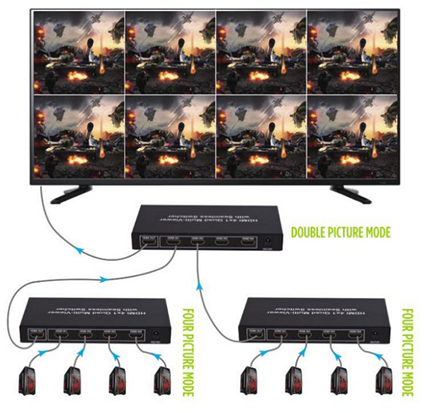

Switching Modes

MODE1: Switching IN1-IN4, to choose the audio output

MODE2: Switching IN1-IN4, the audio output is the same as the audio of the main interface.

MODE3: IN1-IN4, the4 channels HDMI signal seamless switching

MODE4: Switching IN1-IN4 to H screen

MODE5: Double screen

• Download FileName：E-link HDMI 4x1 Quad Multi-viewer Datasheet V1.0.pdf Size： 1.04MB
