Other Fiber Optic & Networking Products► Support HDMI 2.0/HDCP 2.2
► Support 3D video format
► Support highest resolution to 4096X2160/60Hz
► Support the max baud rate of 6G and the TMDS clock is 600Mhz
► Support 8/10/12 bit deep color

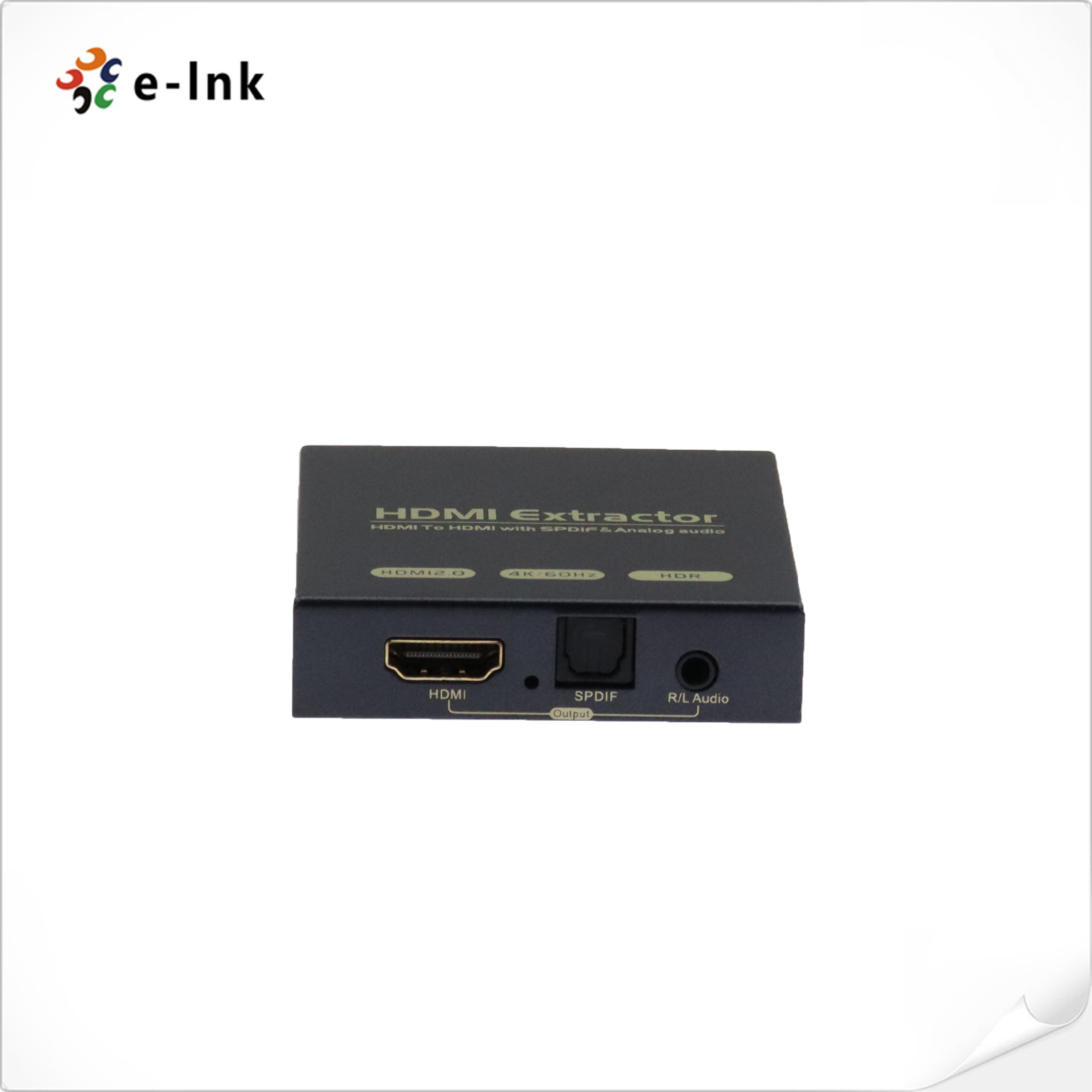

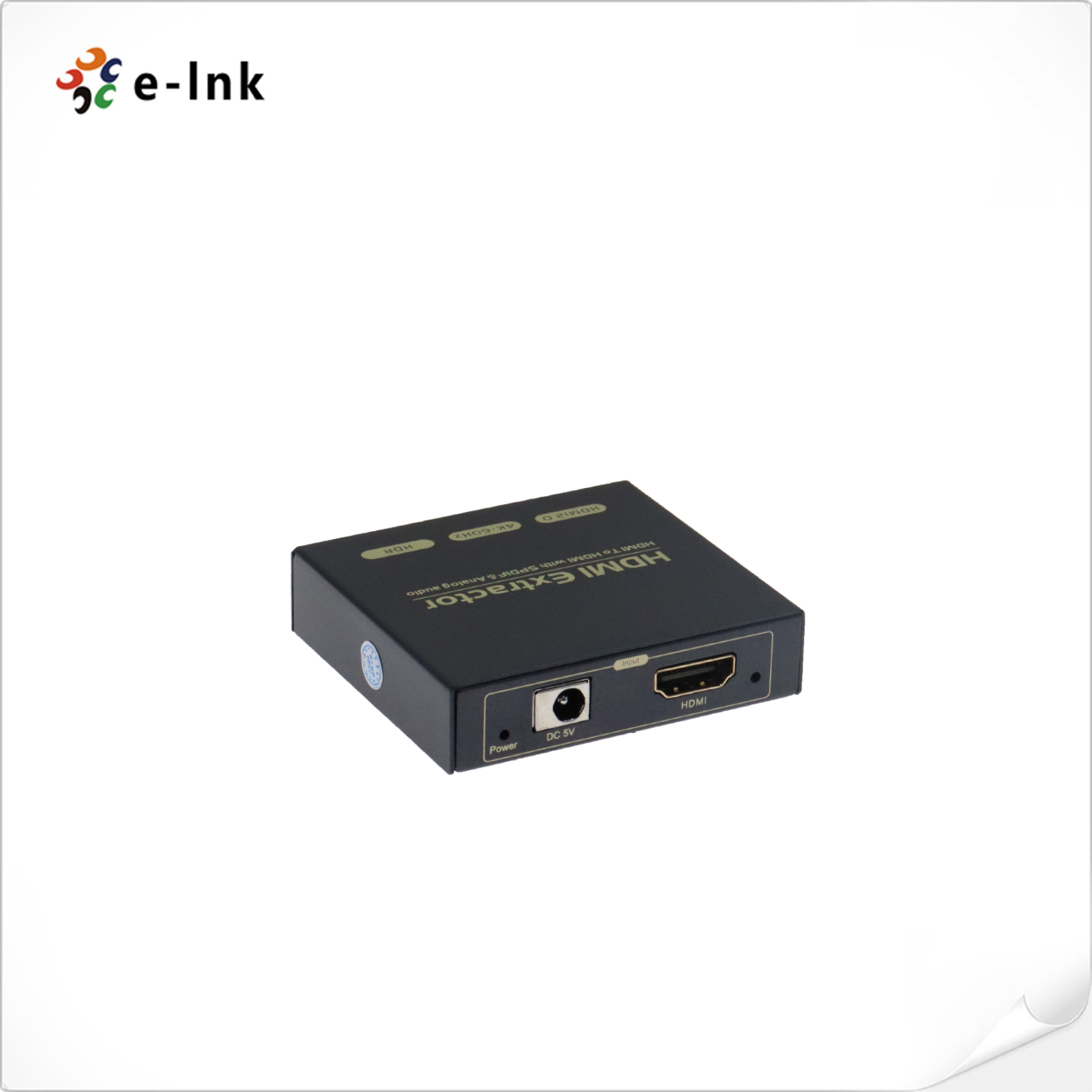

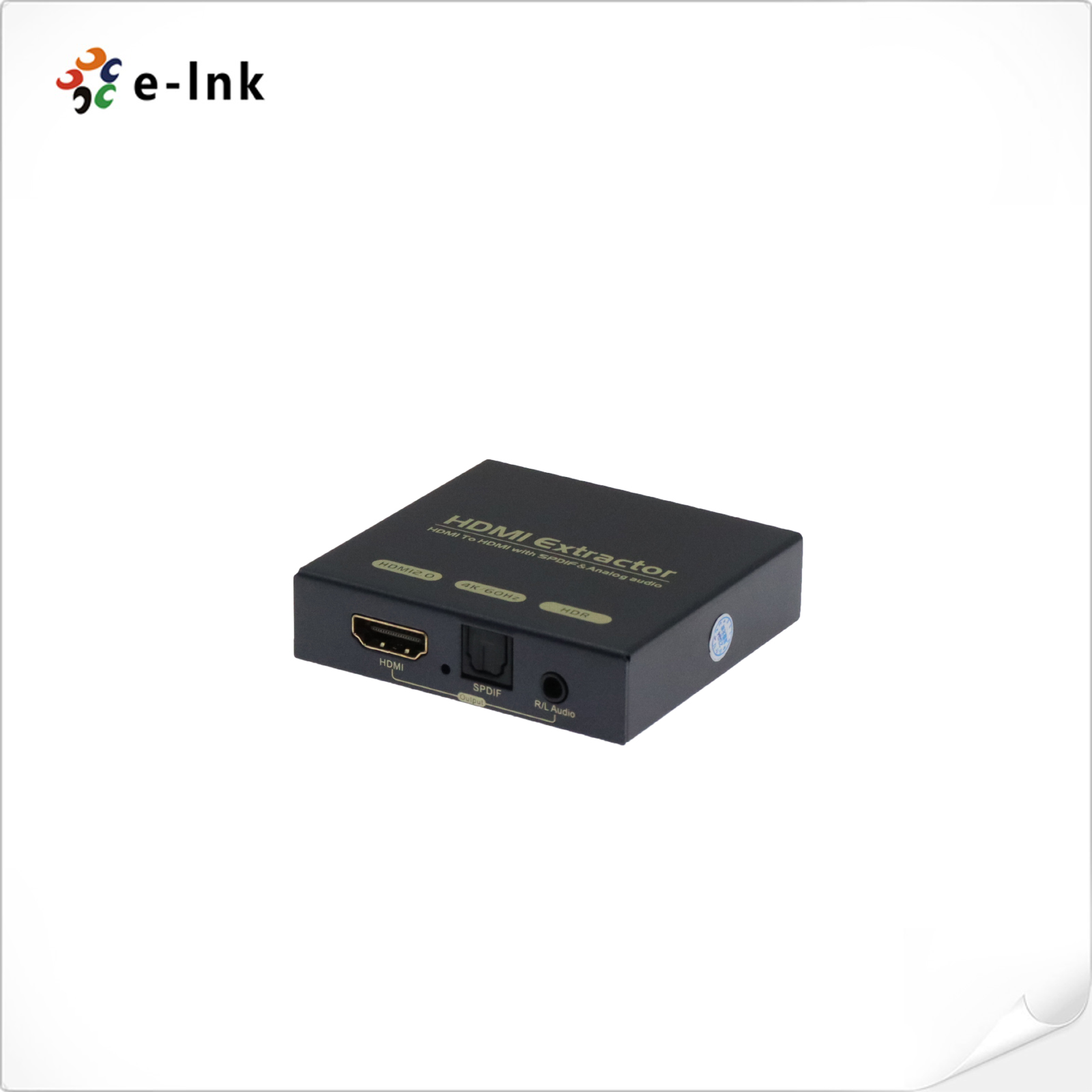

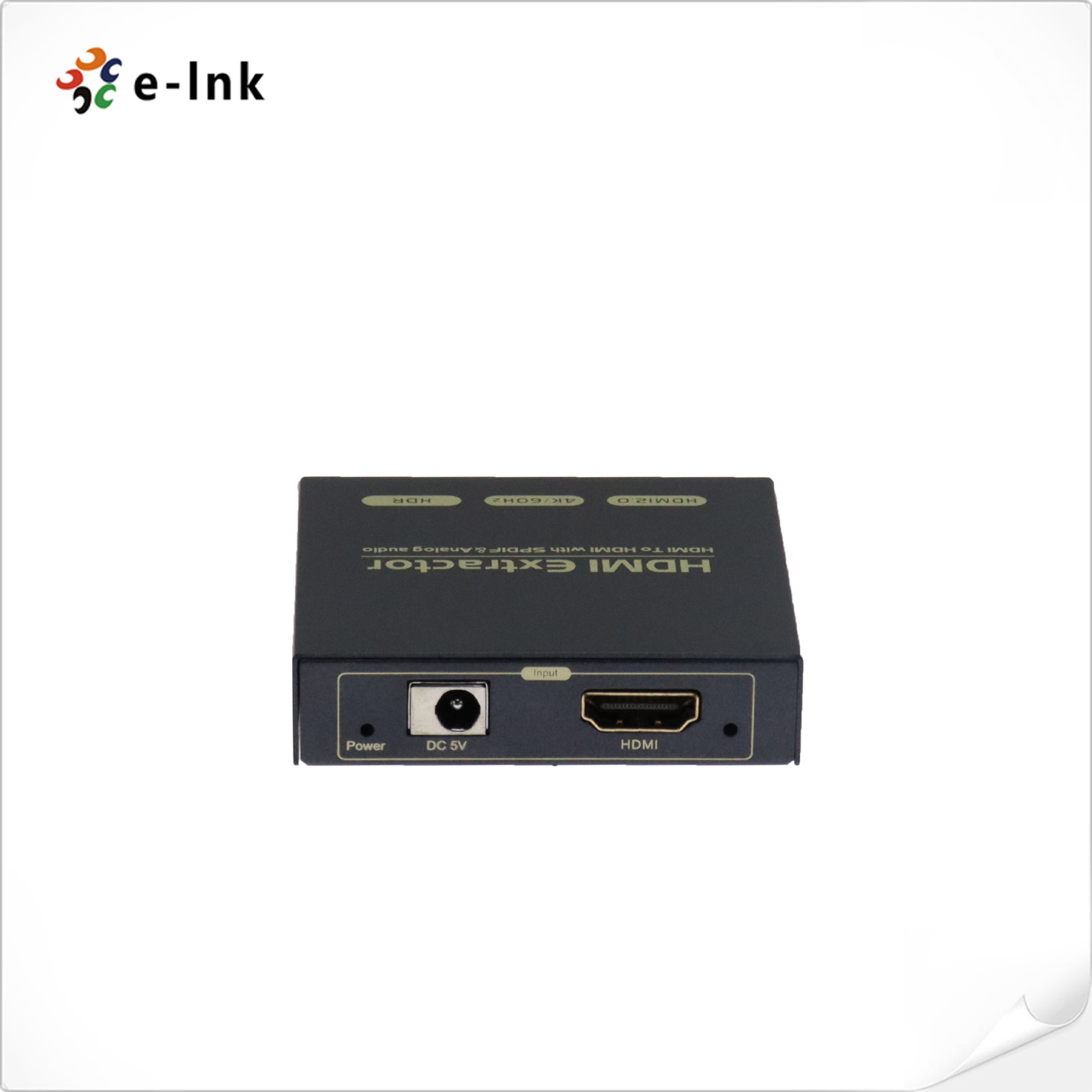

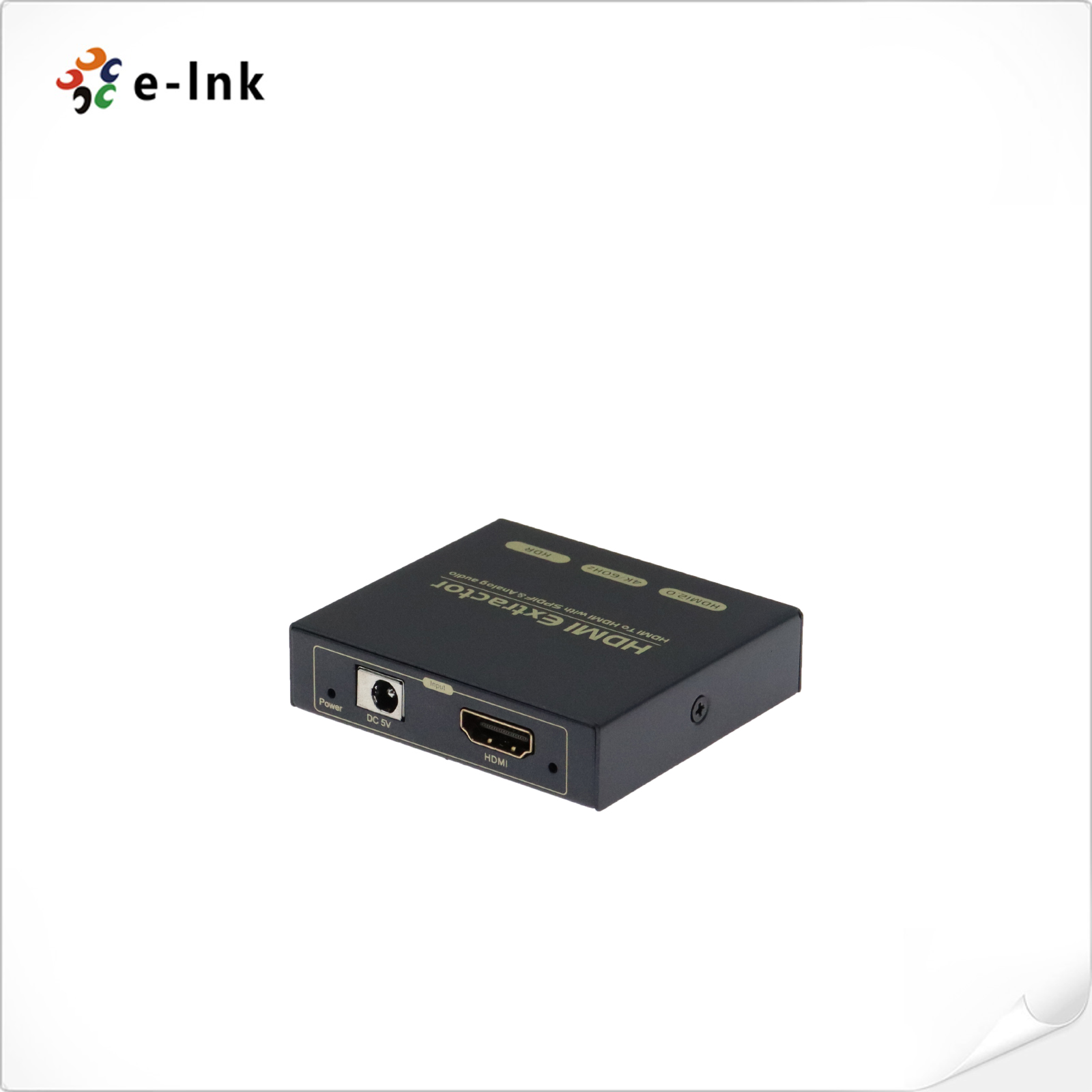

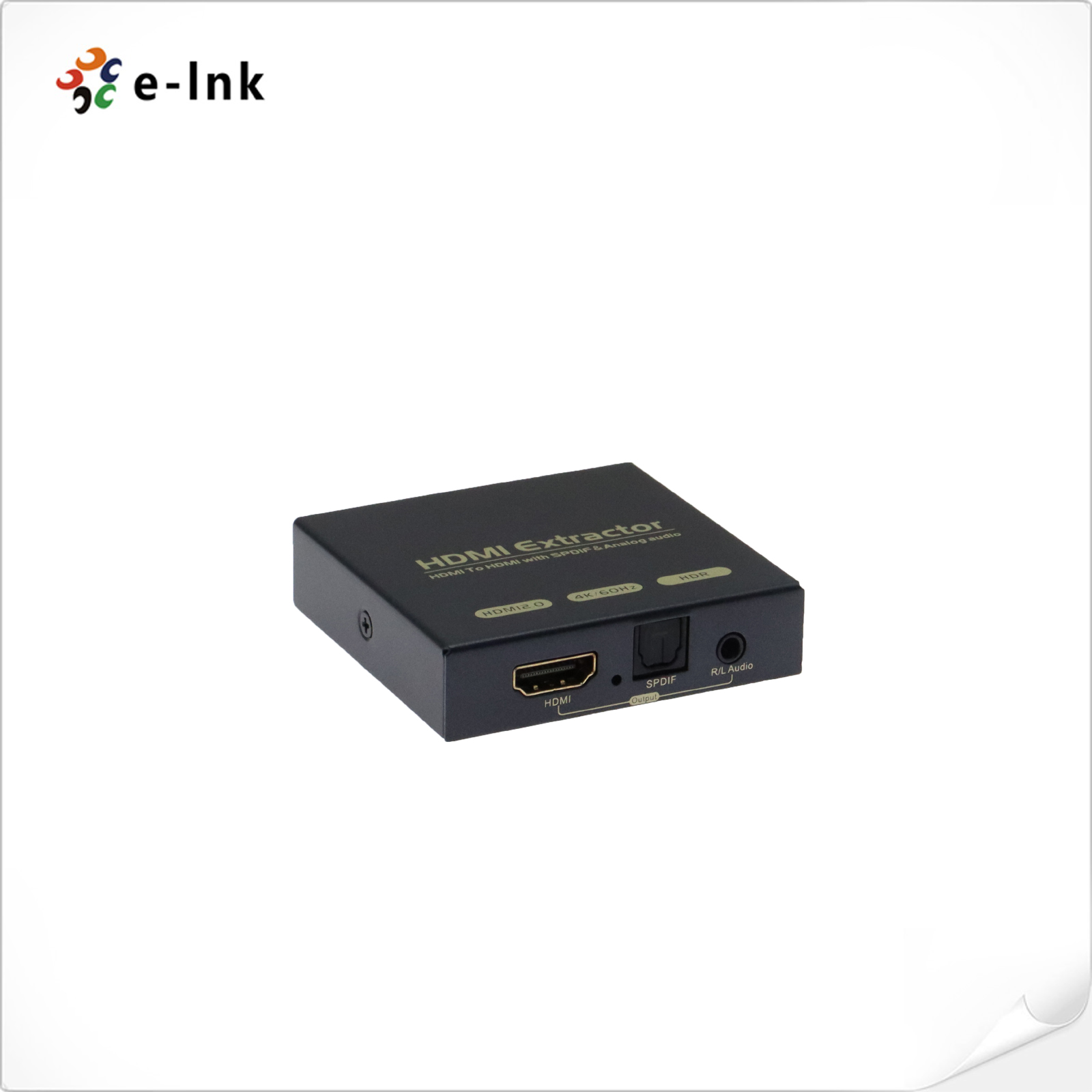

This HDMI to HDMI + audio converter converts the HDMI video signal to displayer/projector, and converts the stripped HDMI audio digital signal via the Optical/ Coaxial audio output to amplifier or speaker, the stripped HDMI audio analog signal via output to the headset, So that audio and video can be separated. The resolution of this converter can be up to 4096X2160/60Hz.
► Support HDMI 2.0/HDCP 2.2
► Support 3D video format
► Support highest resolution to 4096X2160/60Hz
► Support the max baud rate of 6G and the TMDS clock is 600Mhz
► Support 8/10/12 bit deep color
► Support AWG26 HDMI standard cable: when the resolution is 1080p and below, input up to 8 meters, output up to 8 meters.
► Support HDMI 2.0 standard cable: when the resolution is 4K/60H, input up to 3 meters, output up to 5 meters.
► Support HDR
► Support YUV4:2:0/4:2:2/4:4:4 and RGB 4:4:4
► 5V power adapter
|
HDMI version |
HDMI 2.0 |
|
HDMI resolution |
up to 4096*2160/60Hz |
|
Support video format |
8/10/12 bit deep color |
|
Support audio format |
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
600MHz |
|
Max baud rate |
6 Gbps |
|
Max working current |
0.83A |
|
Power adapter format |
DC5V |
|
Operating Temperature range |
-15 to +55℃ |
|
Dimensions |
66x60x15mm |
|
Weight |
96g |
| Model | Description | ||
| LNK-HDMI2.0-EXT | HDMI Extractor, HDMI2.0 to HDMI + Optical + 3.5mm R/L Audio converter | ||
