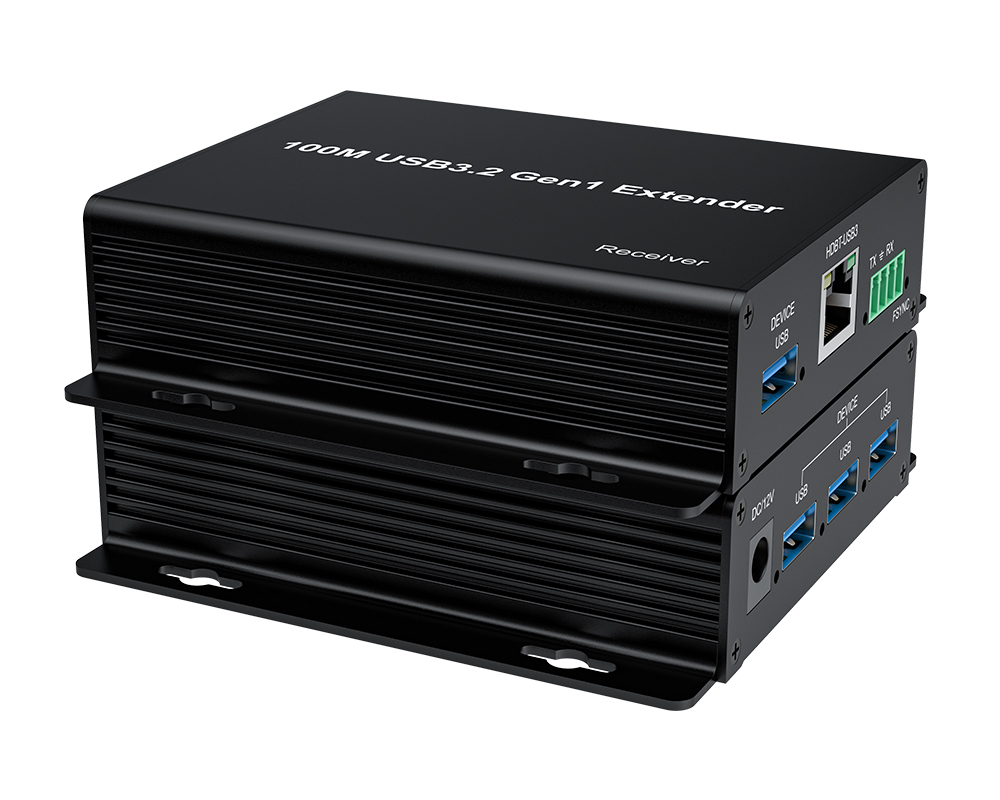

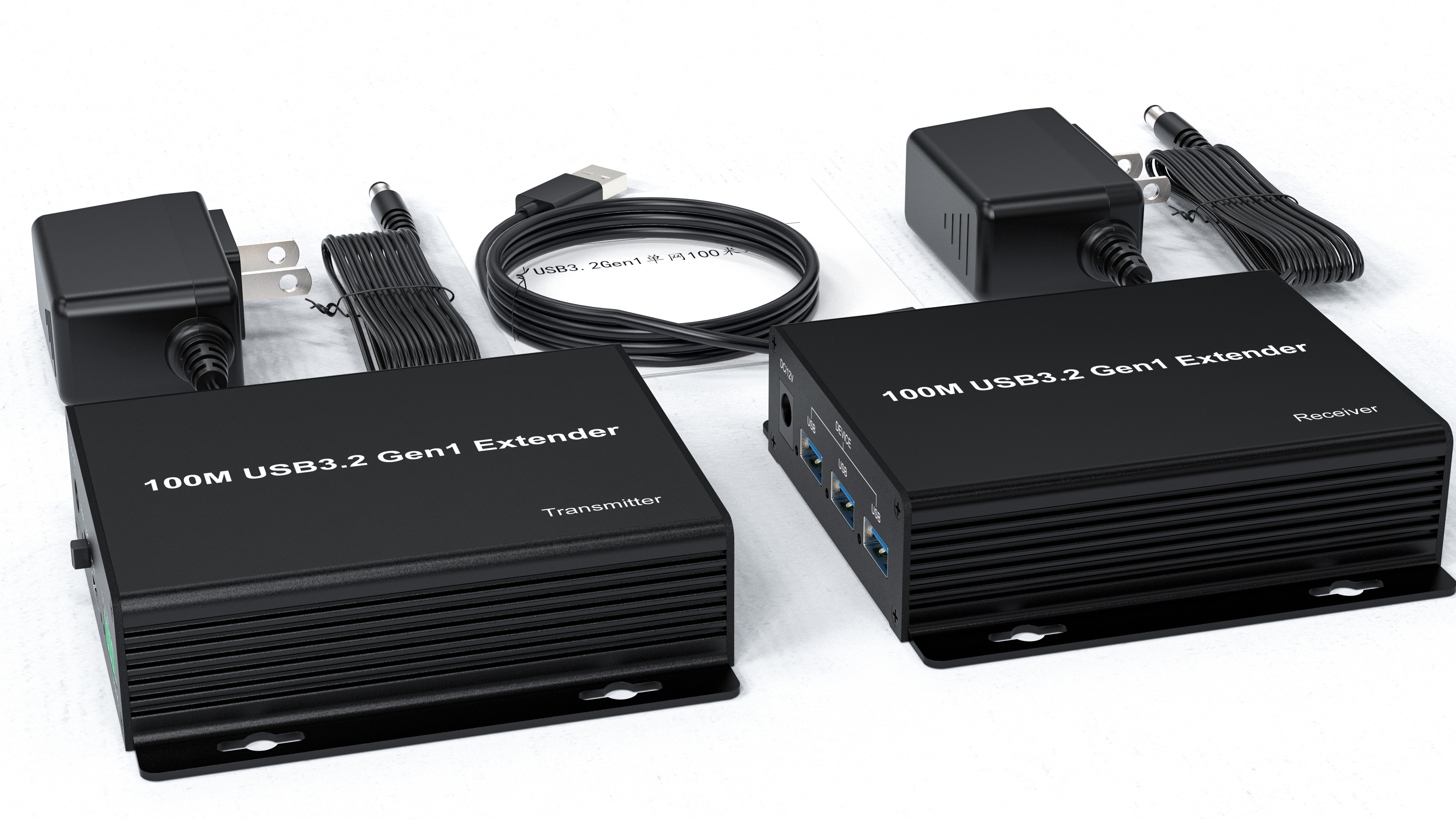

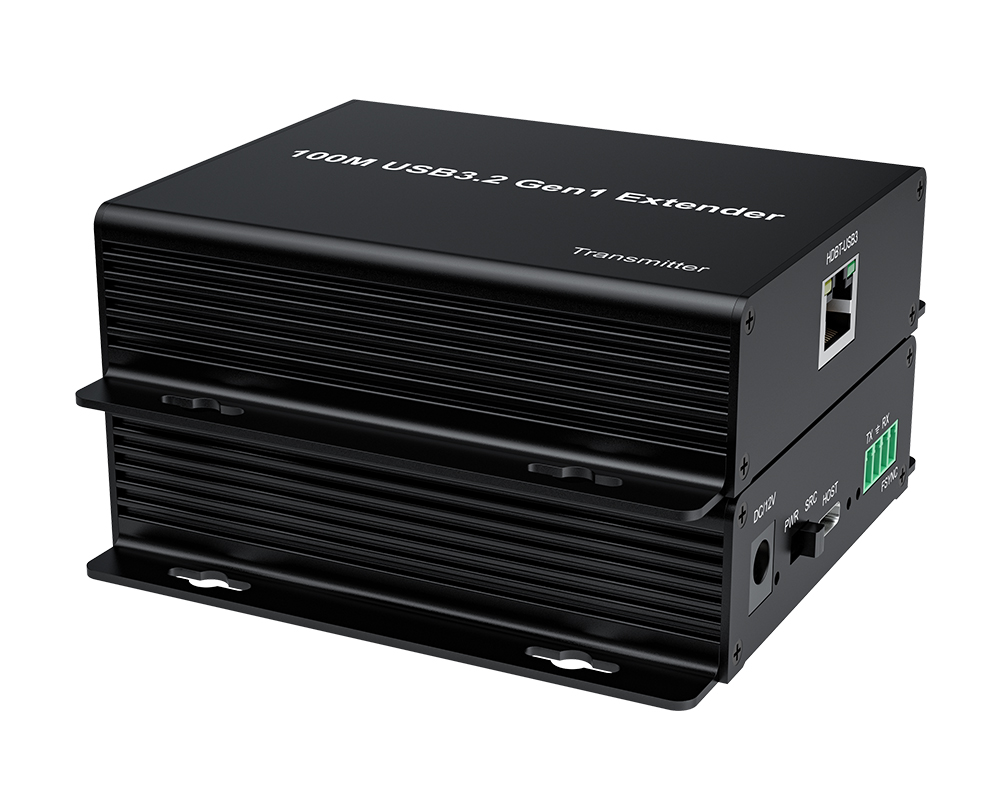

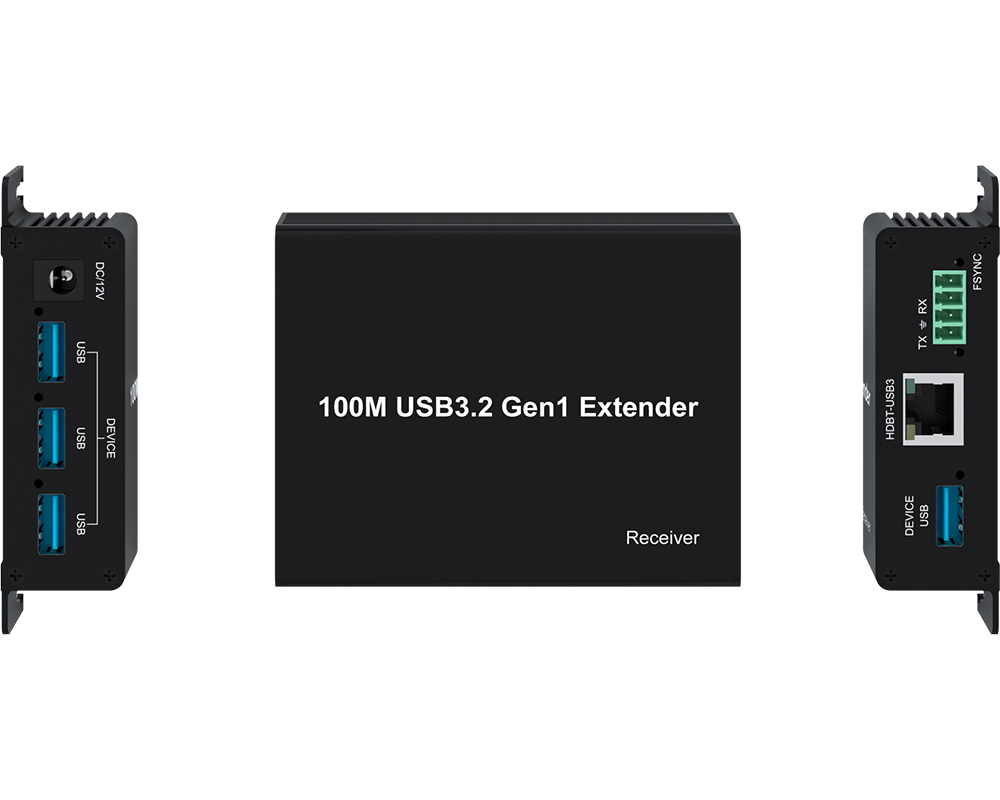

USB3.2 Gen1 100m CAT6A Extender
Model:LNK-U4T1-3.0
► USB 3.0 data rate up to 5Gbps;
► Receiver with 4 x USB 3.0 interfaces, Support for all USB 3.0, 2.0, 1.1 device;
► The current of each USB port of the receiver is up to 1.5A (7.5W), and the maximum current of 4 USB ports does not exceed 21W;
► Using a double-shielded network cable CAT6A to extend the distance up to 100 meters;
► USB 3.0 data rate up to 5Gbps;
► Receiver with 4 x USB 3.0 interfaces, Support for all USB 3.0, 2.0, 1.1 device;
► The current of each USB port of the receiver is up to 1.5A (7.5W), and the maximum current of 4 USB ports does not exceed 21W;
► Using a double-shielded network cable CAT6A to extend the distance up to 100 meters;
► Point-to-point connection;
► Real plug and play, no need software driver;
► Support mainstream operating systems: Windows, MAC OS, Linux and Chrome OS.
|

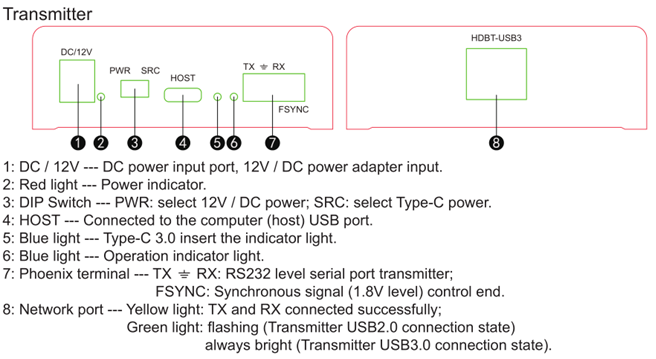

USB Port: |
1 x USB-C 3.0 |
|
RJ45 Port: |
1 x 10/100/1000M RJ45 Ethernet |
|
Power Adapter: |
Input AC (50Hz, 60Hz) 100V-240V; output: DC12V/2A |
|
Current: |
0.2A |
|

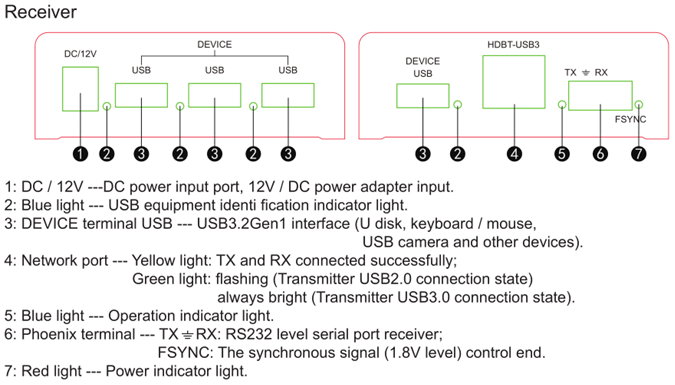

Receiver |
|
|
USB Port: |
4 x USB-A 3.0 |
|
RJ45 Port: |
1 x 10/100/1000M RJ45 Ethernet |
|
Power Adapter: |
Input AC (50Hz, 60Hz) 100V-240V; output: DC12V/2A |
|
Current: |
300mA (no USB device connected) |
|
Specifications |
|
|
Distance: |
100m via CAT6A cable |
|
Data Rate |
USB 3.0 5Gbps |
|
Operating Temperature |
0℃to +45℃ |
|
Operating humidity |
5 to 90% RH (no condensation) |
|
Dimension |
Transmitter: 104 x103 x 28 (mm) Receiver: 104 x103 x 28 (mm) |
|
Weight |
Transmitter: 171g Receiver: 171g |
- Download FileName：E-link LNK-U4T1-3.0 USB 3.2 CAT6A 100M Extender Datasheet V1.0.pdf Size： 1.65MB
|
Model |
Description |
|
LNK-U4T1-3.0 |
4-port USB 3.0 extender with RS232, up to 100m via Cat6A cable, used in pairs |
