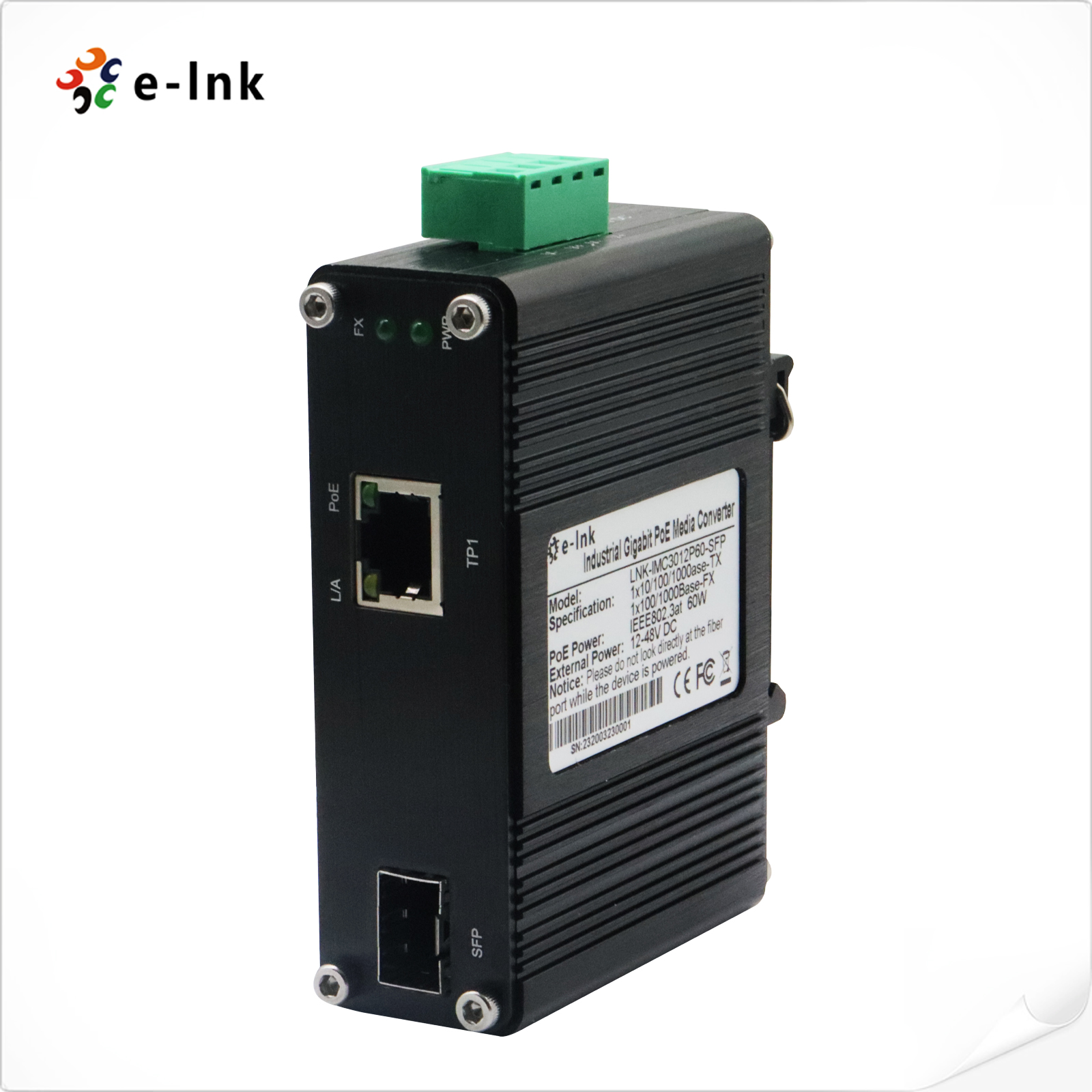

Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ae 10 Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.1p Class of Service

IEEE 802.3bz 2.5GBASE-T

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

22,320,000pps (2.5Gps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

10K Bytes

Address Table Size

16K MAC Addresses

Switching Capacity

80Gbps/non-blocking

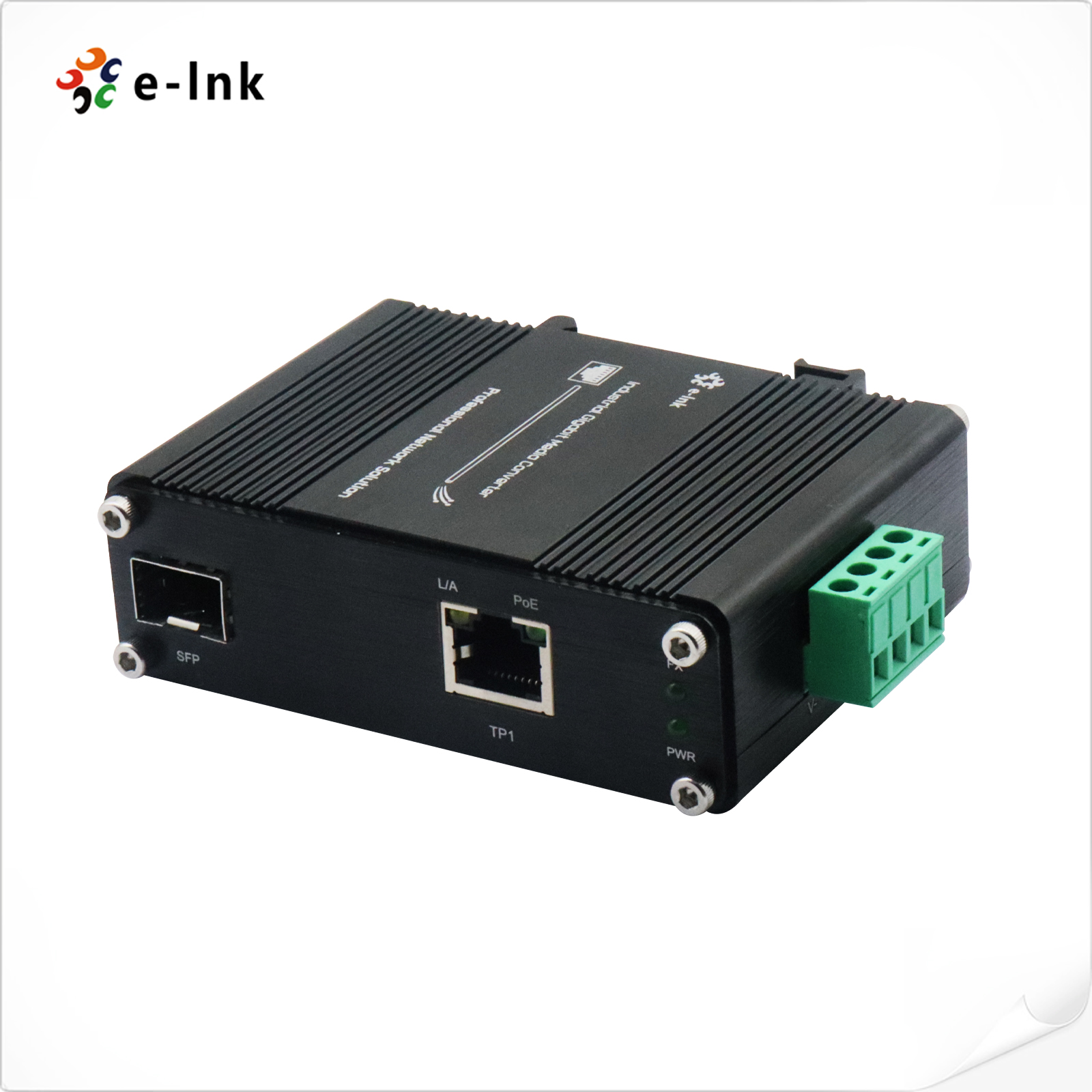

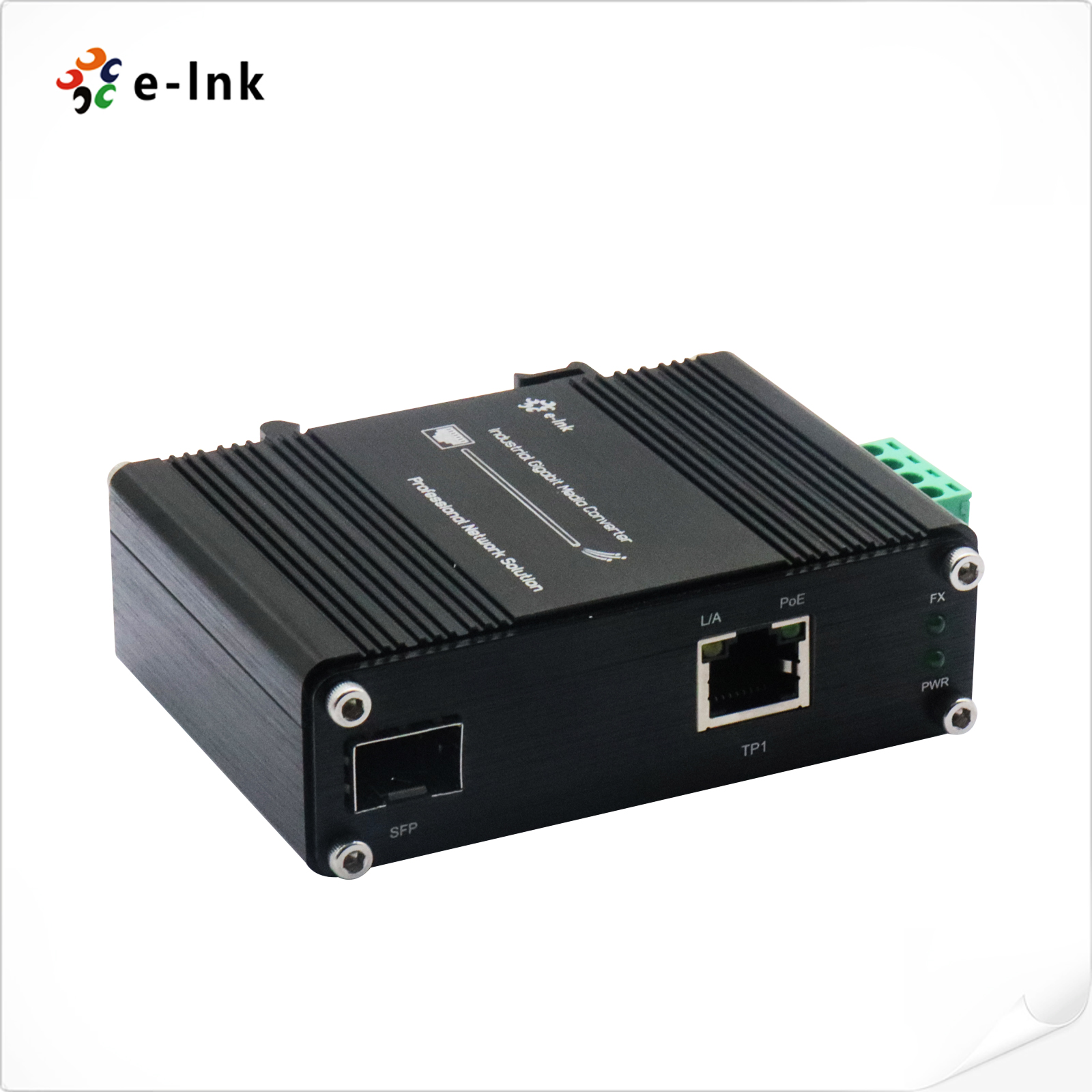

Interface

Copper Ports

1 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function

Optical Port:

1 x 10G SFP+(Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers) (auto detection)

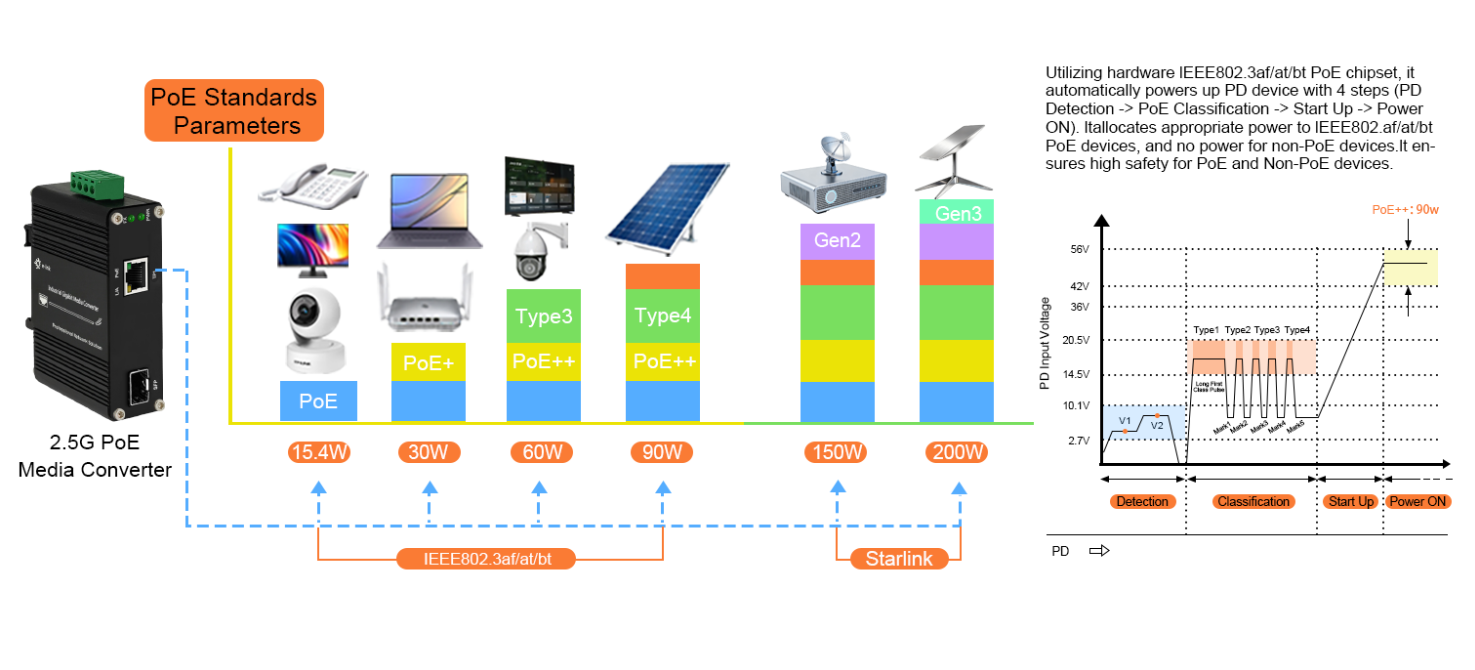

PoE (Power over Ethernet)

Standard:

IEEE 802.3af/at/bt PoE++ PSE (af/15.4W,at/30W, bt Type3/60W,bt Type4/95W)

PoE Power Output

95 watts max.

Power Pin Assignment

End-span + Mid-span:1/2(+), 4/5(+), 3/6(-), 7/8(-)

PoE Budget:

Up to 95-watt PoE budget (24V-48V DC), 60-watt PoE budget (12V DC)

PoE Power Supply Type

802.3bt, End-span + Mid-span (Please contact sales or customer service)

PoE Mode

IEEE802.3bt comply Mode A & Mode B

Voltage Booster

DC 9-12V Input

PoE 48V max 60W

DC 19-24V Input

PoE 48V max 95W

DC 24-36V Input

PoE 48V max 95W

DC 48-57V Input

PoE 48V max 95W

Electrical and Mechanical

Input Power:

12~48V DC, 4-pin terminal block

Output Power

48V DC

Power Consumption:

95W Max.

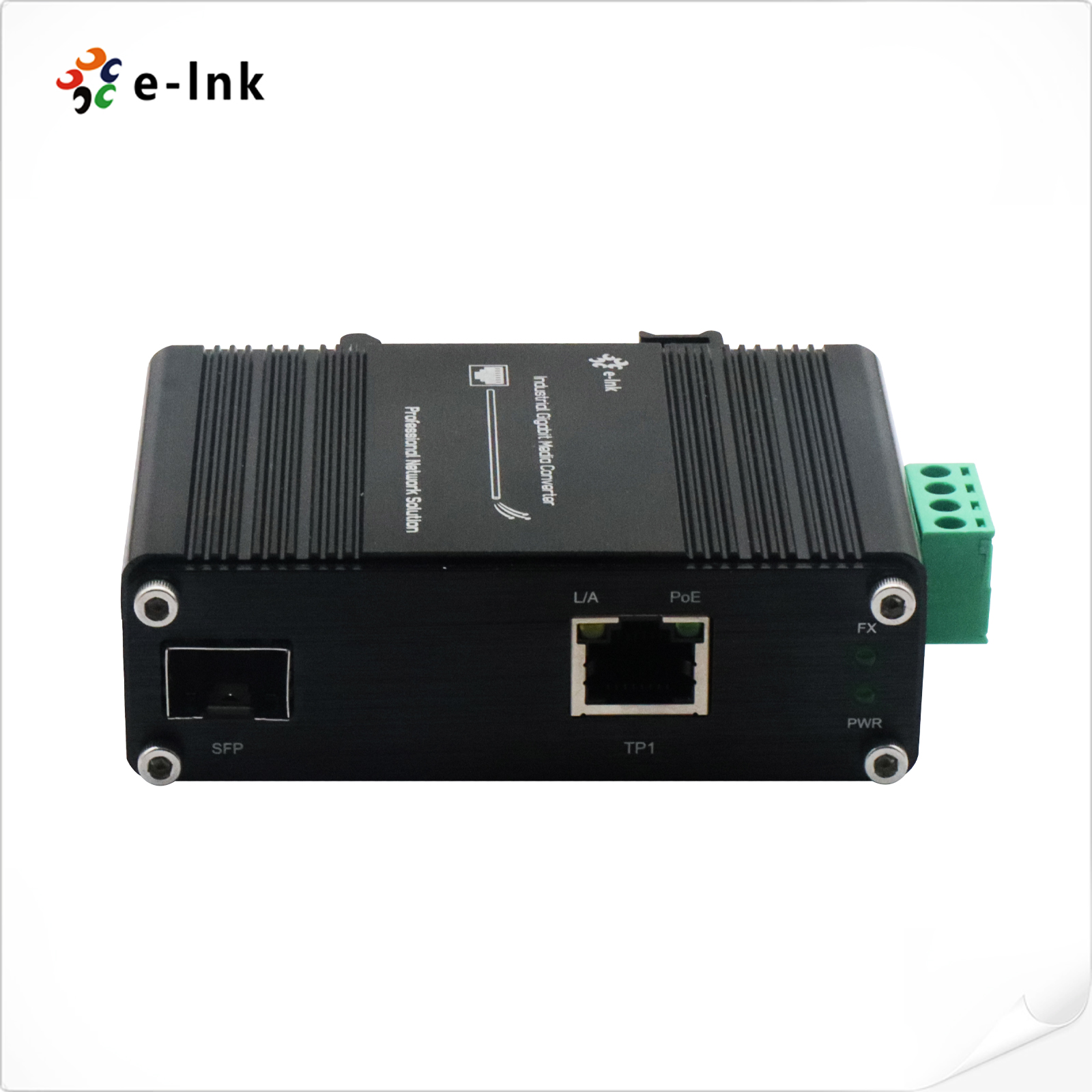

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

AluminumCase

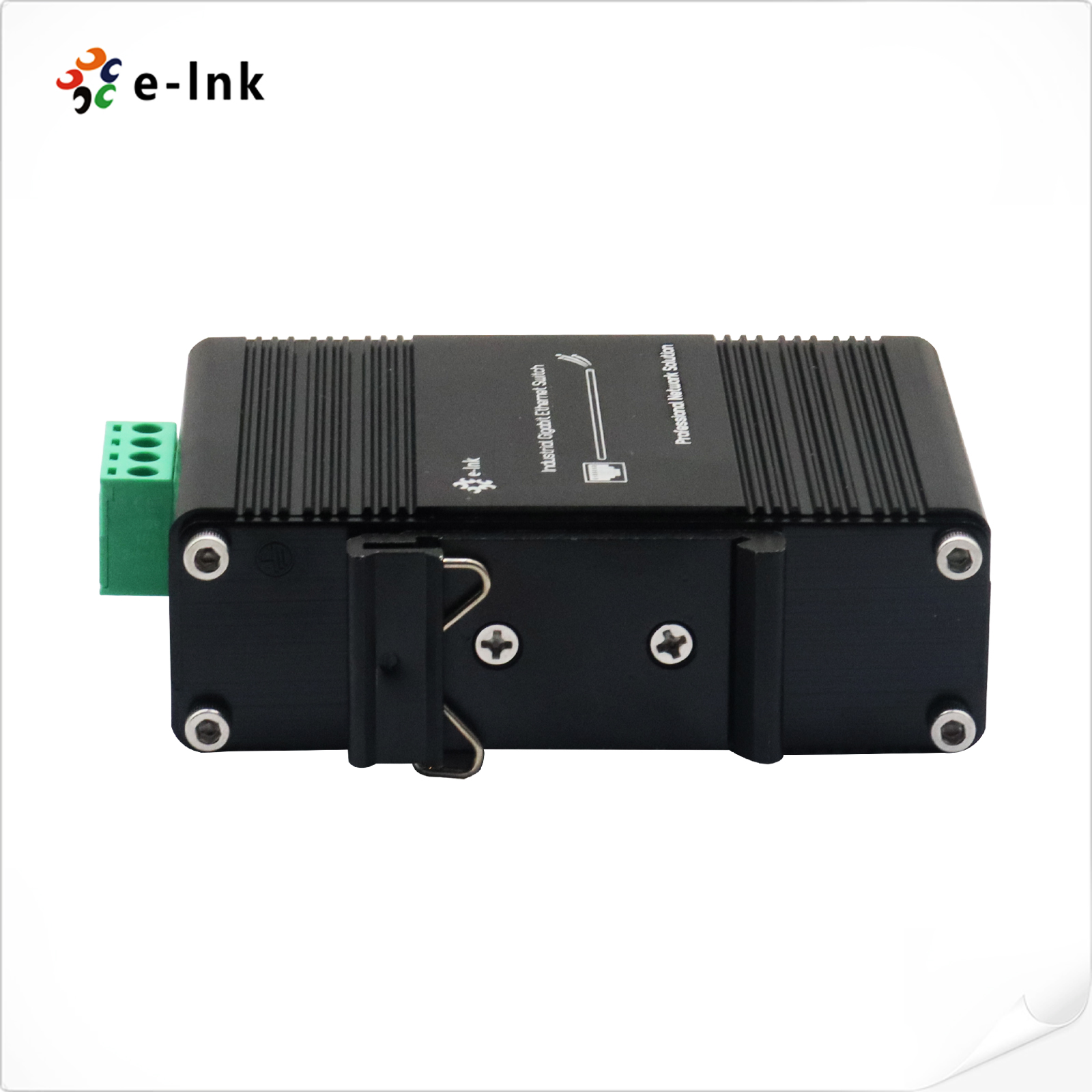

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
