Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ae 10 Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.1p Class of Service

IEEE 802.3bz 2.5GBASE-T

Processing Type:

Store-and-Forward

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

22,320,000pps (2.5Gps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

10K Bytes

Address Table Size

16K MAC Addresses

Switching Capacity

80Gbps/non-blocking

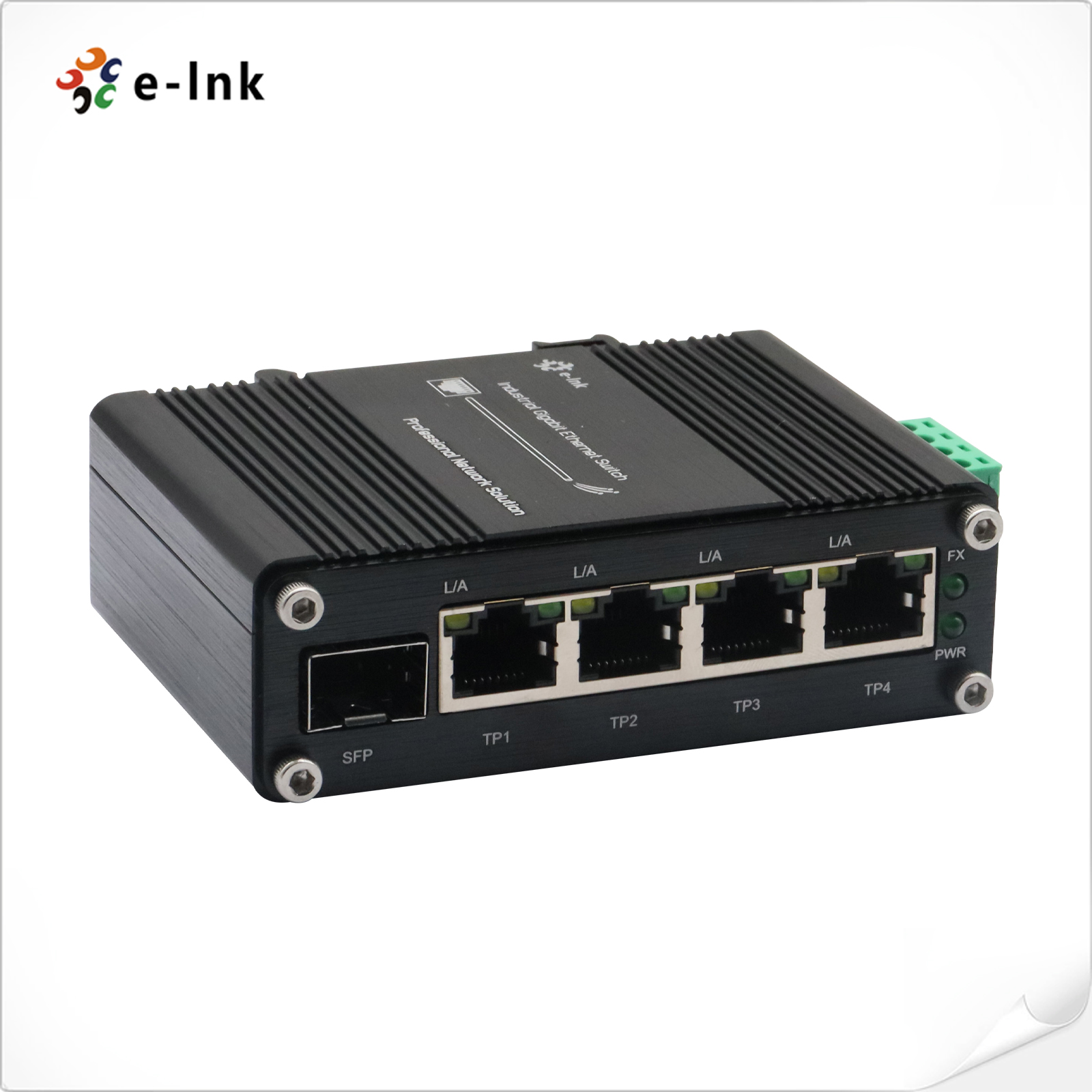

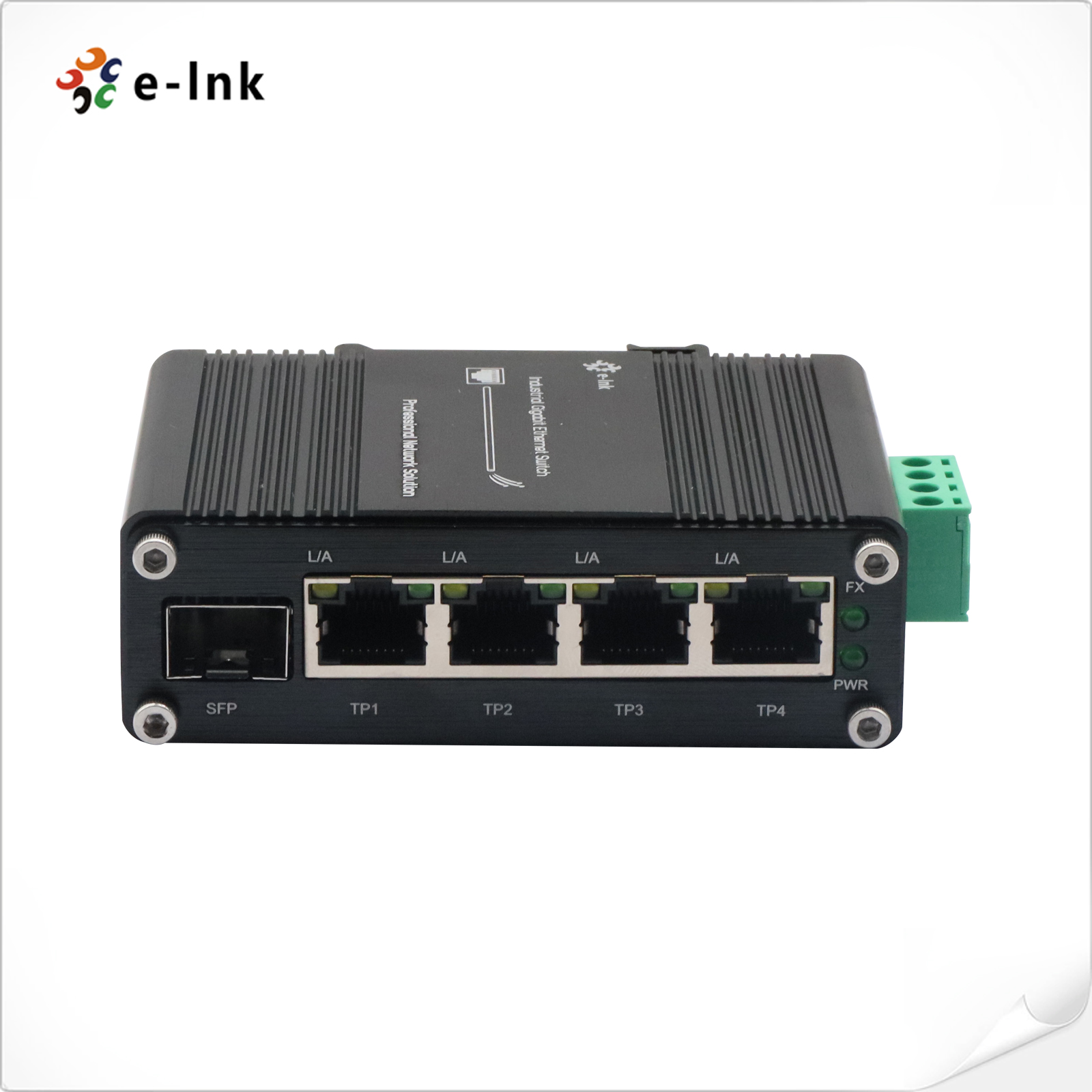

Interface

Ethernet Port:

4 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function

Optical Port:

1 x 10G SFP+(Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers) (auto detection)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48V DC(Terminal Block)

Power Consumption:

<6W

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 70x 29mm

Weight:

0.25Kg

Casing:

Aluminum Case

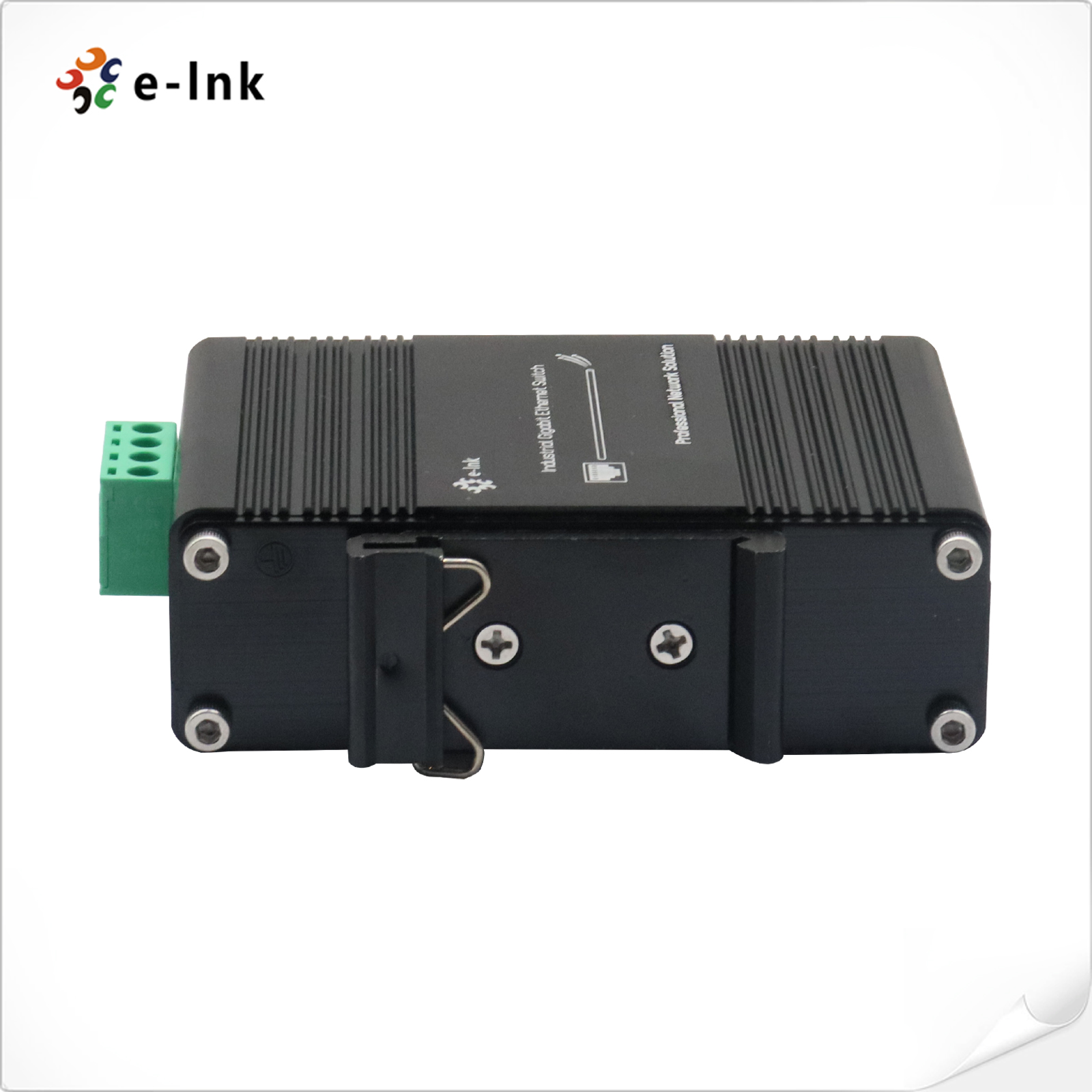

Mounting Options:

DIN-Rail / Wall-mount

LED Indicators:

PWR:

Power

L/A:

Link/Activity

SPD

Data Rate

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
