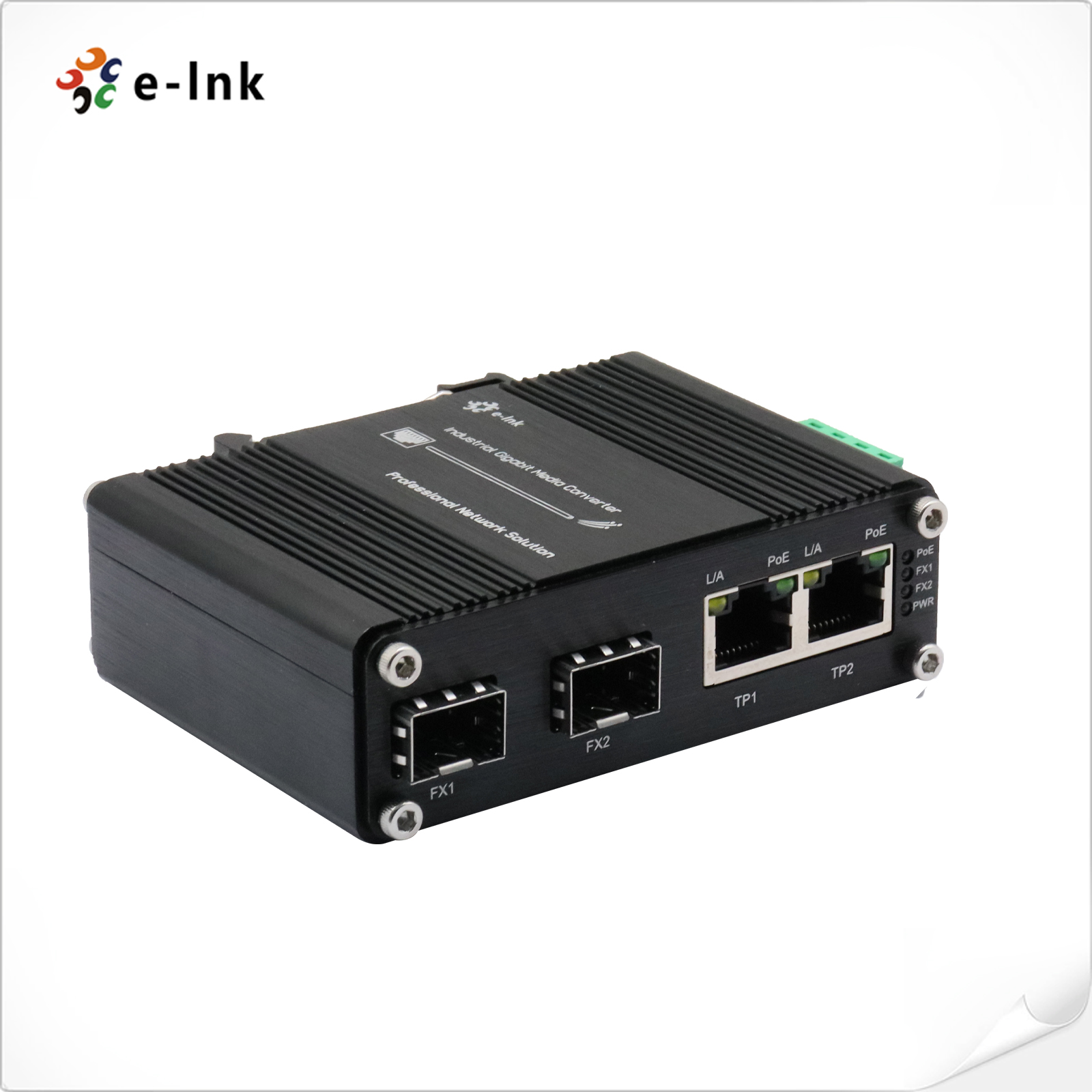

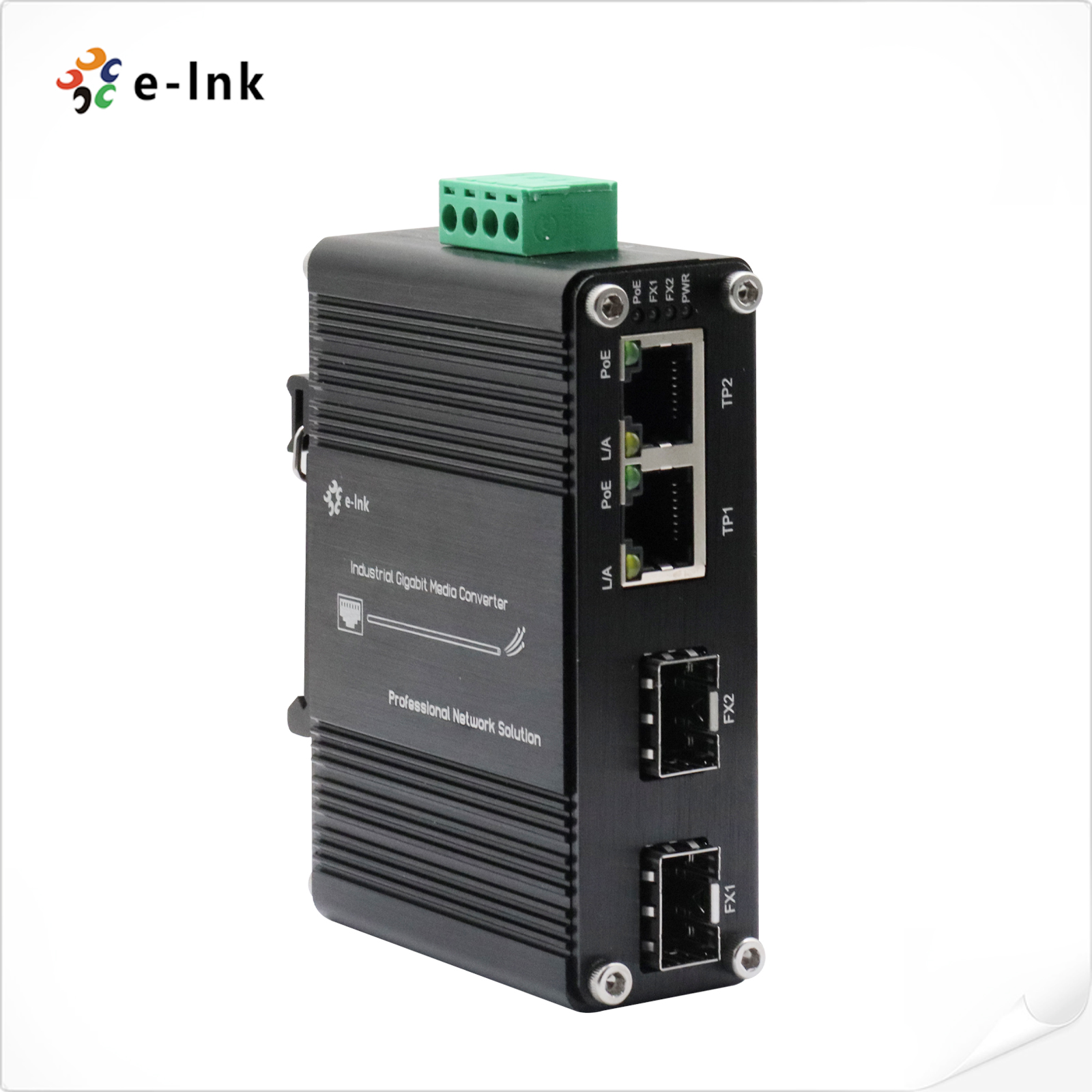

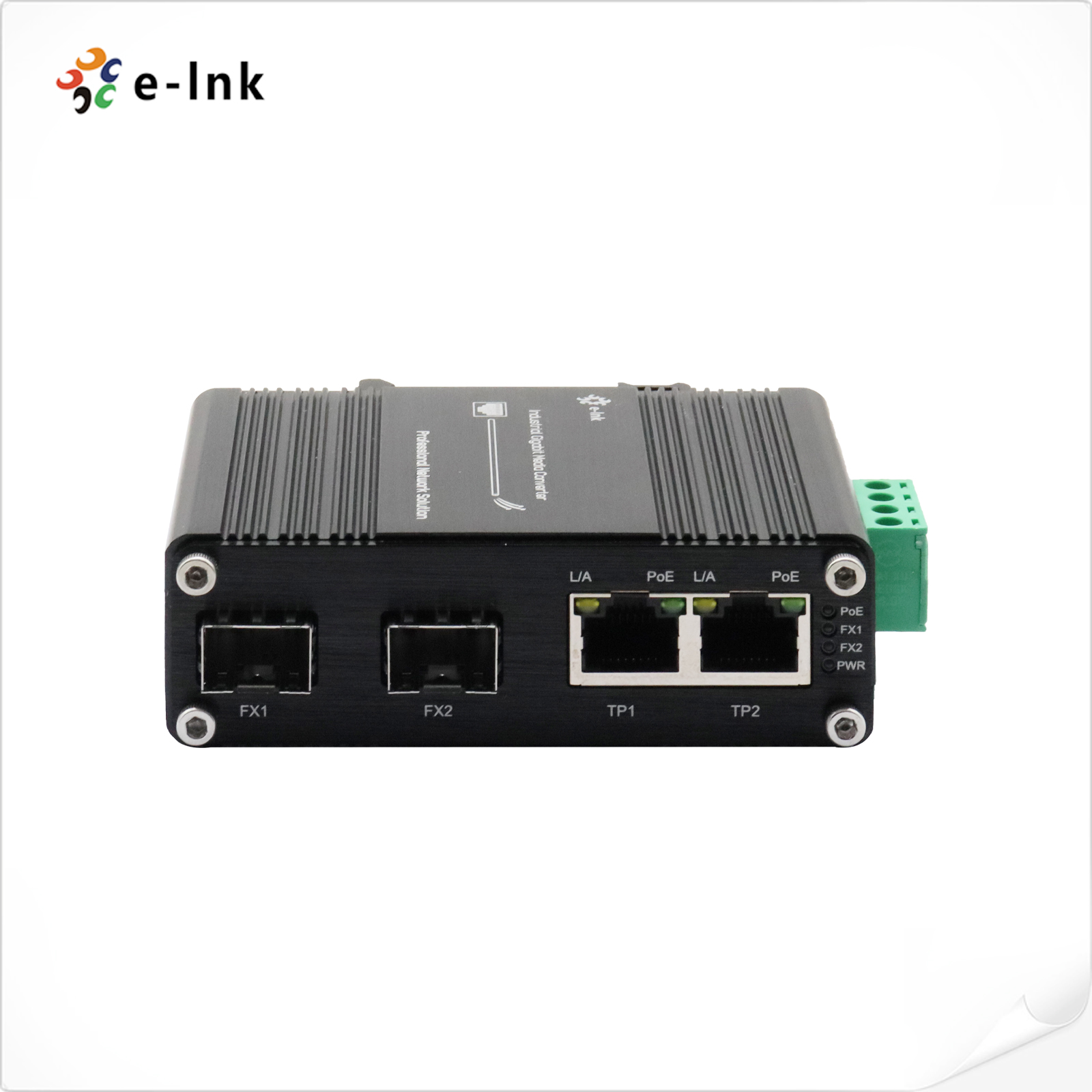

Mini Industrial 2-Port 10/100/1000/2500Base-T 802.3bt PoE++ to 2-Port 10G SFP+ Ethernet Switch
Model:LNK-IMC202-2.5GP Series
► 2 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function
► 2 x 10G SFP+(Backward compatible with 1000BASE-FX, 2500BASE-X and 5000BASE-X SFP transceivers) (auto detection)
► PoE Standard: IEEE 802.3af/at/bt PoE++ 95W PSE

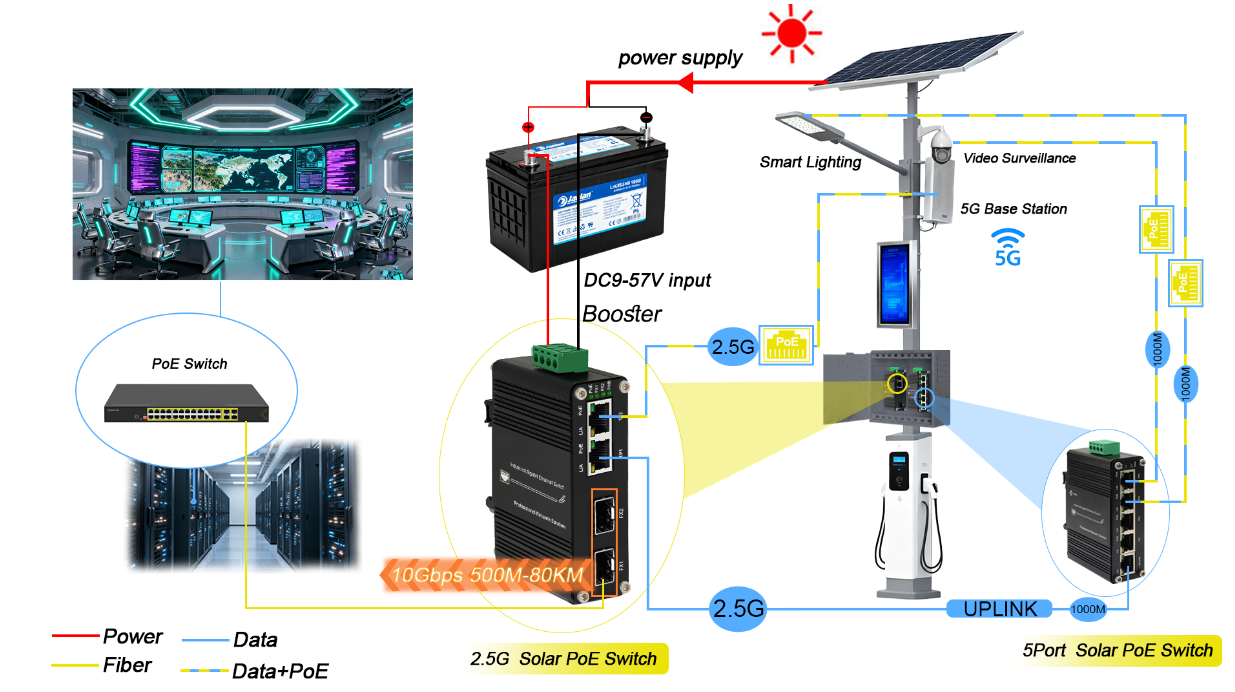

► Solar PoE Switch DC9V to DC54V Voltage Booster
LNK-IMC202-2.5GP Series Industrial Solar Voltage Booster DIN-rail type Unmanaged Ethernet Switch is perfect for heavy industrial environments. it supports 2-Port 10/100/1000/2500BASE-T ports and 1-Port auto-detected 1G/2.5G/5G/10GBASE-X SFP+ fiber optic uplink ports that provide long-distance, high-speed and stable data transmission for the IoT and AIoT next-generation networks.
LNK-IMC202-2.5GP Series is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance and operating temperature ranging from -40 to 75°C in a rugged IP40 metal housing. Though it includes robust features designed for industrial Ethernet networks.
► 2 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function
► 2 x 10G SFP+(Backward compatible with 1000BASE-FX, 2500BASE-X and 5000BASE-X SFP transceivers) (auto detection)
► PoE Standard: IEEE 802.3af/at/bt PoE++ 95W PSE
► Solar PoE Switch DC9V to DC54V Voltage Booster
► 12V Input PoE 60W output, 24V Input PoE 120W output, 48V Input PoE 180W output
► 6KV surge protection
► -40°C to 75°C (-40°F to 167°F)
► Mini Type:3.74"x2.75"x1.14" (95 x 70 x 30mm)
|
Standards: |
Standards Compliance IEEE 802.3 Ethernet |
|||
|
IEEE 802.3u Fast Ethernet |
||||
|
IEEE 802.3ab Gigabit Ethernet |
||||
|
IEEE 802.3z Gigabit SX/LX |
||||
|
IEEE 802.3ae 10 Gigabit Ethernet |
||||
|
IEEE 802.3x Full-Duplex Flow Control |
||||
|
IEEE 802.3az Energy Efficient Ethernet |
||||
|
IEEE 802.1p Class of Service |
||||
|
IEEE 802.3bz 2.5GBASE-T |
||||
|
Processing Type: |
Store-and-Forward |
|||
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|||
|
148,800pps (100Mbps) |
||||
|
1,488,000pps (1000Mbps) |
||||
|
22,320,000pps (2.5Gps) |
||||
|
Packet Buffer Memory: |
1 Mbit |
|||
|
Max Packet Length: |
10K Bytes |
|||
|
Address Table Size |
16K MAC Addresses |
|||
|
Switching Capacity |
80Gbps/non-blocking |
|||
|
Interface |
||||
|
Copper Ports |
2 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function |
|||
|
Optical Port: |
2 x 10G SFP+(Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers) (auto detection) |
|||
|
PoE (Power over Ethernet) |
||||
|
Standard: |

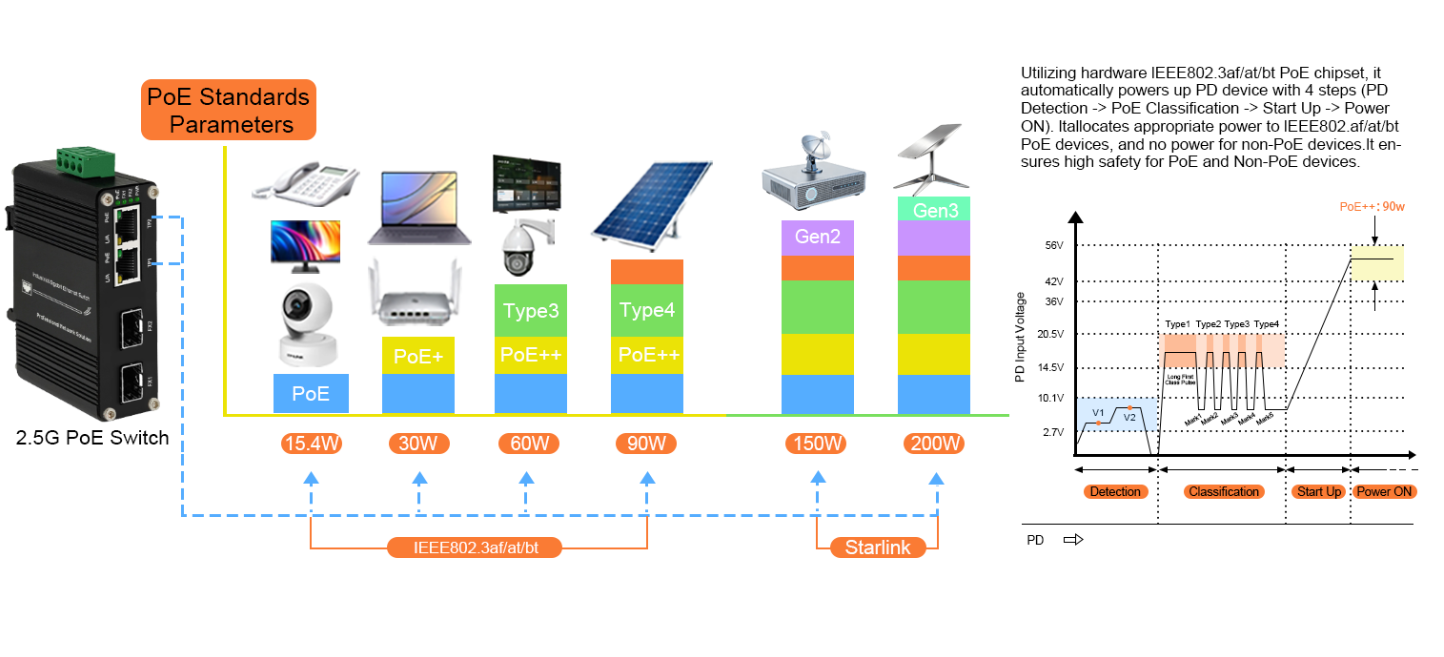

IEEE 802.3af/at/bt PoE++ PSE (af/15.4W,at/30W, bt Type3/60W,bt Type4/95W) |
|||
|
PoE Power Output |
95 watts max. |
|||
|
Power Pin Assignment |
End-span + Mid-span:1/2(+), 4/5(+), 3/6(-), 7/8(-) |
|||
|
PoE Budget: |
Up to 180-watt PoE budget (48V DC), 120-watt PoE budget (24V DC), 60-watt PoE budget (12V DC) |
|||
|
PoE Power Supply Type |
802.3bt, End-span + Mid-span (Please contact sales or customer service) |
|||
|
PoE Mode |
IEEE802.3bt comply Mode A & Mode B |
|||
|
Voltage Booster |
DC 9-12V Input |
PoE 48V max 60W |
DC 19-24V Input |
PoE 48V max 120W |
|
DC 24-36V Input |
PoE 48V max 120W |
DC 48-57V Input |
PoE 48V max 180W |
|
|
Electrical and Mechanical |
||||
|
Input Power: |
12~48V DC, 4-pin terminal block |
|||
|
Output Power |
48V DC |
|||
|
Power Consumption: |
180W Max. |
|||
|
LED Indicators: |
||||
|
PWR: |
Power Status |
|||
|
L/A: |
Data LINK Status |
|||
|
POE: |
PoE Status |
|||
|
100M/1000M: |
Fiber LINK Status |
|||
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|||
|
Weight: |
0.25Kg |
|||
|
Casing: |
||||
|
Mounting Options: |

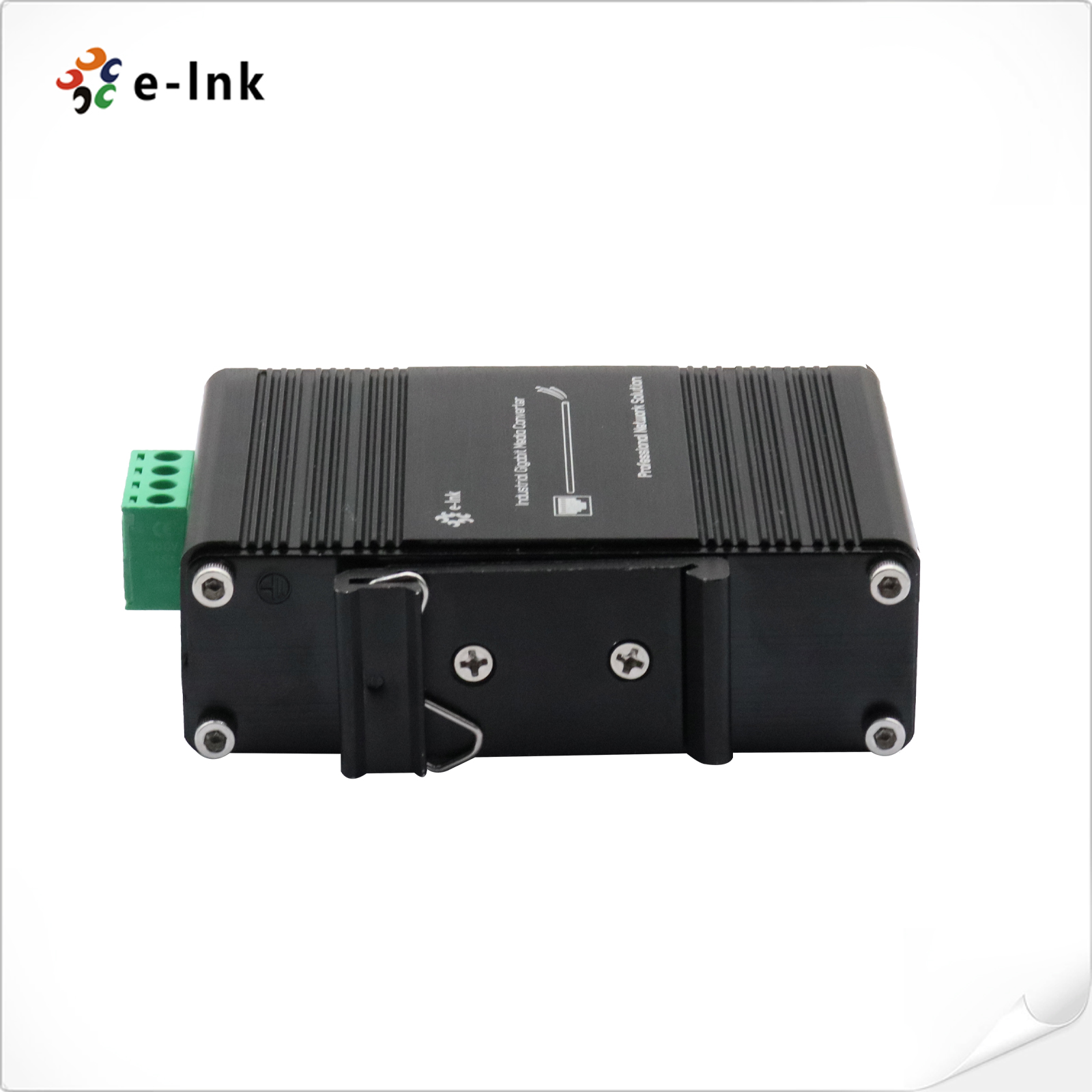

DIN-Rail / Wall-mount |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, FCC, RoHS |
||||
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
||||
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
||||
|
Model |
Description |
|
LNK-IMC202-2.5GP-SFP |
Industrial 2-Port 1.25G/2.5G/5G/10GBase-X SFP+ to 2-Port 10/100/1000/2500BASE-T IEEE802.3at 30W PoE+ Ethernet Switch |
|
LNK-IMC202-2.5GP90-SFP |
Industrial 2-Port 1.25G/2.5G/5G/10GBase-X SFP+ to 2-Port 10/100/1000/2500BASE-T IEEE802.3bt 95W PoE++ Ethernet Switch |
