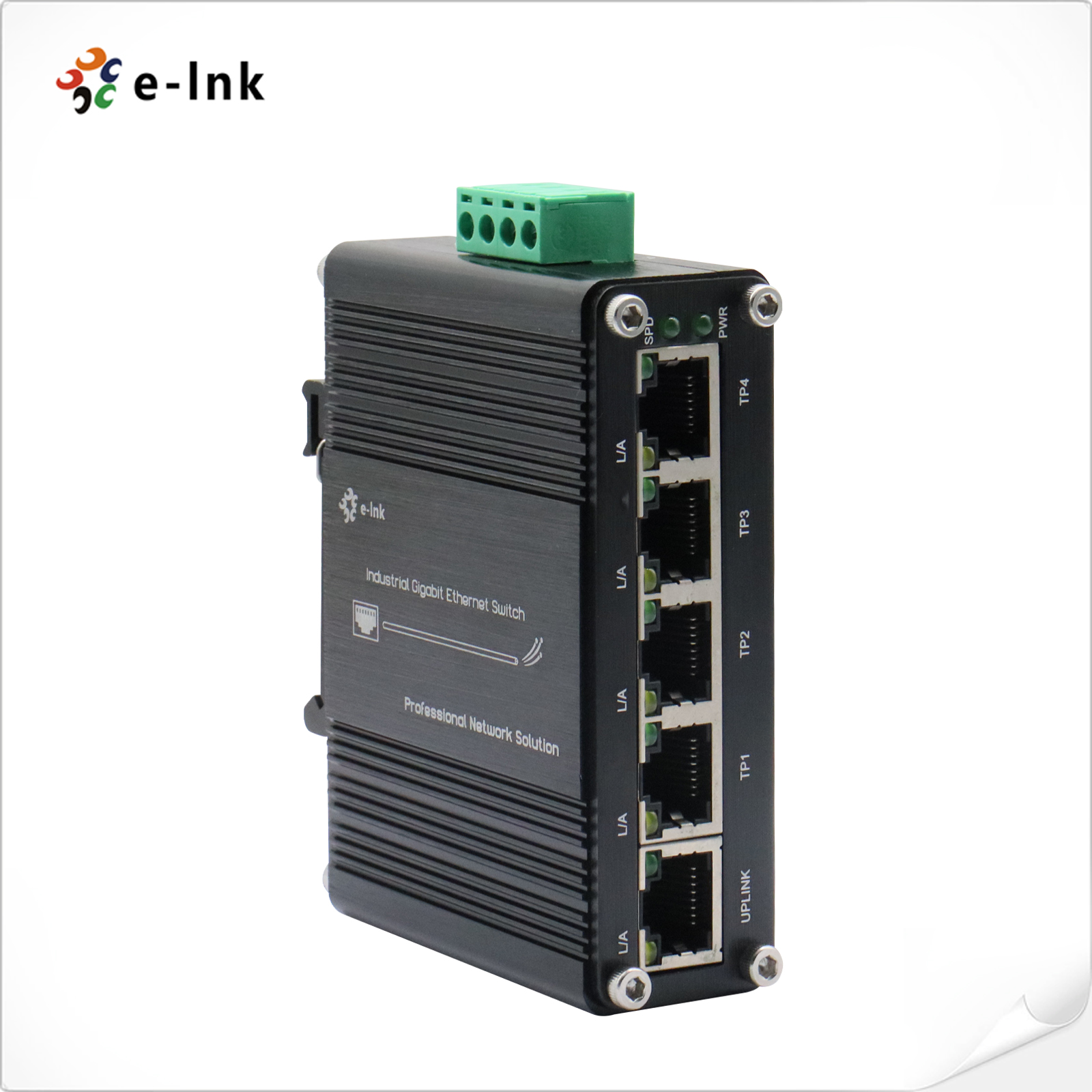

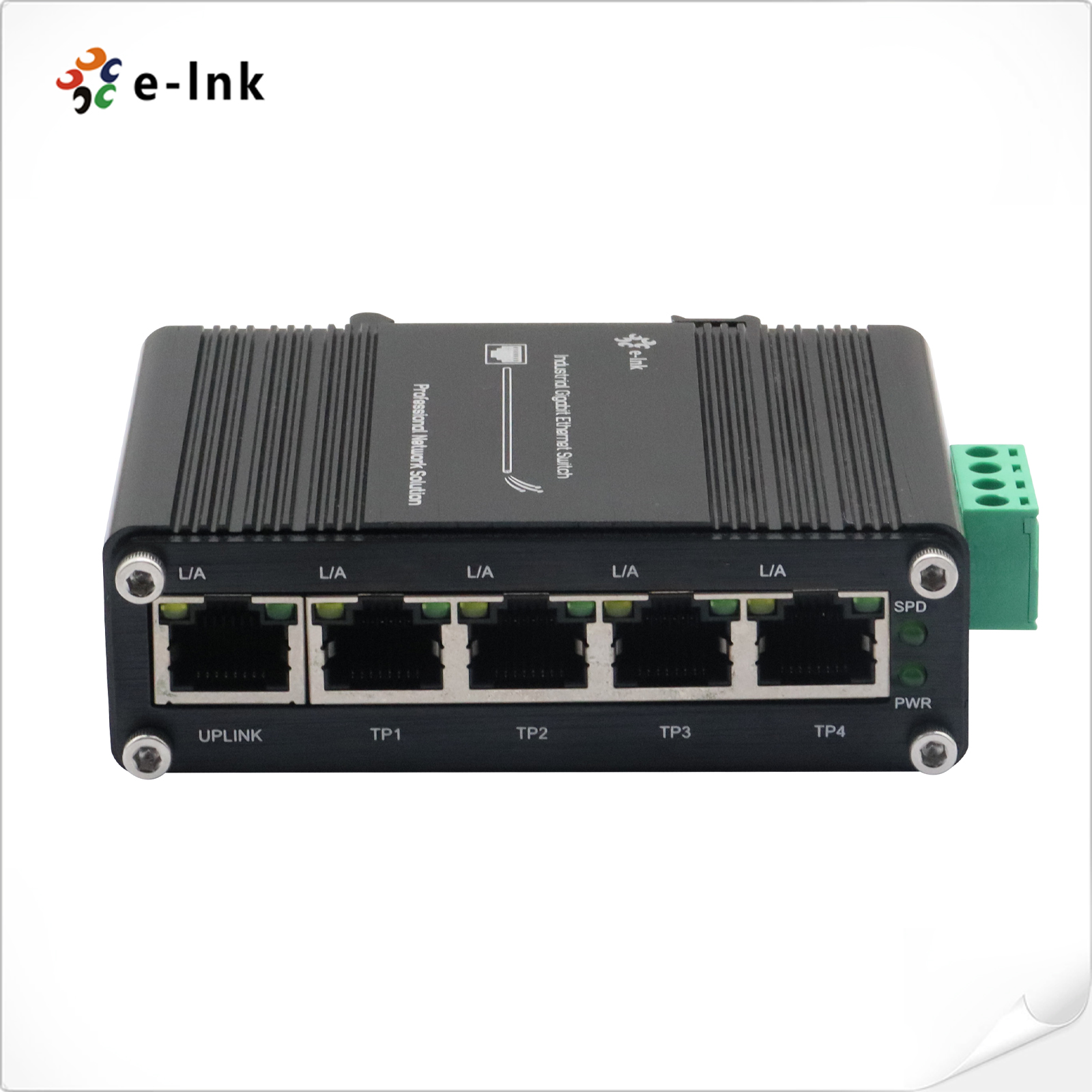

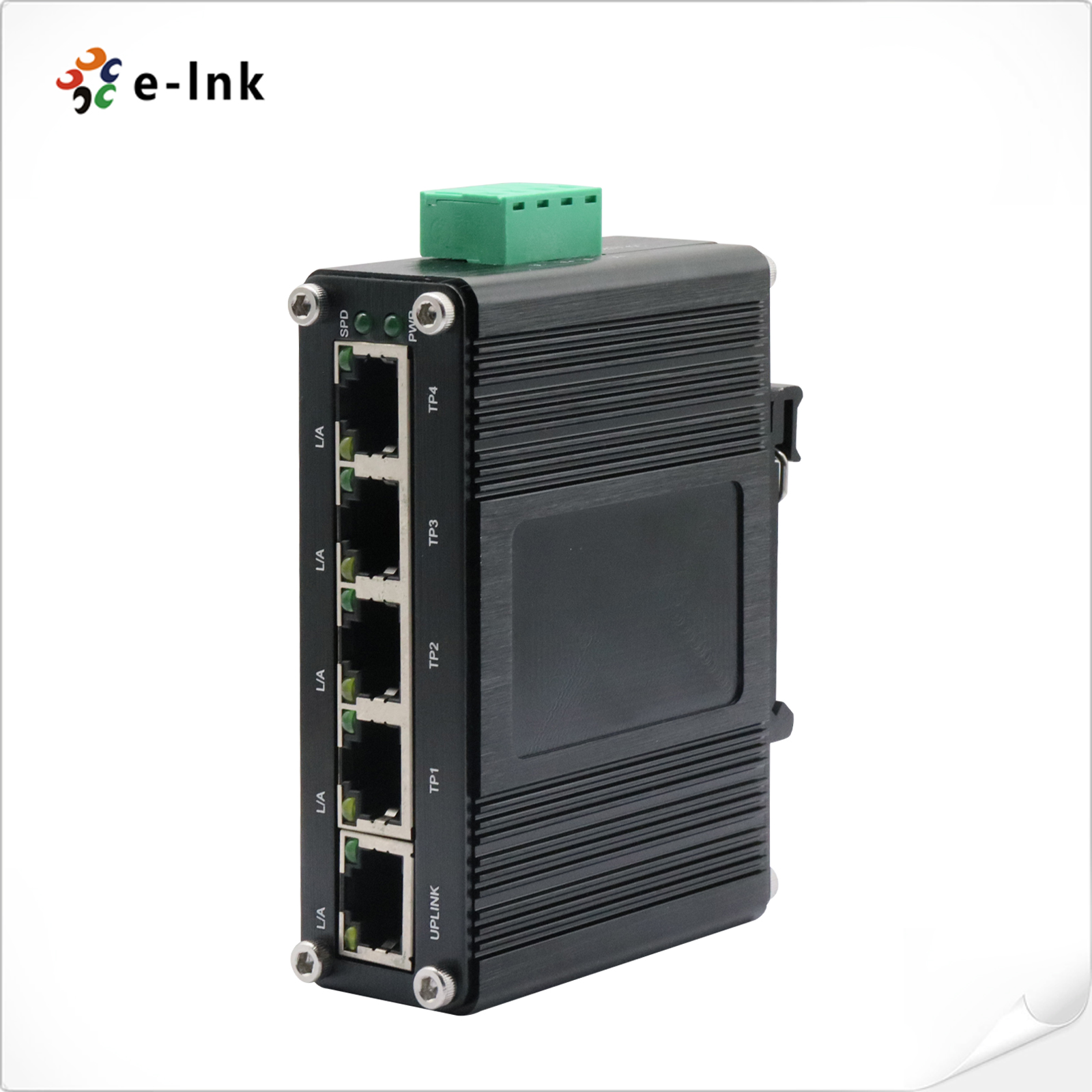

Mini Industrial 5-Port 10/100/1000/2500Base-T Ethernet Switch
Model:LNK-IMC005-2.5G
► 5 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function
► Switching Capacity 80Gbps/non-blocking
► Mini Type:3.74"x2.75"x1.14" (95 x 70 x 30mm)
► 12~48V DC Terminal Block Power Input
LNK-IMC005-2.5G Industrial DIN-rail type Unmanaged 2.5G Ethernet Switch is perfect for heavy industrial environments. it supports 5-Port 10/100/1000/2500BASE-T ports for the IoT and AIoT next-generation networks.
LNK-IMC005-2.5G is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance and operating temperature ranging from -40 to 75°C in a rugged IP40 metal housing. Though it includes robust features designed for industrial Ethernet networks.
► 5 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function
► Switching Capacity 80Gbps/non-blocking
► Max Packet 10K Bytes
► Address Table Size 16K
► 6KV surge protection
► -40°C to 75°C (-40°F to 167°F)
► Mini Type:3.74"x2.75"x1.14" (95 x 70 x 30mm)
► 12~48V DC Terminal Block Power Input
► Power Consumption ＜ 6W
► Supports DIN-Rail & Wall-mount installation
► Operating Temperature: -40°C to 75°C (-40°F to 167°F)
► Aluminum Alloy Casing
|
Standards: |
Standards Compliance IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet |
|
|
IEEE 802.1p Class of Service |
|
|
IEEE 802.3bz 2.5GBASE-T |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
22,320,000pps (2.5Gps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
10K Bytes |
|
Address Table Size |
16K MAC Addresses |
|
Switching Capacity |
80Gbps/non-blocking |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC(Terminal Block) |
|
Power Consumption: |
<6W |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 70 x 30mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
- Download FileName：E-link LNK-IMC005-2.5G Mini Industrial 5-Port 2.5G Ethernet Switch Datasheet V1.0.pdf Size： 1.87MB
|
Model |
Description |
|
LNK-IMC005-2.5G |
Mini Industrial 5-Port 10/100/1000/2500BASE-T Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
