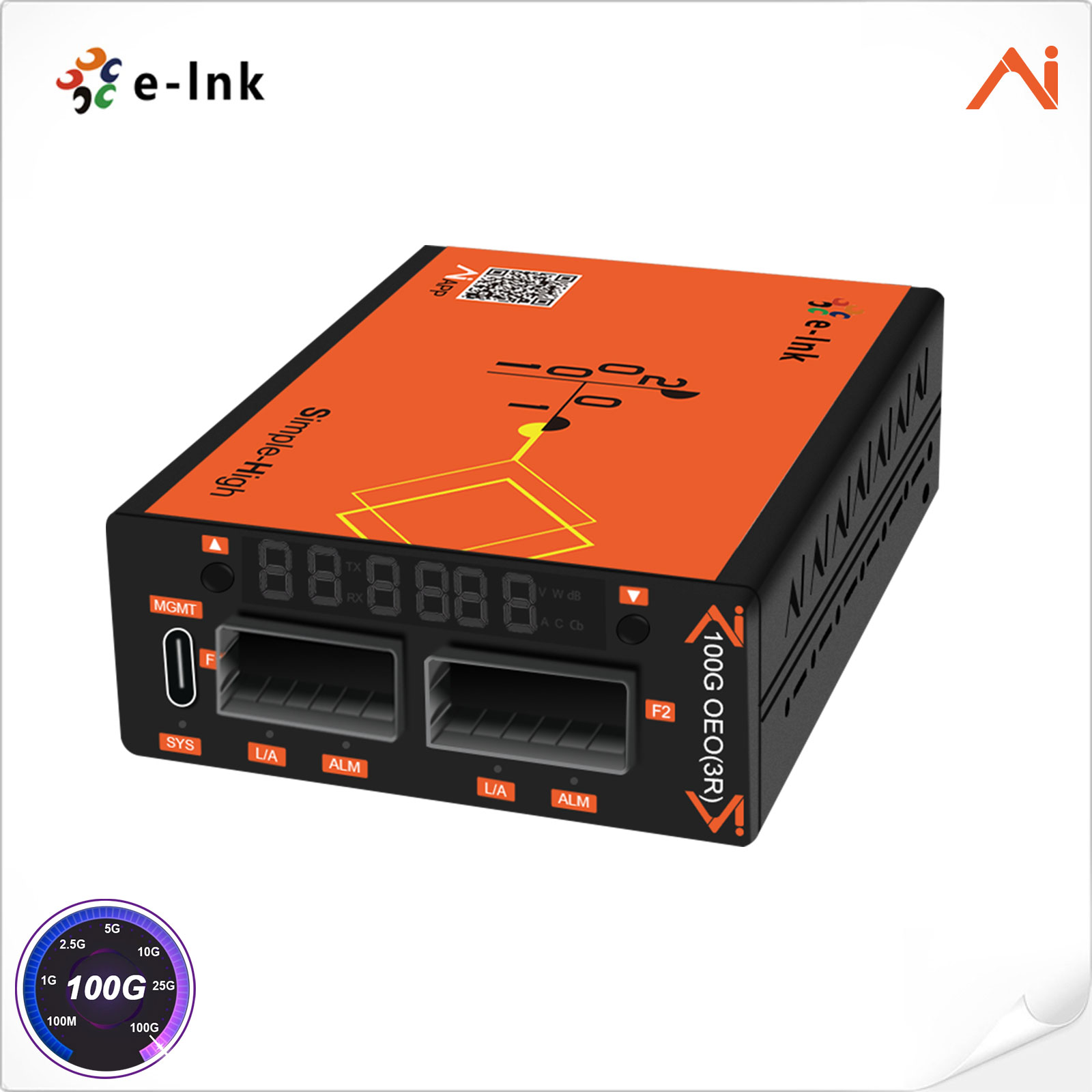

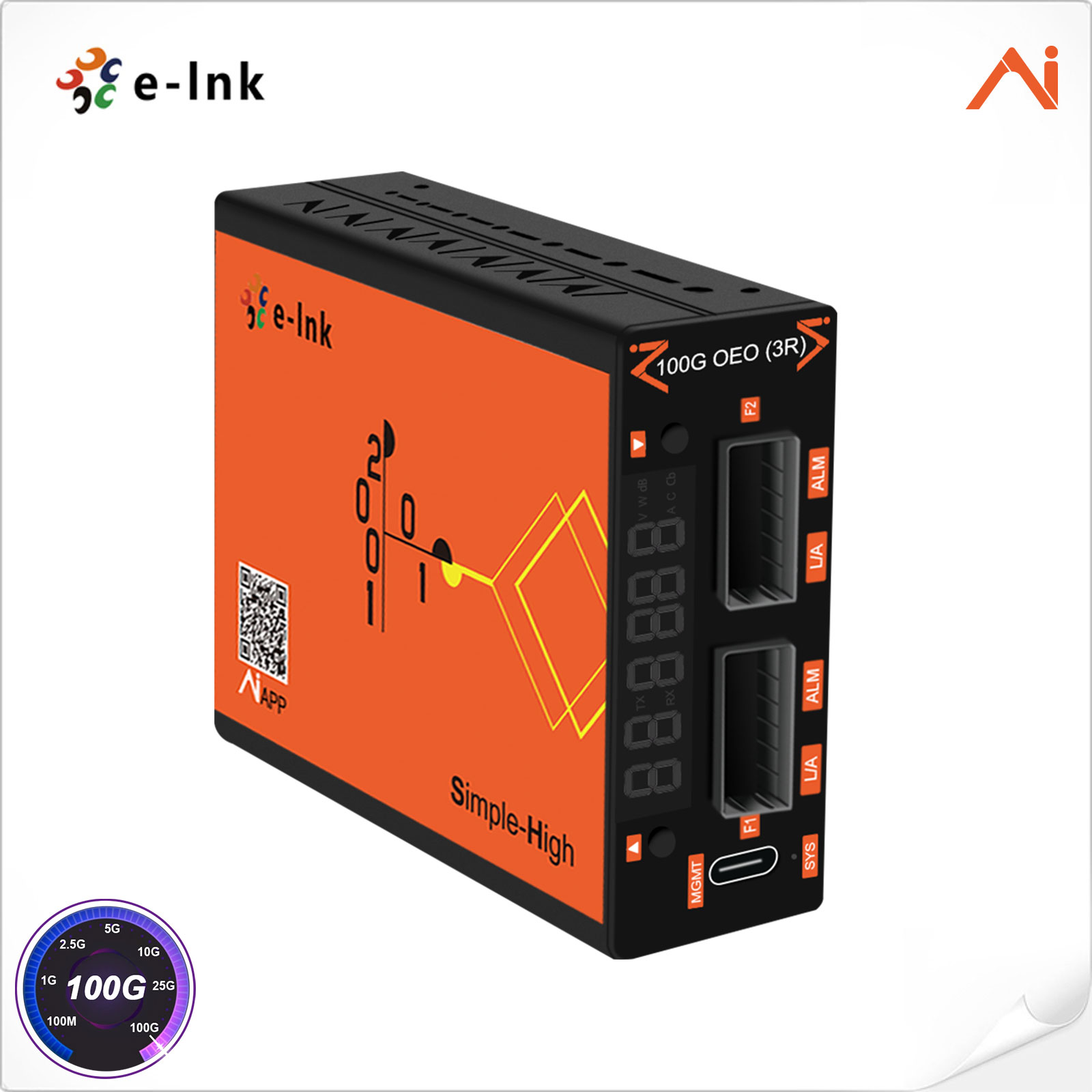

AI Smart Managed 100G QSFP28 40G QSFP+ (3R) Repeater OEO Converter
Model:LNK-AI3002-OEO-3R

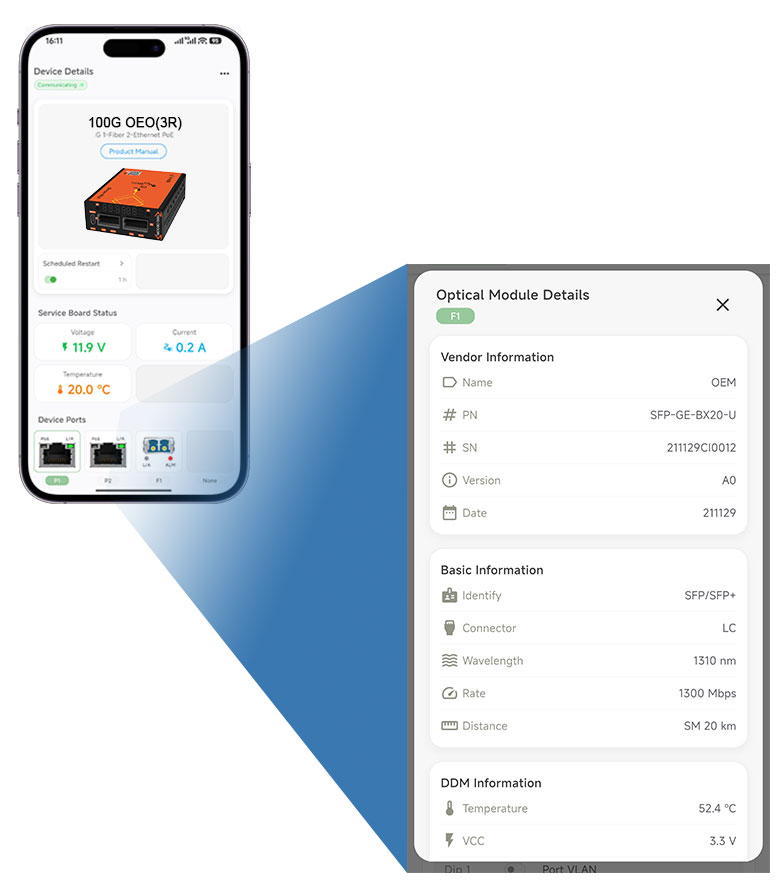

► Mobile APP / Web Management: Monitoring and control via self-developed Mobile APP or Web interface.

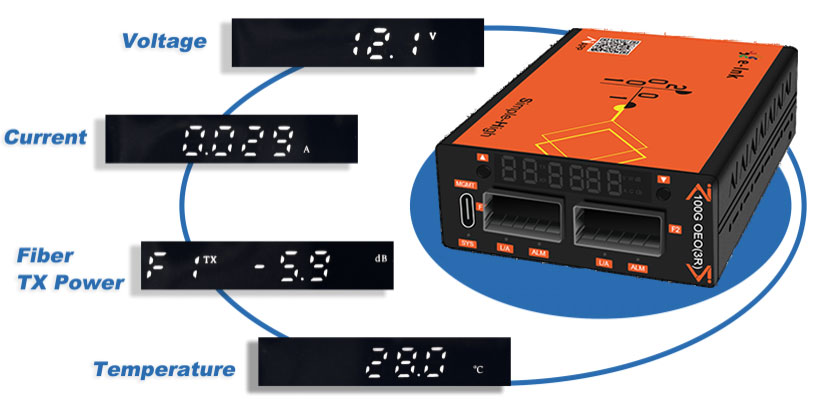

► Build- in Front Panel Screen Display: Front panel screen with buttons displays page by page the real-time information including current, voltage, temperature, TX/RX optical power, data rate.
► User-Friendly Interface: Simplified and visual design, highlighting key parameters, makes it easy for even non professionals to operate and maintain devices.
The LNK-AI3002-OEO-3R series 100G/40G (3R) OEO Converter, part of E-link's independently developed AI NETWORK series, redefines network device management with intelligent features engineered for efficiency and cost optimization. It eliminates the need for dedicated test equipment, enabling users to configure devices and monitor real-time status—including power conditions, port states, and detailed SFP module data such as optical power, wavelength, distance, speed, and temperature—directly from a mobile device or the built-in display.
Designed for user convenience, it features multi-alert systems and simplified maintenance workflows that significantly reduce both installation and operational costs. This solution offers a highly cost-effective line management platform tailored to the demands of modern network environments.

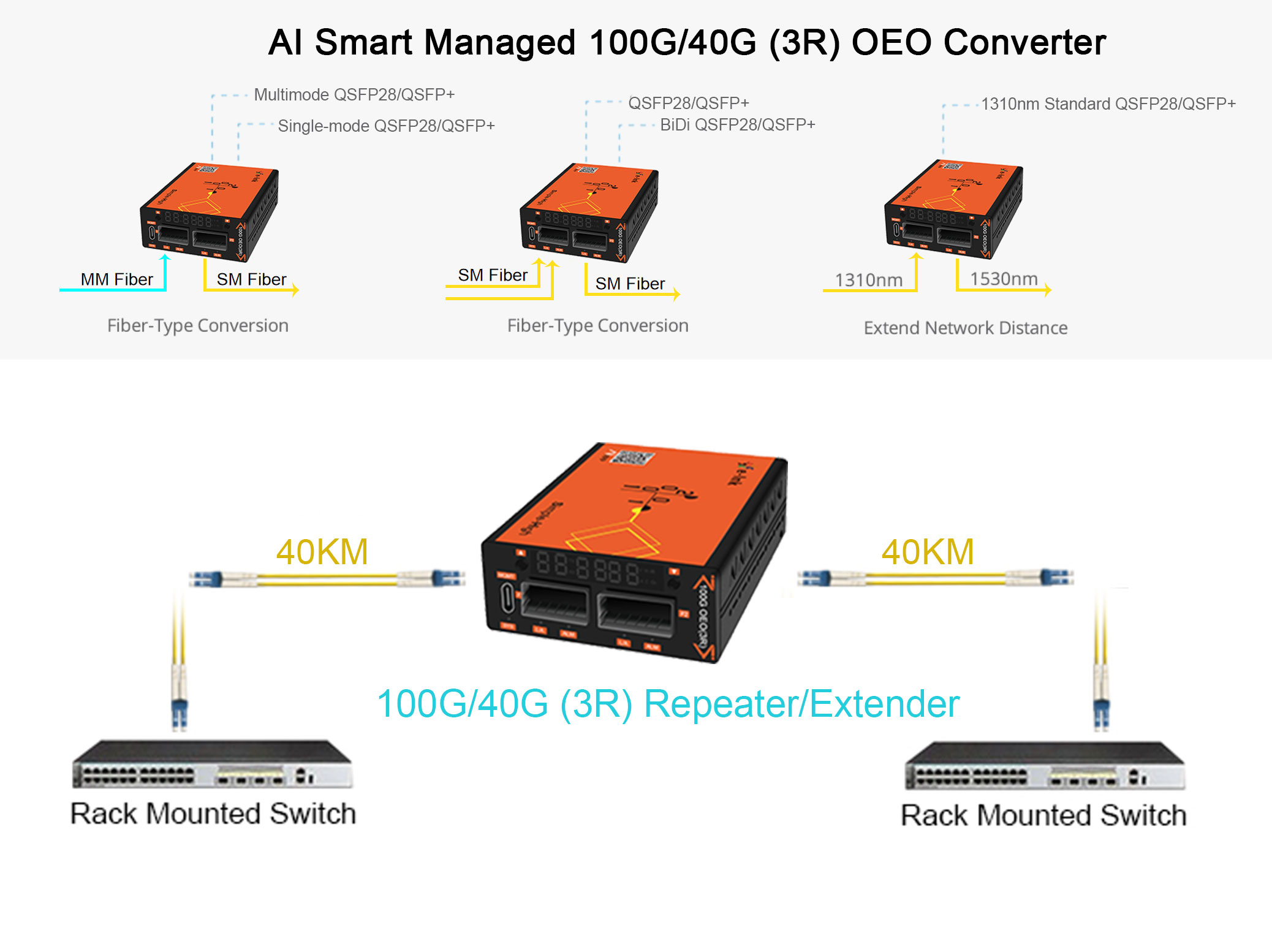

Ideal for backbone applications including SAN, LAN, and MAN, the converter supports 100G Fiber Channel and 100G Ethernet, making it well-suited for deployment in R&D laboratories, data centers, and telecommunications rooms.
► Mobile APP / Web Management: Monitoring and control via self-developed Mobile APP or Web interface.
► Build- in Front Panel Screen Display: Front panel screen with buttons displays page by page the real-time information including current, voltage, temperature, TX/RX optical power, data rate.
► User-Friendly Interface: Simplified and visual design, highlighting key parameters, makes it easy for even non professionals to operate and maintain devices.
► Type-C port for easy access to device.
► Support QSFP28 to QSFP28 (100G) , QSFP+ to QSFP+ (40G)
► Support 3R function. Through the 3R(Re-amplify, Re-shape and Re-time) function
► Support 14-slot chassis installation
|
Access Mode |
QSFP28 to QSFP28 (100G) QSFP+ to QSFP+ (40G) (3R) OEO Converter Support 3R function |
||
|
Fiber Ports |
|||
|
Transmission Speed |
100G/40G |
||
|
Optical Port F1 |
1 x QSFP28 100G 1X QSFP+ 40G (Software Option Acceptable) Support 3R function |
||
|
Optical Port F2 |
1 x QSFP28 100G 1X QSFP+ 40G (Software Option Acceptable) Support 3R function |
||
|
Interface port |
|||
|
Management Port |
Standard Type-C port for easy access to device |
||
|
Display Screen |
Display voltage, current, temperature and two optical modules TX/RX power, data rate |
||
|
AI Smart Managed Functions |
|||
|
Service Board Status |
Temperature |
|
|
|
Voltage |
|||
|
Current |
|||
|

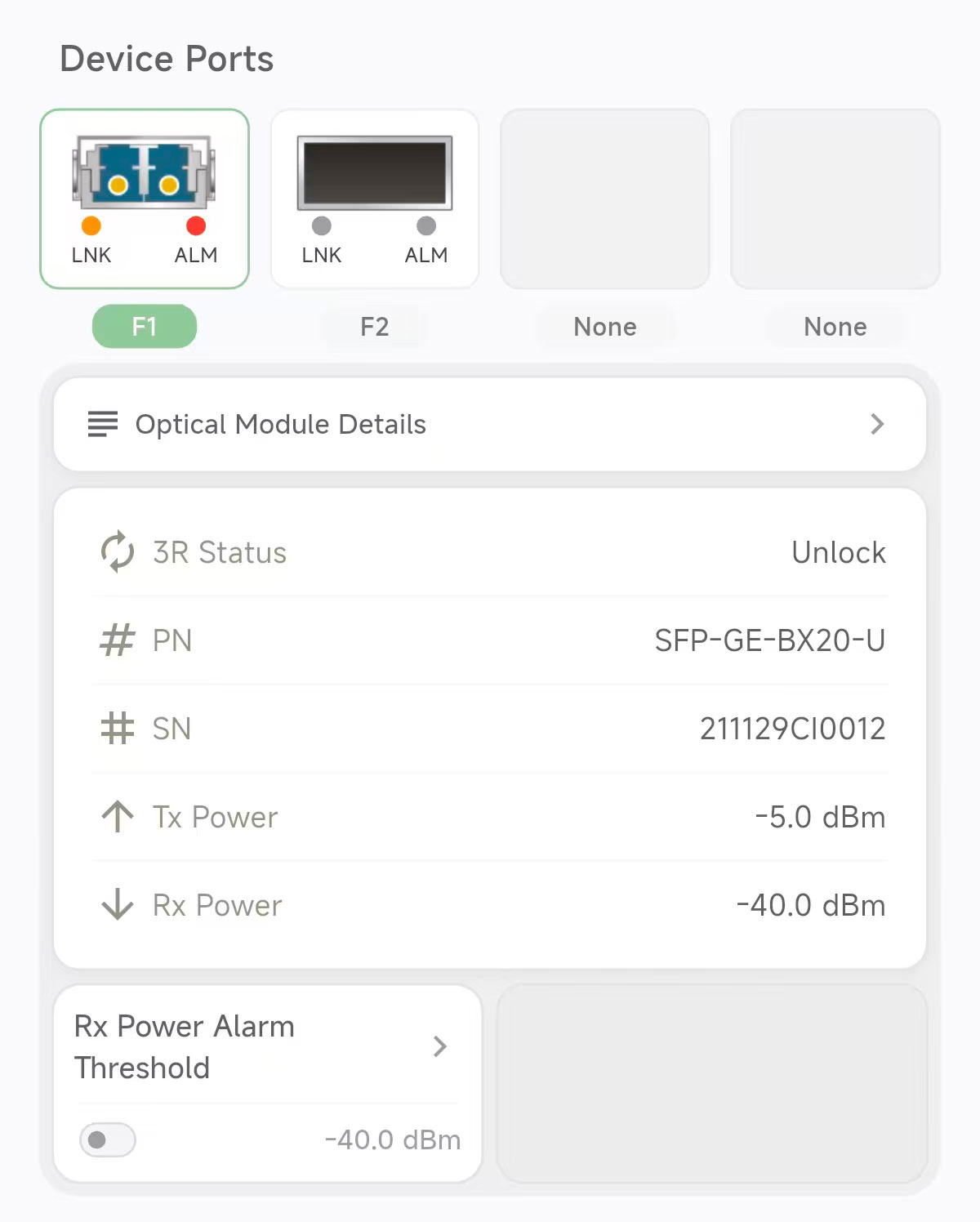

SFP Port F1(Support 3R function) |
Link Status |
|
|
|
PN/SN |
|||
|
TX Power |
|||
|
RX Power |
|||
|
All DDM Information |
|||
|

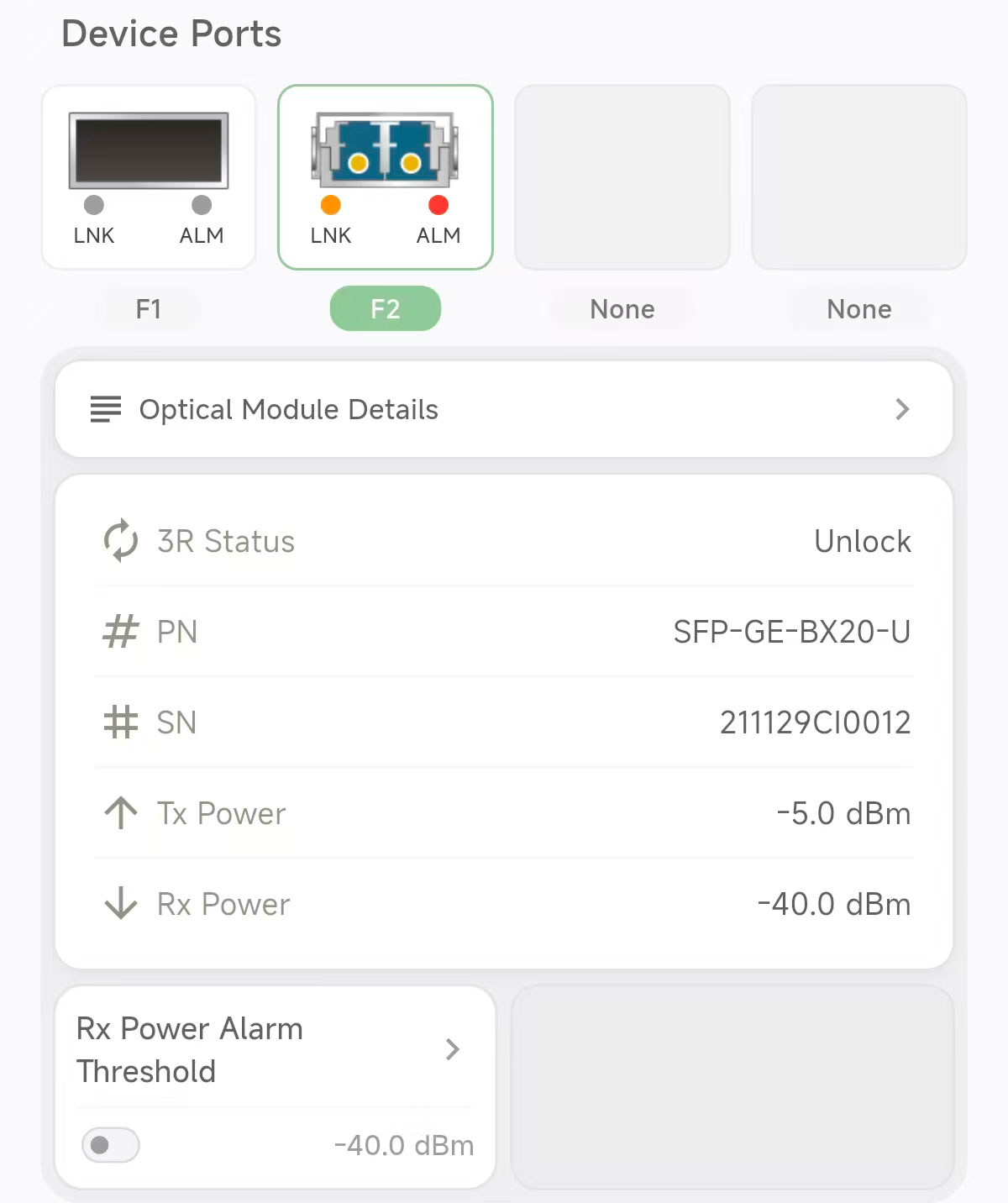

SFP Port F2(Support 3R function) |
Link Status |
|
|
|
PN/SN |
|||
|
TX Power |
|||
|
RX Power |
|||
|
All DDM Information |
|||
|
Fiber Port Alarm |
Support |
|
|
|

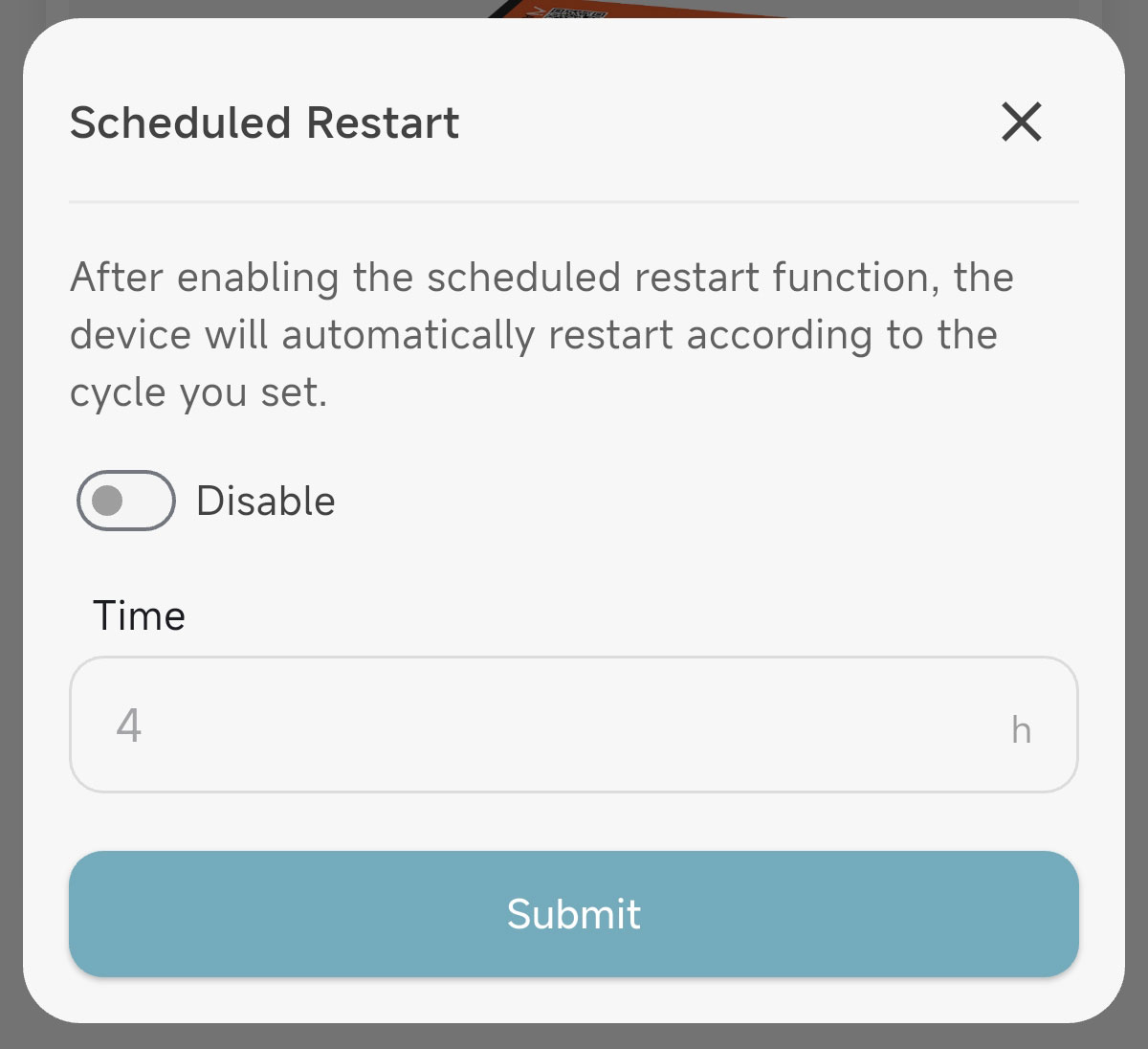

Scheduled Reset |
Support |
|
|
|
Electrical and Mechanical |
|||
|
Input Power |
5~58V DC, 5.5 x 2.1 mm Power Socket |
||
|
External AC-to-DC Adapter |
|||
|
Power Consumption |
4W (Not Include SFP modules) |
||
|

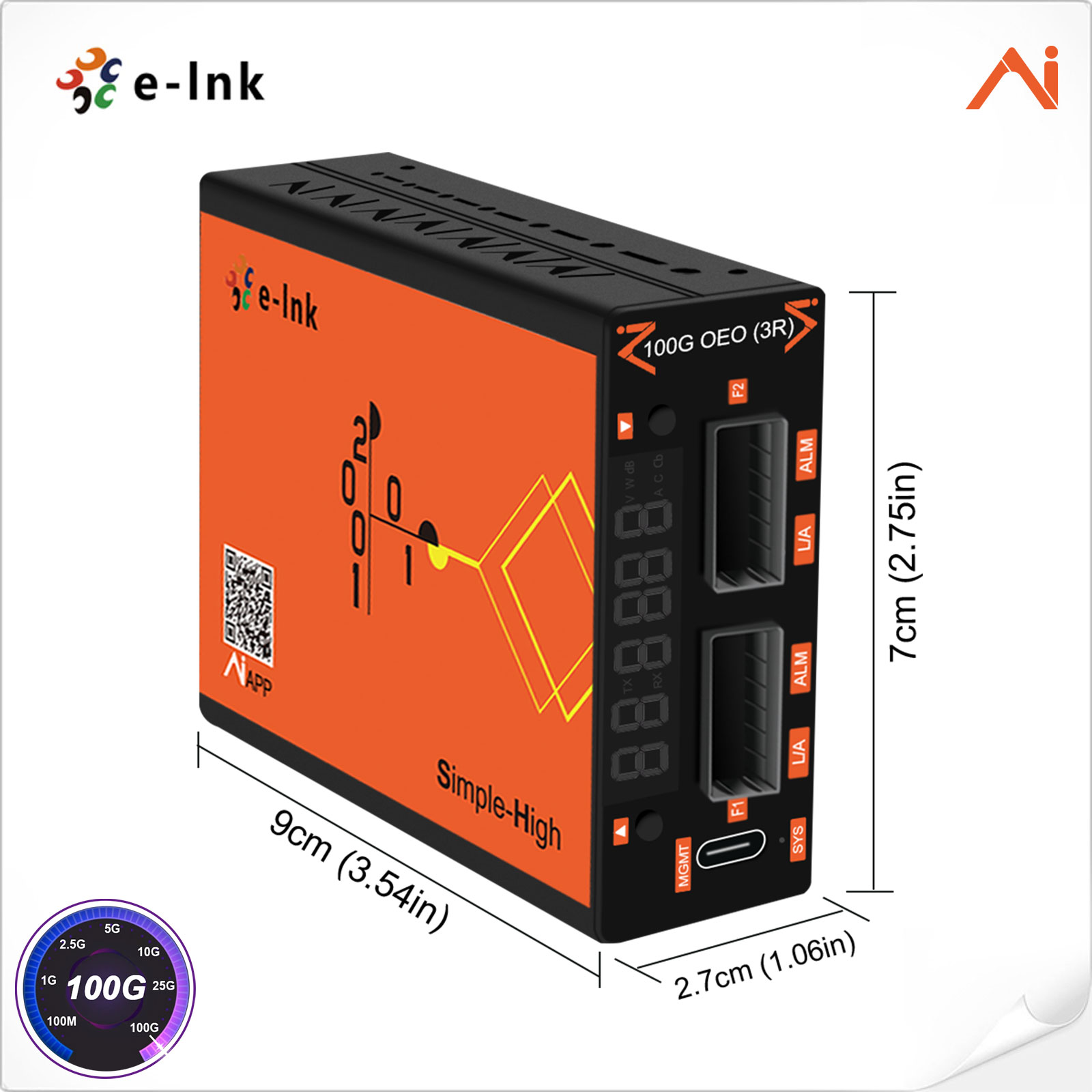

Dimensions (W x D x H) |
93 x 71 x 29 mm |
||
|
Weight |
100g |
||
|
Casing |
Aluminum Case |
||
|
Mounting Options |
Desktop or mounted on standard 14 slots rack |
||
|

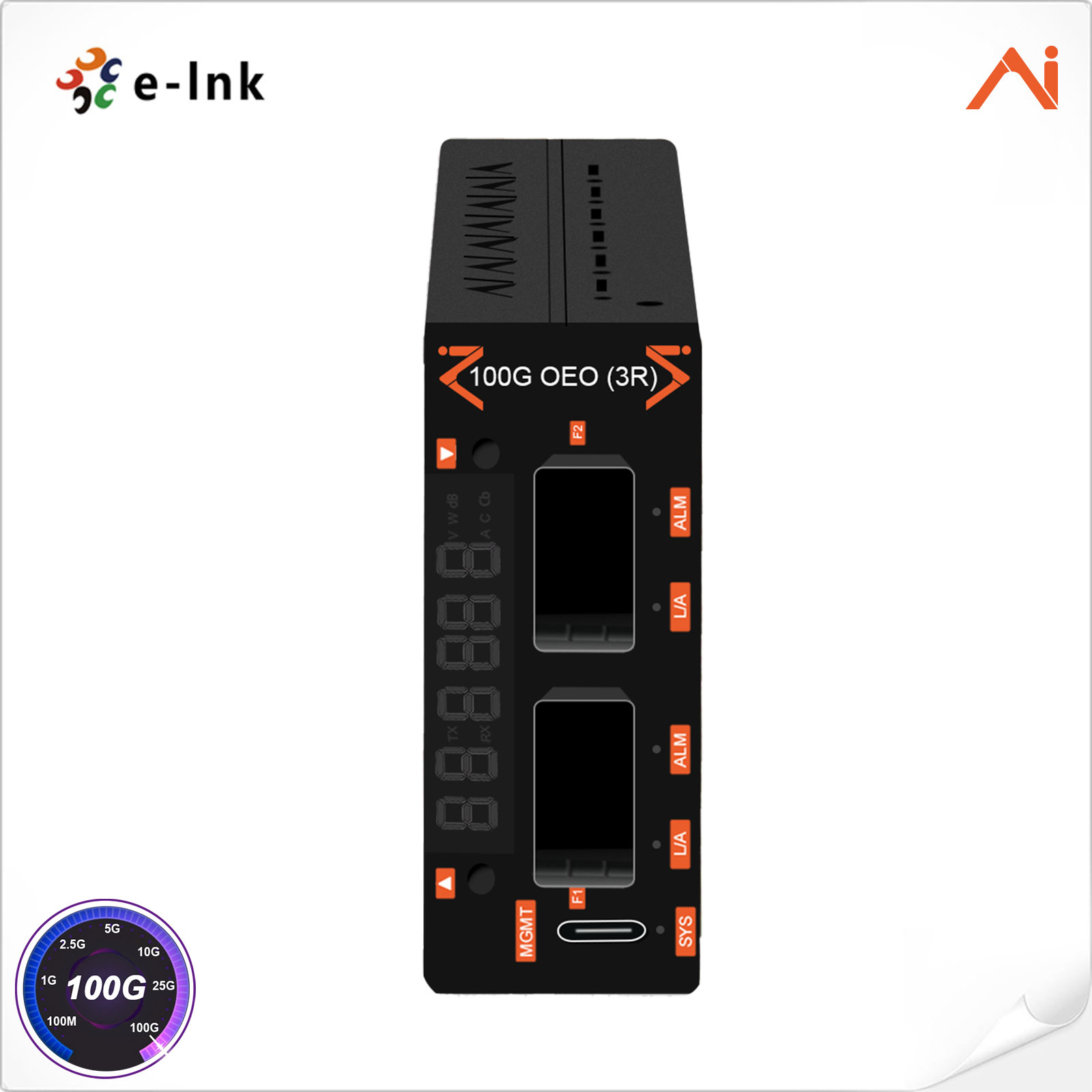

LED Indicators |
|||
|
SYS |
Blink(green): Running |
||
|
Blink(orange): USB data transmission |
|||
|
F1 (LNK) |
On(green): Signal lock |
||
|
Blink: Signal unlock with optical power normal |
|||
|
On(orange): Optical power abnormal with optical module plug-in |
|||
|
Off: No optical module |
|||
|
F1 (ALM) |

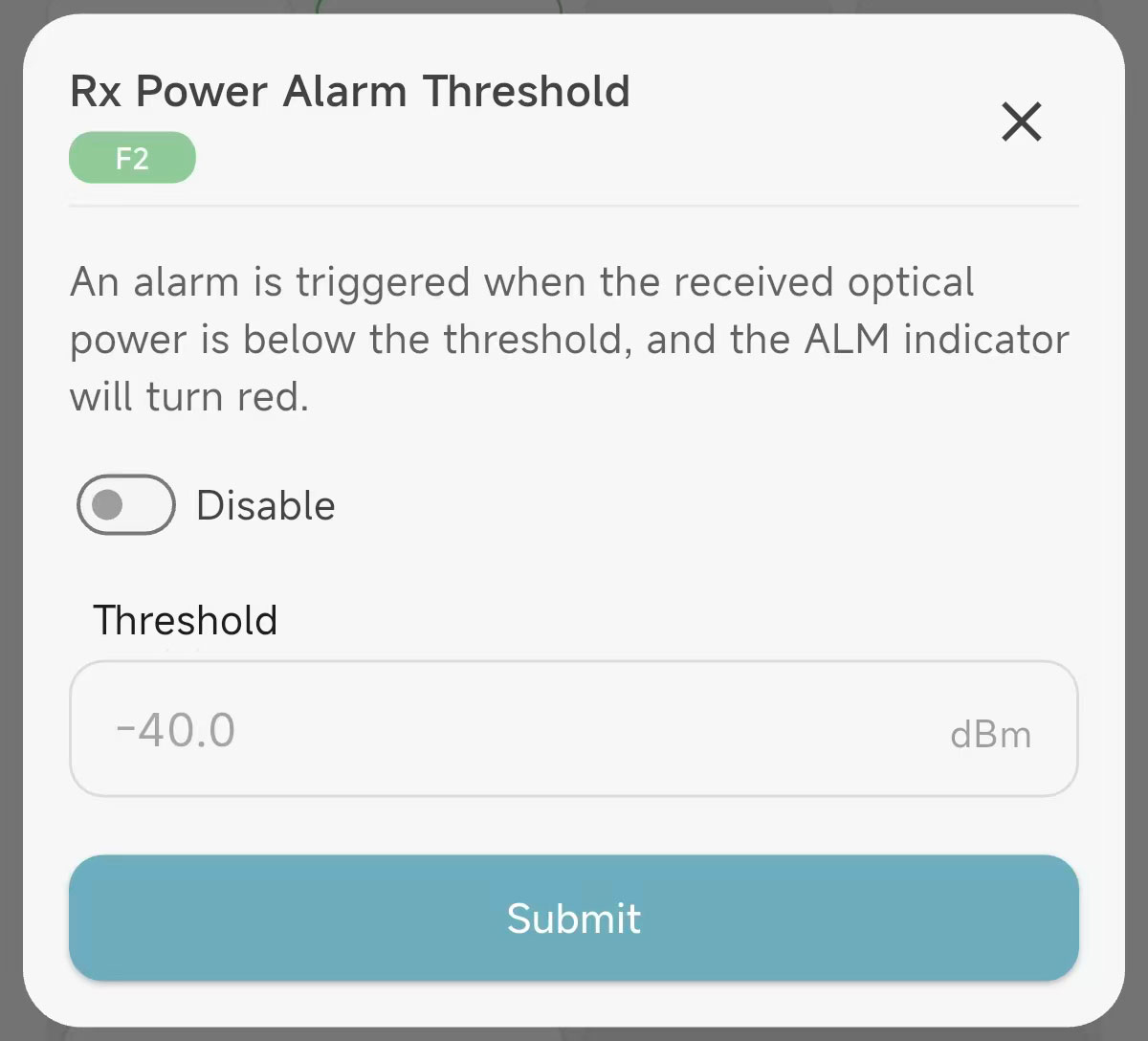

On(red): Optical power alarm |
||
|
On(orange): Optical power warning |
|||
|
Off: Optical power normal |
|||
|
F2 (LNK) |
On(green): Signal lock |
||
|
Blink: Signal unlock with optical power normal |
|||
|
On(orange): Optical power abnormal with optical module plug-in |
|||
|
Off: No optical module |
|||
|
F2 (ALM) |
On(red): Optical power alarm |
||
|
On(orange): Optical power warning |
|||
|
Off: Optical power normal |
|||
|
Environmental |
|||
|
Operating Temperature |
-20°C to 70°C (-20°F to 162°F) |
||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
||
|
Relative Humidity |
5% to 95% non-condensing |
||
|
MTBF |
> 200,000 hrs |
||
|
Regulatory Approvals |
|||
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
|||
- Download FileName：E-link LNK-AI3002-OEO-3R AI Smart Managed 100G 40G OEO Converter (3R Repeater) Datasheet -20260318. Size： 2.14MB
|
Model |
Description |
|
LNK-AI3002-OEO-3R |
AI Smart Managed 2 x QSFP28 100G & 2 x QSFP+ 40G (Software Option Acceptable) Support 3R function |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately. |
