Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt 4-pair Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5e or above

Maximum Distance:

Cat5e UTP up to 100m

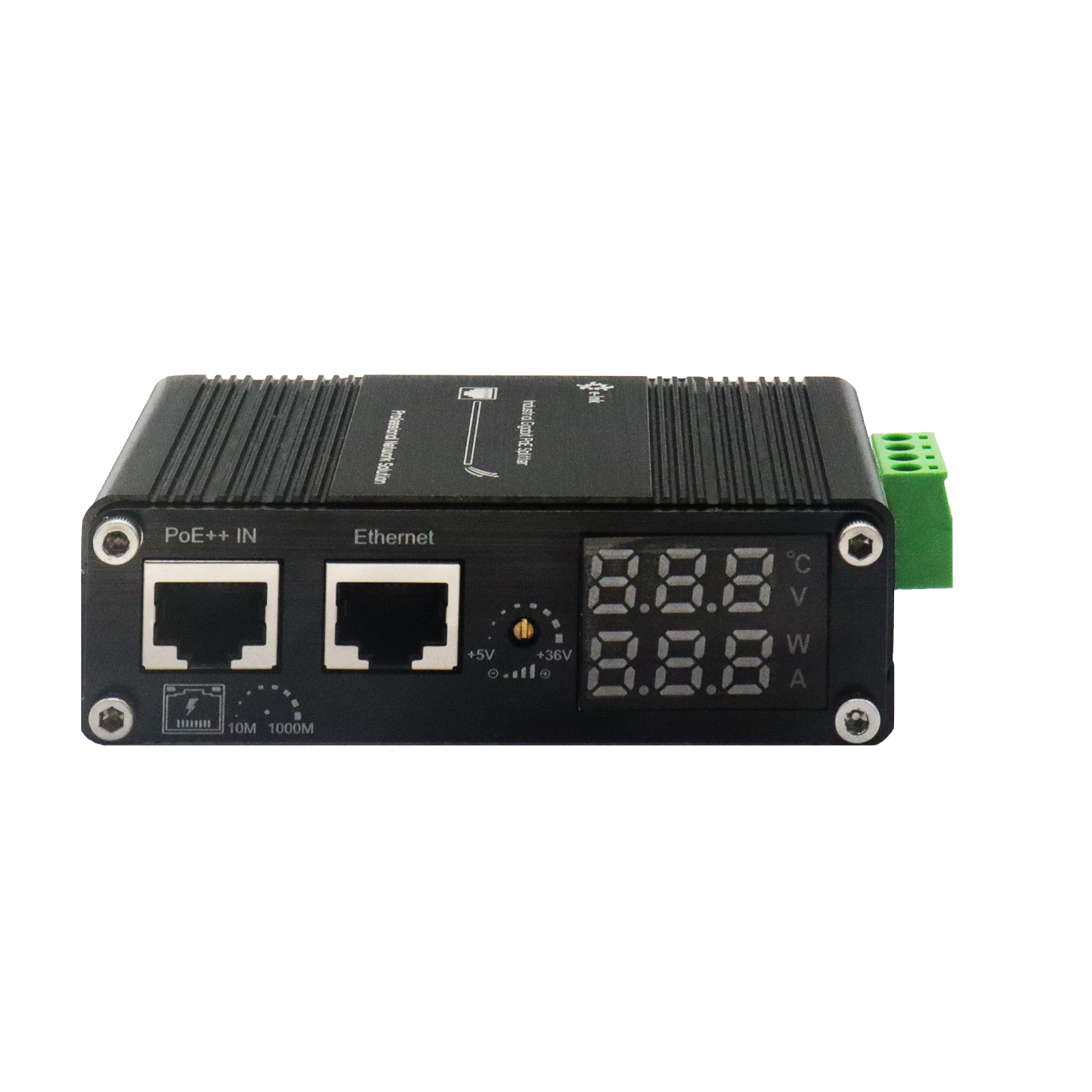

Interface:

“PoE IN (Power + Data)” port: 1 x RJ45 10/100/1000Base-T

“Ethernet” port: 1 x RJ45 10/100/1000Base-T

DC output: 1 x removable 4-Pin terminal block

Power over Ethernet

PoE Standard:

IEEE 802.3af/at/bt Power over Ethernet

Electrical and Mechanical

Power Output:

5V to 36V DC adjustable.

Power Consumption:

Max 70W, 10A, via Cat5e cable or above

LED Display

Temperature:

°C

Power

W

Voltage

V

Current

A

Mechanical

Dimensions (W x D x H):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

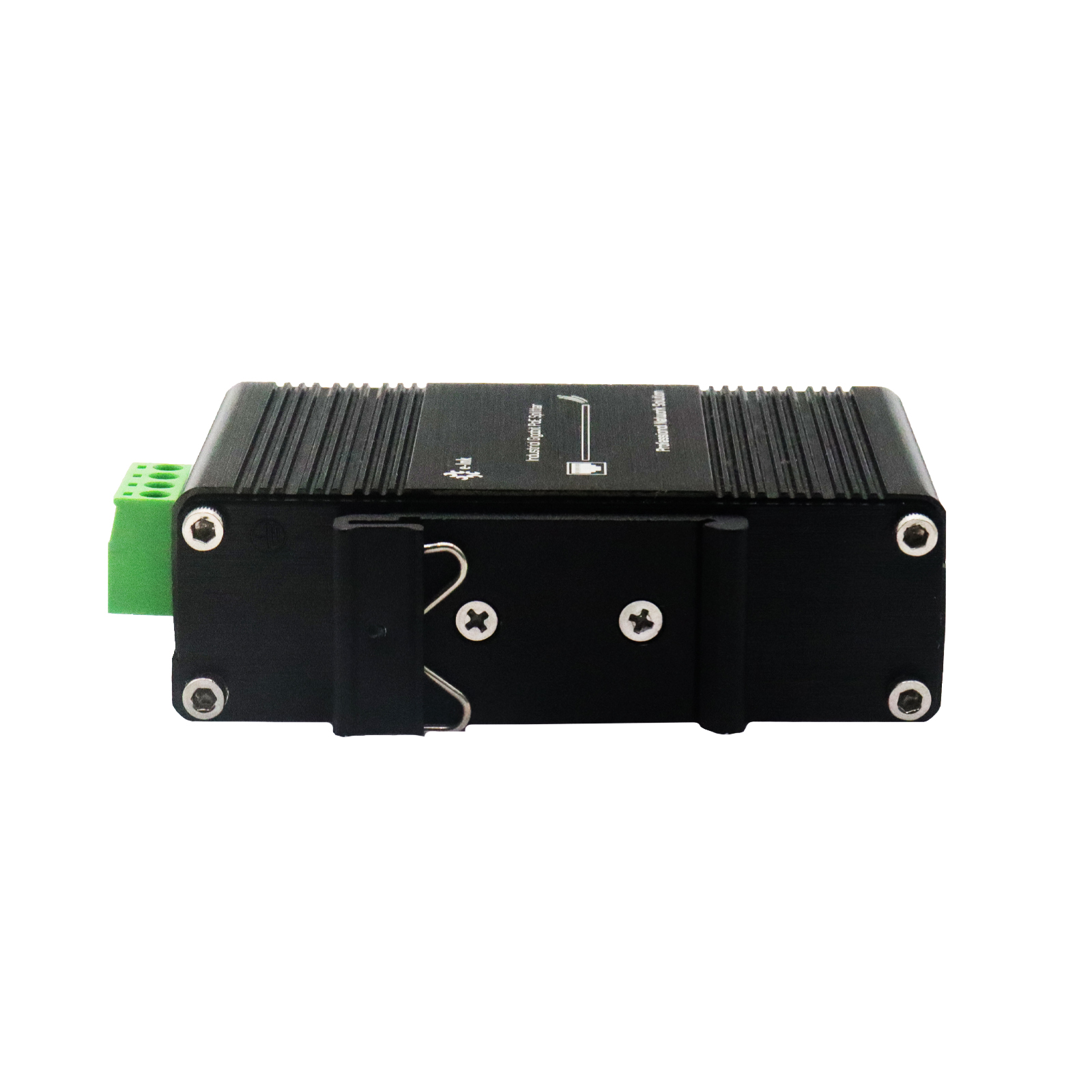

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Regulatory Approvals

ISO9001
