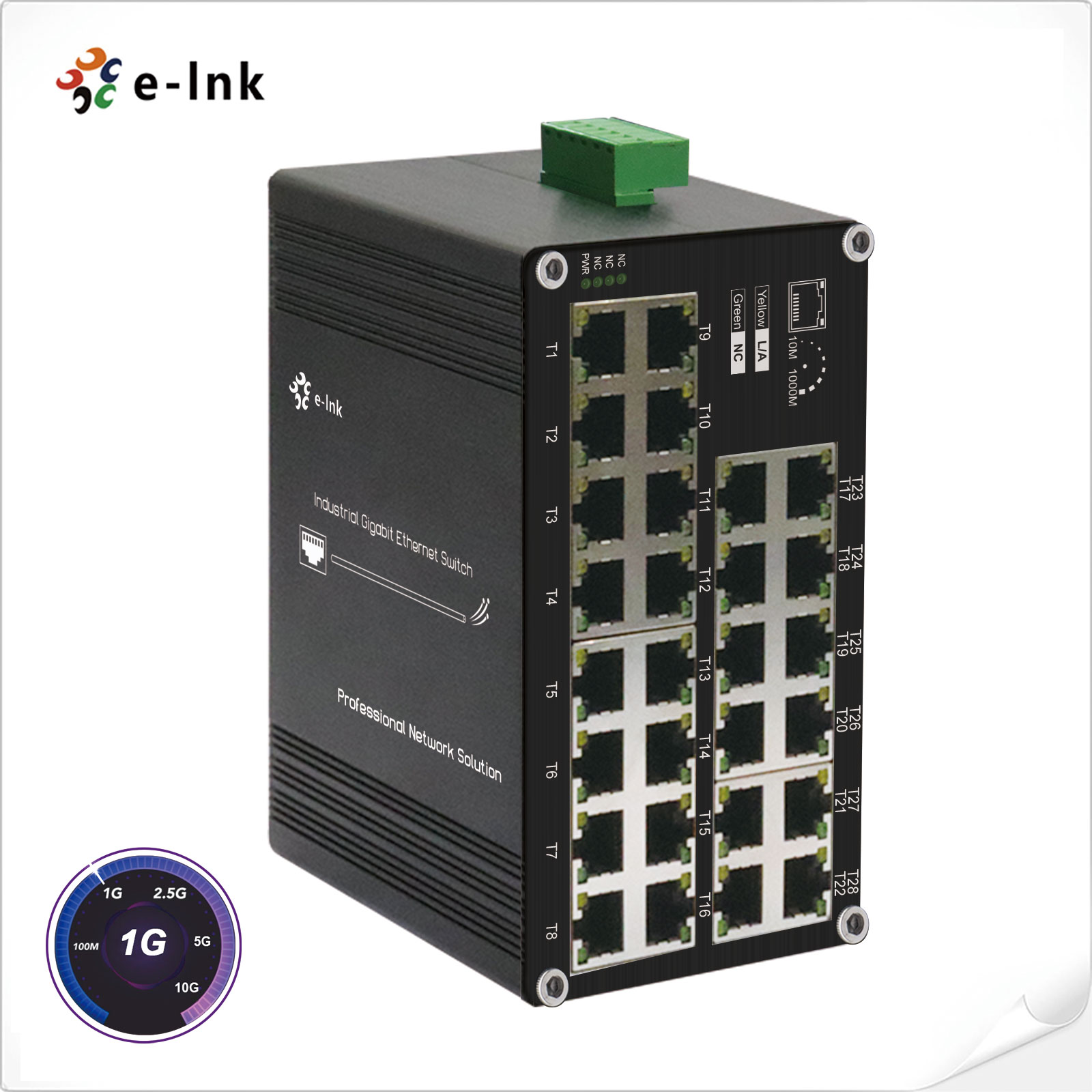

28-Port 10/100/1000Base-T Industrial Ethernet Switch
Model:LNK-IMC028G
►28-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
►Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
►12~48VDC wide range power input
LNK-IMC028G is a high-performance industrial Gigabit Ethernet switch independently developed by E-link. Equipped with 28×Gigabit RJ45 Ethernet ports, it provides reliable high-speed data transmission and stable network connectivity for large-scale industrial Ethernet applications.
We innovated this product based on standard switches:
Device function: Plug-and-play design with automatic Ethernet negotiation, requiring no configuration. It supports efficient data forwarding and reliable communication for multiple connected Ethernet devices.
The switch features an IP40-rated aluminum housing and operates reliably in harsh industrial environments with a wide operating temperature range from -40℃ to 75℃. Equipped with dual redundant power inputs, it ensures continuous and stable Ethernet operation for mission-critical applications.

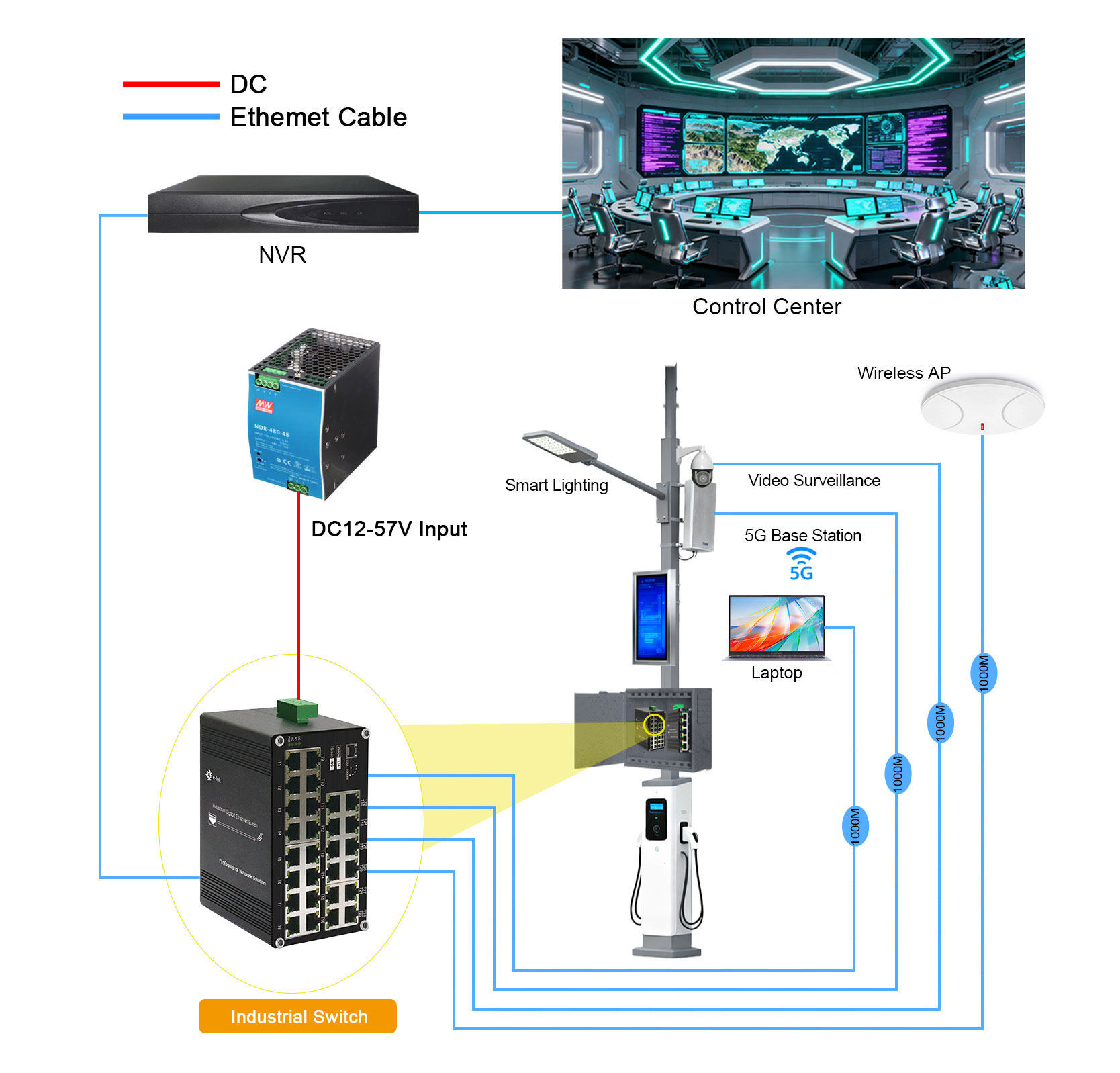

Application Scenarios:
Intelligent Manufacturing & Automation: data transmission and multi-device interconnection
Power & New Energy: Surveillance communication and cluster networking.
Rail Transit & Tunnel Engineering: Real-time video monitoring and signal transmission.
Oil, Gas & Mining Sites: Stable communication
Smart City & New Infrastructure Deployment
In addition, this product can be used in fields such as autonomous driving, humanoid robots, AI computing, metallurgy, chemical engineering, outdoor research base stations and field weather monitoring.
►28-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
►Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
►12~48VDC wide range power input
►Supports 16K MAC address
►Supports 802.3x Flow control
►Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
►Supports DIN-Rail and Wall-mount installation
►Industry standard design, dustproof and close design IP40, rugged high-strength metal case
►-40°C to 80°C (-40°F to 176°F) operating temperature
|
Access Mode |
28-Port 10/100/1000BASE-T RJ45 |
|
Ethernet |
|
|
Standards: |
Standards Compliance IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type |
Store-and-Forward |
|
Forward Filter Rate |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory |
1 Mbit |
|
Max Packet Length |
9K Bytes |
|
Switching Capacity |
56Gbps/non-blocking |
|
Interface port |
|
|
Ethernet Port |
28-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X |
|
1-28 port 10/100/1000BASE-T |
|
|
Cable: Cat 5e or above; Distance: ≤100 meters at 1000M data rate |
|
|
Electrical and Mechanical |
|
|
Input Power |
12~57V DC, 6-pin terminal block |
|
Power Consumption |
5W Max. |
|
Dimensions (W x D x H) |
150 x 115 x 75 mm |
|
Weight |
950g |
|
Casing |
Aluminum Case |
|
Mounting Options |
DIN-Rail |
|
Environmental |
|
|
Operating Temperature |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
- Download FileName：E-link LNK-IMC028G 28-Port Gigabit Industrial Ethernet Switch V1.0(1).pdf Size： 742KB
|
Model |
Description |
|
LNK-IMC028G |
Industrial 28-Port 10/100/1000BASE-T Ethernet Switch,12V to 57VDC power input |
|
Mounting Options |
► Default DIN-Rail bracket included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
