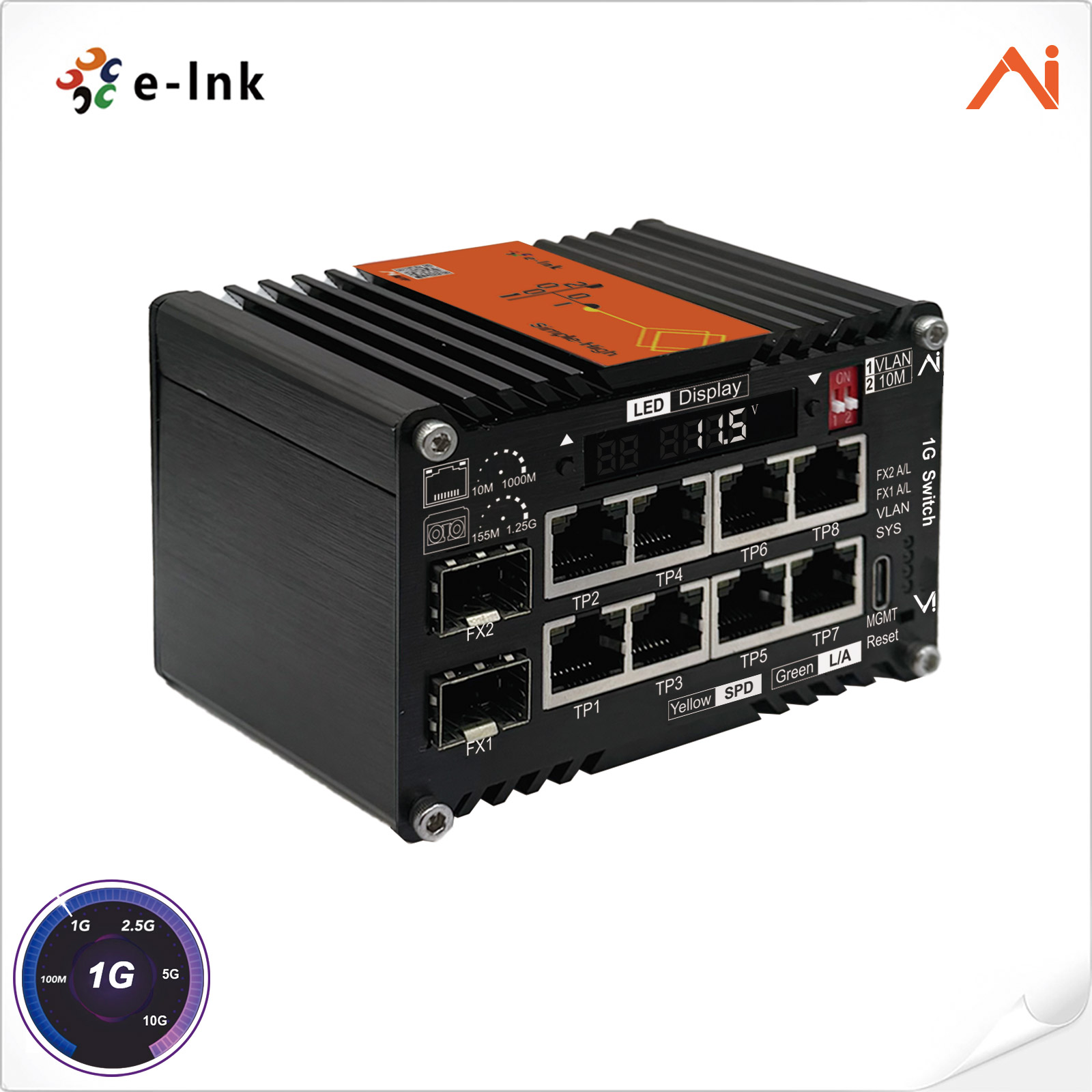

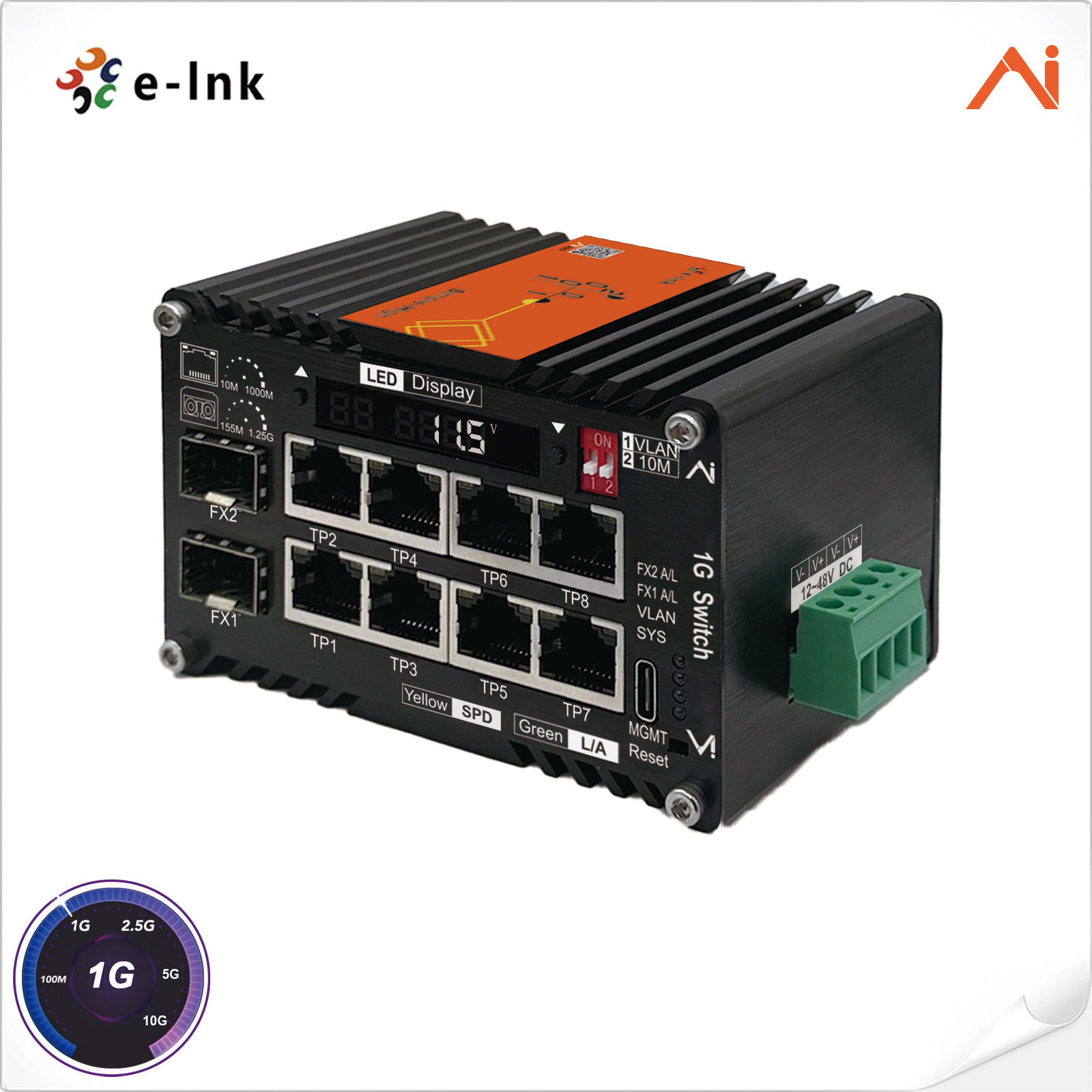

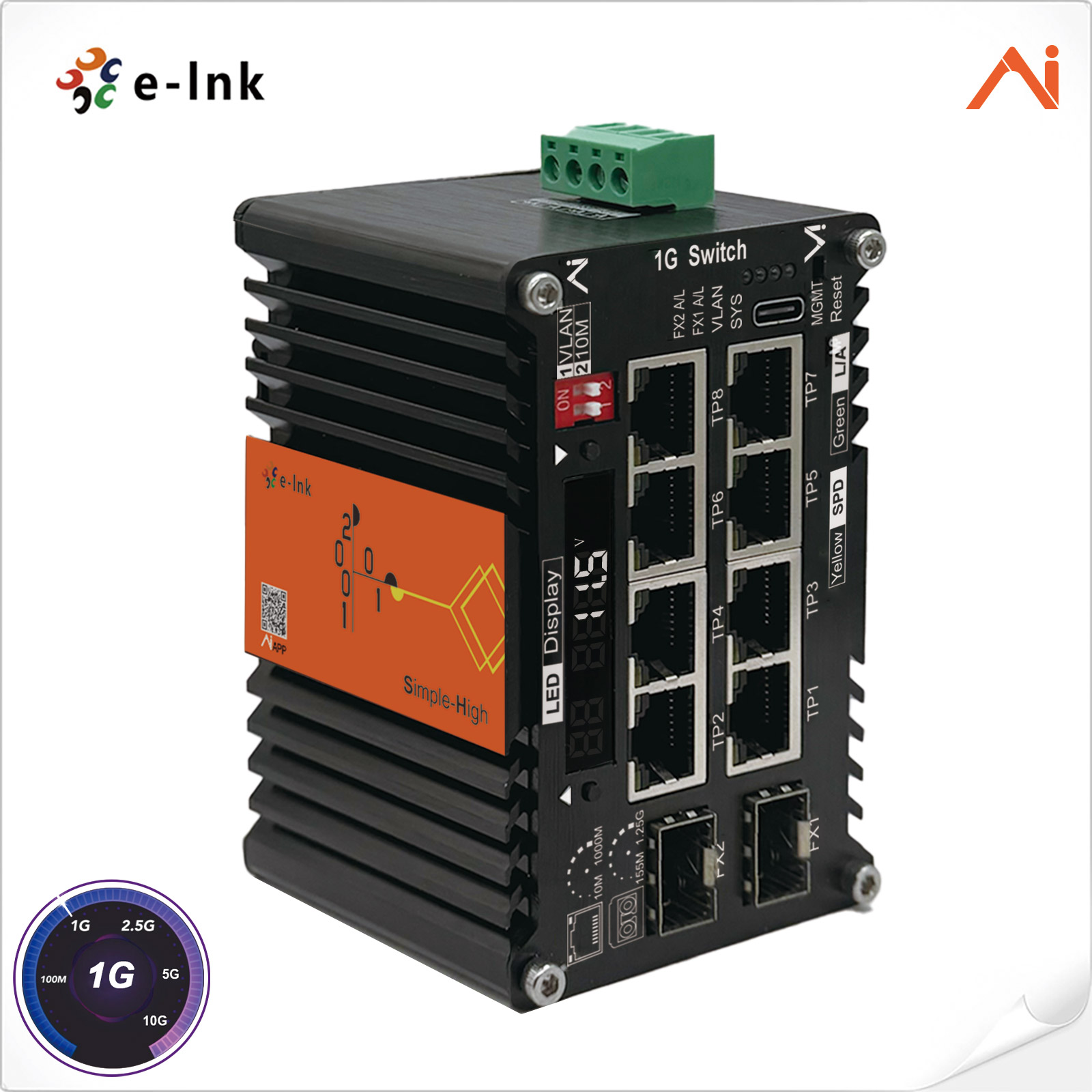

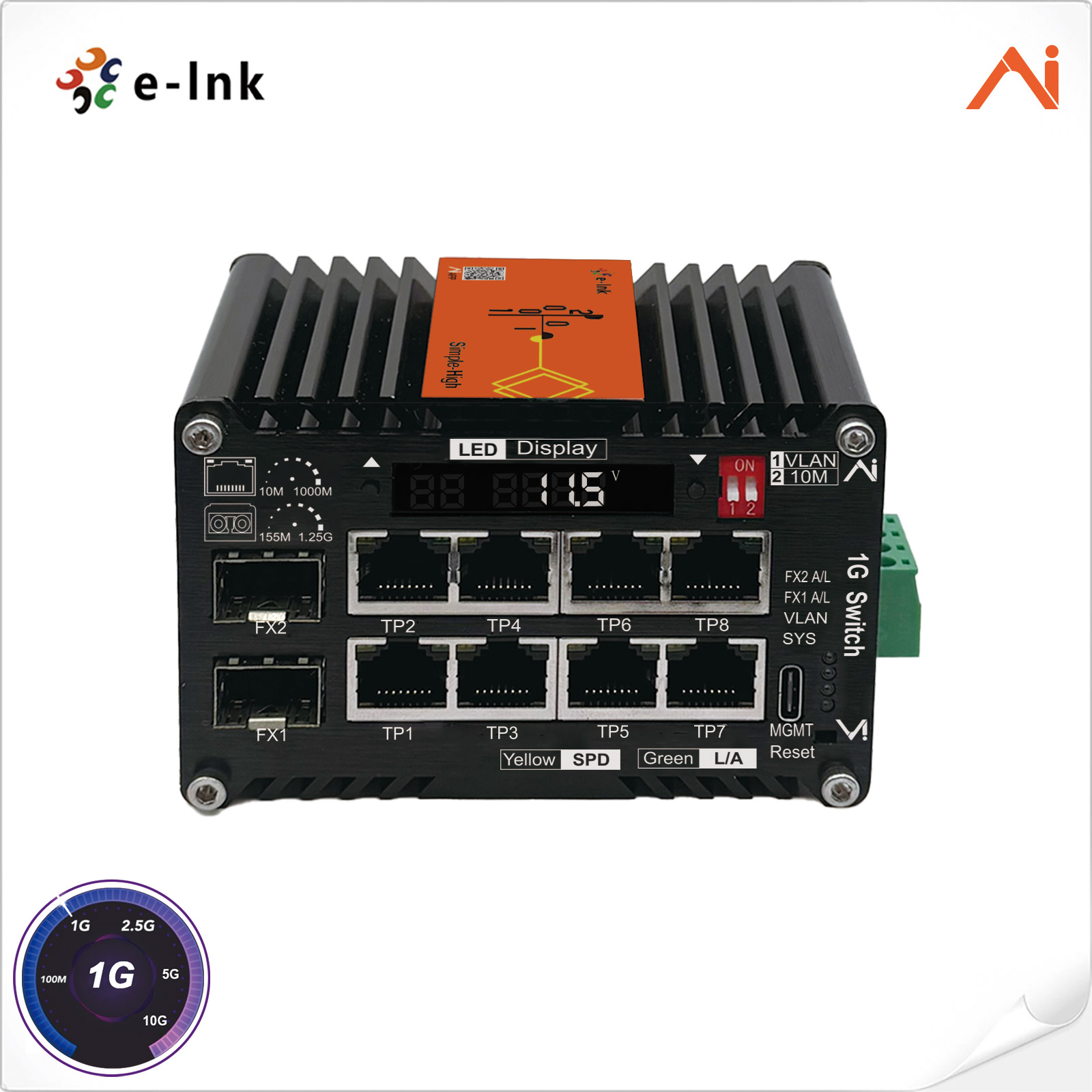

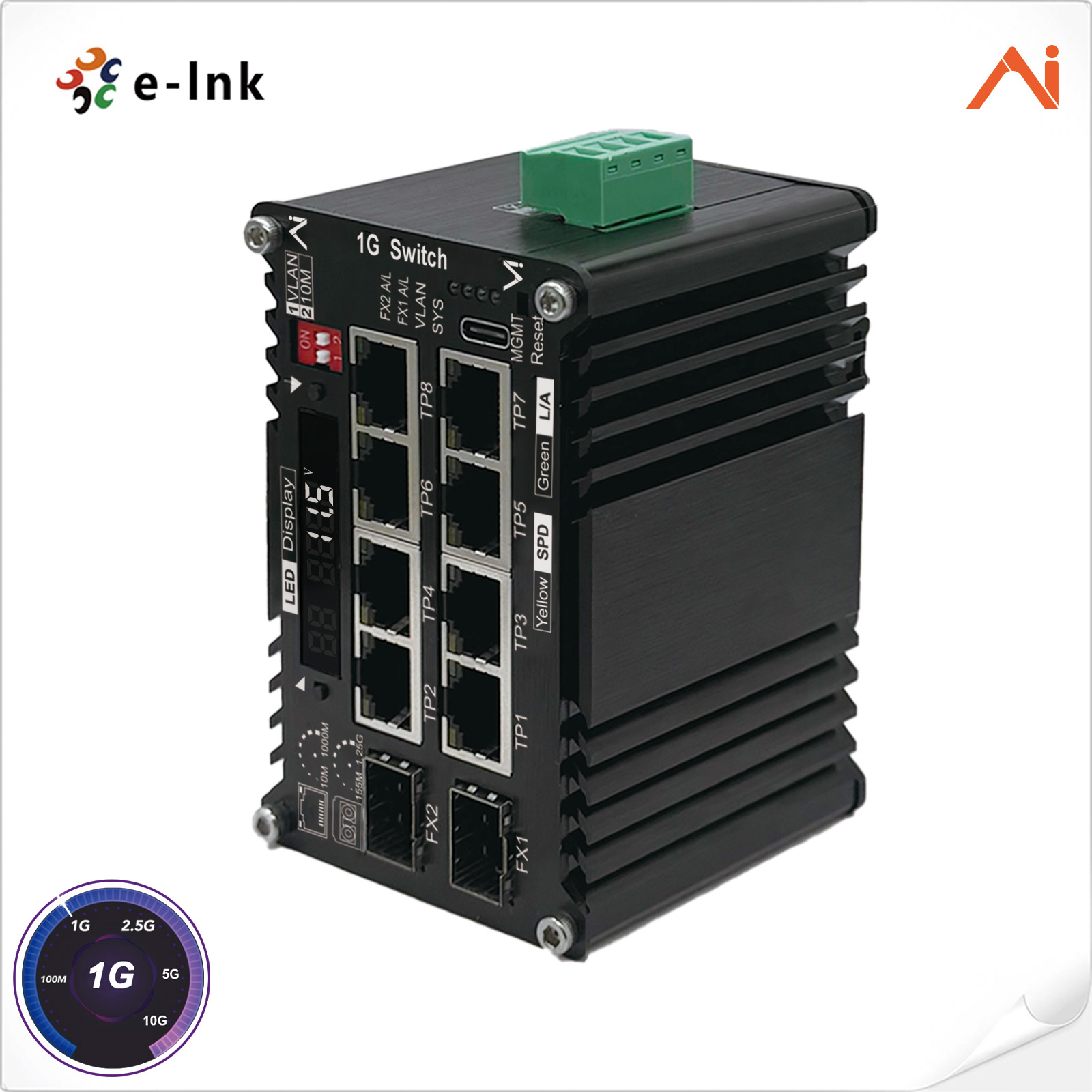

Mini Industrial AI 8-Port Gigabit to 2-Port 100/1000/2.5GBASE-X Smart Managed Ethernet Switch
Model:LNK-AIMC208GM
► Self-developed intelligent management system by E-link, supporting Android mobile APP and PC web UI
►One-click LED screen displayreal-time data dashboard: system current, voltage, internal temperature, SFP transmit/receive optical power, Ethernet & fiber port link speeds and more
► Rich APP & web management capabilities: intuitive graphical dashboard for full device status; complete SFP information & DDM diagnostic data; customizable optical power alarm thresholds; user-defined scheduled port/device reboot
The LNK-AIMC208GM is a compact AI smart managed Fiber ethernert switch independently developed by E-link. Each unit is equipped with 8×10/100/1000Base-T RJ45 2×100/1000/2.5GBASE-X SFP fiber port.
This world-first innovative device combines the dual advantages of managed and unmanaged switches. Engineers can monitor device status via multiple methods: mobile APP,PCweb management interface and LED Display without additional test tools.
Datacover: voltage, current,temperature,Ethernet port status, SFP port working status,as well as detailed SFP DDM parameters such as optical power, wavelength, transmission distance, link rate and module temperature.
We innovated this product based on standard switches:
Device function:Fiber Port Alarm, Scheduled System Reset,VLAN Isolation. The redundant-mode supports auto -recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair
Meets IP40, aluminum housing, works stably under harsh industrial temperatures from -40℃to 75℃.
Equipped with dual redundant power supplies, it keeps Ethernet working stably 24X7.
Application Scenarios:

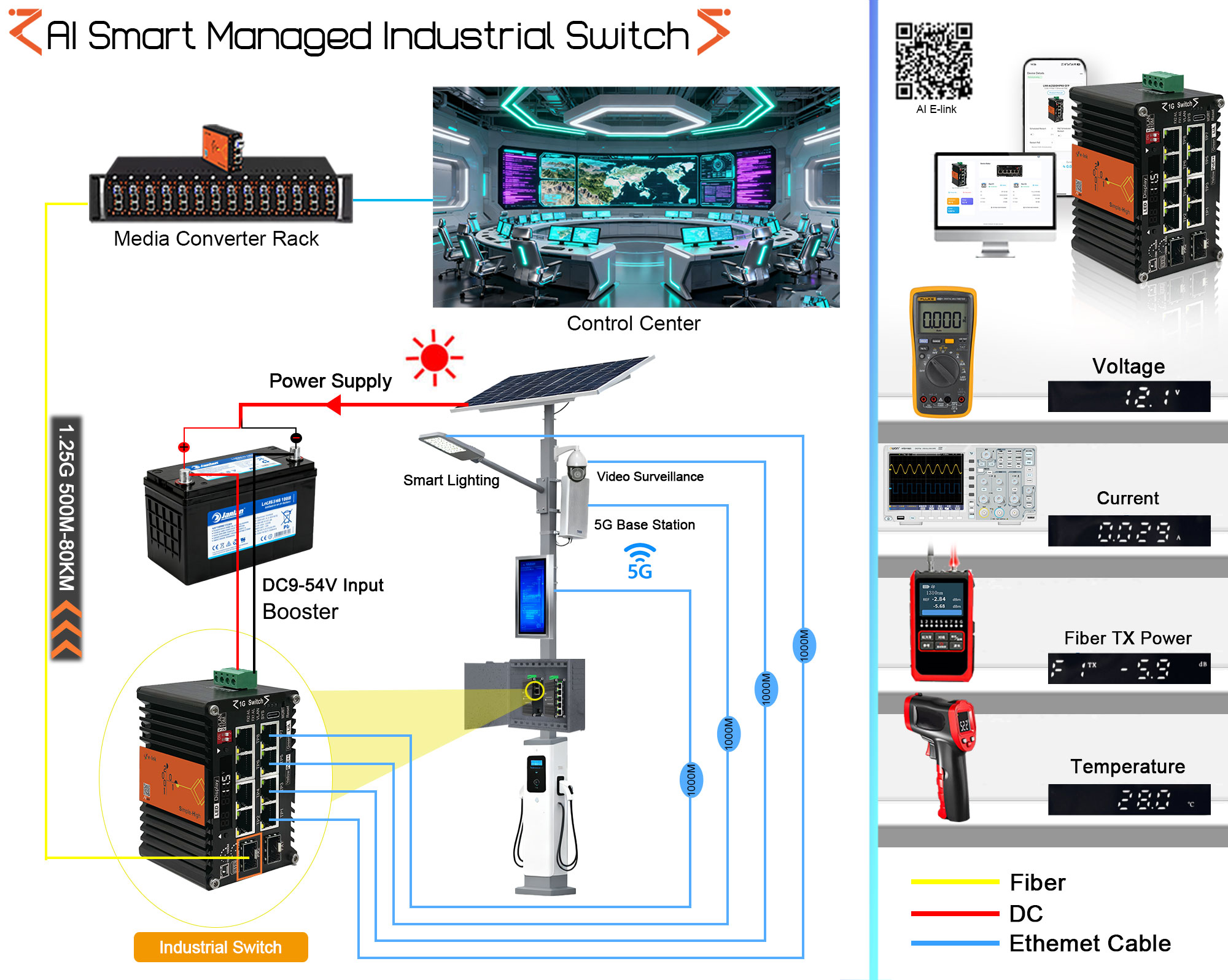

Intelligent Manufacturing & Automation:data transmission and multi-device interconnection
Power & New Energy: Surveillance communication andcluster networking.
Rail Transit & Tunnel Engineering: Real-time video monitoring andsignal transmission.
Oil, Gas & Mining Sites:Stablecommunication
Smart City & New Infrastructure Deployment
In addition, this product can be used in fields such as autonomous driving, humanoid robots, AI computing, metallurgy, chemical engineering, outdoor research base stations and field weather monitoring.
► Self-developed intelligent management system by E-link, supporting Android mobile APP and PC web UI
► One-click LED screen displayreal-time data dashboard: system current, voltage, internal temperature, SFP transmit/receive optical power, Ethernet & fiber port link speeds and more
► Rich APP & web management capabilities: intuitive graphical dashboard for full device status; complete SFP information & DDM diagnostic data; customizable optical power alarm thresholds; user-defined scheduled port/device reboot
► Wide 9–54VDC power input
► 8 X Port 10/100/1000Base-T
► 2X100/1000BASE-X SFPfiber uplink port
► 2X2.5GBASE-X SFPfiber uplink port Depend on DIP setting
► Mini Size: 98 x 67 x 64 mm
► One-click VLAN isolation
► 10M 250m transmission
► 6KV lightning surge protection on all ports
► Wide operating temperature: -40°C ~ +75°C (-40°F ~ 167°F)
|
Industrial AI Smart ManagedFiber EthernetSwitch |
|||
|
Access Mode |
2*100/1000/2.5GBASE-XSFP to8*10/100/1000BASE-T RJ45 |
||
|
Ethernet |
|||
|
Standards |
Standards Compliance IEEE 802.3 Ethernet |
||
|
|
IEEE 802.3u Fast Ethernet |
||
|
|
IEEE 802.3ab Gigabit Ethernet |
||
|
|
IEEE 802.3x Full-Duplex Flow Control |
||
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
||
|
Processing Type |
Store-and-Forward |
||
|
Forward Filter Rate |
14,880pps (10Mbps) |
||
|
|
148,800pps (100Mbps) |
||
|
|
1,488,000pps (1000Mbps) |
||
|
Packet Buffer Memory |
1 Mbit |
||
|
Max Packet Length |
9K Bytes |
||
|
Switching Capacity |
30Gbps/non-blocking |
||
|
PC (Support MacOS, Windows) |
|||
|
MacOS Browser: |
Microsoft Edge 89+ (Release date: 2021-03-04 or later version) Google Chrome 89+ (Release date: 2021-03-02 or later version) Opera 75+ (Release date: 2021-03-24 or later version) |
||
|
Windows Browser: |
Microsoft Edge 89+ (Release date: 2021-03-04 or later version) Google Chrome 89+ (Release date: 2021-03-02 or later version) Opera 75+ (Release date: 2021-03-24 or later version) |
||
|
Mobile App(Support Android,Not Support iOS) |
|||
|
Mobile Phone APP(Android) |
Support all Android Mobile Phone and Android Tablet |
||
|
Mobile iPhone APP(iOS) |
Not Support iPhone or iPad |
||
|
AI Smart Managed Functions |
|||
|
Service Board Status |
Temperature |
|
|
|
|
Voltage |
|
|
|
|
Current |
|
|
|
System Status LED |
System |
|
|
|
|
VLAN |
|
|
|
|
FX1 A/L |
|
|
|
|
FX2 A/L |
|
|
|
RJ45 Port Status |
Link Status |
|
|
|
|
Current Rate |
|
|
|
SFP Port Status |
Link Status |
|
|
|
|
PN/SN |
|
|
|
|
TX Power |
|
|
|
|
RX Power |
|
|
|
|
All DDM Information |
|
|
|
DIP Switch |
DIP1 |
VLAN |
|
|
|
DIP2 |
2.5G |
|
|
Fiber Port Alarm |
Support |
|
|
|
Scheduled Reset |
Support |
|
|
|
Interface port |
|||
|
Ethernet Port |
8-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X |
||
|
|
8-port 10/100/1000BASE-T |
||
|
|
Cable: Cat 5e or above; Distance: ≤100 metersat1000M data rate |
||
|
SFP Port |
2-Port100/1000/2.5GBASE-X SFP(Backward compatible with 100BASE-X and 1000BASE-X and transceivers) (auto detection)(2.5G DIPsetting) Cable: Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km; Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km |
||
|
Electrical and Mechanical |
|||
|
Input Power |
9~54V DC, 4-pin terminal block |
||
|
Power Consumption |
5W Max. (When PoE not used) |
||
|
Dimensions (W x D x H) |
98 x 67x64mm |
||
|
Weight |
400g |
||
|
Casing |
Aluminum Case |
||
|

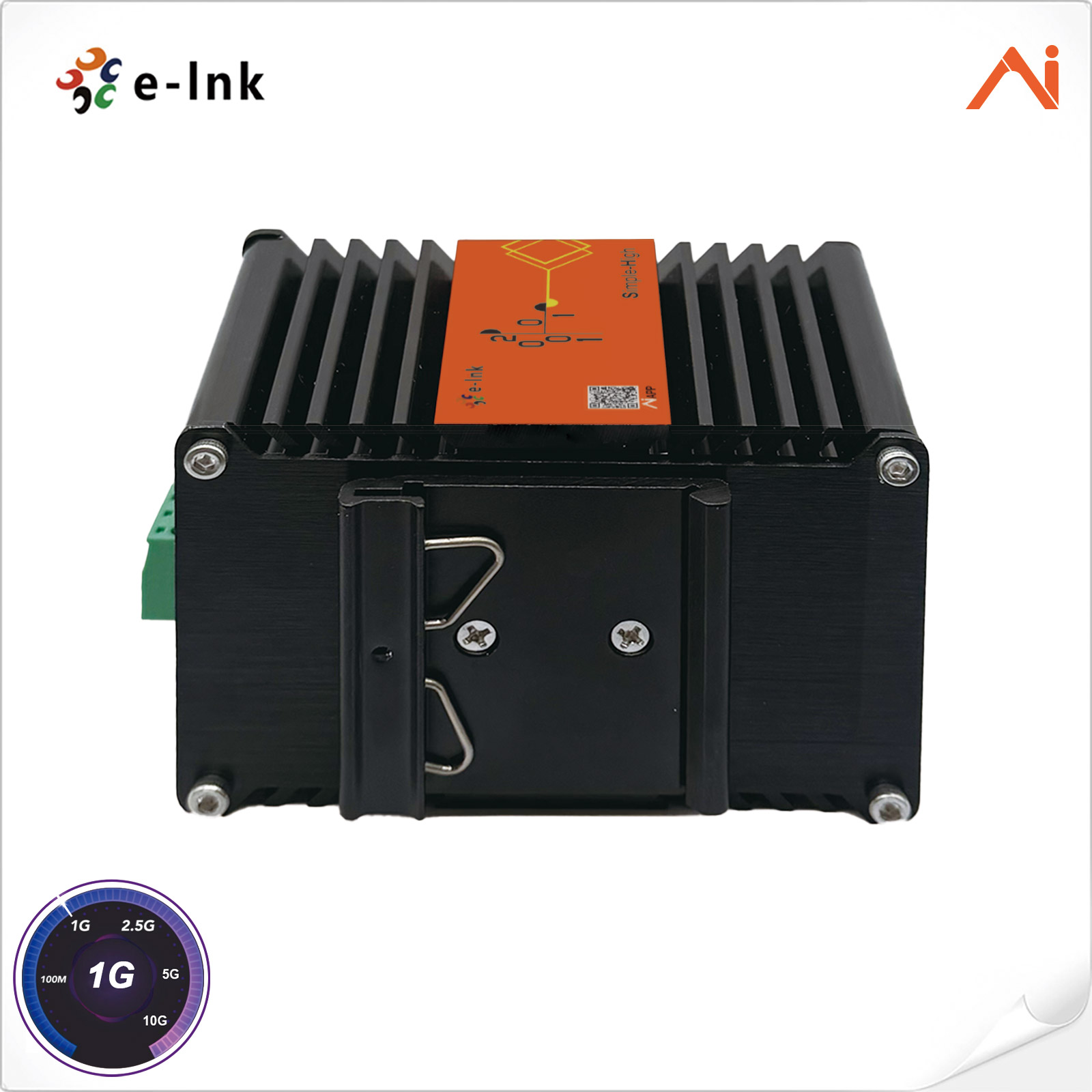

Mounting Options |
DIN-Rail |
||
|
LED Indicators |
|||
|
SYS |
Green LED Blinking: Operating normally |
||
|
VLAN |
Green Solid On:VLAN On |
||
|
|
Green LED Off:VLAN Off |
||
|
FX1-2 A/L |
Green LED Solid On: SFP port link established |
||
|
|
Green LED Blinking: Data transmission |
||
|
|
Green LED Off: SFP port no link |
||
|
|
Red LED Solid On: Received optical power below threshold |
||
|
TP1-8L/A |
Green LED Solid On:Ethernet port link |
||
|
|
Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M |
||
|
|
Green LED Off: Ethernet port no link |
||
|
Environmental |
|||
|
Operating Temperature |
-40°C to 75°C (-40°F to 167°F) |
||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
||
|
Relative Humidity |
5% to 95% non-condensing |
||
|
MTBF |
> 200,000 hrs |
||
|
Regulatory Approvals |
|||
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
|||
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|||
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|||
