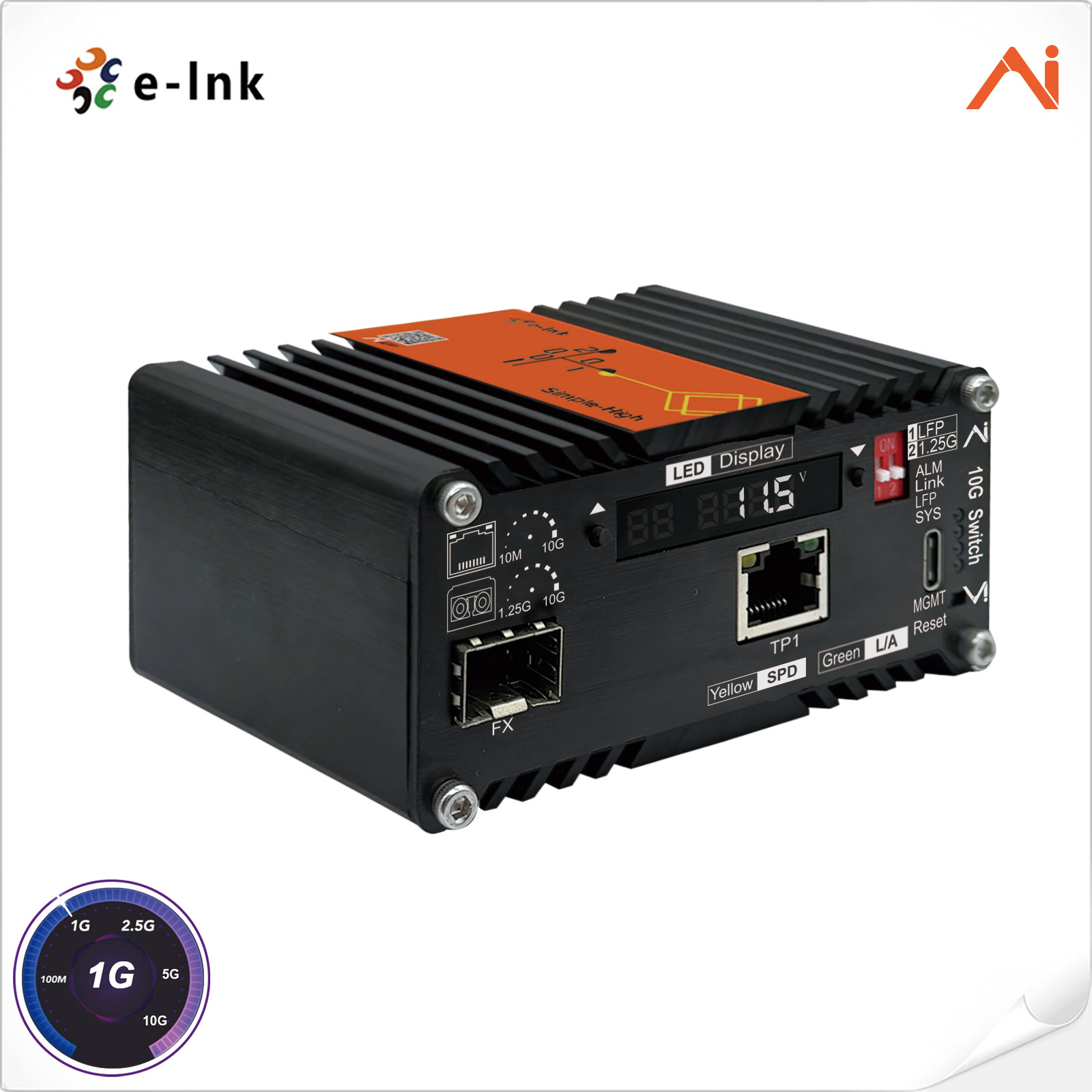

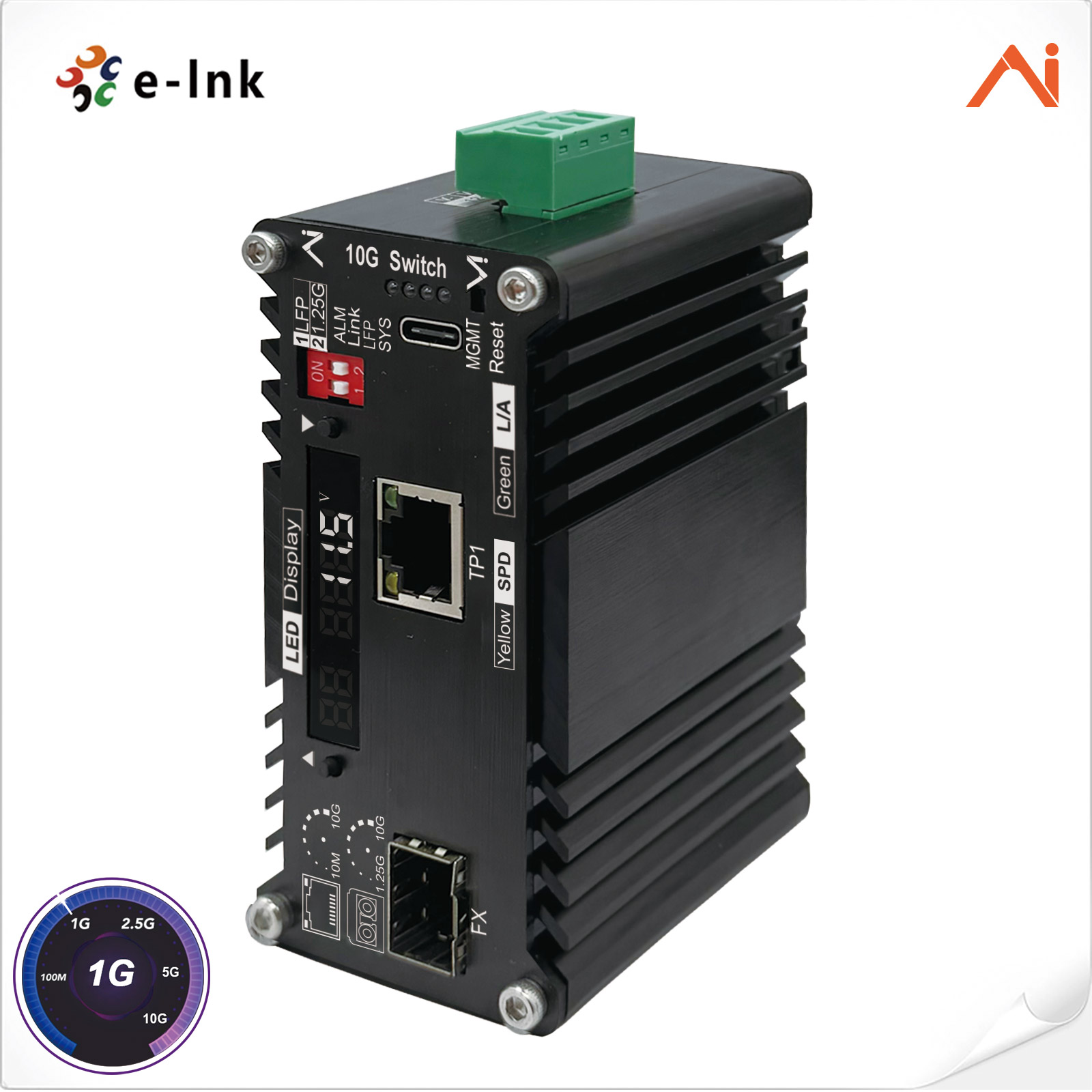

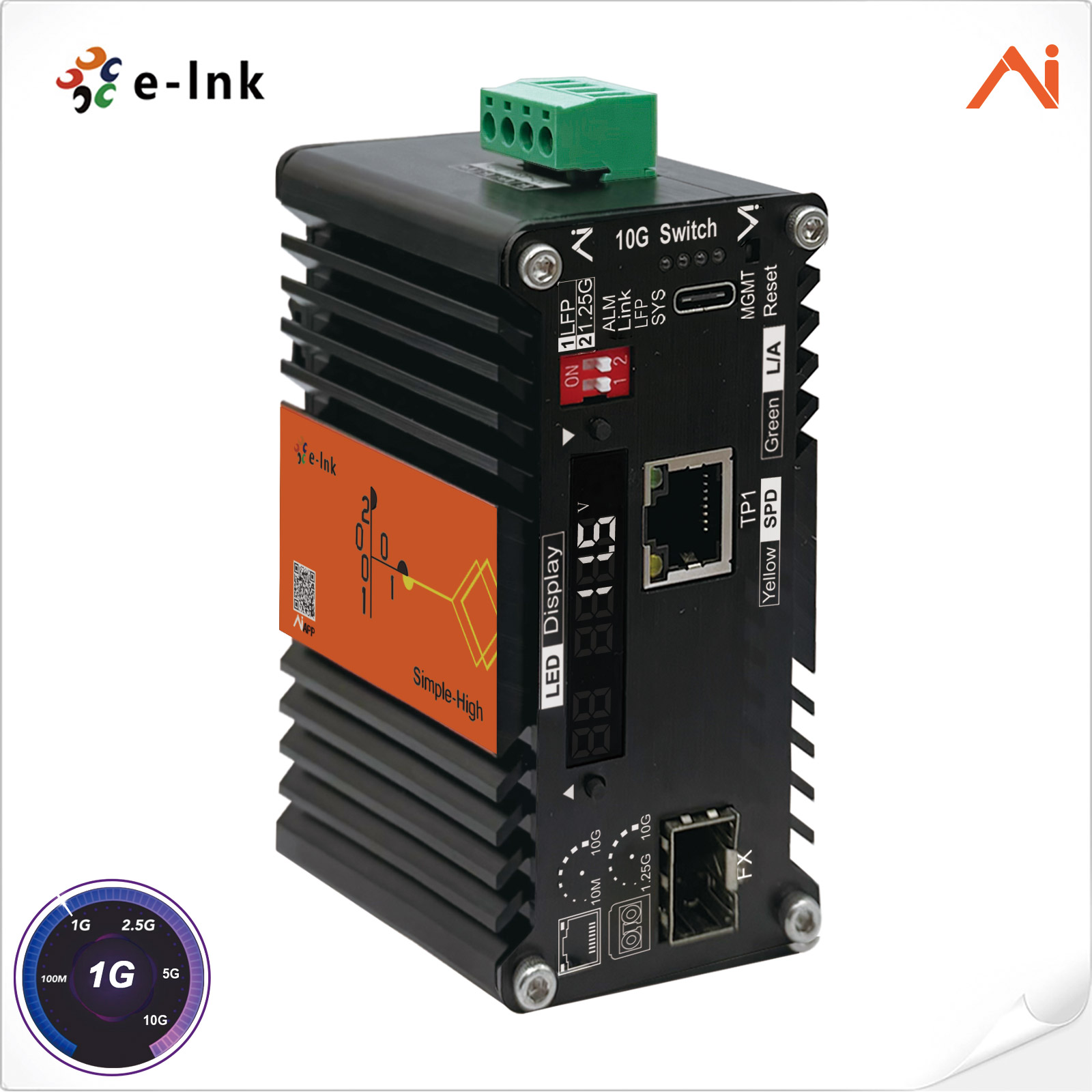

Industrial AI Smart Managed10G FiberMedia Converter

Access Mode

1.25G/2.5G/5G/10GBASE-X SFP+to10/100/1000BASE-T RJ45

Ethernet

Standards

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3bz 2.5G/5GBASE-T

IEEE 802.3an 10GBASE-T Ethernet

IEEE 802.3ae 10Gbps Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

3,720,000pps (2500Mbps)

7,440,000pps (5GMbps)

14,880,000pps (10GMbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

Switching Capacity

40Gbps/non-blocking

PC (Support MacOS, Windows)

MacOS Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Windows Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Mobile App(Support Android,Not Support iOS)

Mobile Phone APP(Android)

Support all Android Mobile Phone and Android Tablet

Mobile iPhone APP(iOS)

Not Support iPhone or iPad

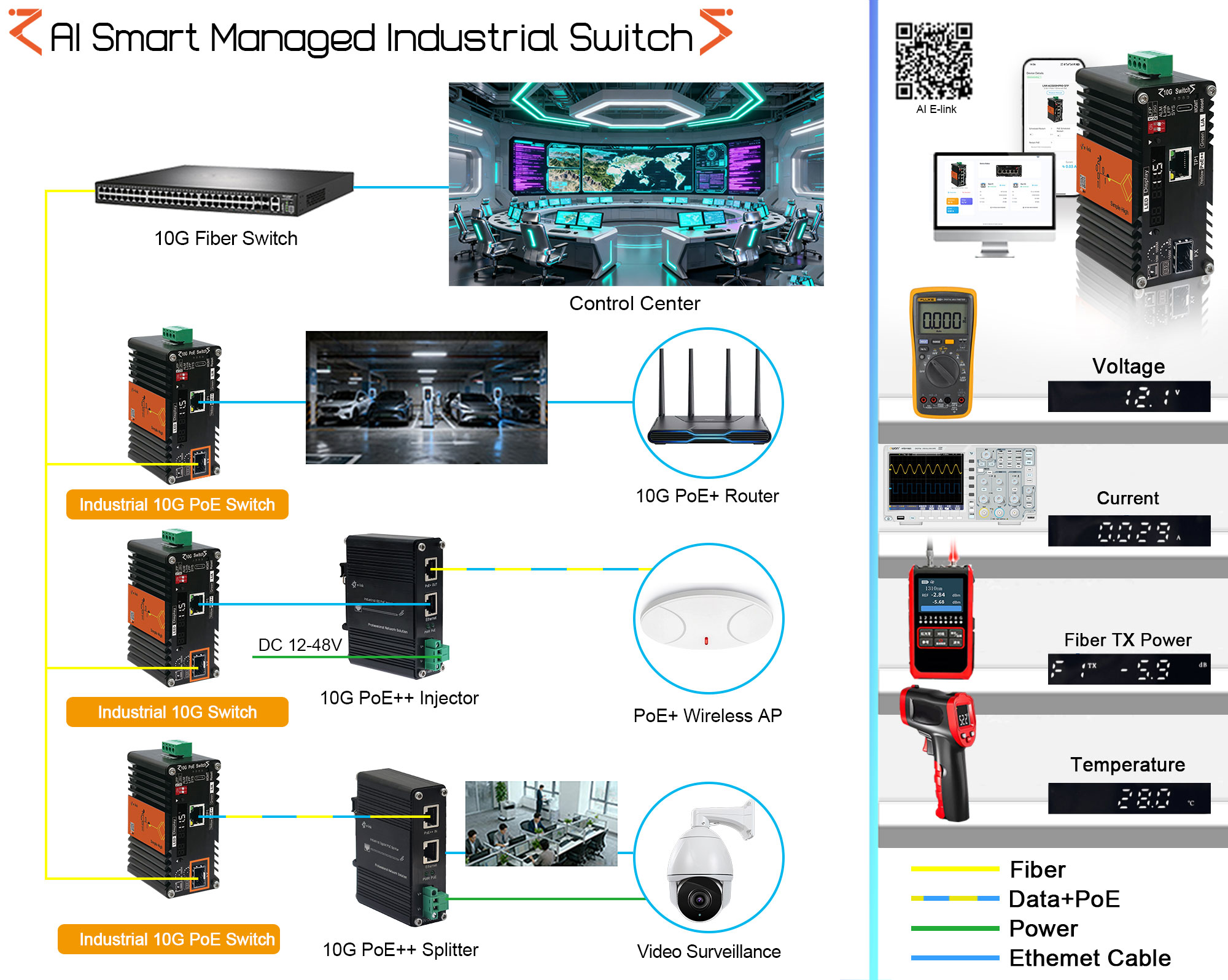

AI Smart Managed Functions

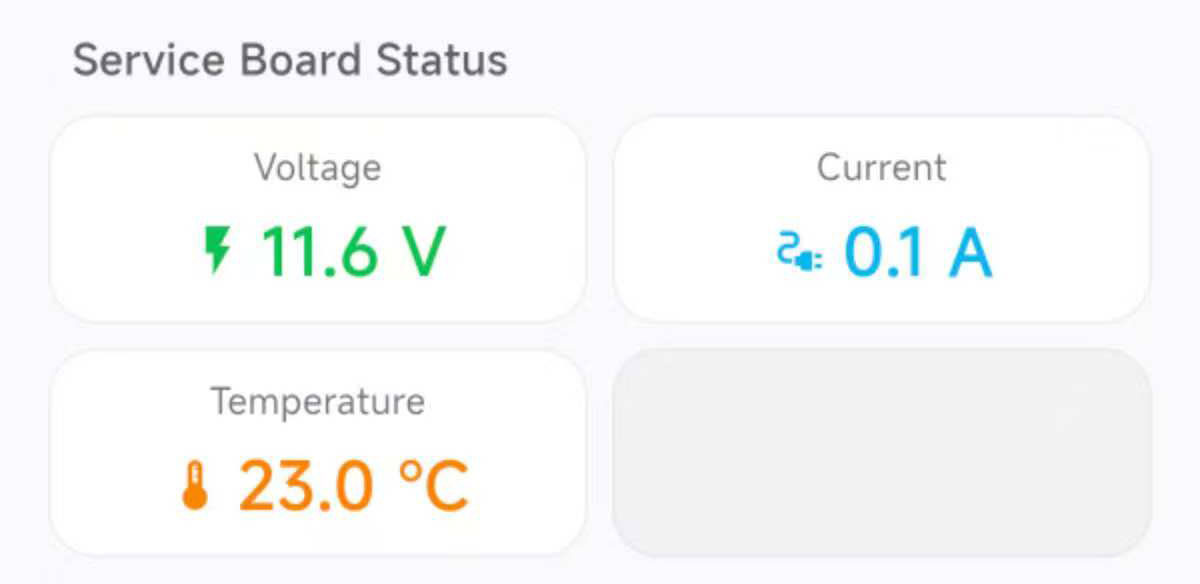

Service Board Status

Temperature

Voltage

Current

RJ45 Port Status

Link Status

Rate

LFP Status

SFP Port Status

Link Status

PN/SN

TX Power

RX Power

All DDM Information

DIP Switch

DIP1

LFP

DIP2

1.25G

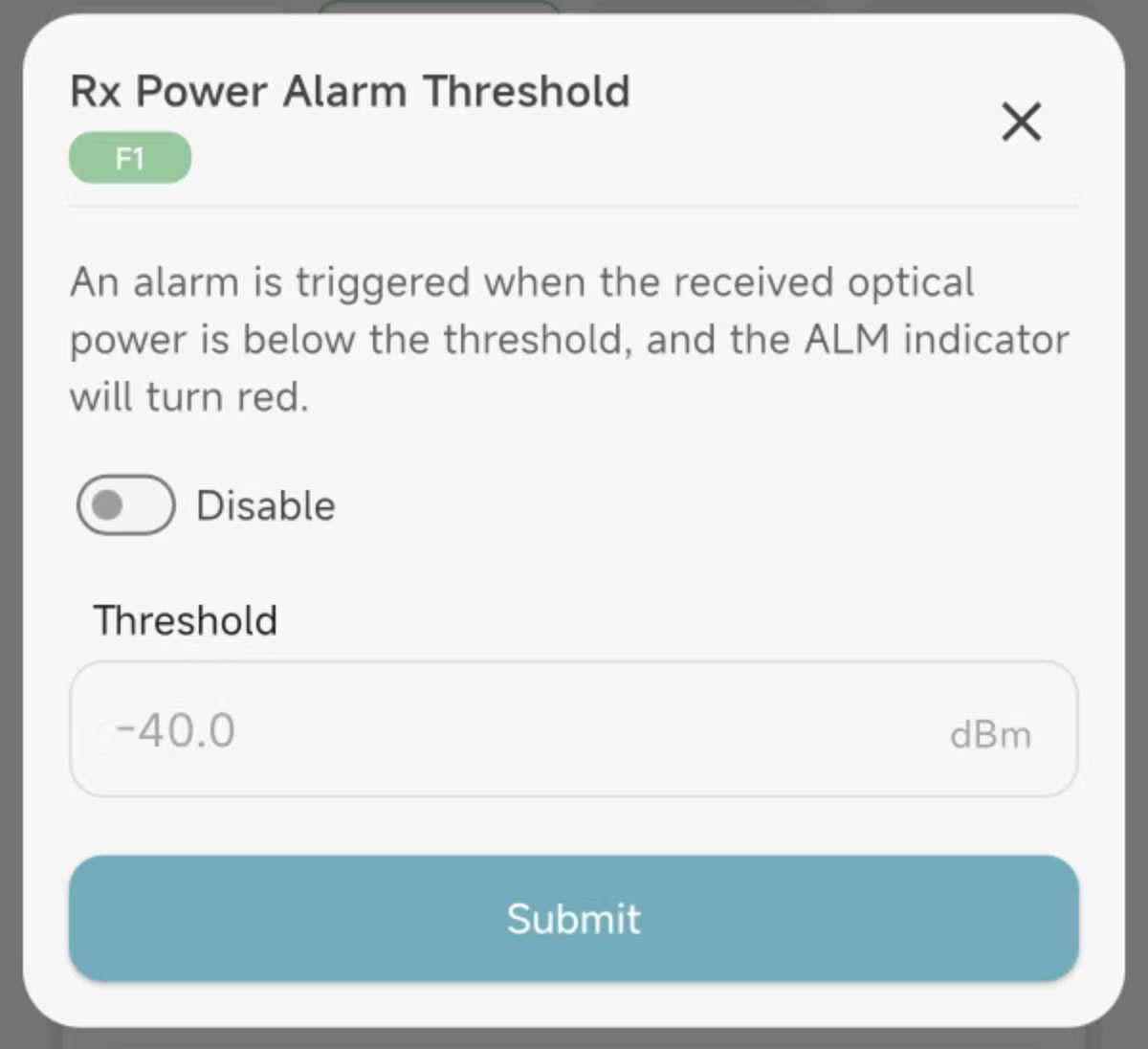

Fiber Port Alarm

Support

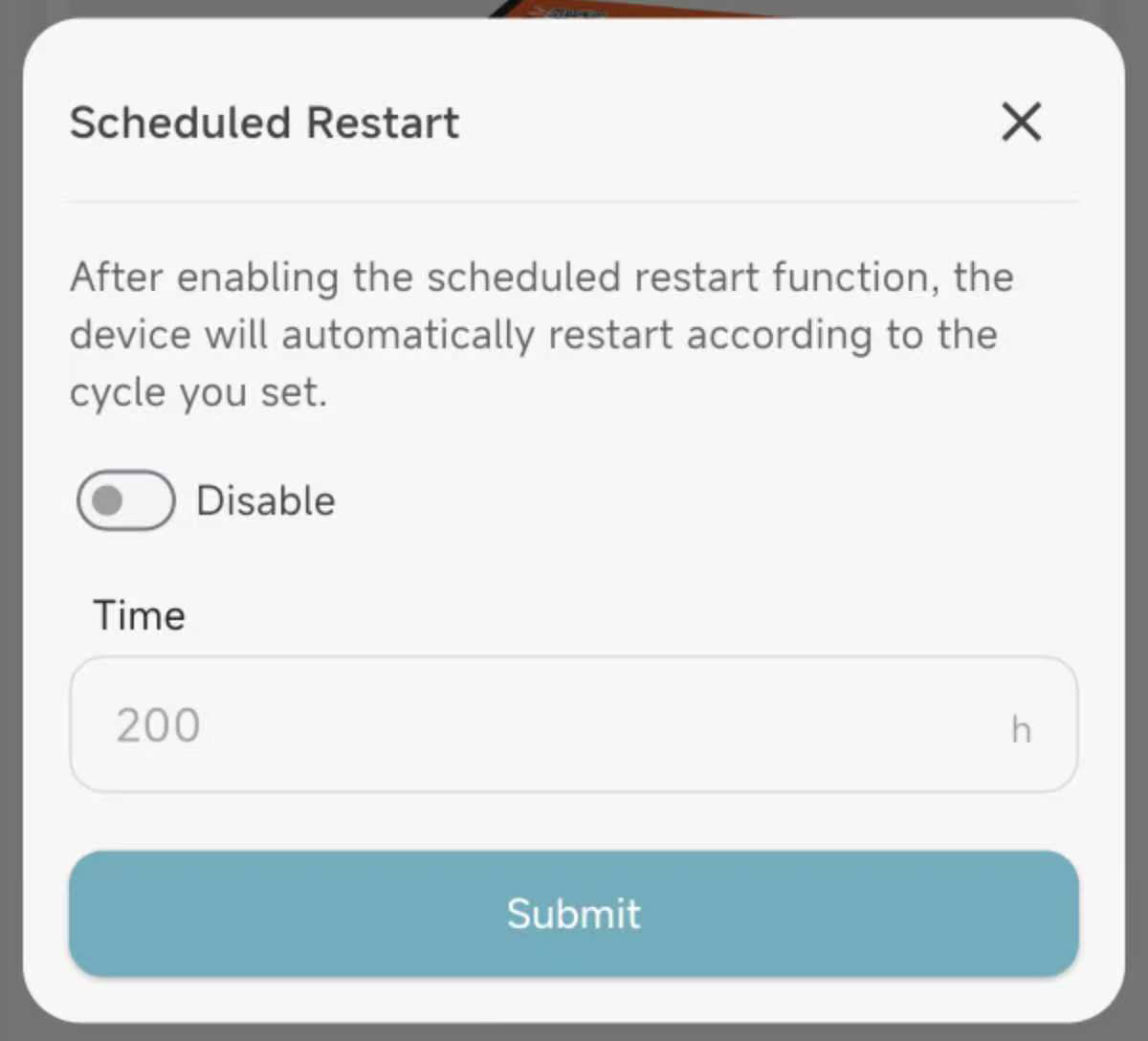

Scheduled Reset

Support

InterfacePort

Ethernet Port

1-Port10M/100M/1000M/2.5G/5G/10GBase-TEthernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

1-Port10M/100M/1000M/2.5G/5G/10GBase-T

Cable:10G-Cat 6A/Cat 7

5G-Cat 6/Cat 6A/Cat 7

1G/2.5G-Cat 5e/Cat 6/Cat 6A/ Cat 7

Distance: ≤100 meters at 1000M data rate,

SFP Port

1-Port1.25G/2.5G/5G/10GBASE-X(auto detection)

Cable:

Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;

Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km

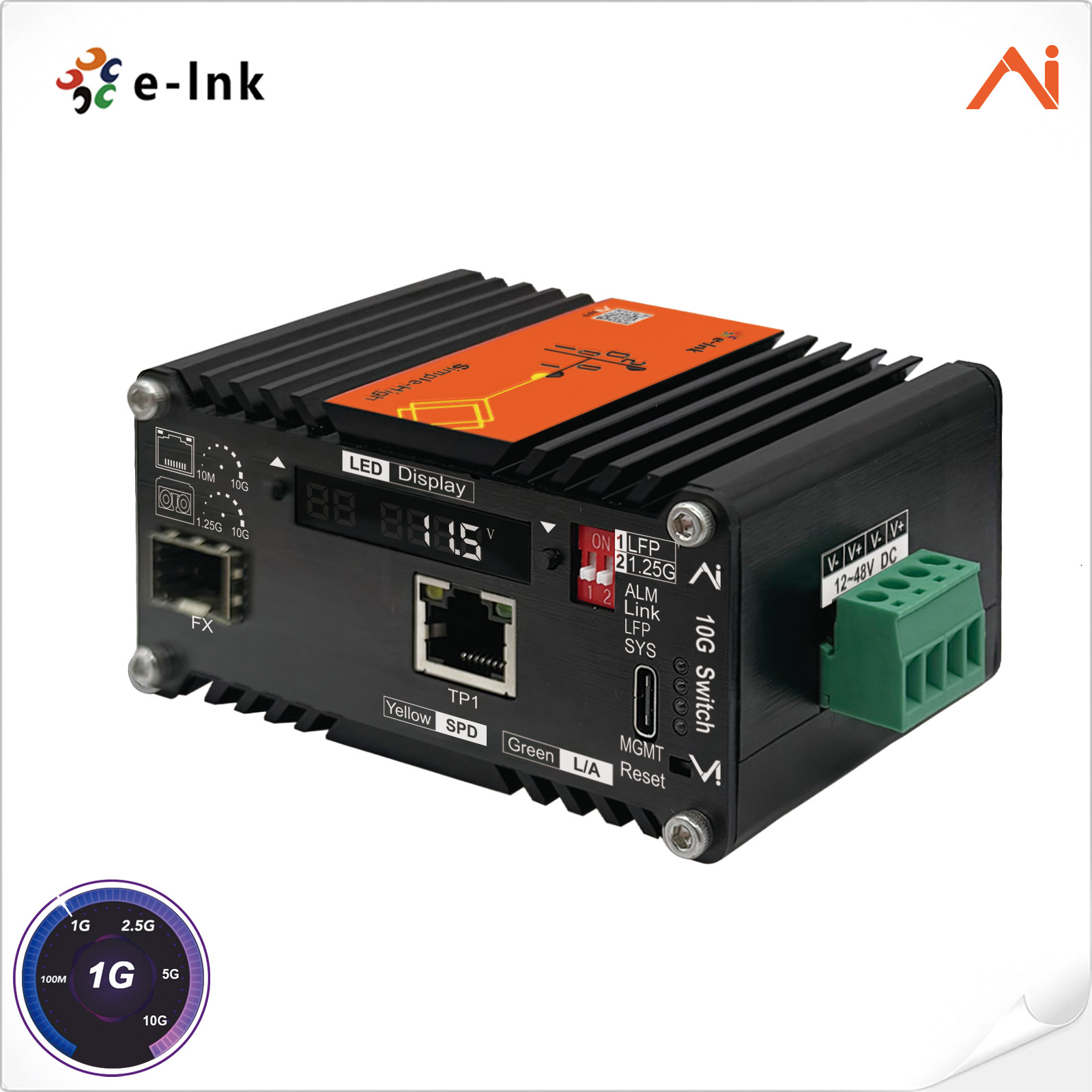

Electrical and Mechanical

Input Power

9~54V DC, 4-pin terminal block

Power Consumption

5W Max

Dimensions (W x D x H)

98 x 67 x 46 mm

Weight

300g

Casing

Aluminum Case

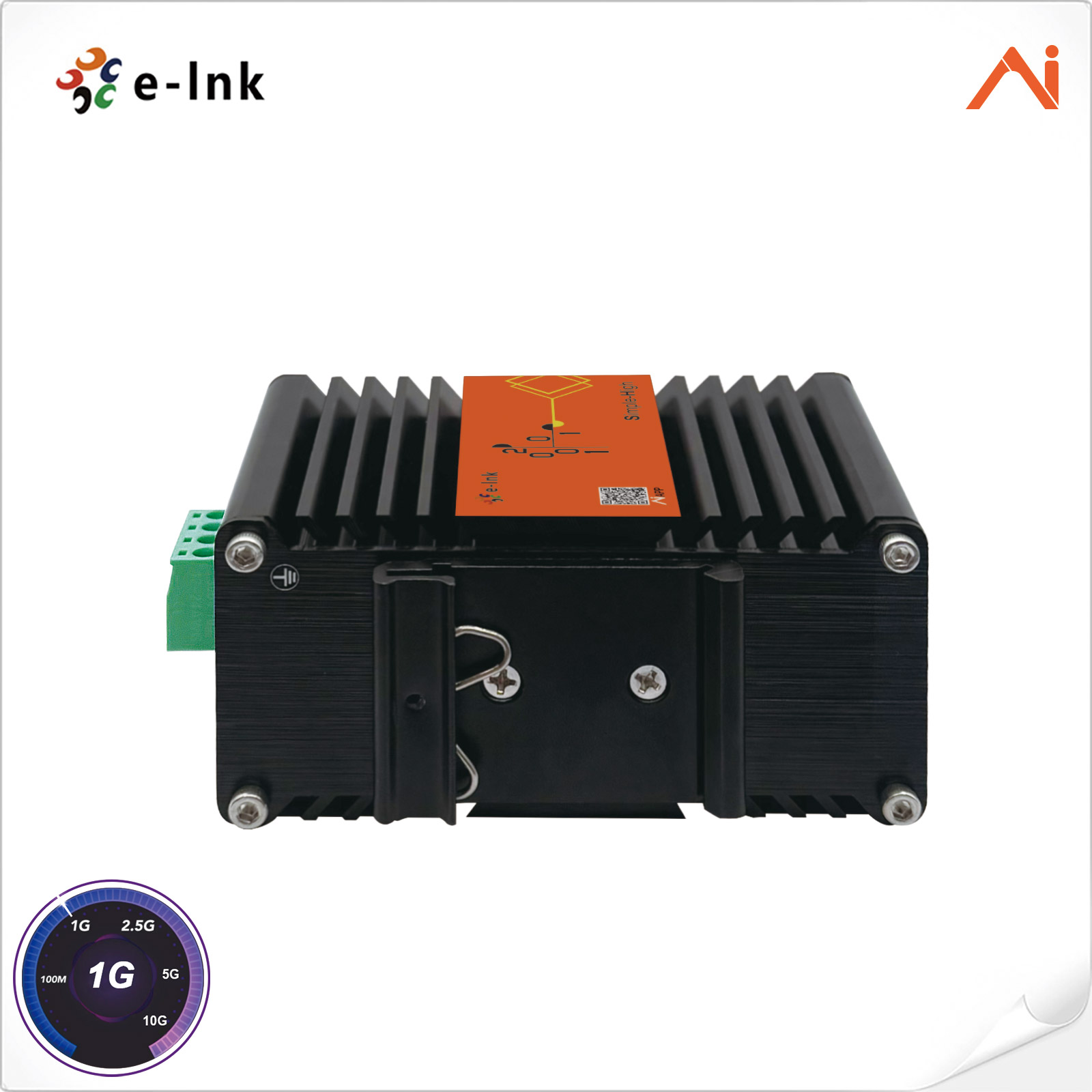

Mounting Options

DIN-Rail

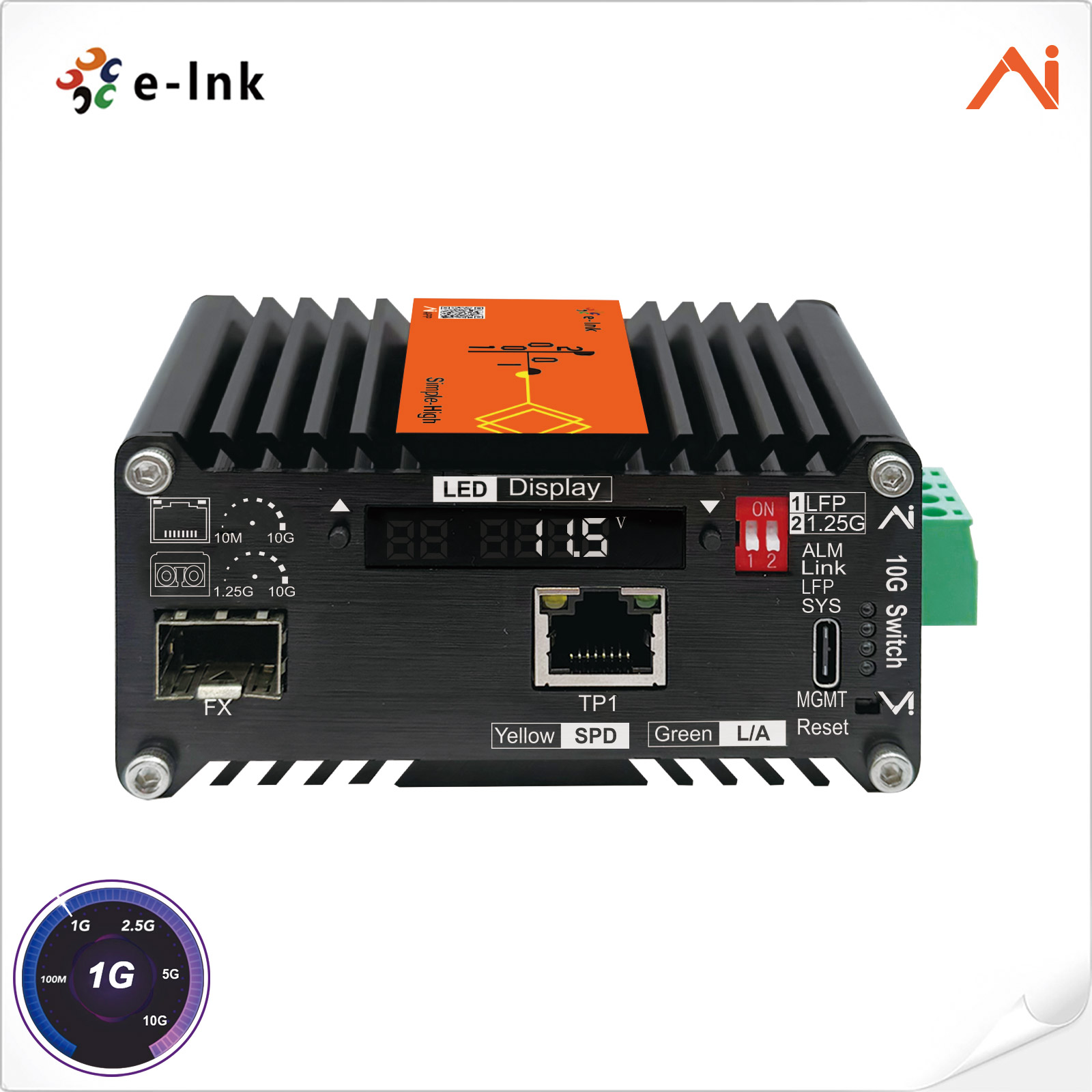

LED Indicators

SYS

Green LED Blinking: Operating normally

LFP

Green Solid On: LFP On

Green SolidOff: LFP Off

Link

Green LED Solid On: SFP port link established

Green LED Blinking: Data transmission

Green LED Off: SFP port no link

ALM

Red LED Solid On: Received optical power below threshold

Red LED Off: Received optical power normal

TP1L/A

Green LED Solid On: Ethernet port link

Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M

Green LED Off: Ethernet port no link

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
