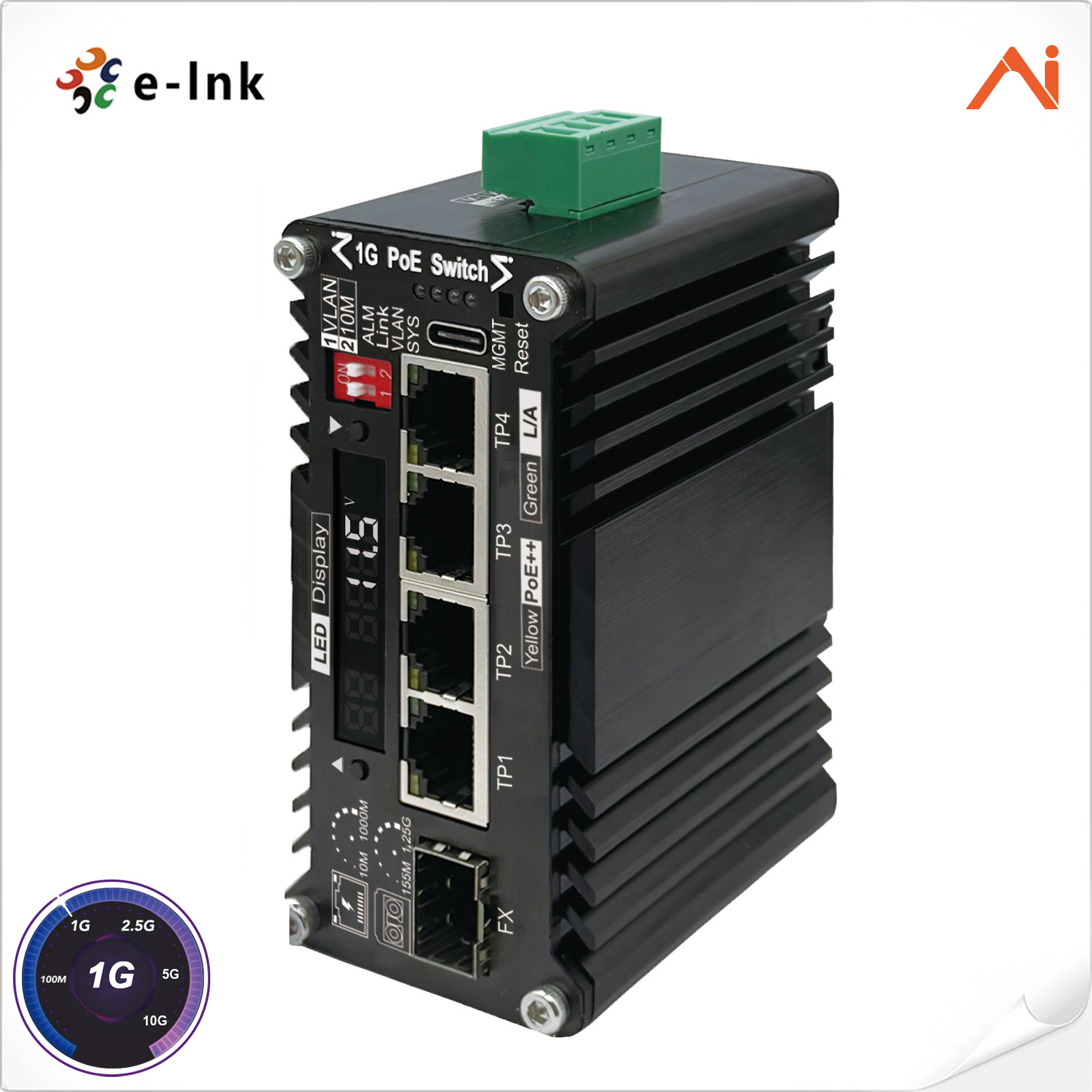

Industrial AI Smart Managed PoE++ Switch with Voltage Booster for Solar Syste

Access Mode

1x100/1000BASE-X SFP to4x10/100/1000BASE-T RJ45 PSE IEEE802.3af/at/bt

Ethernet

Standards

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

Switching Capacity

20Gbps/non-blocking

PC (Support MacOS, Windows)

MacOS Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Windows Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Mobile App (Support Android,Not Support iOS)

Mobile Phone APP(Android)

Support all Android Mobile Phone and Android Tablet

Mobile iPhone APP(iOS)

Not Support iPhone or iPad

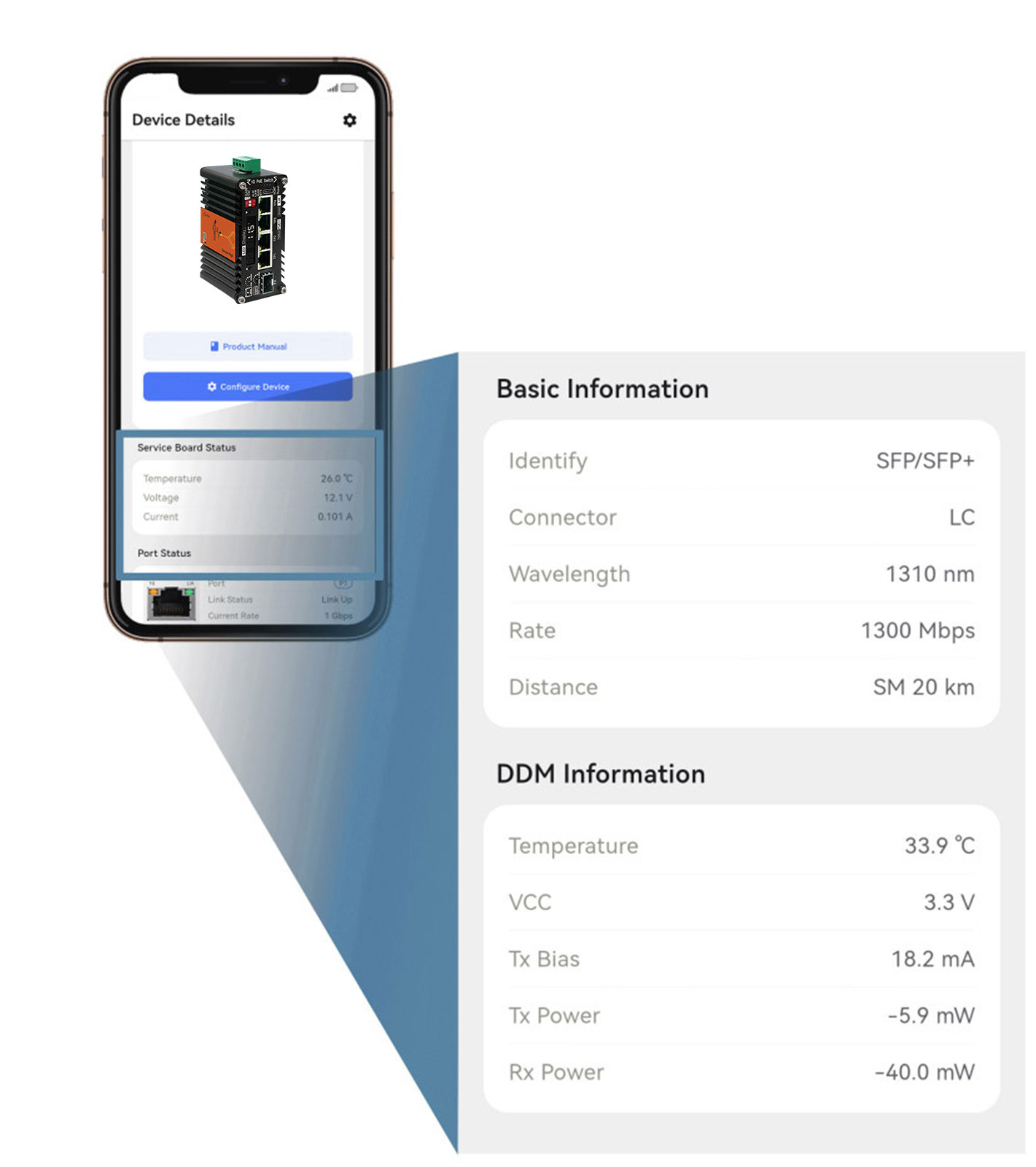

AI Smart Managed Functions

Service Board Status

Temperature

Voltage

Current

RJ45 Port Status

Link Status

Rate

VLAN

PSE Supply Voltage

PSE Power Consumption

Power Pin Assignment

SFP Port Status

Link Status

PN/SN

TX Power

RX Power

All DDM Information

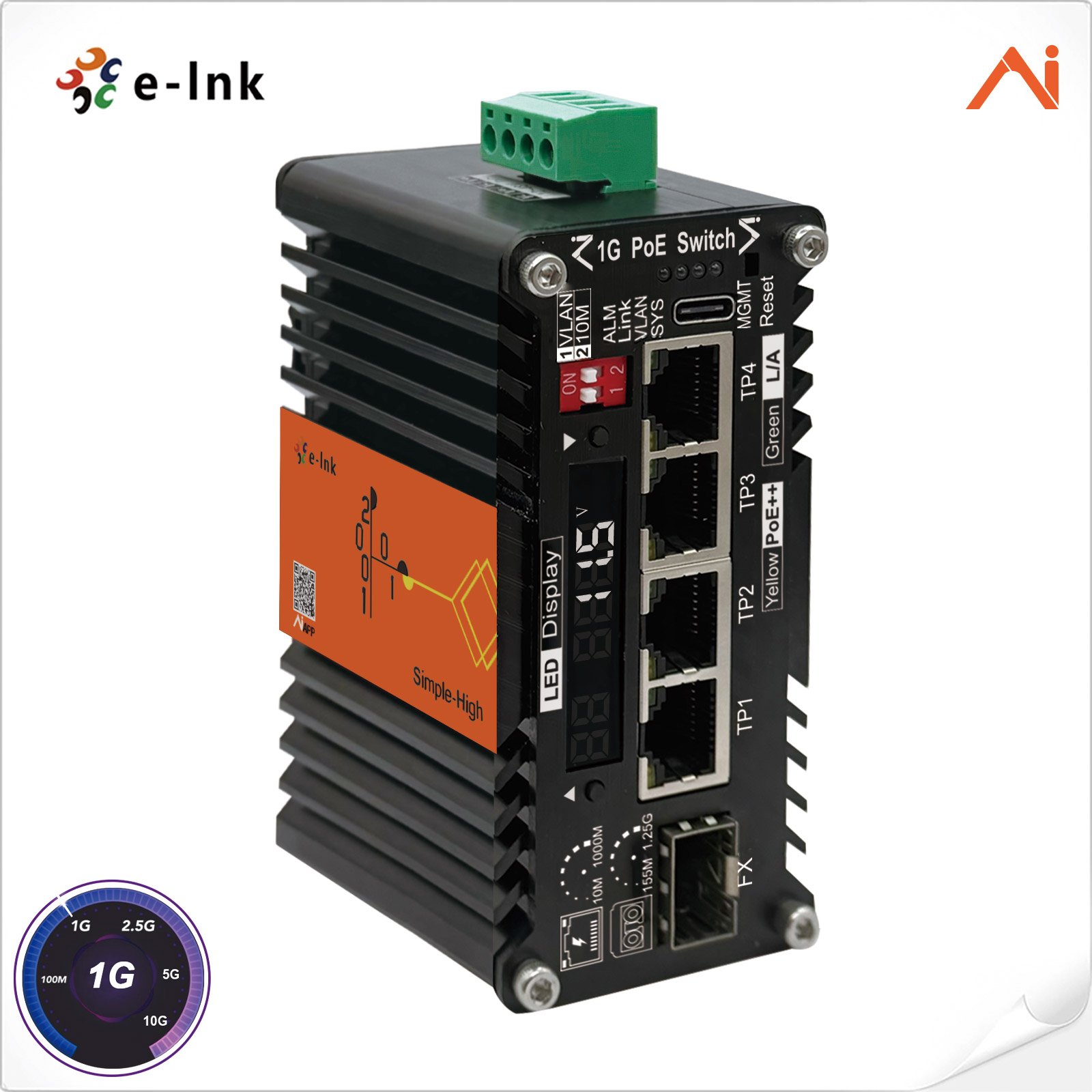

DIP Switch

DIP1

VLAN

DIP2

10M

Fiber Port Alarm

Support

Scheduled Reset

Support

PoE Power Scheduled

Support

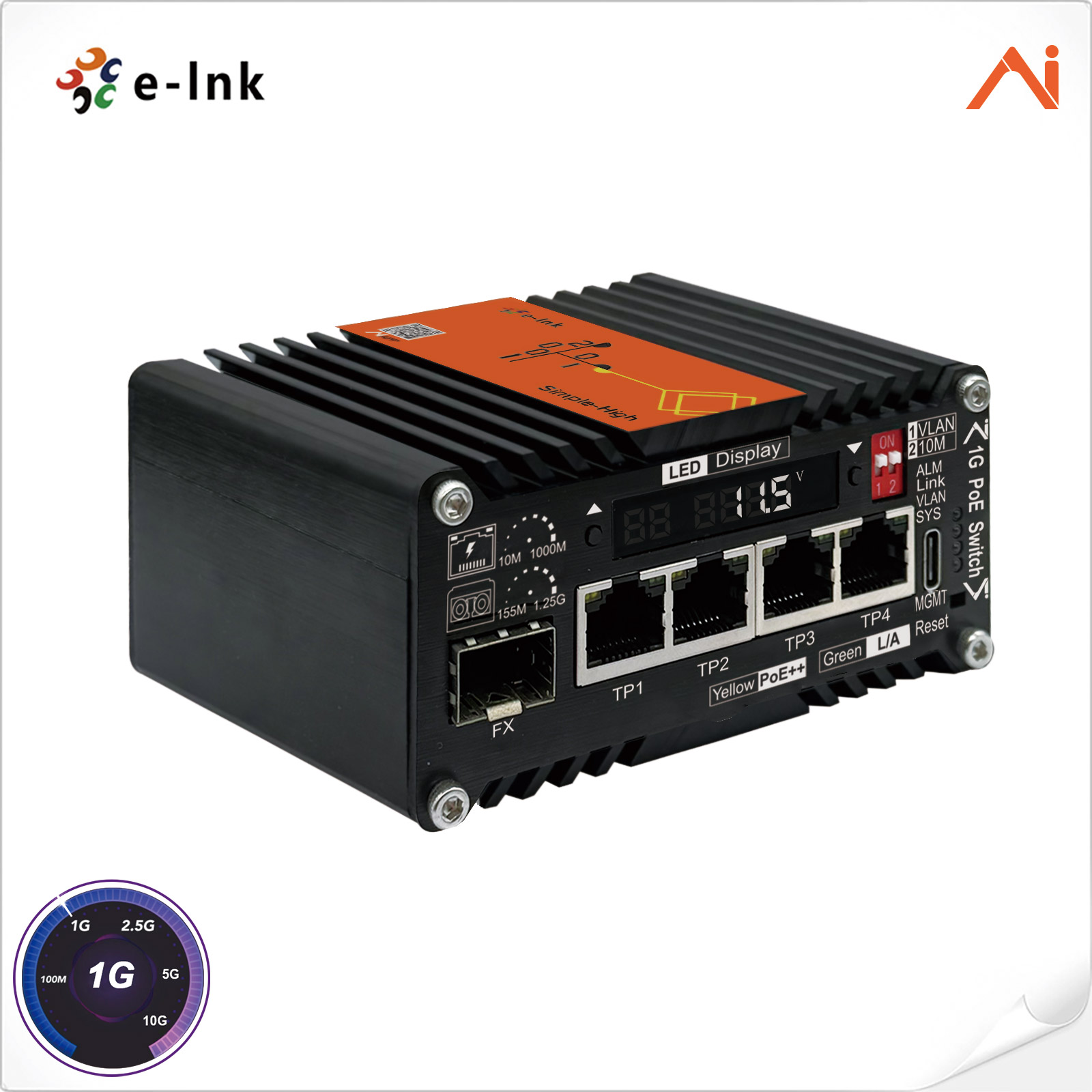

InterfacePort

Ethernet Port

4-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

4-Port 10/100/1000BASE-T Support IEEE802.3af/at/bt

Cable: Cat 5e or above;

Distance: ≤100 meters at 1000M data rate,≤250 meters at 10M data rate

SFP Port

1-Port100/1000BASE-X SFP (Backward compatible with 100BASE-X and 1000BASE-X and transceivers) (auto detection)

Cable:

Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;

Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km

PoE (Power over Ethernet)

Standard

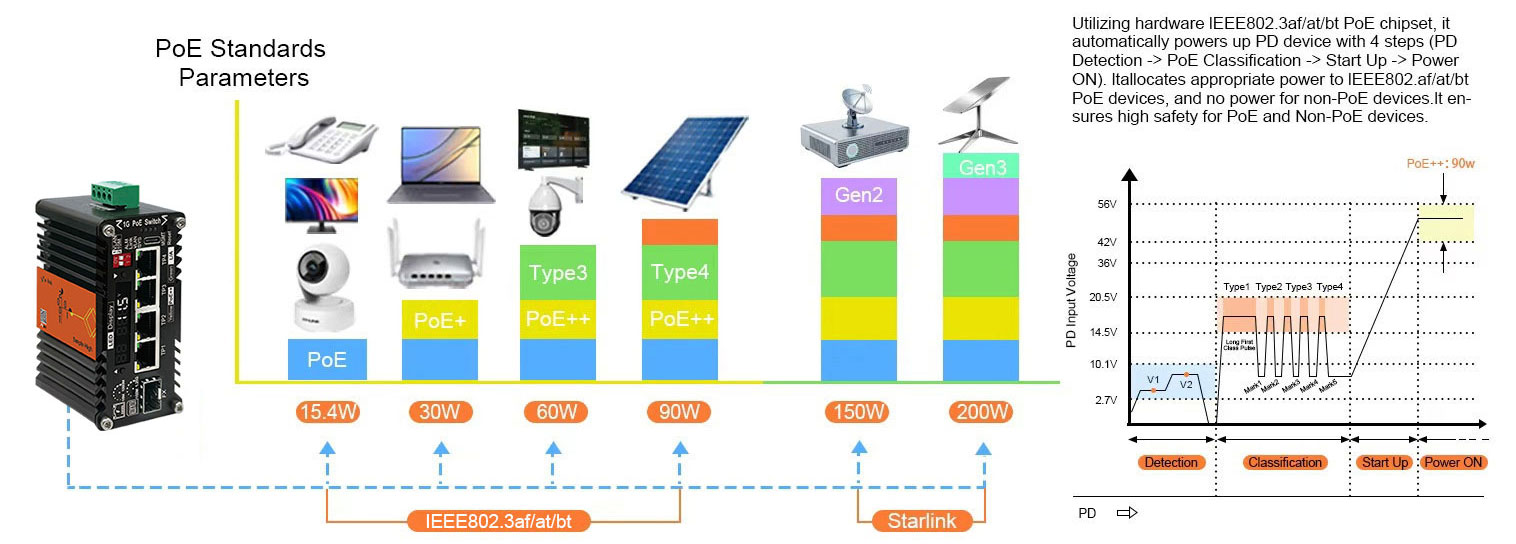

IEEE 802.3af/at/bt PoE++ PSE (af: 15.4W, at: 30W, bt type3: 60W, bt type4: 95W)

PoE Power Output

90 watts max.

Power Pin Assignment

End-span + Mid-span: 1/2(+), 3/6(-);4/5(+),7/8(-)

PoE Budget

Up to90-watt PoE budget (9-54VDC)

PoE Power Supply Type

IEEE 802.3af/at/bt (If need passive PoE please contact customer service)

PoE Mode

Compatible withMode A and Mode B.

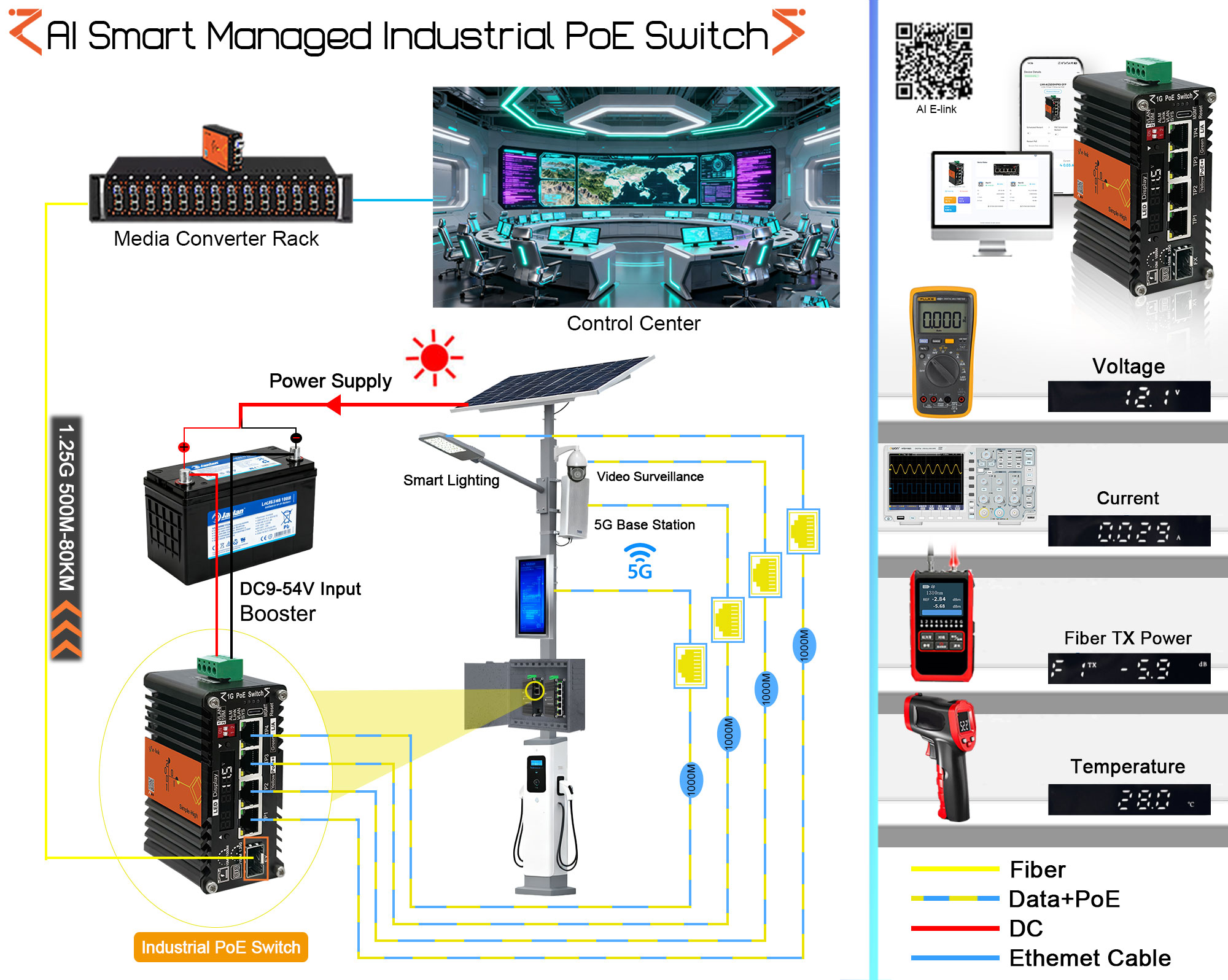

Voltage Booster

DC 9-12V Input

PoE 48V Output,       max 60W

DC 19-24V Input

PoE 48V Output,       max120W

DC 24-36V Input

PoE 48V Output,       max120W

DC 48-54V Input

PoE 48V Output,       max240W

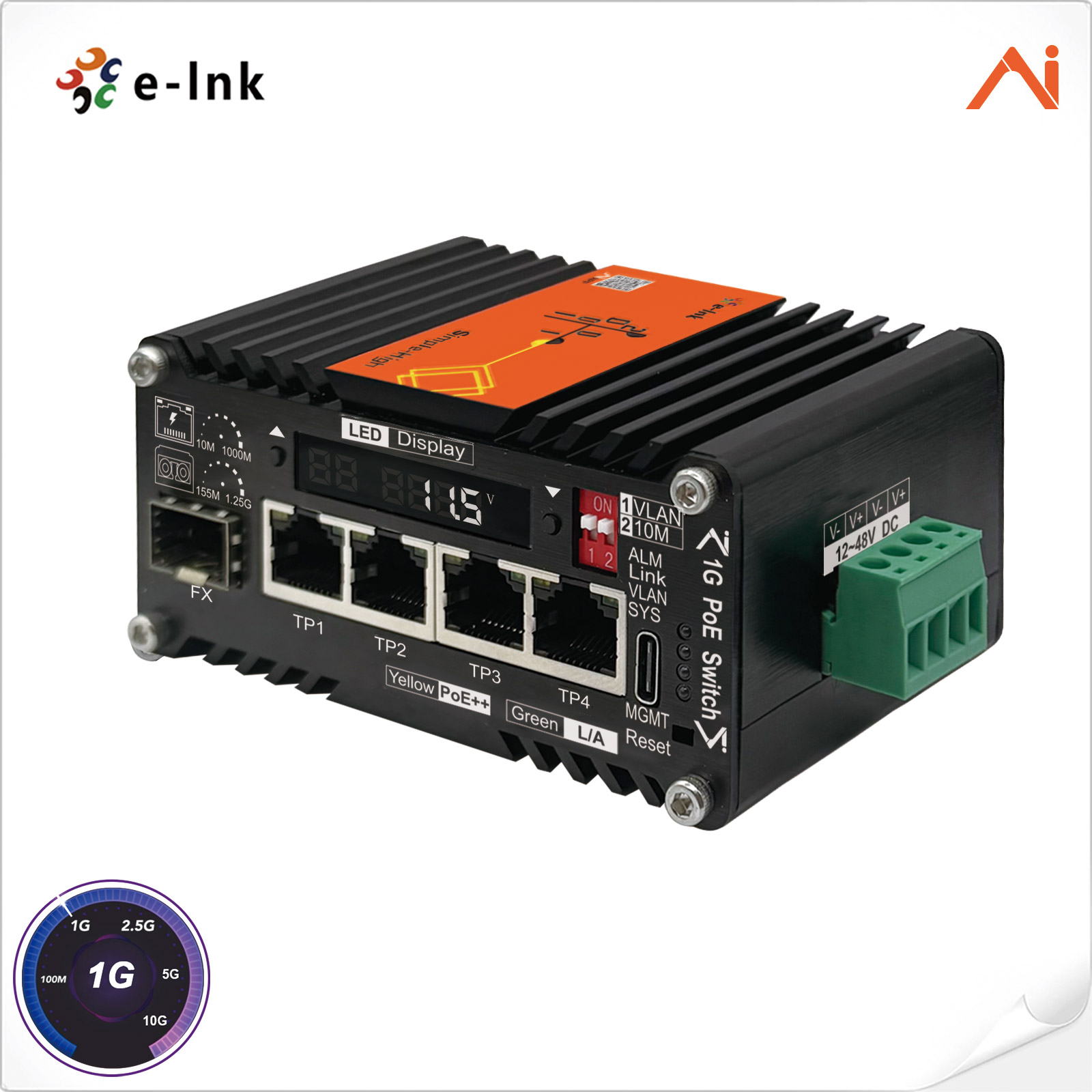

Electrical and Mechanical

Input Power

9~54V DC, 4-pin terminal block

Power Consumption

5W Max. (When PoE not used)

Dimensions (W x D x H)

98 x 67 x 46 mm

Weight

300g

Casing

Aluminum Case

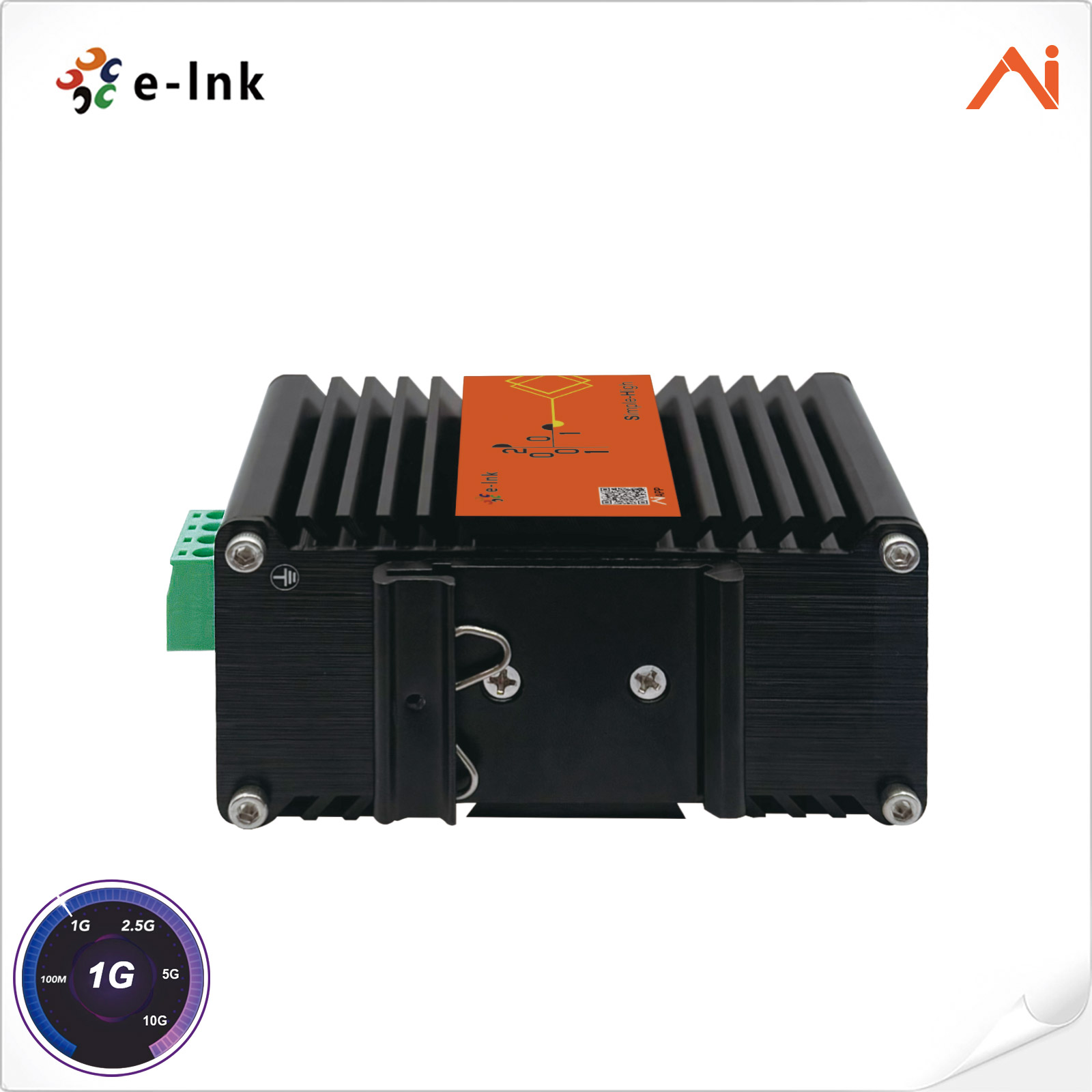

Mounting Options

DIN-Rail

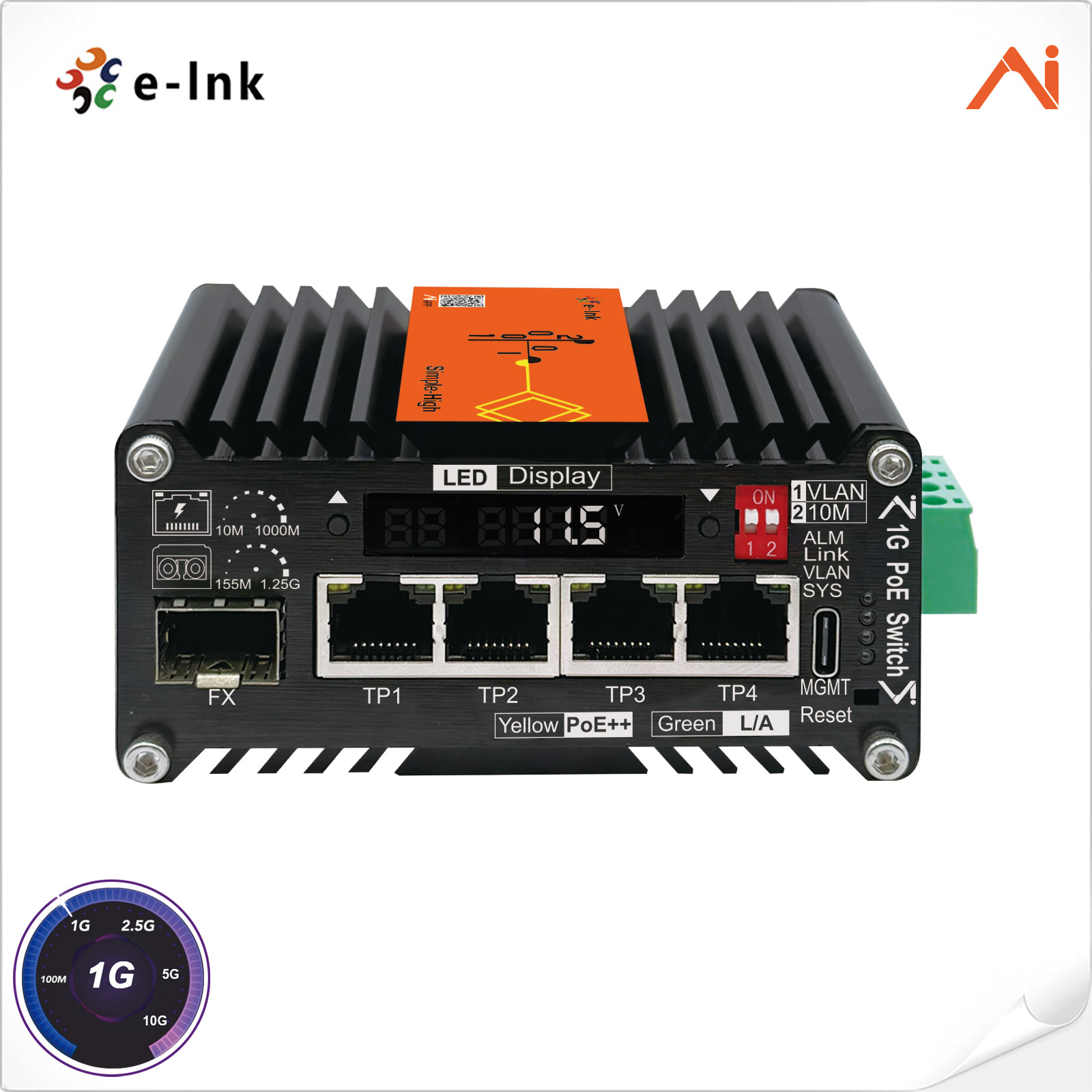

LED Indicators

SYS

Green LED Blinking: Operating normally

VLAN

Green Solid On:VLAN On

Green SolidOff:VLAN Off

Link

Green LED Solid On: SFP port link established

Green LED Blinking: Data transmission

Green LED Off: SFP port no link

ALM

Red LED Solid On: Received optical power below threshold

Red LED Off: Received optical power normal

TP1-4 L/A

Green LED Solid On: Ethernet port link

Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M

Green LED Off: Ethernet port no link

TP1-4 PoE

Yellow LED Solid On: Connected PD

Yellow LED Off: Not connected PD

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
