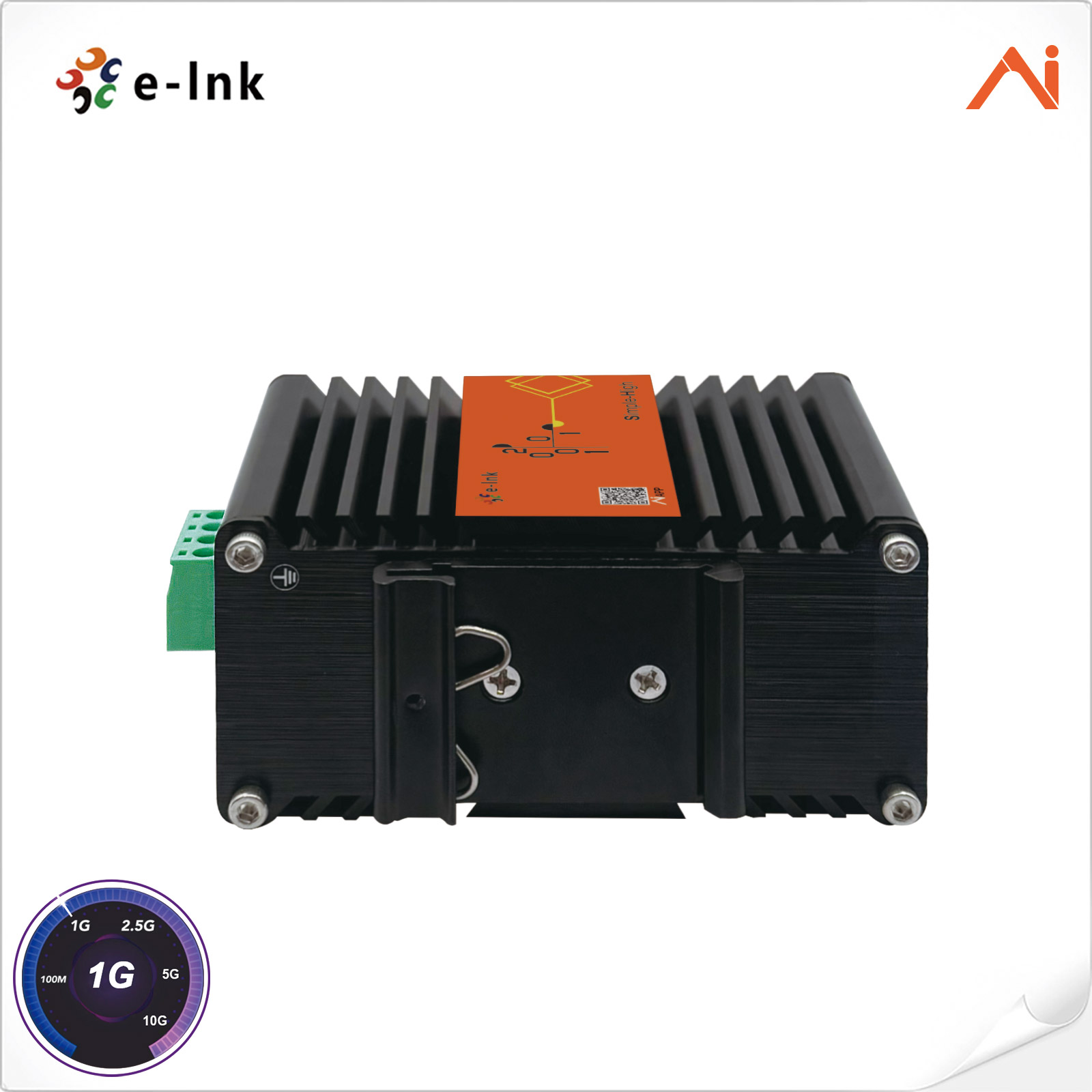

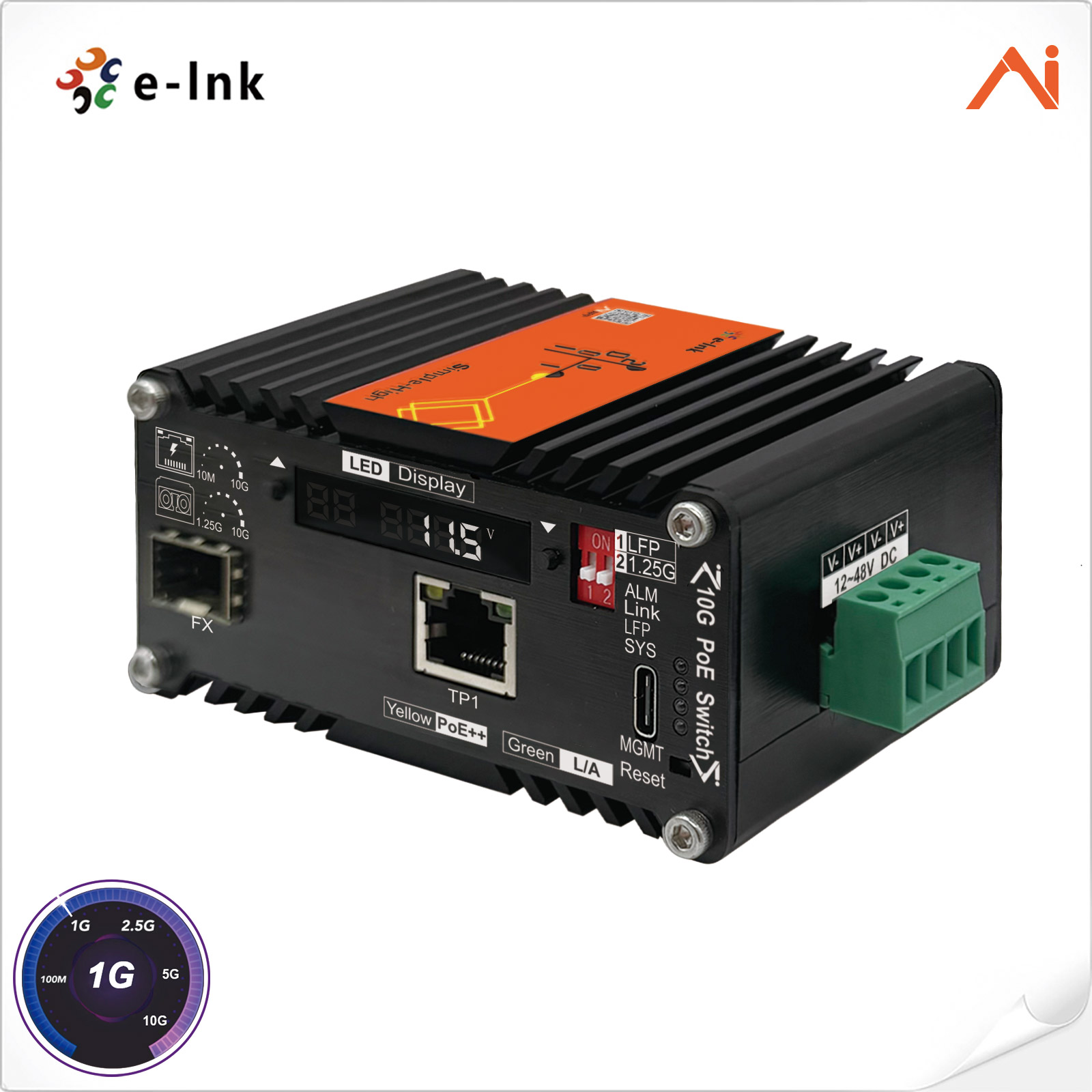

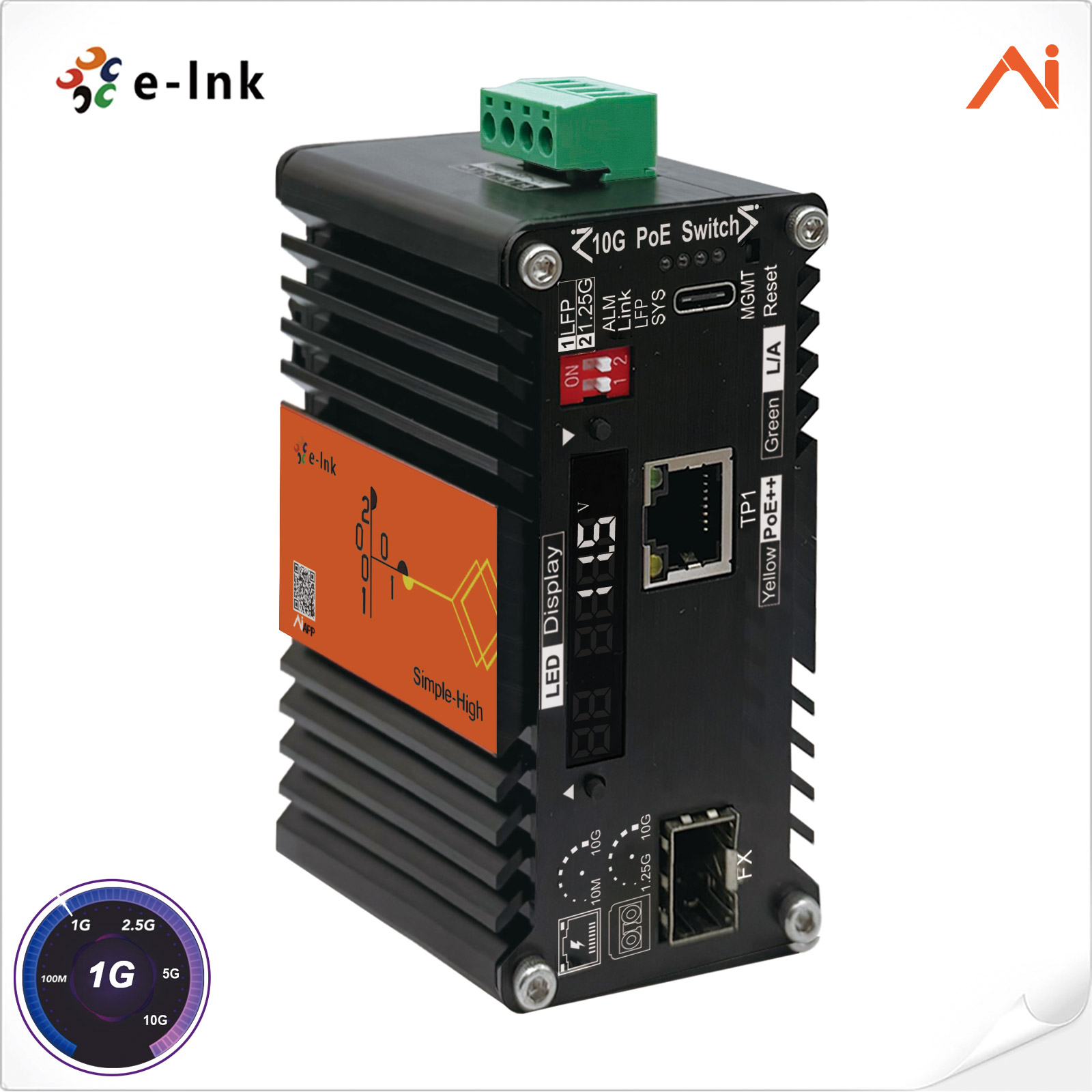

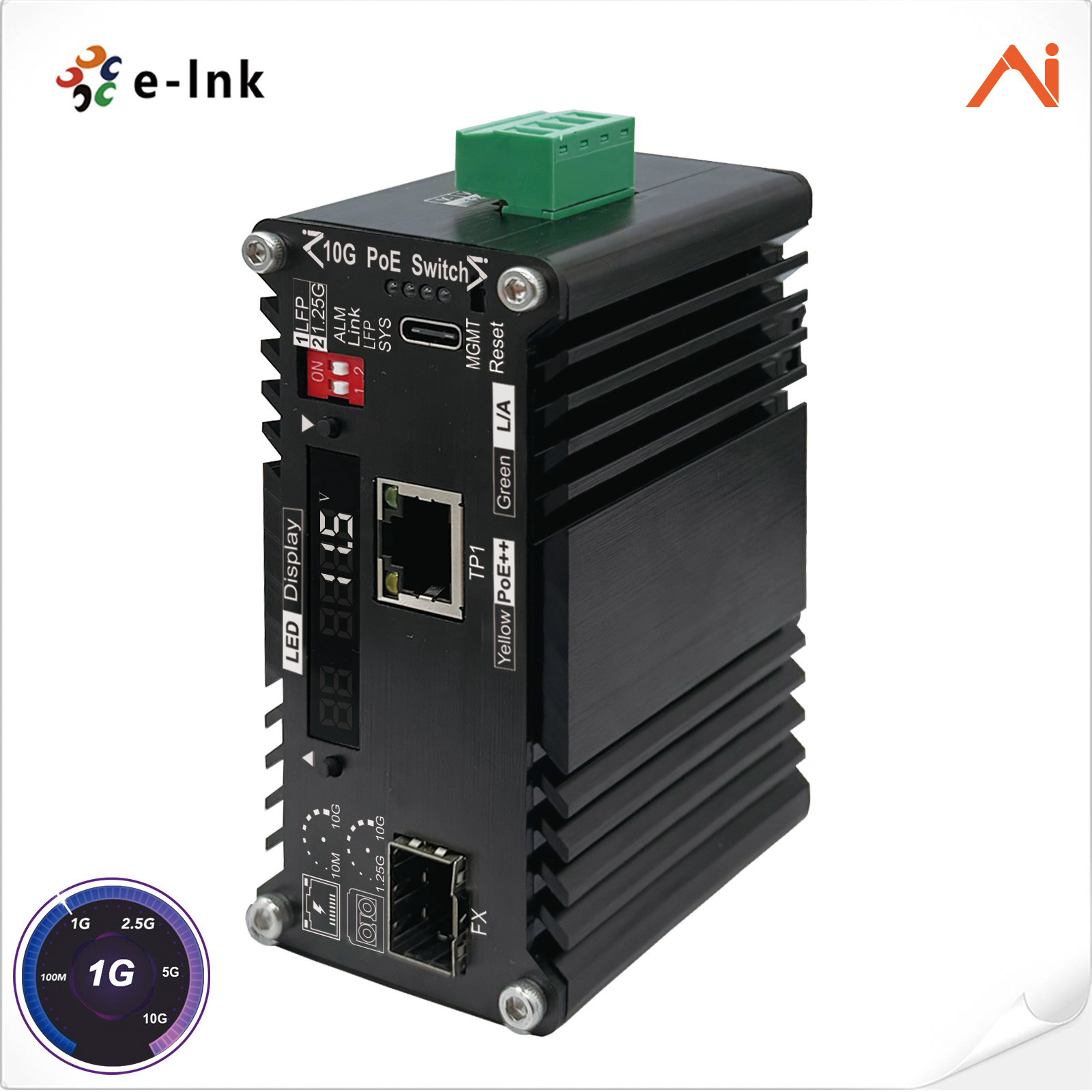

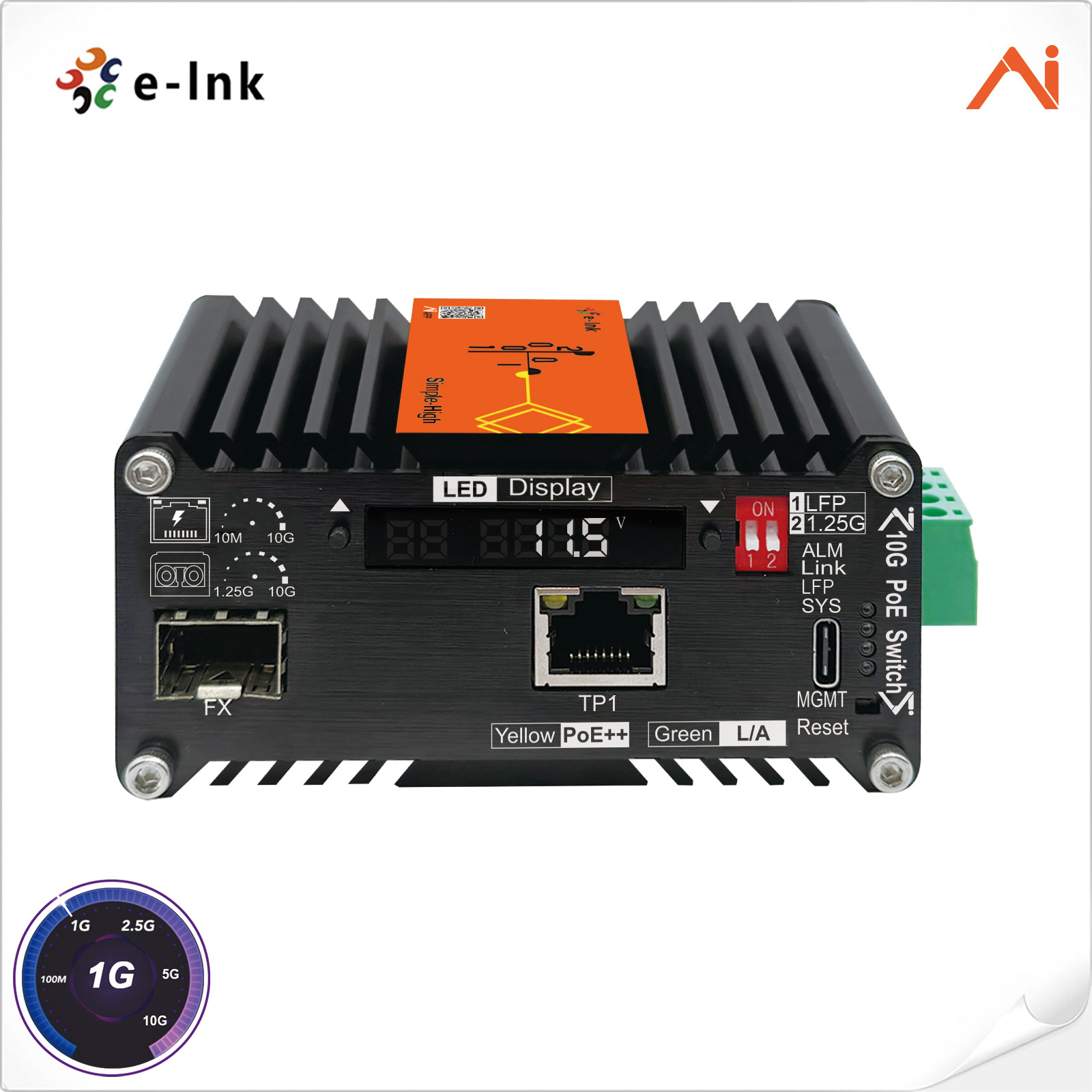

Mini Industrial AI Managed 10G PoE++ Media Converter 1×10G 60W PoE++ RJ45 to 1×10G SFP
Model:LNK-AIMC10GMP60-SFP+
►Self-developed intelligent management system by E-link, supporting Android mobile APP and PC web UI

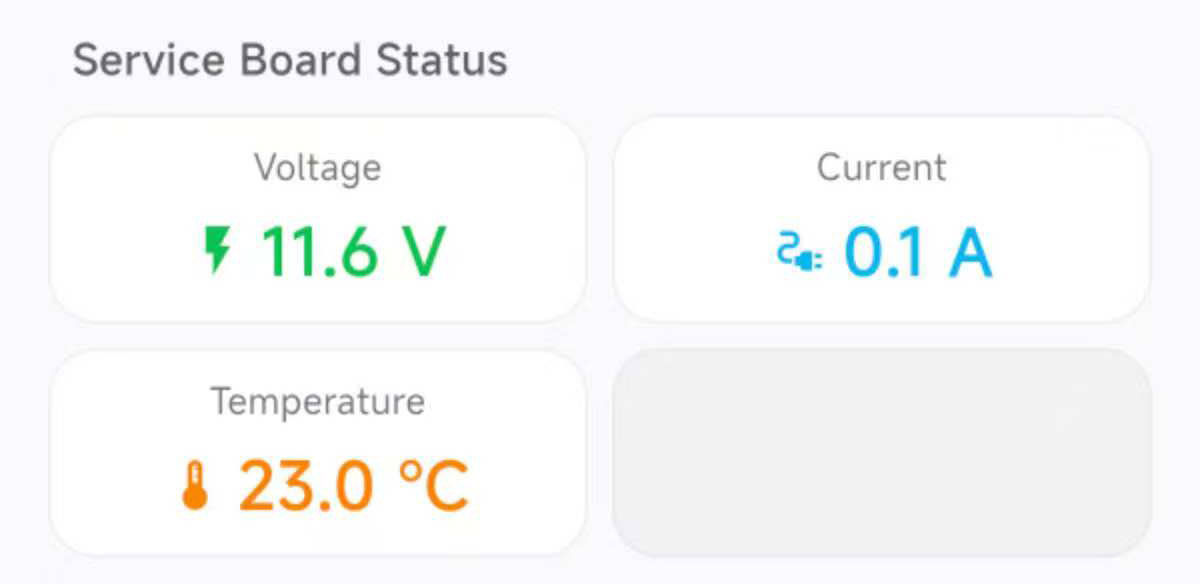

►One-click LED screen displayreal-time data dashboard: system current, voltage, internal temperature, SFP transmit/receive optical power, Ethernet & fiber port link speeds and more

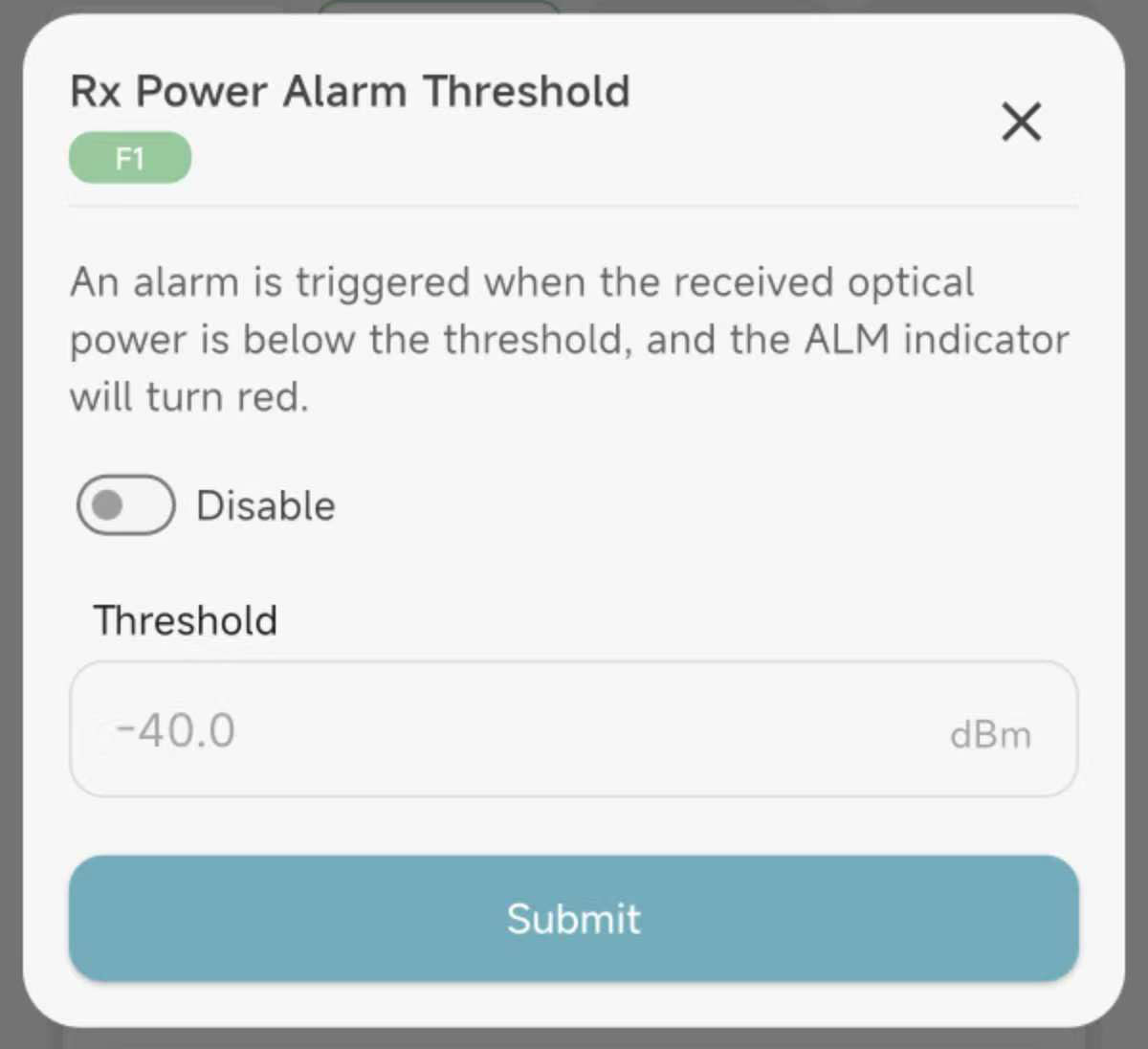

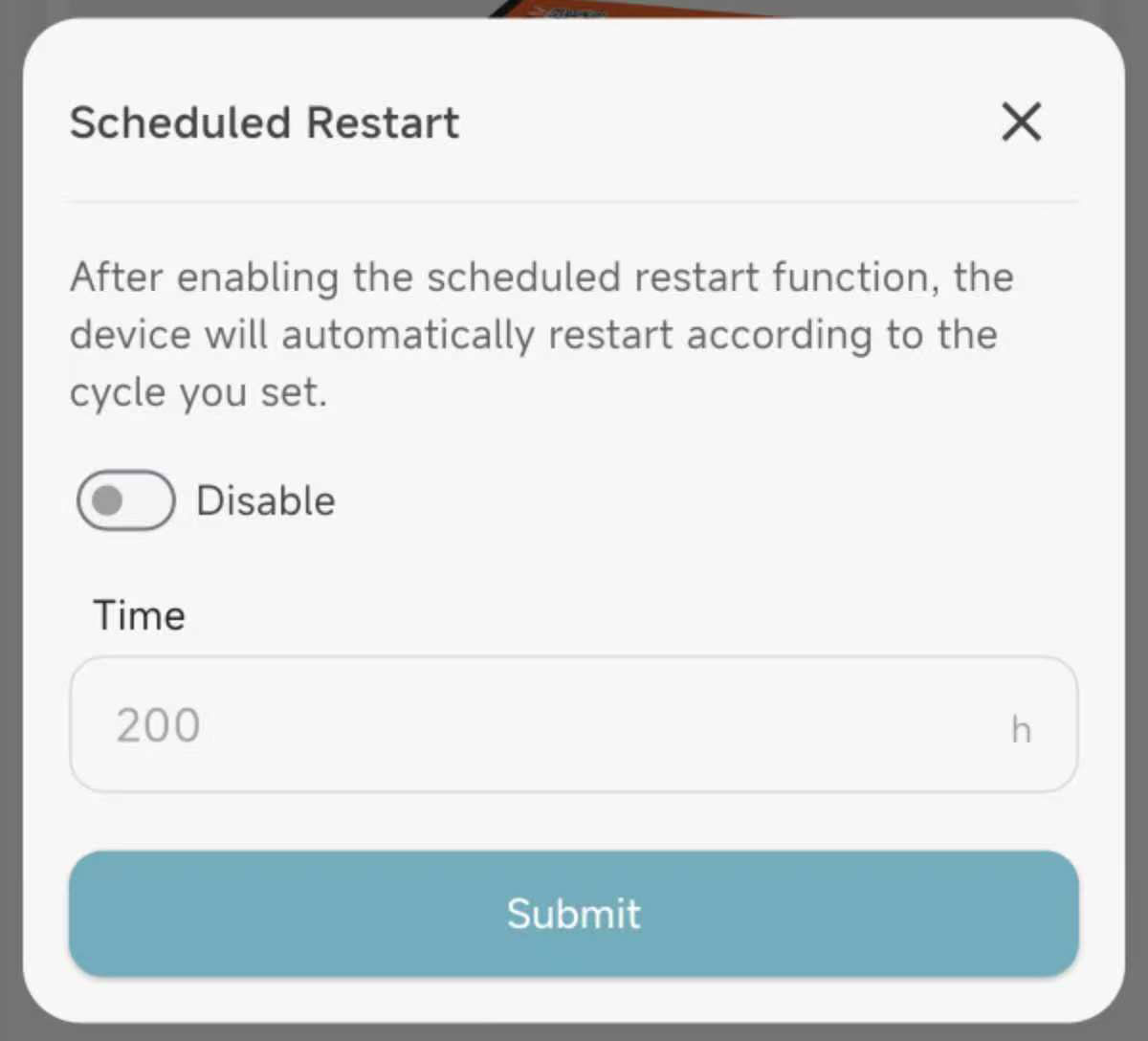

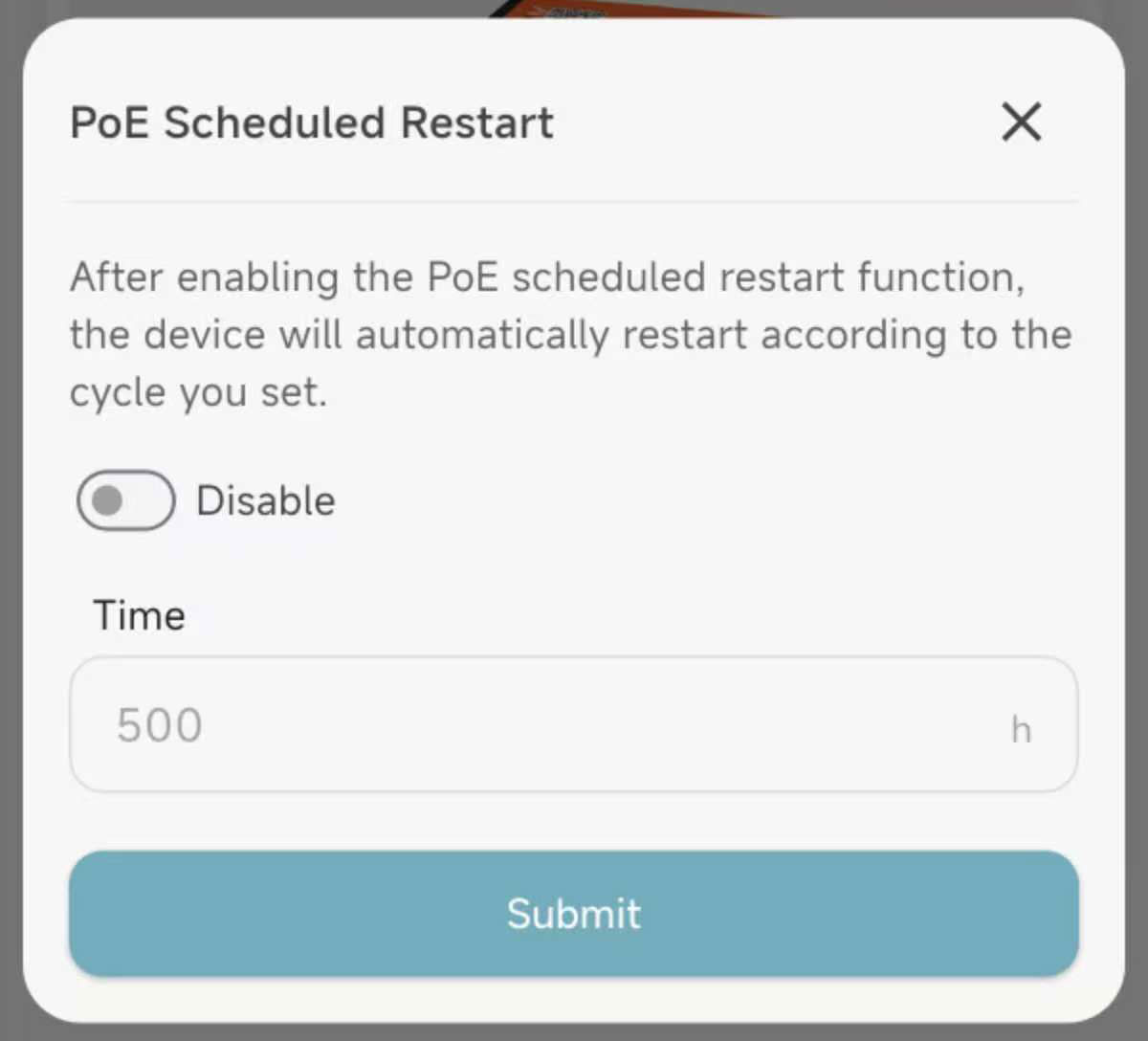

►Rich APP & web management capabilities: intuitive graphical dashboard for full device status; complete SFP information & DDM diagnostic data; customizable optical power alarm thresholds; user-defined scheduled port/device reboot

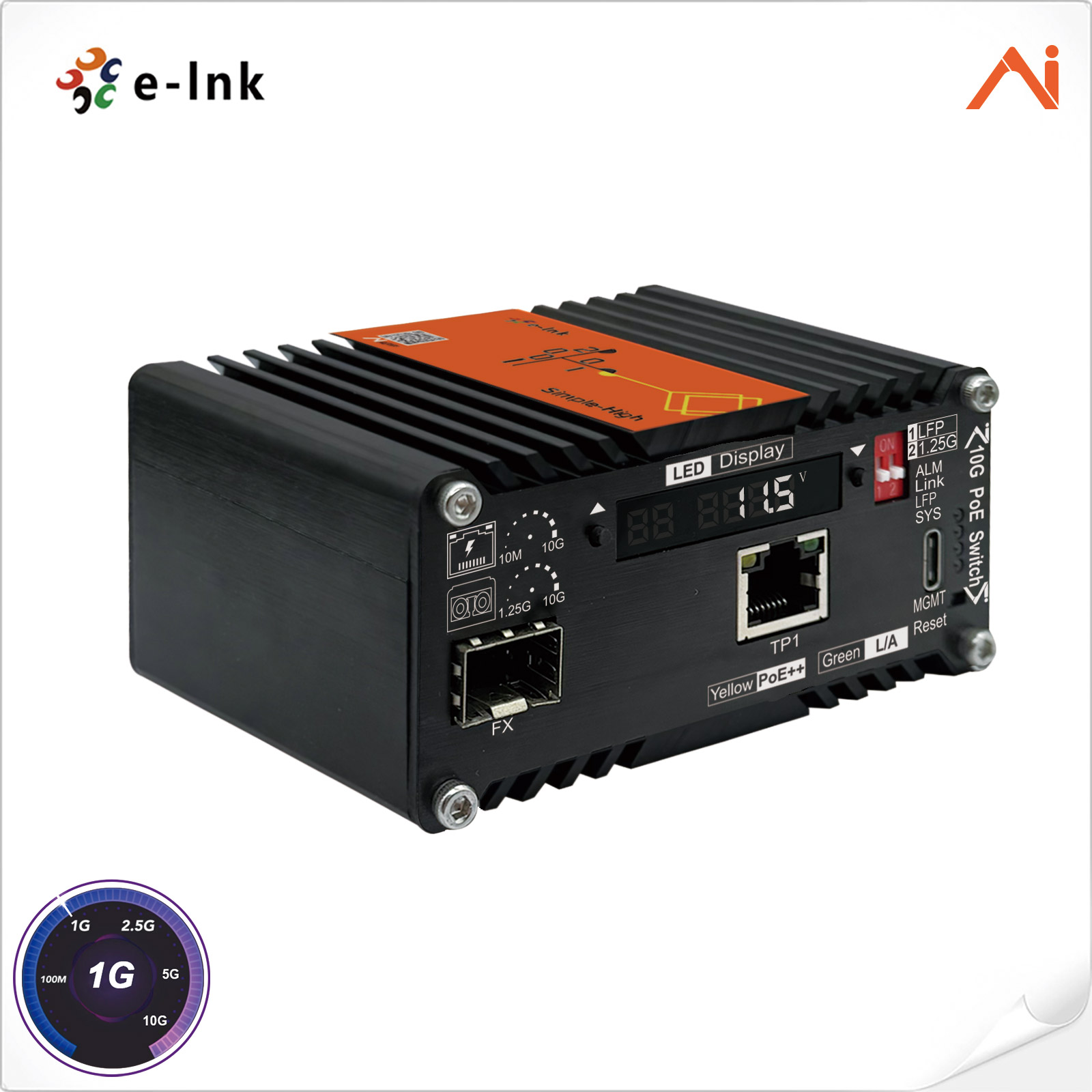

The LNK-AIMC10GMP60 is a compact AI smart managed industrial PoE media converter independently developed by E-link. Each unit is equipped with1×10M/100M/1000M/2.5G/5G/10GBase-T IEEE 802.3af/at/bt PoE++ RJ45 port + 1×1.25G/2.5G/5G/10GBASE-X SFP+fiber port, integrated with a built-in voltage boost circuit specially optimized for solar power supply applications.
This world-first innovativedevicecombines the dual advantages of managed and unmanaged switches.Engineers can monitor device status via multiple methods: mobile APP,PCweb management interface and LEDDisplaywithoutadditional test tools.
Datacover:voltage,current,temperature,Ethernet port status, SFP port working status,PoEstatus,as well as detailed SFP DDM parameters such as optical power, wavelength, transmission distance, link rate and module temperature.
We innovated this product based on standard switches:
Devicefunction:Fiber Port Alarm, Scheduled System Reset, PoE ScheduledRestart, LFP Support. The redundant-mode supports auto -recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair
Meets IP40, aluminum housing, works stably under harsh industrial temperatures from -40℃to 75℃.
Equipped with dual redundant power supplies, it keeps Ethernet working stably 24X7.
Application Scenarios:

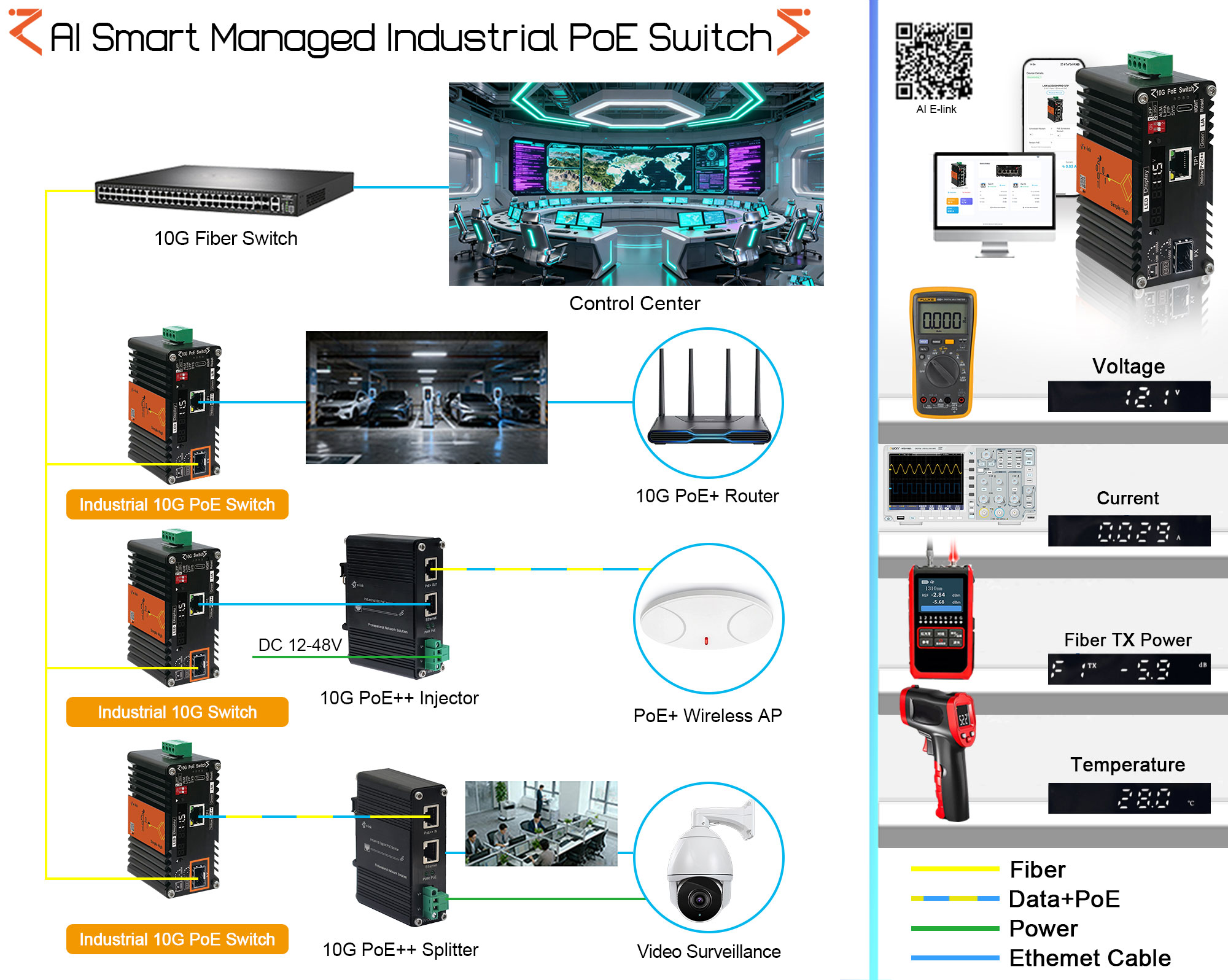

Intelligent Manufacturing & Automation:data transmission and multi-device interconnection
Power & New Energy: Surveillance communication andcluster networking.
Rail Transit & Tunnel Engineering: Real-time video monitoring andsignal transmission.
Oil, Gas & Mining Sites:Stablecommunication
Smart City & New Infrastructure Deployment
In addition, this product can be used in fields such as autonomous driving, humanoid robots, AI computing, metallurgy, chemical engineering, outdoor research base stations and field weather monitoring.
►Self-developed intelligent management system by E-link, supporting Android mobile APP and PC web UI
►One-click LED screen displayreal-time data dashboard: system current, voltage, internal temperature, SFP transmit/receive optical power, Ethernet & fiber port link speeds and more
►Rich APP & web management capabilities: intuitive graphical dashboard for full device status; complete SFP information & DDM diagnostic data; customizable optical power alarm thresholds; user-defined scheduled port/device reboot
►Wide 9–54VDC power input with built-in voltage boost circuit,
• 12V input → 60W PoE output
• 24V input →60W PoE output
• 48V input →60W PoE output

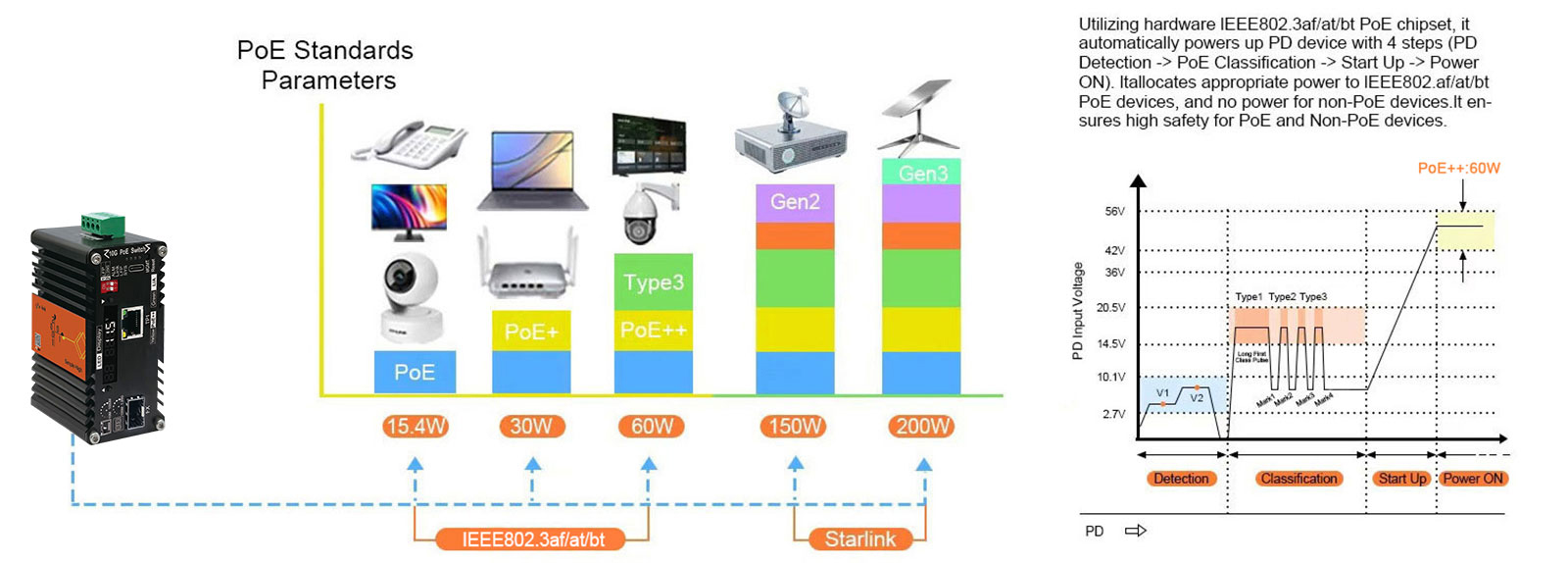

►Compliant with IEEE 802.3af/at/bt PoE++ PSE standard, customizable versions for Starlink Gen 2 / Gen 3 compatibility
►1 X1.25G/2.5G/5G/10G BASE-X SFP+fiber uplink port
►Support LFP(Link fault pass through) Function
►6KV lightning surge protection on all ports
►Wide operating temperature: -40°C ~ +75°C (-40°F ~ 167°F)
|
RJ45 Port Status |
Link Status |
|
|||
|
Rate |
|||||
|
LFP Status |
|||||
|
PSE Supply Voltage |
|||||
|
PSE Power Consumption |
|||||
|
Power Pin Assignment |
|||||
|
SFP Port Status |
Link Status |
|
|||
|
PN/SN |
|||||
|
TX Power |
|||||
|
RX Power |
|||||
|
All DDM Information |
|||||
|
DIP Switch |
DIP1 |
LFP |
|
||
|
DIP2 |
1.25G |
||||
|
Fiber Port Alarm |
Support |
|
|||
|
Scheduled Reset |
Support |
|
|||
|
PoE Power Scheduled |
Support |
|
|||
|
InterfacePort |
|||||
|
Ethernet Port |
1-Port10M/100M/1000M/2.5G/5G/10GBase-TEthernet RJ45 interface Auto-negotiation, auto MDI/MDI-X |
||||
|
1-Port10M/100M/1000M/2.5G/5G/10GBase-TSupport IEEE802.3af/at/bt |
|||||
|
Cable:10G-Cat 6A/Cat 7 5G-Cat 6/Cat 6A/Cat 7 1G/2.5G-Cat 5e/Cat 6/Cat 6A/ Cat 7 Distance: ≤100 meters at 1000M data rate |
|||||
|
SFP Port |
1-Port1000M/2.5G/5G/10GBASE-X(auto detection) |
||||
|
Cable: Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km; Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km |
|||||
|
PoE (Power over Ethernet) |
|||||
|
Standard |
IEEE 802.3af/at/bt PoE++ PSE (af: 15.4W, at: 30W, bt type3: 60W) |
||||
|
PoE Power Output |
60watts max. |
||||
|
Power Pin Assignment |
End-span + Mid-span:1/2(+), 3/6(-);4/5(+),7/8(-) |
||||
|
PoE Budget |
Up to60-watt PoE budget (9-54VDC) |
||||
|
PoE Power Supply Type |
IEEE 802.3af/at/bt, End-span + Mid-span(If need passive PoE please contact customer service) |
||||
|
PoE Mode |
Compatible withMode A and Mode B. |
||||
|
Voltage Booster |
DC 9-12V Input |
PoE 48V Output, max 60W |
DC 19-24V Input |
PoE 48V Output, max60W |
|
|
DC 24-36V Input |
PoE 48V Output, max60W |
DC 48-54V Input |
PoE 48V Output, max60W |
||
|
Electrical and Mechanical |
|||||
|
Input Power |
9~54V DC, 4-pin terminal block |
||||
|
Power Consumption |
5W Max. (When PoE not used) |
||||
|
Dimensions (W x D x H) |
98 x 67 x 46 mm |
||||
|
Weight |
300g |
||||
|
Casing |
Aluminum Case |
||||
|
Mounting Options |
DIN-Rail |
||||
|
LED Indicators |
|||||
|
SYS |
Green LED Blinking: Operating normally |
||||
|
LFP |
Green Solid On: LFP On |
||||
|
Green SolidOff: LFP Off |
|||||
|
Link |
Green LED Solid On: SFP port link established |
||||
|
Green LED Blinking: Data transmission |
|||||
|
Green LED Off: SFP port no link |
|||||
|
ALM |
Red LED Solid On: Received optical power below threshold |
||||
|
Red LED Off: Received optical power normal |
|||||
|
TP1L/A |
Green LED Solid On: Ethernet port link |
||||
|
Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M |
|||||
|
Green LED Off: Ethernet port no link |
|||||
|
TP1PoE |
Yellow LED Solid On: Connected PD |
||||
|
Yellow LED Off: Not connected PD |
|||||
|
Environmental |
|||||
|
Operating Temperature |
-40°C to 75°C (-40°F to 167°F) |
||||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
||||
|
Relative Humidity |
5% to 95% non-condensing |
||||
|
MTBF |
> 200,000 hrs |
||||
|
Regulatory Approvals |
|||||
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
|||||
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|||||
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|||||
|
Model |
Description |
|
LNK-AIMC10GMP60-SFP+ |
Industrial AI Smart Managed 1-Port 10M/100M/1000M/2.5G/5G/10G Base-T IEEE802.3bt 60W PoE++ to 1-Port 1.25G/2.5G/5G/10G BASE-X SFP+ Fiber Media Converter, 9V to 54V DC power input, with Voltage Booster. |
|
SFP Options |
►SFP option. Please select your SFP on our SFP Options Page. |
|
|
►SFP module is to be purchased separately. |
|
Mounting Options |
►Default DIN-Rail bracket included. |
|
Power Options |
►75W/1.6A 48VDCPower Supply. Open Wire for Terminal Block |
|
|
►Power Supply is to be purchased separately. |
