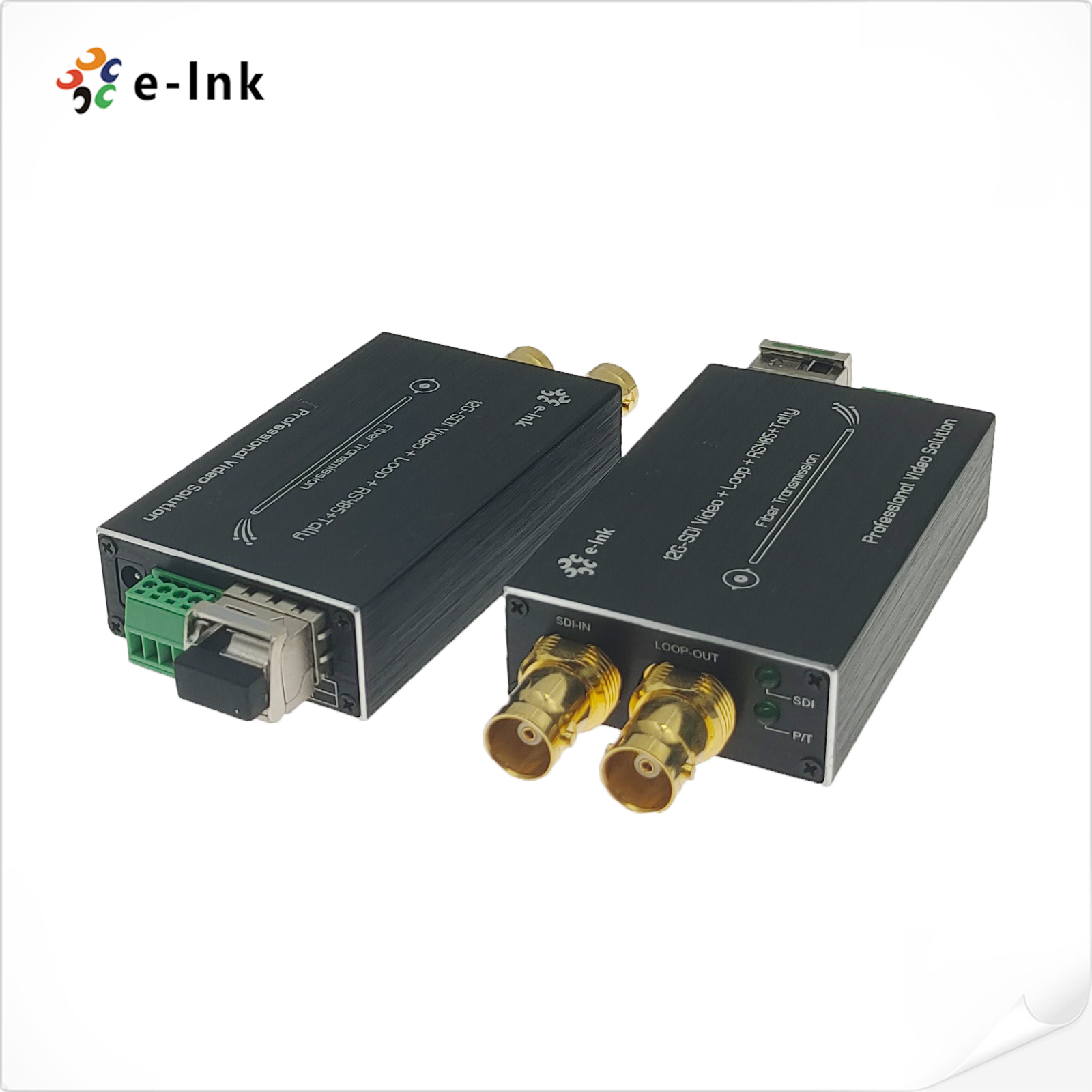

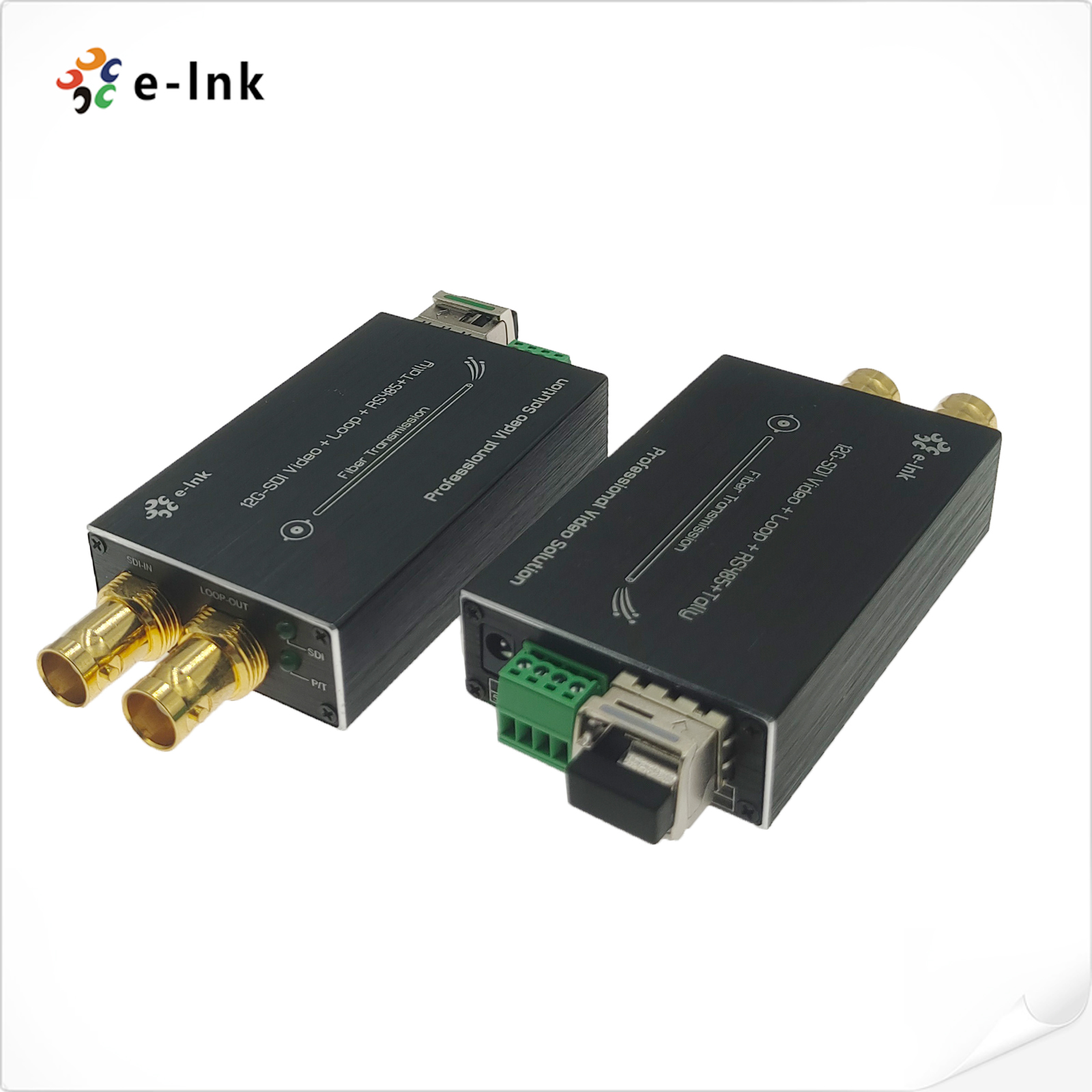

Mini 12G-SDI to Fiber Converter with Tally and RS485
Model:LNK-M12G-1V1T1D
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability at 20km
► Supports Tally and Backward RS485
► fiber optic WDM/CWDM/DWDM technique
► Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P
Overview
LNK-M12G-1V1T1D Mini-type 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded), 1Ch Tally signal and 1Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P，1080I, 720P.
Features
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability at 20km
► Supports Tally and Backward RS485
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission
► super optic dynamic range and free of adjustment
► fiber optic WDM/CWDM/DWDM technique
► Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P

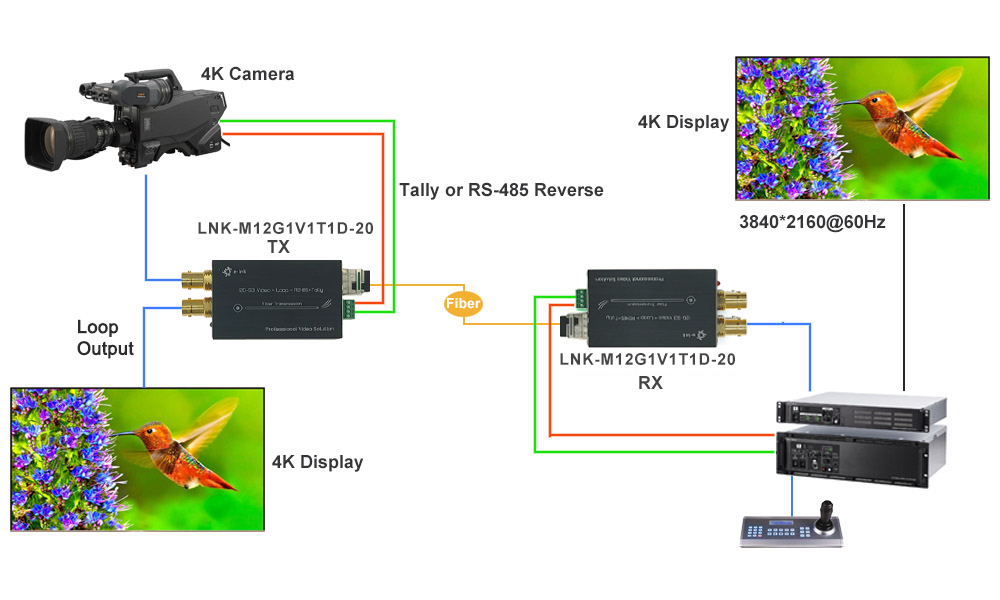

Application
Technical Indexes
|
Fiber |
|
|
Fiber interface |
LC |
|
Transmission distance |
Single mode fiber 20KM |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 11.88Gbps |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
HDTV 4K*2K, 1080P, 1080I, 720P |
|
|
Resolution |
Up to 3840*2160@60Hz |
|
Video SDI standard |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
Tally & Reverse RS485 |
|
Frequency/Rate support |
Max. 57600bps for RS485 |
|
BER |
<10ˉ9 |
|
Electrical |
|
|
Power adaptor |
DC 5V |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
73 x 44 x 17 mm (TX) 73 x 44 x 17 mm (RX) 185 x 132 x 100 mm (Package) |
|
Weight |
75g (TX) 75g (RX) 450g (Package) |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：E-link LNK-M12G-1V Mini 12G-SDI to Fiber Converter with Tally and RS485 Datasheet V2.1.pdf Size： 2MB
Order Information
|
Model |
Description |
|
LNK-M12G-1V1T1D-20 |
Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
