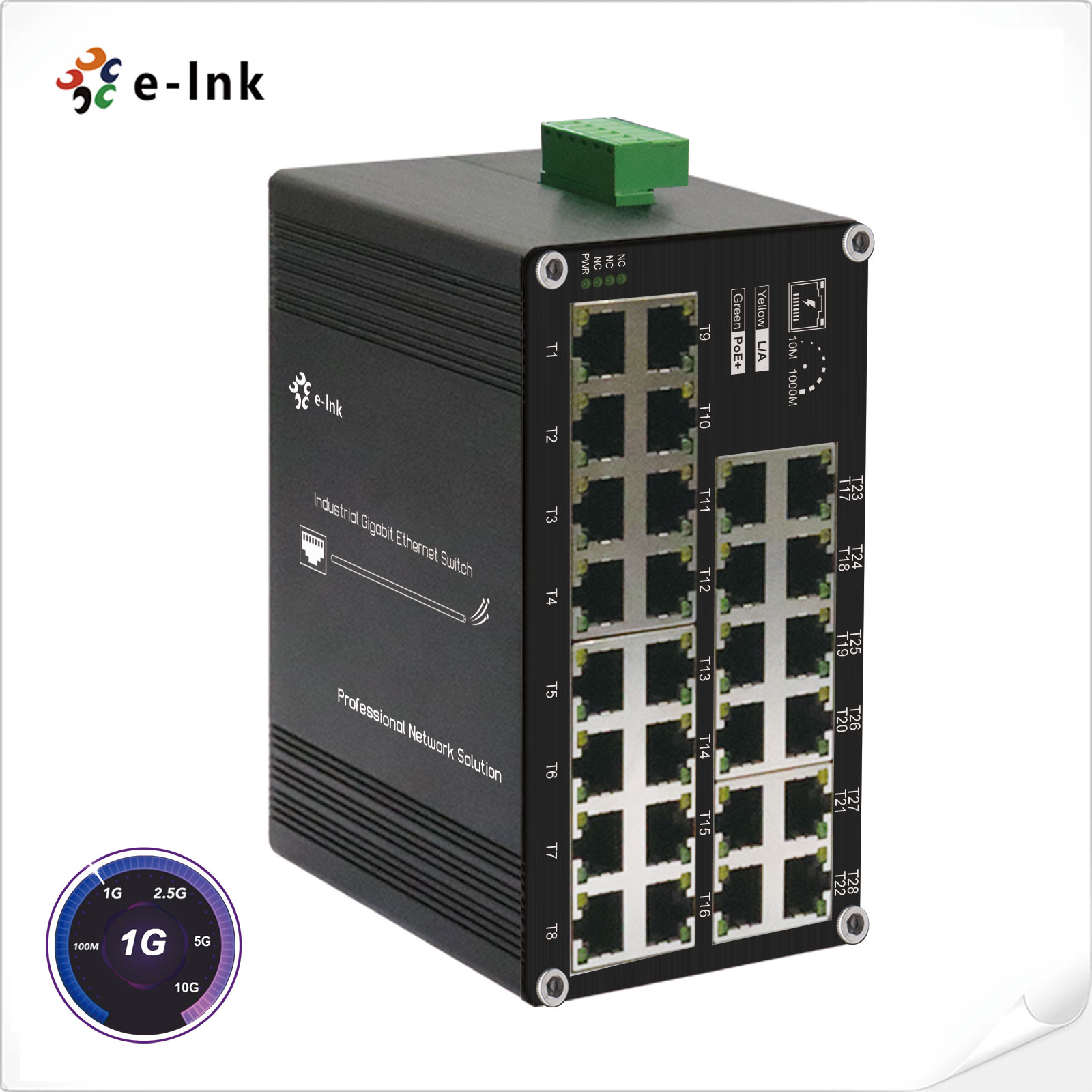

Industrial Gigabit PoE+ Switch for Outdoor Appliactions

Access Mode

28-Port 10/100/1000BASE-T RJ45, support PSE IEEE802.3af/at 30W

Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

Switching Capacity

56Gbps/non-blocking

Interface port

Ethernet Port

28-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

1-28 port 10/100/1000BASE-T Support IEEE802.3af/at 30W

Cable: Cat 5e or above;

Distance: ≤100 meters at 1000M data rate,≤250 meters at 10M data rate

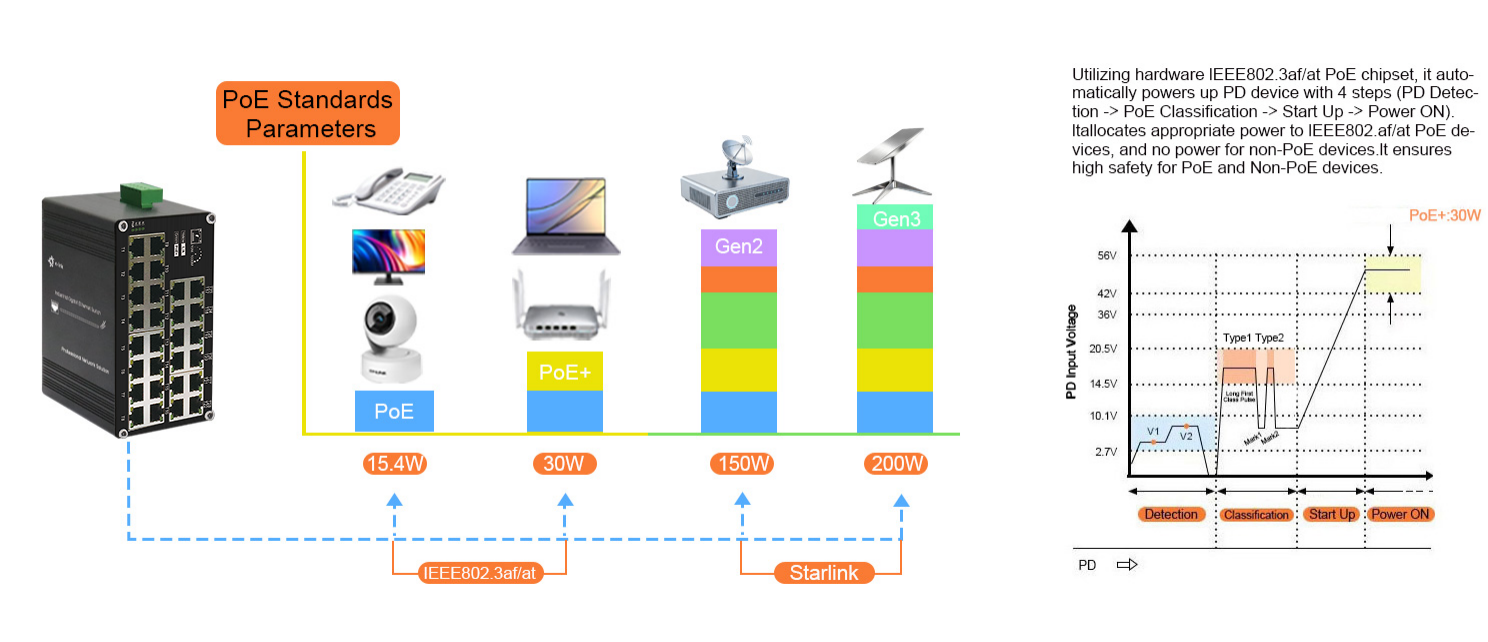

PoE (Power over Ethernet)

Standard

IEEE 802.3af/at PoE+ PSE (af:15.4W,at:30W)

PoE Power Output

30 Watts max.

Power Pin Assignment

End-span + Mid-span: 1/2(+), 3/6(-); 4/5(+),7/8(-)

PoE Budget

Up to 30-watt PoE budget (48-57VDC)

PoE Power Supply Type

802.3af/at, End-span + Mid-span (If need passive PoE, please contact customer service)

PoE Mode

Compatible with Mode A and Mode B

Electrical and Mechanical

Input Power

48~57V DC, 6-pin terminal block

Power Consumption

5W Max. (When PoE not used)

Dimensions (W x D x H)

150 x 115 x 75 mm

Weight

950g

Casing

Aluminum Case

Mounting Options

DIN-Rail

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
