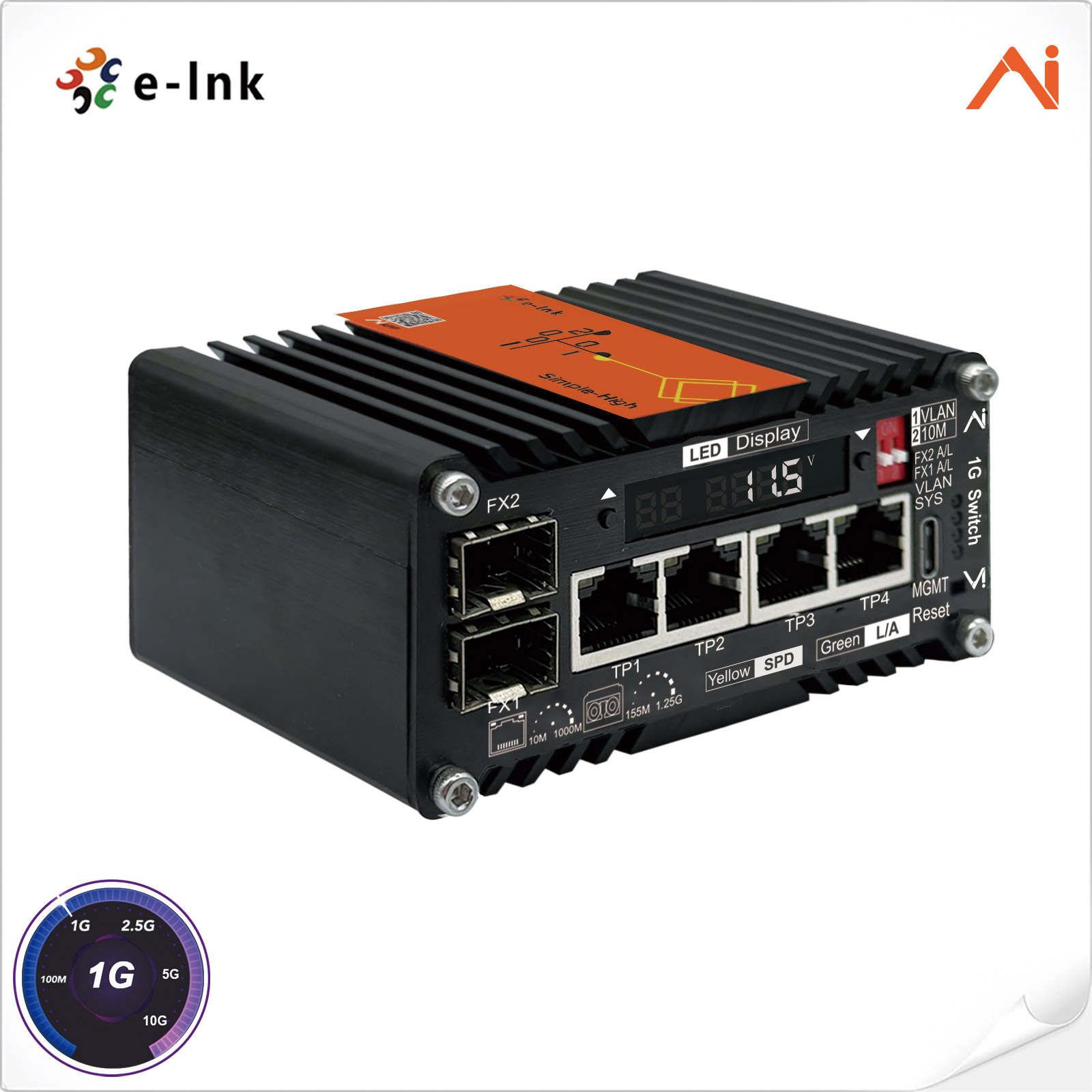

Industrial AI Smart ManagedFiber Ethernet Switch

Access Mode

2*100/1000/2.5GBASE-X SFP to4*10/100/1000BASE-T RJ45

Ethernet

Standards

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

Switching Capacity

20Gbps/non-blocking

PC (Support MacOS, Windows)

MacOS Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Windows Browser:

Microsoft Edge 89+ (Release date: 2021-03-04 or later version)

Google Chrome 89+ (Release date: 2021-03-02 or later version)

Opera 75+ (Release date: 2021-03-24 or later version)

Mobile App (Support Android,Not Support iOS)

Mobile Phone APP(Android)

Support all Android Mobile Phone and Android Tablet

Mobile iPhone APP(iOS)

Not Support iPhone or iPad

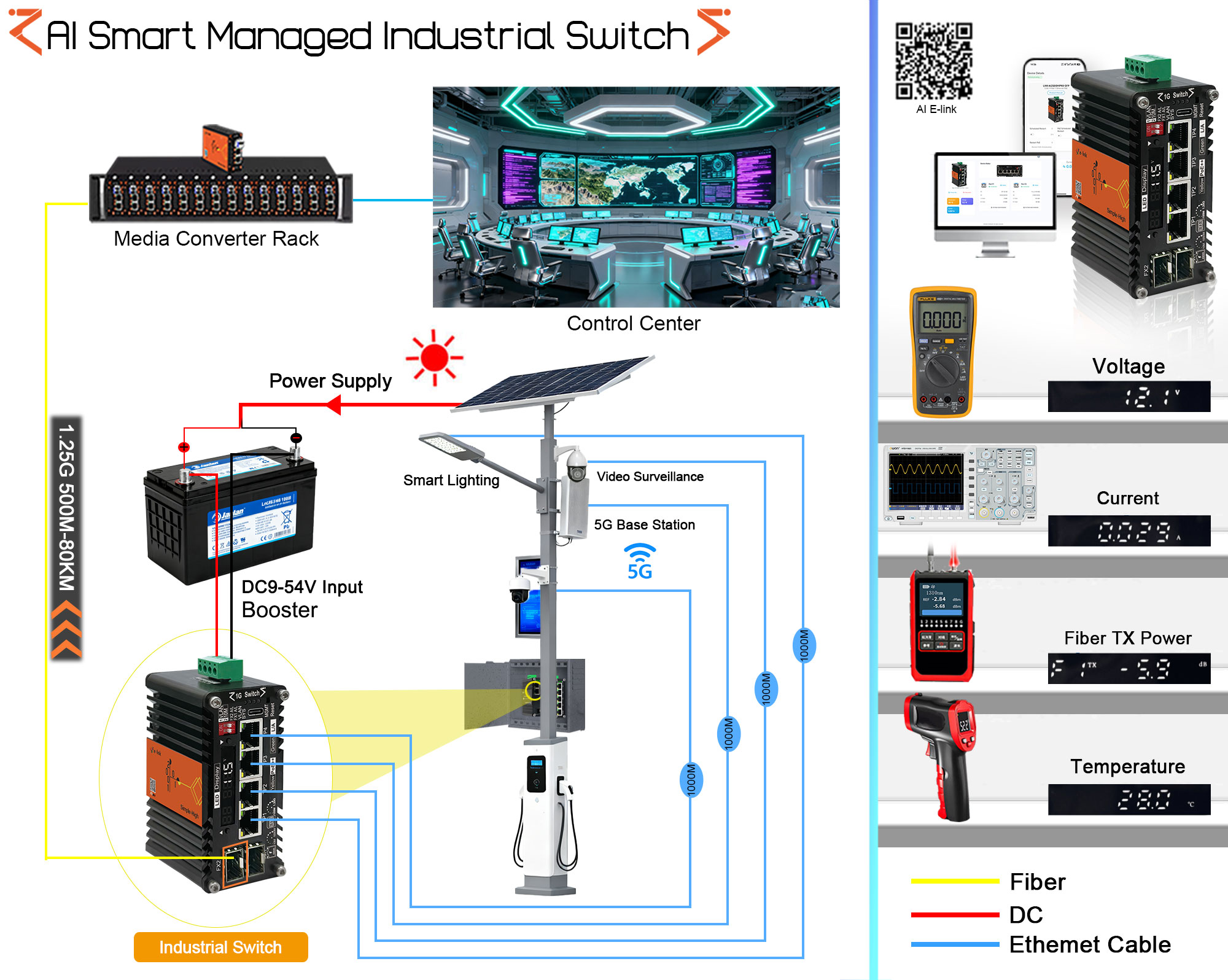

AI Smart Managed Functions

Service Board Status

Temperature

Voltage

Current

System Status LED

System

VLAN

FX1 A/L

FX2 A/L

RJ45 Port Status

Link Status

Current Rate

SFP Port Status

Link Status

PN/SN

TX Power

RX Power

All DDM Information

DIP Switch

DIP1

VLAN

DIP2

2.5G

Fiber Port Alarm

Support

Scheduled Reset

Support

Interface port

Ethernet Port

4-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

1-4 port 10/100/1000BASE-T

Cable: Cat 5e or above;

Distance: ≤100 meters at1000M data rate

SFP Port

2-Port100/1000/2.5BASE-X SFP (Backward compatible with 100BASE-X and 1000BASE-X and transceivers) (auto detection)(2.5G DIP setting)

Cable:

Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;

Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km

Electrical and Mechanical

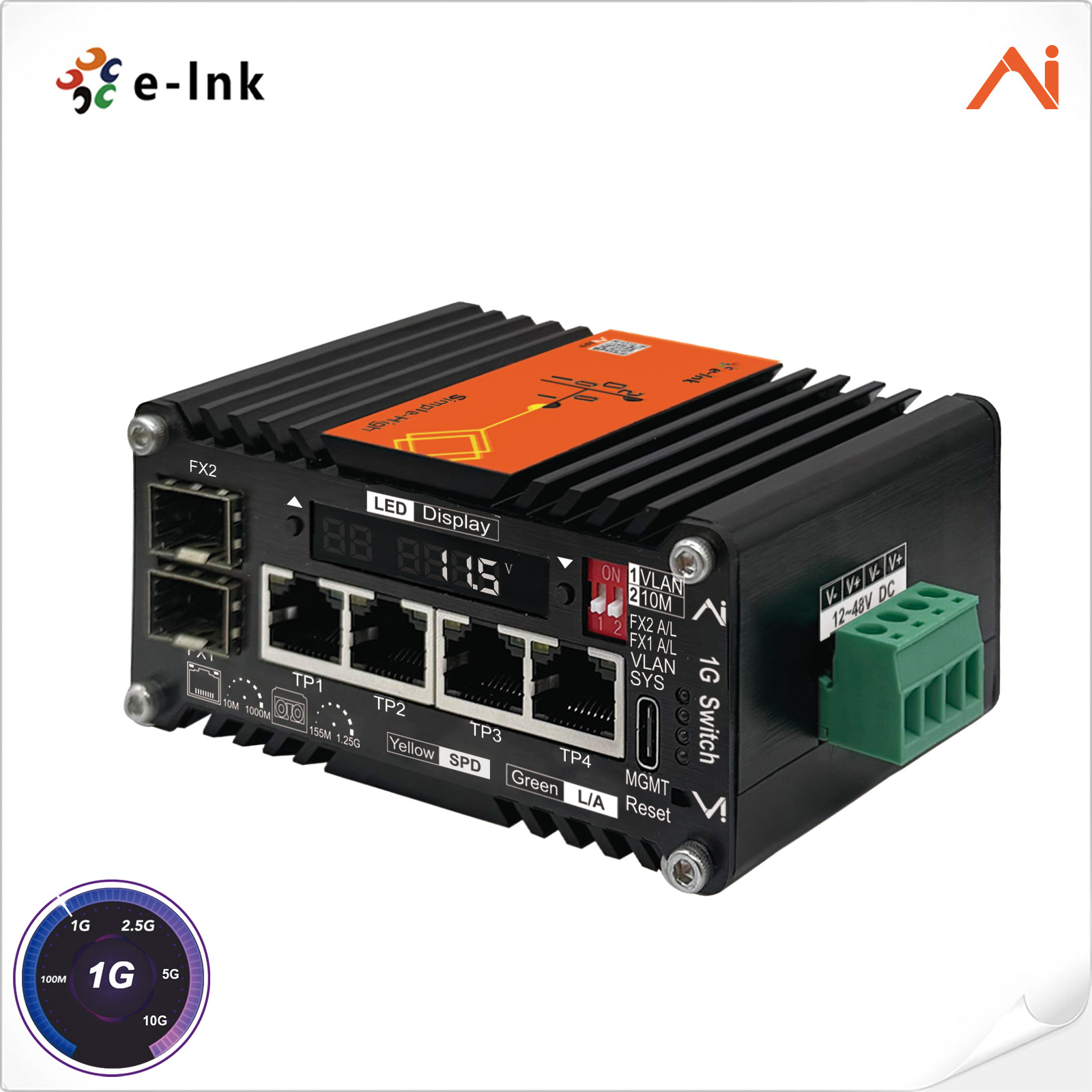

Input Power

9~54V DC, 4-pin terminal block

Power Consumption

5W Max

Dimensions (W x D x H)

98 x 67x 46 mm

Weight

300g

Casing

Aluminum Case

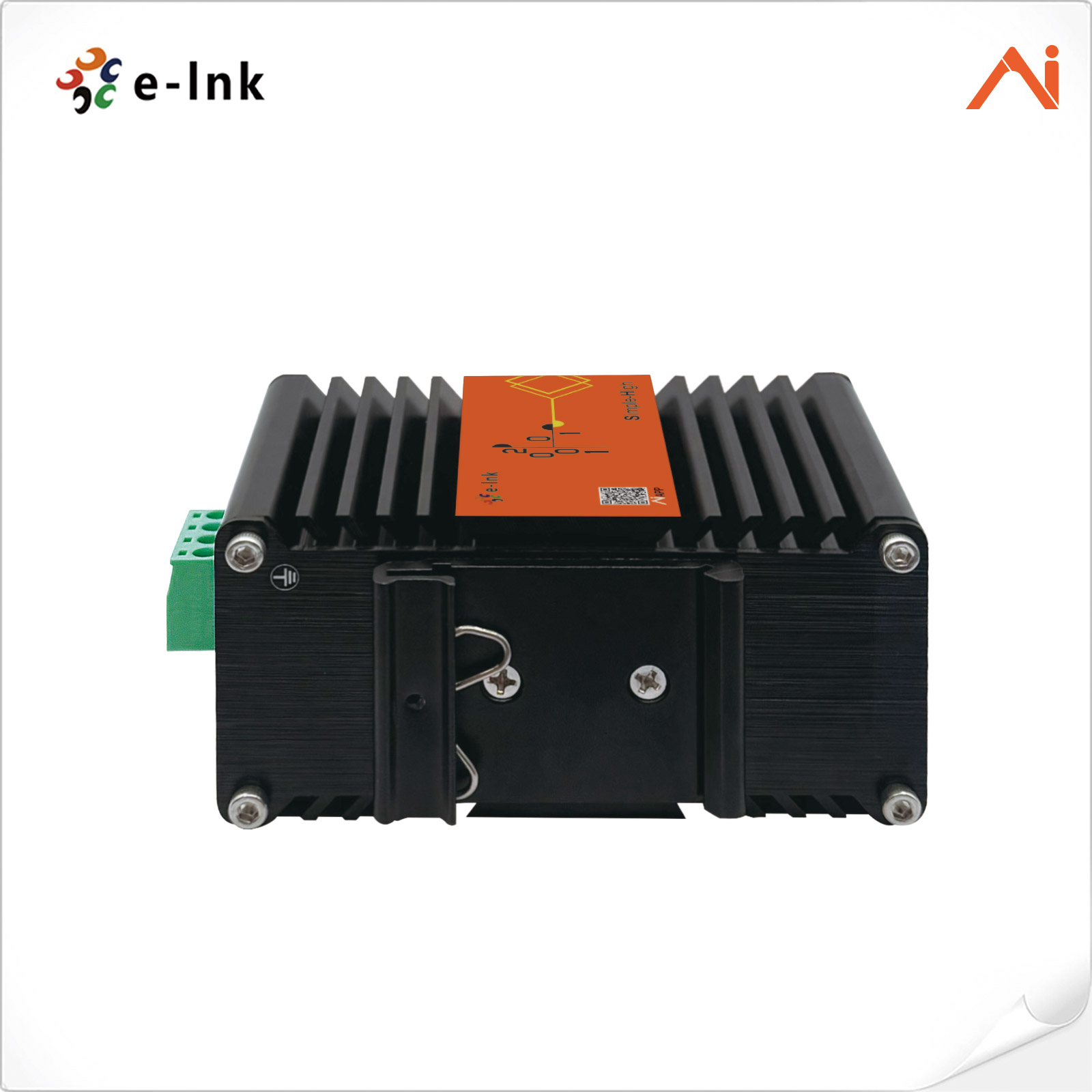

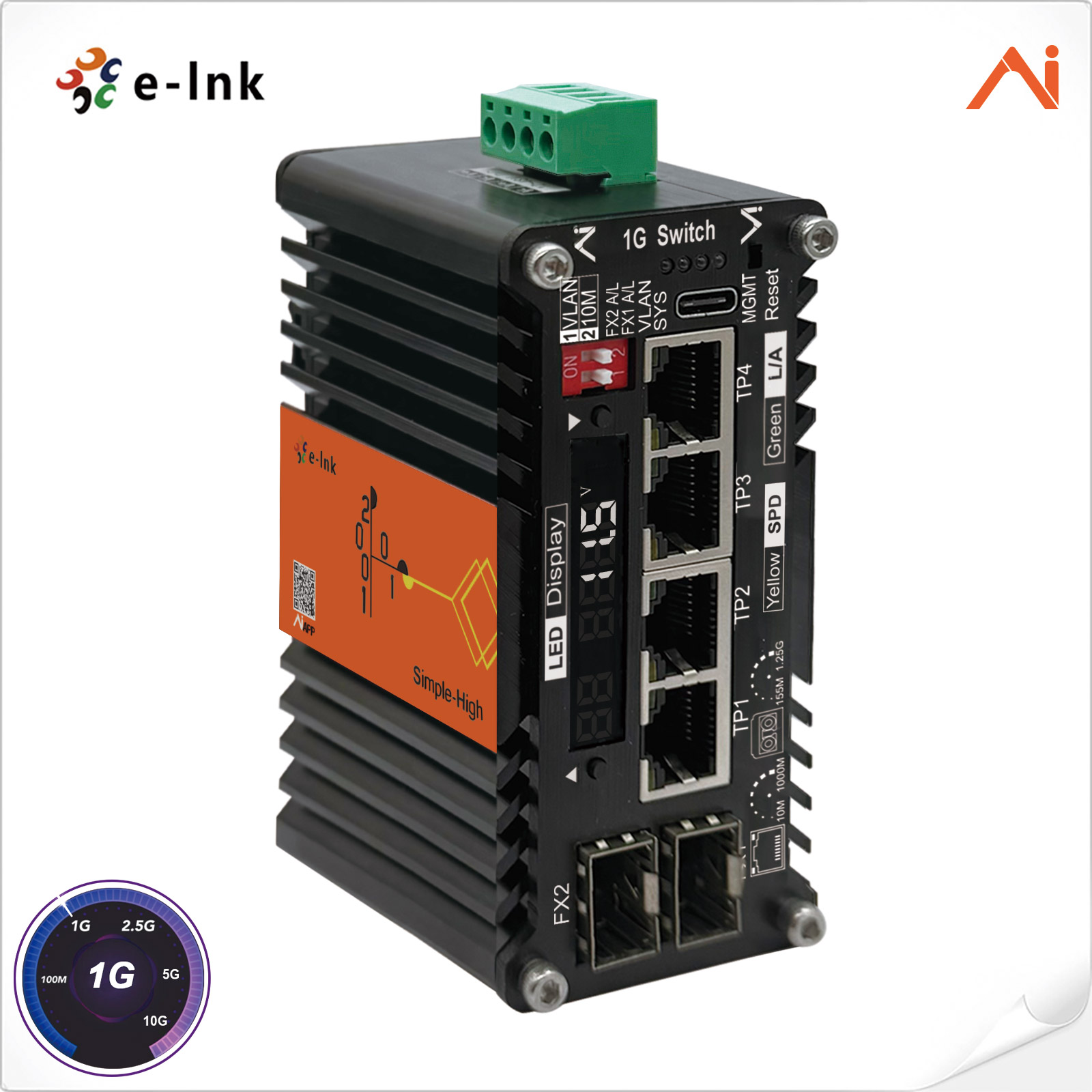

Mounting Options

DIN-Rail

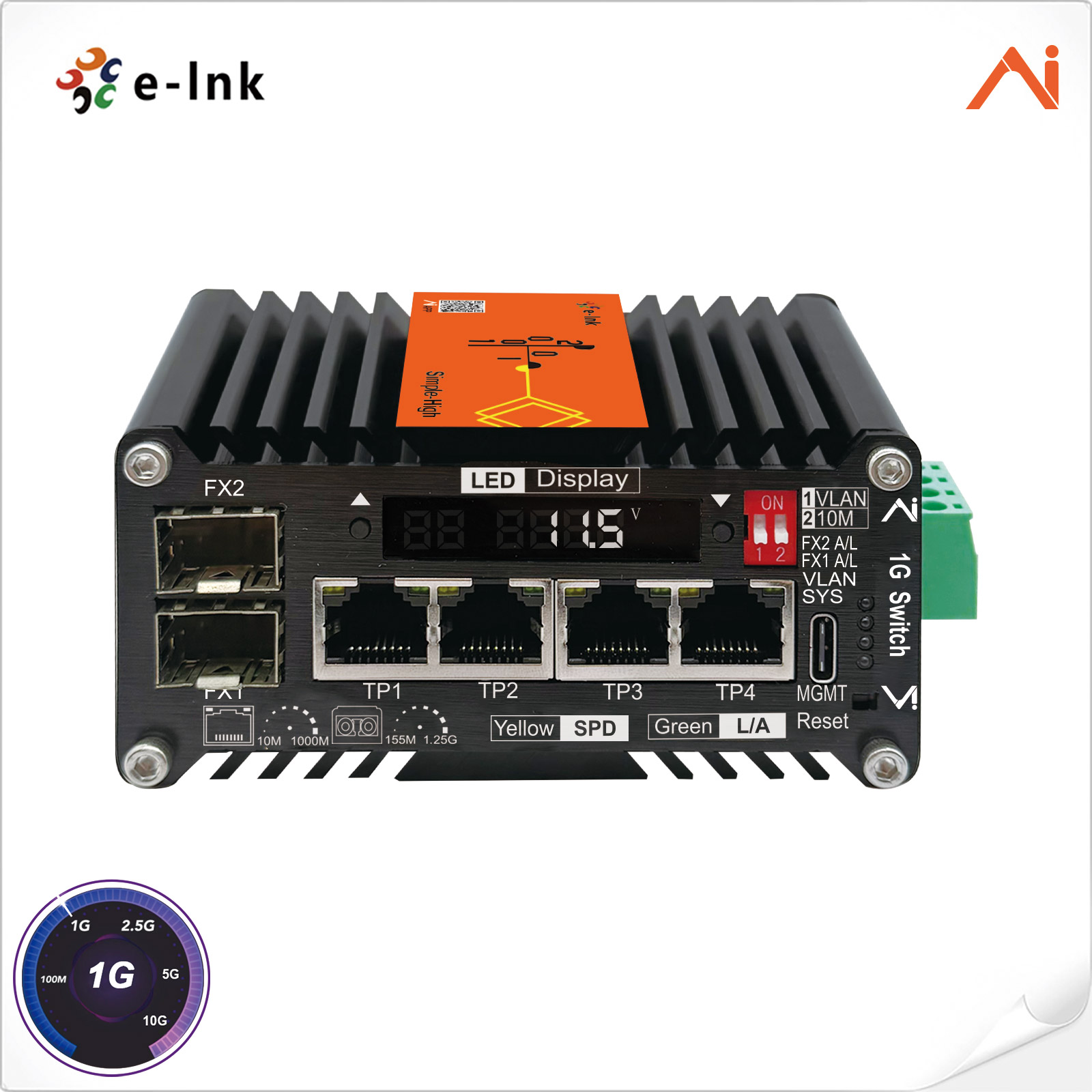

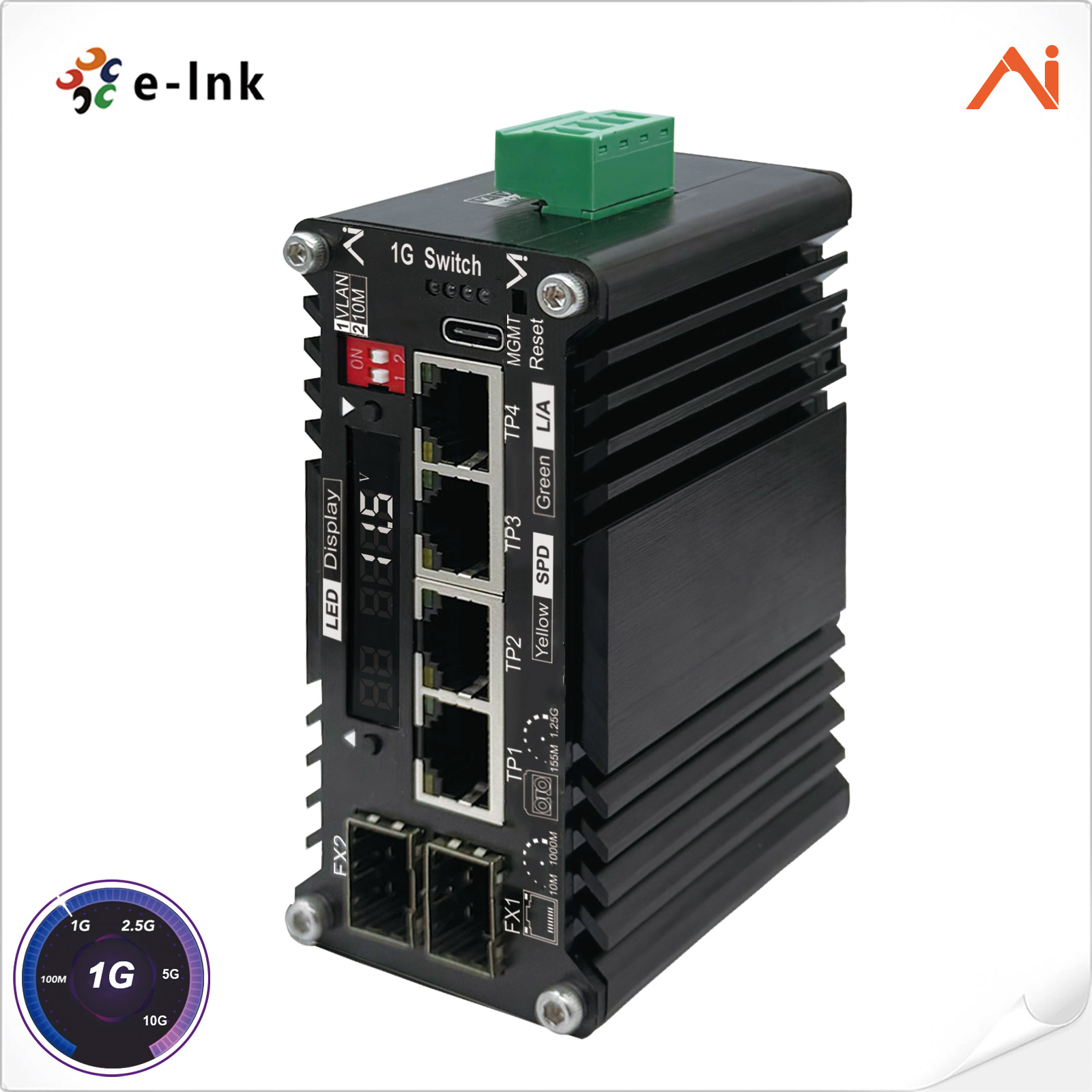

LED Indicators

SYS

Green LED Blinking: Operating normally

VLAN

Green Solid On: VLAN On

Green LED Off: VLAN Off

FX1-2 A/L

Green LED Solid On: SFP port link established

Green LED Blinking: Data transmission

Green LED Off: SFP port no link

Red LED Solid On: Received optical power below threshold

TP1-4 L/A

Green LED Solid On: Ethernet port link

Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M

Green LED Off: Ethernet port no link

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
