Overview

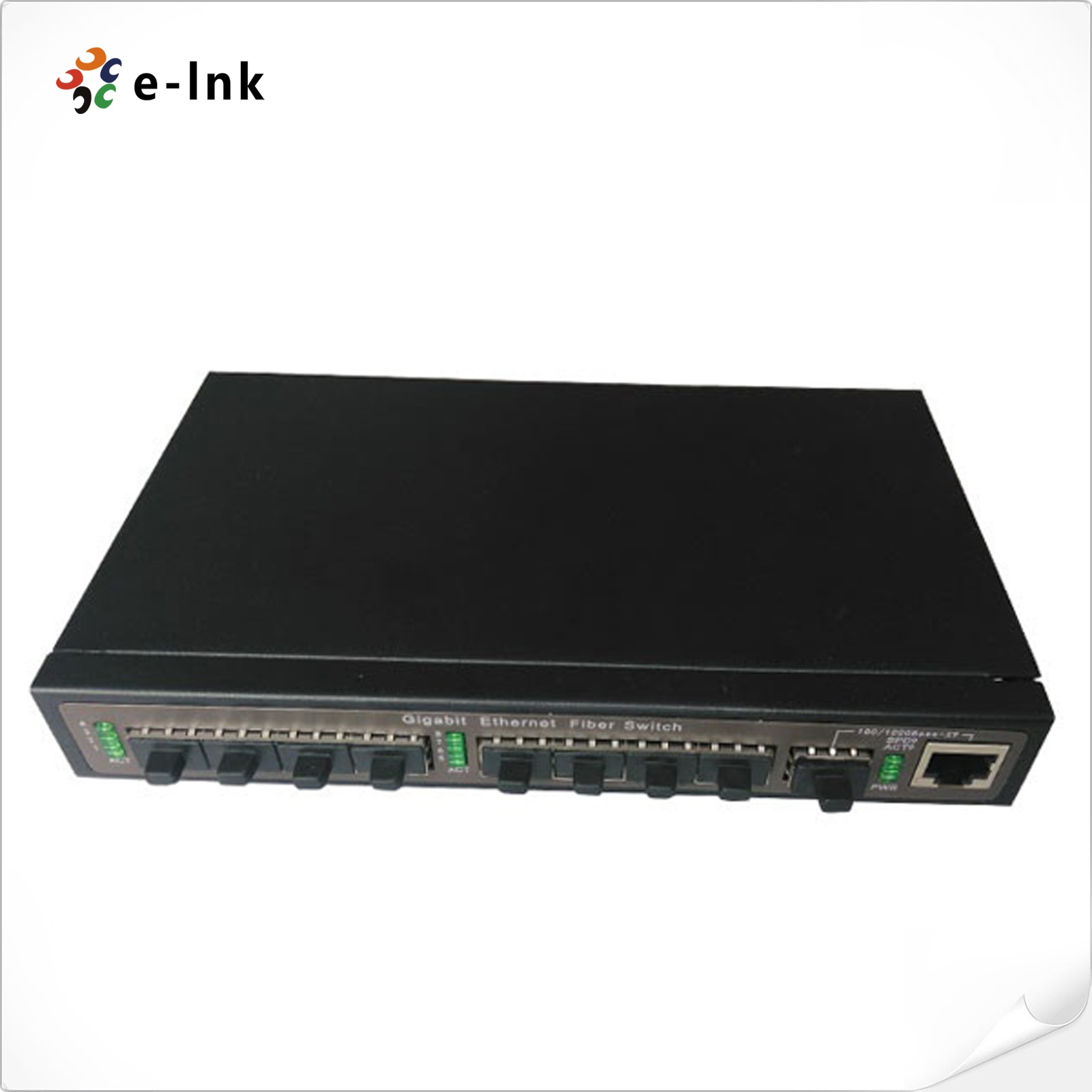

E-link LNK-FS800 Series is a nine ports managed 1000M all optic fiber switch. It offers eight SFP fiber ports access and one Gigabit Combo port (1000M SFP port and 10/100/1000M adaptive RJ45 Ethernet interchange) uplink.

LNK-FS801M supports SFP modules hot plug, and supports to work with fiber switches, fiber converters and other devices witch fiber ports. It supports WEB management as a managed switch; applies to security system, electric system, and traffic system requirements.

Features:

►support maximum 8 SFP fiber ports and 1 GE Combo port (SFP fiber port/RJ45 port interchange)

►Support SFP hot plug

►Support each port full rate, full-duplex non-blocking forwarding

►Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth

►Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault

►All optic ports, strengthen the an-interference ability

►Metal casing design, better for heat dissipation

Application

Applies to security system, electric system, and traffic system requirements.

Technical Parameters:

• Download FileName：E-link LNK-FS800 Series Fiber Switch Datasheet V2.0.pdf Size： 167KB

Order Information
