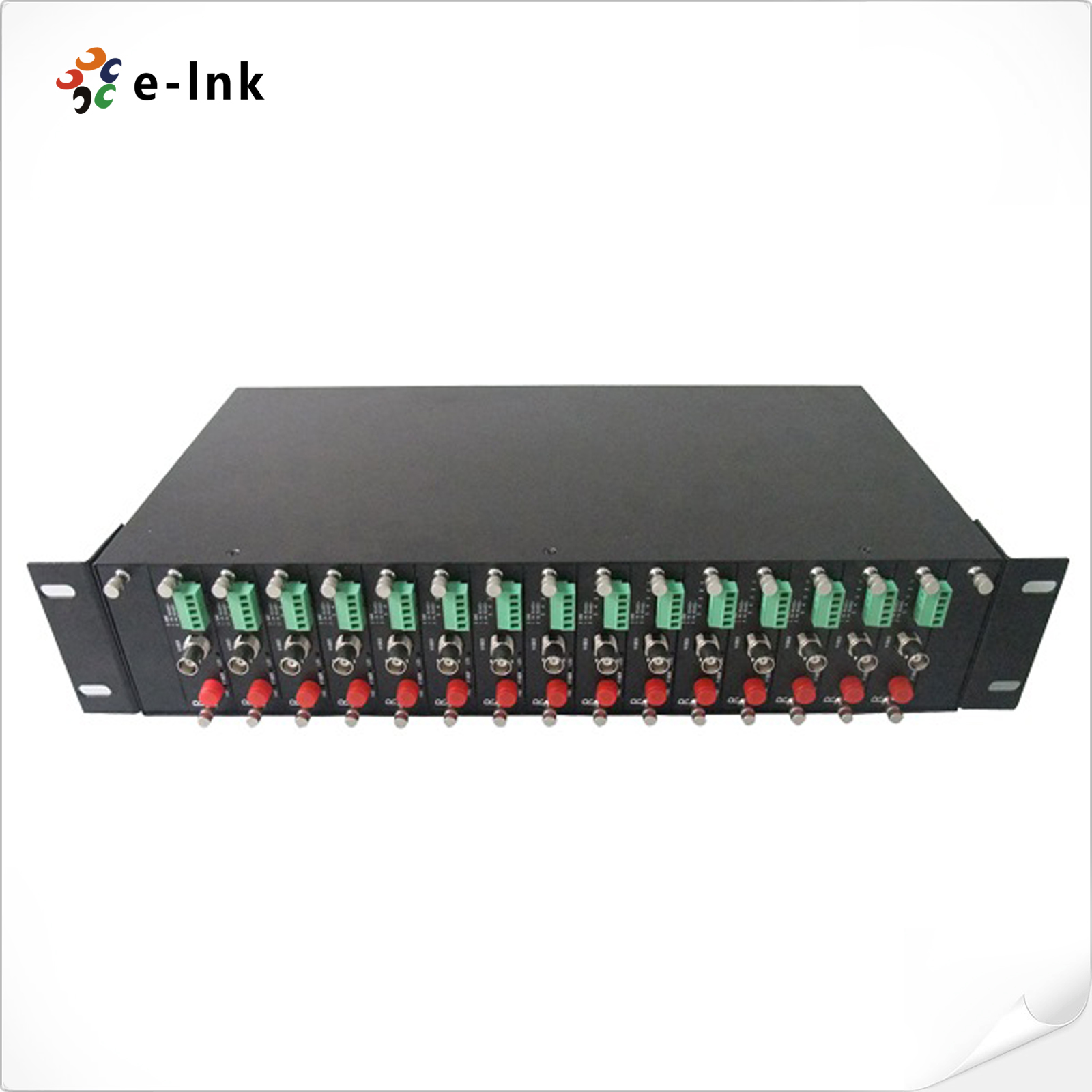

2U 16-Slot Video Fiber Converter Rack
Model:LNK-V16 Series
► The configuration of active/standby power supply ensures uninterruptible operation of the system
► Provide two power supplies, enabling the system can work under many operating environments
Overview
LNK-V16 Series is a kind of cost-effective video converter rack (2U) widely used in the equipment room. 1-2 channel card type video converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over. All of the card-type video converters installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing card-type video converters.
Features
► The configuration of active/standby power supply ensures uninterruptible operation of the system
► Provide two power supplies, enabling the system can work under many operating environments
► Supporting simultaneous operation of 1Ch or 2 Ch Card-type Video Converters, which greatly improves system adaptability
► Supports hot swapping

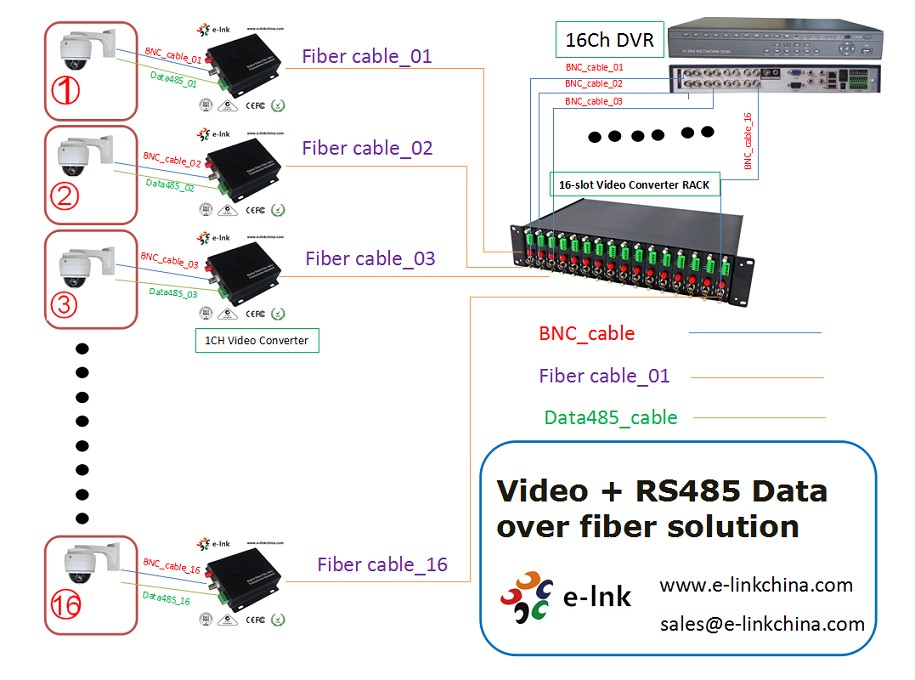

Application
Technical Indexes
|
Parameter |
Specifications |
|
Number of slots |
16 |
|
Structure |
19” 2U rack |
|
Card-type video converter support |
1Ch or 2Ch |
|
Power input |
AC Voltage:AC 100~260V;frequency: 50/60 Hz |
|
Power output |
DC5V |
|
MTBF |
> 100,000 hours |
|
Power configuration |
Single power supply; or Dual power supply for warm backup mode |
|
Dimension (mm) |
423x230x90 |
|
Weight |
5.4KG |
|
LED indication |
POWER (power supply) |
|
Operating temperature |
-30°C to +55°C |
|
Storage Temperature |
-40°C to +85°C |
|
Relative humidity |
5%~90% (non condensing) |
- Download FileName：E-link 16-Slot Video Converter Chassis Datasheet V1.0.pdf Size： 398KB
Ordering Information
|
Model |
Description |
|
LNK-V16 |
19" 2U Rack-Mount Chassis, 16-Slot, 16pcs 1CH Card-type Video Receiver can be put in the Chassis, Dual Power Supply |
