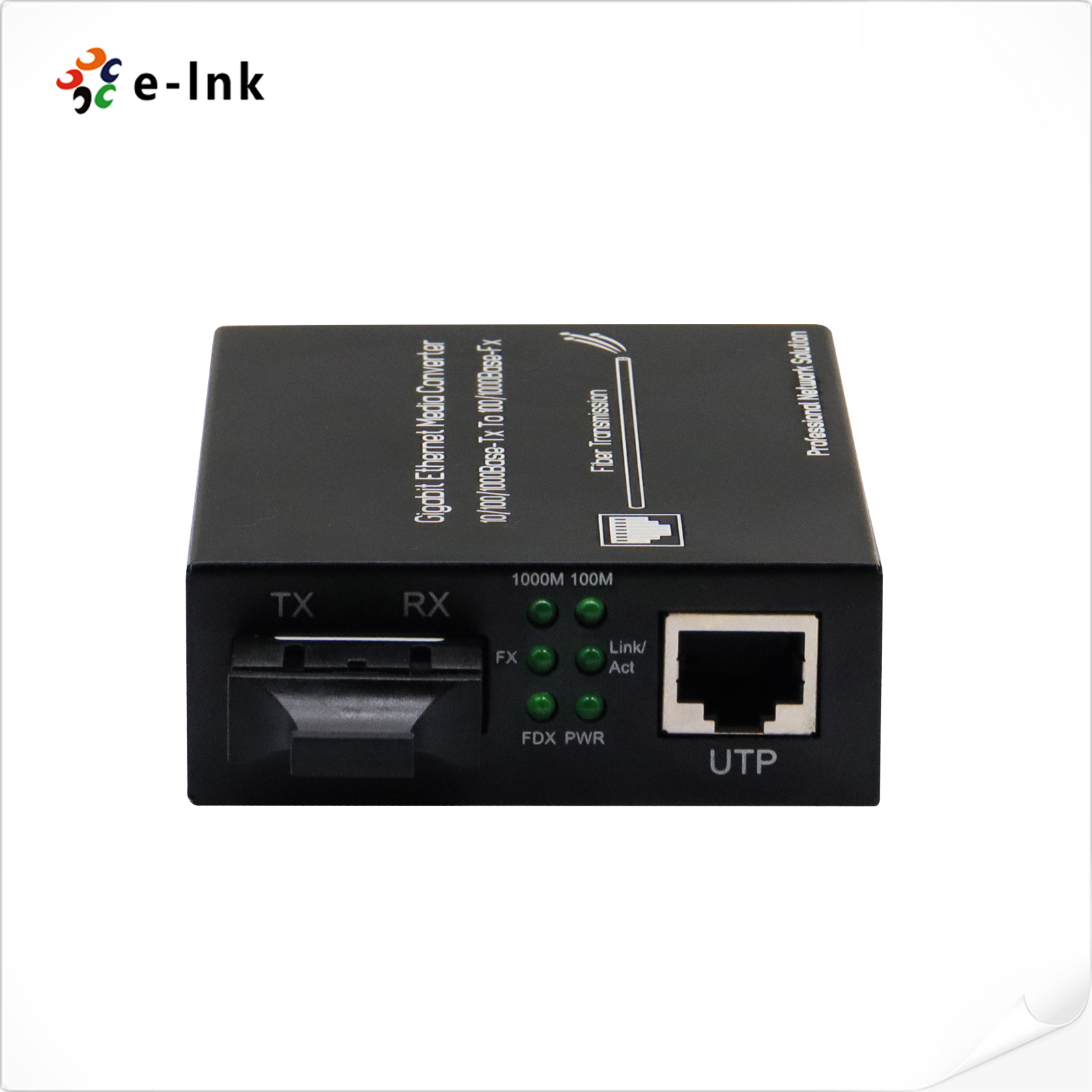

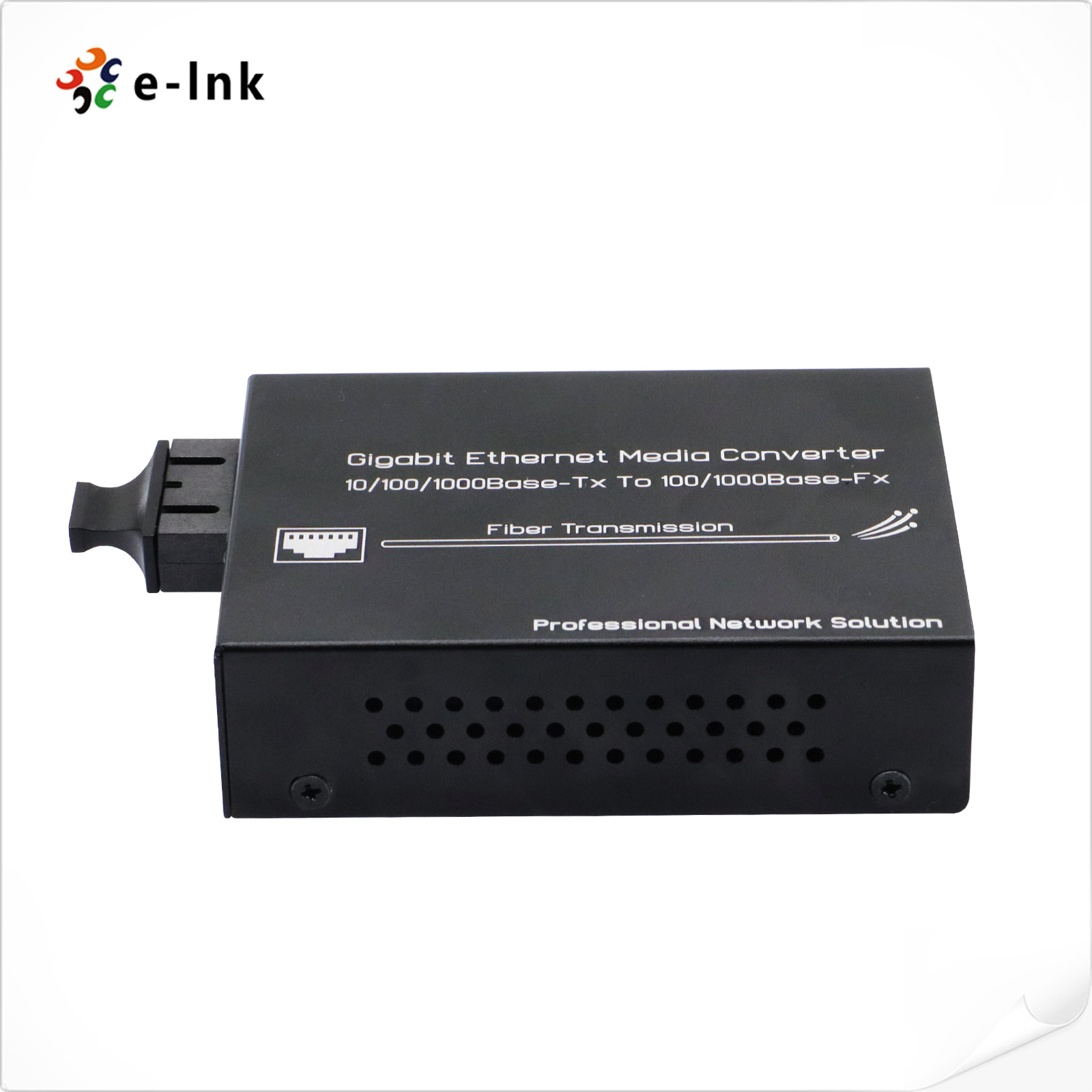

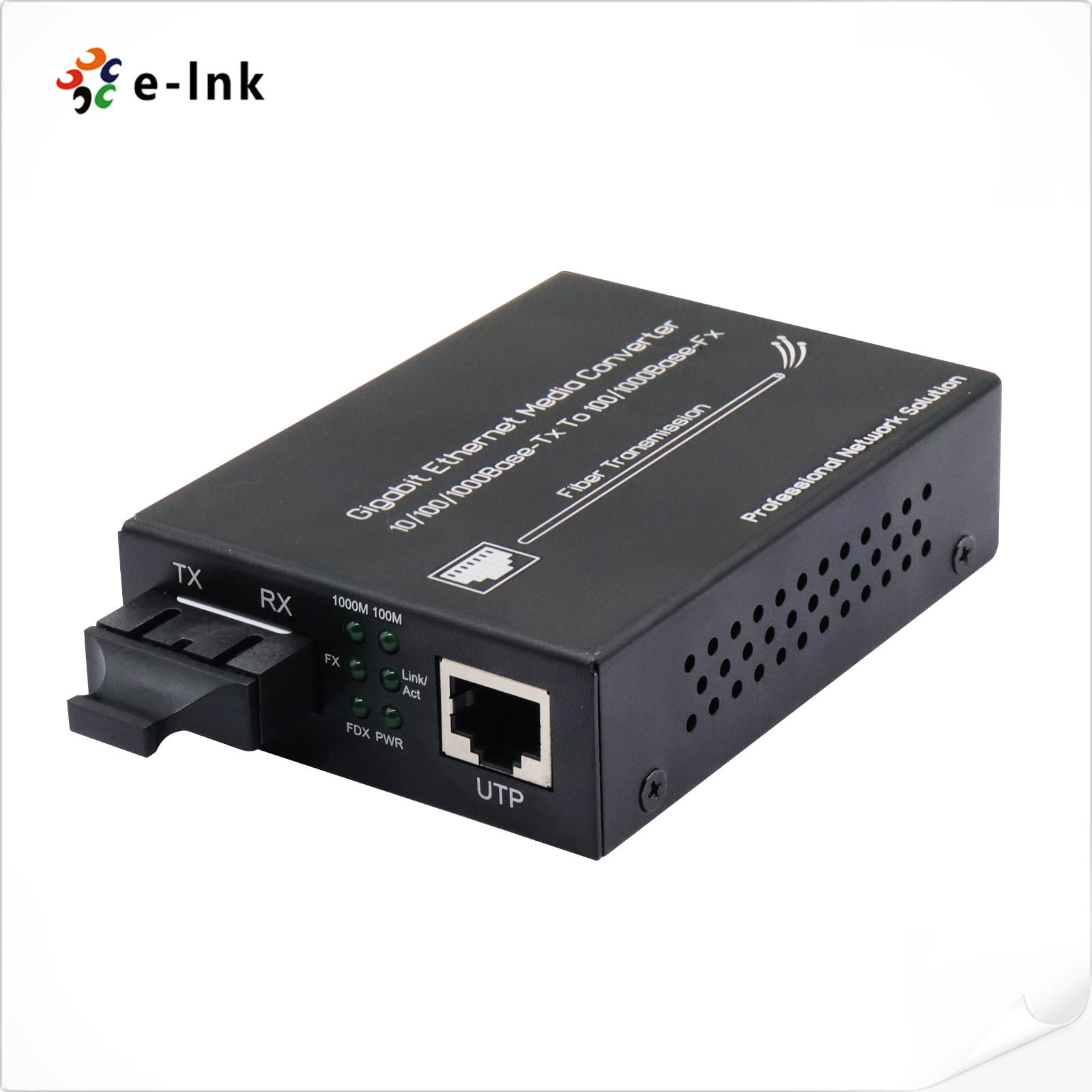

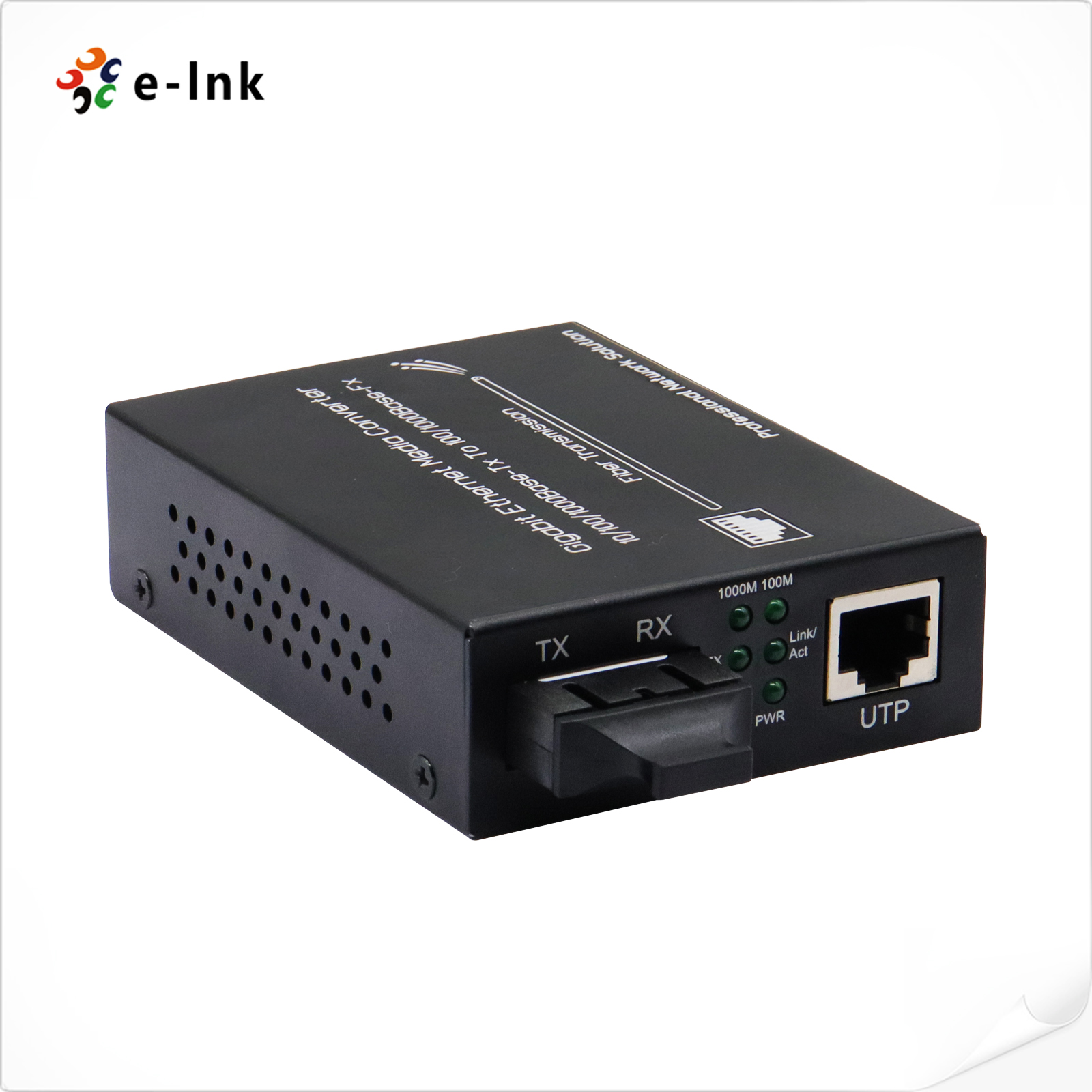

10/100/1000M Gigabit Ethernet Media Converter (External PSU)
Model:LNK-3011 Series
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
► 10/100/1000M media converter with SFP slot is available
► Supporting full-duplex and half-duplex and its auto-sensed
Overview
LNK-3011 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 20km via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Features
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
► 10/100/1000M media converter with SFP slot is available
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

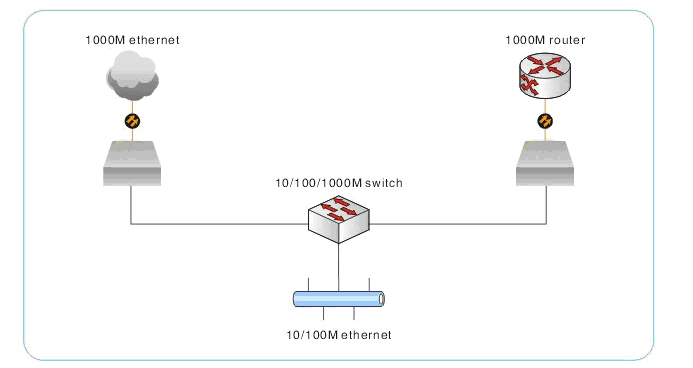

Application
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode Single fiber: SC/FC/LC(SFP) (9/125μm) |
|
Conversion means |
Media conversion |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
|

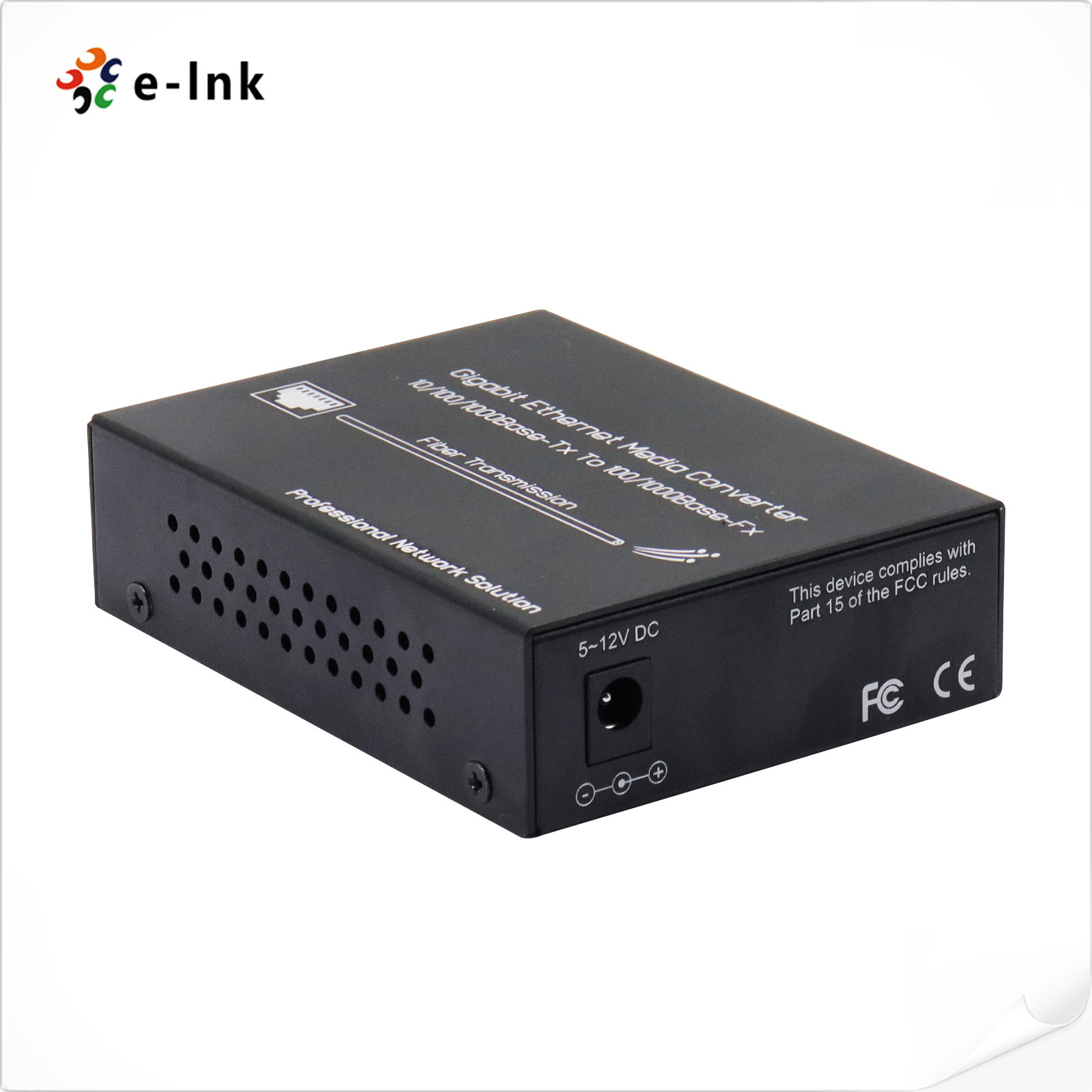

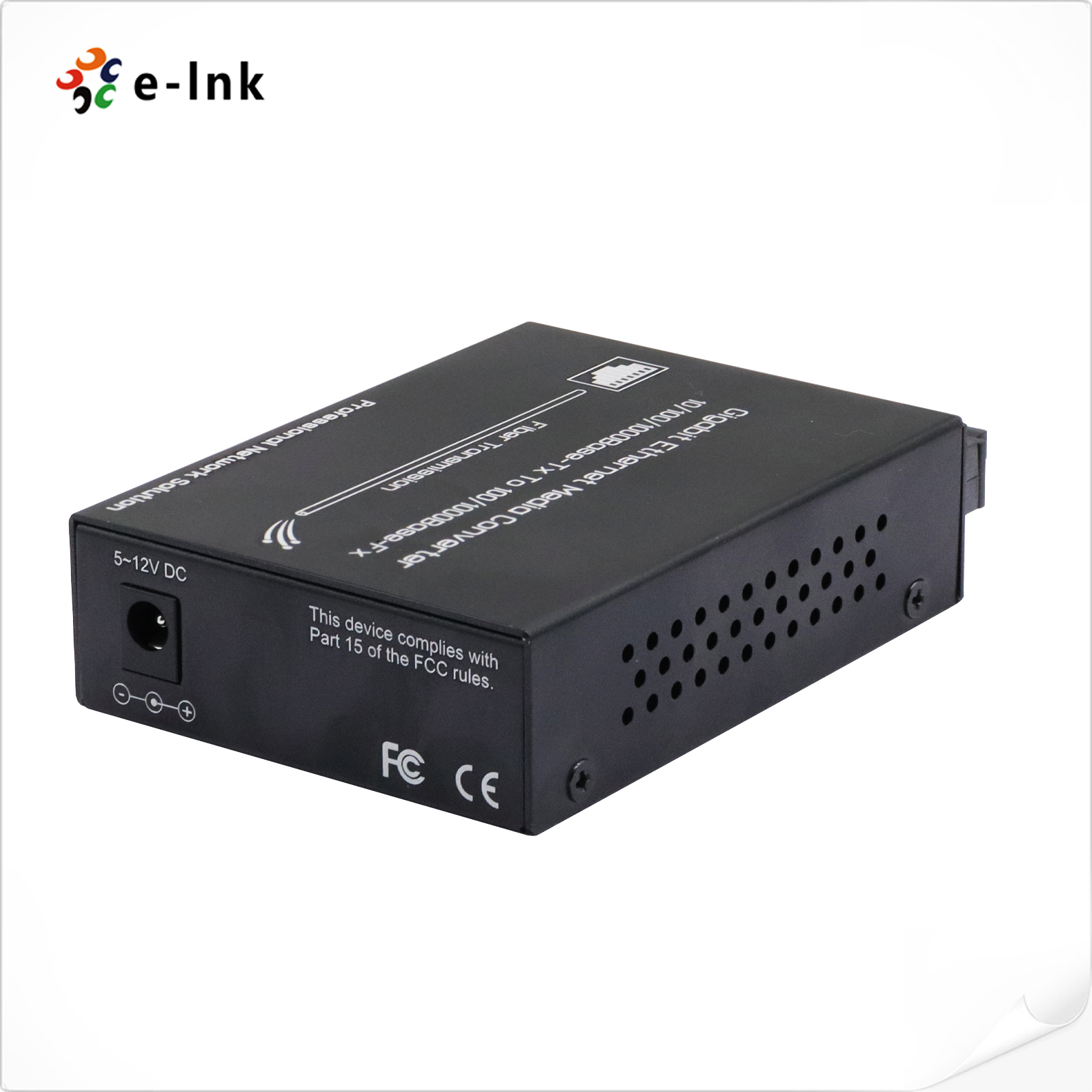

Power supply |
DC 5V / 1A |
|
Power consumption |
5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions (W x D x H) |
71 x 94 x 26 mm |
- Download FileName：E-link LNK-3011 Series Media Converter Datasheet V1.1.pdf Size： 1.67MB
Order Information
| Item | Description |
| LNK-3011 | 10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor |
| LNK-3011S-20 | 10/100/1000Base-T to 1000Base-F, single mode,20km, 1310nm, SC, standalone, external power adaptor |
| LNK-3011S-40 | 10/100/1000Base-T to 1000Base-F, single mode,40km, 1550nm, SC, standalone, external power adaptor |
| LNK-3011S-60 | 10/100/1000Base-T to 1000Base-F, single mode,60km, 1550nm, SC, standalone, external power adaptor |
| LNK-3011S-80 | 10/100/1000Base-T to 1000Base-F, single mode,80km, 1550nm, SC, standalone, external power adaptor |
| LNK-3011S-100 | 10/100/1000Base-T to 1000Base-F, single mode,100km, 1550nm, SC, standalone, external power adaptor |
| LNK-S3011-20 | 10/100/1000Base-T to 1000Base-F, WDM(single fiberbi-direction),20km, 1310/1550nm, SC, standalone, external power adaptor |
| LNK-S3011-40 | 10/100/1000Base-T to 1000Base-F, WDM(single fiberbi-direction),40km, 1310/1550nm, SC, standalone, external power adaptor |
| LNK-S3011-60 | 10/100/1000Base-T to 1000Base-F, WDM(single fiberbi-direction),60km, 1490/1550nm, SC, standalone, external power adaptor |
| LNK-S3011-80 | 10/100/1000Base-T to 1000Base-F, WDM(single fiberbi-direction),80km, 1490/1550nm, SC, standalone, external power adaptor |
