10/100/1000M Gigabit Ethernet Media Converter (Built-in PSU)
Model:LNK-3011N&C Series
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

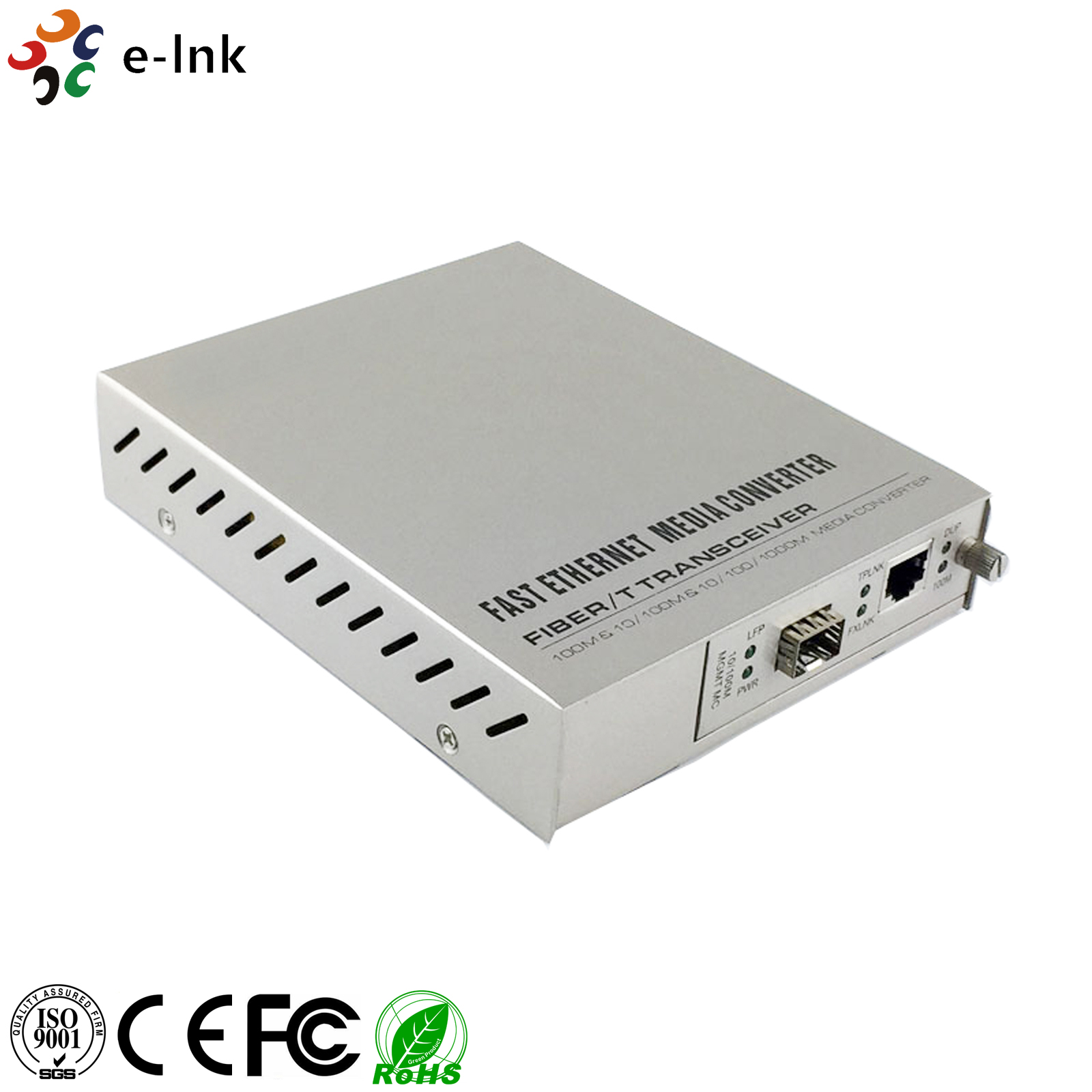

► 10/100/1000M media converter with SFP slot is available
Overview

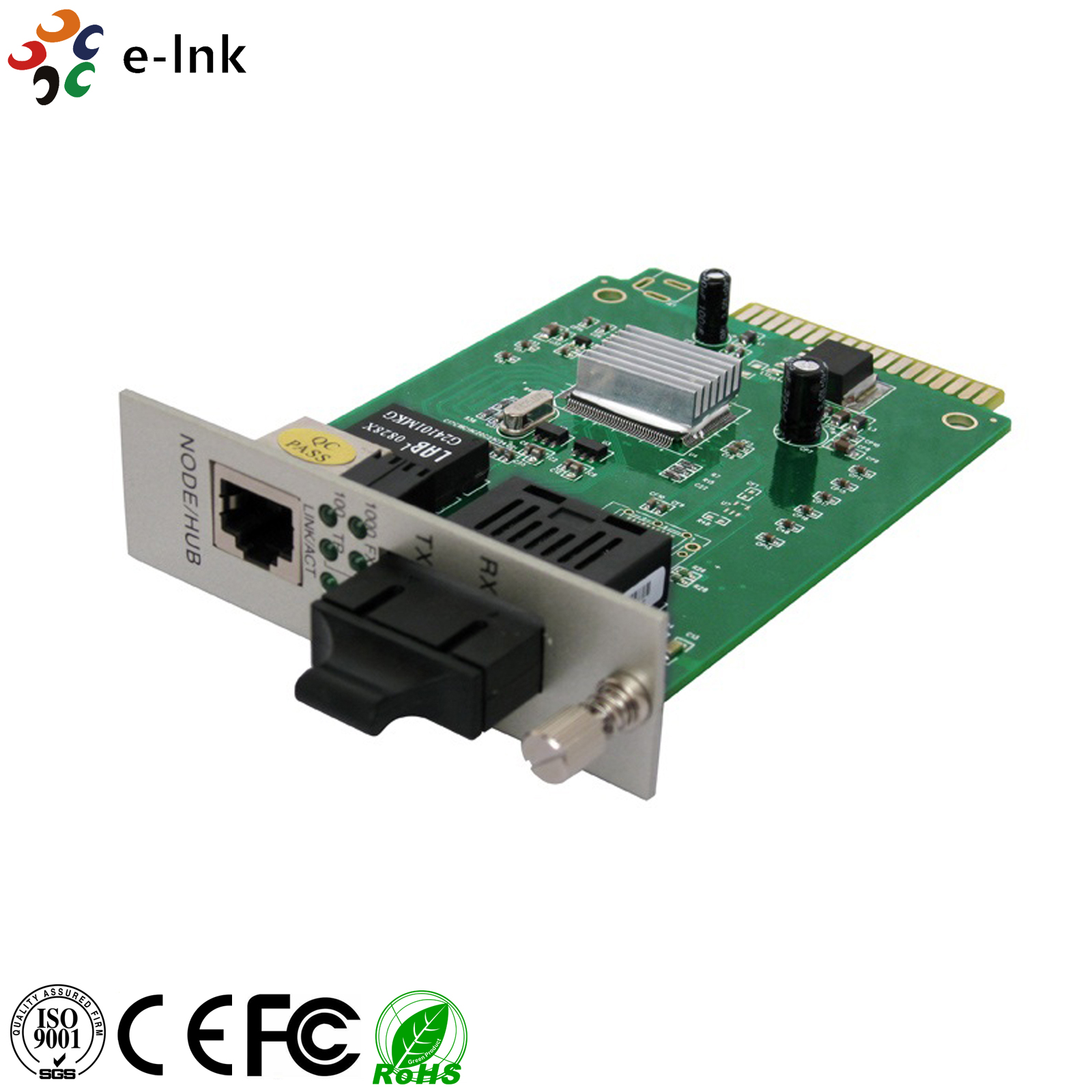

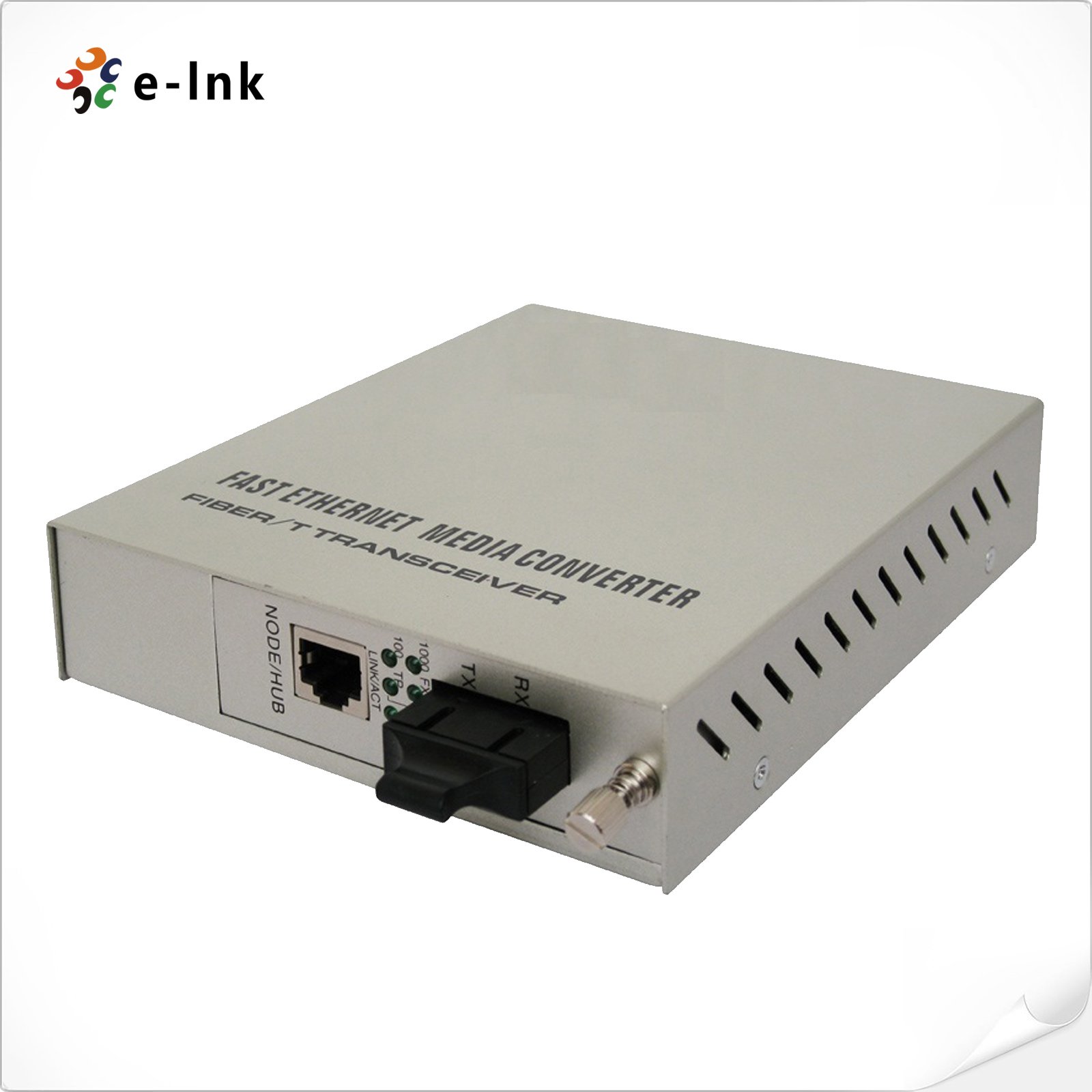

LNK-3011N&C 10/100/1000Mbps adaptive Card-type Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 20 km via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Features
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
► 10/100/1000M media converter with SFP slot is available
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

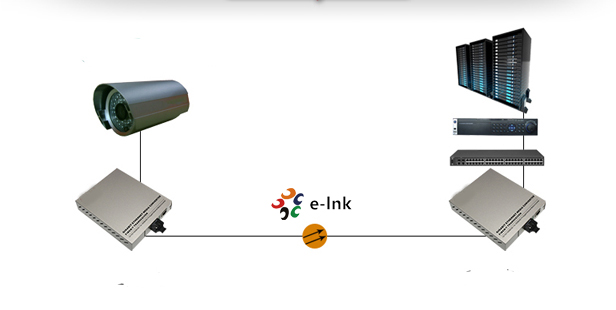

Application
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode Single fiber: SC/FC/LC(SFP) (9/125μm) |
|
Conversion means |
Media conversion |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
|
Power supply |
Internal: AC90~264V/DC100~380V input |
|
Power consumption |
5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
- Download FileName：E-link LNK-3011 Series Card-type Media Converter Datasheet V2.0.pdf Size： 193KB
Ordering Information
|
Item |
Description |
|
|
|
||
|
LNK-3011N |
10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, built-in power supply |
|
|
LNK-3011C |
Card-type Media Converter: 10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC |
|
|
LNK-3011N-20 |
10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, built-in power supply |
|
|
LNK-3011C-20 |
Card-type Media Converter: 10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC |
|
|
LNK-S3011N-20 |
10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, built-in power supply |
|
|
LNK-S3011C-20 |
Card-type Media Converter: 10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC |
|
|
LNK-3011N-SFP |
10/100/1000Base-T to 1000Base-F, SFP slot, excl. SFP module, built-in power, DC -48V |
|
