Optical Fiber

Wavelength

WDM:1310nm/1550nm

Output Power

-8~3dBm

Optic fiber

50/125u multimode, 62.5/125u multimode

9/125u single mode

Rx sensitivity

-26dBm

Optical connector

FC (default), ST or SC (optional)

Transmission Distance

0~550M (MM)

0~80KM (SM) (Default distance is 20Km)

Video

Number of Channels

32

Input/output impedance

75 Ohm (unbalance)

Standard video input/output voltage

1.0Vp-p

Video Bandwidth

50MHz

Sampling Bandwidth

8bit

Sampling Frequency

108MHz

Signal to noise ratio

>67dB

Rise and Fall time

<0.8ns

Optical Signal Intrinsic Jitter

<0.2 UI

Differential Gain

<±1.5%

Differential Phase

<±1°

Connector

BNC

Supporting video pixel/Resolution

1280(H)x720(V)@30Hz/1MPX

1280(H)x720(V)@50Hz/1MPX

1280(H)x960(V)@30Hz/1.3MPX

1920(H)x1080(V)@30Hz/2MPX

PTZ Data

Protocol

Default: RS485 (RS232/RS422 Optional)

Number of channels

1

Connector

3pins Terminal Blocks

Data Rate

0-200Kbps

Directions

Default: Simplex from Rx to Tx (BIDI duplex optional)

Environmental

Operating Temperature:

-15°C to65°C (5°F to 149°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

>100,000 hrs

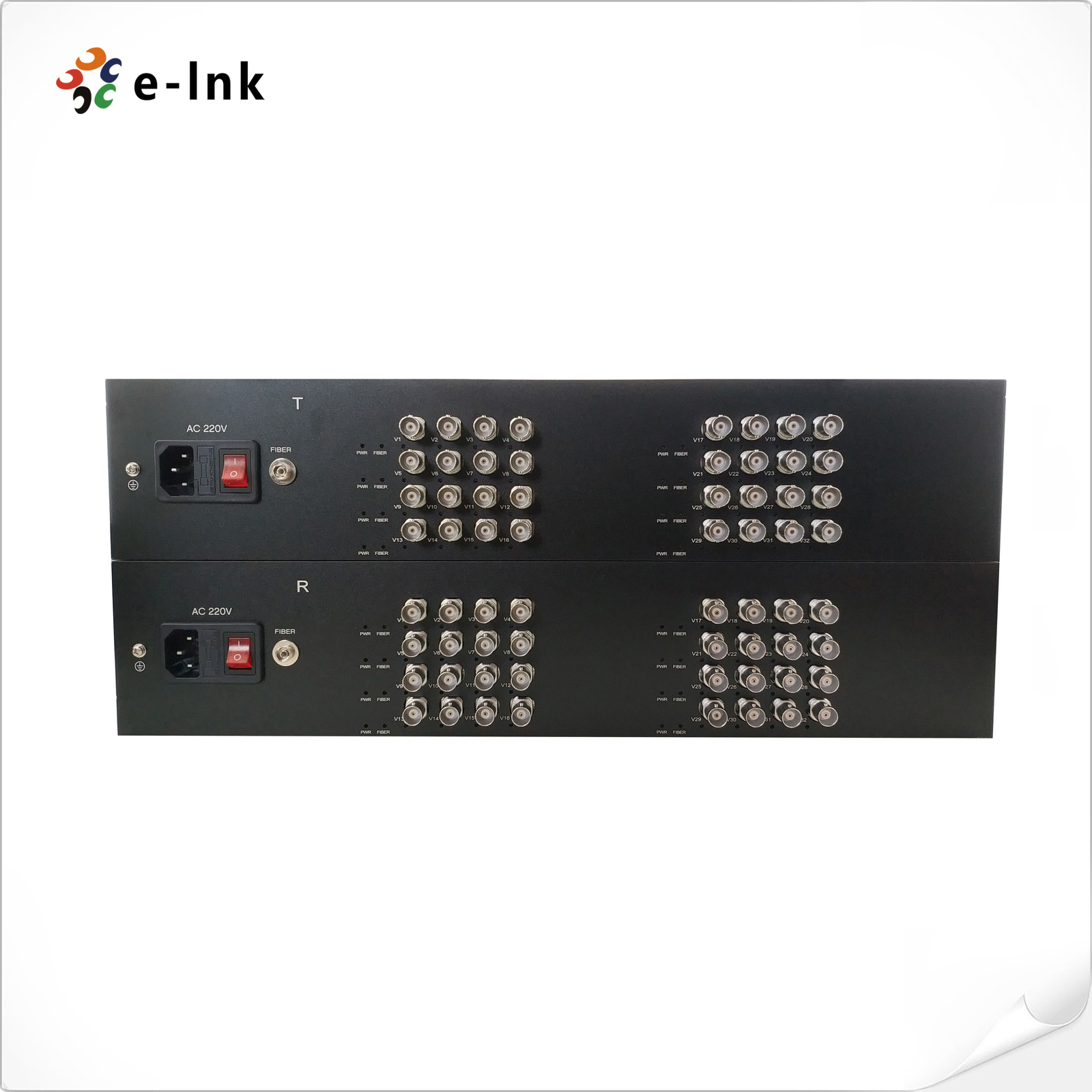

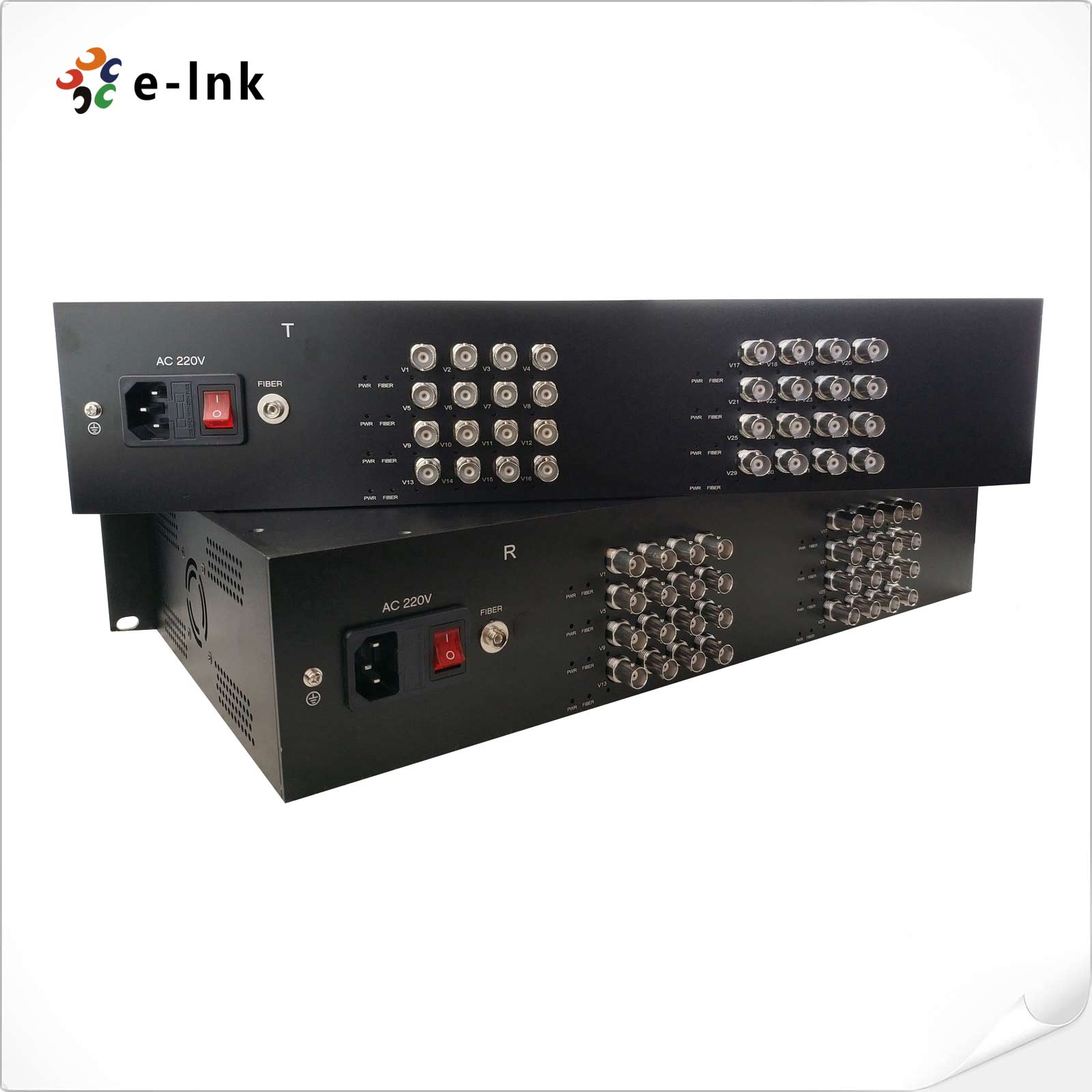

Electrical and Mechanical

Input Power:

90~240VAC

Power Consumption:

≤16W

LED Indicators:

Fiber

Fiber Status

Video

LED1~LED32

Data

Data status

PWR

Power Status

Dimensions (WxDxH):

19” 2U chassis

422 x 230 x 90mm

Weight:

15KG

Casing:

Metal Case

Mounting Options:

Rack-mount

Regulatory Approvals

ISO9001

CE, RoHS and FCC
