Parameter

Specifications

Standard

IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3x for Flow control

Switch Properties

MAC Table Size: 2K   Packet Buffer Size: 1Mbit

Processing Type: Store and Forward

Exchange Properties: 148800pps (100M)

RJ45 port rate

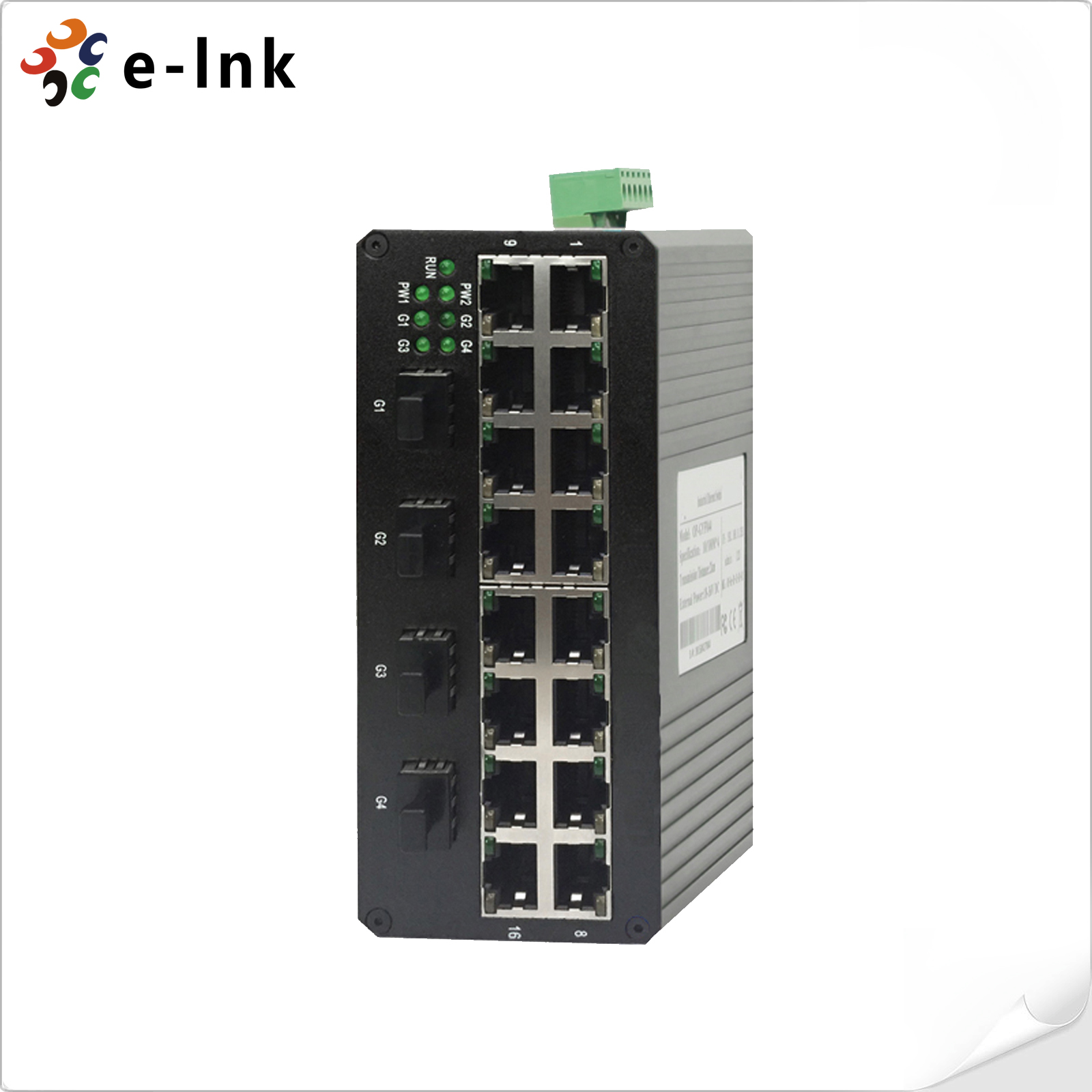

16 x RJ45 Ports: 10/100BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection

Fiber Ports

4 x 1000BASE-SFP ports

Transmission

Twisted pair: 100m (Standard CAT5/CAT5e cable)

Fiber: Depends on SFP

Power Input options

Input Voltage: 24VDC(18~36V DC), Redundant dual inputs

Opposite connection protection

Environmental Limits

Operating Temperature: -40℃ to +80℃

Storage Temperature: -45℃ to +85℃

Relative Humidity: 5% to 95% (non-condensing)

Mechanical Dimension

Dimensions:138 x 112 x 60 mm (LxWxH)

House Protection: IP40 protection, Aluminium Alloy

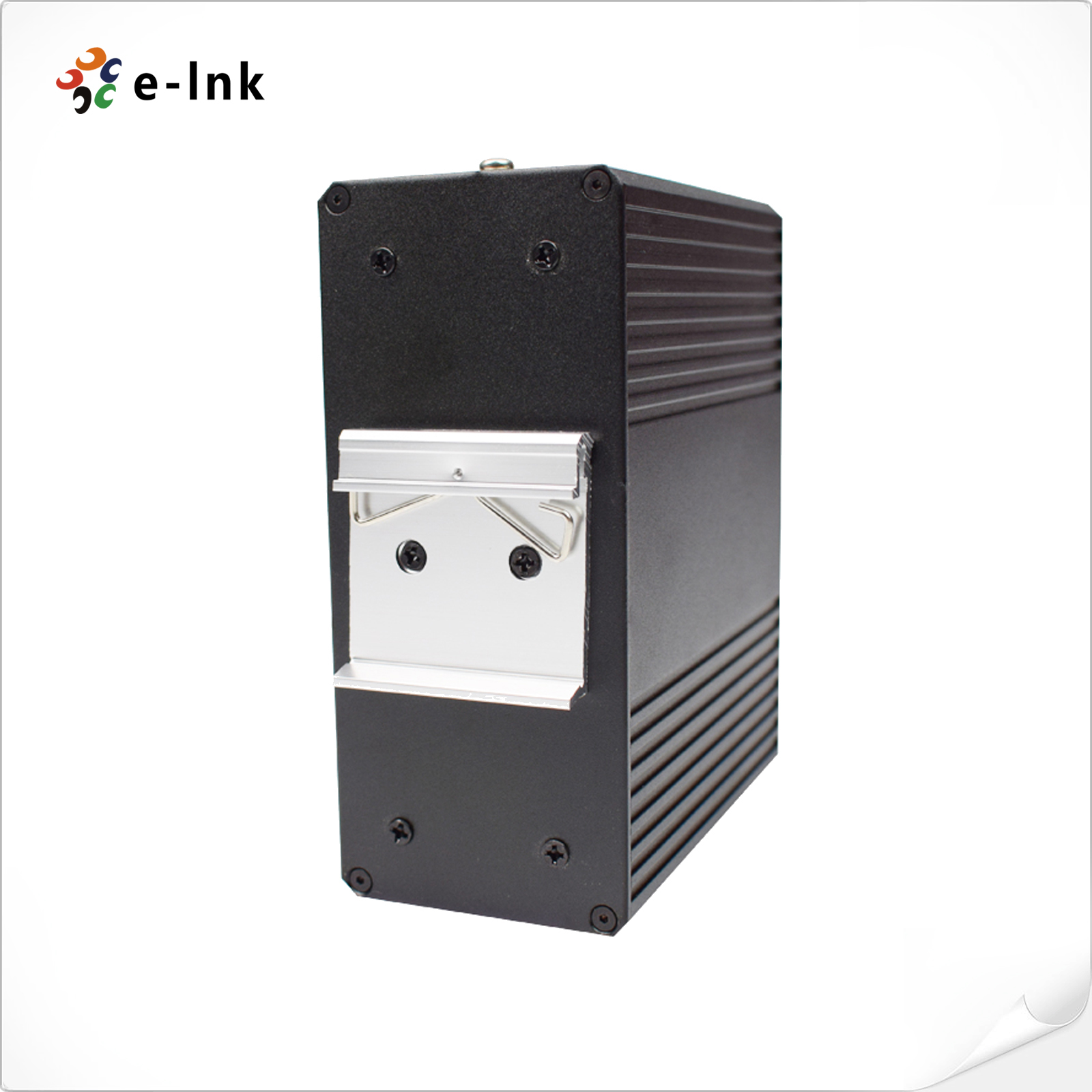

Installation: DIN-Rail or wall mounting

Weight: 670g

Approvals

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

 • EN61000-4-2 (ESD)，Level 3

 • EN61000-4-3 (RS)，Level 3

 • EN61000-4-4 (EFT)，Level 3

 • EN61000-4-5 (Surge)，Level 3

 • EN61000-4-6 (CS)，Level 3

 • EN61000-4-8，Level 3

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
