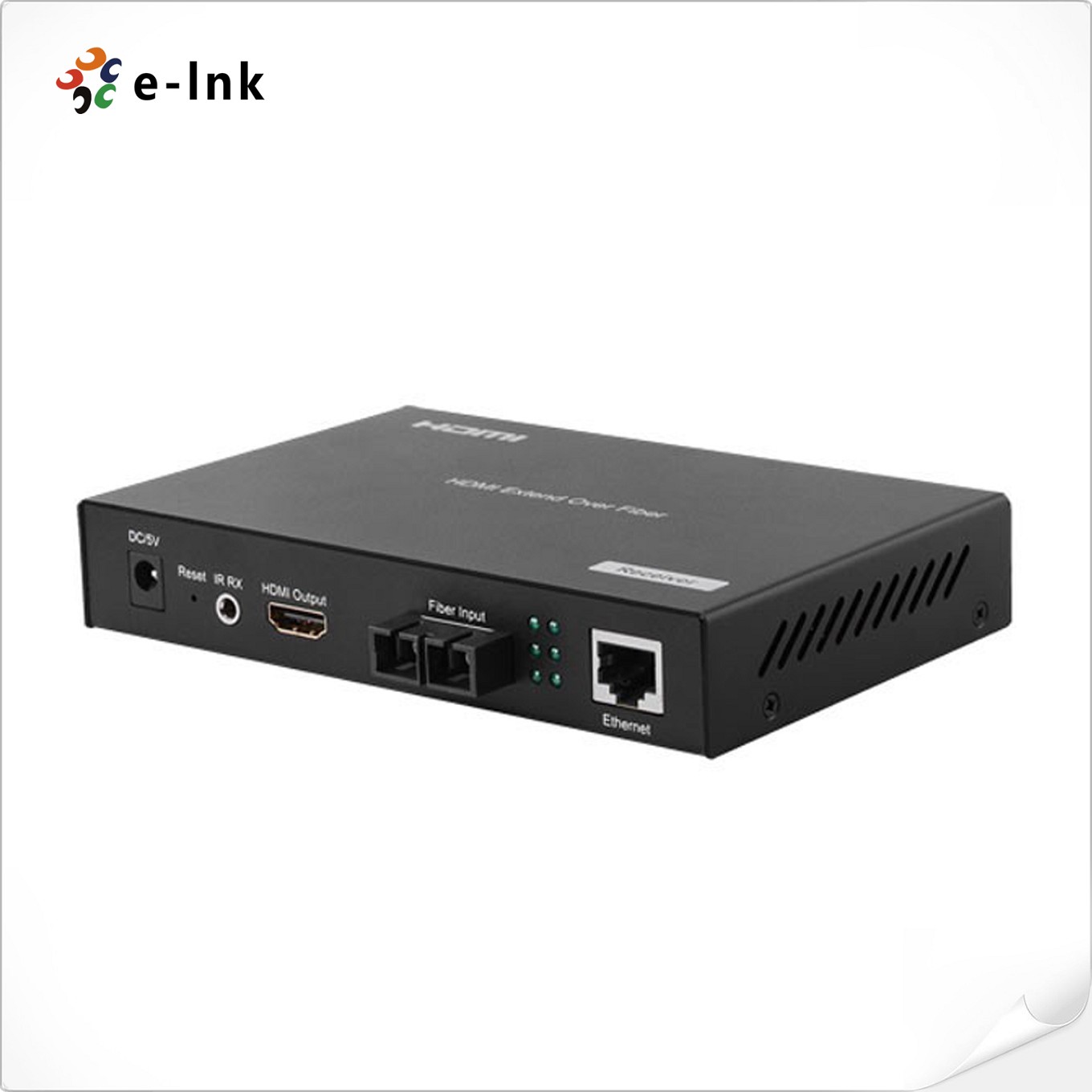

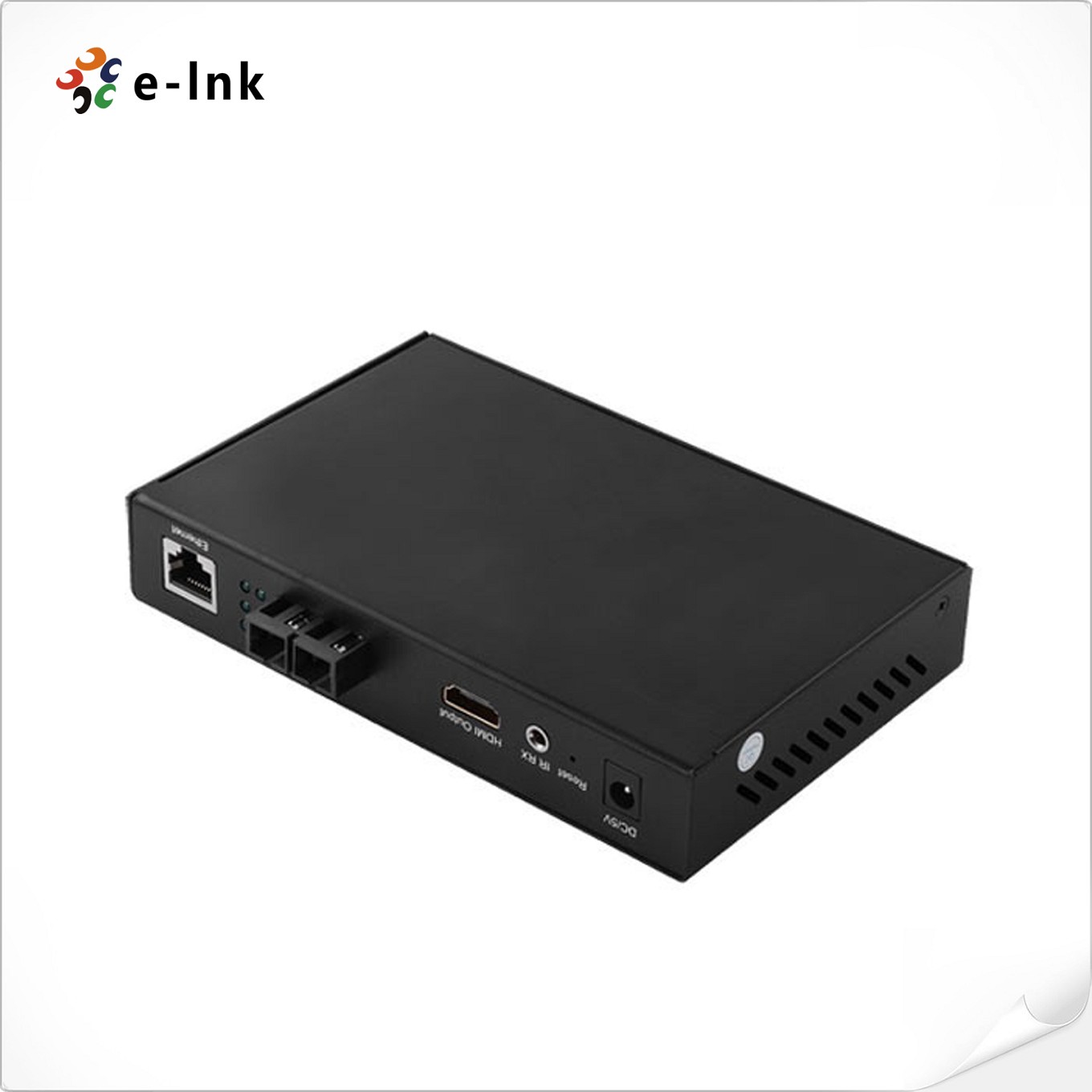

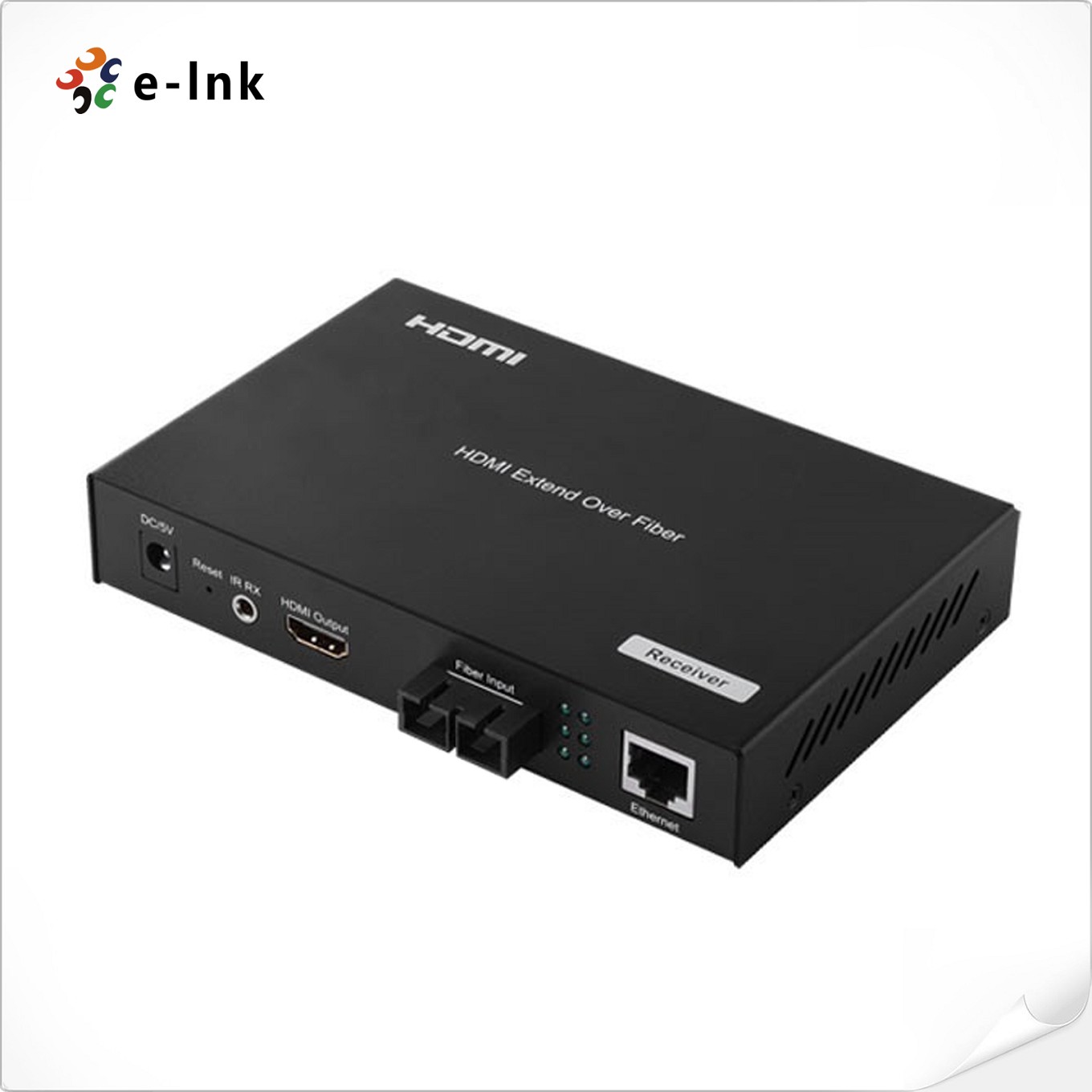

1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender
Model:LNK-HD-FE series
► Automatically adapt range of input signal sampling frequency（32～100KHz）
► Provides high-resolution image quality.
► Extends 1080p HDMI signals up to 20km over a optic cable.
Overview
LNK-HD-FE HDMI over Fiber Extender is a high quality HDMI Extender product, extend 1080P HDMI Signal up to20kmover a single optical fiber cable, built in IR remote control, and with Ethernet pass through. It provides high resolution image quality; 1080p high definition video, let people can enjoy clear HD Video effects.
Features
► Automatically adapt range of input signal sampling frequency（32～100KHz）
► Provides high-resolution image quality.
► Plug-and-play operation - no programming or setup required.
► Extends 1080p HDMI signals up to 20km over a optic cable.
► Optical fiber use rules out any RF interference.
► Ethernet Pass-Through.
► Built in IR remotecontrol.

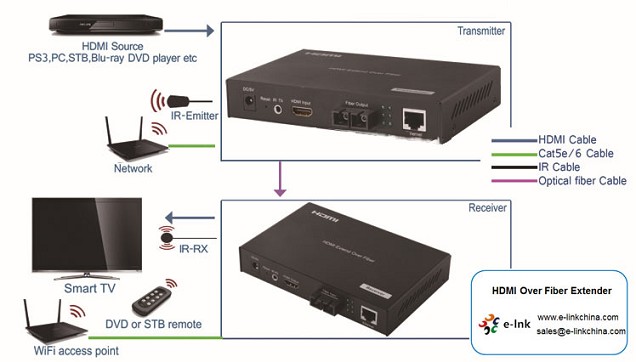

Application
Technical Indexes
|
Operating Temperature |
-5°Cto35°C(23°Fto95°F) |
|
Storage Temperature |
-10°Cto70°C(14°Fto158°F) |
|
Operating Humidity |
10 to 90%RH (No Condensation) |
|
Storage Humidity |
5 to 90%RH (No Condensation) |
|
Fiber Module |
1310nm Single Mode Transmitter & Receiver |
|
Fiber Connector |
SCDuplex Connector |
|
Transmission Distance |
1080P 36bit @60Hz 20Km(Maximum) |
|
Power consumption |
TX:8watts; RX:8watts((Maximum) |
|
IR wavelength &frequency |
Wavelength:940nm,frequency 38kHz |
|
Dimension (L×W×H) |
TX & RX:154x99.5x27mm |
|
Net Weight |
Transmitter:410g, Receiver:410g, |
|
LED Indicators |
Power, Link/Act and Speed |
- Download FileName：E-link LNK-HD-FE 1-Ch HDMI Video + 1-Ch 10100M Ethernet over Fiber Extender Datasheet V1.0.pdf Size： 120KB
Ordering Information
|
Model |
Description of product |
|
LNK-HD-FE-20 |
1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Converter, Single Mode Fiber, 20KM, SC, including transmitter and receiver, used by pairs |
