► The configuration of active/standby power supply ensures uninterruptible operation of the system
► Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments
Overview

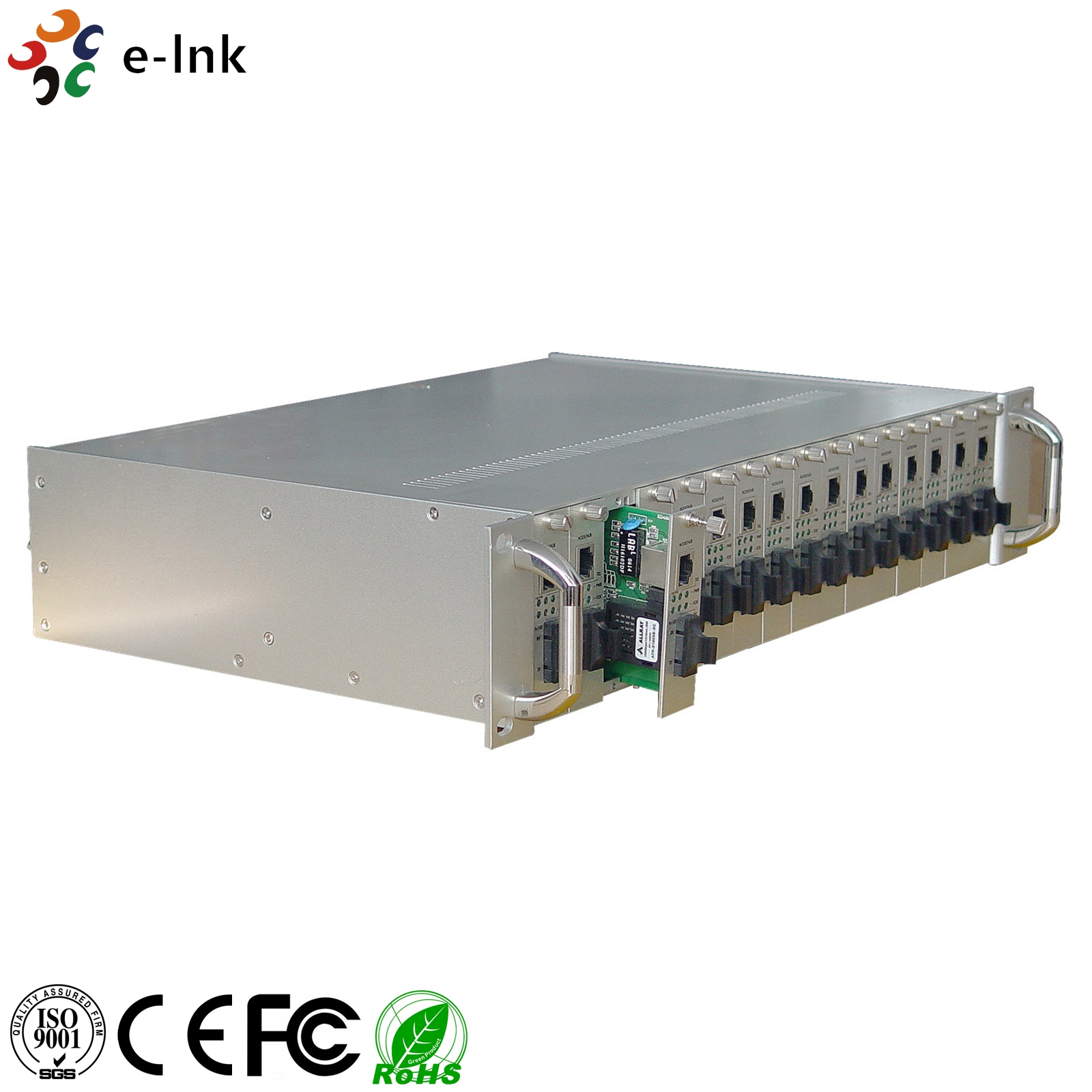

LNK-R16 Series is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different types of module type media converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.Features
► The configuration of active/standby power supply ensures uninterruptible operation of the system
► Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments
► Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability
► Supports hot swapping
► Applicatory module types: LNK-1100C (10/100M Card-type Media Converter) series, LNK-3011C(10/100/1000M Card-type Media Converter) series, and LNK-10G-MC-P (10G Card-type Media Converter) Series
Technical Indexes
Parameter |
Specifications |
Number of slots |
16 |
Structure |
2U rack |
Power input |
AC Voltage: AC 85~265V; frequency: 50/60 Hz |
|
DC voltage: DC-36~72V |
Power output |
DC5V 16A |
Ripple |
≤20mv |
Power configuration |
Single power supply; or Dual power supply for warm backup mode |
LED indication |
POWER (power supply) |
Max. power consumption |
95W |
Operating temperature |
-10~55ºC |
Operating humidity |
5%~90% |
Maintaining temperature |
-40~70ºC |
Maintaining humidity |
5% ~ 90% non-condensing |
Ordering Information
LNK-R16-1-A |
16-slot, single power supply-AC220V-19''2U- black-for card-type media converter |
LNK-R16-2-A |
16-slot, dual power supply-AC220V-19''2U- black-for card-type media converter |
LNK-R16-1-D |
16-slot, dual power supply-DC-48V-19''2U- black-for card-type media converter |
LNK-R16-2-D |
16-slot, dual power supply-DC-48V-19''2U- black-for card-type media converter |
