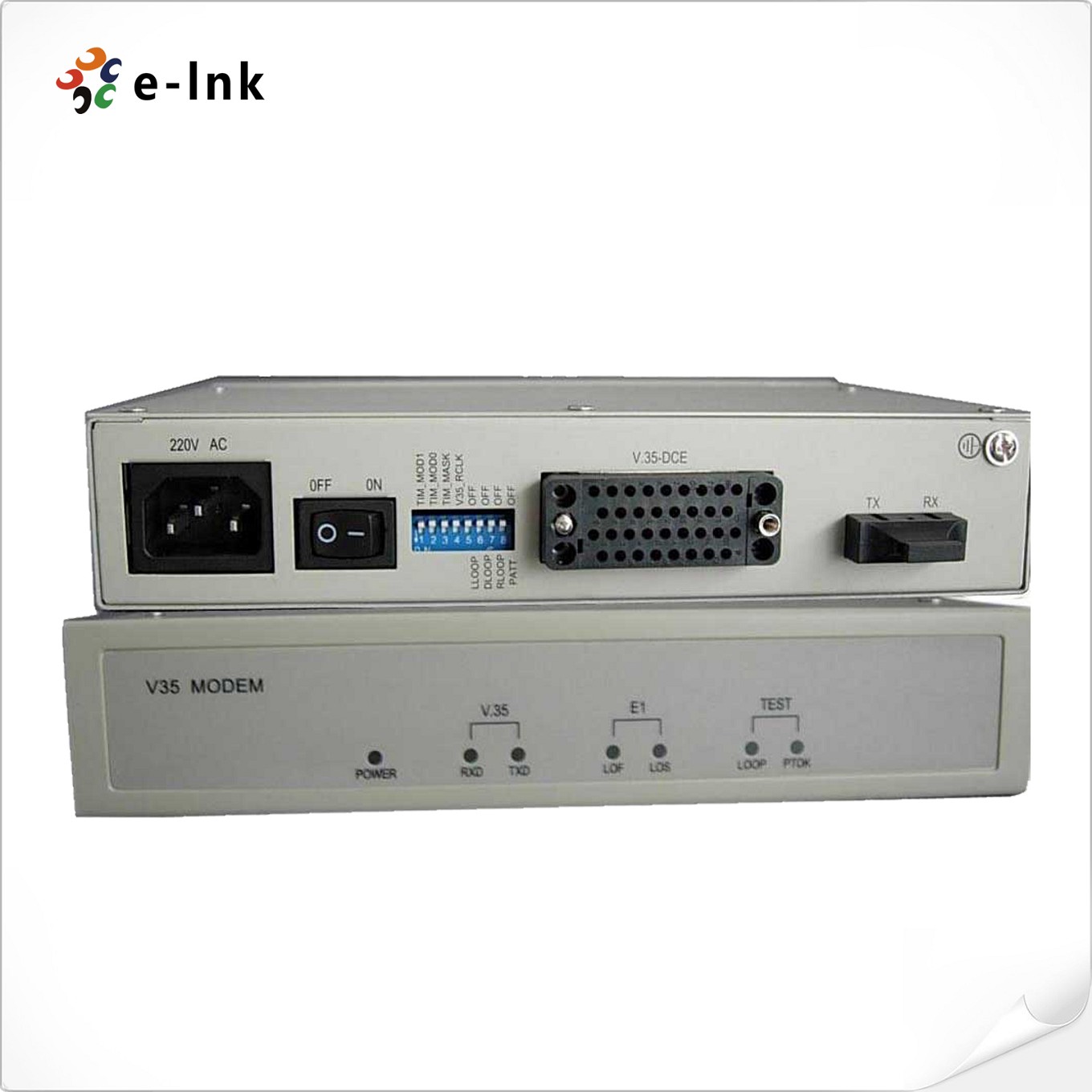

V.35 Fiber Optic Modem
Model:LNK-2707
►Providing one V.35 port, with the rate of N × 64 Kb/s (N = 1-32), adjustable
►Providing three timing modes: mater timing, tracing V.35 port, and tracing optical port
V.35 fiber optic Modem is a kind of communication equipment to transmit one channel of V.35 data over a pair of fibers. It uses ASIC chip, adopts modular structure inside, integrates the functions of coding, decoding, information insertion, and alarm switchover. Therefore its circuit is simple, structure is compact and power consumption is low. It is widely used in the occasions that require high reliability and complete auxiliary functions.
►Providing one optical port, supporting point-to-point connection in pairs or connection to E1 fiber optic Modem;
►Providing one V.35 port, with the rate of N × 64 Kb/s (N = 1-32), adjustable
►Providing three timing modes: mater timing, tracing V.35 port, and tracing optical port
►Supporting automatic tracing function of remote timeslot bandwidth
►Providing auto-sensation between the receive clock and data phase at V.35 port
►Supporting multiple loopback functions and bit error of internal link test function, facilitating engineering commissioning
►Providing the remote electrical outage detection function, which can tell whether it is fiber cut or the remote electrical outage
►Rich panel display enables the user easy to identify the fault

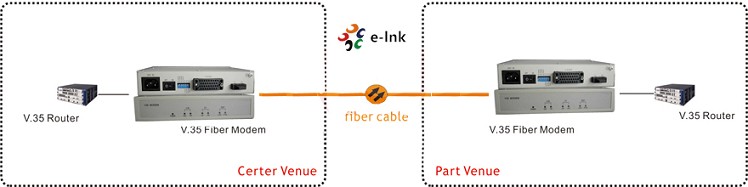

Application
Technical Parameters
|
Optical Interface Index |
||
|
Optical link rate |
4.096 Mb/s |
|
|
Wavelength |
1310 nm (default) / 1550 nm (optional) |
|
|
Transmission distance |
40 km (default) / 60 km, 80 km, 120 km (optional) |
|
|
Optical output power |
>-12 dBm |
|
|
Receiving sensitivity |
superior to – 36 dBm (BER ≤10-10) |
|
|
Optical connector |
FC (default)/SC (optional) |
|
|
Optical fiber |
dual-fiber (default) / single fiber (optional) |
|
|
V.35 Interface Index |
||
|
Rate |
Nx64 Kb/s (N = 1-32) |
|
|
Interface characteristics |
compliant with V.35 standard |
|
|
Connector |
DB25 socket Working in DTE or DCE mode (set by selecting the clock of equipment) auto-sensation between the receive clock and data phase Phase of output data can be selected through the DIP switch RXC_MOD |
|
|
Interface level |
Data and clock signals are differential signals,V.35orV.11level optional,and V.35 level by default Control signal is non-balanced signal, with electrical characteristics of V.28 |
|
|
Note:TheselectionofelectricalcharacteristicsV.35levelandV.11levelofdataandclocksignalsaremade by the jumper J19 (beside SP322) inside the equipment. The default value isV.35level. If it is required to settoV.11level,pleaseopenthechassisandmakeselectionbyyourself.Pleasedonotchangethedefault positions of other jumpers. |
||
|
Power Index |
||
|
Power supply |
AC 220V (175V – 265V); or DC -48V (-36V – -72V) |
|
|
Power consumption |
<5W |
|
|
Model |
Description |
|
LNK-2707 |
V.35 Fiber Optic Modem, V.35 Rate (Nx64K), DTE or DCE Mode, Single Mode Fiber, 20KM, FC Fiber Connector, AC220V or DC-48V |
