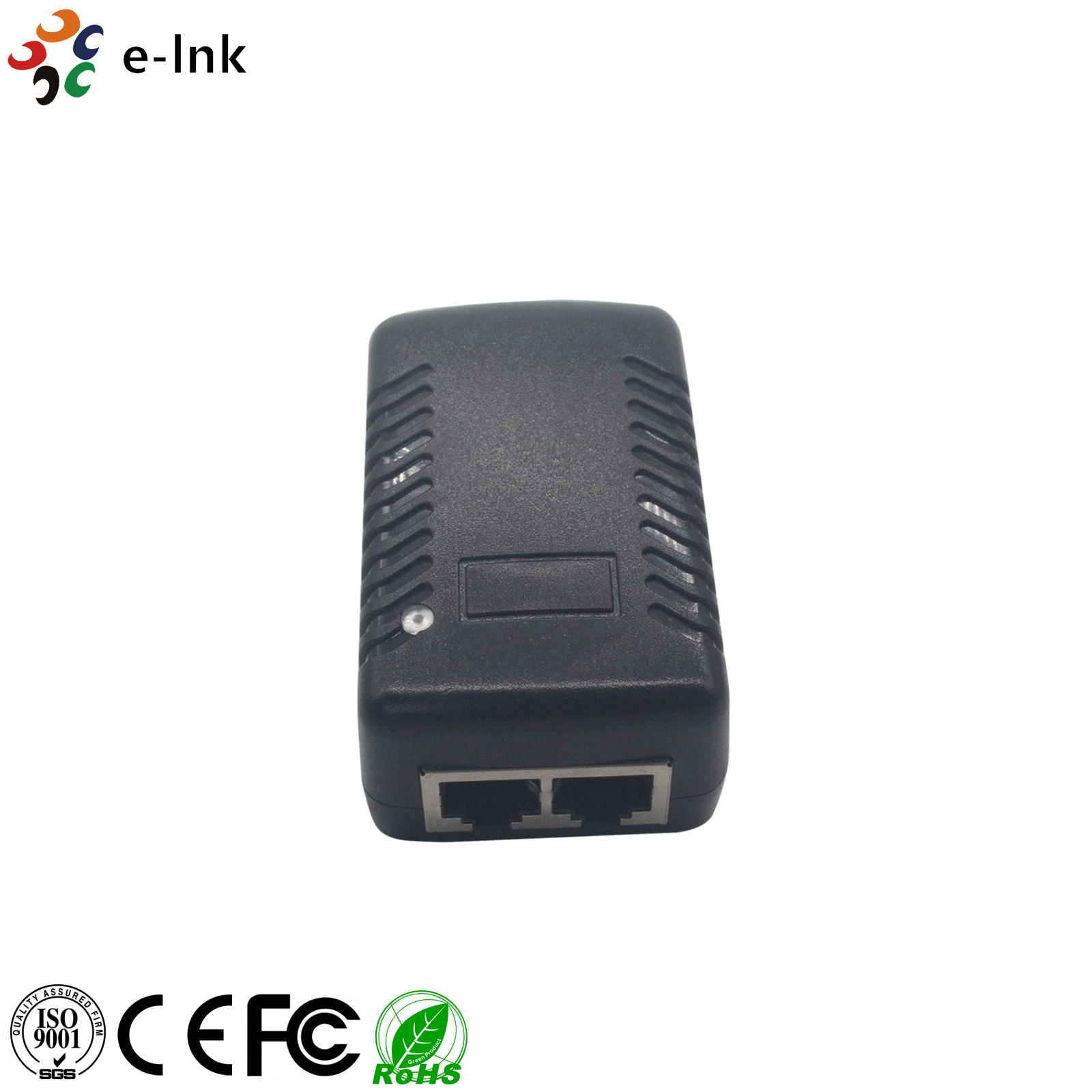

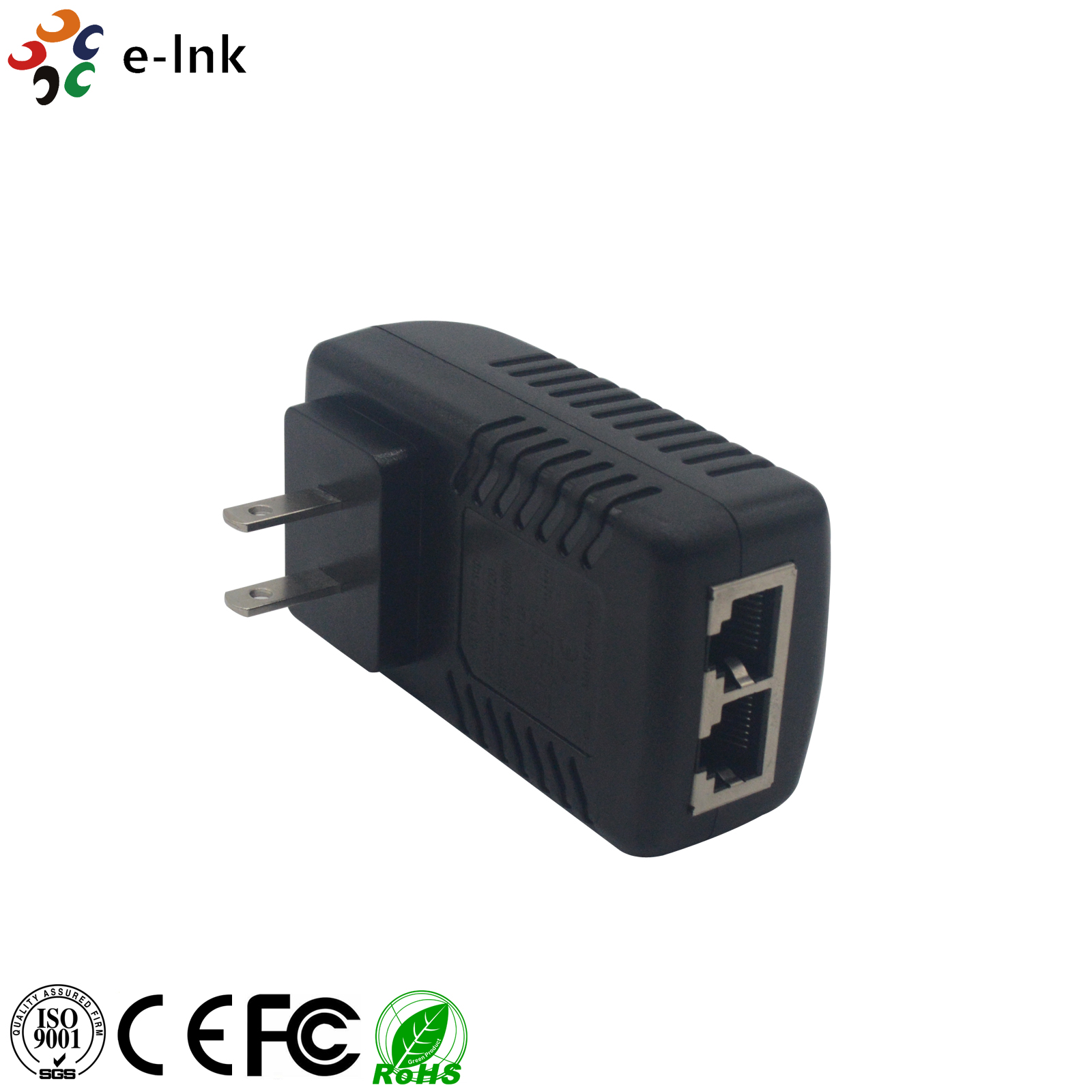

56VDC 35W 10/100/1000M Gigabit POE Injector
Model:LNK-POE56V
► Up to 56V 35W of PoE Power
► Fully IEEE802.3af/IEEE802.3at compliant
Overview
The LNK-POE56V Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.
Features
►Up to 56V 35W of PoE Power
►Fully IEEE802.3af/IEEE802.3at compliant
►Supports 10/100/1000M LAN environment
►Plug & Play
►No configuration required
►Reduced Installation cost
►Safe and Reliable Power to WLAN Access Points
►Automatic Detection and Protection of Non–standard Ethernet Terminals

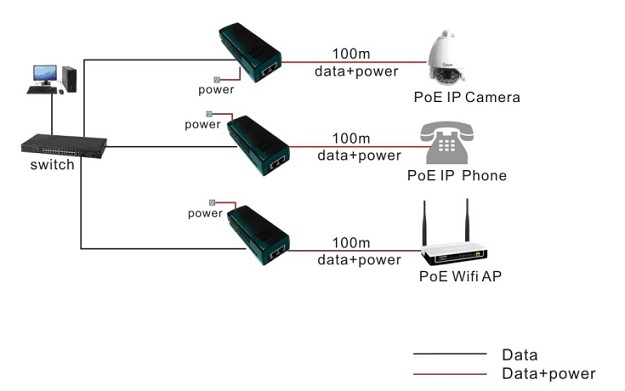

Application
Technical Indexes
|
Parameter |
Specifications |
|
Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
|
• Data Input Interface RJ-4510/100/1000Base-TX |
|
|
• Output Port Power Cable Included |
|
|
Data Rate |
10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
35W 56VDC |
|
Wiring |
|
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Operating Temperature |
0 to +40°C, |
|
Humidity |
Max. 95% RH(non-condensing) |
|
Dimension |
61×40×12(H×D×W) |
|
Weight |
200g |
- Download FileName：E-link LNK-POE56V PoE Injector Datasheet V1.0.pdf Size： 509KB
Ordering Information
|
Model |
Decription |
|
LNK-POE56V |
PoE Adapter, 10/100/1000Mbps,support 56V 35W PoE power |
