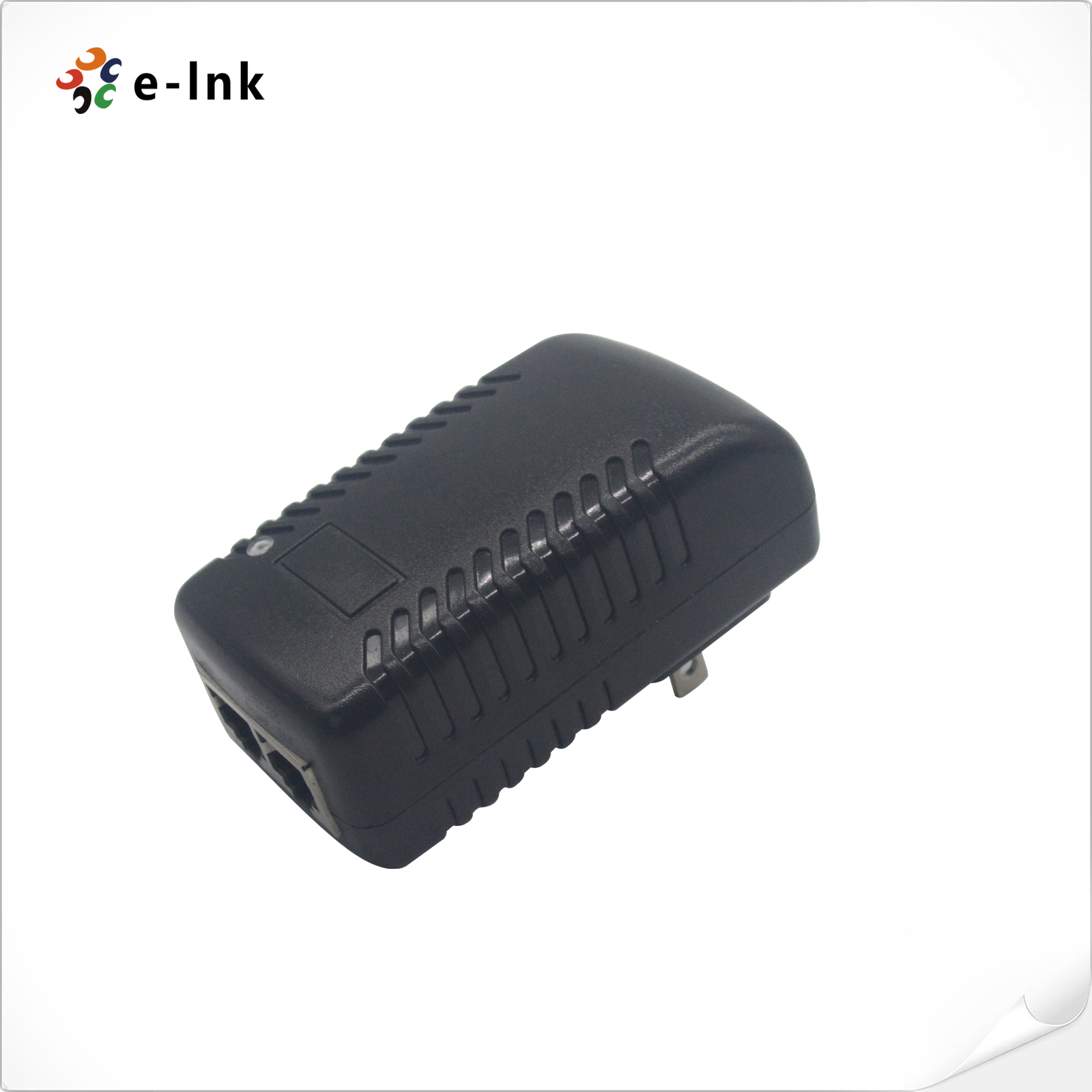

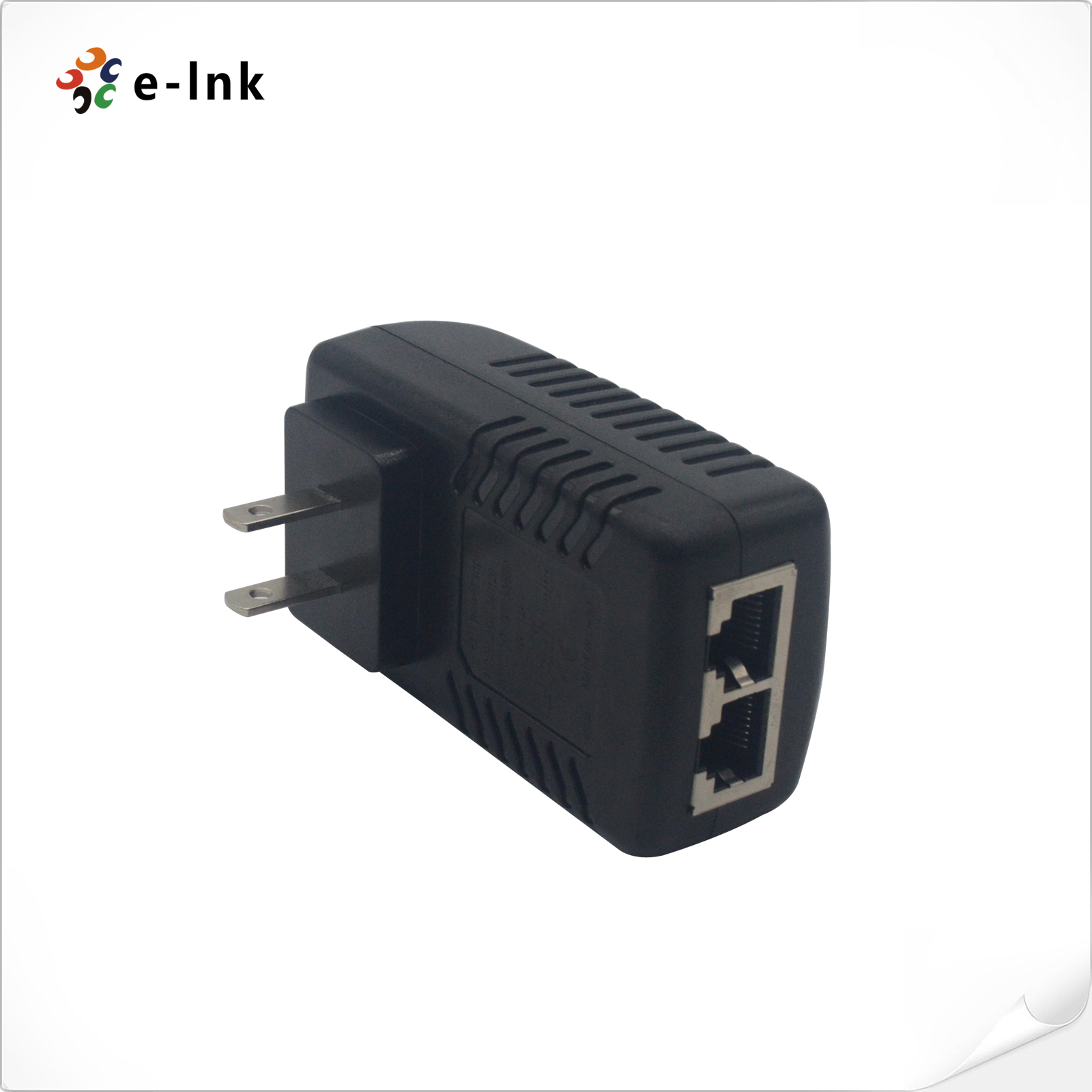

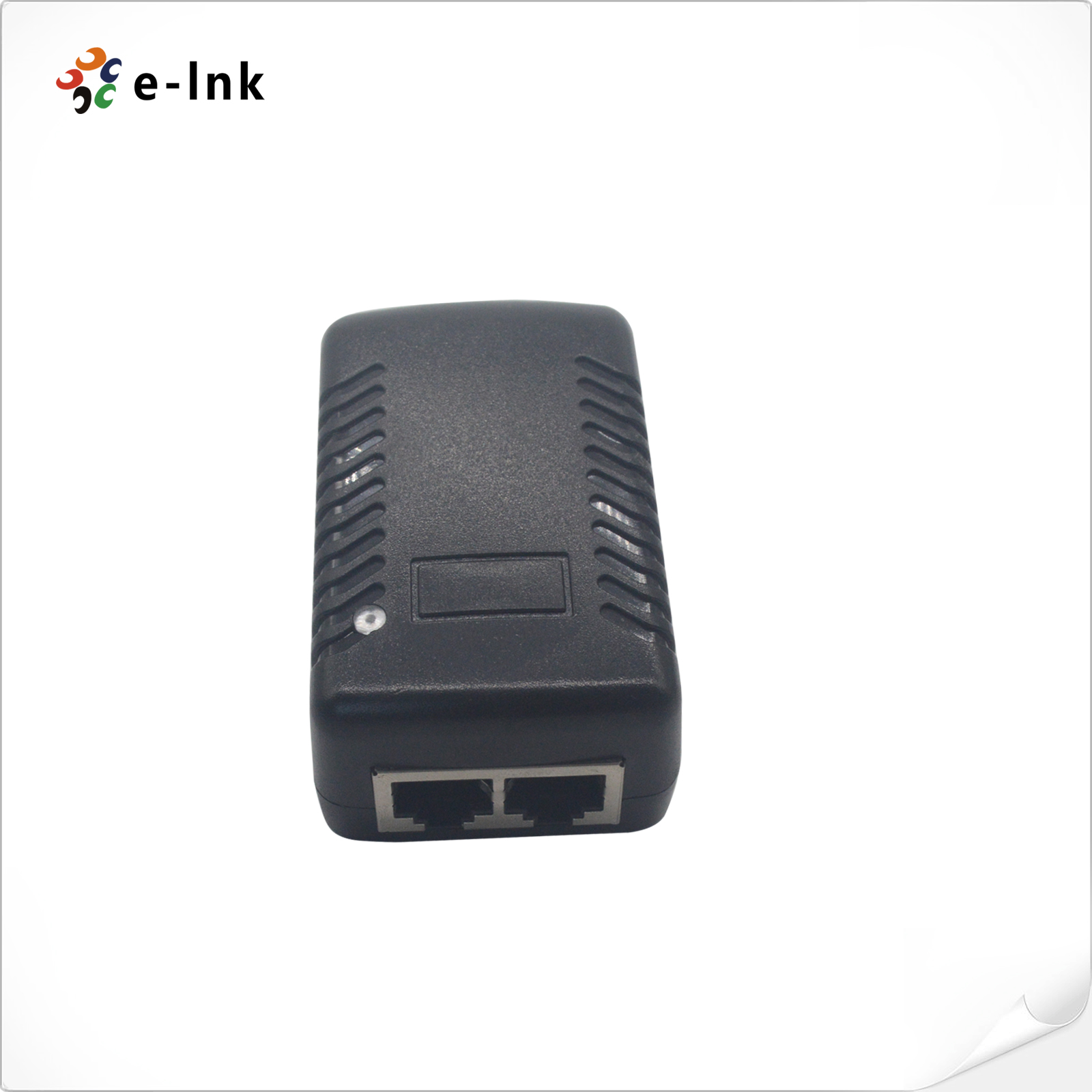

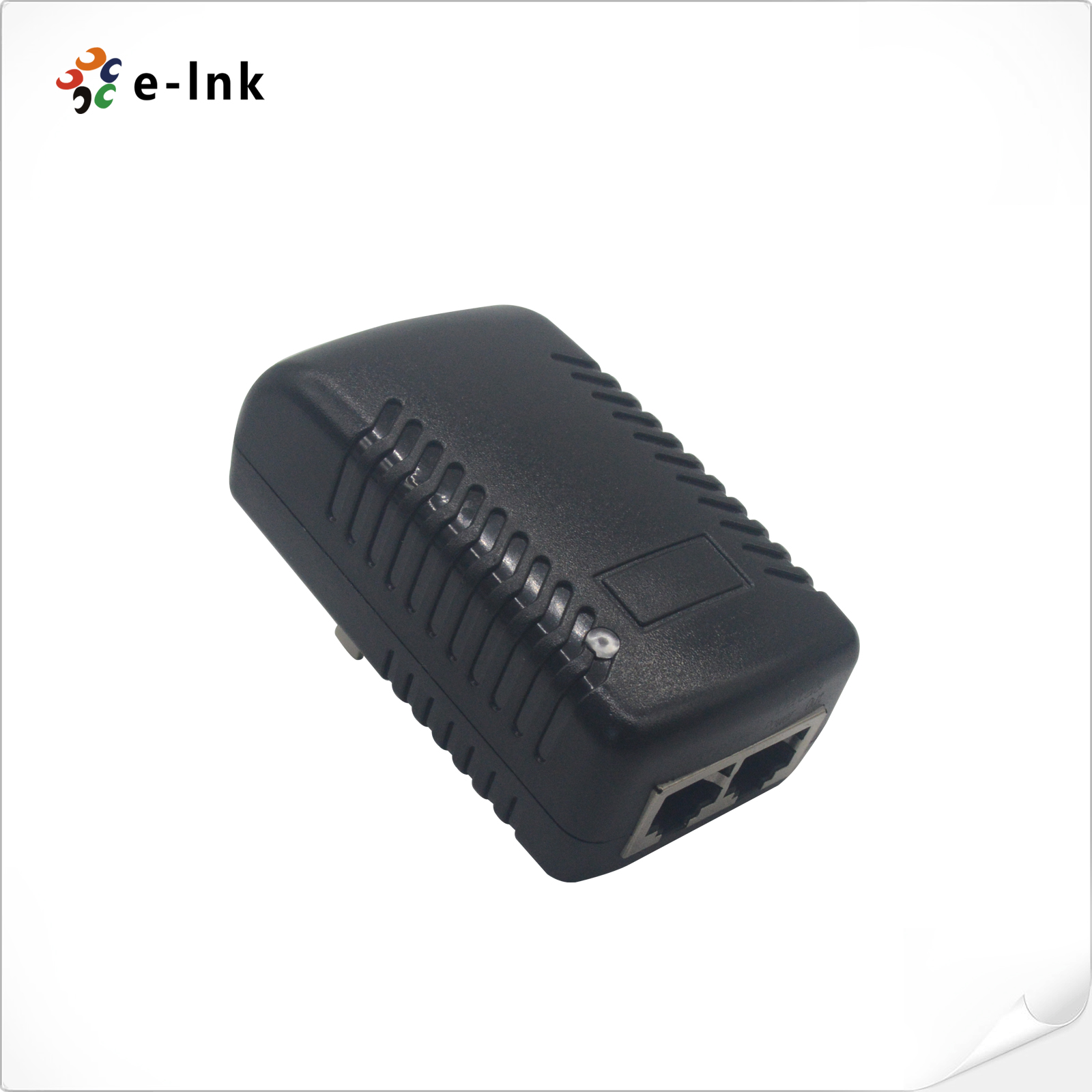

Wall Mount IEEE802.3af/at POE Injector
Model:LNK-PSW
►Compact wall mount design
►No additional power cables required
►Built in protection circuits
►Supports 10/100M or 10/100/1000M LAN environment
Overview
E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.
The wall mount PoE injector feature built in over voltage, over current and short circuit protection. If an overload is detected, the power shuts down automatically; when the overload is cleared, the power is restored.
It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.
Features
►Compact wall mount design
►No additional power cables required
►Built in protection circuits
►Supports 10/100M or 10/100/1000M LAN environment
►Plug & Play
►No configuration required
►Reduced Installation cost
►Safe and Reliable Power to WLAN Access Points
►Automatic Detection and Protection of Non–standard Ethernet Terminals
Technical Indexes
|
Parameter |
Specifications |
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Connectors |
2xRJ45 Jacks |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Voltage |
12V/24V/48V/52V/56VDC optional |
|
Output Current |
0.5A/0.8A/0.9A/1.0A/2.0A Optional |
|
Output Power |
24W/48W optional |
|
Wiring |
|
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Over Load Protection |
115%-150% of Rated Power |
|
Operating Temperature |
0 to +40°C (32°F to 104°F) |
|
OperatingHumidity |
Max. 95% RH(non-condensing) |
|
Dimension (LxWxH) |
84×47×31mm |
|
Weight |
120g |
- Download FileName：E-link LNK-PSW Series PoE Injector Datasheet V1.0.pdf Size： 340KB
Ordering Information
|
MODEL |
PoE POWER |
INPUT |
OUTPUT |
OUTPUT |
POWER |
Certificate |
PLUG |
Date Rate |
|
|
100M |
1000M |
||||||||
|
LNK-PSW1224 |
24W |
100-240VAC |
12V |
2.0A |
24W |
CE, RoHS, FCC |
US |
Yes |
/ |
|
LNK-PSW1224G |
12V |
2.0A |
24W |
/ |
Yes |
||||
|
LNK-PSW2424 |
24V |
1.0A |
24W |
Yes |
/ |
||||
|
LNK-PSW2424G |
24V |
1.0A |
24W |
/ |
Yes |
||||
|
LNK-PSW4824 |
48V |
0.5A |
24W |
Yes |
/ |
||||
|
LNK-PSW4824G |
48V |
0.5A |
24W |
/ |
Yes |
||||
|
LNK-PSW2448 |
48W |
100-240VAC |
24V |
2.0A |
48W |
CE, RoHS, FCC |
US |
Yes |
/ |
|
LNK-PSW2448G |
24V |
2.0A |
48W |
/ |
Yes |
||||
|
LNK-PSW4848 |
48V |
1.0A |
48W |
Yes |
/ |
||||
|
LNK-PSW4848G |
48V |
1.0A |
48W |
/ |
Yes |
||||
|
LNK-PSW5248 |
52V |
0.9A |
48W |
Yes |
/ |
||||
|
LNK-PSW5248G |
52V |
0.9A |
48W |
/ |
Yes |
||||
|
LNK-PSW5645 |
56V |
0.8A |
45W |
Yes |
/ |
||||
|
LNK-PSW5645G |
56V |
0.8A |
45W |
/ |
Yes |
||||
