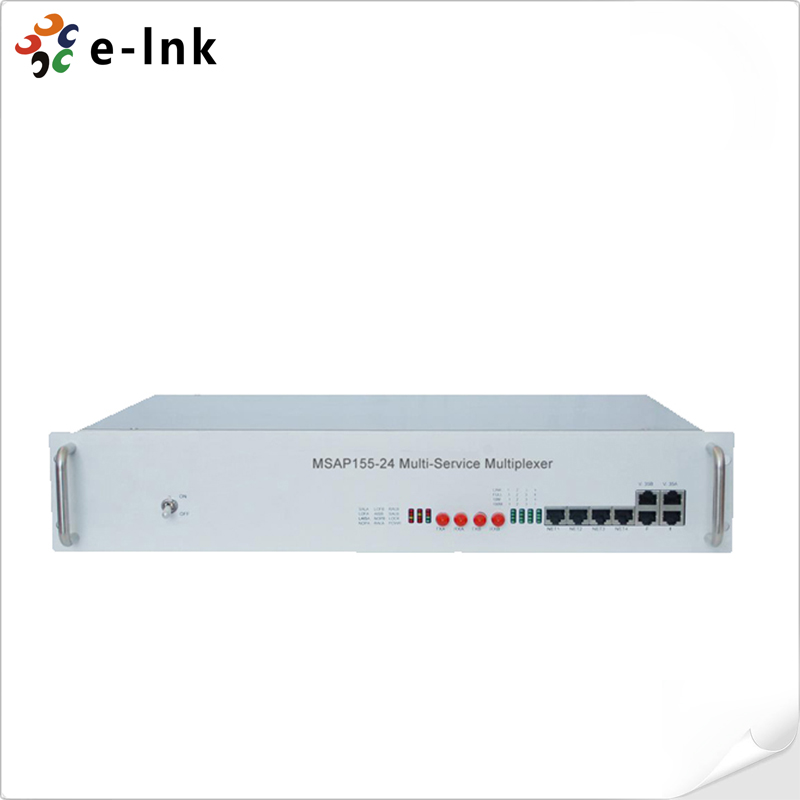

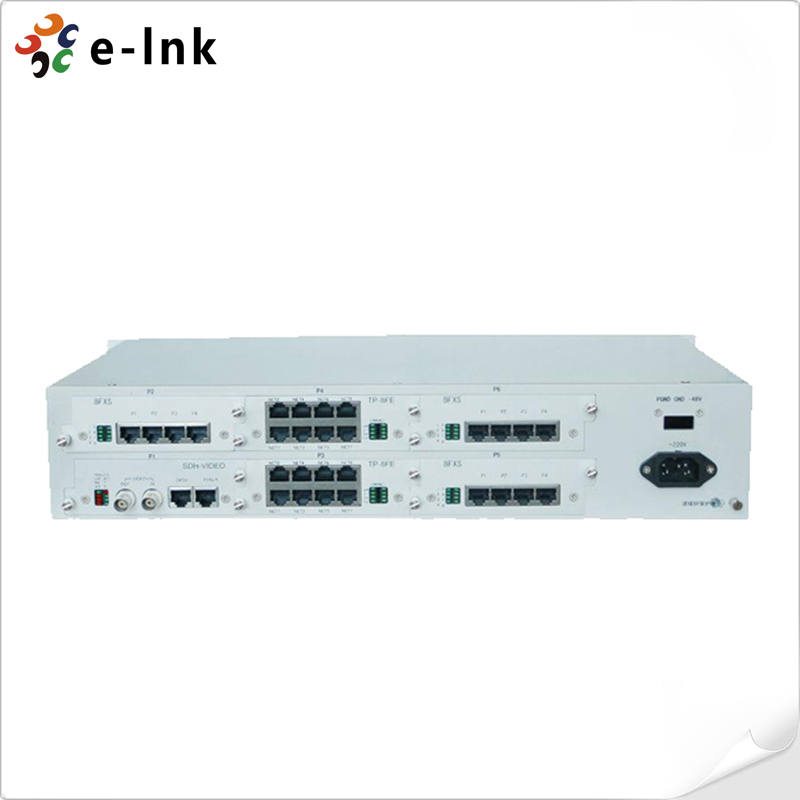

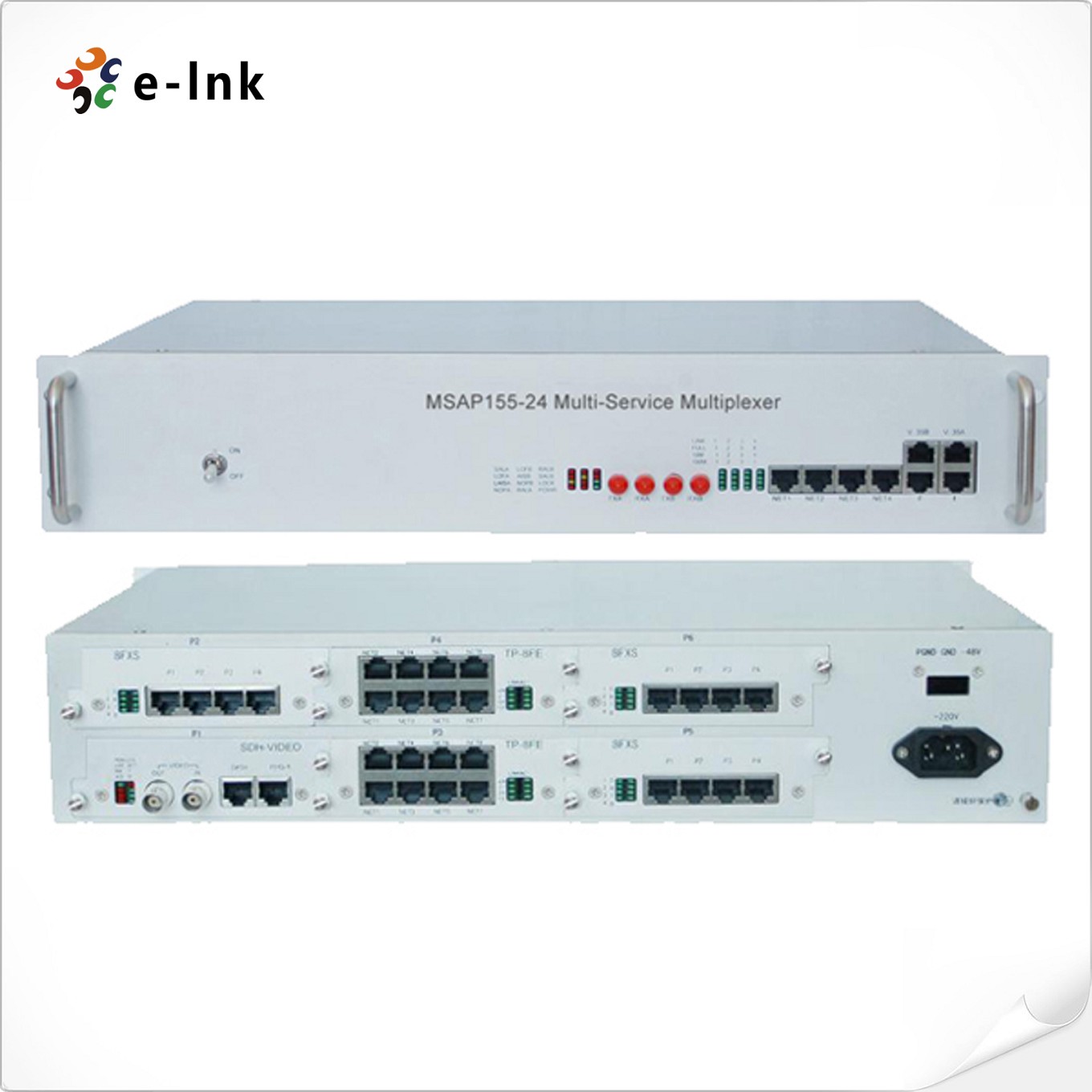

24E1 SDH Multiservice Access Platform
Model:LNK-MSAP155-24
►Two STM-1 optical interfaces with 1+1 redundancy
►Integration of SDH, PCM, PDH and Ethernet
►Provide up to 4 Ethernet networks with physical isolation
Overview
LNK-MSAP155-24 SDH/MSAP Multiplexer is a newly-developed optical fiber transmission equipment by E-link based on SDH technology. LNK-MSAP155-24 SDH MUX manages to satisfy not only users needs, and other fiber optical transmission/access services, but also users needs for and more reliable . LNK-MSAP155-24 SDH optical multiplexer can be directly connected to the remote PDH multiplexer, optical modem and multi-service multiplexer and so on, LNK-MSAP155-24 fits a variety of environment . LNK-MSAP155-24 STM-1grade SDH multiplexer can be used as a small MSAP equipment which integrates multiservice access, SDH transmission and PDH optical access functions. It also provides succinct and faultless which would carry out equipment configuration, data collecting and real-time monitoring on network performance.
Features
►Two STM-1 optical interfaces with 1+1 redundancy.(Either one fails, the other will back it up).
►Two V.35/V.11 [N×64K (N = 0 ~ 31)] channels.
►Integration of SDH, PCM, PDH and Ethernet.
►Provide up to 4 Ethernet networks with physical isolation, to achieve N×2.048Mbps bandwidth.
►Provide 6 slots, can insert 8E1 card, 8 FXO/FXS card, 8 RS232/RS485/RS422 card., Ethernet card, E&M, Magnet, Hotline etc.
►Modular configuration and is upgradeable.
►Support point-to-point, chain-shaped and ring network.
►Compliance with the ITU-T G.813 standards and fully meet the timing accuracy.
►Faultless feature, online real-time monitoring.
►Standard 19-inch 1U chassis structure, easy to install.

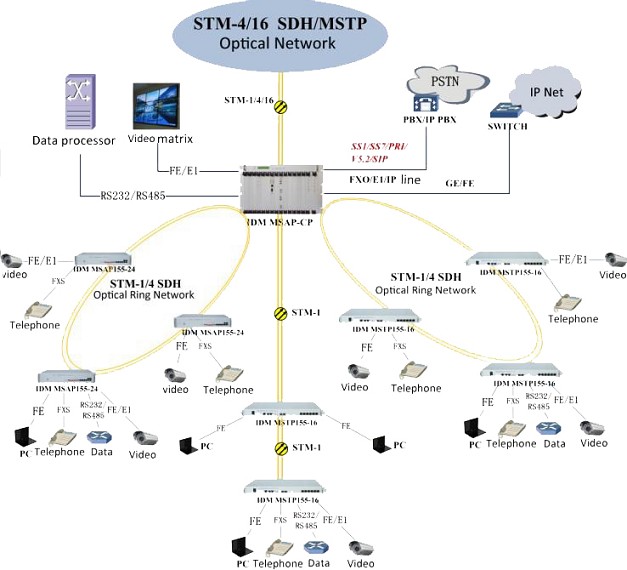

Application
Technical Indexes
|
Parameter |
Specification |
|
Optical interface |
|
|
Rate |
155Mbps±4.6ppm |
|
Adaptive fiber |
Single/Multi-mode |
|
Consumption |
-15 ~ -8dBm |
|
Wavelength |
1310nm/1550nm |
|
Physical connector |
FC/SC |
|
Sensitivity |
Better than -32dBm |
|
E1 interface |
|
|
Rate |
2048Kbps |
|
Code |
HDB3 |
|
Comply with |
ITU-T G.703 standard |
|
Impedance |
75Ω/120Ω |
|
Frame structure |
PCM30/31 |
|
signaling |
Inbound Signaling |
|
Channels |
Up to 24 |
|
Ethernet interface |
|
|
Rate |
N × 2.048MbpsN≤50 |
|
Duplex |
Full/Half auto-negotiation |
|
Physical connector |
RJ-45 |
|
Comply with |
IEEE802.3 |
|
FXO/FXS interface |
|
|
Impedance |
200Ω + 560Ω//0.1μF |
|
Audio frequency range |
300Hz ~ 3400Hz |
|
Compression ratio |
Class A in ITU G.711 |
|
Loop current |
25mA |
|
EM2/4 interface |
|
|
Audio frequency range |
300Hz ~ 3400Hz |
|
Compression ratio |
Class A in ITU G.711 |
|
Echo loss |
>18dB |
|
Impedance |
600Ω balanced |
|
V.24 interface |
|
|
Rate |
asynchronous <=9600bps and asynchronous 64kbps |
|
Comply with |
CCITT V.28 |
|
V.35 interface |
|
|
Rate |
N × 64KbpsN=0 ~ 31 |
|
Comply with |
ISO2593 |
|
Physical connector |
RJ-45 |
|
Comply with |
ITU-T V.35 |
|
Power |
|
|
Power supply |
220VAC/- 48VDC |
|
Power consumption |
≤50W |
|
Working environment |
|
|
Working temperature |
-30°C ~ 50°C |
|
Working Humidity |
5%~95 % (no condensation) |
|
Storage temperature |
-40°C ~ 80°C |
|
Storage Humidity |
5%~95 % (no condensation) |
- Download FileName：E-link SDH Mux Datasheet V1.0.pdf Size： 309KB
Card Board List
|
Name |
Describe |
|
3U-8ETH |
Provide 4 channels Ethernet service. |
|
3U-WG300 |
Provide 2 channels E1 digital signaling access from local site or remote site, Provide No.1, No.7, PRI, V5.2 signaling access, used in MUX series device. Provide telephone access or PABX function. |
|
3U-8USER |
Provide 4 slots, can insert PCM 64K business card. |
|
3U-8E1 |
Provide 8E1 interface |
|
3U-8MVOICE |
Provide 8 channels 64K business, can set FXO/FXS, Magnet, 2100Hz magnet by network management system. |
|
3U-10FXS |
Provide 10 FXS interface |
|
3U-10FXO |
Provide 10 FXO interface |
|
3U-4EM2/4VOX |
Provide 4 channels 2/4 wire audio, gain margin: ∞∞, Adjusting: °dB |
|
3U-8V.24 |
Provide 8 channels V.24 interface, can set RS232/RS485/RS422 business, V.24 interface can be Asynchronous rate adaptive interface: 0～19200bps, also can be DCE mode synchronous interface: 300, 600, 1200, 2400, 4800, 9600, 64Kbps etc. |
