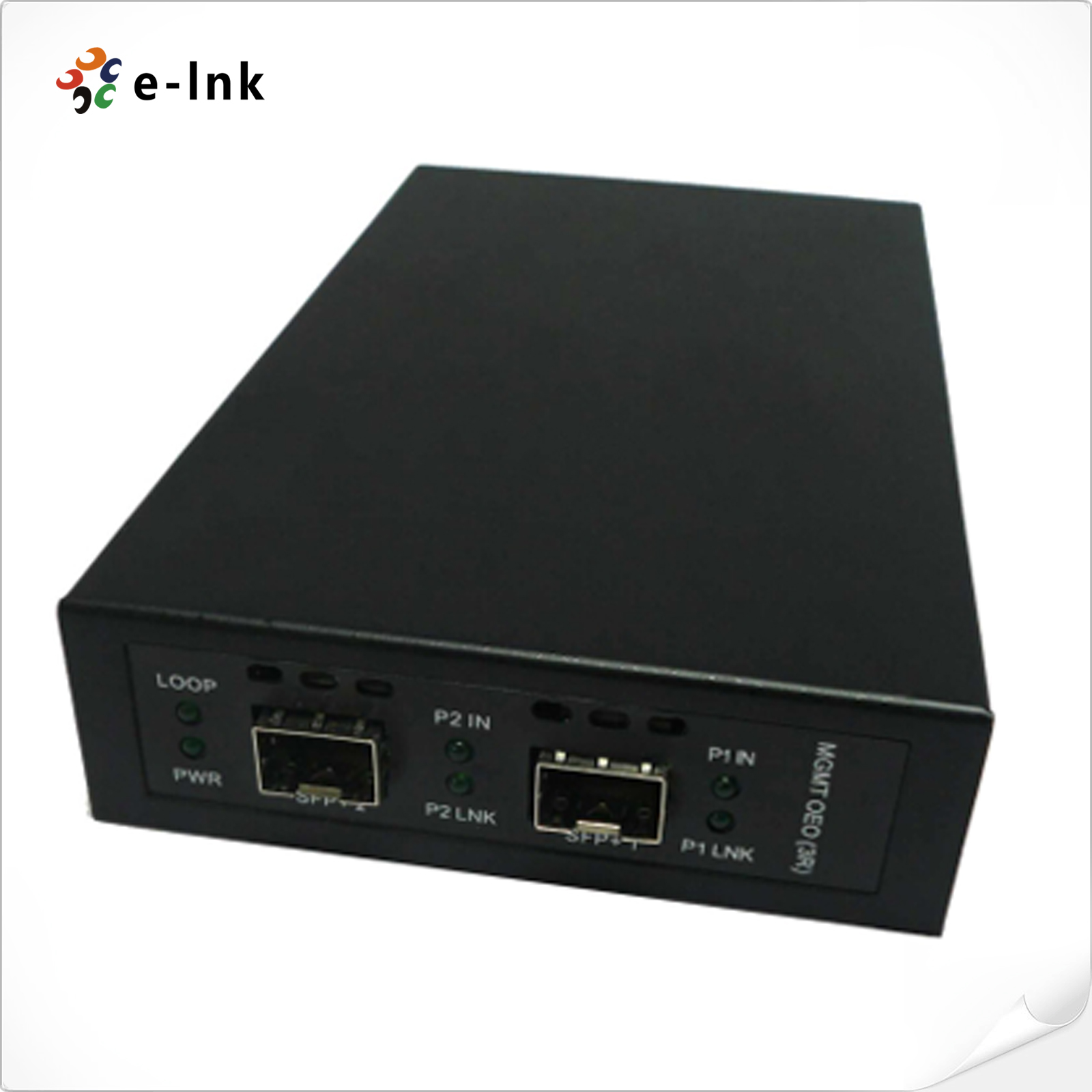

125M~4.25G OEO Converter (3R Repeater)
Model:LNK-OEO-FG
►support network management(Web SNMP, Console);
►Support in-band management；
►support ITUT prescribed DWDM/CWDM wavelength；
►transmission rate:125Mbps~4.25Gbps；
►3R function;
Overview
E-link Standalone 125M~4.25G OEO Converter (3R Repeater) with SFP Slot to SFP Slot, which uses optical -electricity – optical conversion principle to realize optical signal regeneration, enabling of the optical signal amplification and regeneration, re-timing and wavelength conversion, with coarse/dense wavelength division multiplexing together to realized WDM transmission. It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.
Features
►Support 2U Rack(16 Slots）and independent use
►support network management（Web SNMP, Console）,
►Support in-band management
►support ITUT prescribed DWDM/CWDM wavelength
►transmission rate:125Mbps~4.25Gbps
►3R function.
►Support Jumbo Frame
►Transparent Transport and very low delay
►Support DMI function for SFP fiber module
►Support Loopback test function
►Support PRBS Generator and checker
►Support hot plugging
►Full State Led display
►Easy installation
Technical Indexes
|
Performance Data |
Technical Indexes |
|
|
Equipment function |
3R Repeater |
|
|
Access Type / Transmission Speed |
Fast Ethernet |
125Mbps |
|
STS-3/STM-1 |
155.52Mbps |
|
|
ESCON/SBCON |
200Mbps |
|
|
STS-12/STM-4 |
622.08Mbps |
|
|
1×Fiber Channel |
1.0625Gbps |
|
|
Gigabit Ethernet |
1.25Gbps |
|
|
2×Fiber Channel |
2.125Gbps |
|
|
STS-48/STM-16 |
2.48832Gbps |
|
|
2.5 InfiniBand or PCI Express |
2.5Gbps |
|
|
4×Fiber Channel |
4.25Gbps |
|
|
Interface Type |
SFP to/from SFP |
|
|
Transmission Distance |
Up to SFP module （ Max 80Km ） |
|
|
Local SFP |
Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters |
|
|
Remote SFP |
Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters |
|
|
power requirement |
Rack-mountable : AC 85～220V OR DC -48V dual-supply,optional Standalone: AC 220V OR -48V Power consumption:≤3W |
|
|
Work environment |
Operating Temp: 0 ～ 50 ℃ Storage Temp: -10 ～ 70 ℃ Humidity: 5%~90% （ non-condensing ） |
|
|
Dimension |
Card ： 115mm （ W ）× 78mm （ D ） Standalone ： 156mm （ W ）× 128mm （ D ）× 32mm （ H ） |
|
- Download FileName：E-link LNK-OEO-FG Series 125M~4.25G OEO Converter Datasheet V1.0.pdf Size： 830KB
|
Model |
Description |
|
LNK-OEO-FG |
125M~4.25G OEO Converter (3R Repeater) |
