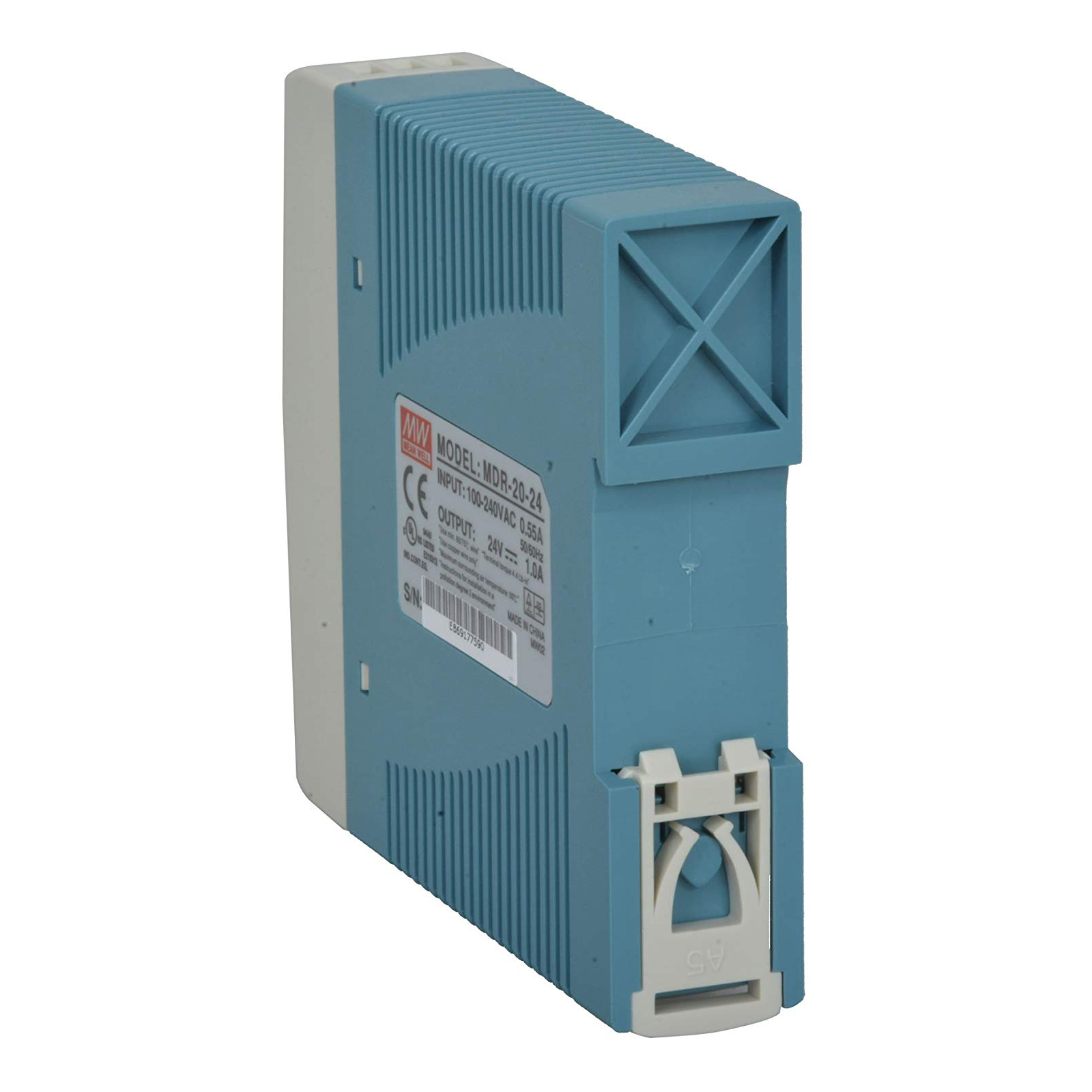

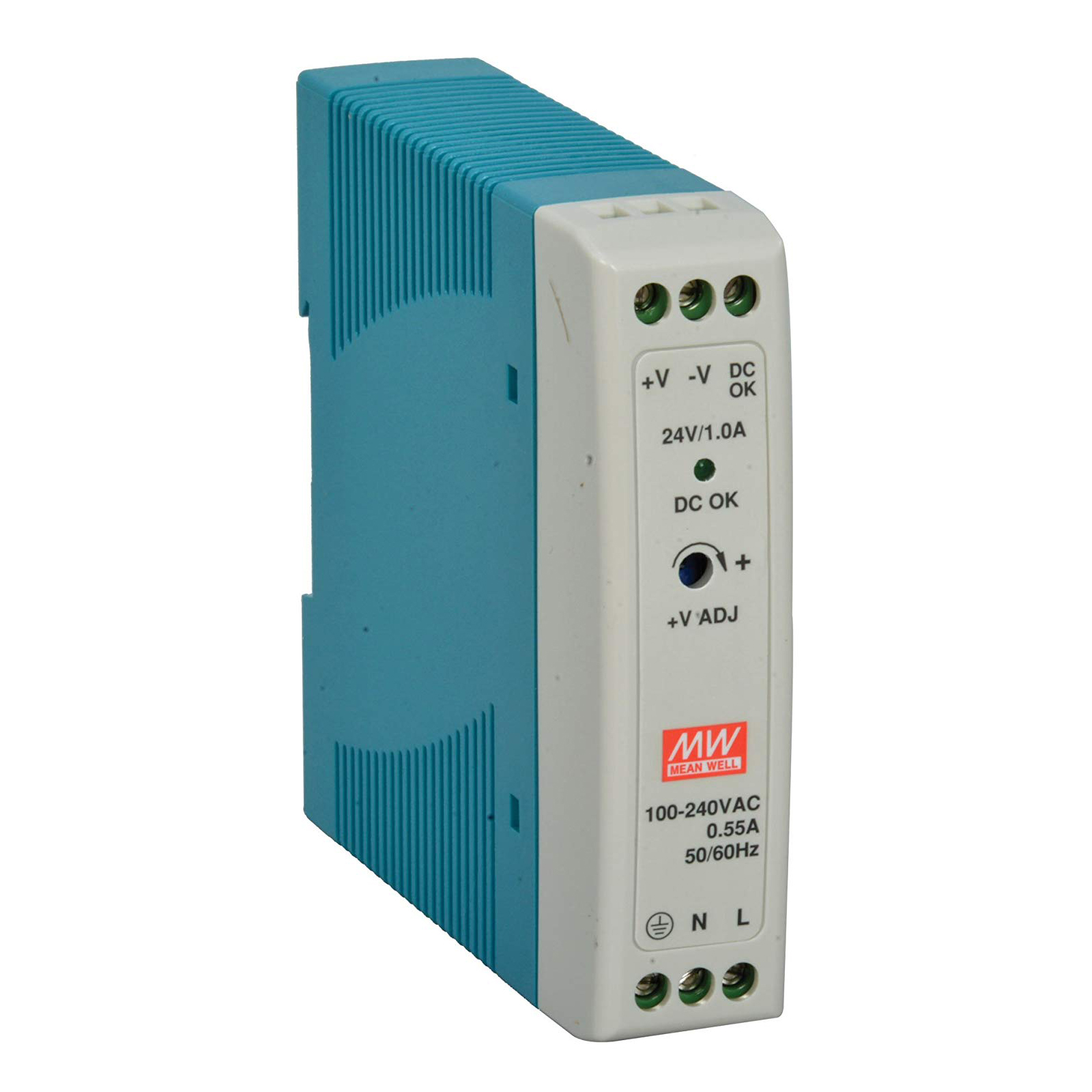

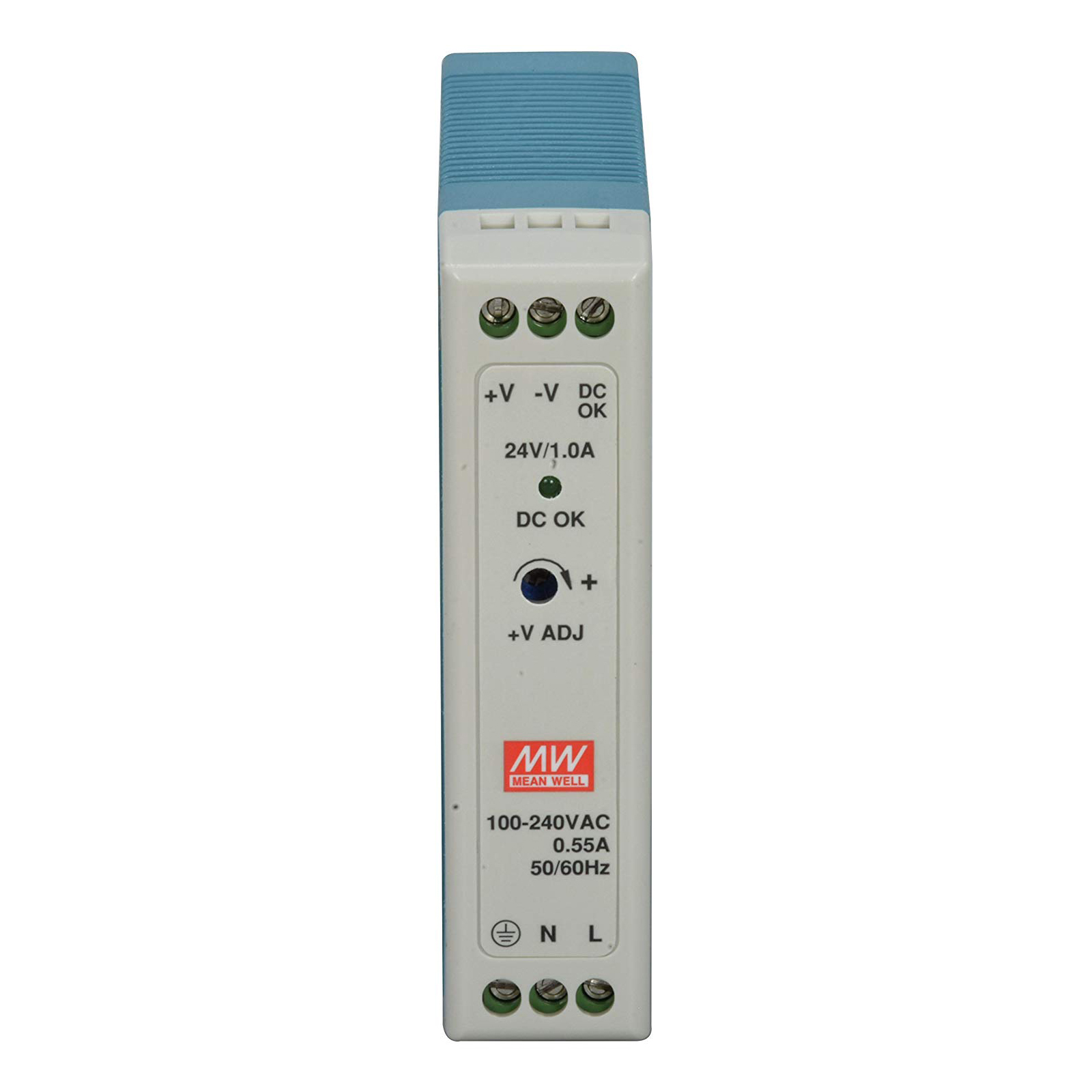

MEAN WELL 24W/24V 1A Industrial DIN RAIL Power Supply MDR-20-24
Model:MDR-20-24
► Protections: Short circuit / Overload / Over voltage
► Cooling by free air convection
► Can be installed on DIN rail TS-35/7.5 or 15
MEAN WELL 24W/24V 1A Industrial DIN RAIL Power Supply MDR-20-24
Features
► Universal AC input/Full range
► Protections: Short circuit / Overload / Over voltage
► Cooling by free air convection
► Can be installed on DIN rail TS-35/7.5 or 15
► Built in DC OK active signal
► LED indicator for power on
► 100% full load burn-in test
► No load power consumption<0.75W
► 3 years warranty
Technical Indexes
|
MEAN WELL/MDR-20-24 |
|
|
Configuration |
Enclosed |
|
Dimensions (W x H x D) |
22.5 x 90 x 100 mm |
|
Weight (kg) |
0.19kg |
|
Mounting Type |
DIN-Rail Mount |
|
Input Voltage |
100-240V AC,50/60Hz, 1.45A |
|
Power Output |
24 Watts,24V, 1A |
|
Primary Type |
AC-DC |
|
Series |
MDR Series |
|
Type |
Industrial |
|
Temperature |
Operating:-20~70 degrees C |
|
Humidity |
Operating: 20 ~ 95% |
|
Installation |
DIN rail TS-35/7.5 or 15 |
|
Safety & Function |
Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
|
Special Features |
*3 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection |
- Download FileName：MDR-20-SPEC.PDF Size： 502KB
| Item | Description | Unit |
| MDR-20-24 | MEAN WELL 24W/24V 1A Industrial DINRAIL Power Supply | pcs |
