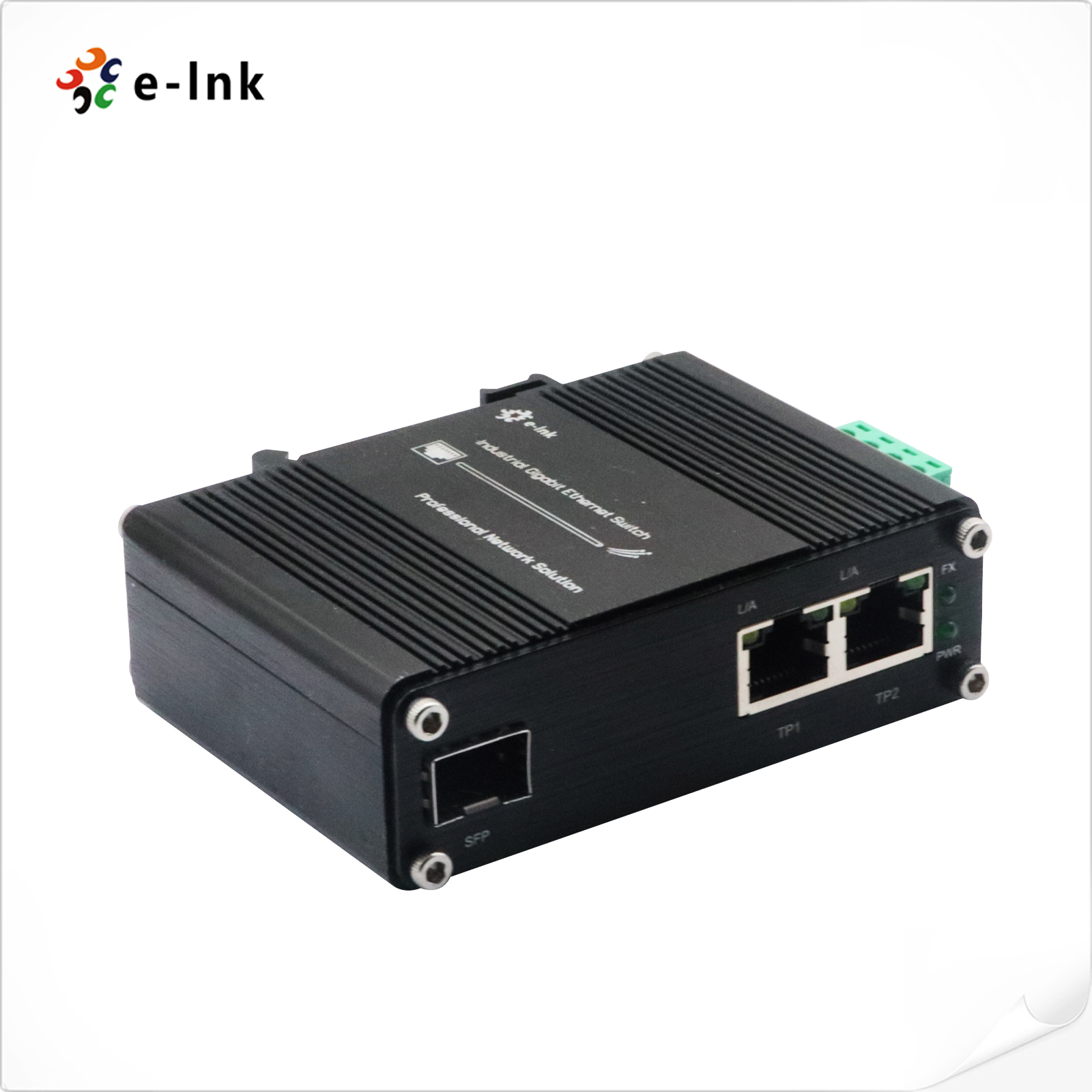

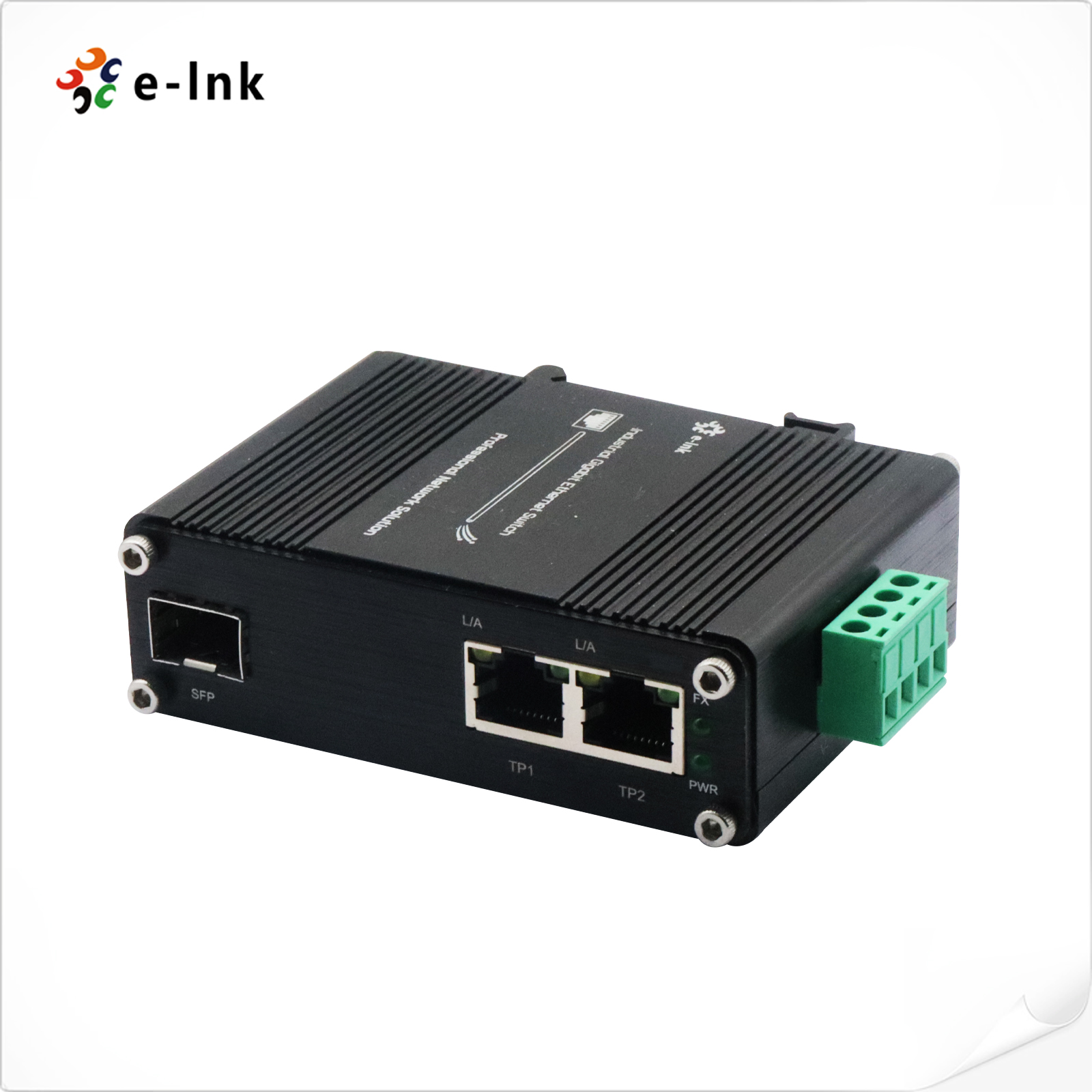

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input

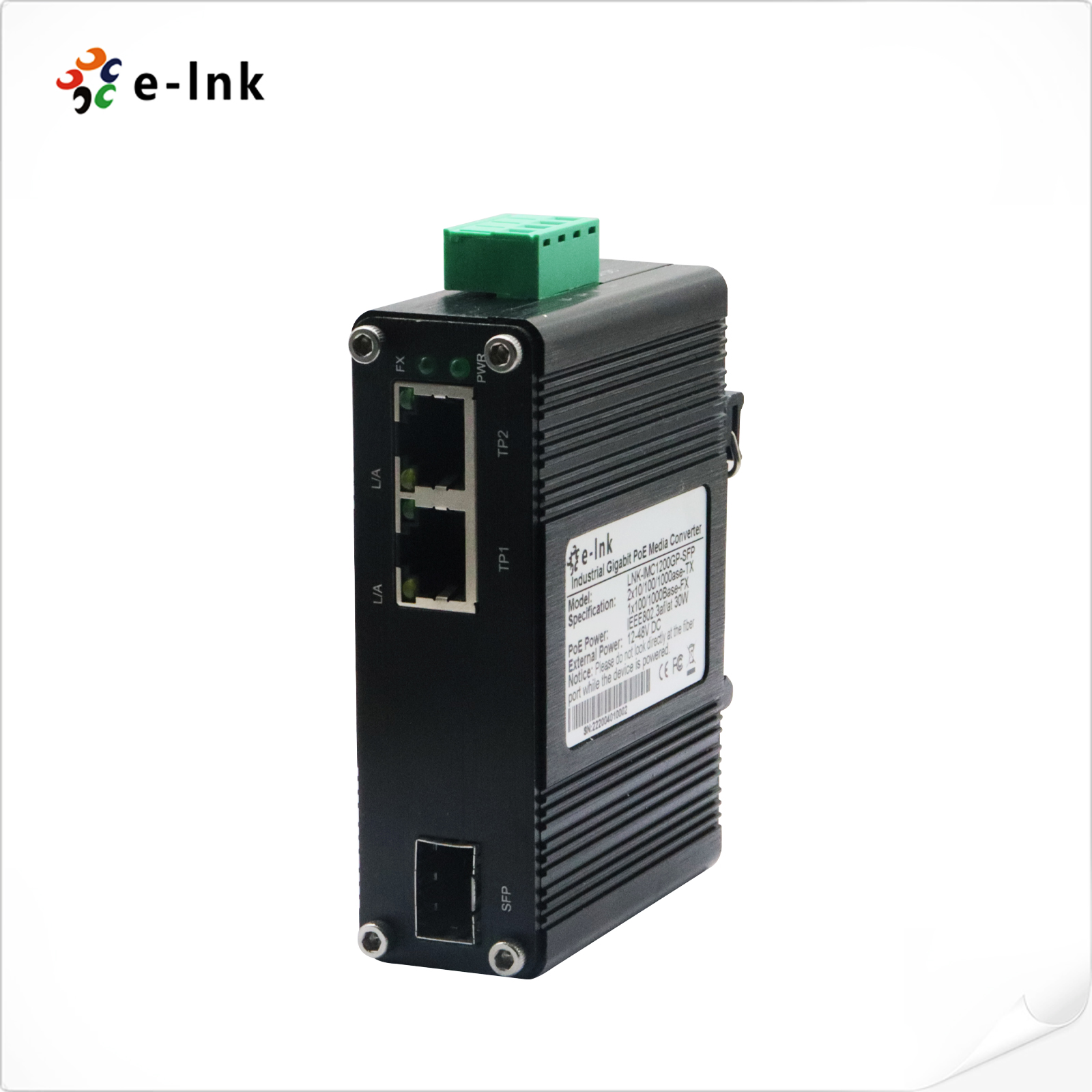

Overview
LNK-IMC1200G-SFP Series is a DIN rail type Media Converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Features
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input

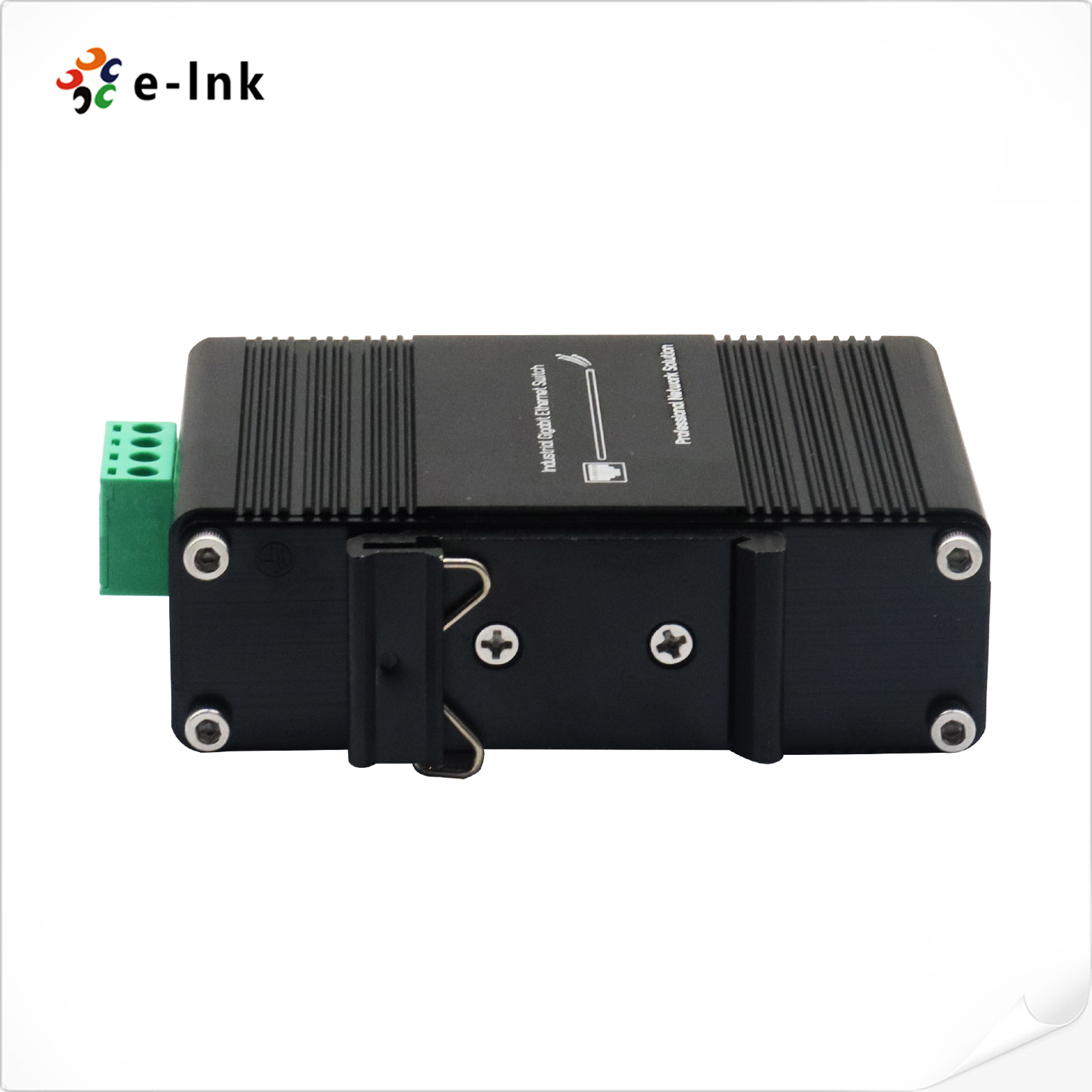

► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

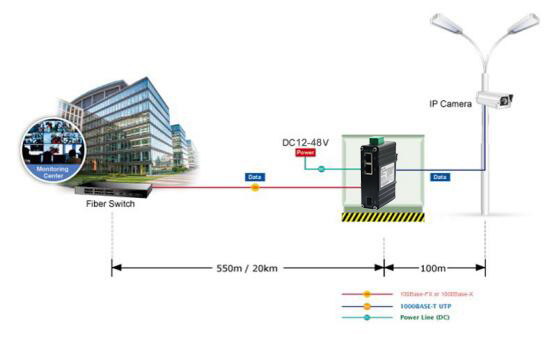

Application
Specifications
Standards: |
IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX/FX |
|
IEEE802.3ab 1000Base-T |
|
IEEE802.3z 1000Base-X |
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
1,488,000pps (1000Mbps) |
|
Packet Buffer Memory: |
1 Mbit |
Max Packet Length: |
9K Bytes |
Address Table Size |
2K MAC Addresses |
Interface |
|
Connector: |
2 x RJ45 |
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
Electrical and Mechanical |
|
Input Power: |
12~48VDC, 2-pin terminal block |
Power Consumption: |
5W Max. |
LED Indicators: |
|
PWR: |
Power Status |
L/A: |
Data LINK Status |
SPD: |
Ethernet Status |
100M/1000M: |
Fiber LINK Status |
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Environmental |
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF |
> 200,000 hrs |
Regulatory Approvals |
|
ISO9001, CE, FCC, RoHS |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
Model |
Description |
LNK-IMC1200G-SFP |
Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter |
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
► SFP module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
► Power Supply is to be purchased separately. |
