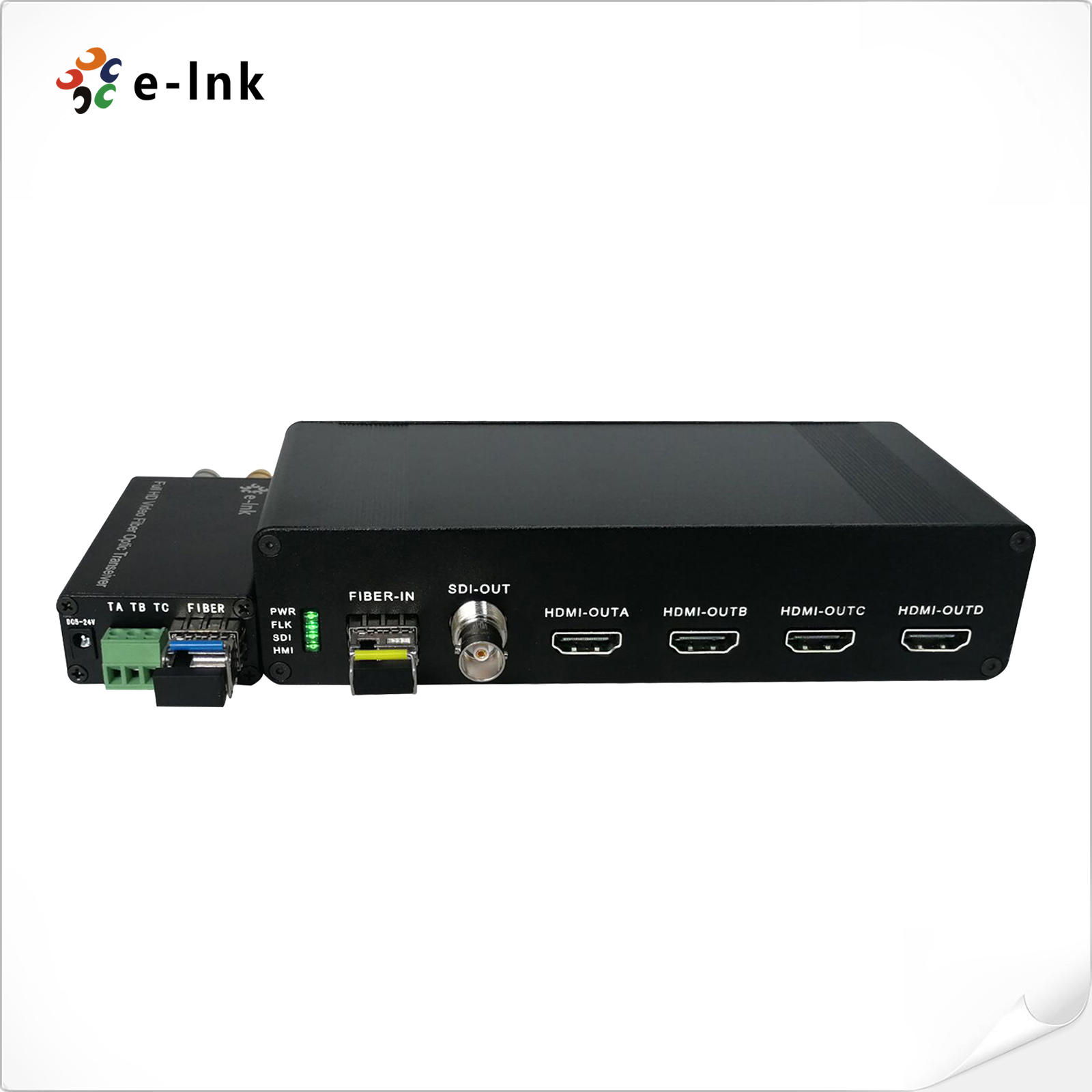

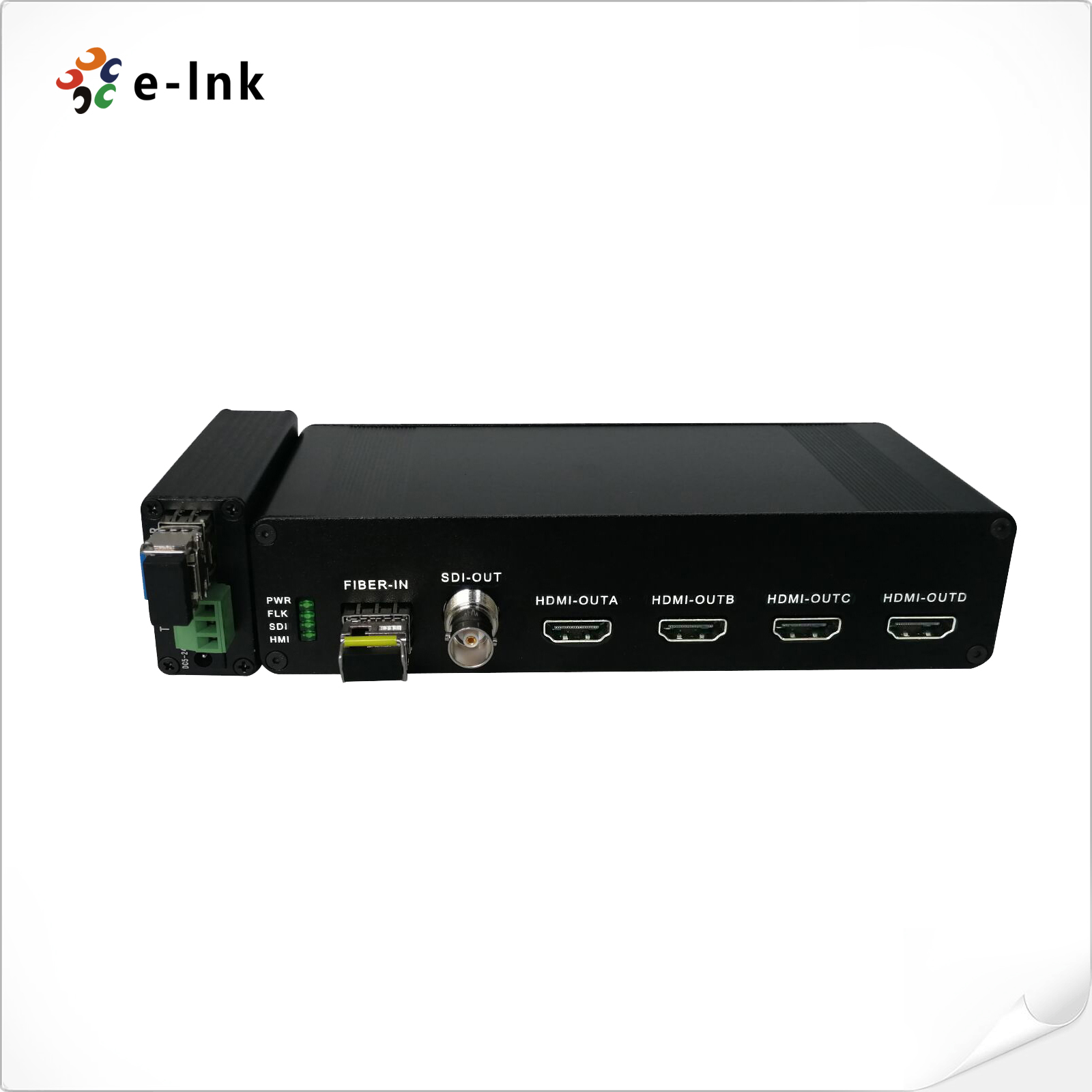

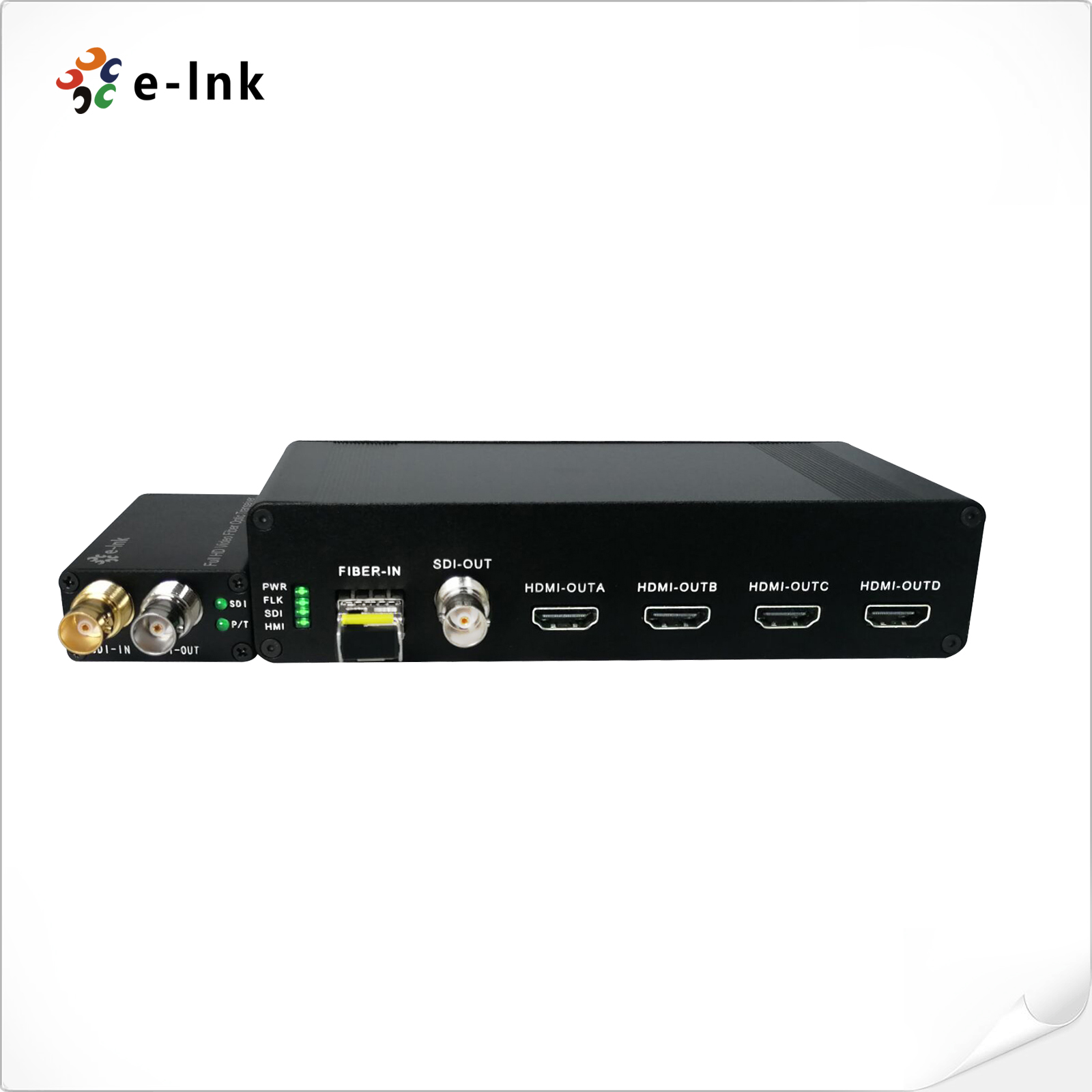

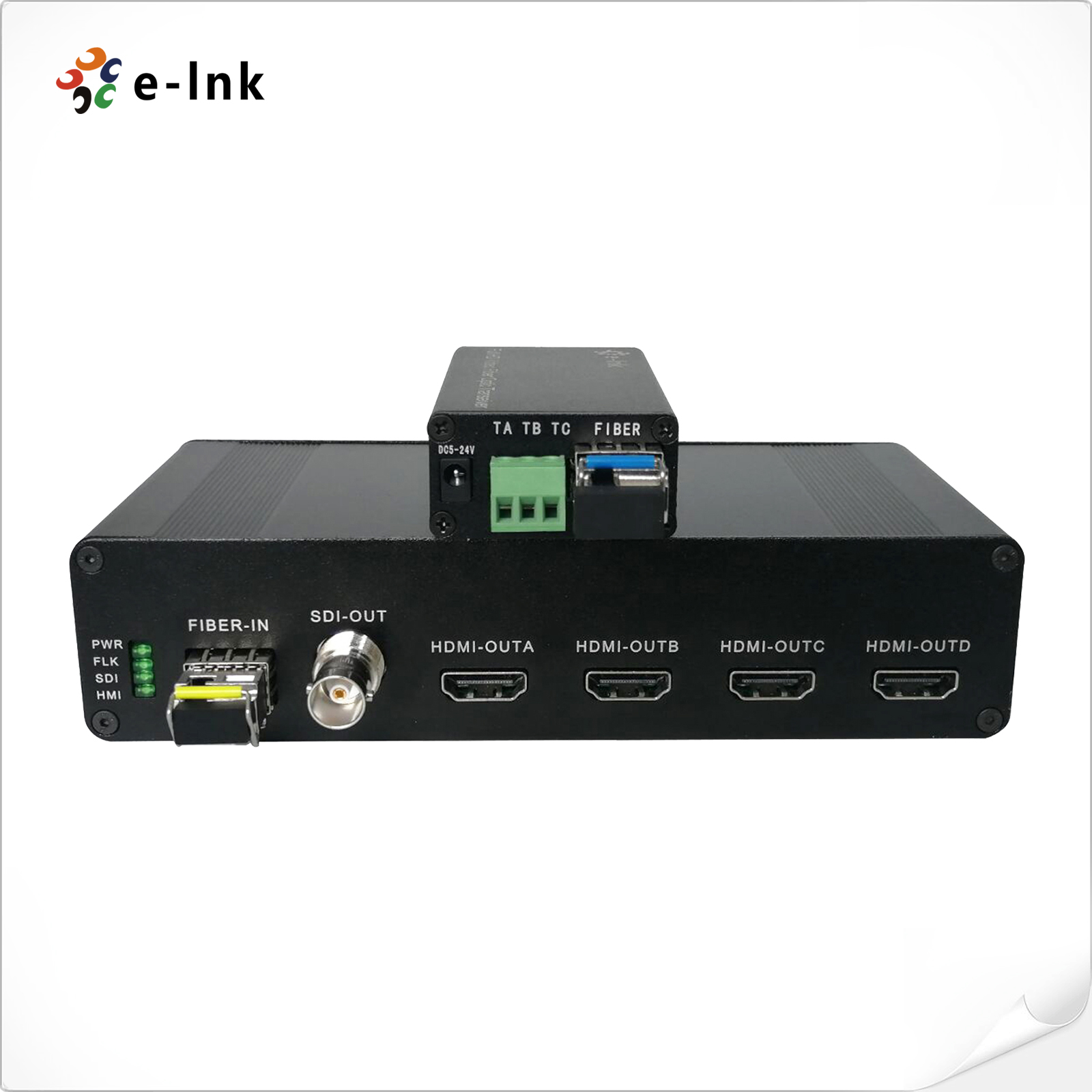

1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output
Model:LNK-3G-1V4H
► Transmitter with 1Ch 3G-SDI input and loop out
► Receiver with 1Ch 3G-SDI output and 4Ch HDMI output
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with 3G-SDI camera systems
Overview
LNK-3G-1V4H Series 3G-SDI Fiber Extender supports 1-channel 3G-SDI Video(audio embedded)transmitted via fiber optical cable, and monitor the signal locally over a 3G-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter with loop out and one receiver with 1Ch 3G-SDI and 4Ch HDMI Output.
Features
► Transmitter with 1Ch 3G-SDI input and loop out
► Receiver with 1Ch 3G-SDI output and 4Ch HDMI output
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with 3G-SDI camera systems
► Long transmission capability at least 10 km (6.2miles) , up to 80 km
► Terminal block power input; Hot swap and hot plug;
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
► industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

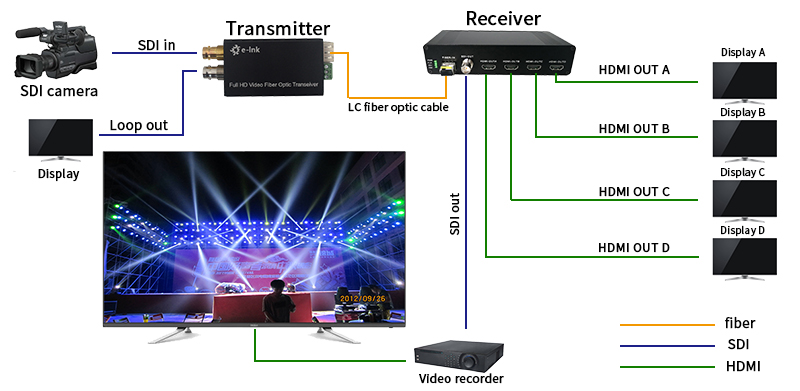

Application
Specification
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
550m-20Km |
|
Wavelength |
1310nm/1550nm |
|
Video - SDI |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/out put voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
Video SDI standard |
270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Video - HDMI |
|
|
Connector |
Female HDMI type A |
|
Impedance |
100Ω |
|
Resolution |
Up to 1920*1200@60Hz |
|
HDMI Cable Range |
<5Meter |
|
Electrical |
|
|
Power adaptor |
DC 5V |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
PWR |
Power Supply |
|
FLK |
Fiber Link |
|
SDI |
SDI Video |
|
HMI |
HDMI Video |
|
Mechanical |
|
|
Dimensions (LxWxH) |
Transmitter: 72 x 42 x 22 mm |
|
Receiver: 164 x 72 x 38 mm |
|
|
Weight |
1.5KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：E-link LNK-3G-1V4H 3G-SDI Fiber Extender with 4HDMI Output Datasheet V1.0.pdf Size： 630KB
