Overview

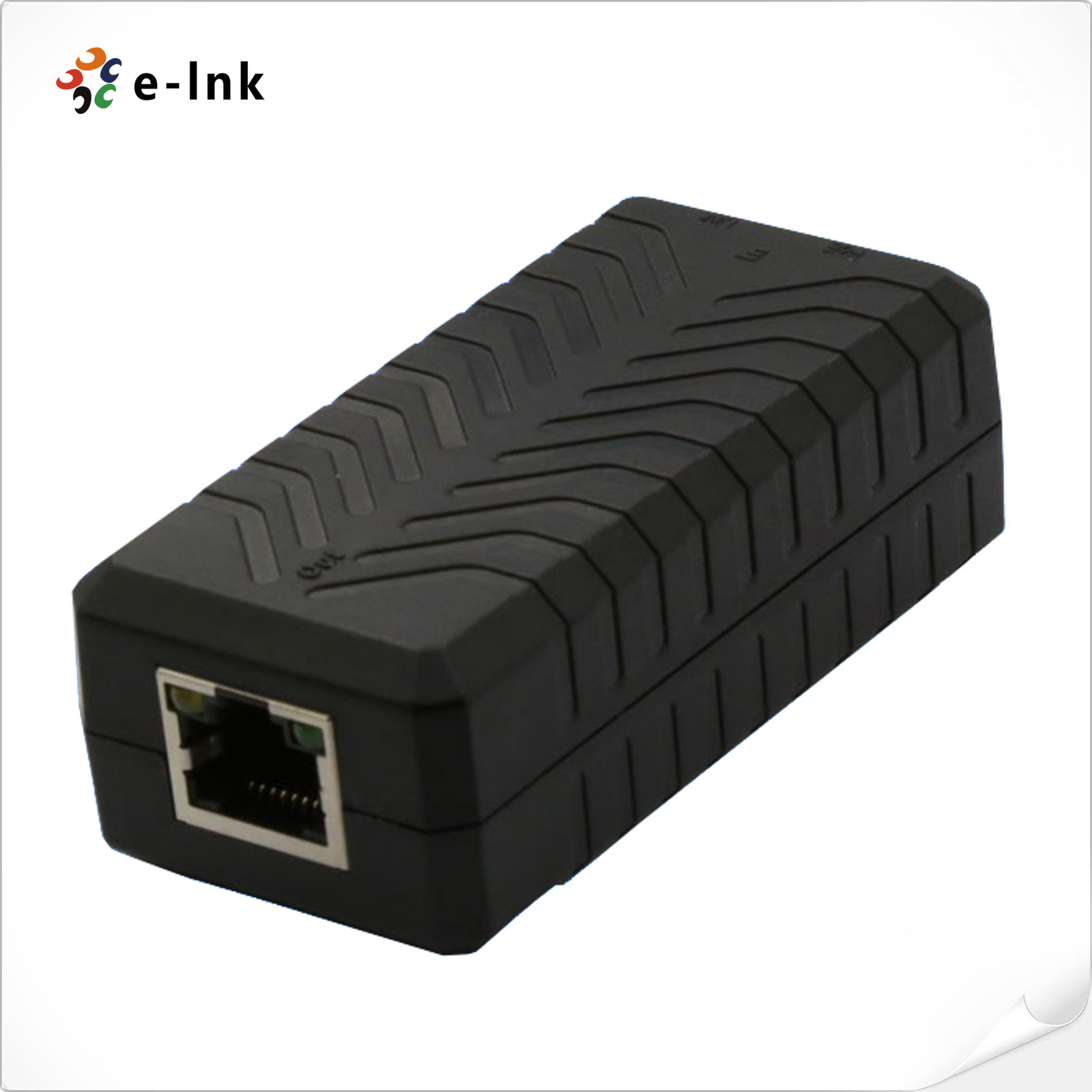

This 1 Port PoE Extender has 2 10/100M LAN ports, among them, one for power input, the other for power output. Comply with 10/100BASE-TX,IEEE802.3af(PoE). Power input for single port is 13W. Power output for single port is 12.2W.

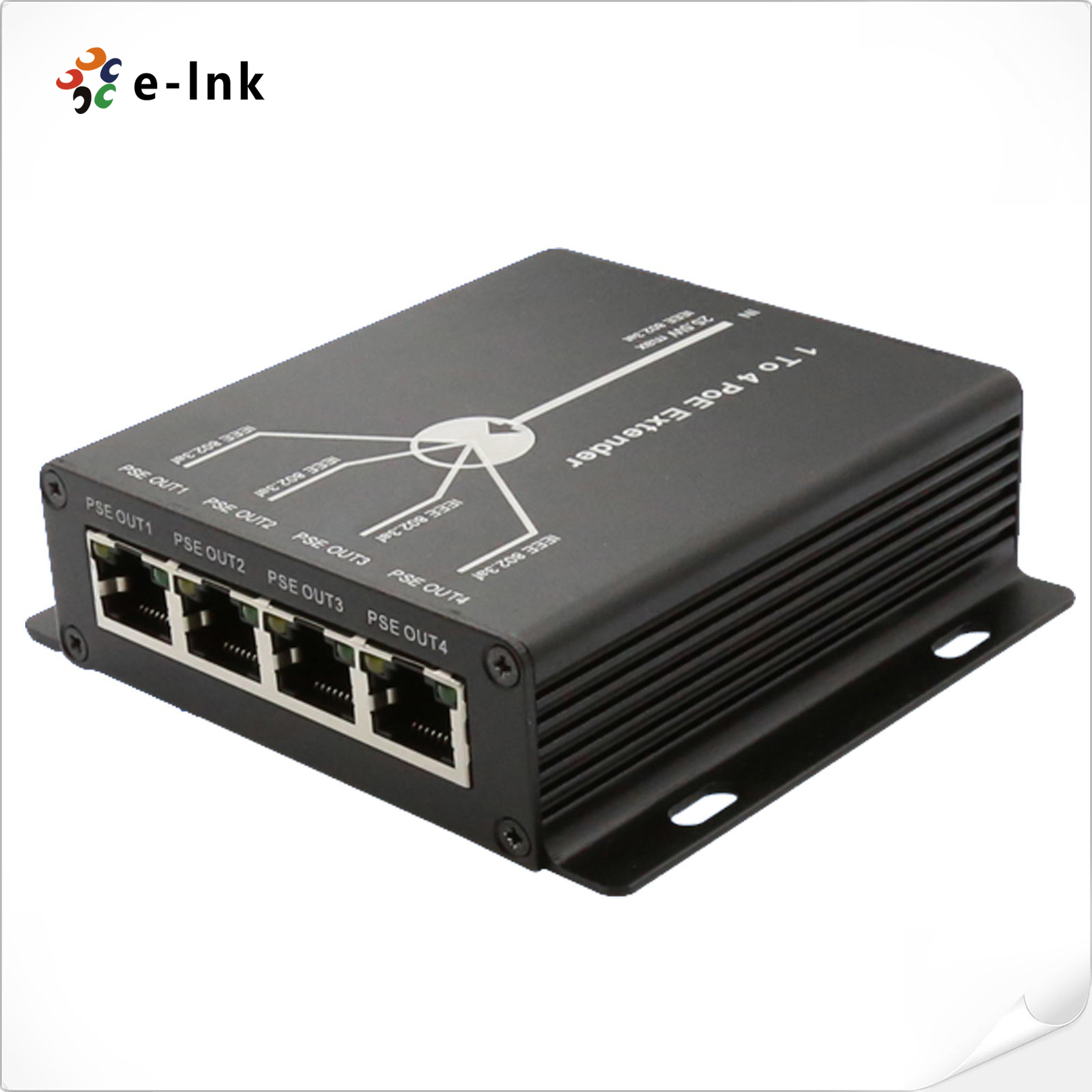

This 4 Ports PoE Extender has 5 10/100M PoE ports, among them, 1 port for power input, and others for power output. Comply with 10/100BASE-TX, IEEE802.3at (power-in) /IEEE802.3af(power-out). The power input is 25.5W in total. Power output for single port is 15.4W( max).

PoE Extenders can increase the transmission distance forEthernet data and PoE power up to 120m via Cat5 UTP cables. It offers you great flexibility to extend the distance of PoE.

Features

►     Comply with IEEE 802.3af Power over Ethernet.

►     10/100M Supported.

►     Extend the range of PoE an additional 120 meters.

►     Automatically detects and protects PoE equipment  from being damaged by incorrect installation

►     Plug-and Play no configuration required

►     4-Ports PoE Extender can forward both Ethernet and PoE power for 4 terminal equipment  via Cat5 UTP cables

►     Ports PoE Extender can forward both Ethernet and PoE power for 1 terminal equipment  via Cat5 UTP cables

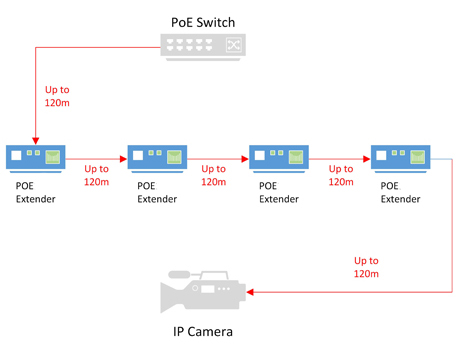

Application

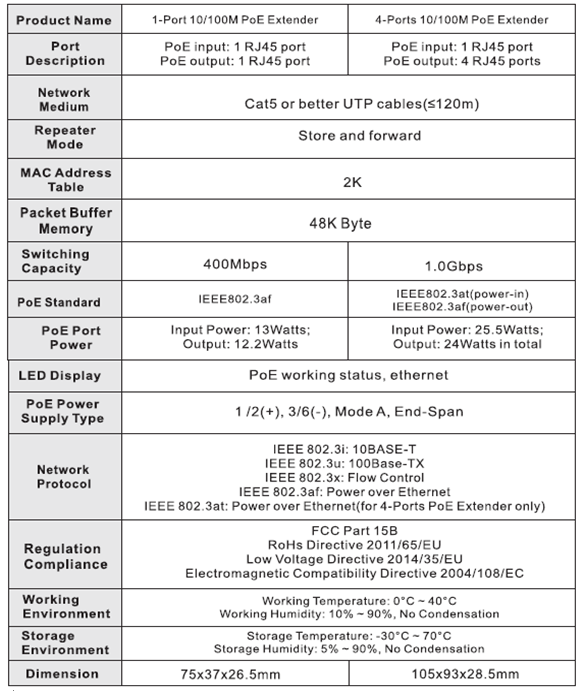

Technical Indexes

• Download FileName：E-link LNK-PoE-E1 & LNK-PoE-E4 PoE Extender Datasheet V1.0.pdf Size： 816KB

Ordering Information

Part No	Description of product
LNK-PoE-E1	1-Port PoE Extender: Input 1 RJ45 PoE IEEE802.3AF13W, Output:1 RJ45 12.2W, 120m
LNK-PoE-E4	4-Port PoE Extender: Input 1 RJ45 PoE IEEE802.3AT 25.5W, Output:4 RJ45 24W in total, 120m
