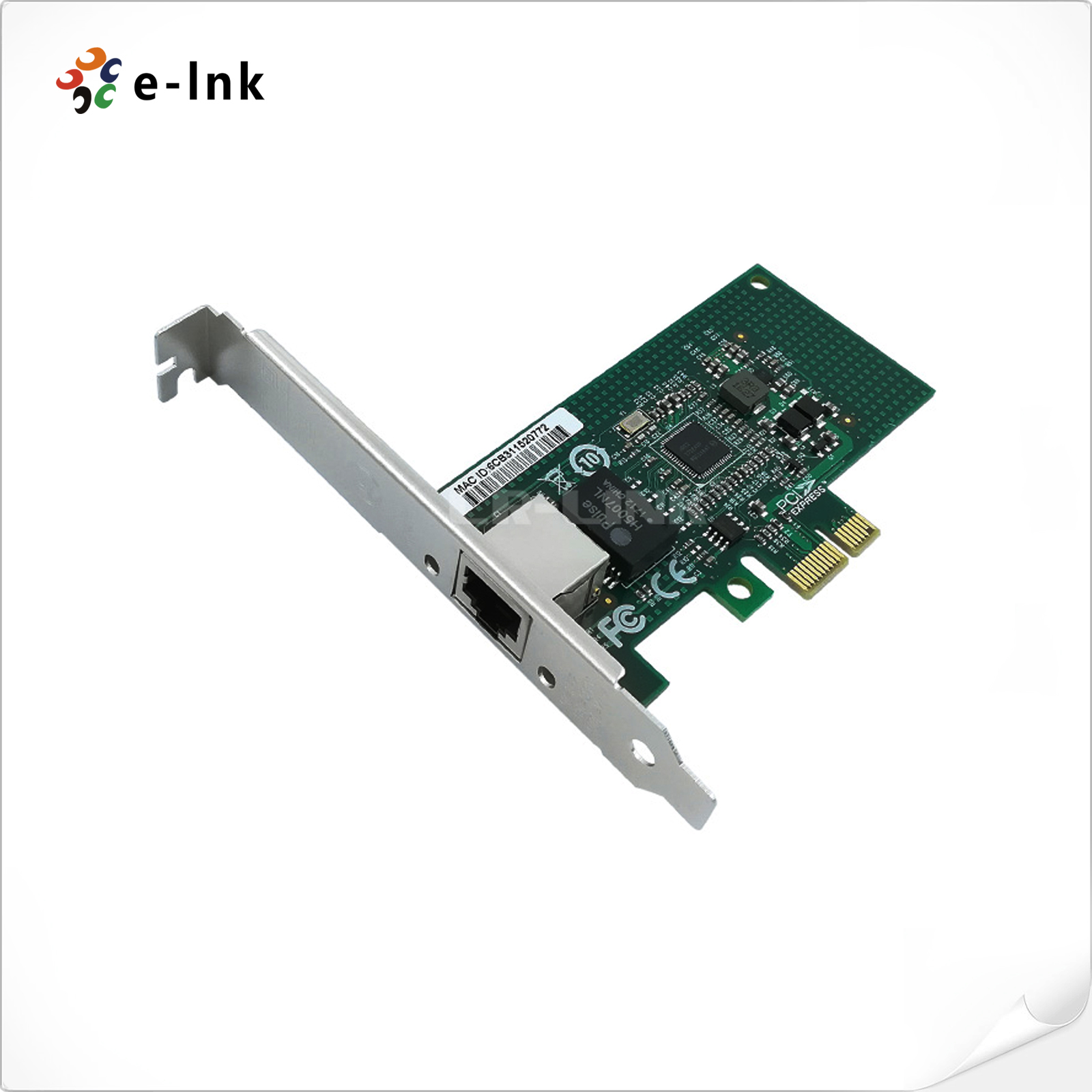

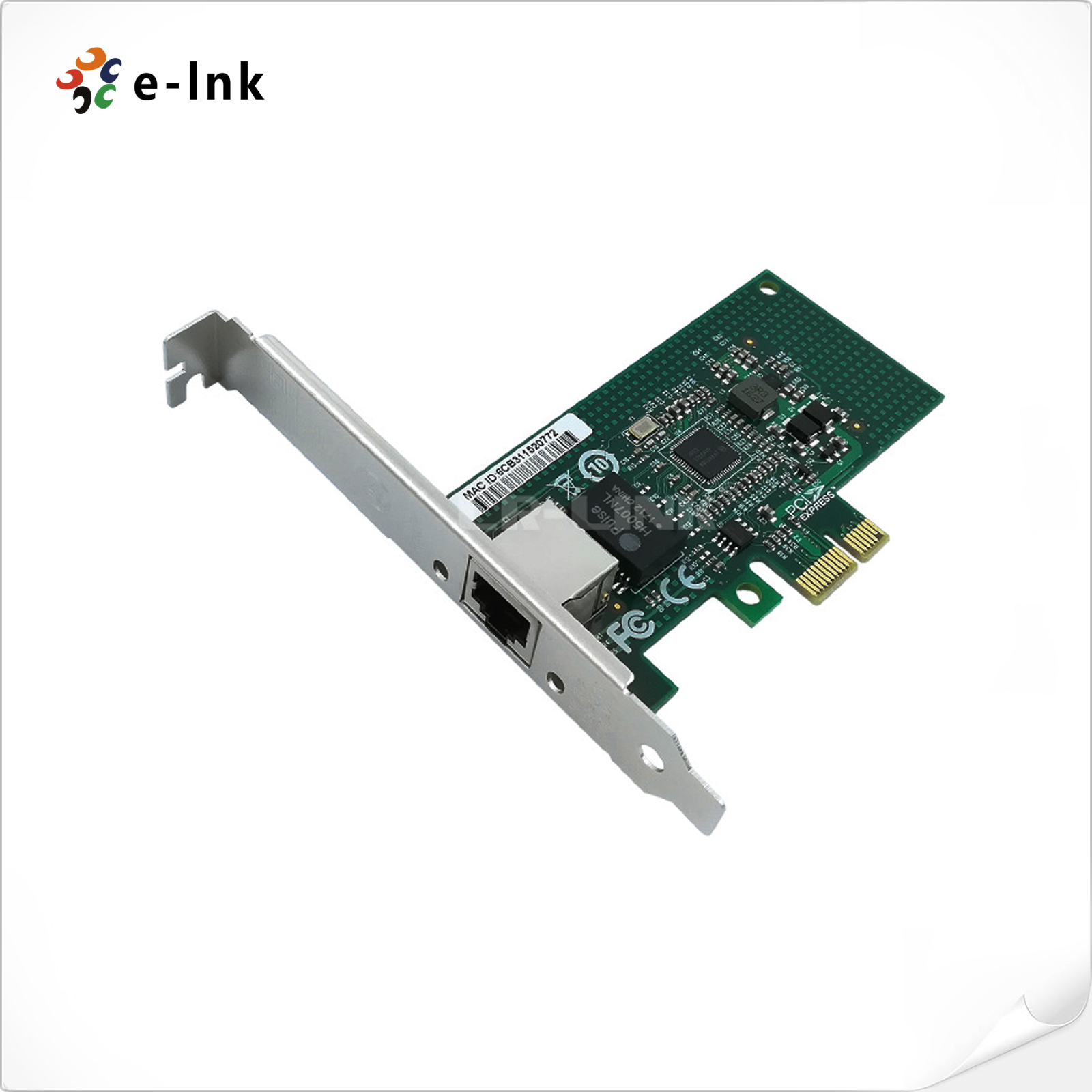

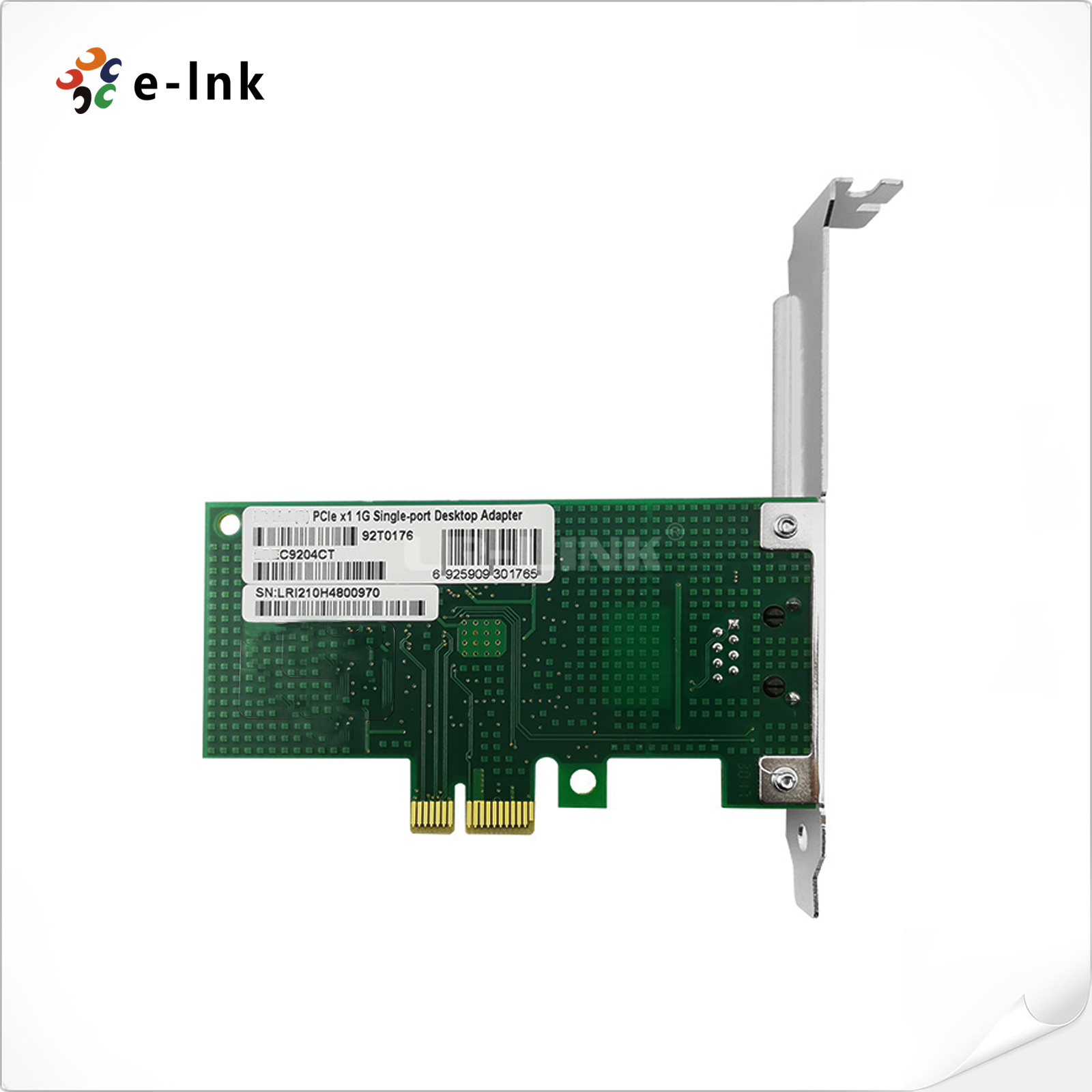

PCI-Express 10/100/1000M Gigabit Copper Network Card (Intel I210 Based)
Model:LNK-C9204CT
► Single Port 10/100/1000Mbps adapter
► PCI Express (PCIe) 2.1 (2.5 GT/s) x1 lane
► RJ45 Connectivity
► Low-cost, low-power
► WOL, PXE Support
► IEEE 802.3az - Energy Efficient Ethernet (EEE)
Overview
LNK-C9204CT is PCI Express x1 Gigabit Ethernet desktop network adapter based on Intel I210 solution. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC.
The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures.
The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.
Feature
► Single Port 10/100/1000Mbps adapter
► PCI Express (PCIe) 2.1 (2.5 GT/s) x1 lane
► RJ45 Connectivity
► Low-cost, low-power
► WOL, PXE Support
► IEEE 802.3az - Energy Efficient Ethernet (EEE)
► Advanced Power Management (APM) Support
► Innovative power management features
► MSI, MSI-X support
► Excellent small packet performance for network appliances

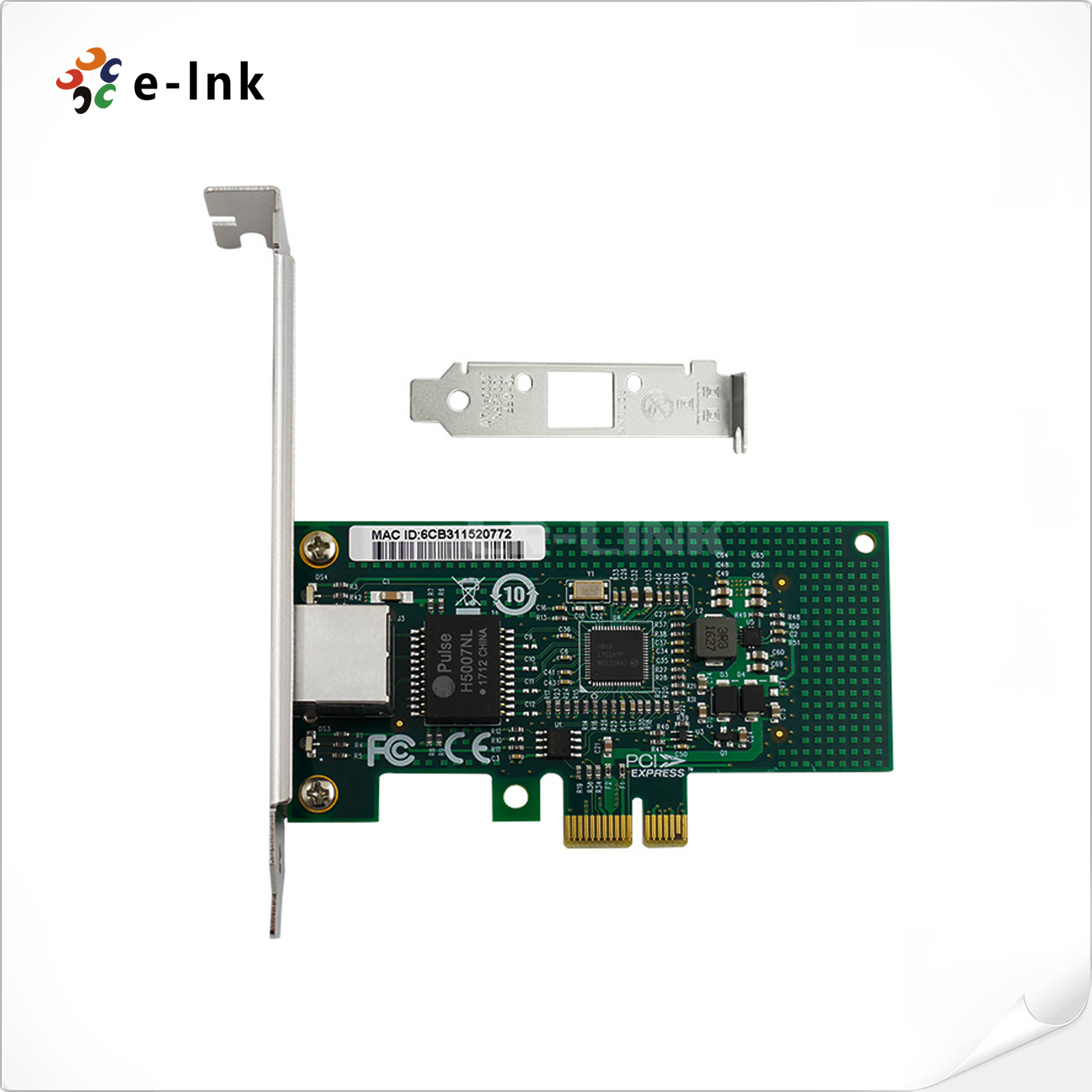

► Low profile and full-height bracket
► MAC Power Management controls
► Low Power Link Up - Link Speed Control.
Specification
|
Standards: |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX |
|
|
IEEE 802.3ab 1000BASE-T |
|
|
IEEE 802.3x Flow control auto-negotiation |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 1588 protocol and 802.1AS implementation |
|
|
IEEE 802.1p Quality of Service priority control |
|
|
PCI-E 1.0 complaint |
|
|
NOS Software Support: |
Windows 2000 |
|
Windows XP 32-bit (64-bit) |
|
|
Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit) |
|
|
Windows 7 32-bit (64-bit) |
|
|
Windows 8 32-bit (64-bit) |
|
|
Windows 10 32-bit (64-bit) |
|
|
Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit) |
|
|
Windows Server 2012 32-bit (64-bit) DOS, Novell ODI |
|
|
Novell Netware 5.x, 6.x |
|
|
Linux 2.4 series kernel and 2.6.x, 3.x |
|
|
FreeBSD 7.x and later |
|
|
UnixWare / OpenUNIX 8 |
|
|
Sun Solaris x86 |
|
|
VMWare |
|
|
Controller: |
Intel I210 |
|
Transmission rate |
10/100/1000Mbps |
|
Twisted-pair |
1000BASE-T: Cat 5e or higher up to 100m 100BASE-Tx: Cat5/5e/6 or higher up to 100m 10BASE-T: Cat3/4/5/5e/6 or higher up to 100m |
|
Jumbo Frame Support: |
Up to 9.5 KB |
|
Network Virtualization |
PXE |
|
Interface |
|
|
Connector: |
1x RJ45 |
|

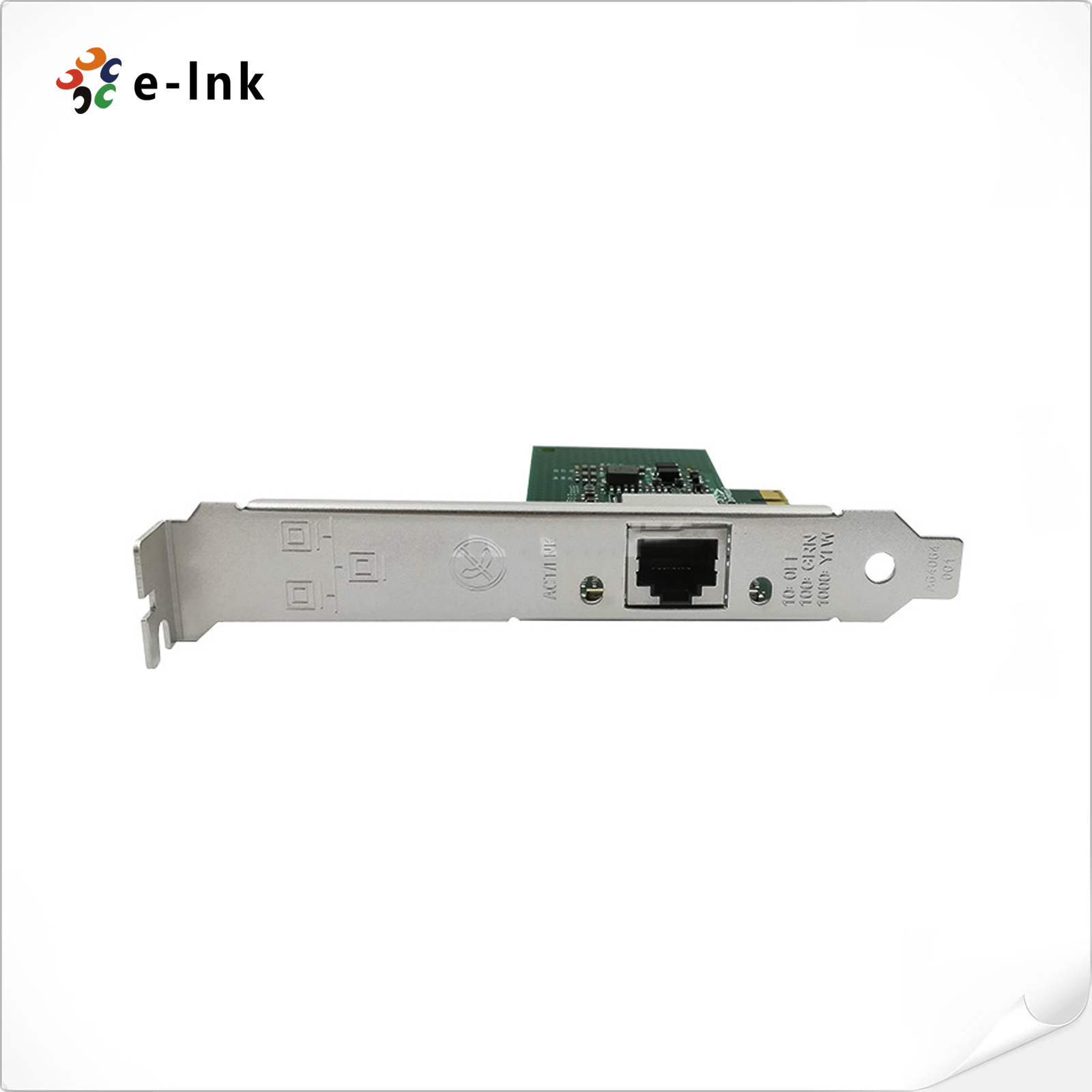

LED Indicators |
|
|
1000Mbps/s |
Yellow Link and Green Act |
|
100Mbps/s |
Green Link and Green Act |
|
10Mbps/s |
Not illuminate |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-25°C to 70°C (-13°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
- Download FileName：E-link LNK-C9204CT PCI-Express Gigabit Copper Network Card Datasheet V1.0.pdf Size： 1.61MB
Order Information
|
Model |
Description |
|
LNK-C9204CT |
PCI Express x1 Single Port Copper Gigabit Ethernet Desktop Adapter Intel I210AT Based |
