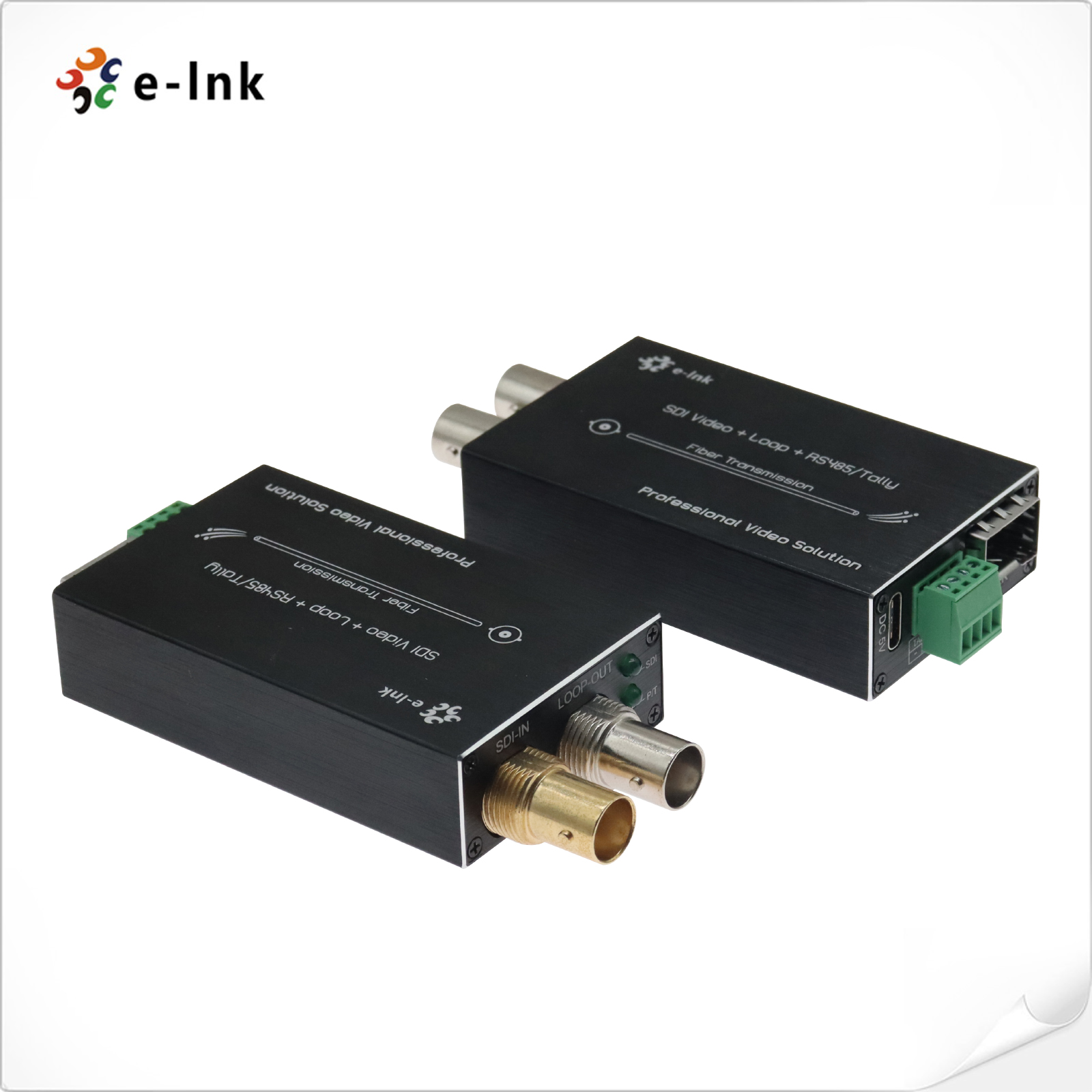

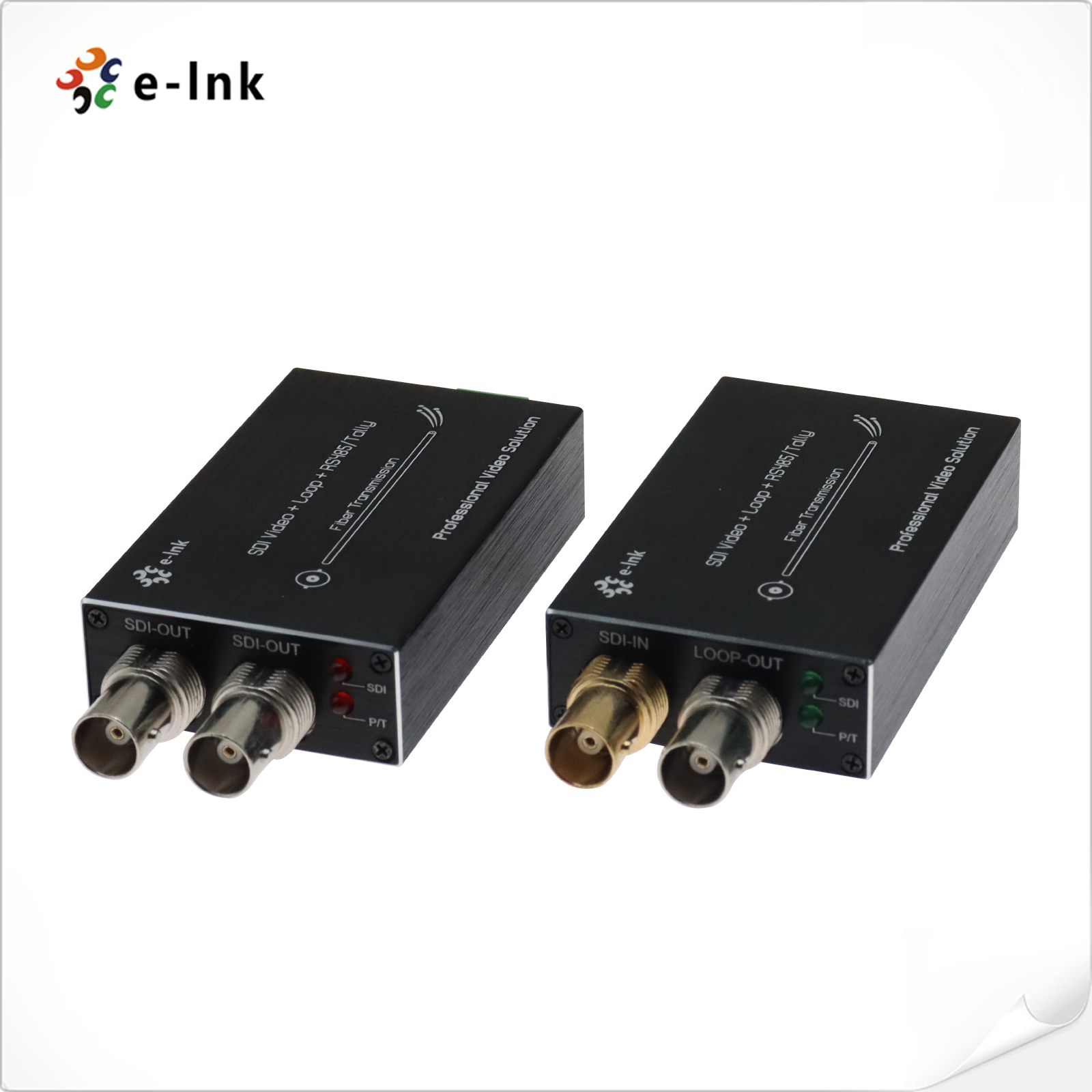

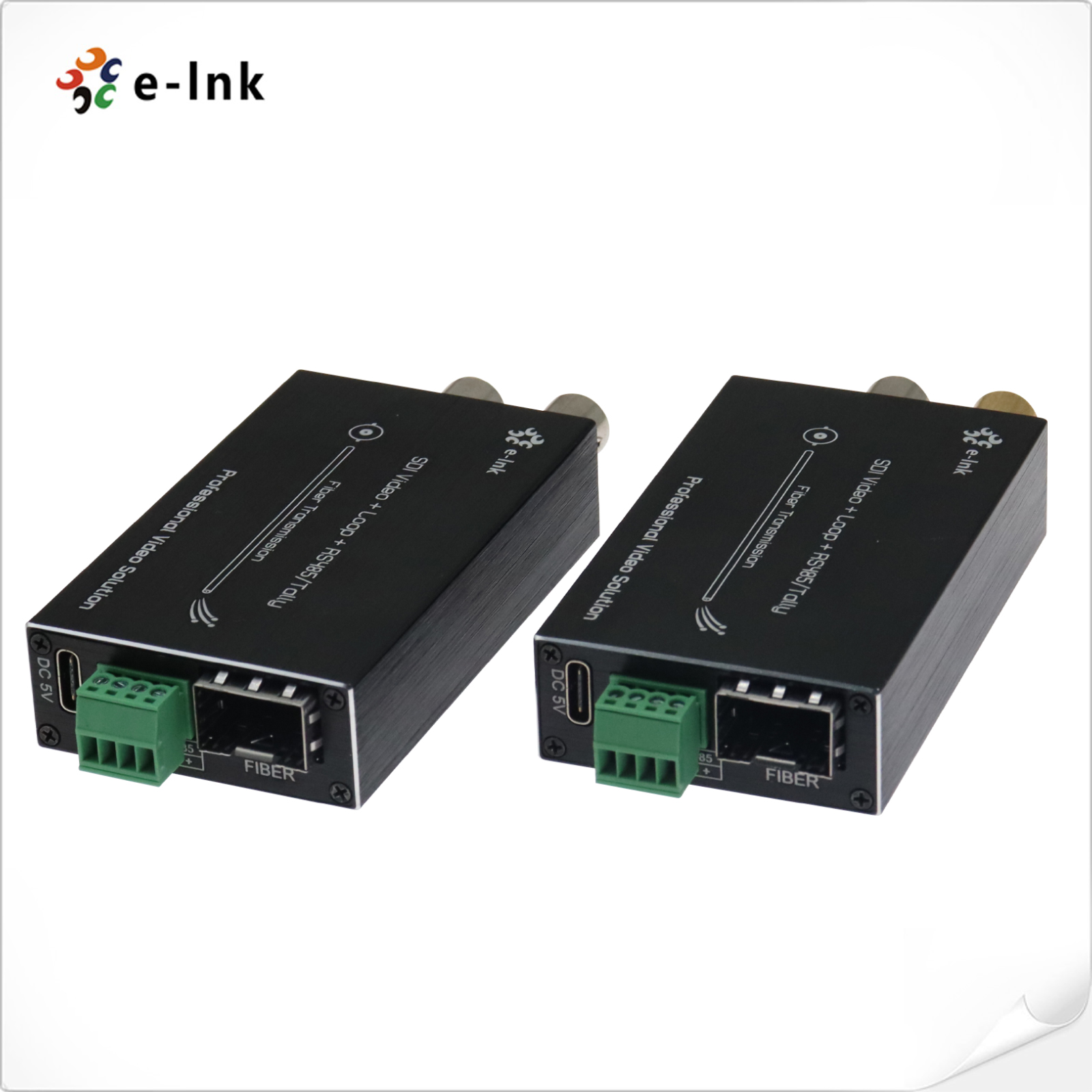

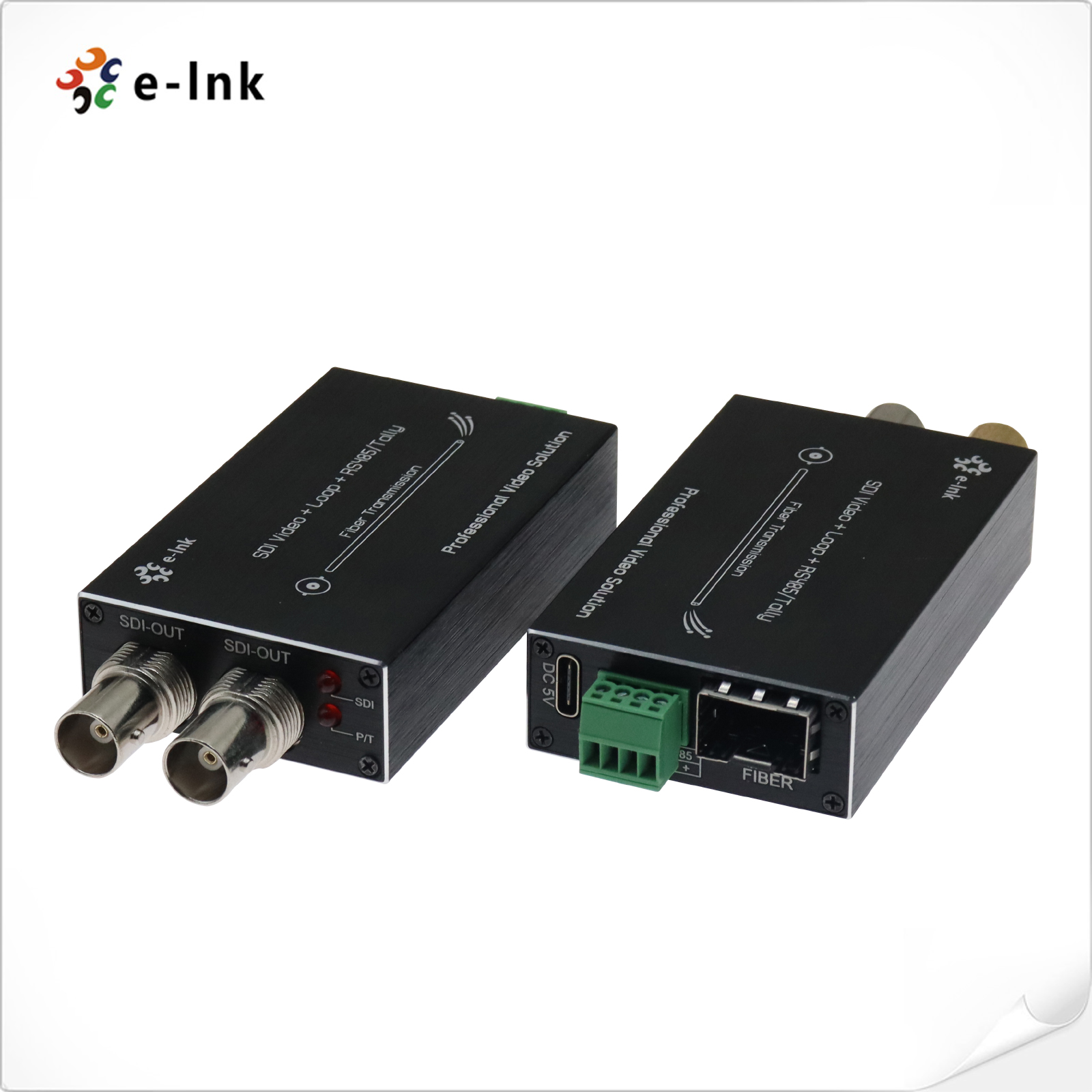

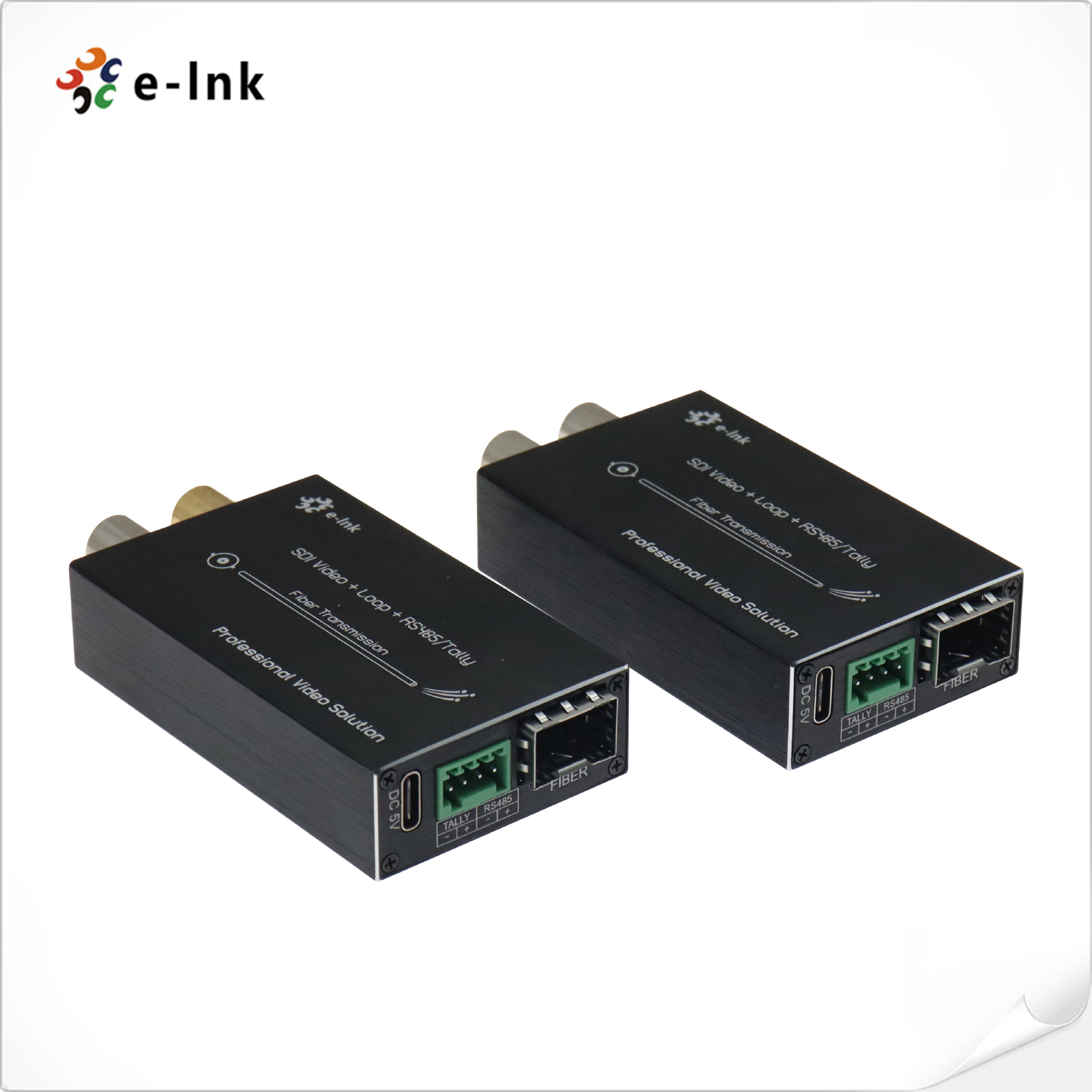

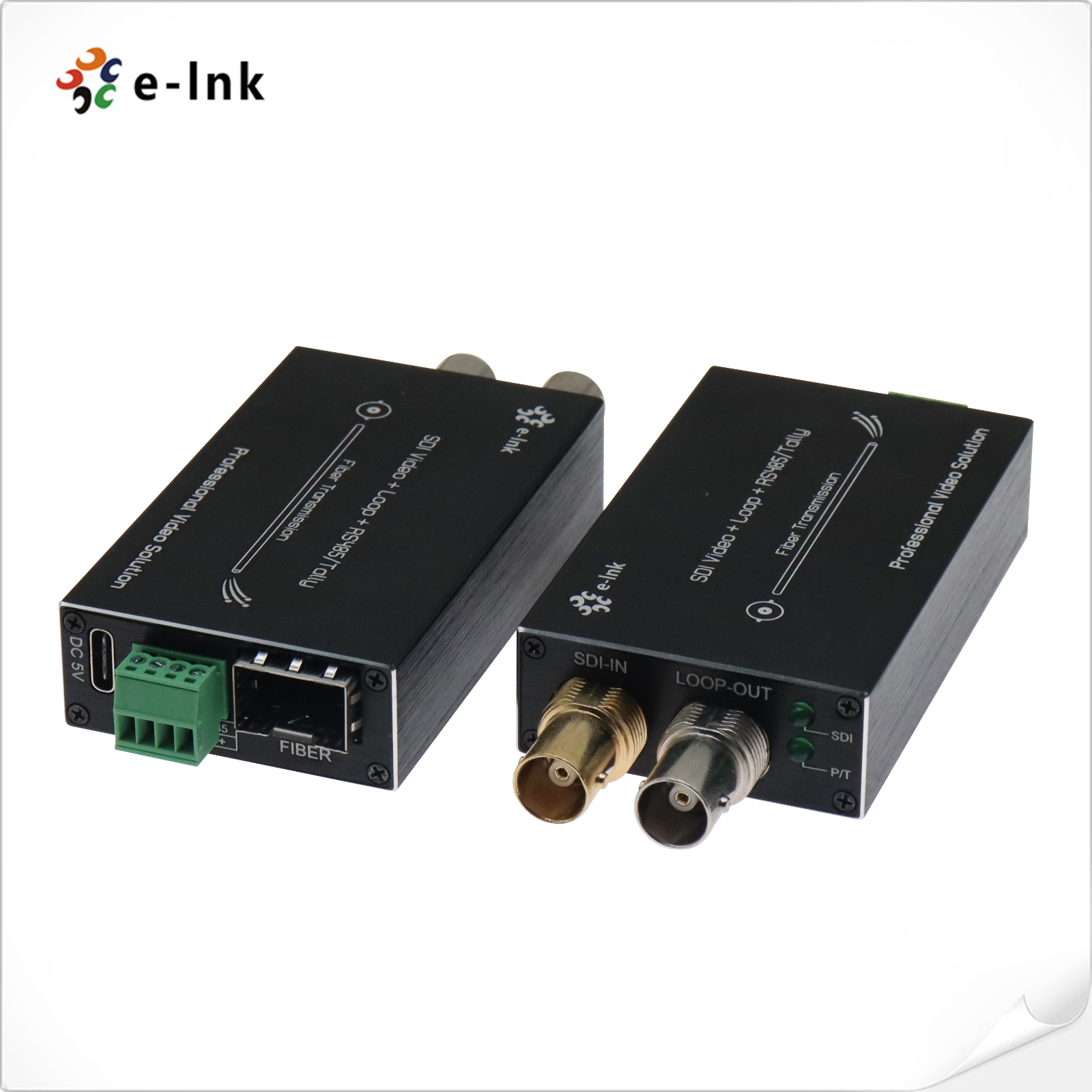

Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485
Model:LNK-M3G-1V Series
► Each channel includes 8-channel audio embedded;
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s;
► Directly compatible with 3G-SDI camera systems;
Overview
LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video(audio embedded)& Tally & Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.
Feature
► Each channel includes 8-channel audio embedded;
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with 3G-SDI camera systems
► Long transmission capability up to 80km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
► super optic dynamic range and free of adjustment;
► 1470~1610nm CWDM wavelengths optional;
► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Application
►Animal films recording;
►Live events broadcast over fiber
►High performance(error-free) surveillance networks in Army or security;
►Large video wall system
►Intelligent Traffic Monitoring System
►Security systems
►School networking
►Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)
►Military Monitoring (Warehouse, Border, Guards,etc)
►Stadium (For LIVE HD video, audio transmission)
Specification
|
Fiber |
|
|
Fiber interface |
LC |
|
Transmission distance |
Multi mode fiber up to 300M Single mode fiber up to 80KM |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE 425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE 424M 3Gb/s serial interface(3G-SDI) |
|
|
Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
Tally & Reverse RS485 |
|
Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
|
BER |
<10ˉ9 |
|
Electrical |
|
|
Power adaptor |
DC 5V (USB-C) |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
73 x 44 x 17 mm (TX) 73 x 44 x 17 mm (RX) 185 x 132 x 100 mm (Package) |
|
Weight |
75g (TX) 75g (RX) 450g (Package) |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：E-link LNK-M3G-1V Series Mini-type 3G-SDI to Fiber Converter with Tally & RS485 Datasheet V1.0.pdf Size： 2.22MB
