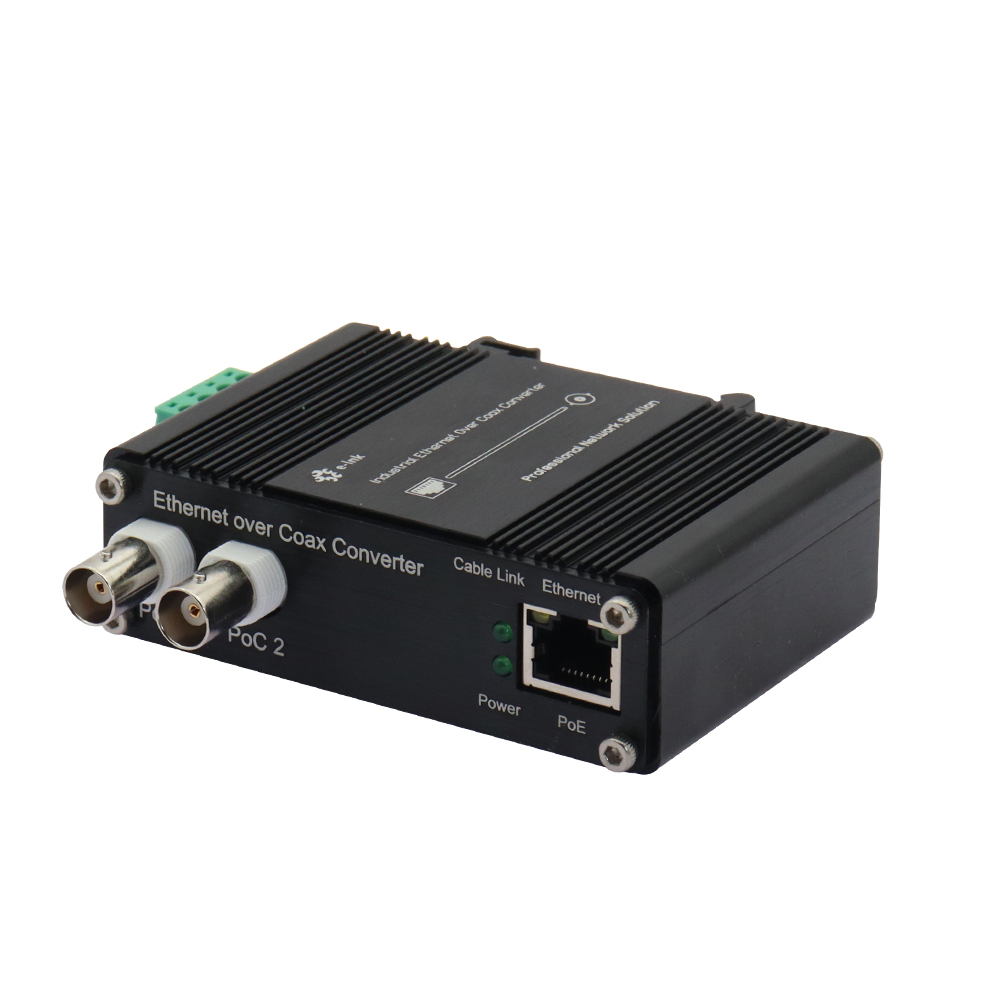

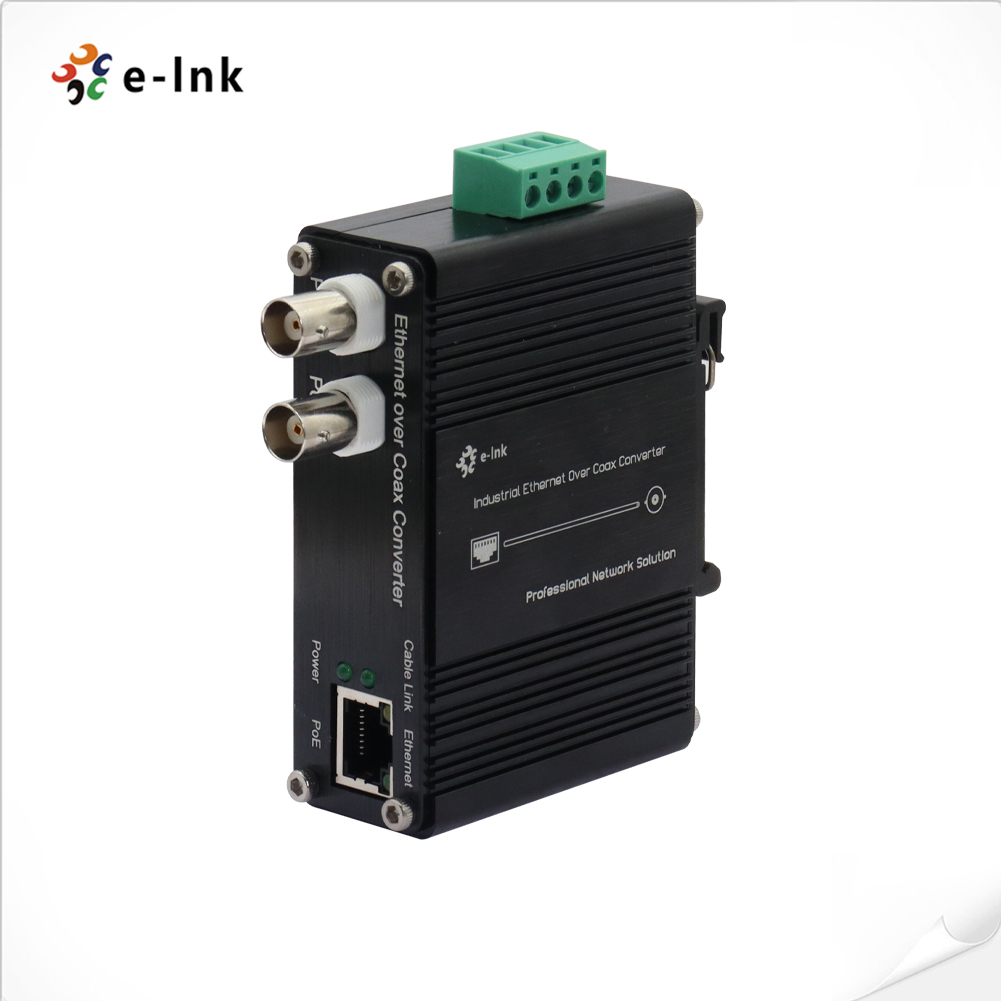

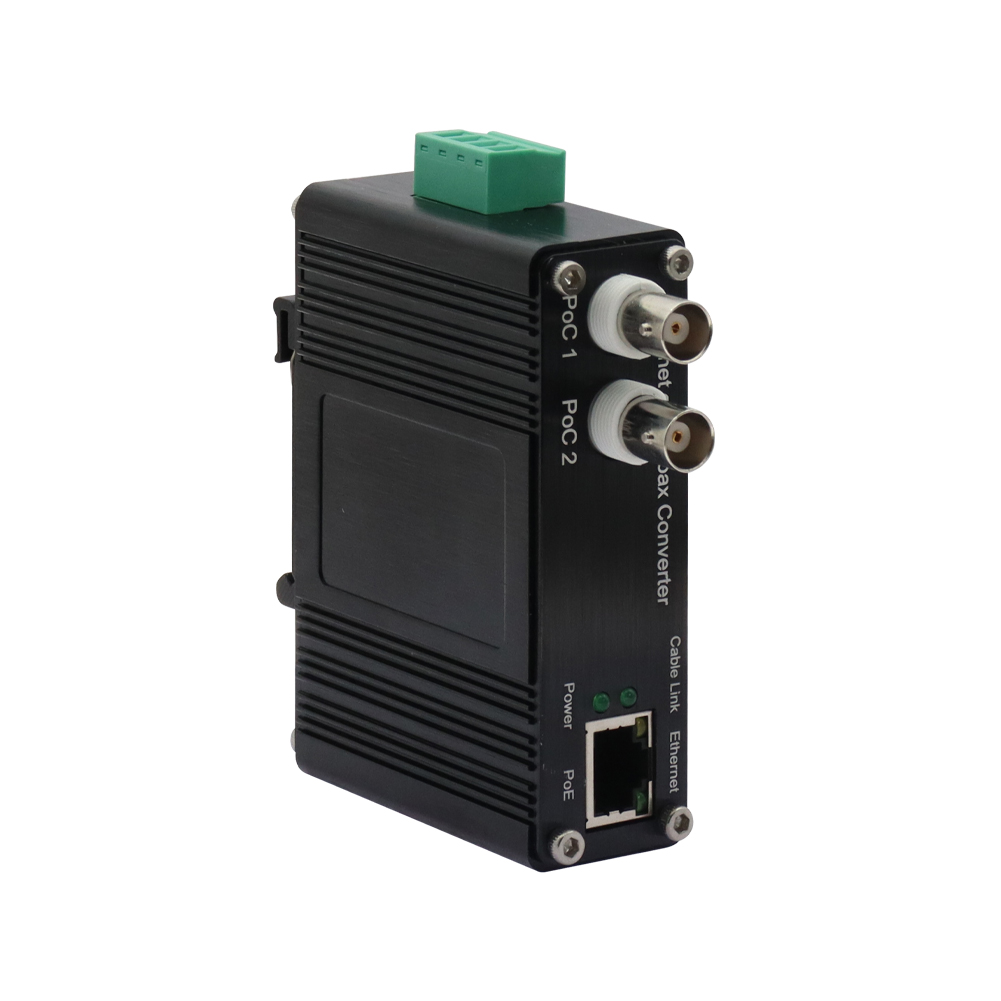

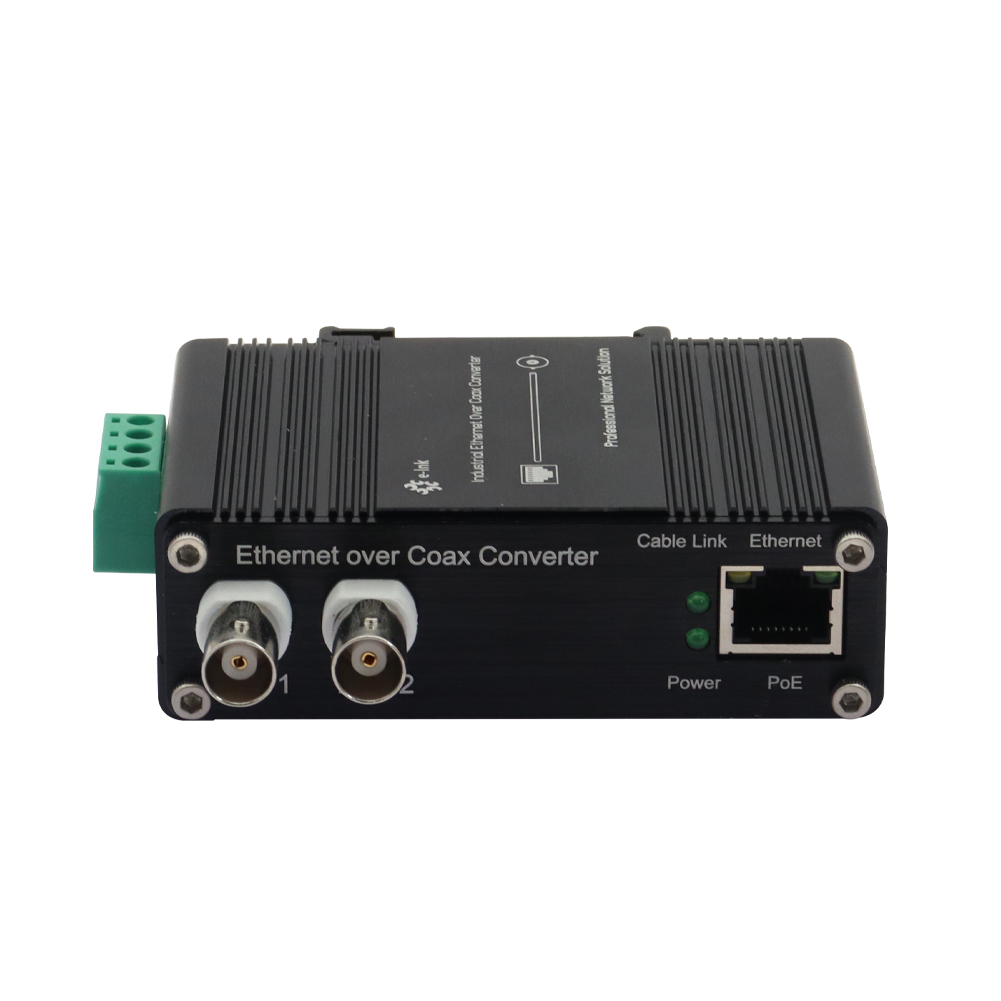

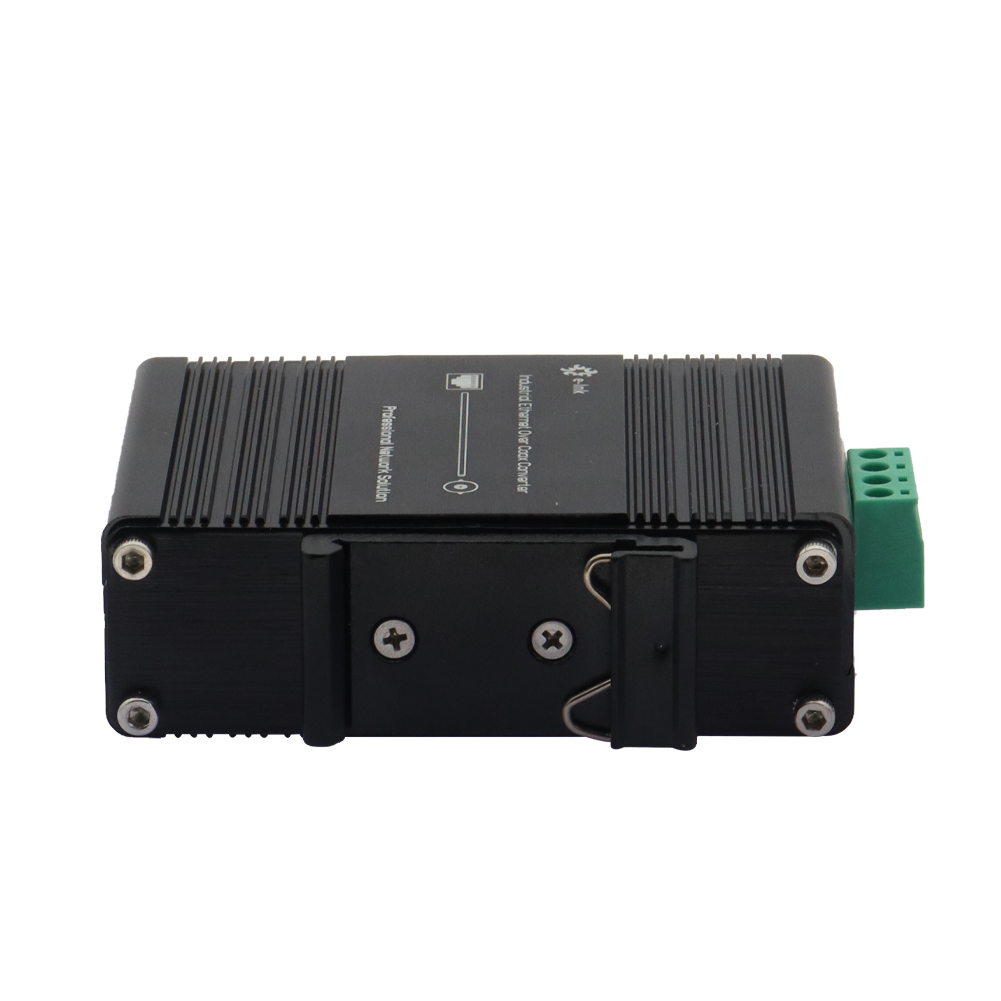

DIN-Rail Industrial 10/100Base-TX (PoE+) Ethernet over Coax Extender EoC Converter
Model:LNK-DEC110 Series
► Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)
► Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
► Input Voltage: DC18V~48V (POE: DC48V)
► Support Power over Coax & Power over Ethernet at same time
► 2pc BNC design, support to connect Max. 7 channels branch line
Overview
The LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 1200M(Power: 300M). 2pc BNC design supports to connect 2 channel branch lines at same time. The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference. Inbuilt Industry level intelligent auto-monitoring module (this function is optional), this function can make the device intelligent detect circuit individually, all time automatically detect network communication link exceptional situation. If any link is abnormal, it make the device recover to link the communication automatically, ensure the network communication link data transmission stably. Really realize never loss network connection, never crash industry network transmission. Guarantee the security of surveillance zone. These series products are widely used in CCTV surveillance and remote network extension.
Features
► Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)
► Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
► Input Voltage: DC18V~48V (POE: DC48V).
► Support Power over Coax & Power over Ethernet at same time.
► 2pc BNC design, support to connect Max. 7 channels branch line
► Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.
► Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol
► Advanced 128-bit AES encrypted transmission and PoE+ power technology
► Excellent Protection: Built-in transient protection; industrial temperature range. Excellent lightning protection and strongly Anti-interference, surge protection.
Application

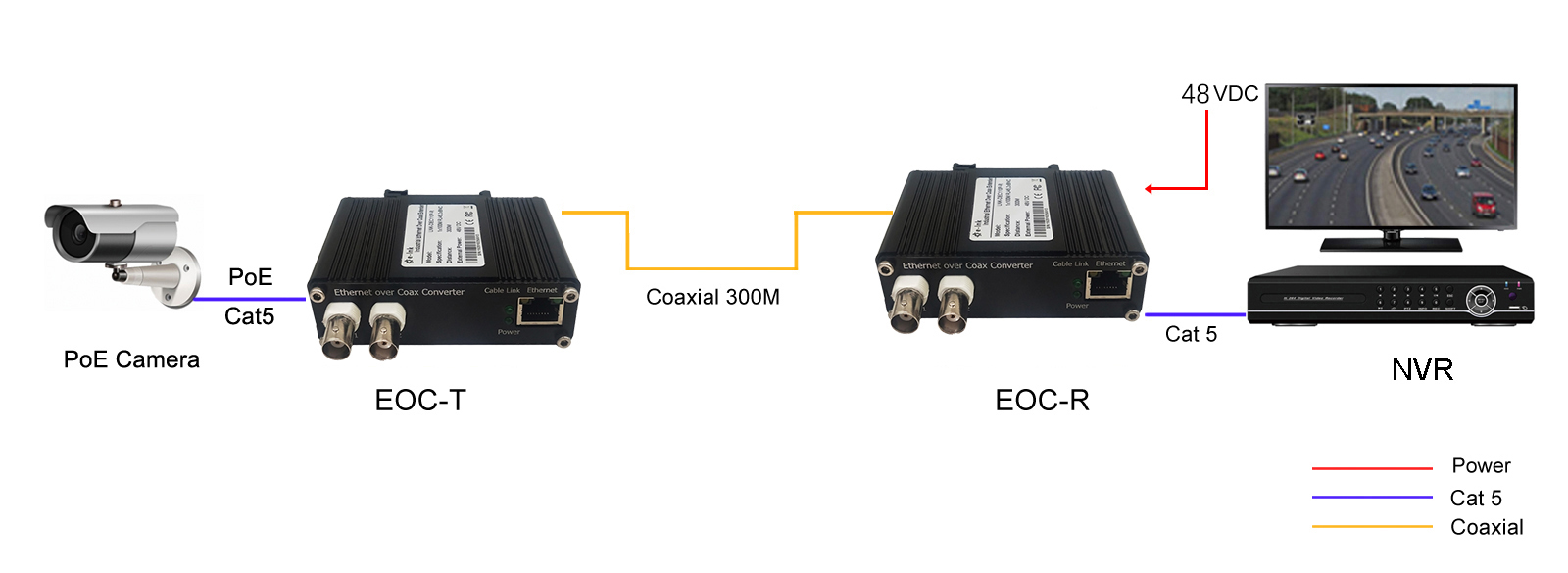

Provide PoE Power Supply for front-end PoE device (Transmission Distance: 300m)

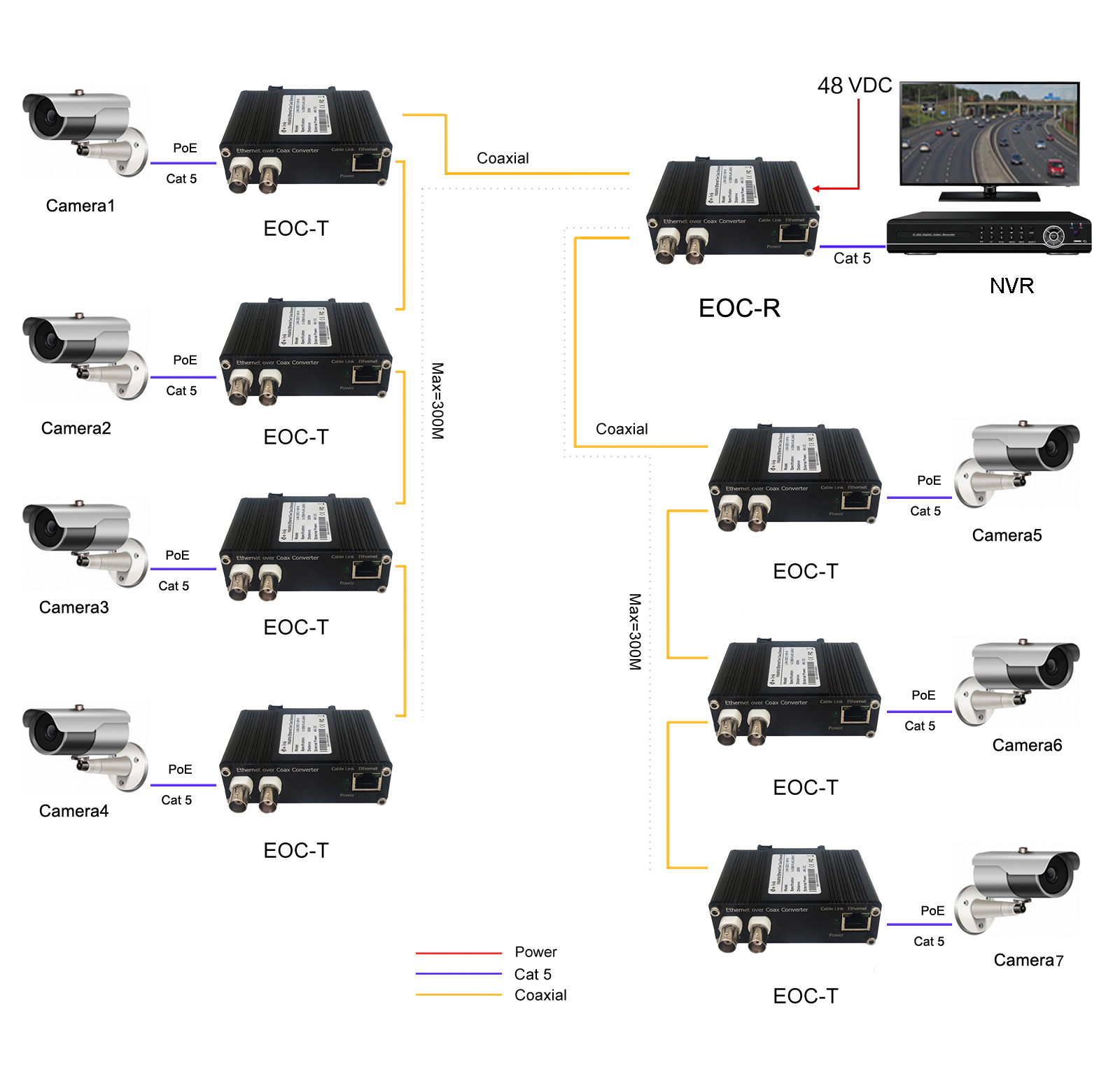

Daisy-chain Connection with PoE

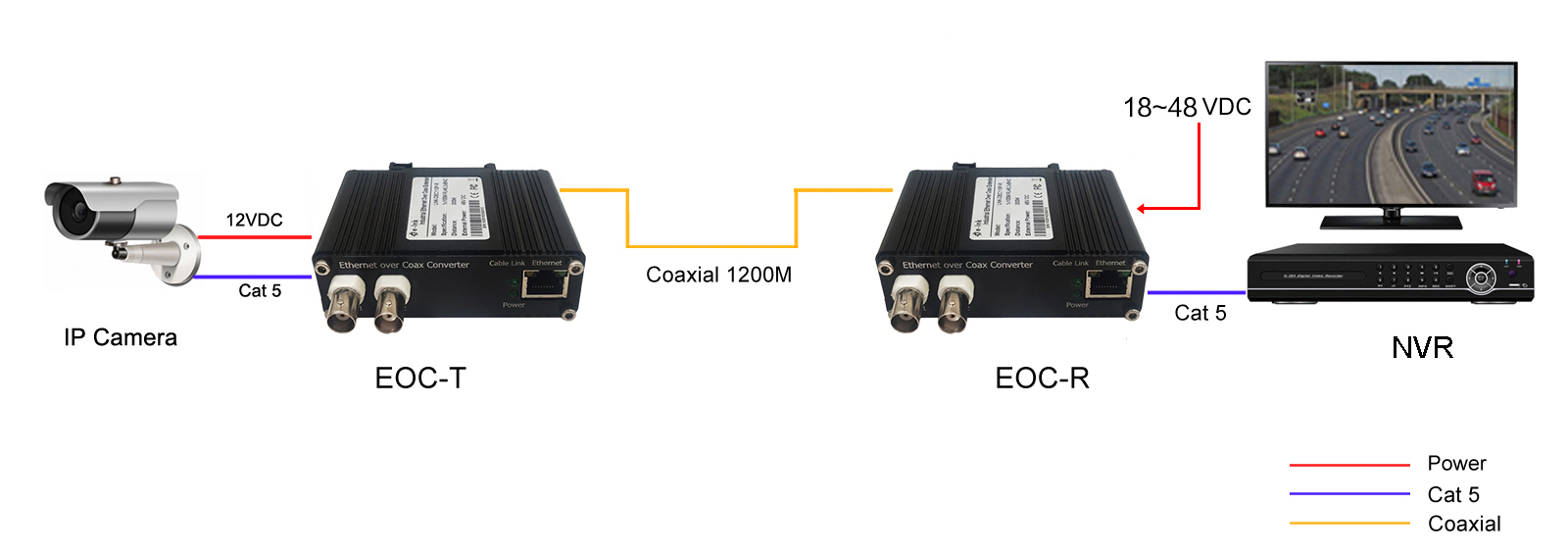

EoC without PoE (Transmission Distance: 1200m)
Daisy-chain Connection without PoE
Technical Indexes
|
Ethernet |
|
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
|
IEEE802.3af Power Over Ethernet |
|
|
IEEE802.3at Power Over Ethernet |
|
|
Cabling |
10Base-T: Cat 3,4,5, or above |
|
|
100Base-TX: Cat5 or above |
|
Maximum Distance |
Cat5UTP up to 100m |
|
Connector |
1 x RJ45 |
|
Coaxial |
|
|
Cabling |
Coaxial Cable (75 ohm) |
|
Connector |
1 BNC (female) |
|
Distance |
Up to 1200m (no PoE), 300m (with PoE) |
|
Data Rate |
|
|
Downlink (TX to RX) |
90Mbps (Max.) |
|
Uplink (RX to TX) |
90Mbps (Max.) |
|
Technology |
Power Line Communication (PLC) |
|
Protection |
|
|
Reverse Polarity |
Present |
|
Electrical and Mechanical |
|
|
Input Power |
DC18V~48V (PoE: DC48V) |
|
Power Consumption |
8W Max. (PoC not in use) |
|
60W Max. (Poc in use) |
|
|
LED Indicators |
|
|
Power (Power) |
RED (Power On: keep lighting; Power Off: lighting off) |
|
Coax (Cable Link) |
GREEN (Flicker: signal transmission) |
|
Ethernet |
SPD, LINK/ACT, PoE(Transmitter) |
|
PoE |
|
|
Standard |
IEEE802.3af/at |
|
Mode |
B Mode |
|
Port |
RJ45 |
|
Max. Power Per Port |
25.5W max.at RX(Powered Device) |
|
30W Max.at TX(Power Souring Equipment) |
|
|
Mode |
Positive(VCC+): RJ45 Pin 4,5 |
|
Negative(VCC-):RJ45 Pin 7,8 |
|
|
Dimensions (W x D x H) |
95 × 67 × 30 mm |
|
Weight |
0.5kg |
|
Casing |
Aluminum case |
|
Environmental |
|
|
Operation Temperature |
-10˚C to 60˚C (14˚F to 140˚F) |
|
Storage Temperature |
-40˚C to 85˚C (-40˚F to 185˚F) |
|
Relative Humidity |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
- Download FileName：E-link LNK-DEC110P Ethernet over Coax Extender Datasheet V1.0.pdf Size： 1.64MB
Ordering Information
|
Model |
Description |
|
LNK-DEC110-T/R |
DIN-Rail EoC Converter,1200m transmission distance, including Transmitter and Receiver, not including power supply adapter |
|
LNK-DEC110P-T/R |
DIN-Rail EoC Converter with PoE+,300m transmission distance, including Transmitter and Receiver, not including power supply adapter |
