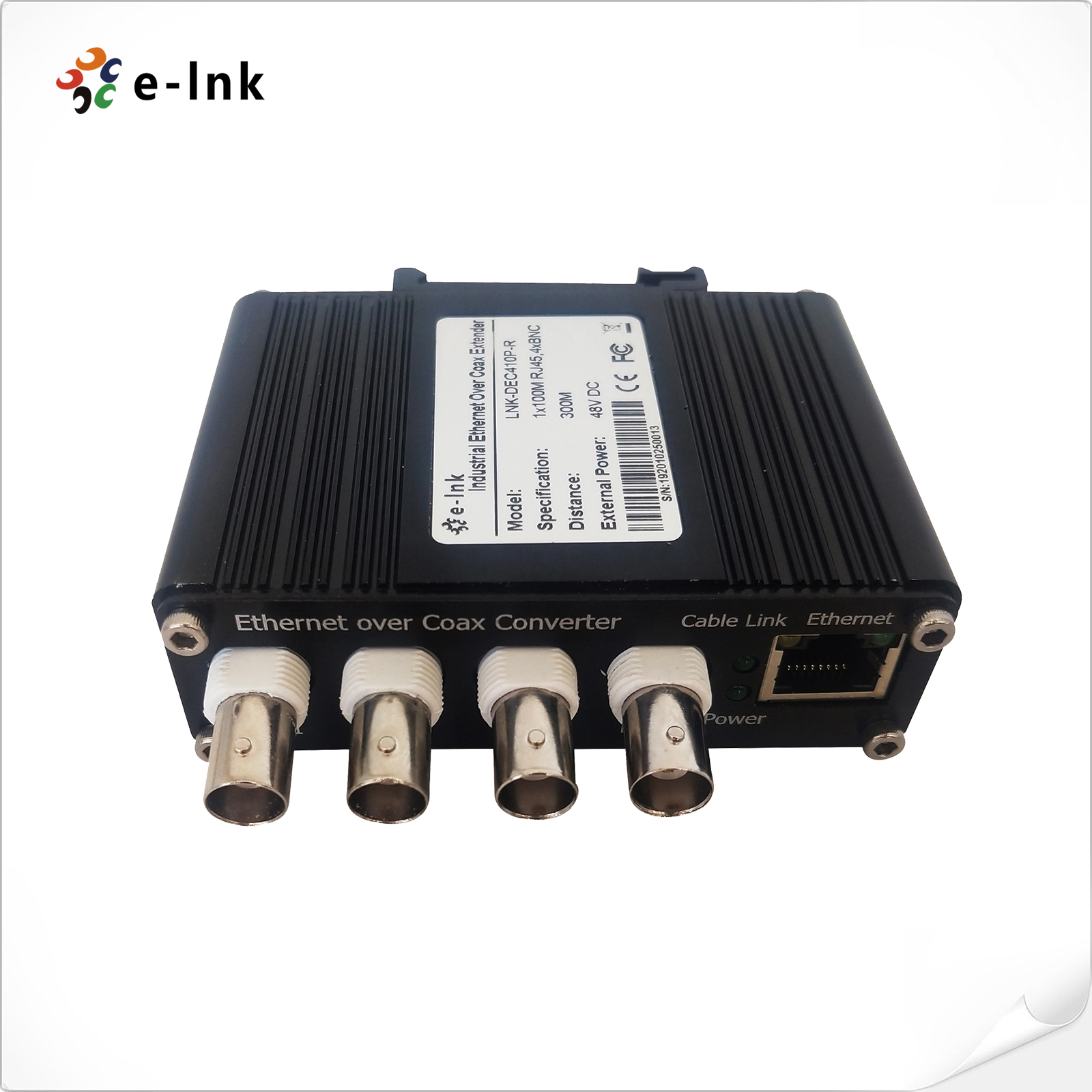

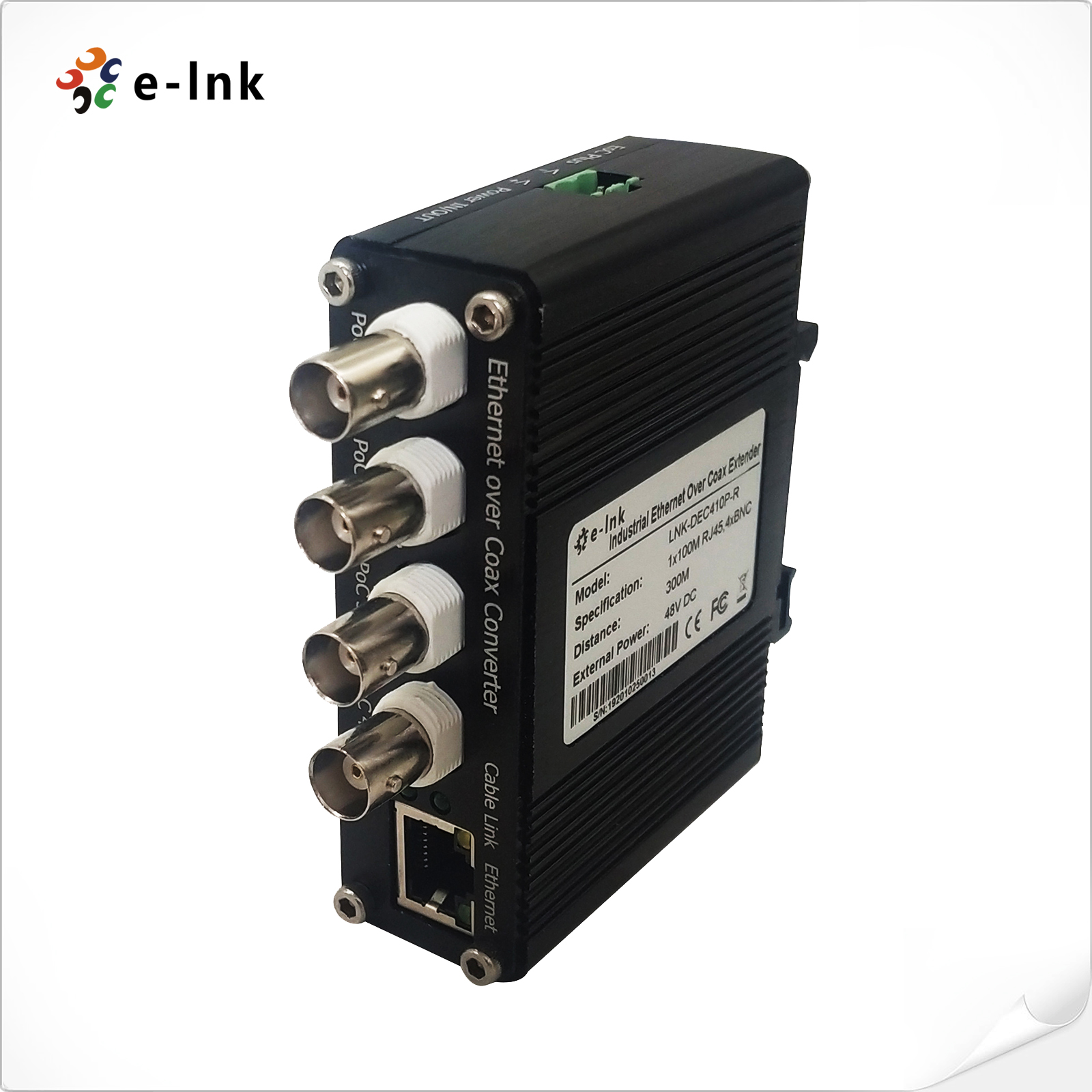

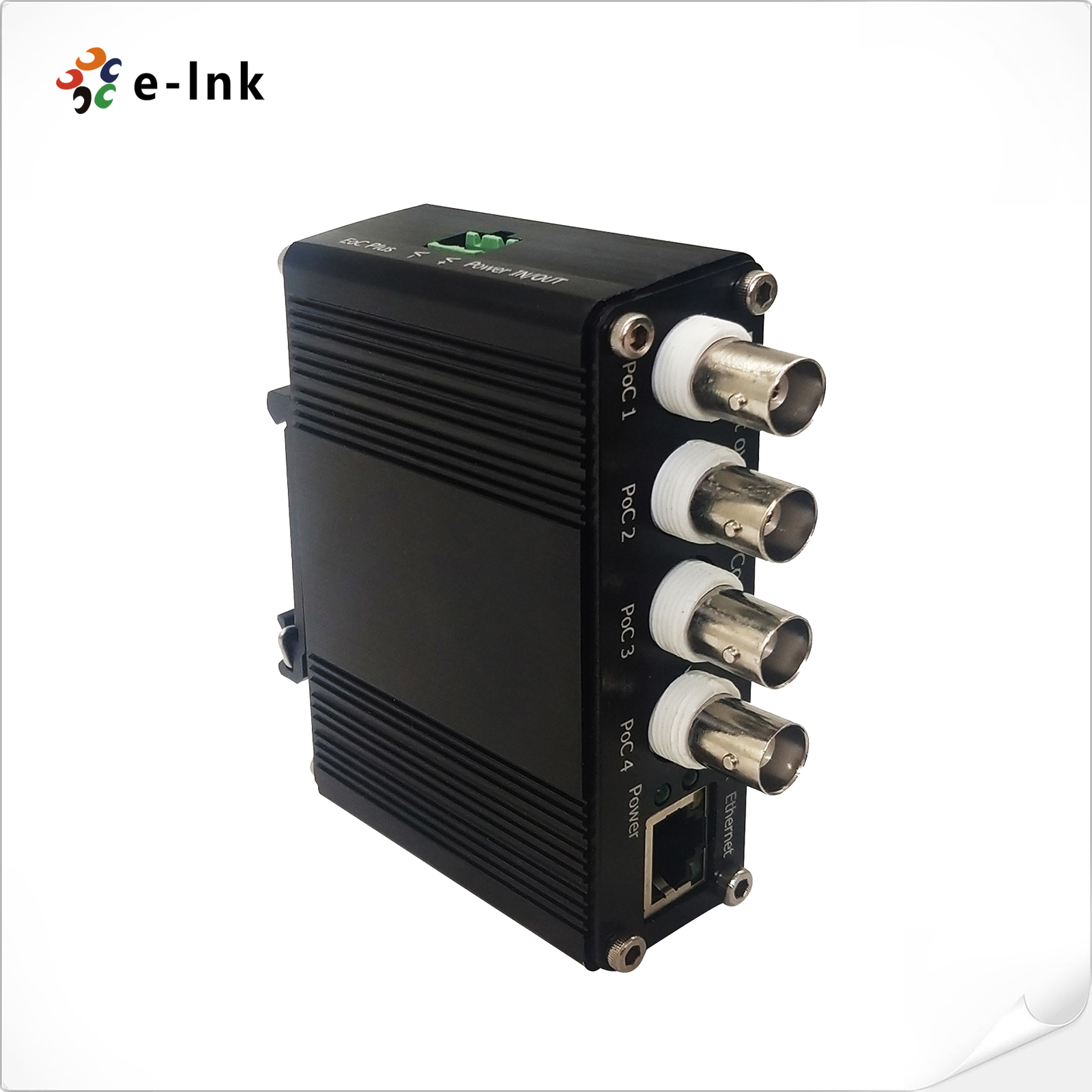

DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC
Model:LNK-DEC140P
► Ethernet Extension: Security Link over Coax
► Support DIN-Rail mount installation
► 1000Mbps Full-duplex communication
► Data Rate up to (per port): 40Mbps (Downlink)/ 10Mbps (Uplink)
Overview
LNK-DEC140P Series DIN-Rail EOC Receiver works with the LNK-DEC110P-T (transmitter) to provide Ethernet Extension of 4 channel 10/100Base-TX over Coaxial cable to 1-port 10/100Mbps Ethernet. The maximum coaxial cable distance is 800m. The product support PoC, hence, no power point is required for the transmitter side and the connected IP camera if the camera support Power over Ethernet (PoE). The product is good for retrofit of analogue system by using the existing cable infrastructure.
Feature
► Ethernet Extension: Security Link over Coax
► Support DIN-Rail mount installation
► Connecting up to 4 x LNK-DEC110P and IP Cameras
► 1000Mbps Full-duplex communication
► Power over Coaxial
► Data Rate up to (per port): 40Mbps (Downlink)/ 10Mbps (Uplink)
► Max. Distance: 300m over Coax (RG59/U)
► Auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables
► External 48~57VDC power input
► Support DIN-Rail mount installation
Application
Specification
|
Ethernet |
|
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
|
Cabling |
100Base-TX: Cat5 or above |
|
Maximum Distance |
Cat5UTP up to 100m |
|
Connector |
1 x RJ45 |
|
Coaxial |
|
|
Cabling |
Coaxial Cable (75 ohm) |
|
Connector |
4 BNC (female) |
|
Distance |
300m |
|
Data Rate per port |
40Mbps Max. (Downlink) |
|
10Mbps Max. (Uplink) |
|
|
Technology |
Power Line Communication (PLC) |
|
Protection |
|
|
Reverse Polarity |
Present |
|
Overload Protection |
Present |
|
Electrical and Mechanical |
|
|
Input Power |
48-57VDC (2 pin connector) |
|
Power Consumption |
10W Max. w/o PoC |
|
250W Max. w/PoC |
|
|
Dimensions (W x D x H) |
95 × 67 × 30 mm |
|
Weight |
0.5 Kg |
|
Casing |
Aluminum case |
|
Environmental |
|
|
Operation Temperature |
-10˚C to 60˚C (14˚F to 140˚F) |
|
Storage Temperature |
-40˚C to 85˚C (-40˚F to 185˚F) |
|
Relative Humidity |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
- Download FileName：E-link LNK-DEC140P-R Receiver of Ethernet over Coax Extender Datasheet V1.0.pdf Size： 579KB
Order Information
|
Model |
Description |
|
LNK-DEC140P-R |
DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC |
