► 80~320VDC wide-range input voltage
► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
► IEEE 802.3af/at compliant, supports a full 30 watt output
Overview

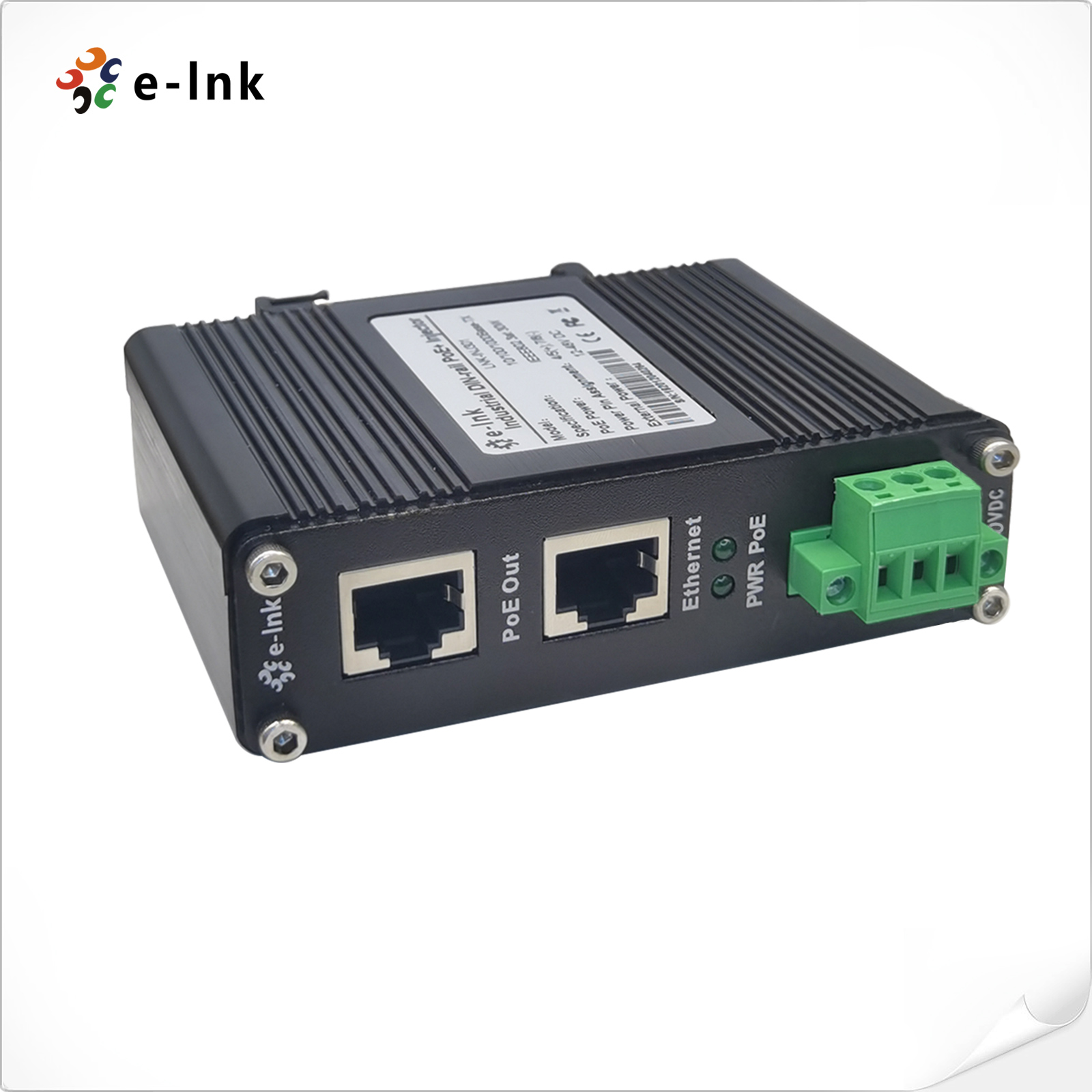

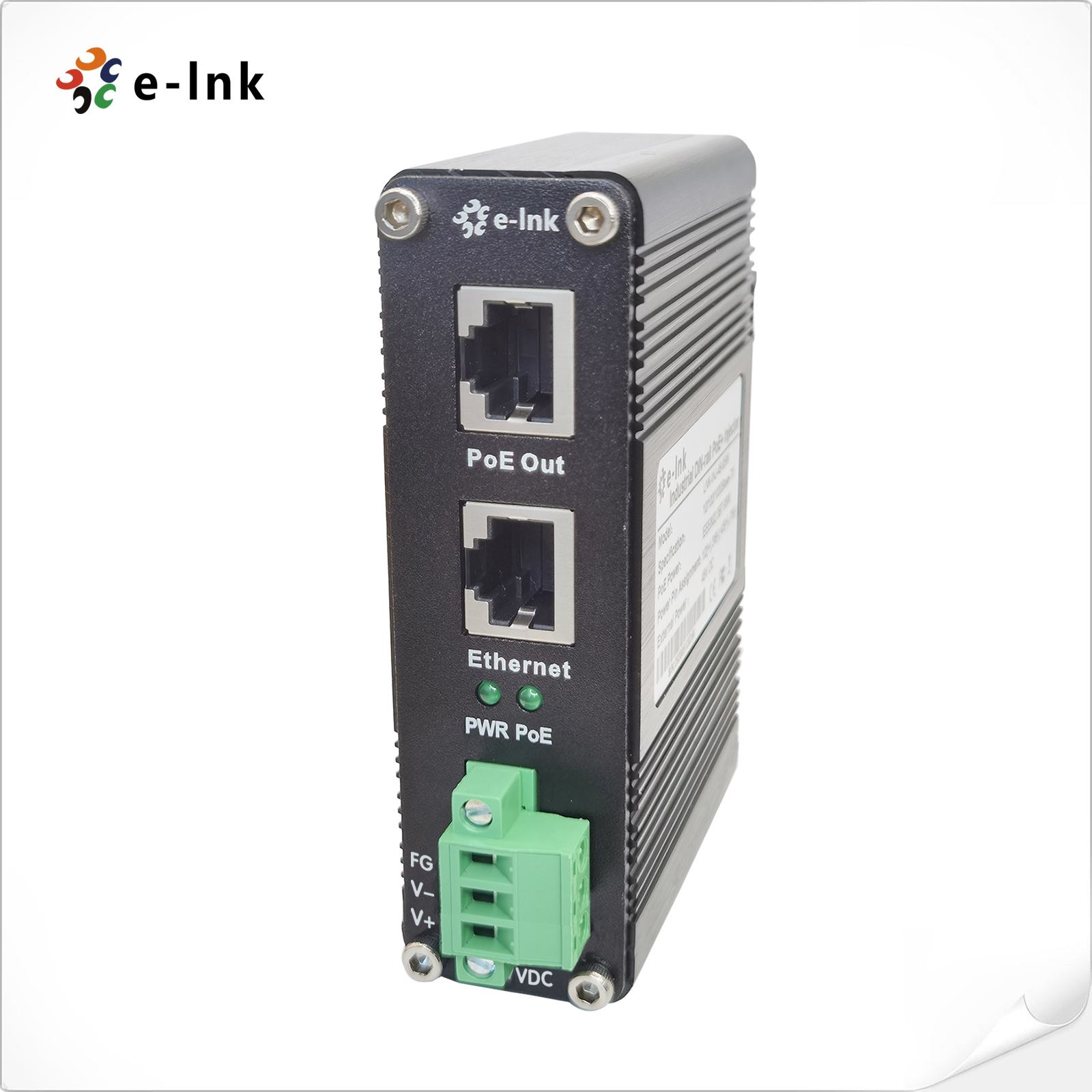

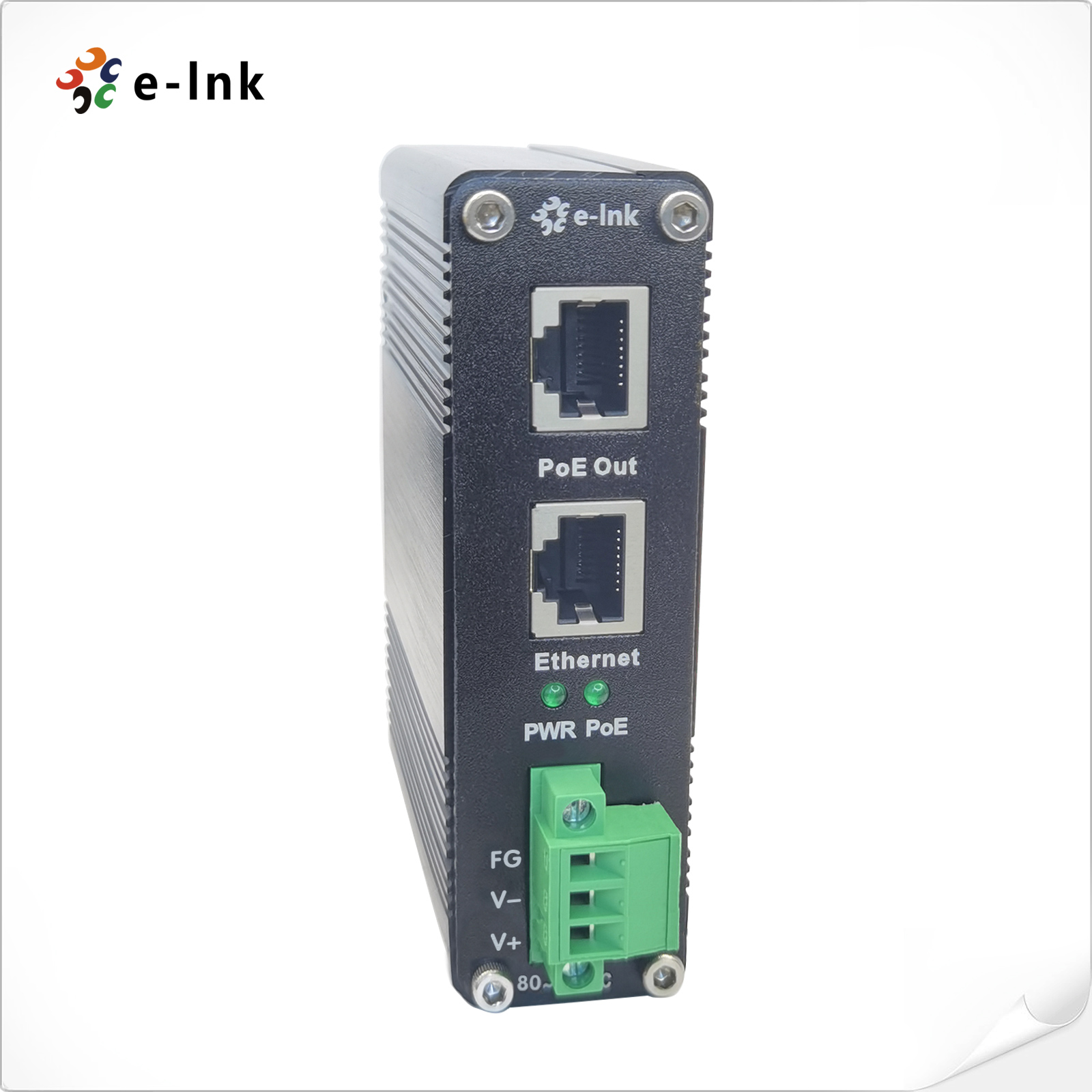

The LNK-INJ832 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3at.
LNK-INJ832 provides an integrated power solution with a wide range voltage of 80~320VDC for high availability applications.

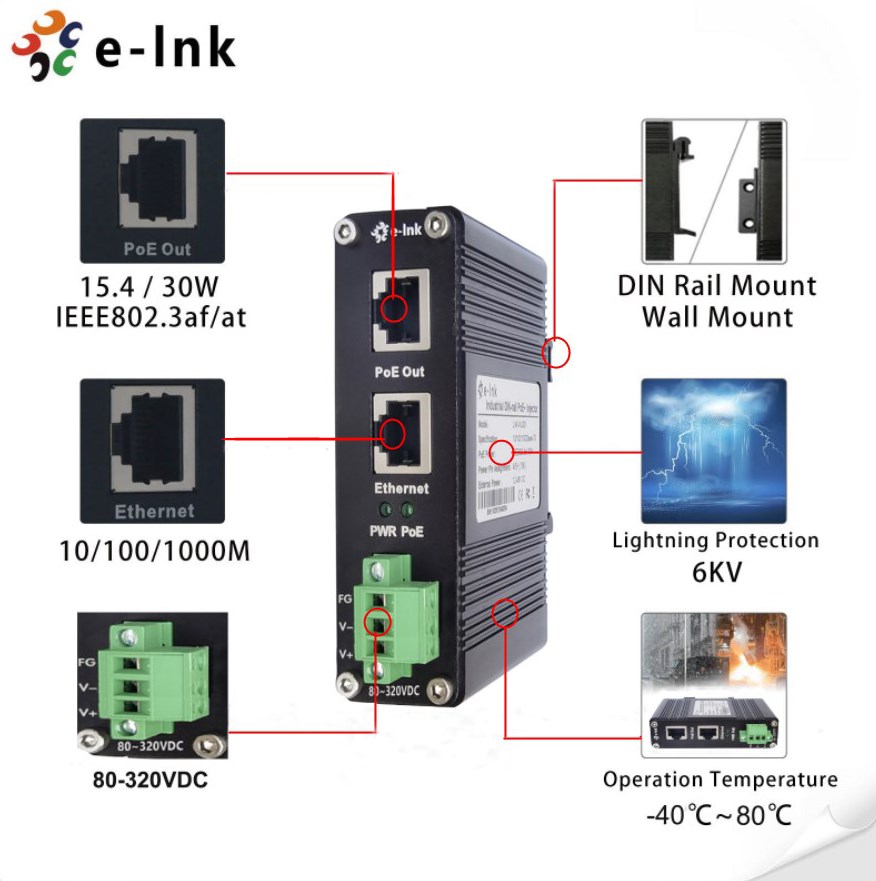

Features
► 80~320VDC wide-range input voltage
► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
► IEEE 802.3af/at compliant, supports a full 30 watt output
► Provides slim size with IP40 metal mechanism

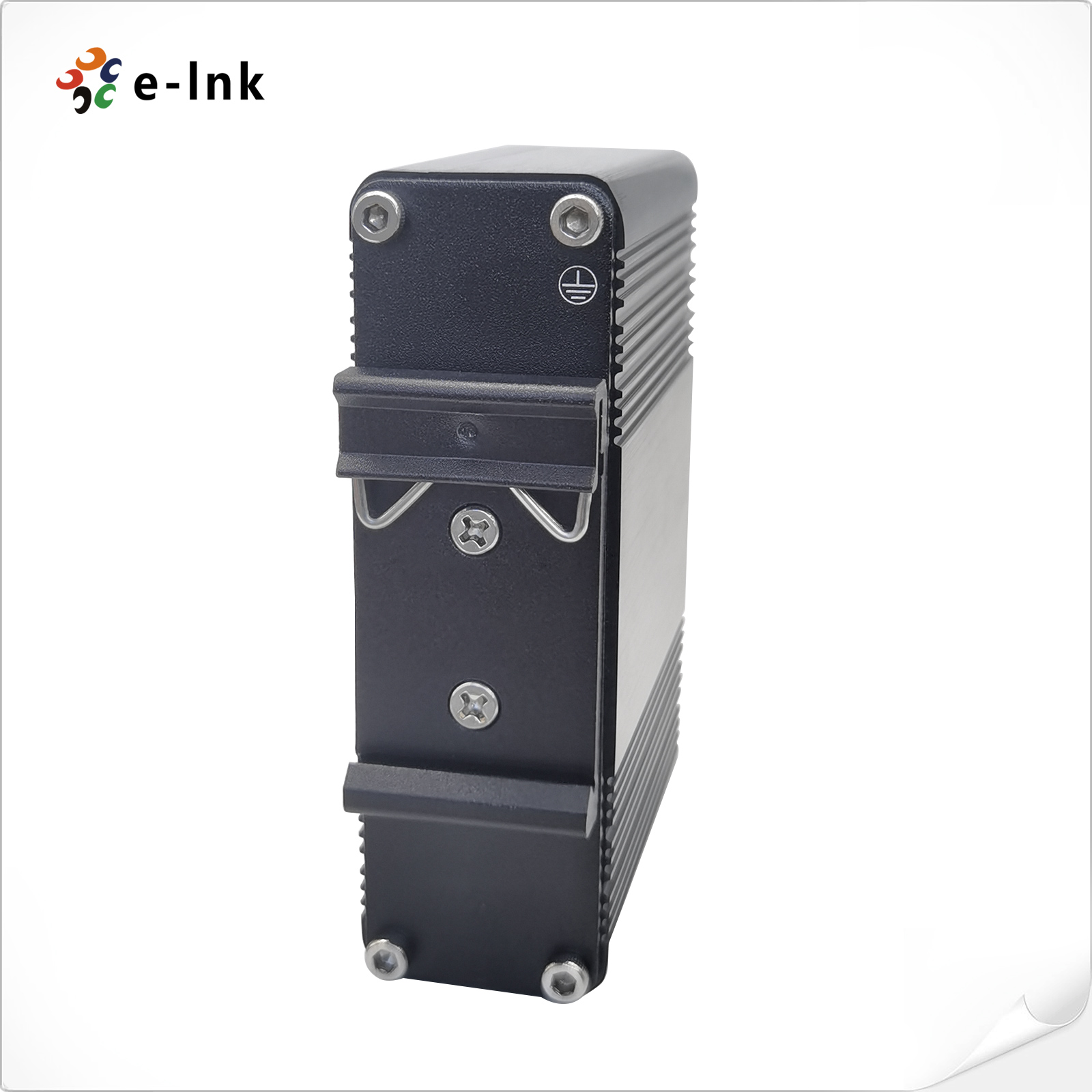

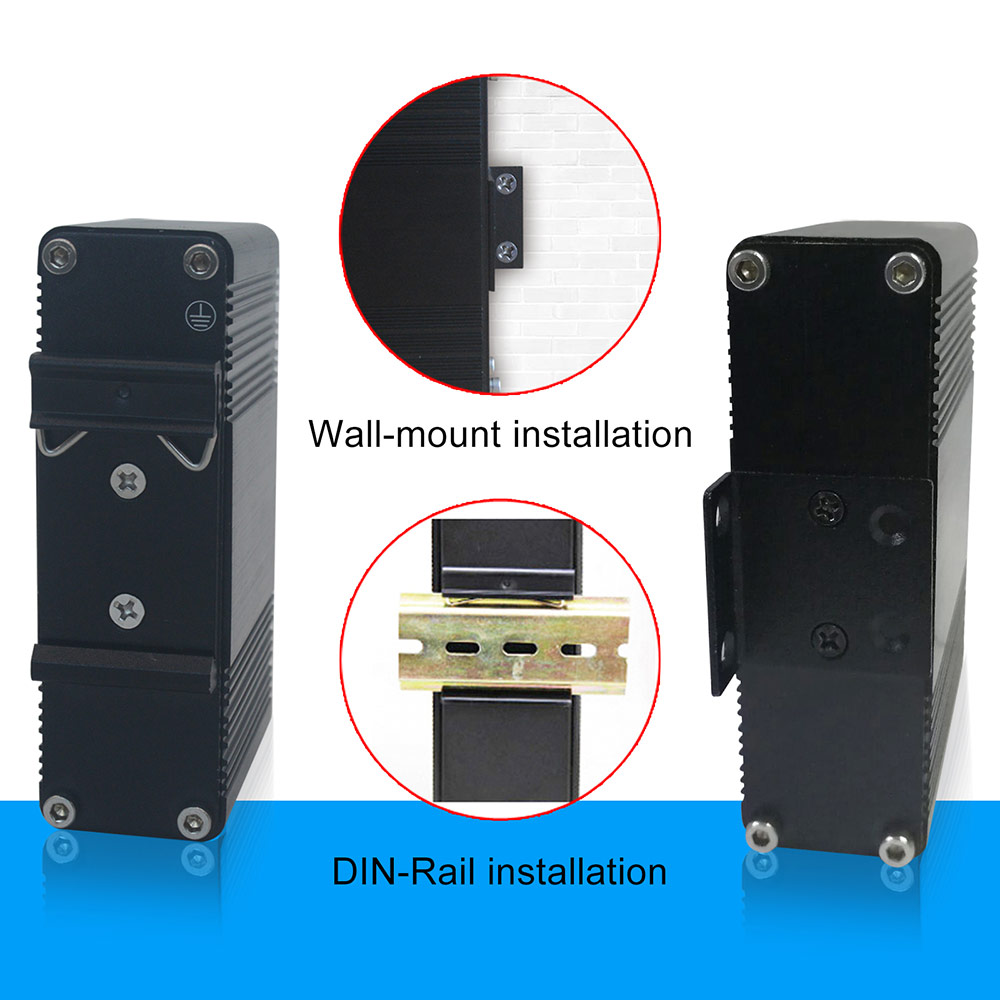

► Support DIN-Rail & Wall-mount installation.
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Application
Technical Indexes
Standards: |
IEEE802.3af Power over Ethernet |
IEEE802.3at Power over Ethernet |
|
Processing Type: |
Forward |
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Cabling: |
10/100/1000Base-T: Cat5 or above |
Maximum Distance: |
Cat5 UTP up to 100m |
Connector: |
2x RJ45 |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF: |
>200,000hrs |
Electrical and Mechanical |
|
Input Power: |
80~320VDC (Terminal Block) |
Power Consumption: |
36W Max. |
PoE (Power over Ethernet) |
|
Standard: |
IEEE802.3af/at |
Port: |
RJ45 |
Power Pin Assignment |
4/5(+), 7/8(-) |
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
LED Indicators: |
|
Power: |
Power Status |
PoE: |
PoE Status |

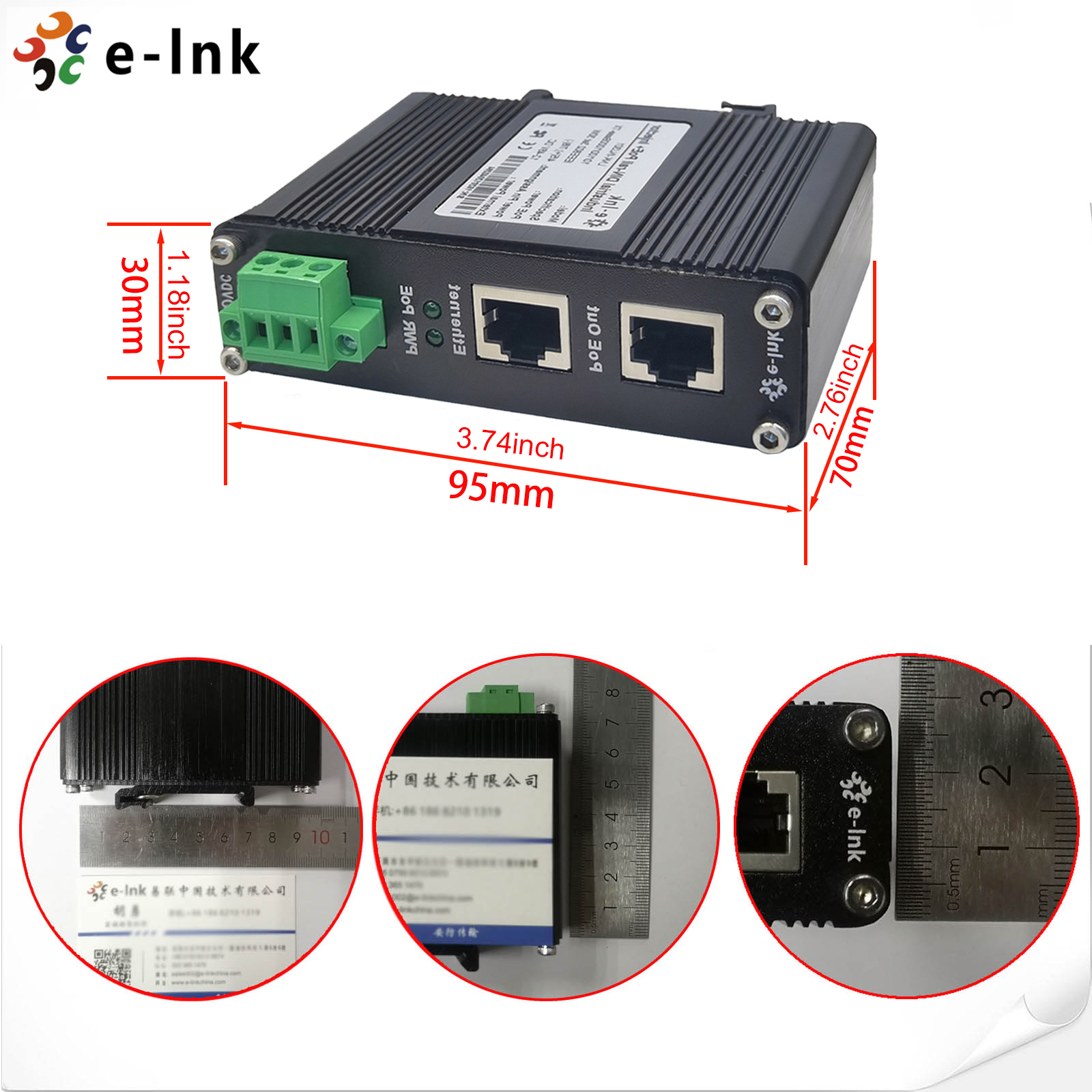

Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Regulatory Approvals |
|
ISO9001 |
|
FCC part 15, Class A |
|
EN55022:2006+A1: 2007 Class A |
|
Surge Protection: |
|
RJ45: 1KV |
|
Power: 500W |
|
ESD: 4KV/8KV |
Order Information
Model |
Description |
LNK-INJ832 |
80~320VDC Power Input Industrial Gigabit PoE+ Injector |
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included |
Power Options |
► Power Supply is to be purchased separately |
