Overview

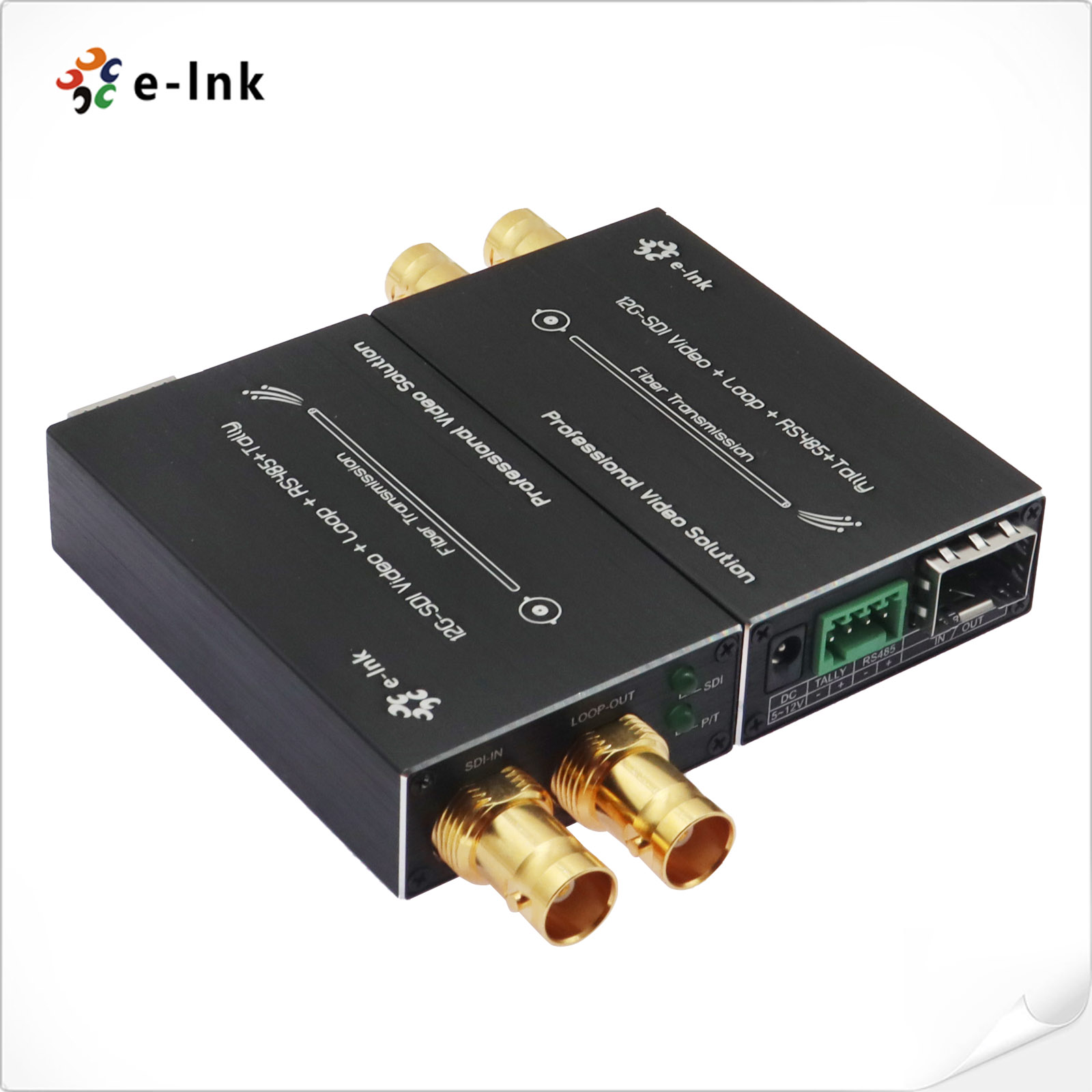

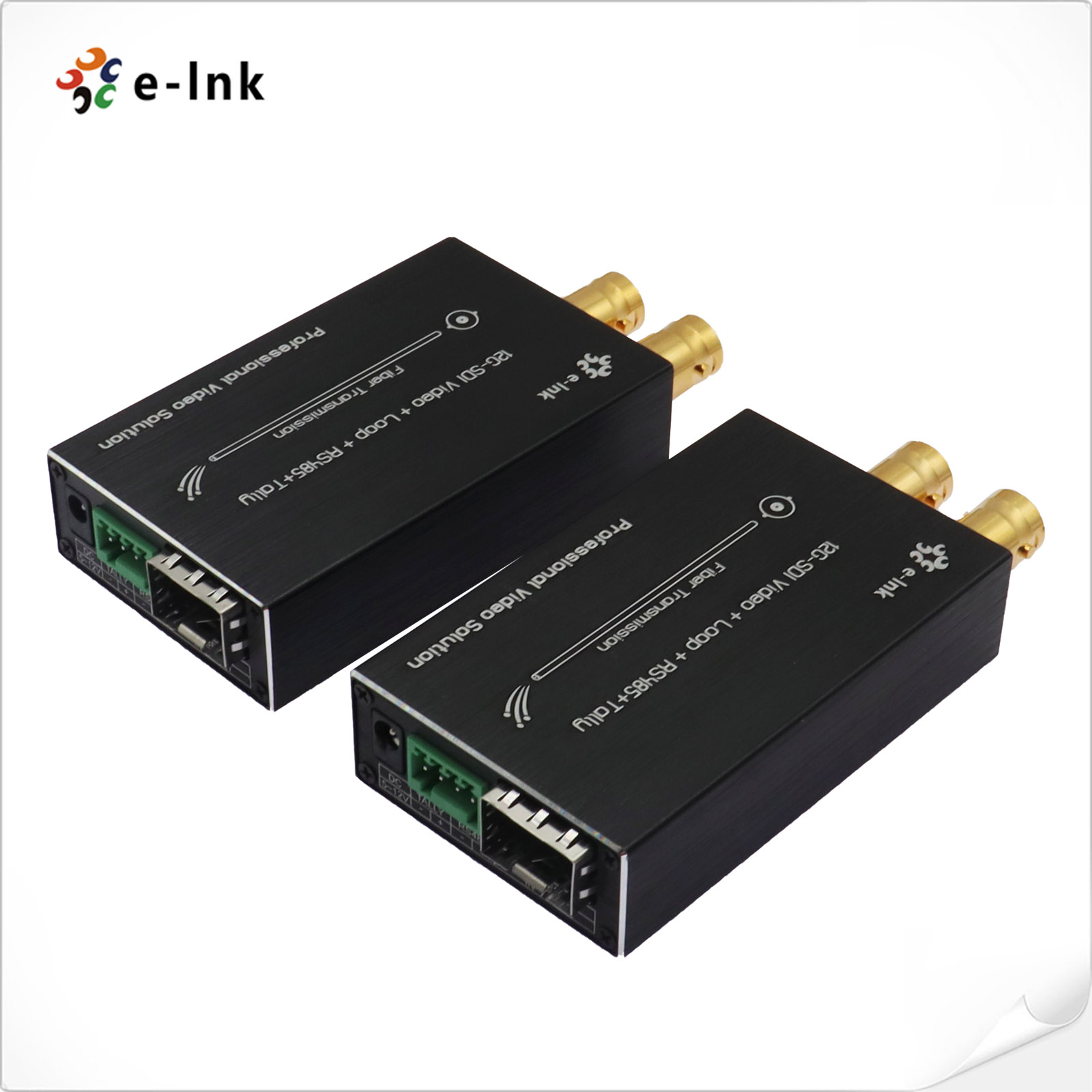

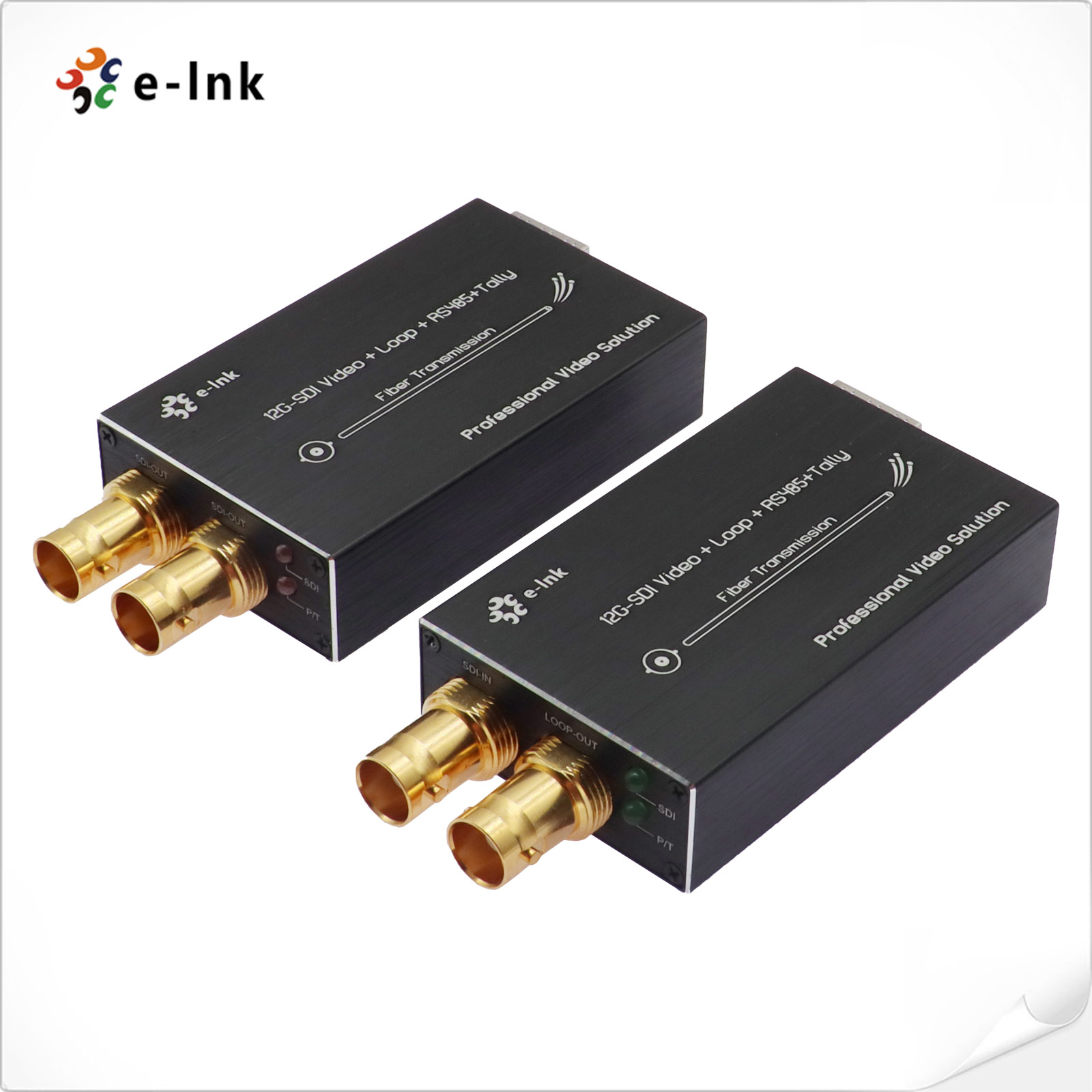

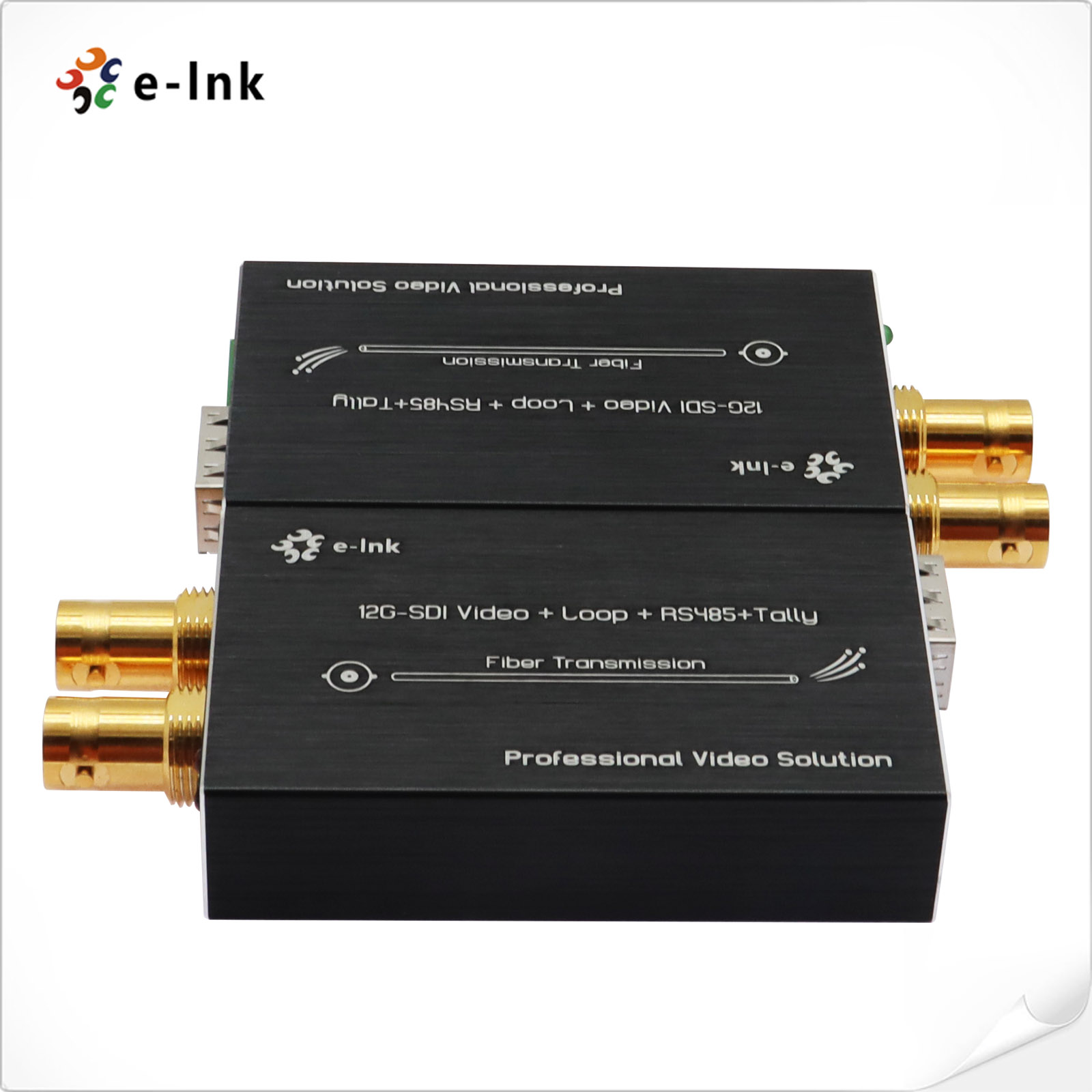

LNK-M12G-1FV1BV Series Mini-type 12G-SDI Fiber Converter supports 1Ch Forward 12G-SDI Video and 1Ch Backward 12G-SDI Video transmitted via fiber optical cable. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P，1080I, 720P. The 12G-SDI Fiber Converter supports transmission of up to 12 Gbps of digital video within television broadcasting facilities and between professional video equipment.

Feature

►   Each SDI channel includes 8-channel audio embedded

►   Automatic cable equalization to ensure signal integrity

►   Supports ST-2082-1(12G),ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

►   Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

►   Directly compatible with 12G/6G/3G-SDI camera systems

►   Long transmission capability at least 10km (6.2miles) , up to 80km

►   Terminal block power input for industrial application

►   Supports hot swapping and hot plugging

►   Full digital non-compression broadcast level transmission;

►   Super optic dynamic range and free of adjustment;

►   Fiber optic WDM/CWDM/DWDM technique;

►   Supports 4K*2K(3840*2160@60Hz), 1080P, 1080I, 720P.

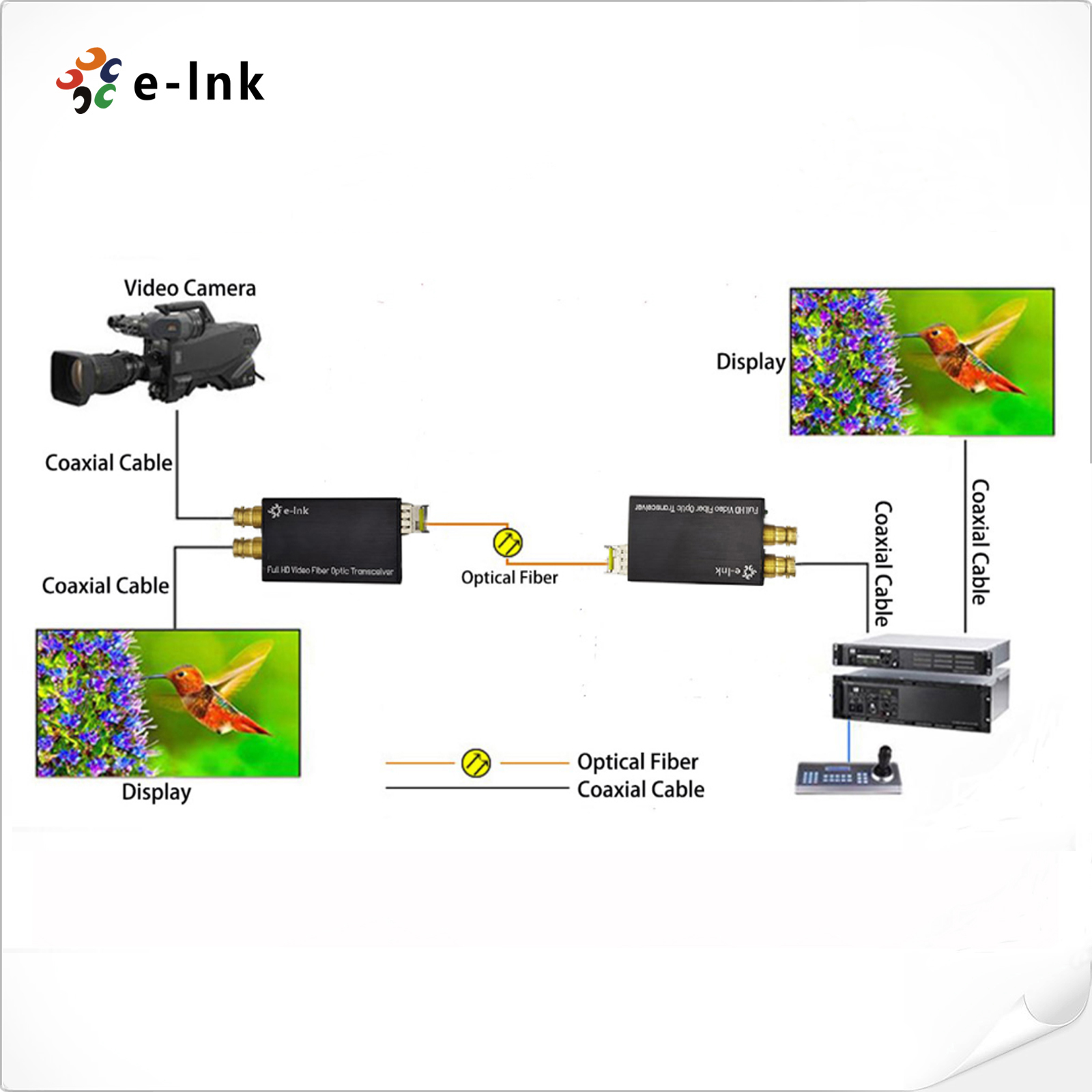

Application

►   Video production

►   Broadcasting

►   Camcorder

►   Studio-to-studio

►   Post-production

►   Live events

►   Medical imaging displays

►   Mobile video

►   24G/12G/6G/3G/HD/SD-SDI routing

►   24G/12G/6G/3G/HD/SD-SDI CCTV

Specification

• Download FileName：E-link LNK-M12G-1FV1BV-20 Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter Datasheet V1.0. Size： 1.89MB

Order Information
